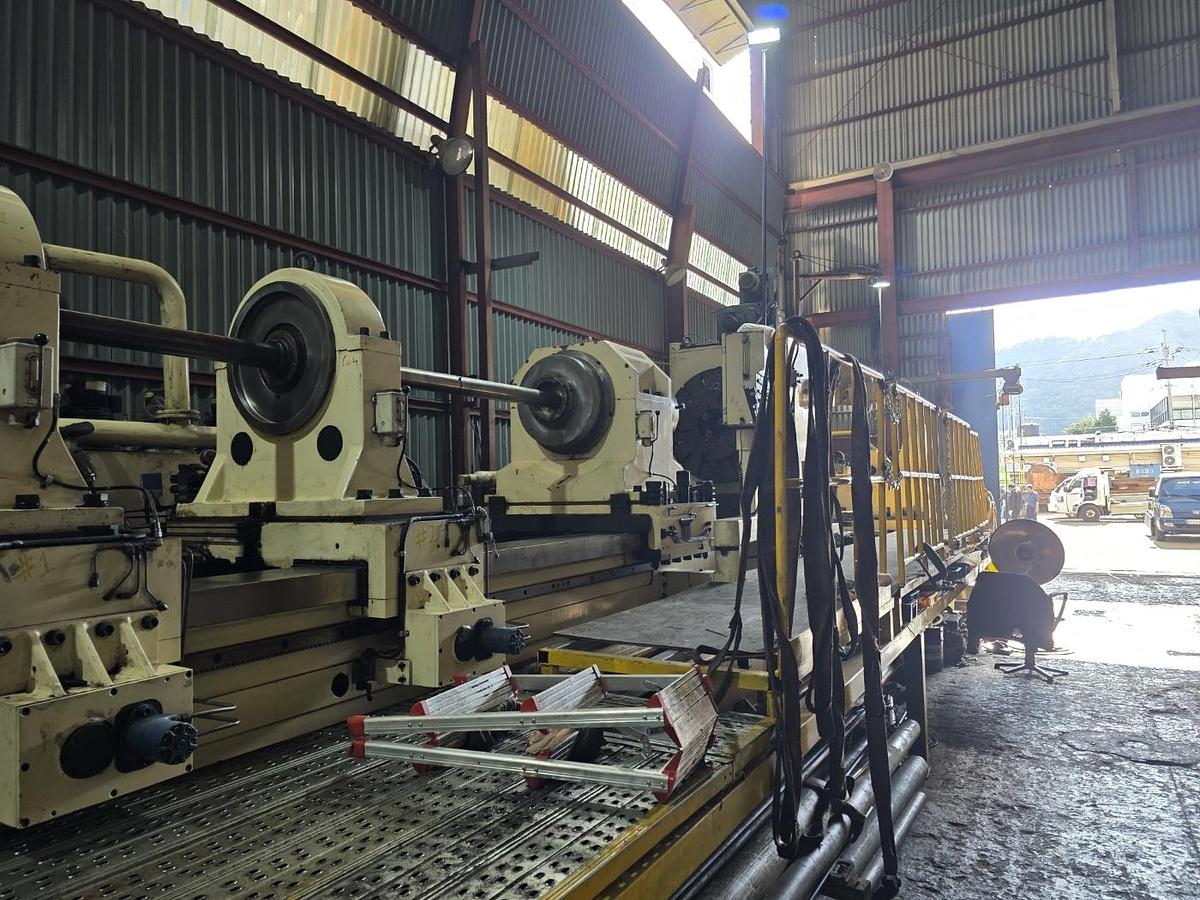

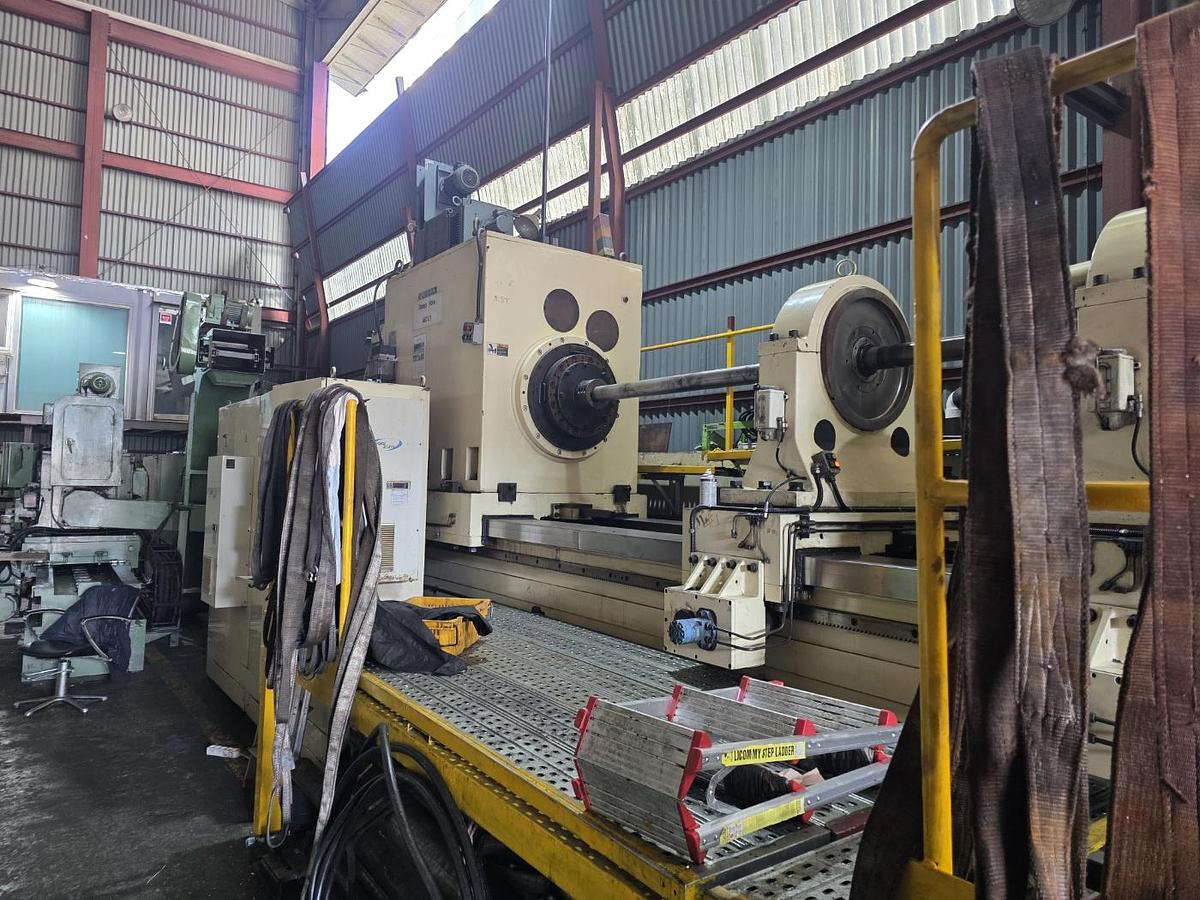

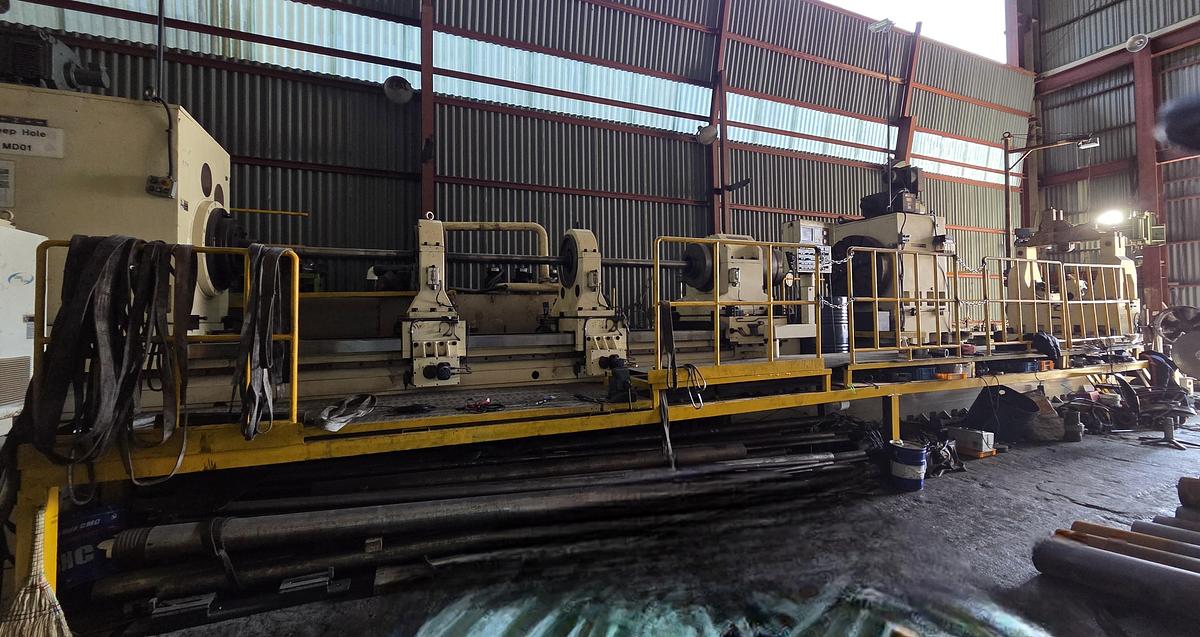

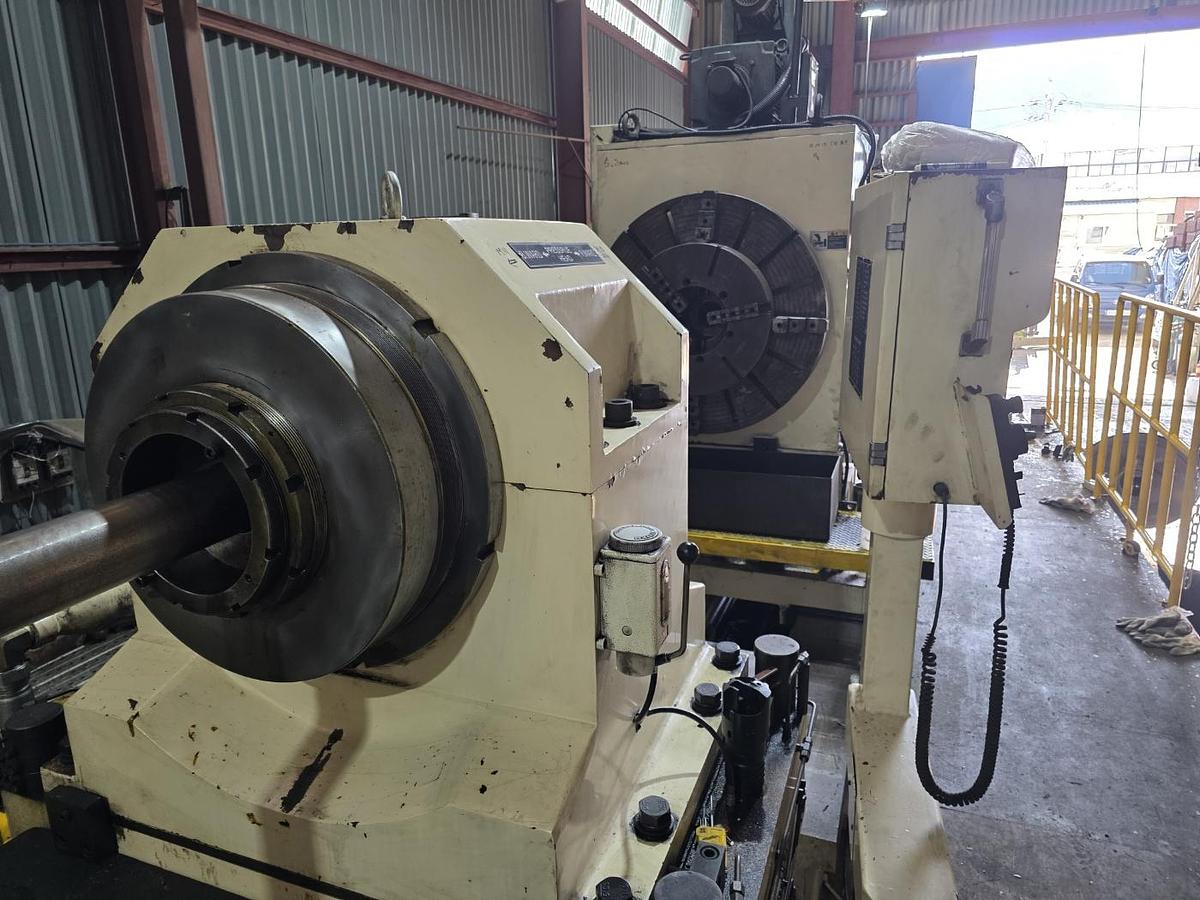

Shinil STL 300/500 - 6000 CNC Depp Hole Drilling Machine
Shinil STL 300/500 - 6000 CNC Depp Hole Drilling Machine
or
Call 770-509-0744
Description

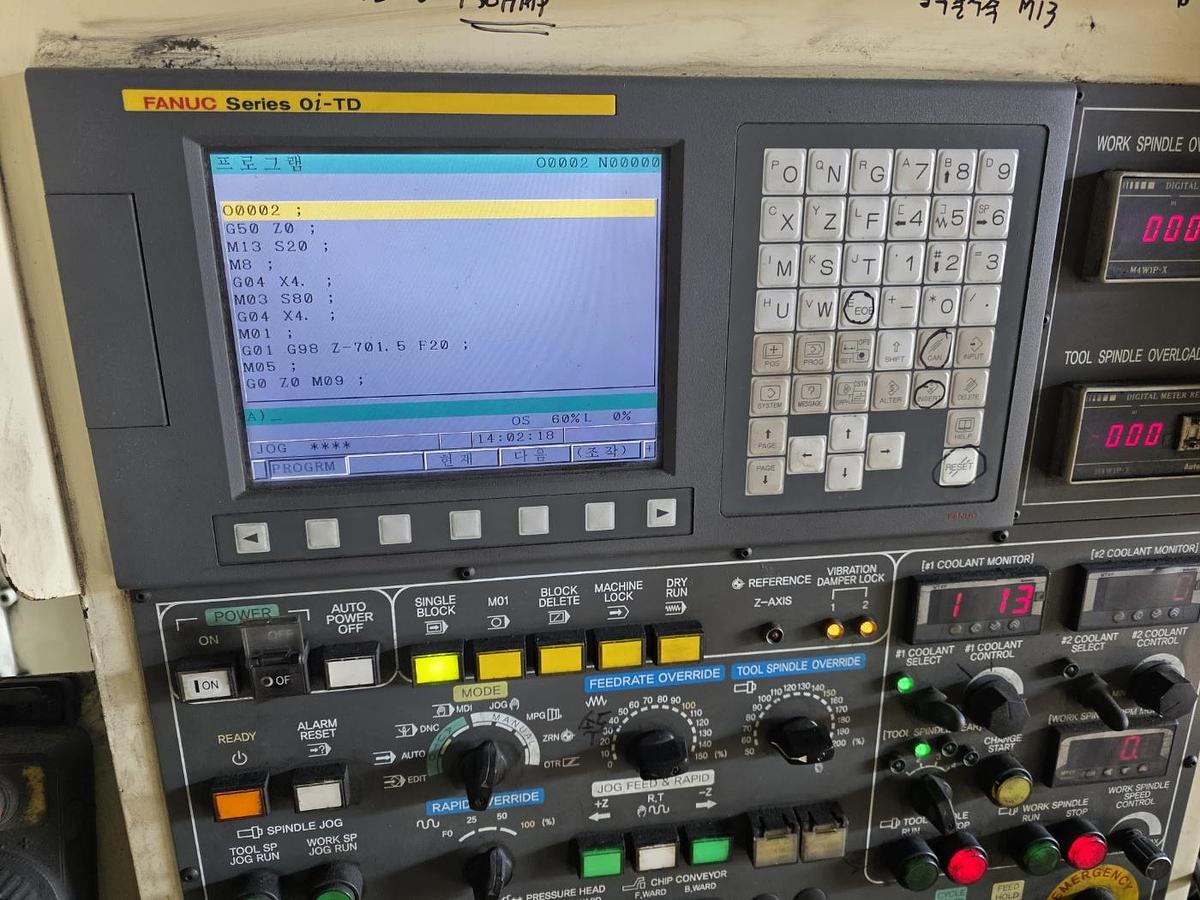

Fanuc Oi -TD CNC Control
Tool holder spindle revolution:
- 1st step 500 ~ 50 rpm
- 2nd step 250 ~ 25 rpm
- 3rd step 166 ~ 16.6 rpm
- 4th step 83.3 ~ 8.3 rpm
Control Axis - Z-Axis
Work Spindle Motor Revolution Control - NC
Tool Spindle Motor Revolution Control - NC
Tool Spindle Motor Revolution Control - NC
Coolant Pump Revolution Center - Inverter
Specifications
| Manufacturer | Shinil |
| Model | STL 300/500 - 6000 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 5654349 |
| Solid drilling diameter | 50 - 200 mm |
| Counter boring, max | 500 mm |
| Trepanning, max | 500 mm |
| Drilling depth, max | 6,000 mm |
| Swing of roller rest | 400 - 1,000 mm |
| Head stock speed | 5 - 30 rpm |
| Tool holder spindle speed, 4 step | 8.3 - 500 rpm |
| Z axis full stroke (tool free) | 6,000 mm |
| Work spindle max stroke | 4,000 mm |
| Z axis rapid feed | 5,000 mm/min |
| Z axis cutting feed | 0 - 1,000 mm/min |
| Total power | 335 kW |
| Power source | AC 440V / 60 Hz |
| Floor space | 23,000 x 5,000 mm |
| Machine weight | 85,000 kg |
