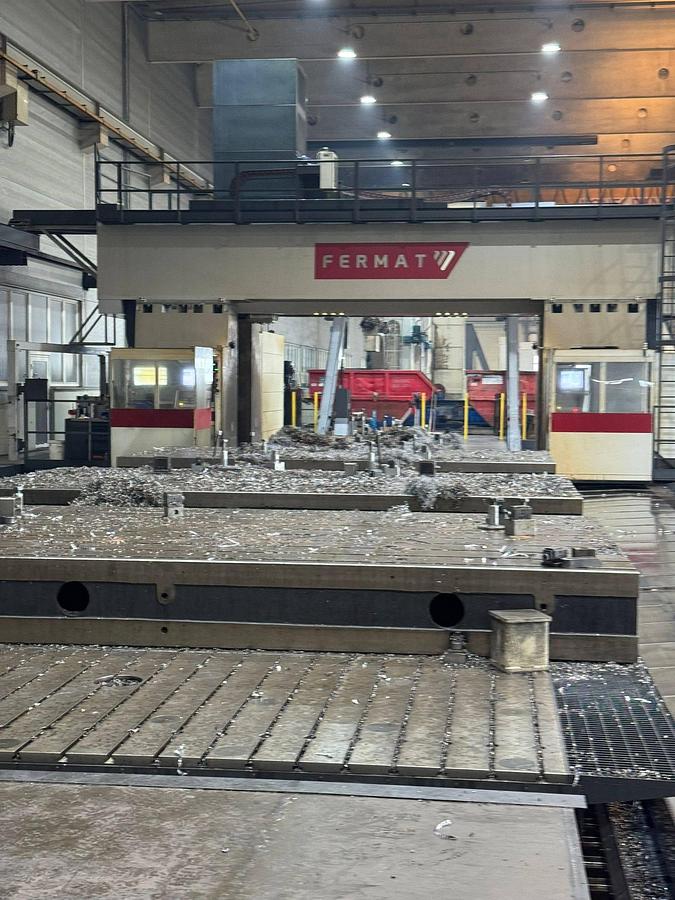

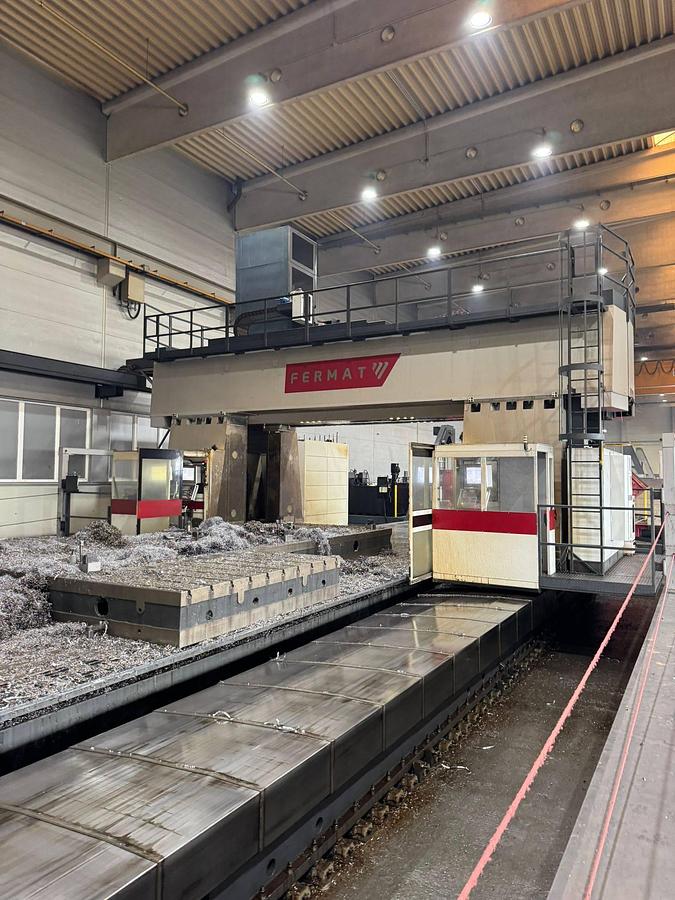

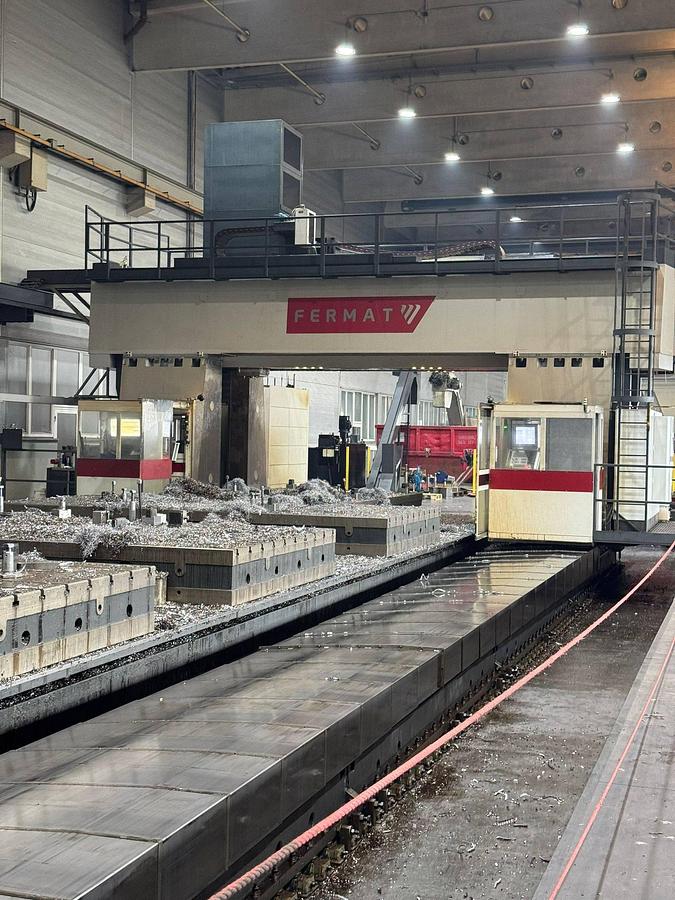

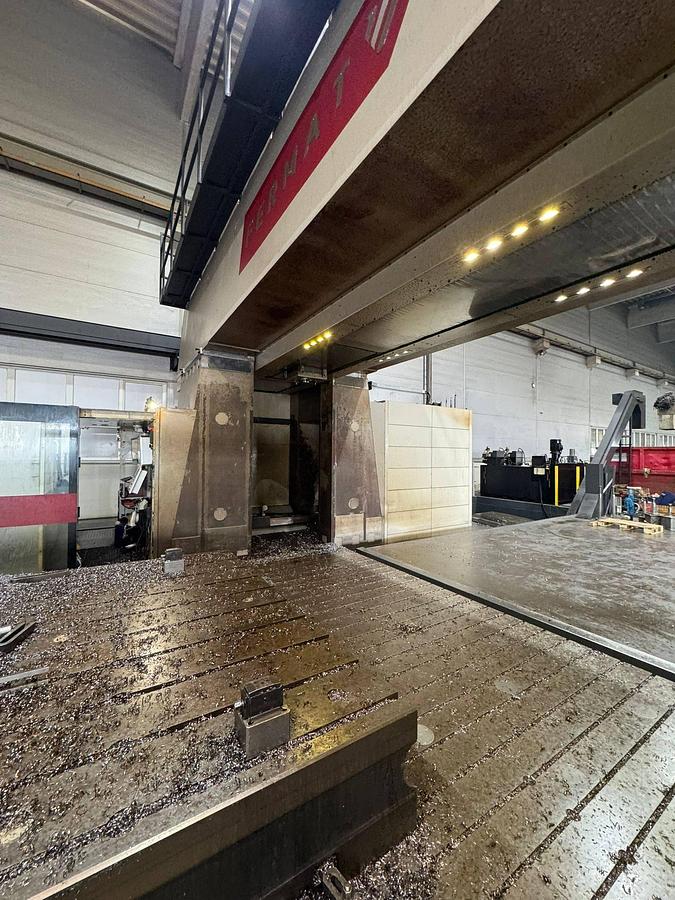

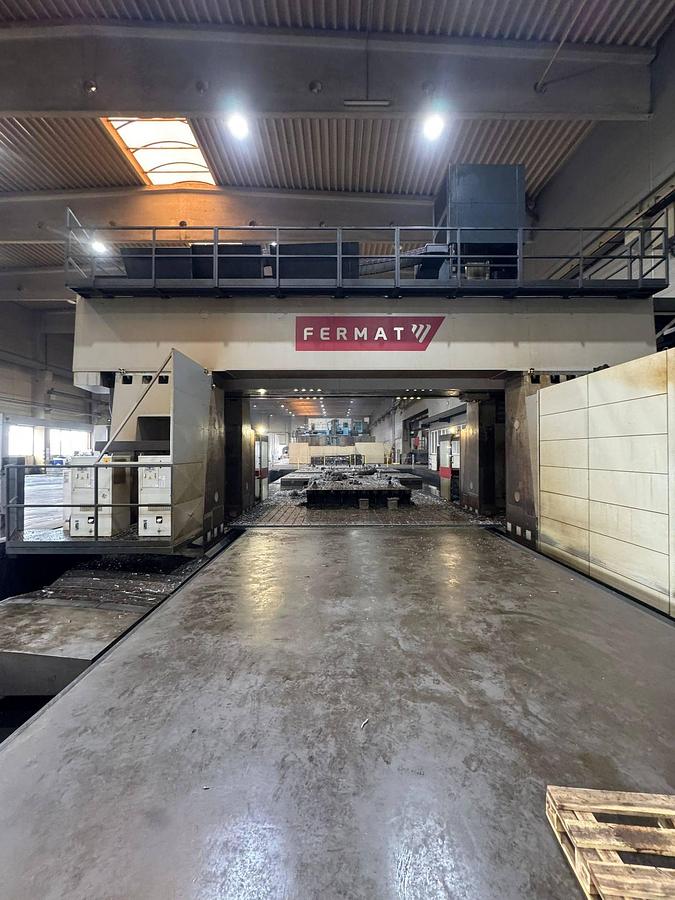

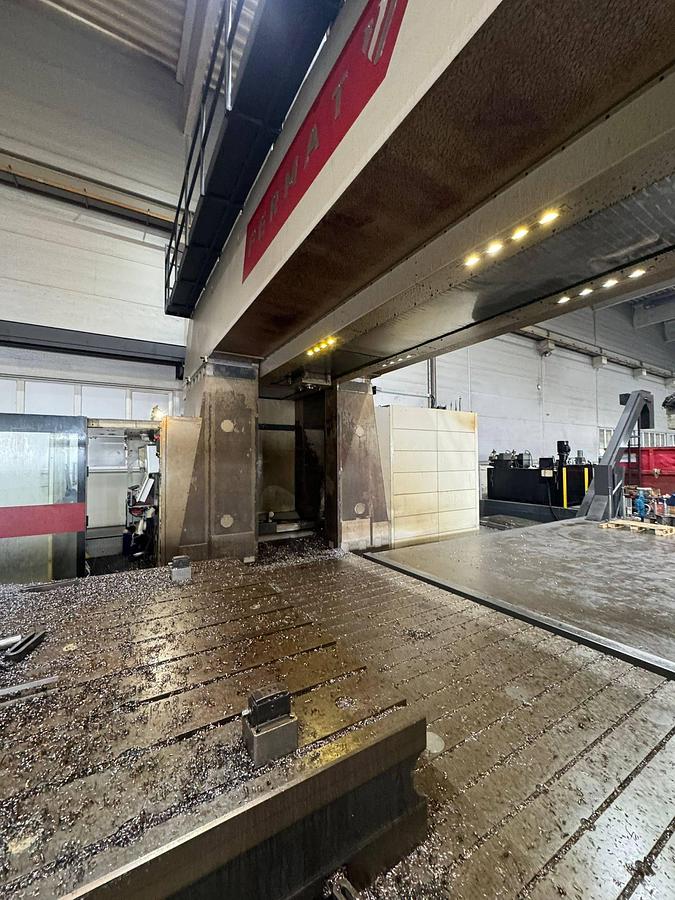

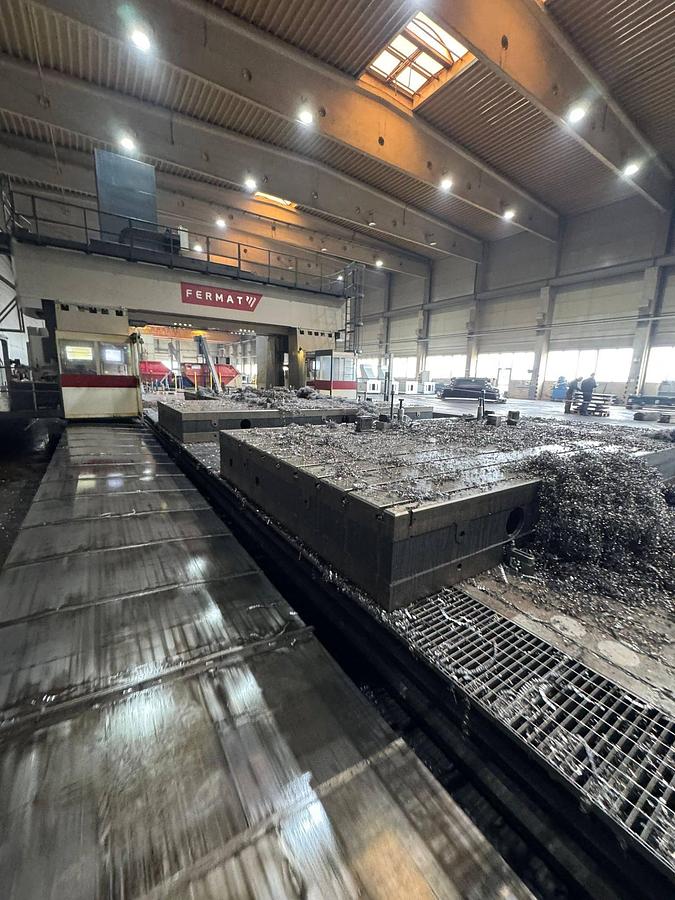

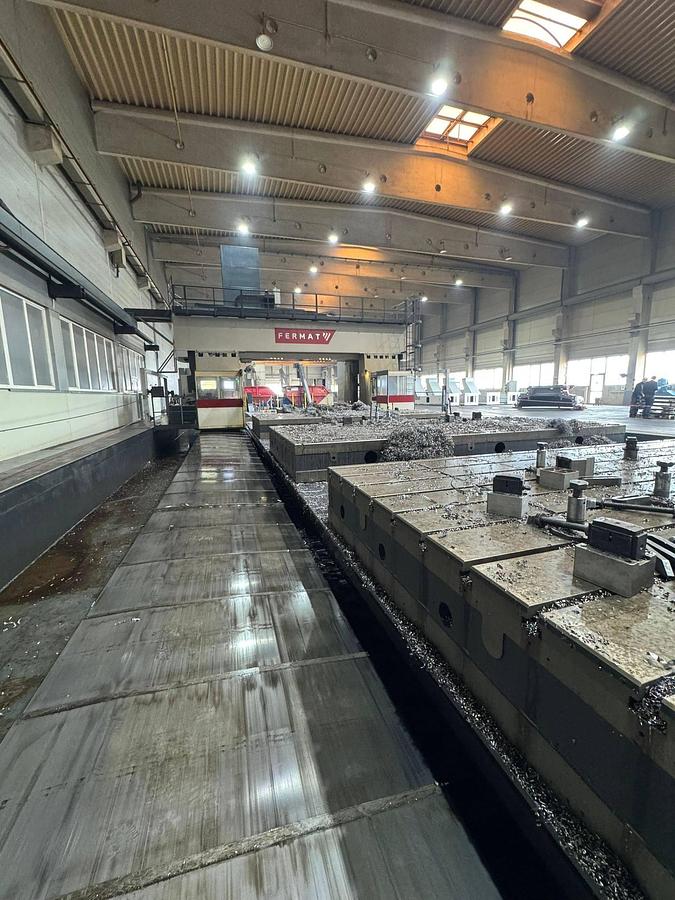

Fermat CNC Double Column Heavy-Duty Gantry Type Milling Machine

Fermat CNC Double Column Heavy-Duty Gantry Type Milling Machine

or
Call 770-509-0744

Description

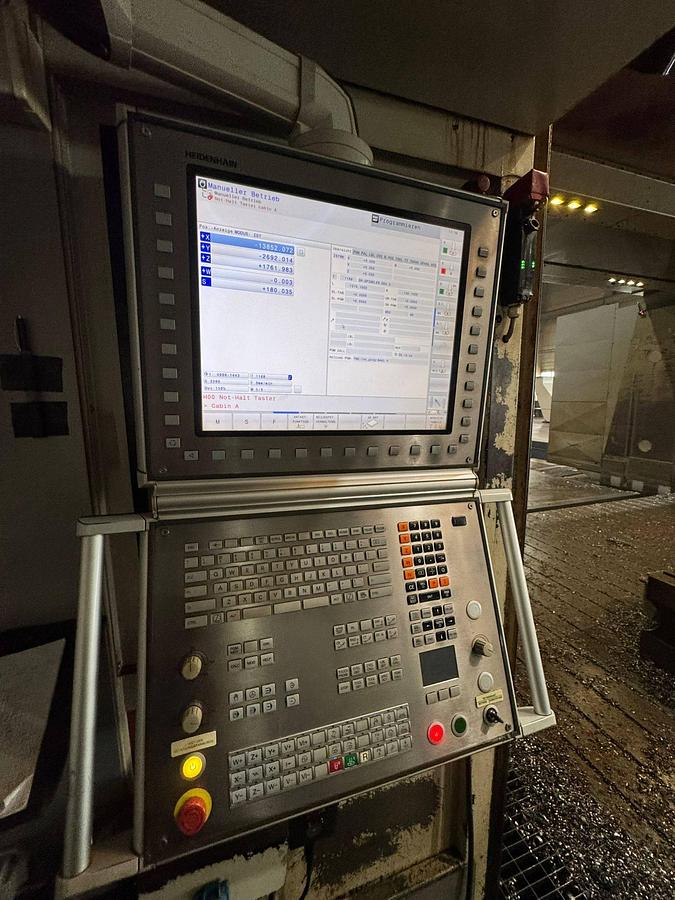

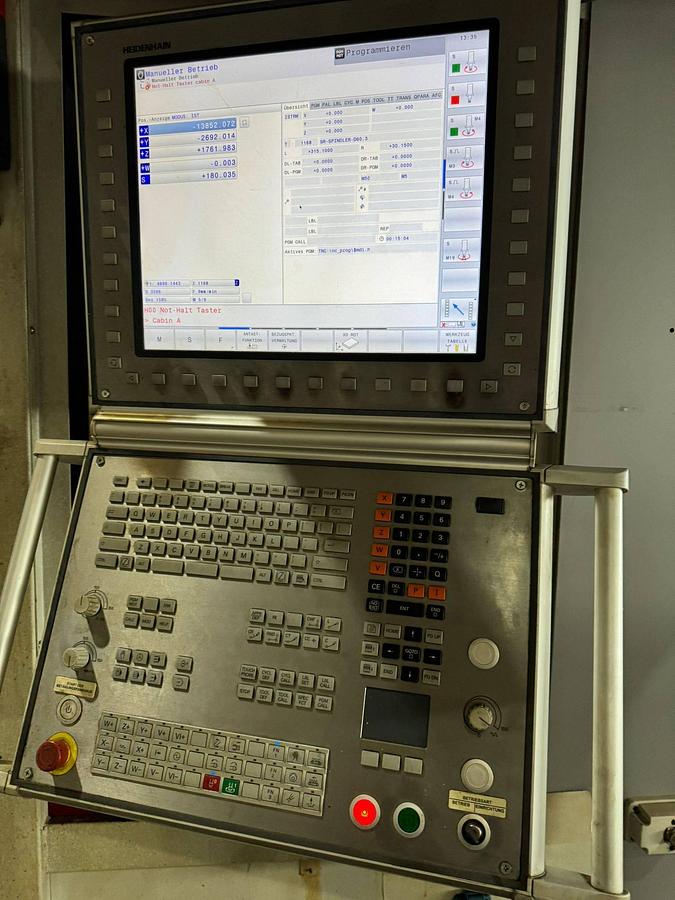

  • Heidenhain TNC 640 Control System
  • 140 Position Automatic Tool Changer with Kuka Robooter
  • Tool Cooling - High pressure 50 bar (6,000 liters)
  • Linear Measurement
  • Remote Diagnostics

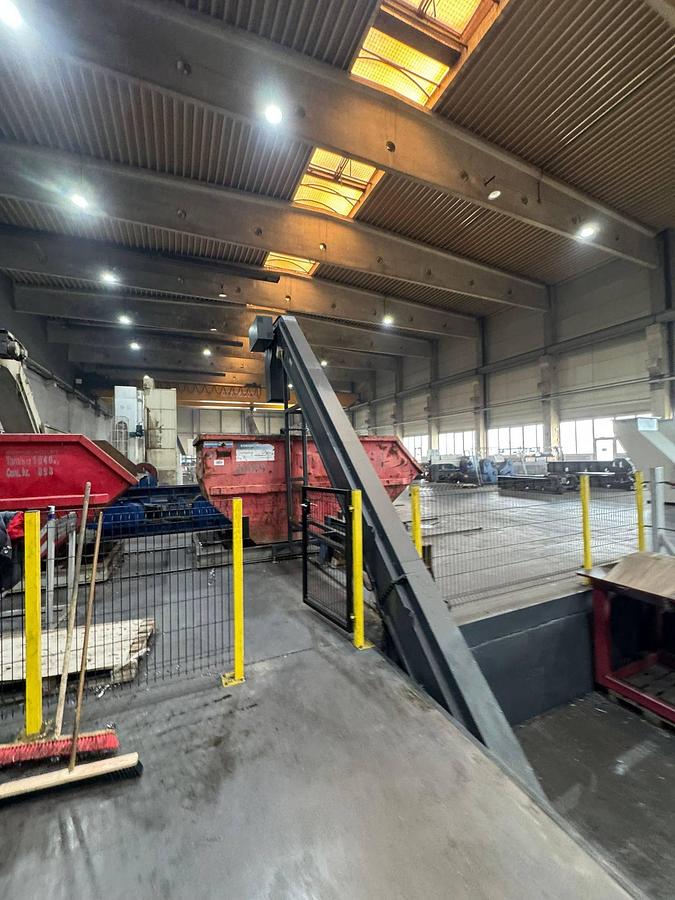

  • Chip conveyor

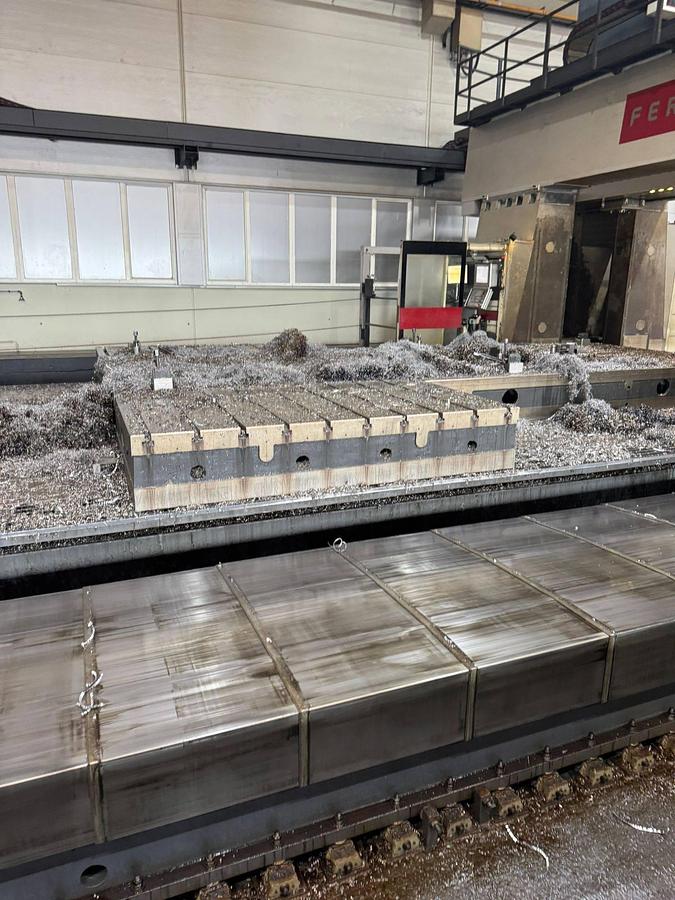

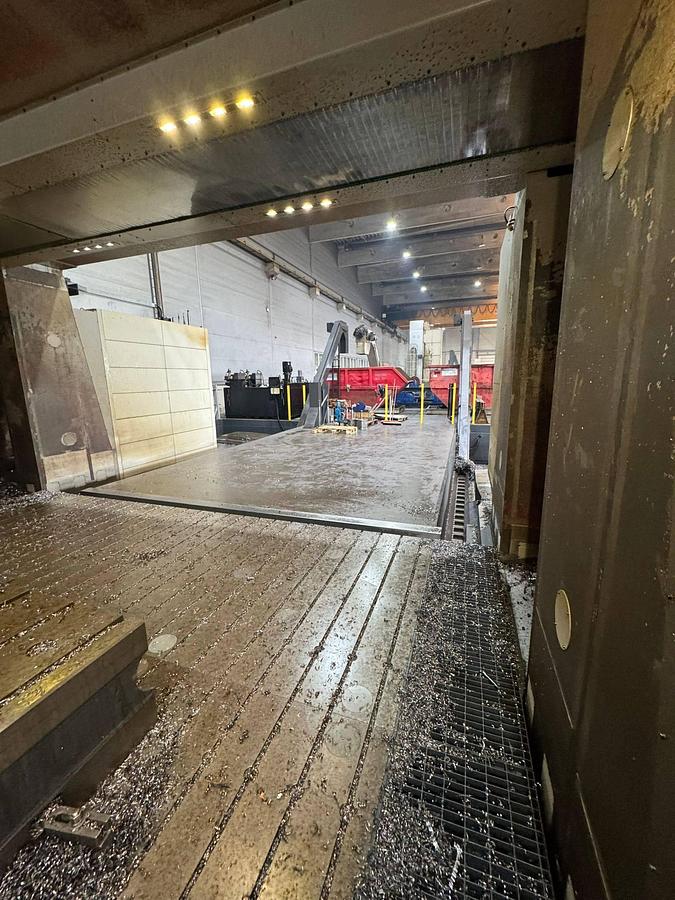

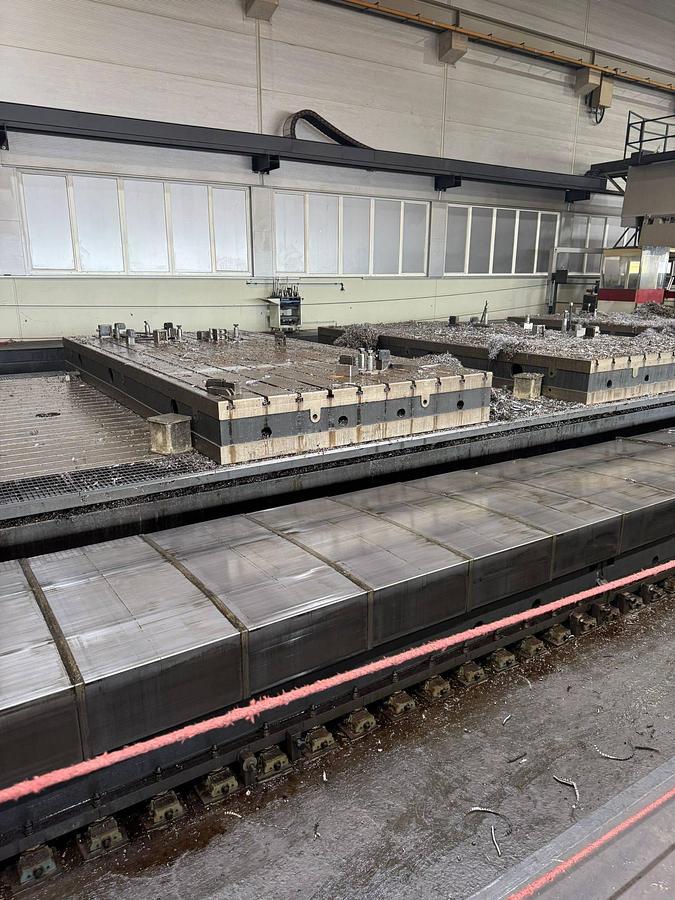

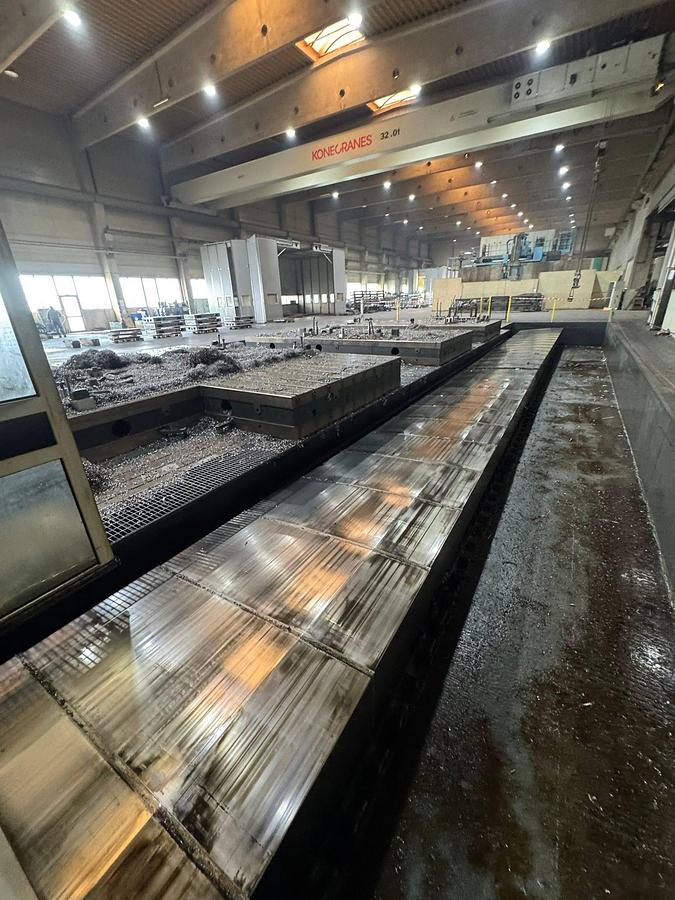

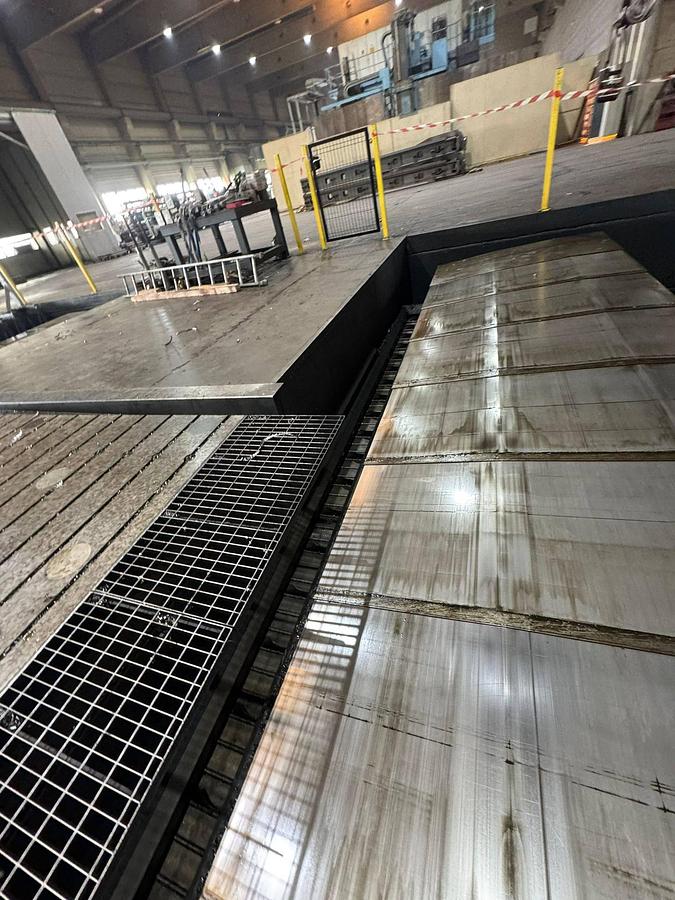

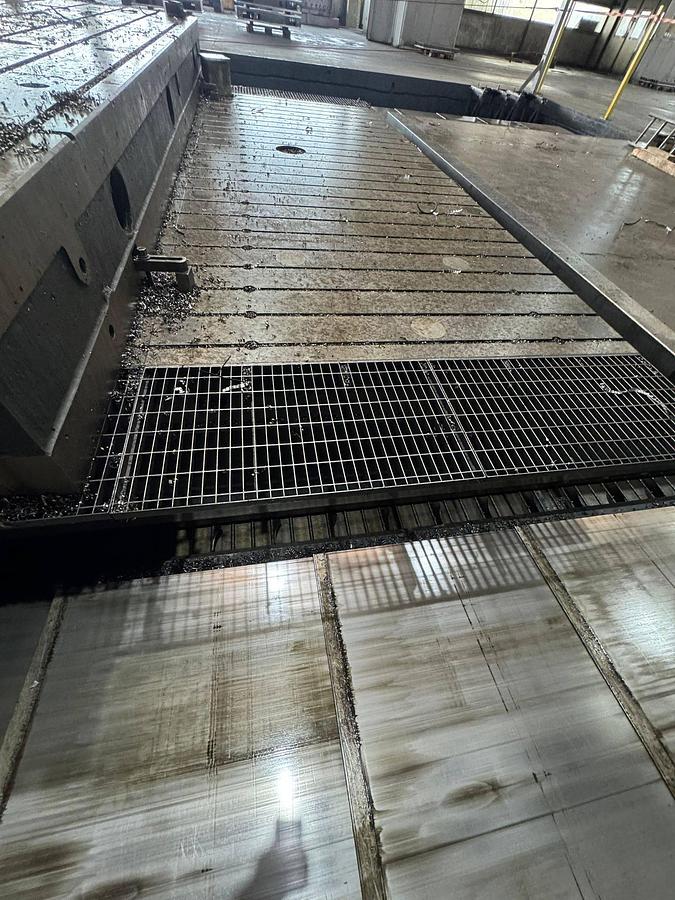

  • Floor Plates size (Lx W) 20,000 x 5,000 x 300 mm

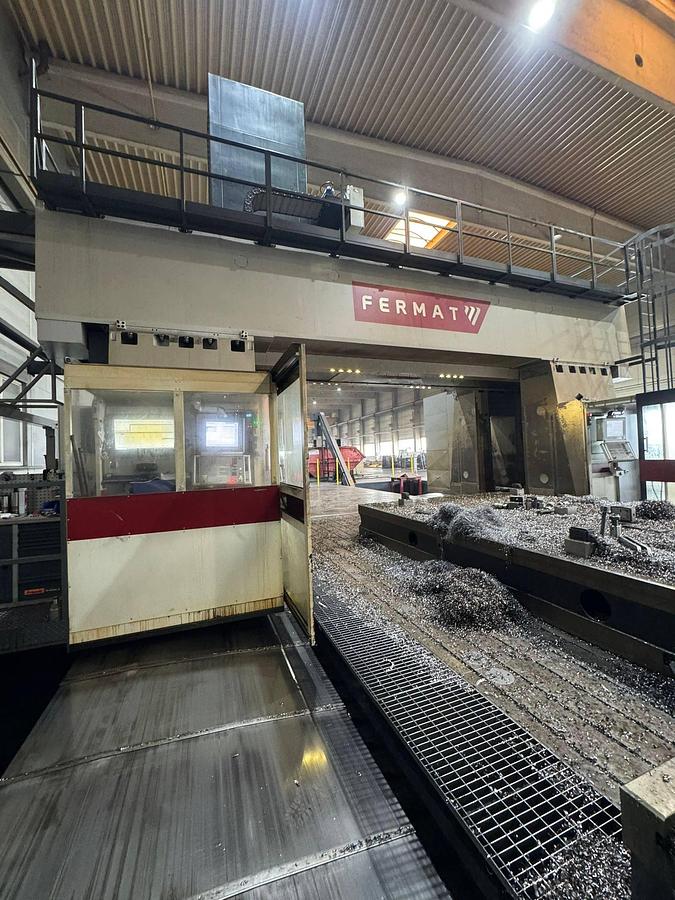

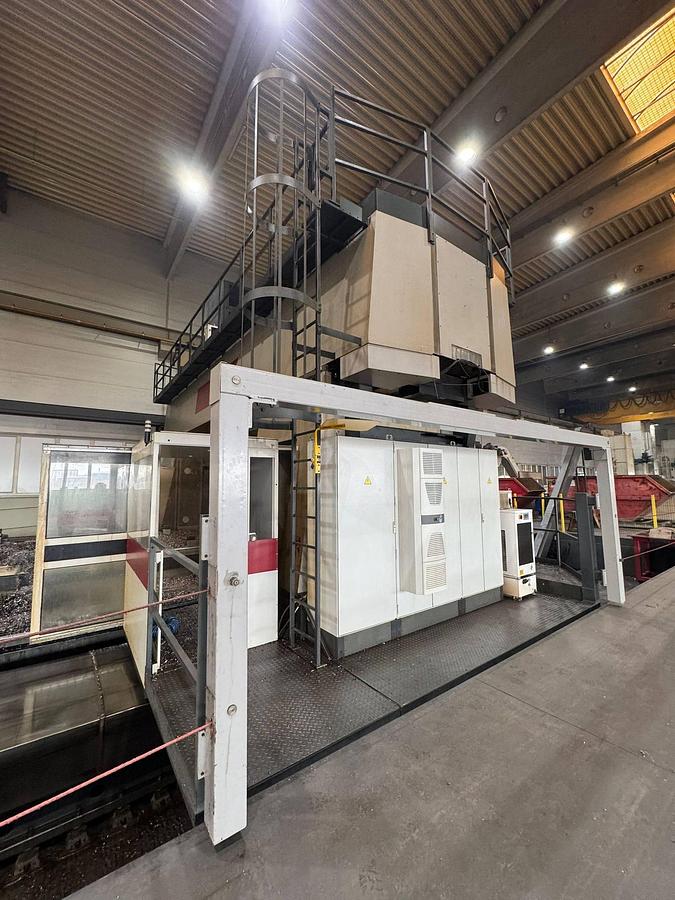

  • 2- Operator Cabins Enclosure / Protective Screens

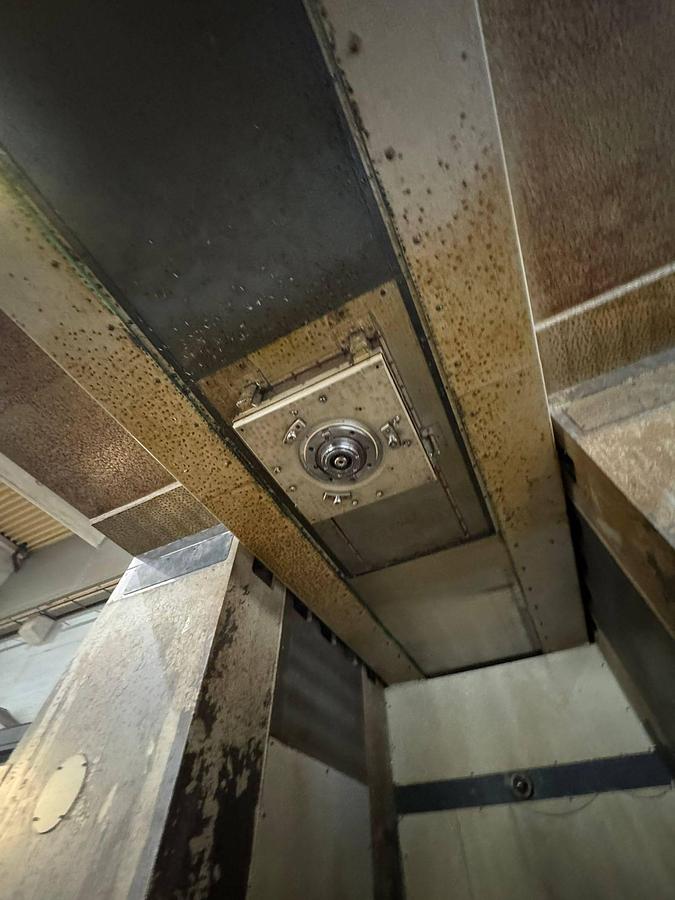

  • 2 x Type UHA Universal Automatic Micro Indexing Milling Heads

Fully Automatic (attached to the Headstock, Tool Clamping, Positioning, Lubrication)

  • Positioned by the means of 1x1 Servomotors for faster positioning

Spindle Speed 10 - 4000 rpm

Indexing +/- 180 by 0,001 degrees

Spindle Taper HSK 100

Specifications

ManufacturerFermat
Year2018
ConditionUsed
Stock Number5654348
Between columns6,500 mm
Spindle speeds4,000 rpm
Machining height3,000 mm
X axis travel20,000 mm
Y axis travel7,800 mm
Z axis travel2,000 mm
Floor plate dimensions20,000 x 5,000 x 300 mm
Max torque3294 Nm
Power capacity74 kW
Spindle taperHSK 100
Rapid traverse X/Y/Z40,000 m/min
