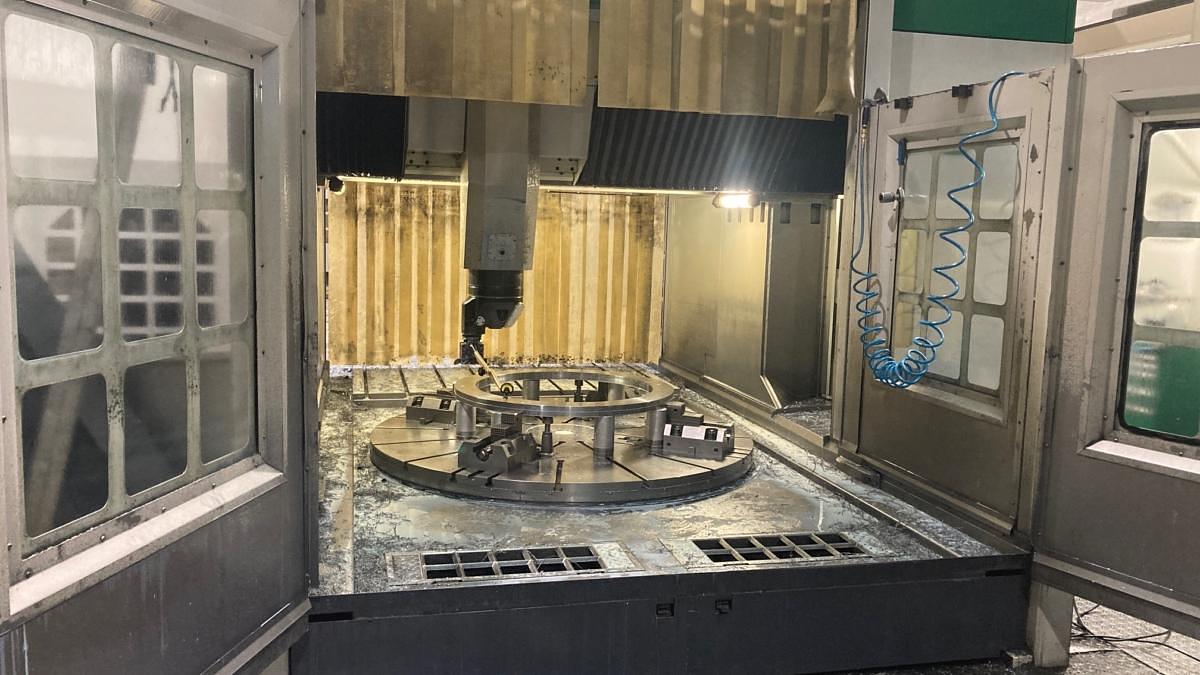

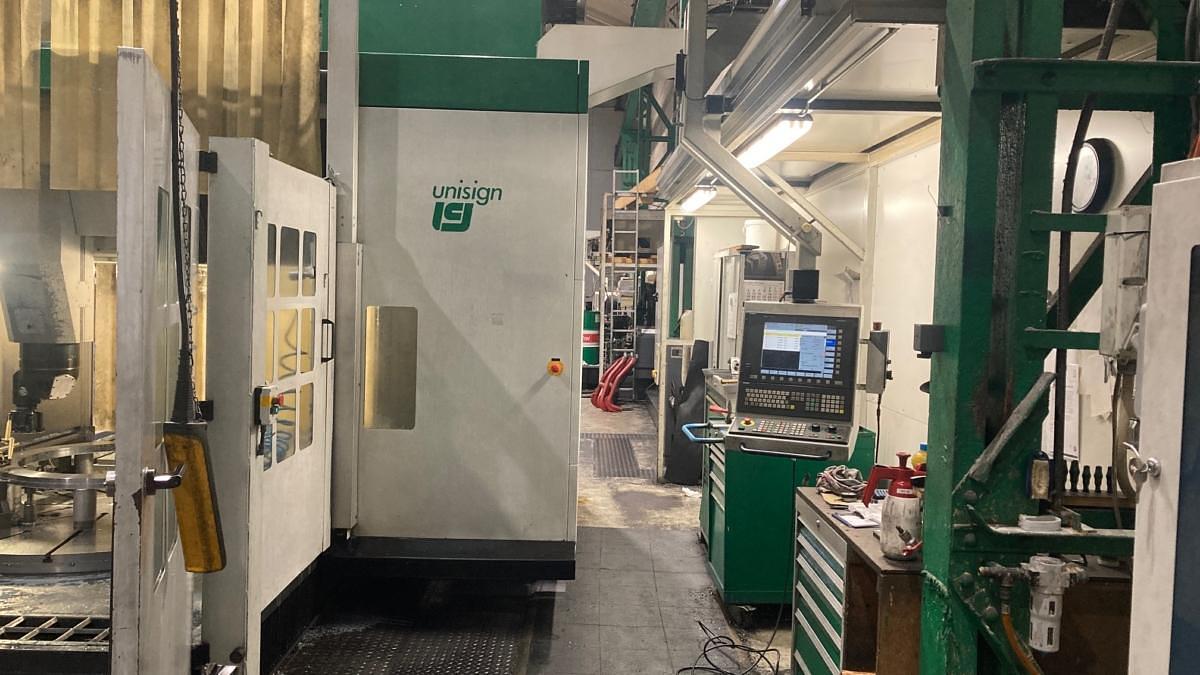

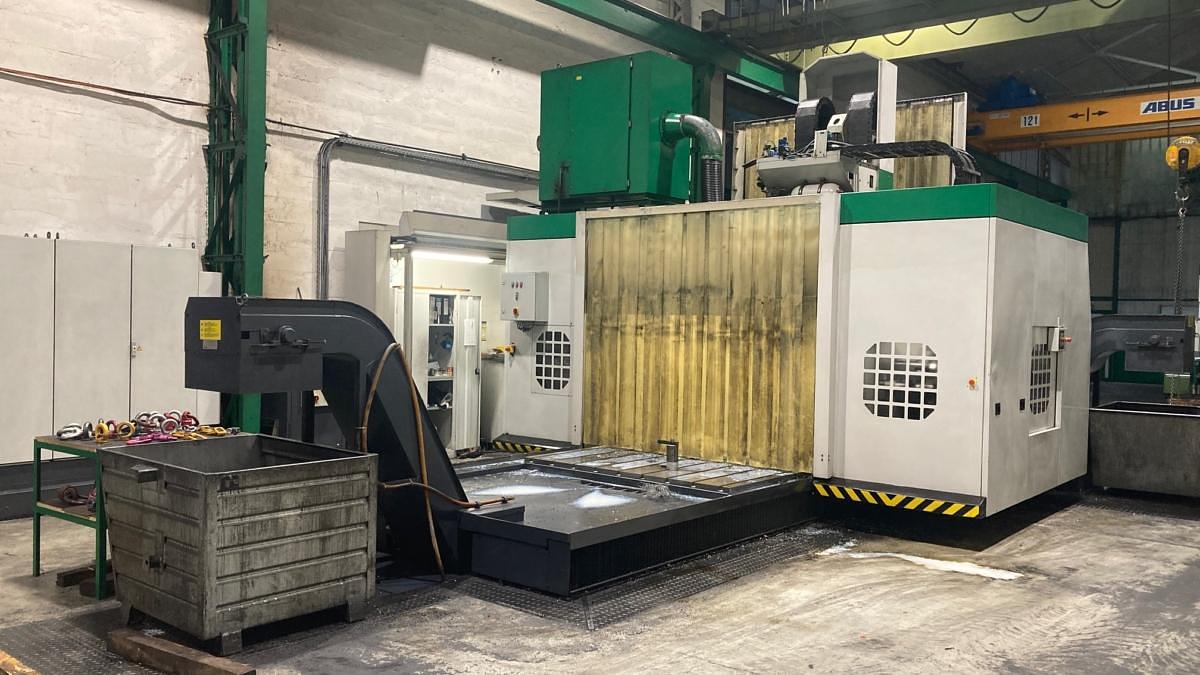

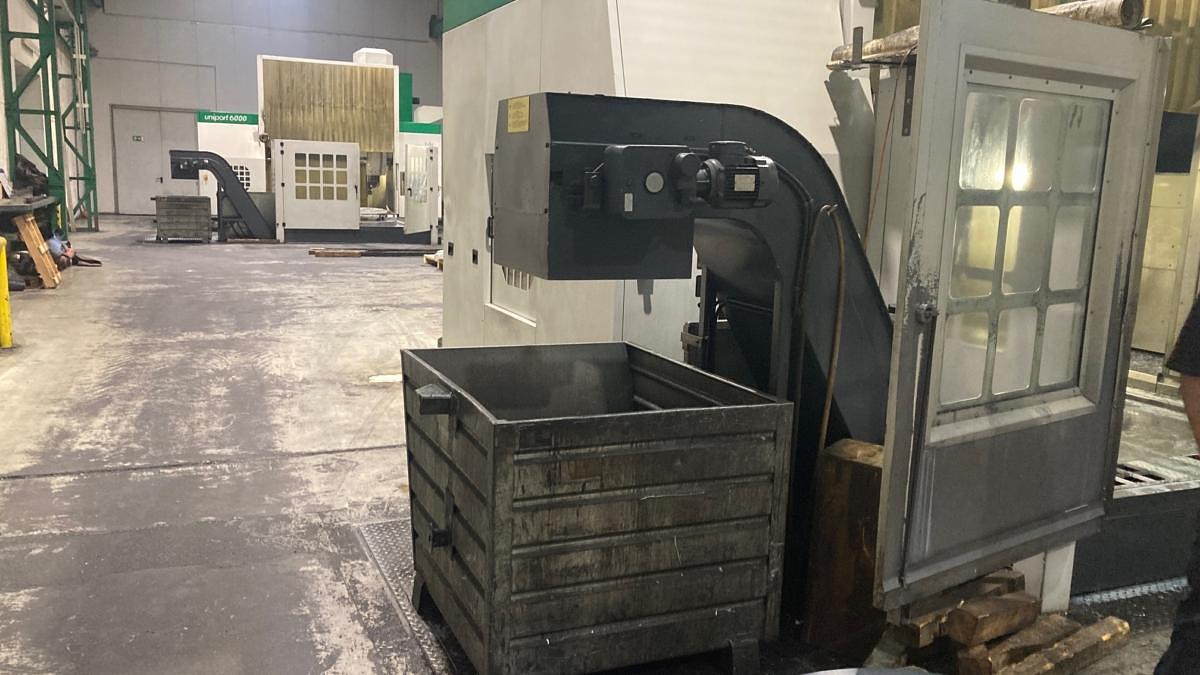

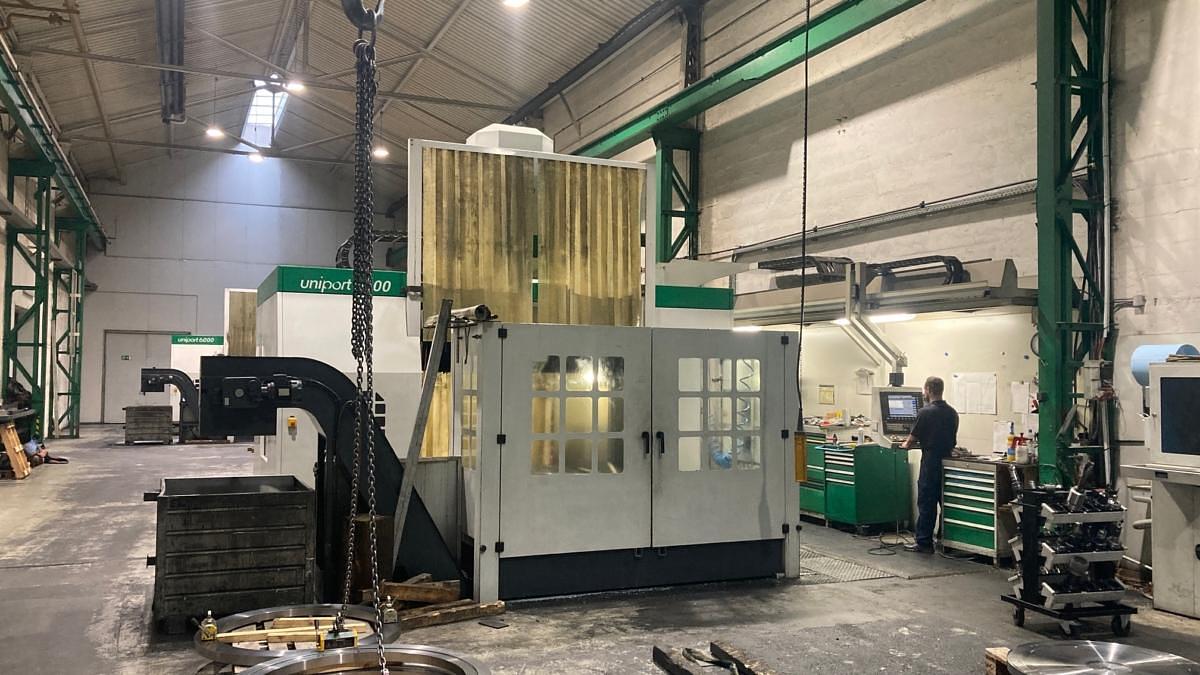

Unisign Uniport 6000 CNC 5-Sided Machining Double Column Gantry Mill with Vertical Turning & Boring
Unisign Uniport 6000 CNC 5-Sided Machining Double Column Gantry Mill with Vertical Turning & Boring
or
Call 770-509-0744
Description
Siemens SINUMERIK 840D CNC Control
Gantry Milling Machine with Carousel Rotary Table
Head change station
30 Position Tool changer
2,000 mm diameter rotary table for turning operations
Specifications
| Manufacturer | Unisign |
| Model | Uniport 6000 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 5654346 |
| Distance between columns | 2,500 mm |
| Rotary table diameter | 2,000 mm |
| Turning diameter | 2,500 mm |
| Rotary table capacity | 10 Ton |
| Torque | 33,000 Nm |
| Rotary table turn speed | 250 rpm |
| Live spindle speed | 6,000 rpm |
| X axis travel | 3,000 mm |
| Y axis travel | 2,500 mm |
| Z axis travel | 1,000 mm |
| Live spindle motor | 36 kW |
| Spindle taper | HSK 100 |
| Feed | 5 - 30,000 mm/min |
| Table area | 2,000 x 2,170 mm |
| Table load | 1,500 kg/m² |
| Machine dimensions | 8 x 6.4 x 4.4 m |
| Machine weight | 45 Ton |
