4 Machine Flexible Manufacturing Cell - Soraluce CNC Machining Centers with Pallet Changing System

Includes 4 Machines with Pallet Changing/Storage System:

Machines:

1. Soraluce FR 9000 I
2. Soraluce FR 9000 II
3. Soraluce PM 5000 HSC
4. Soraluce FP 8000 with Vertical Rotary Table

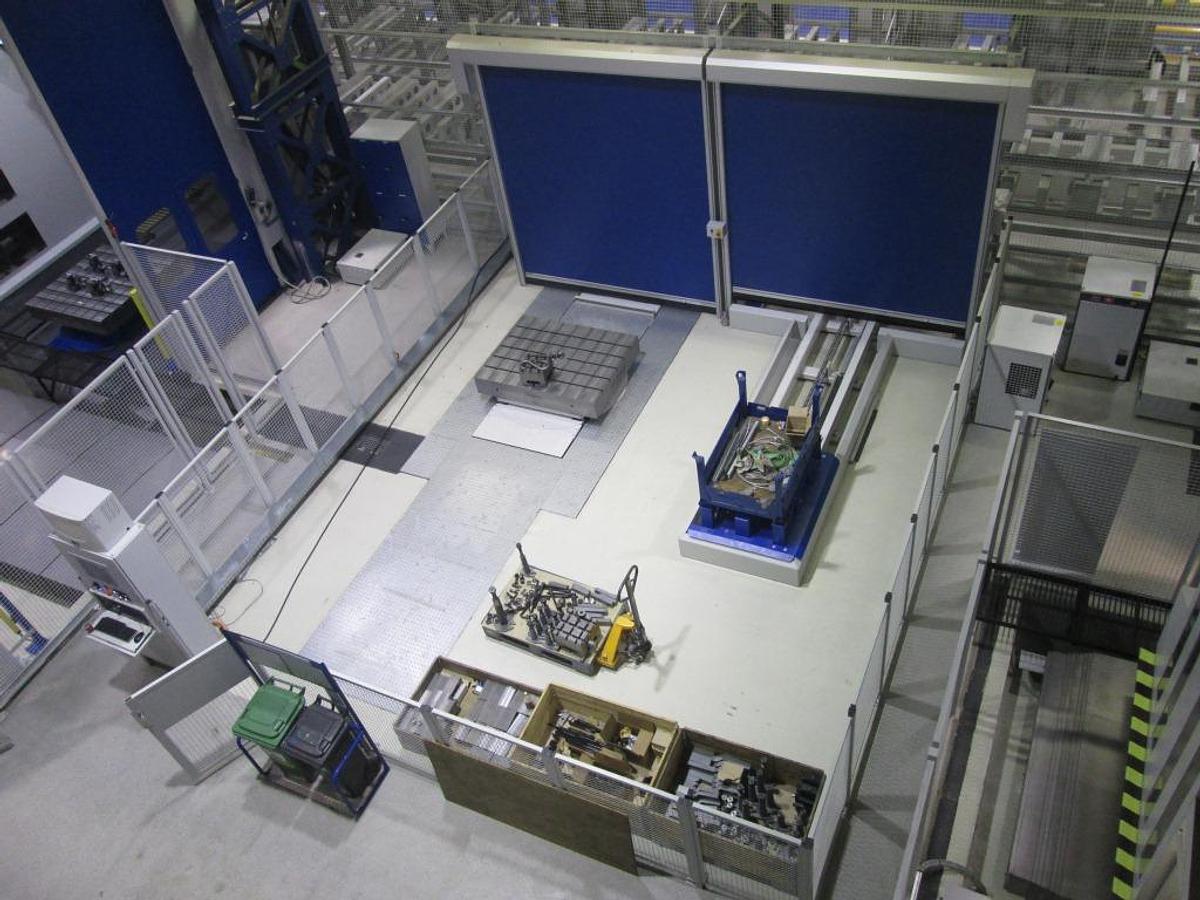

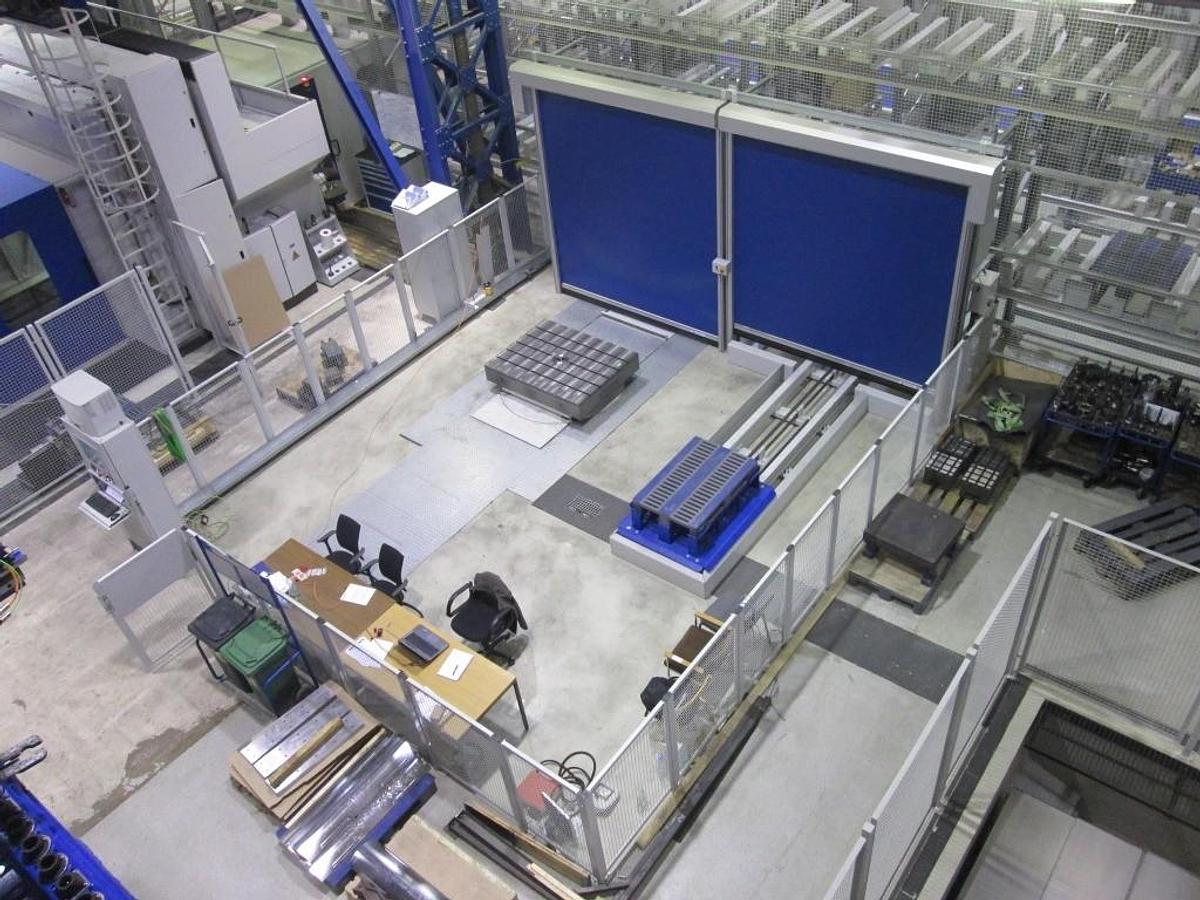

Workpiece Setup Stations

Replacement Pallets

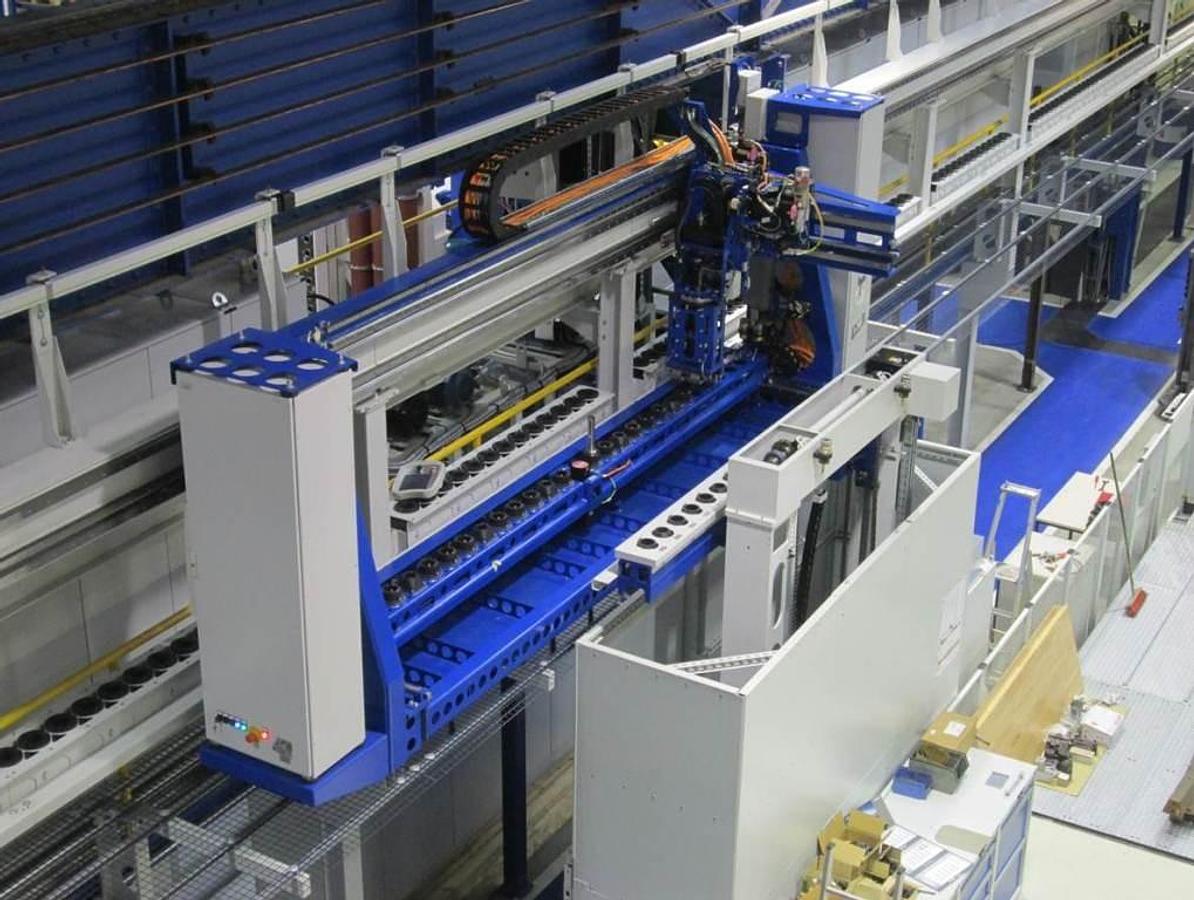

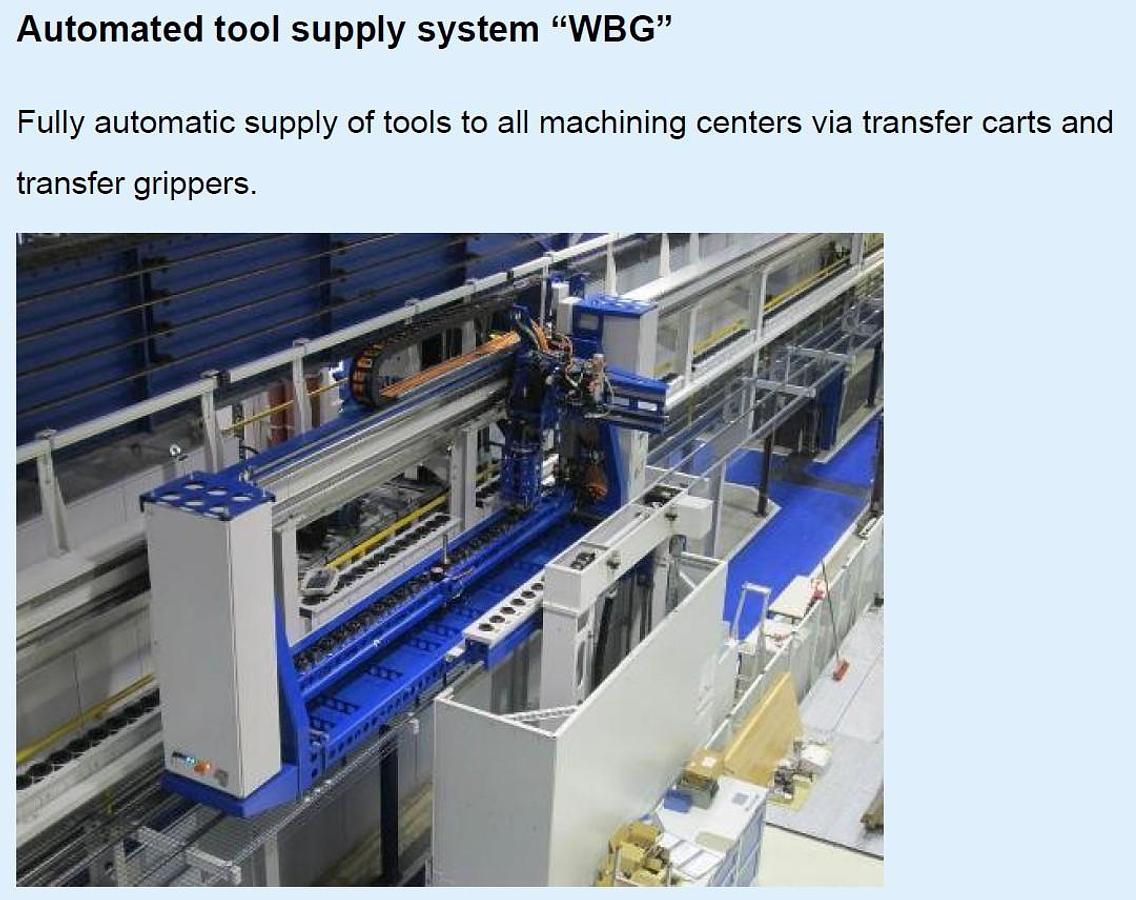

Automatic Tool Supply System (WBG)

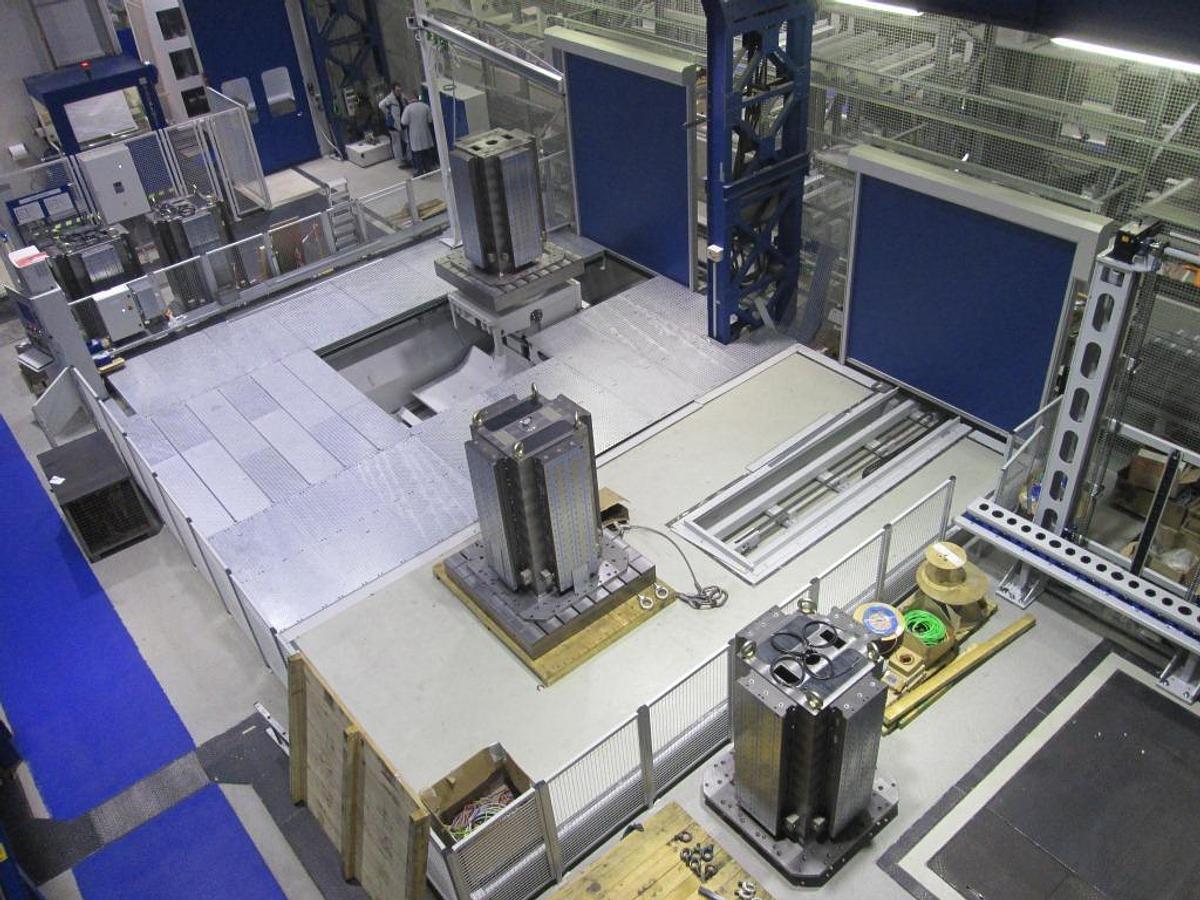

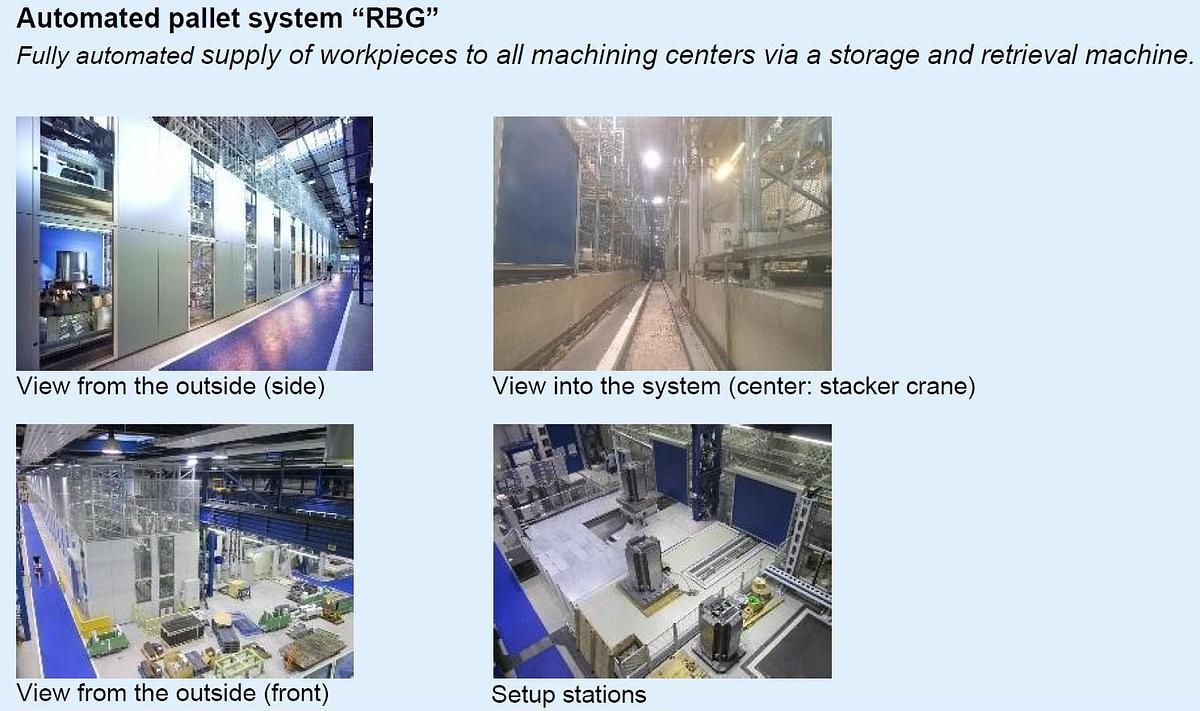

Automatic Pallet System

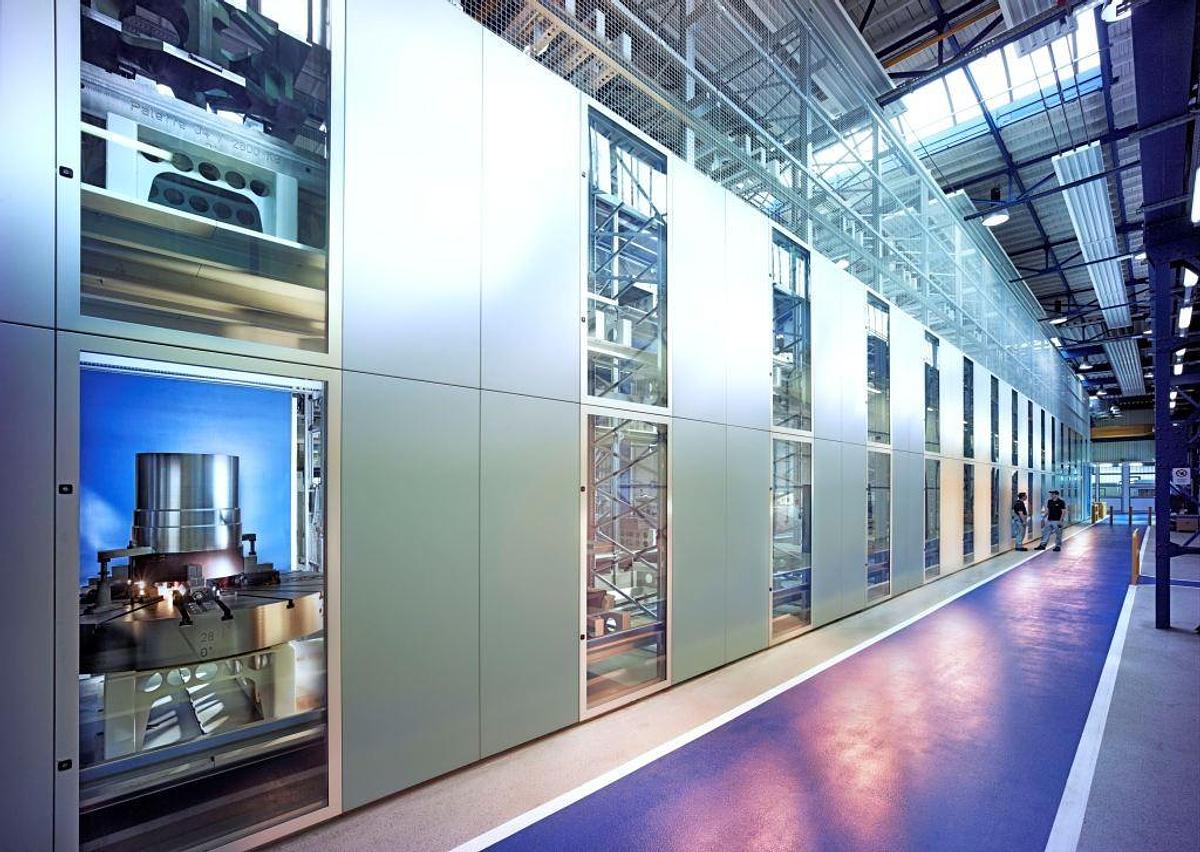

Pallet Storage Rack

Machine Specifications:

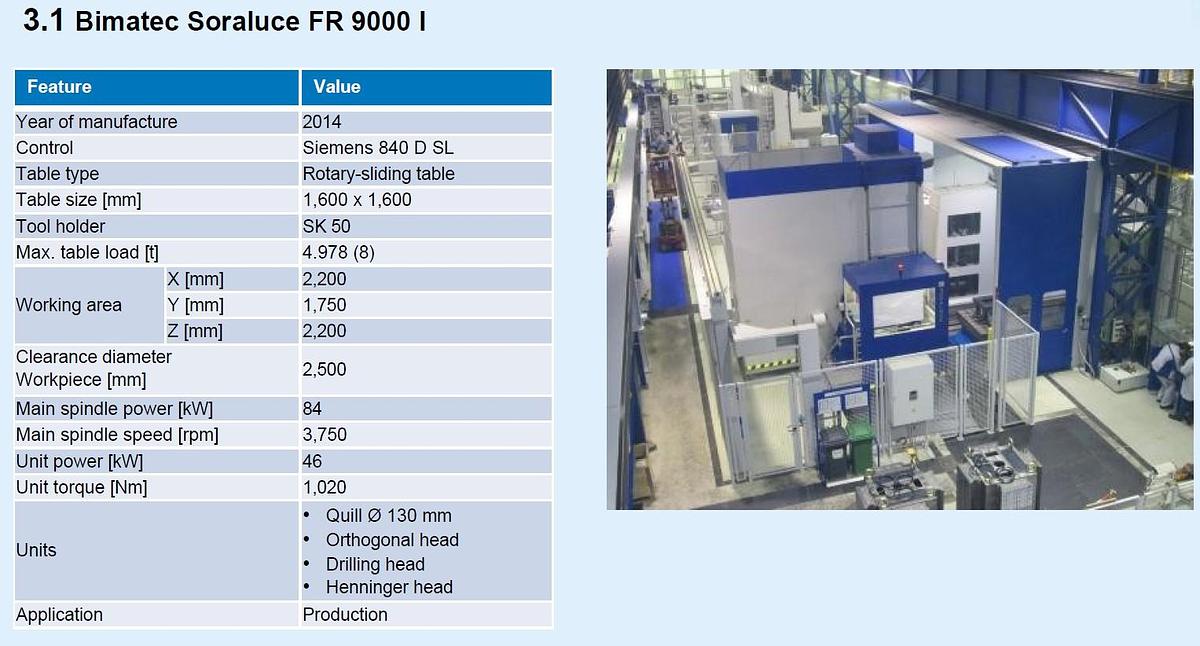

Soraluce FR 9000 I:

• New in 2014
• Siemens 840D SL CNC Control
• Rotary Sliding Table
• Table Size 1,600 x 1,600 mm
• SK 50 Tool Holder
• Max Table Load 8 Ton
• X Axis 2,200 mm
• Y Axis 1,750 mm
• Z Axis 2,200 mm
• Workpiece Clearance Diameter 2,500 mm
• Max Spindle Power 84 kW
• Main Spindle Speed 3,750 rpm
• Unit Power 46 kW
• Unit Torque 1,020 Nm
• Quill Diameter 130 mm
• Heads
• Orthogonal Head
• Drilling Head
• Henninger Head

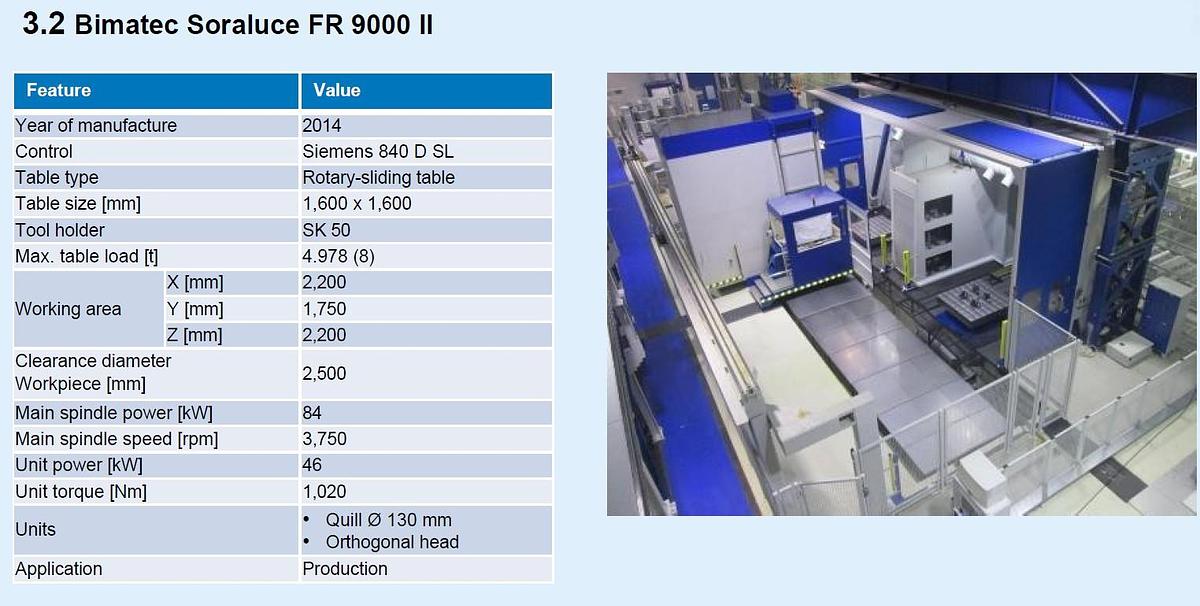

Soraluce FR 9000 II:

• New in 2014
• Siemens 840D SL CNC Control
• Rotary Sliding Table
• Table Size 1,600 x 1,600 mm
• SK 50 Tool Holder
• Max Table Load 8 Ton
• X Axis 2,200 mm
• Y Axis 1,750 mm
• Z Axis 2,200 mm
• Workpiece Clearance Diameter 2,500 mm
• Max Spindle Power 84 kW
• Main Spindle Speed 3,750 rpm
• Unit Power 46 kW
• Unit Torque 1,020 Nm
• Quill Diameter 130 mm
• Head
• Orthogonal Head

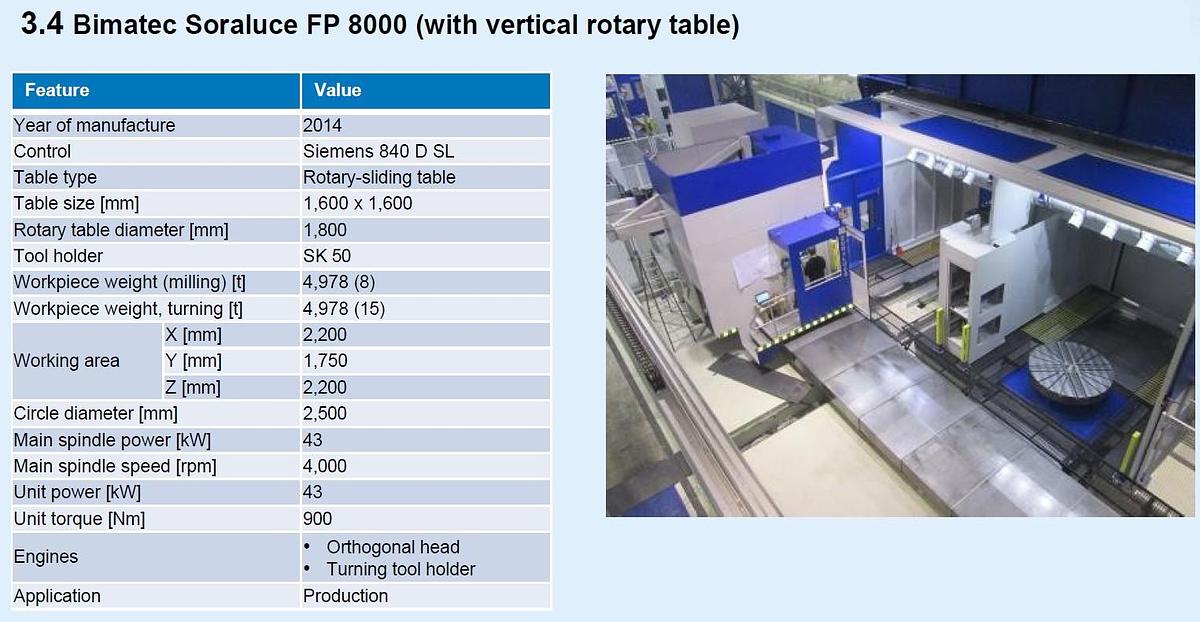

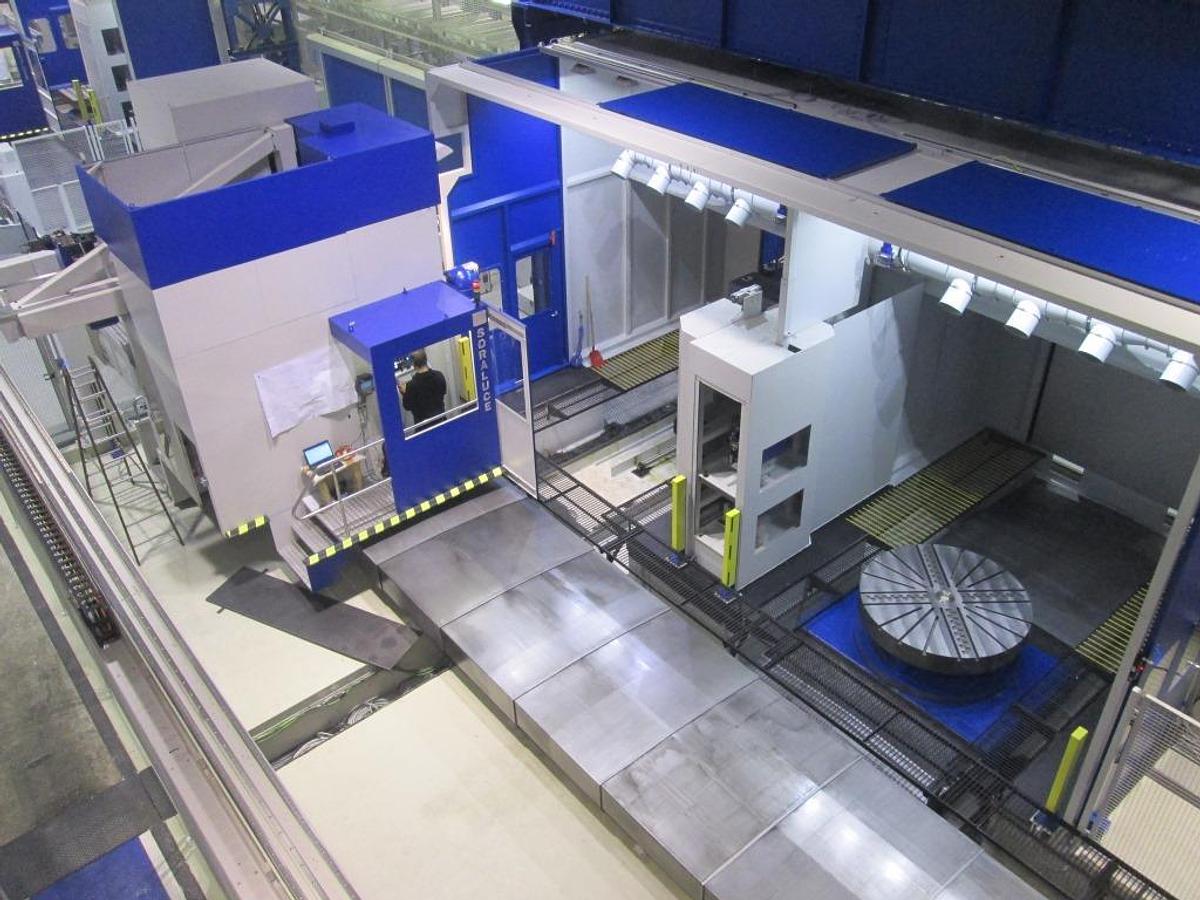

Soraluce FP 8000 (with Vertical Rotary Table):

• New in 2014
• Siemens 840D SL CNC Control
• Rotary Sliding Table
• Table Size 1,600 x 1,600 mm
• Vertical Rotary Table Diameter 1,800 mm
• SK 50 Tool Holder
• Workpiece Weight (Milling) 8 Ton
• Workpiece Weight (Turning) 15 Ton
• X Axis 2,200 mm
• Y Axis 1,750 mm
• Z Axis 2,200 mm
• Circle Diameter 2,500 mm
• Main Spindle Power 43 kW
• Main Spindle Speed 4,000 rpm
• Unit Power 43 kW
• Unit Torque 900 Nm
• Heads
• Turning Tool Holder
• Orthogonal Head

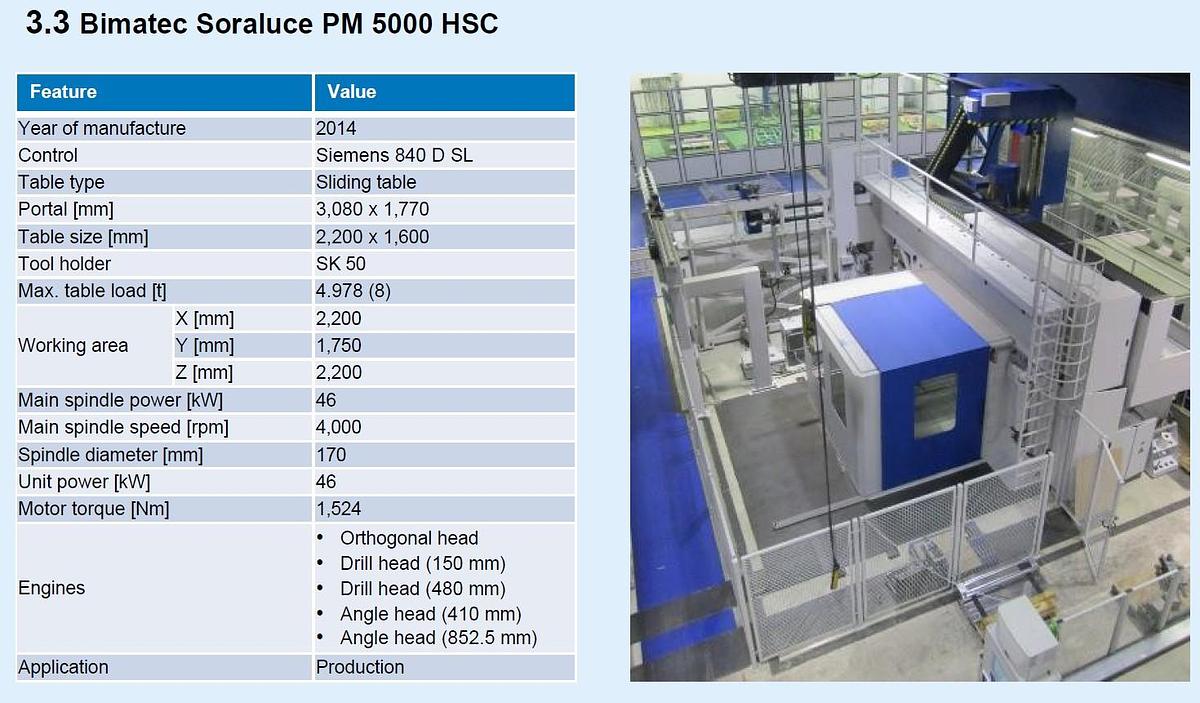

Soraluce PM 5000 HSC:

• New in 2014
• Siemens 840D SL CNC Control
• Sliding Table
• Portal 3,080 x 1,770 mm
• Table Size 2,200 x 1,600 mm
• SK 50 Tool Holder
• Max Table Load 8 Ton
• X Axis 2,200 mm
• Y Axis 1,750 mm
• Z Axis 2,200 mm
• Main Spindle Power 46 kW
• Main Spindle Speed 4,000 rpm
• Spindle Diameter 170 mm
• Unit Power 46 kW
• Motor Torque 1,524 Nm
• Heads
• Orthogonal Head
• Drill Head (150 mm)
• Drill Head (480 mm)
• Angle Head (410 mm)
• Angle Head (852.5 mm)
