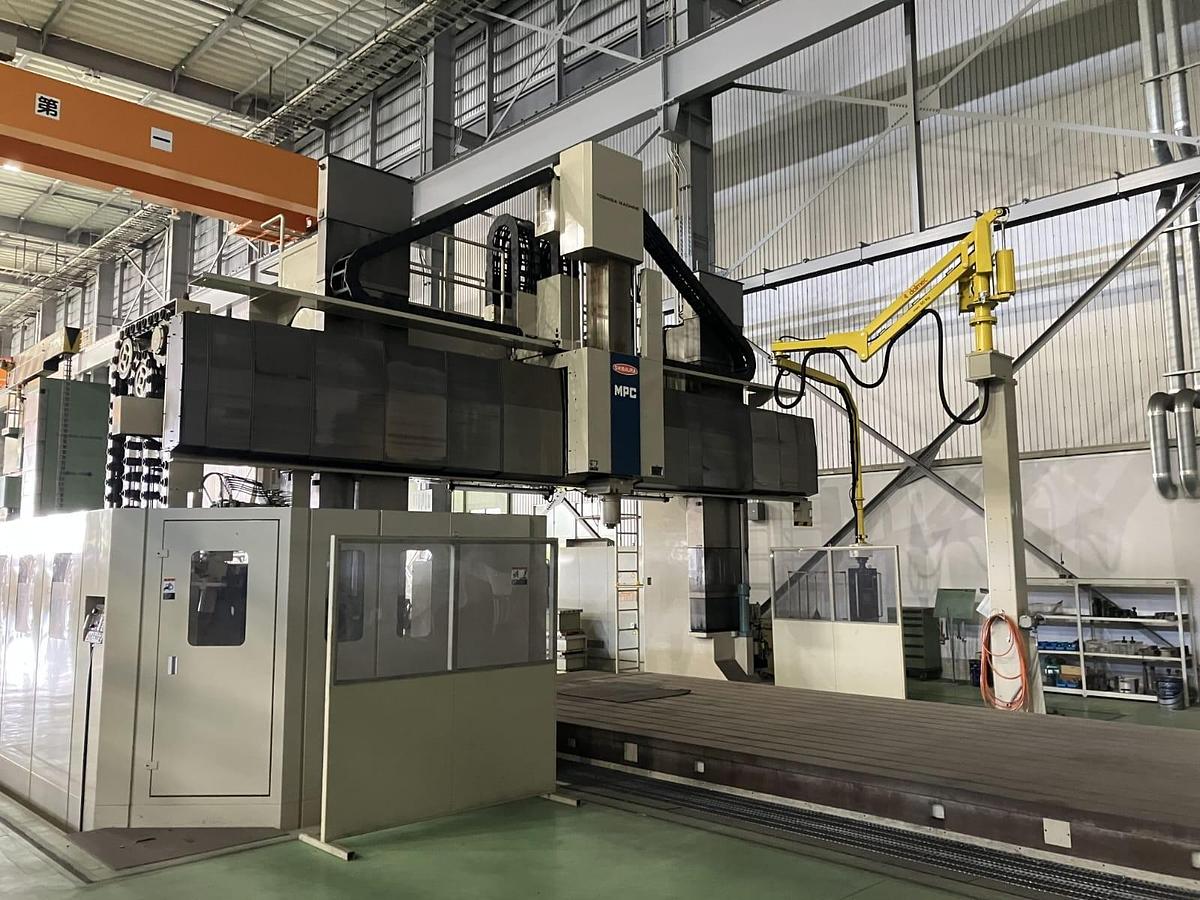

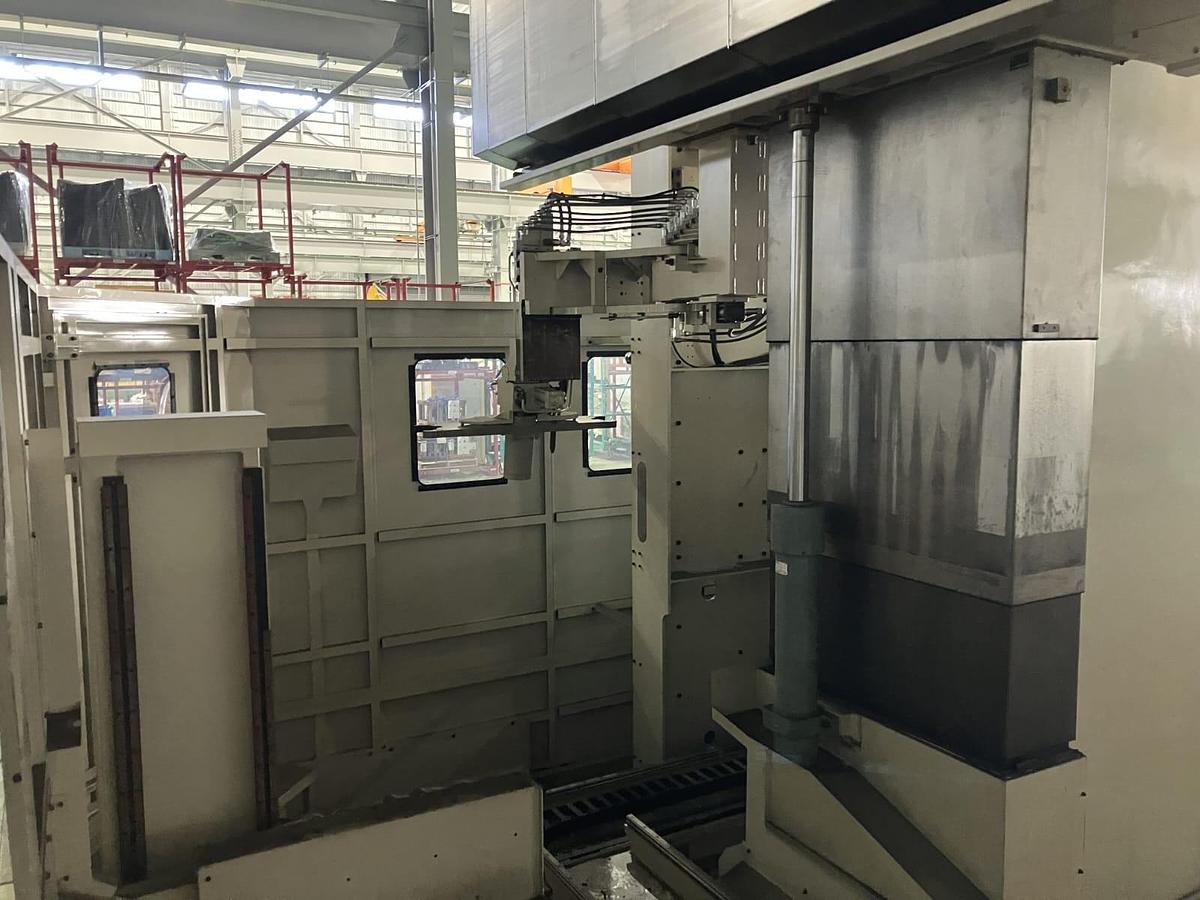

Toshiba MPC 46100B CNC 5-Face Planer Type Machining Center

Toshiba MPC 46100B CNC 5-Face Planer Type Machining Center

Description

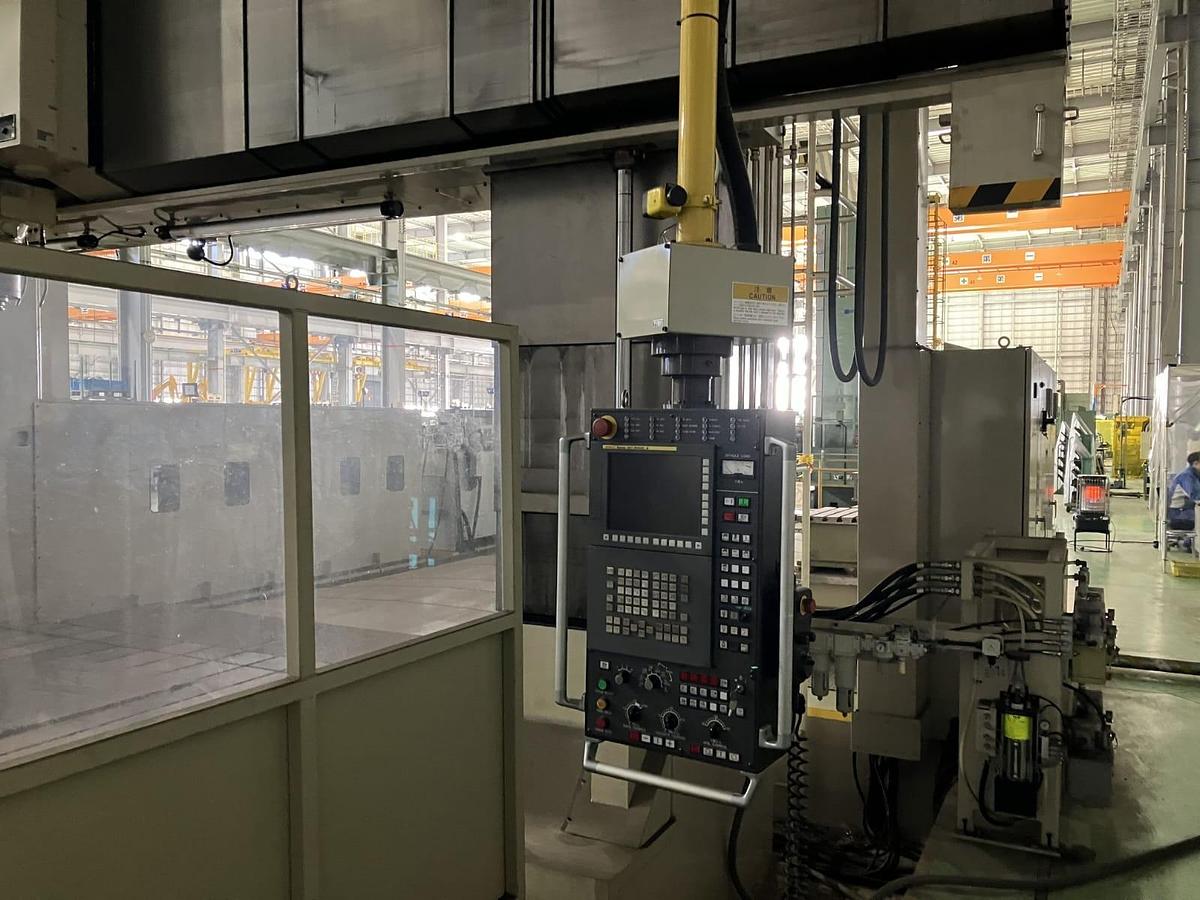

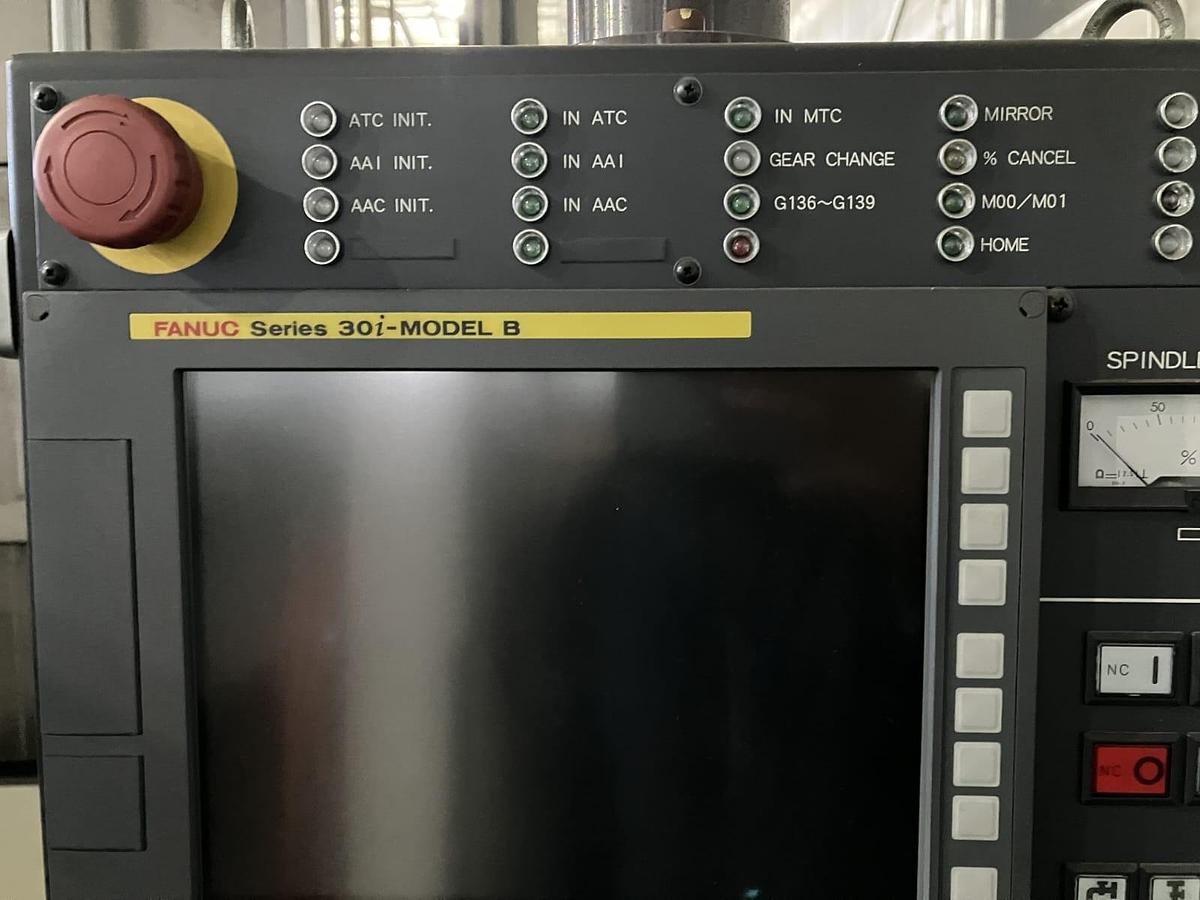

Fanuc 30i Model B CNC Control

Tool shank MAS BT 50

ATC (automatic tool change device) No.: 120

Automatic tool detachable device

Automatic Work Change device (AWC)

Automatic attachment Change device(AAC);

Number of attachment storage units are 5

Automatic tool length measuring device

Hydraulic servo balancer device for cross rail

Ram hydraulic balancer device

Oil mist lubrication device

Position determination precision: plus minus 0.007/1000mm


Main Spindle:

Main spindle speed: 4~4000rpm

The number of Main spindle changing speed range: 2 stages

Main spindle taper: 7/24 taper No.50

Maximum rotational force: 2617 Nm

Main spindle bearing internal diameter: 120mm

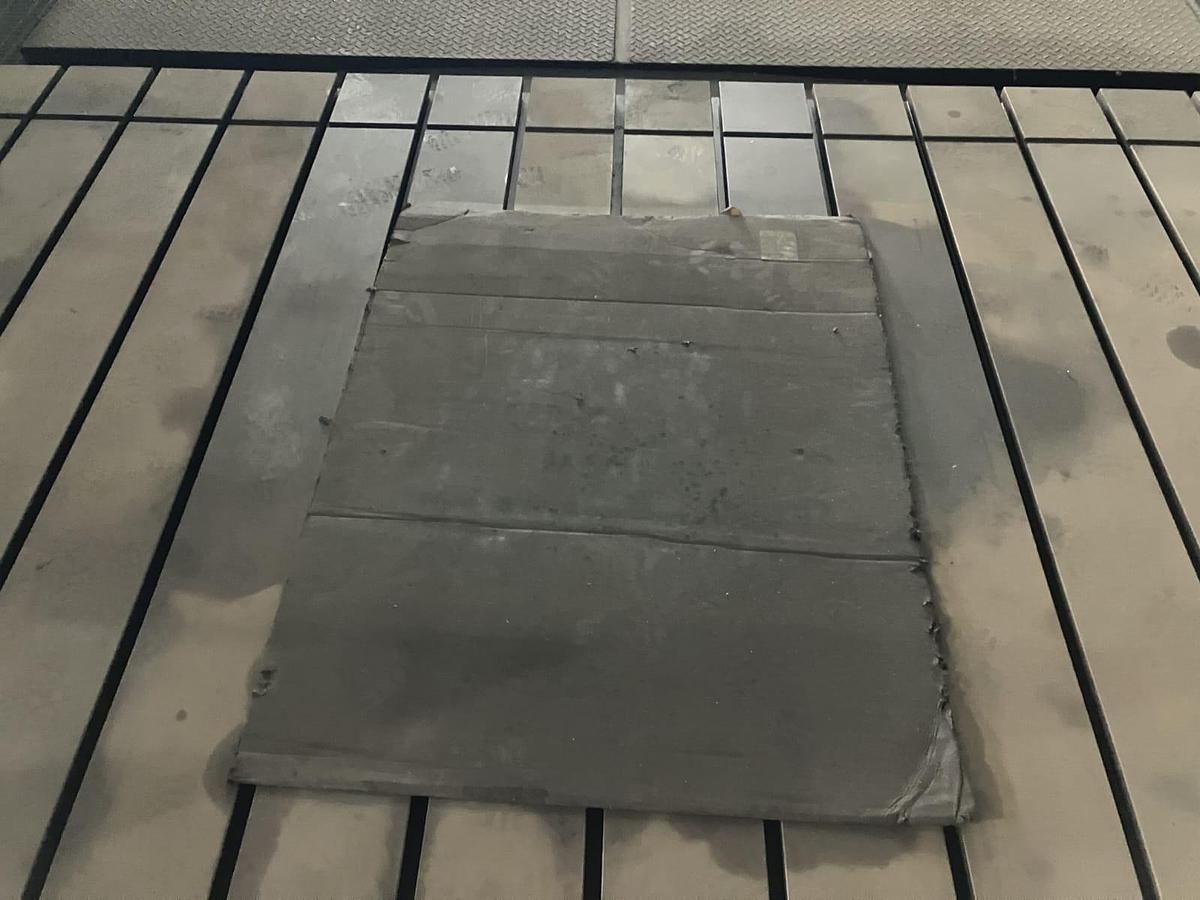

Tables:

Table size: 3500 x10000mm

Table maximum load: 40ton

Direct table: 2 pieces (load 20ton x 2=40ton)

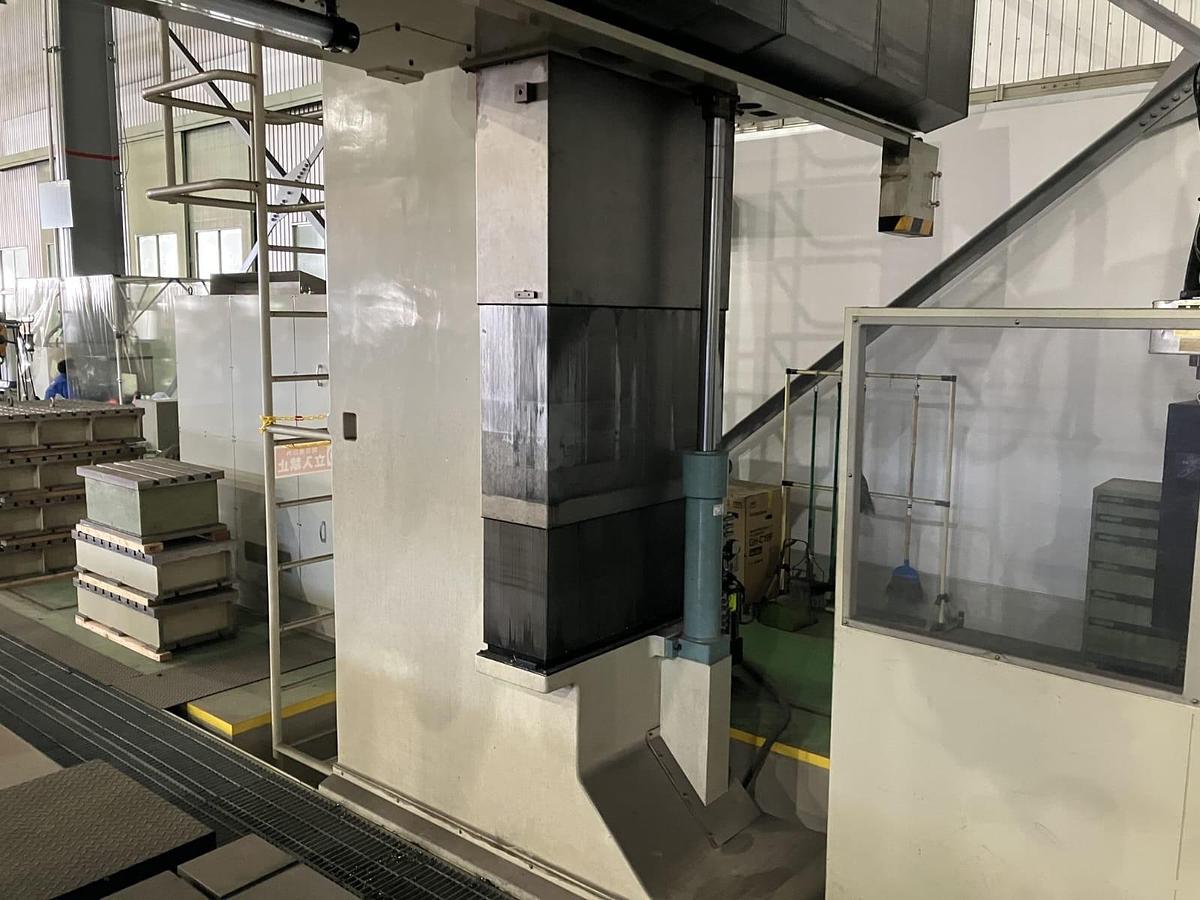

Column width: 4600mm

Column height: 3150mm

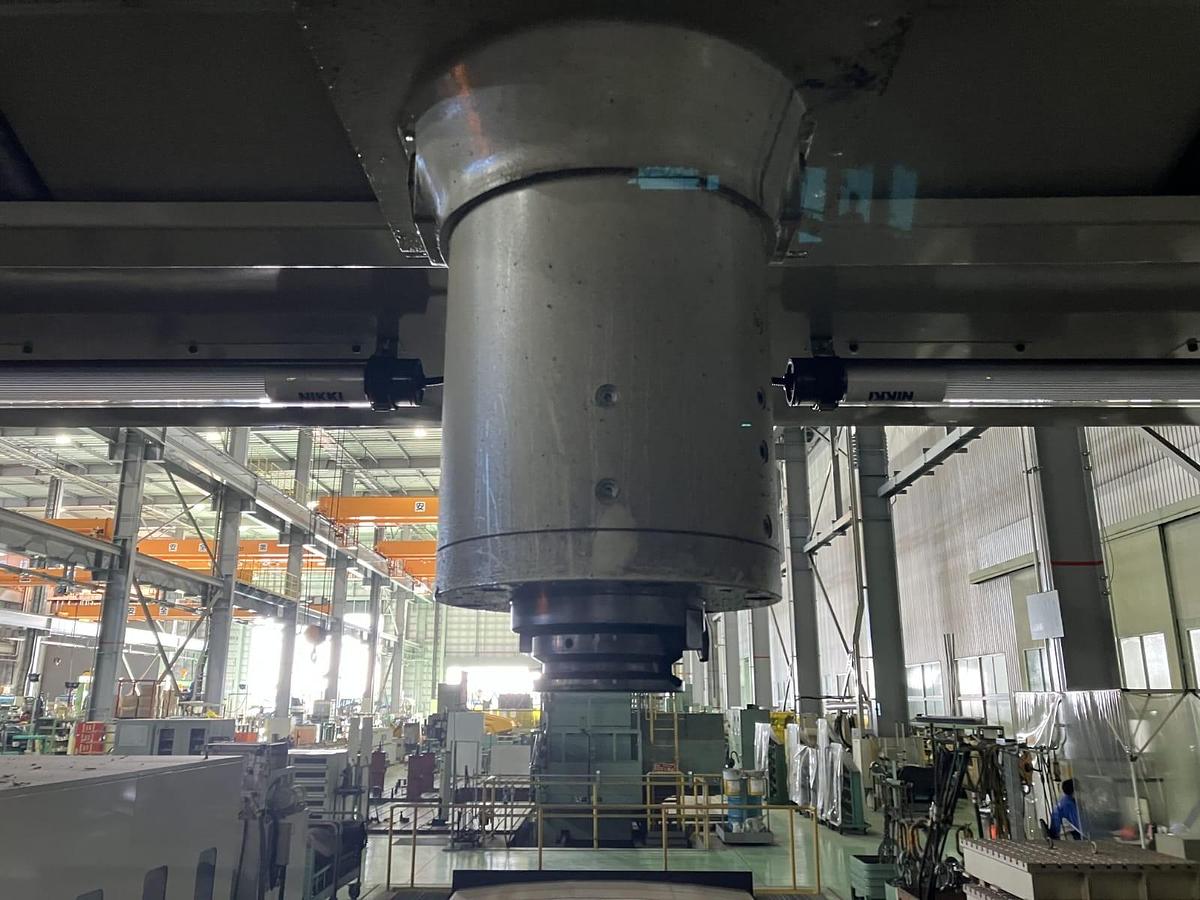

Main Ram:

Type: Ram type

Guide face: 4 face closed type

Size: 380 x 380mm


Motors:

Main motor AC37KW /30KW(Continuous)

X:AC α 200/2500, 16KW

Y: AC α 40/3000, 6KW

Z: AC α 40/3000, 6KW

W: AC α 22/3000, 4KW

Hydraulic: AC 22KW

Lubrication: 25W


Rapid Speeds:

XYZW: 10m/min, 20m/min, 10m/min, 3m/min


Cutting Speeds:

X:1 ~ 6,000 mm/min

Y: 1 ~ 6,000mm /min

Z: 10,000 mm/min

W: 1 ~ 3,000mm/min

Specifications

ManufacturerToshiba Shibaura
ModelMPC 46100B
Year2019
ConditionUsed
Stock Number5654344
Column width4,600 mm
Spindle speeds4,000 rpm
Column height3,150 mm
X axis travel10,500 mm
Y axis travel5,400 mm
Z axis travel1,100 mm
Table size3,500 x 10,000 mm
Table capacity40 Ton
Direct table - 2 piecesLoad 20 Ton x 2=40 Ton
W axis travel2,300 mm
Spindle drive motorAC 37/30 kW
Spindle taper7/24 No. 50
Machine size10,125 x 25,390 x 8,490 mm
Machine weight150 Ton
ElectricityAC 200/220 V - 50/60 Hz
