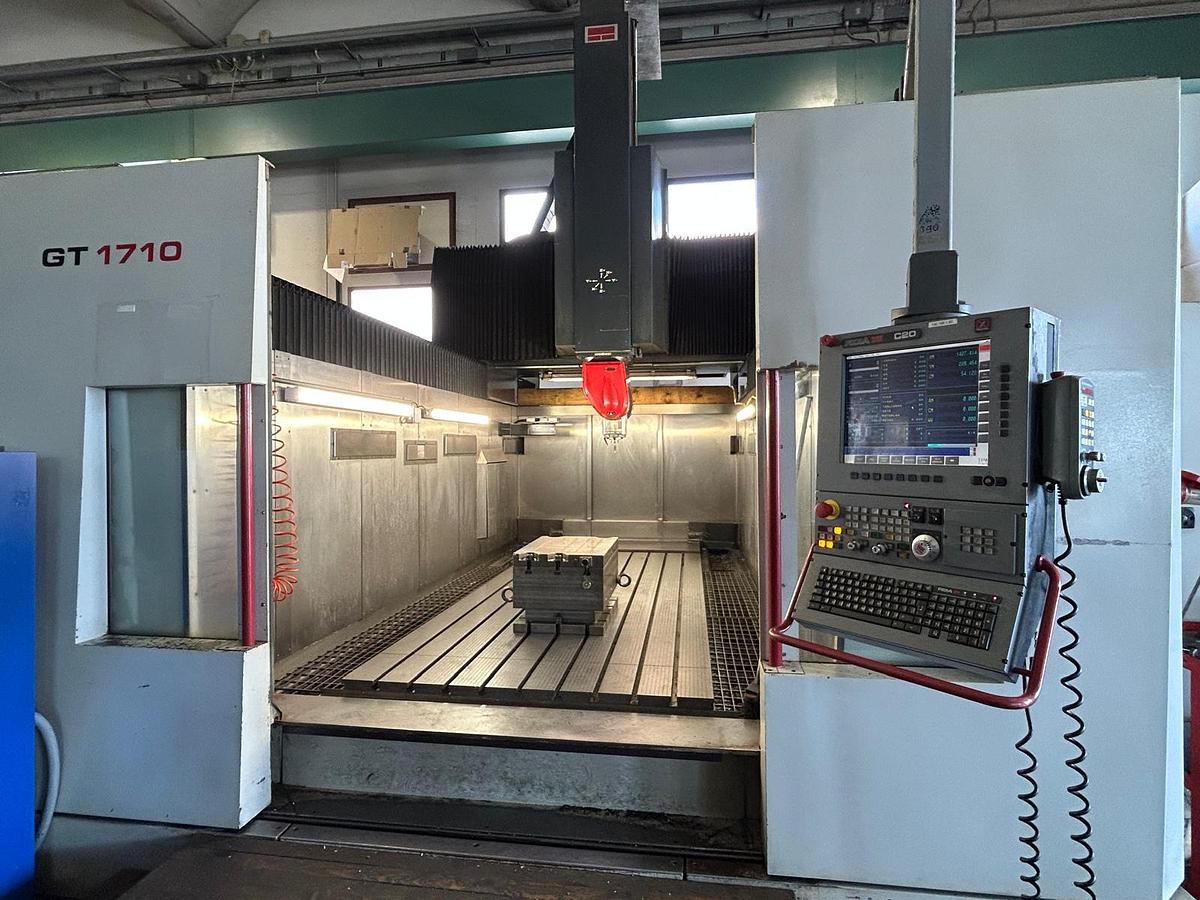

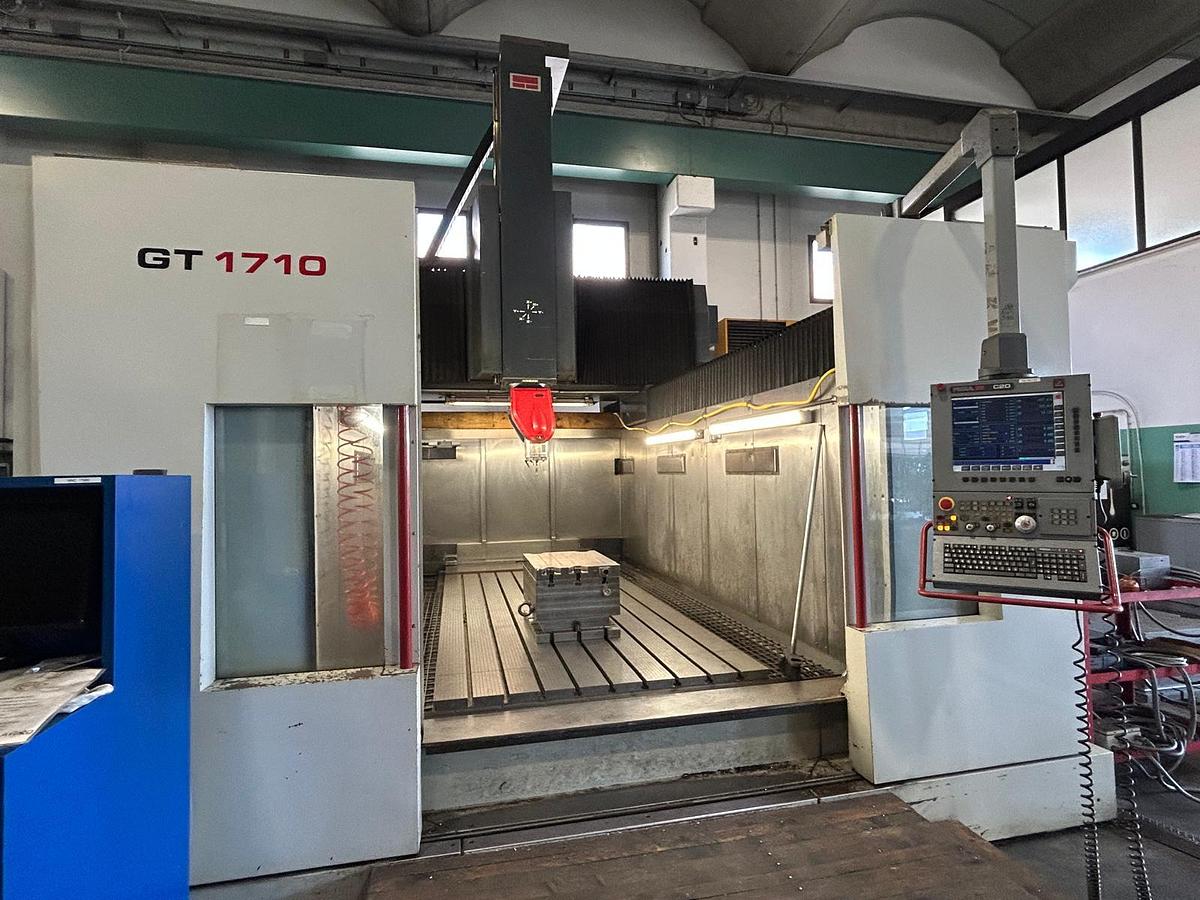

Fidia GT 1710 CNC 5-Axis Gantry Type Milling Machine
Fidia GT 1710 CNC 5-Axis Gantry Type Milling Machine
or
Call 770-509-0744
Description

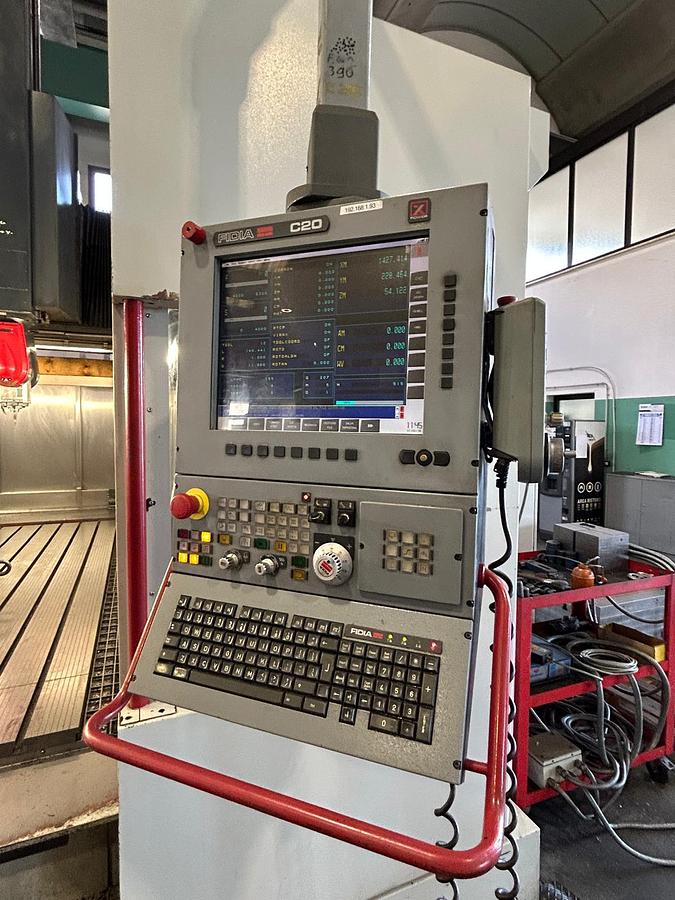

Fidia C20 CNC Control
24-position tool magazine

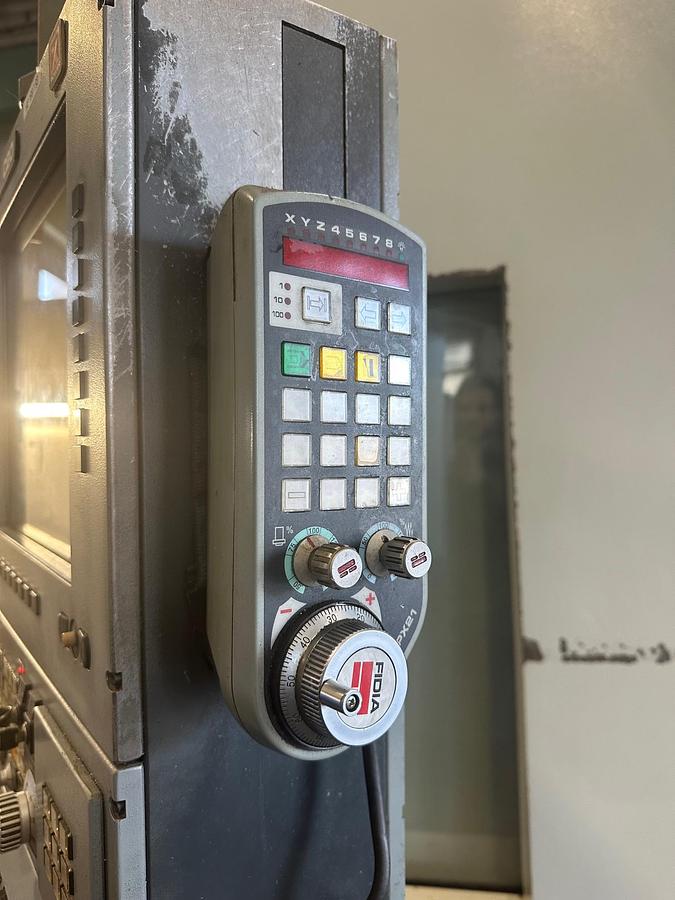

Remote electronic handwheel
HMS system for head calibration
Various equipment included with the machine
User and maintenance manual and CE declaration of conformity

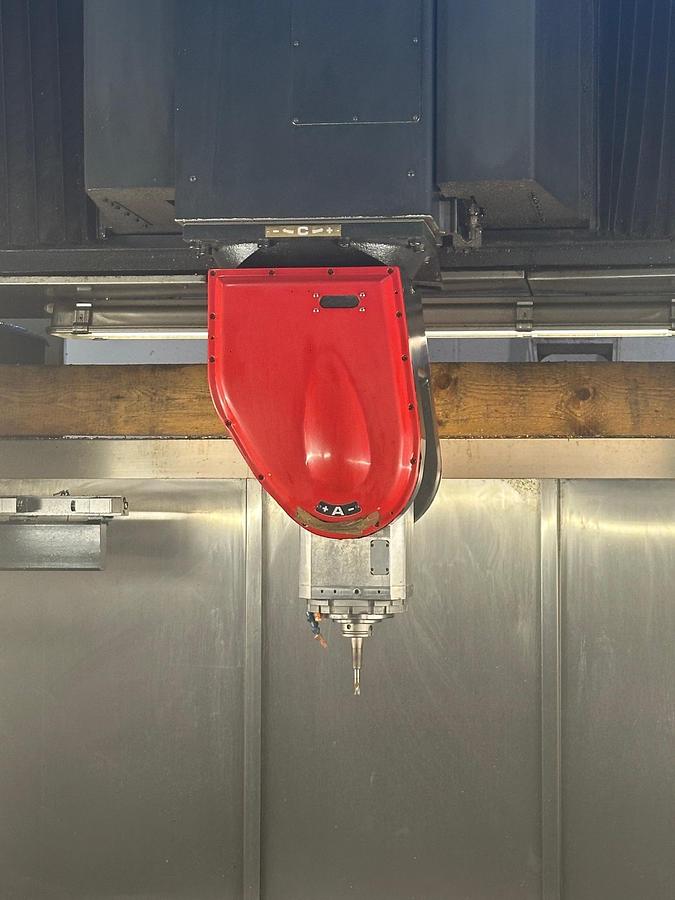

ELECTROSPINDLE
Maximum power (S6 60%): 55 kW
Spindle speed range: 240 - 24,000 rpm
Constant power range: 6,000 - 24,000 rpm
Maximum torque: 87.5 Nm
Tool holder: HSK-A63
C-axis travel: ± 200°
C-axis speed: °/min 2,000
C-axis offset from spindle axis: 75 mm
A-axis travel: +95° / -110°
A-axis speed: °/min 2,000
Max distance spindle nose – table surface: 1,175 mm
Specifications
| Manufacturer | Fidia |
| Model | GT 1710 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 5654339 |
| Spindle speeds | 24,000 rpm |
| Machining height | 1,175 mm |
| X axis travel | 3,150 mm |
| Y axis travel | 1,850 mm |
| Z axis travel | 1,000 mm |
| Table dimensions | 3,000 x 1,600 mm |
| Table capacity | 5,000 kg/m² |
| Rapid Feed X/Y | 30 m/min |
| Rapid feed Z | 24 m/min |
| Spindle power | 55 kW |
| Spindle taper | HSK-A63 |
