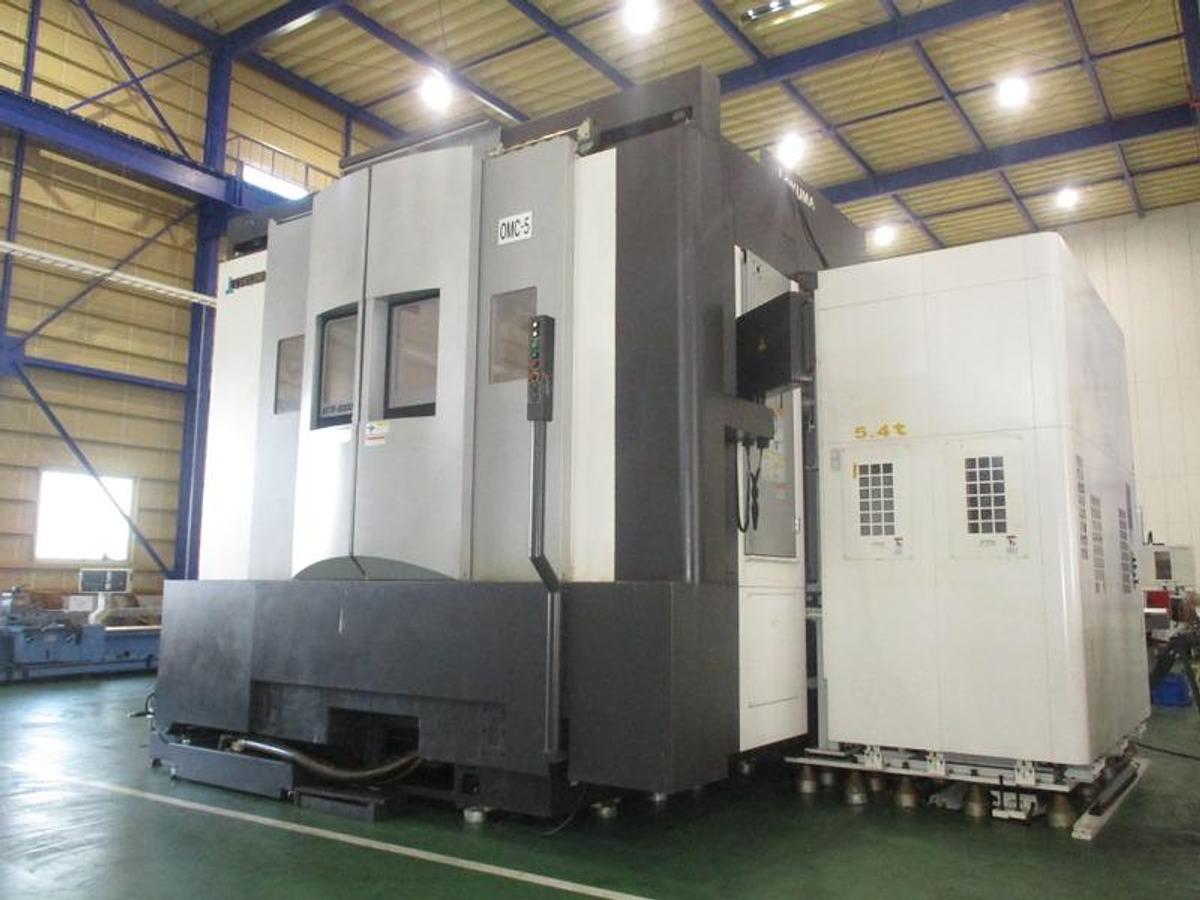

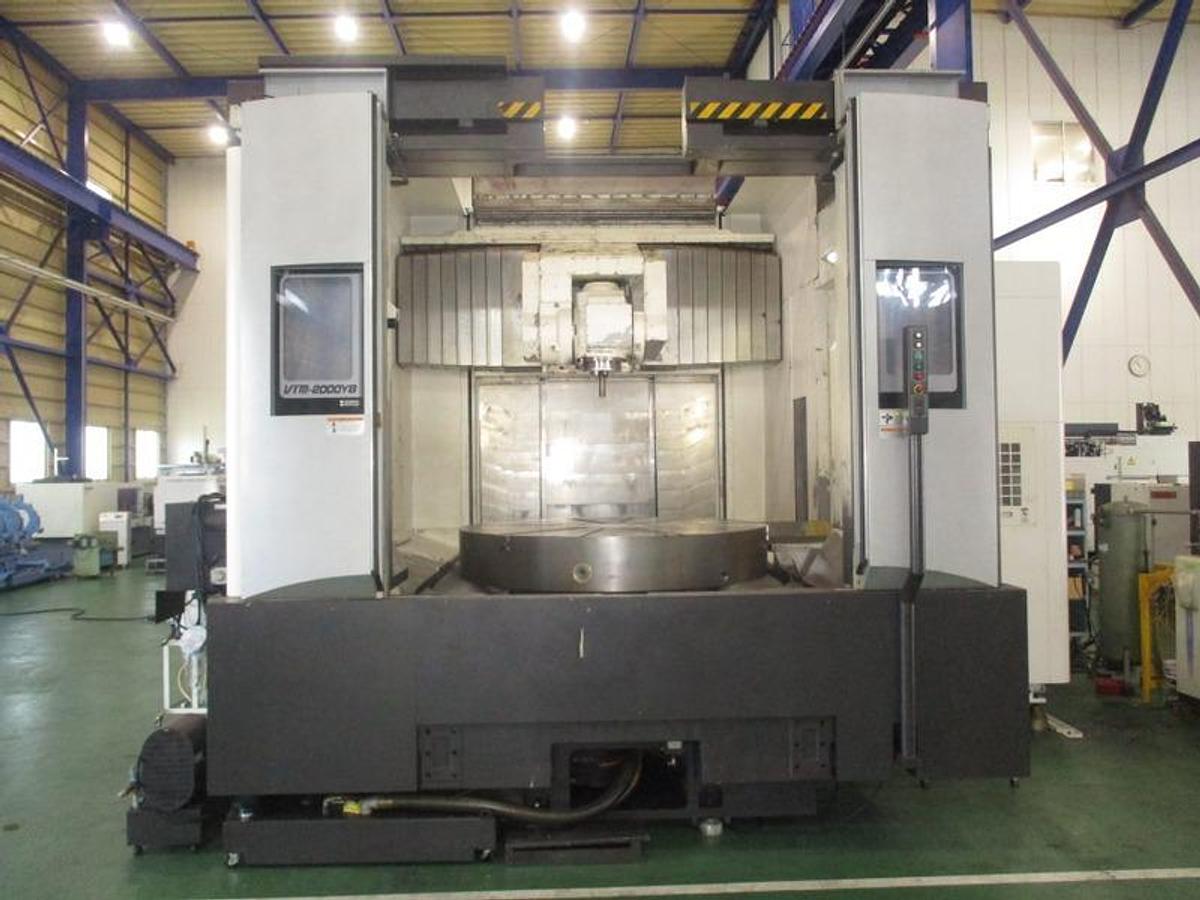

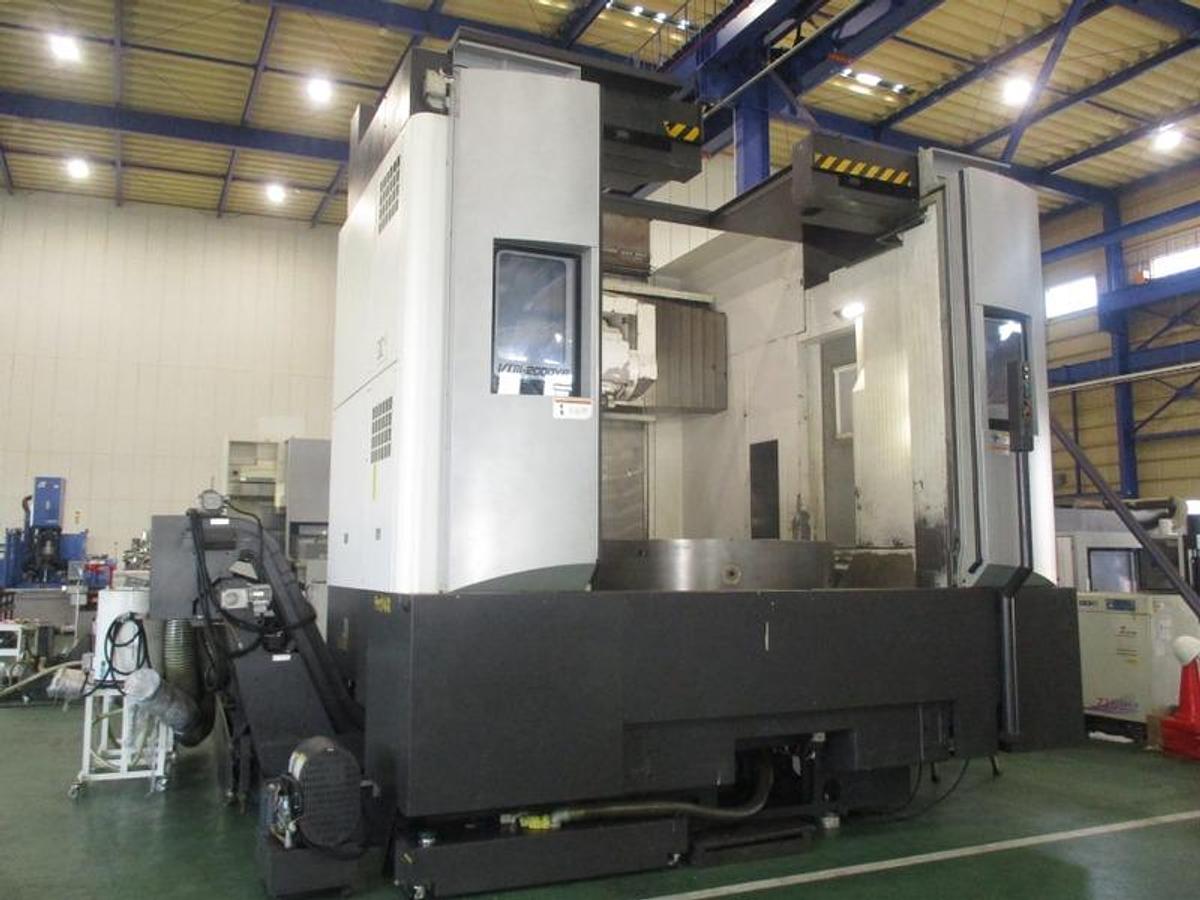

Okuma VTM 200YB CNC Vertical Multi-Tasking Machining Center
Okuma VTM 200YB CNC Vertical Multi-Tasking Machining Center
or
Call 770-509-0744
Description

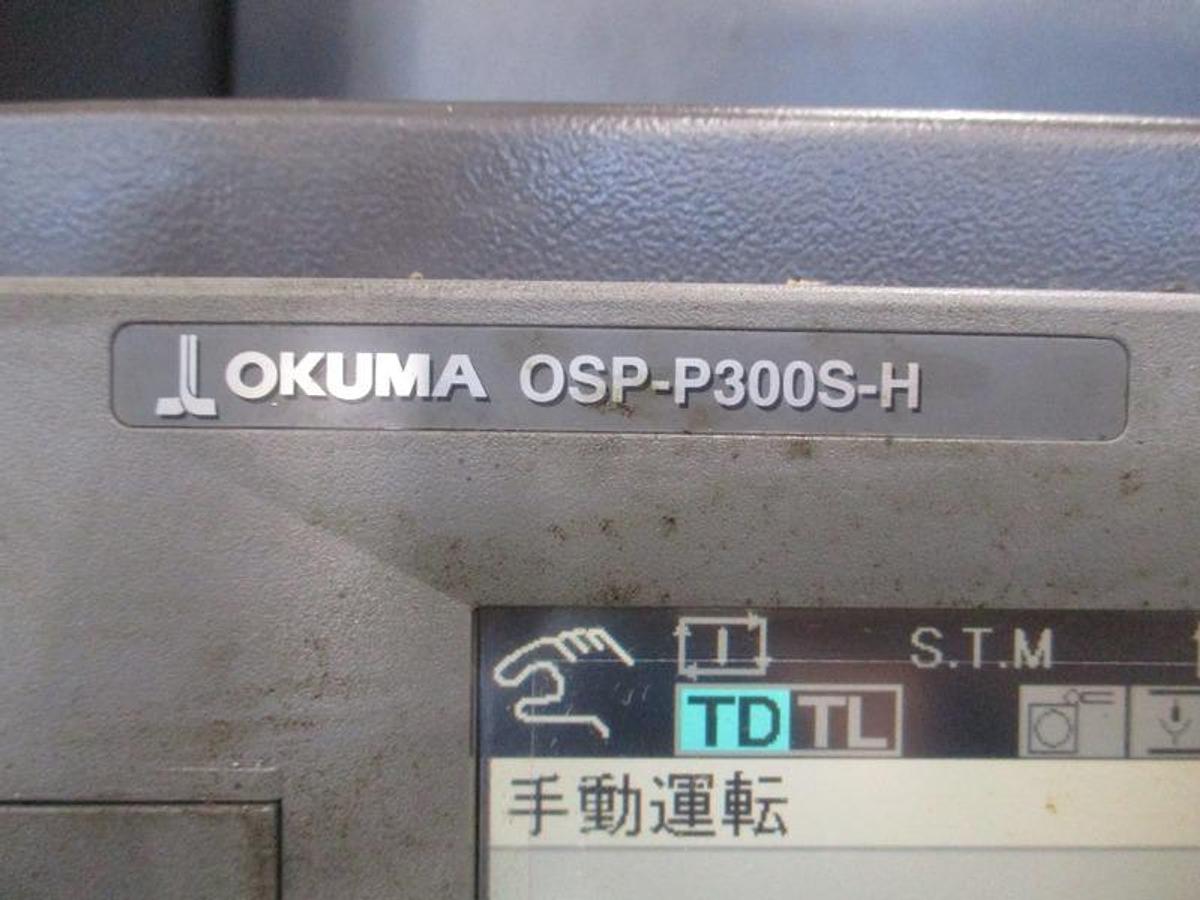

OSP-P300S-H CNC Control

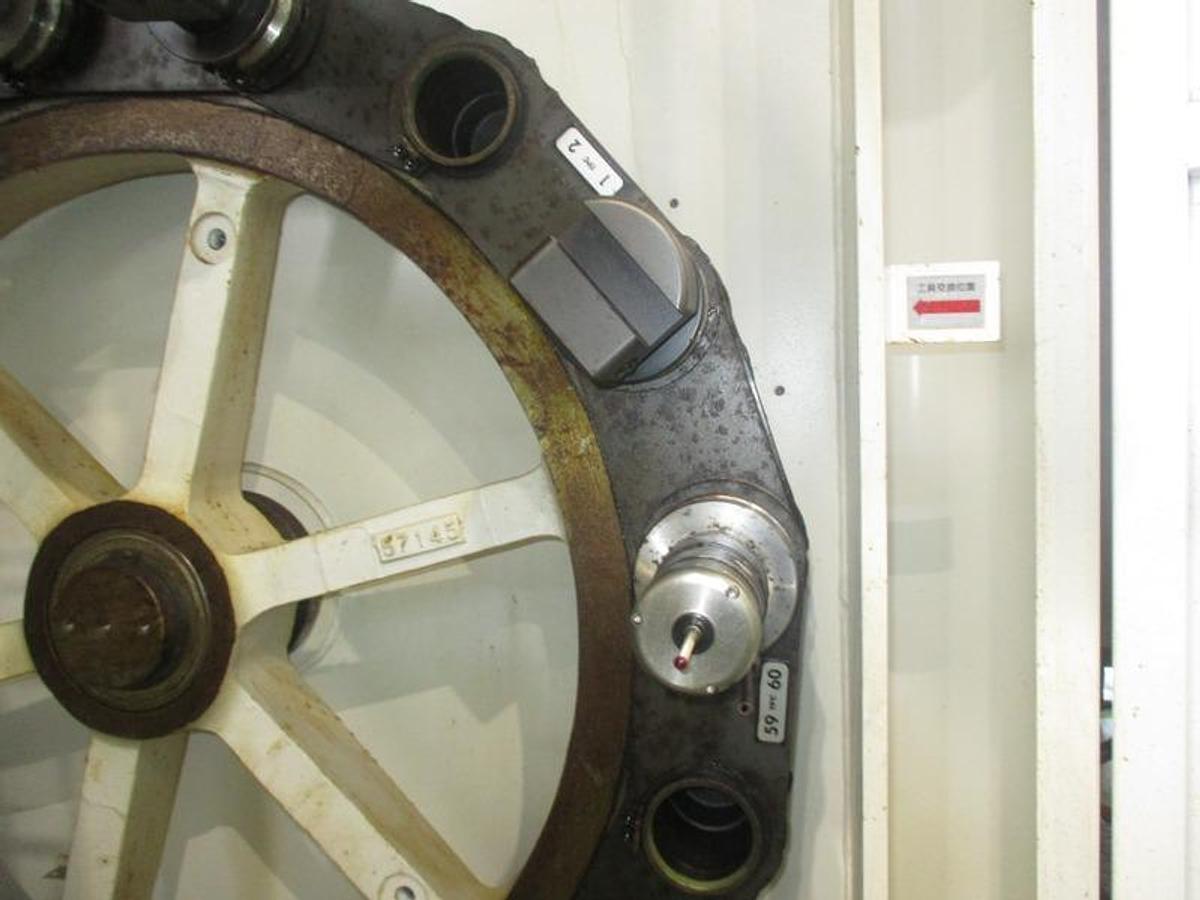

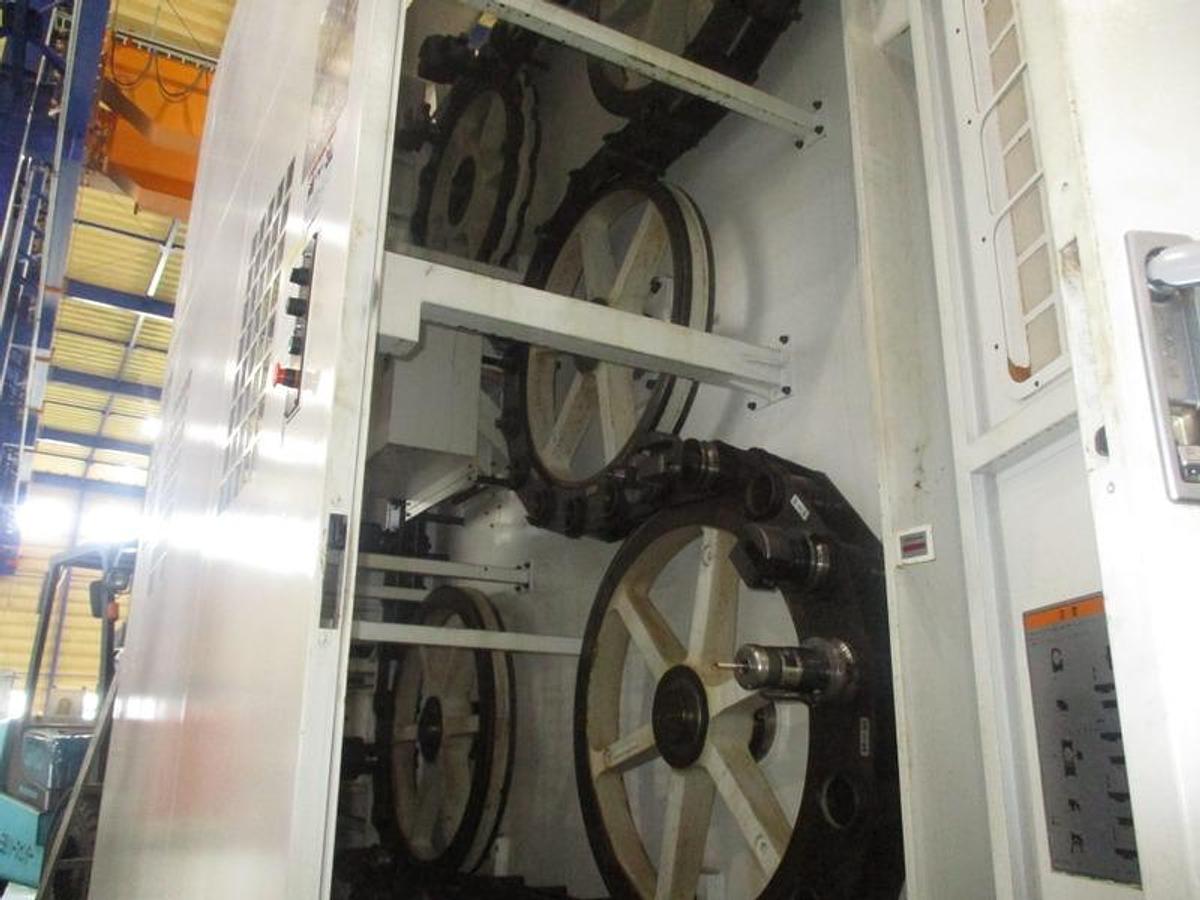

60 Position Automatic Tool Changer - BT 50
Max tool diameter 290mm
Max tool length 500mm
Specifications
| Manufacturer | Okuma |
| Model | VTM 200YB |
| Year | 2015 |
| Condition | Used |
| Stock Number | 5654338 |

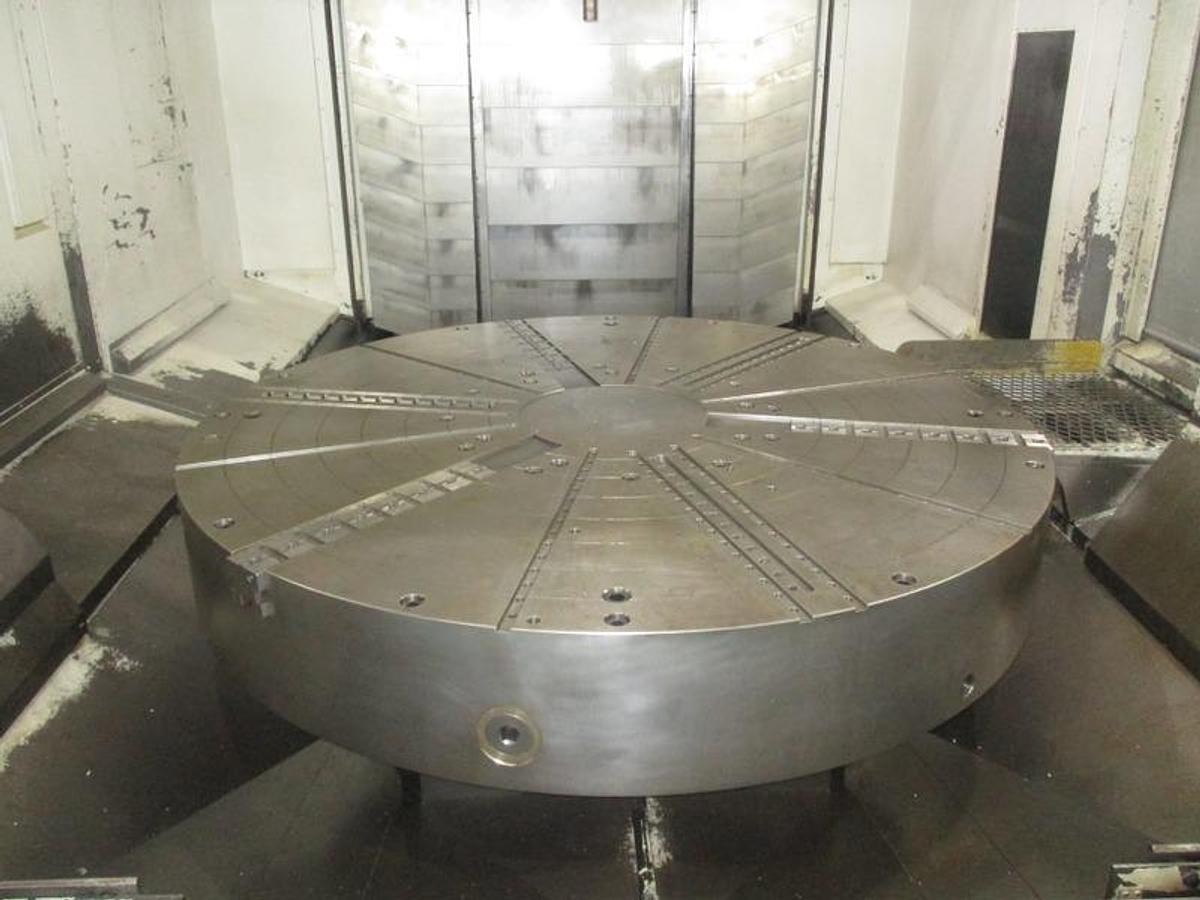

| Table diameter | 2,000 mm |
| Swing | 2,400 mm |
| Max machining diameter | 2,000 mm |
| Turning height | 1,400 mm |
| Table capacity | 10,000 kg |
| Table turn speed (Stepless x automatic 2-step) | 4 - 200 rpm |
| Live spindle speed | 40 - 10,000 rpm |
| Live spindle torque (3 min/30 min/Continuous) | 505 / 300 / 205 Nm |

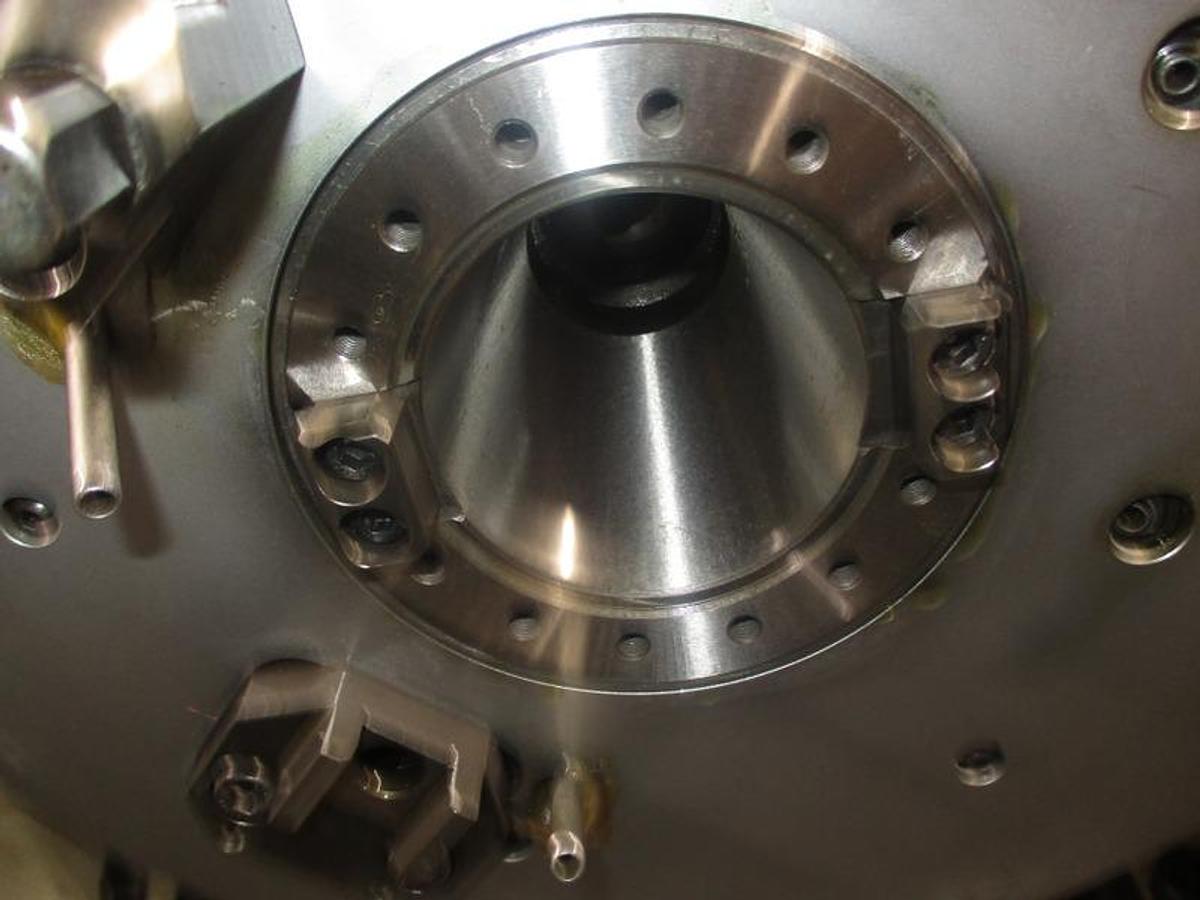

| Spindle diameter | 90 mm |
| X axis travel | 1,600 mm |
| Z axis travel | 1,400 mm |
| Y axis travel | 1,600 mm (-800 ~ +800) |
| C axis control angle | 360° (0.001°) |
| B axis indexing angle | -30 ~ 120° (0.001°) (NC B-Axis) |
| Table turning motor (30 min/continuous) | 30 / 22 kW |
| Rotary tool spindle motor (3 min/30 min/continuous) | 37 / 30 / 22 kW |
| Table torque (20 min./continuous) | 8,415 / 5,610 Nm |
| Spindle through-hole diameter / bearing inner diameter | 110 / 200 mm |
| Machine height | 4,967 mm |

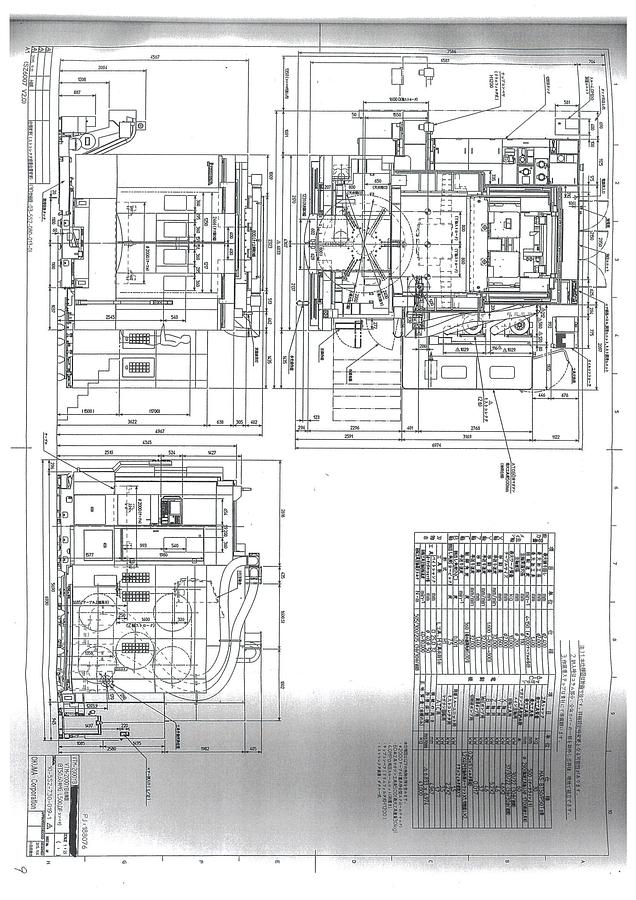

| Required floor space | 5,970 x 6,973 mm |
| Machine weight | 43,000 kg |
