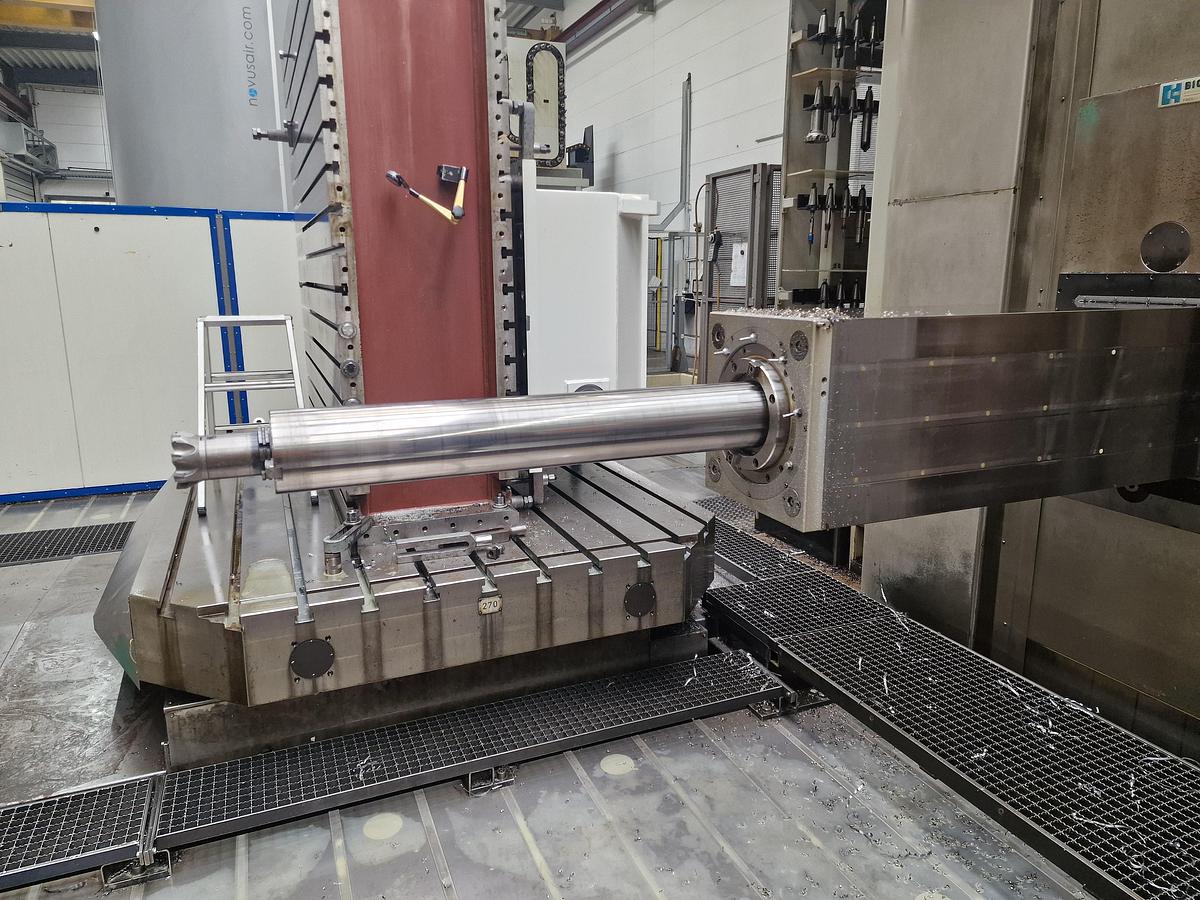

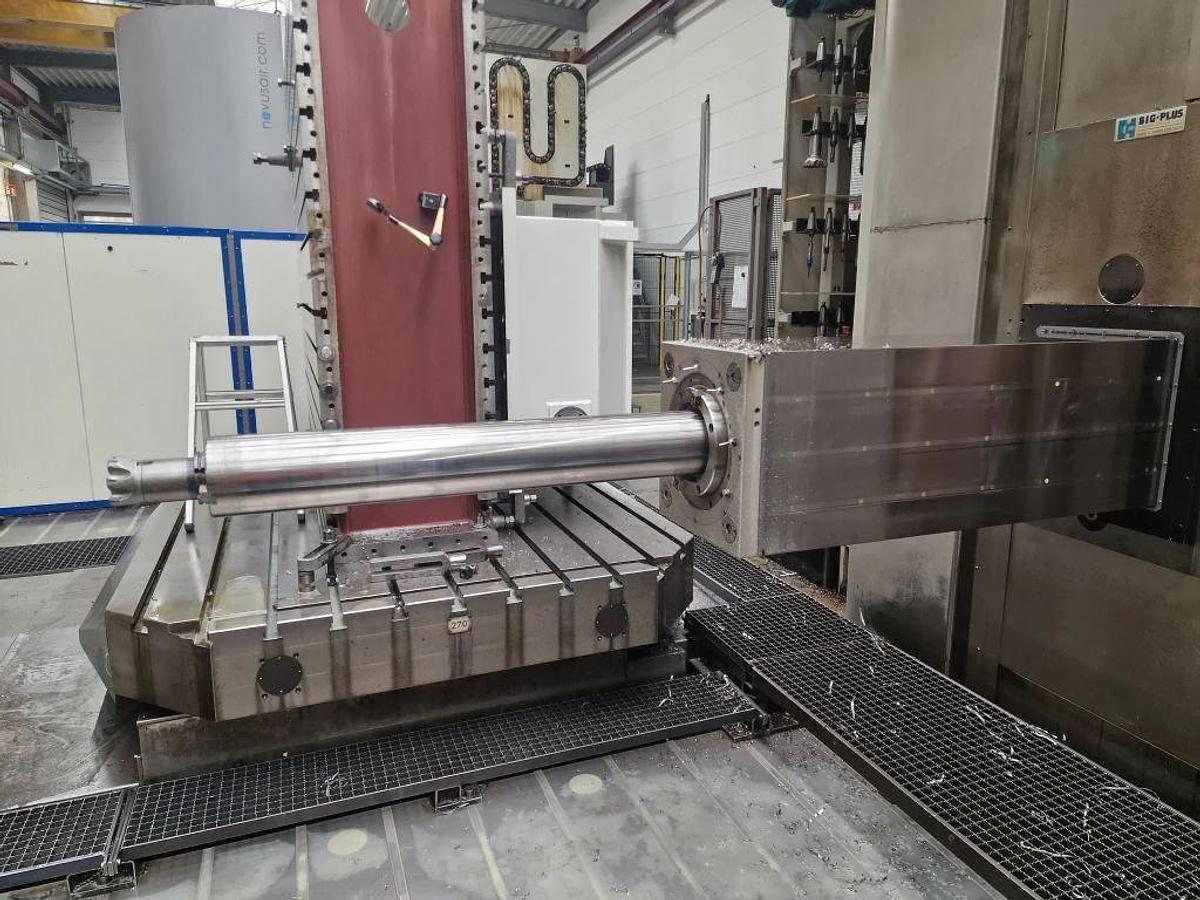

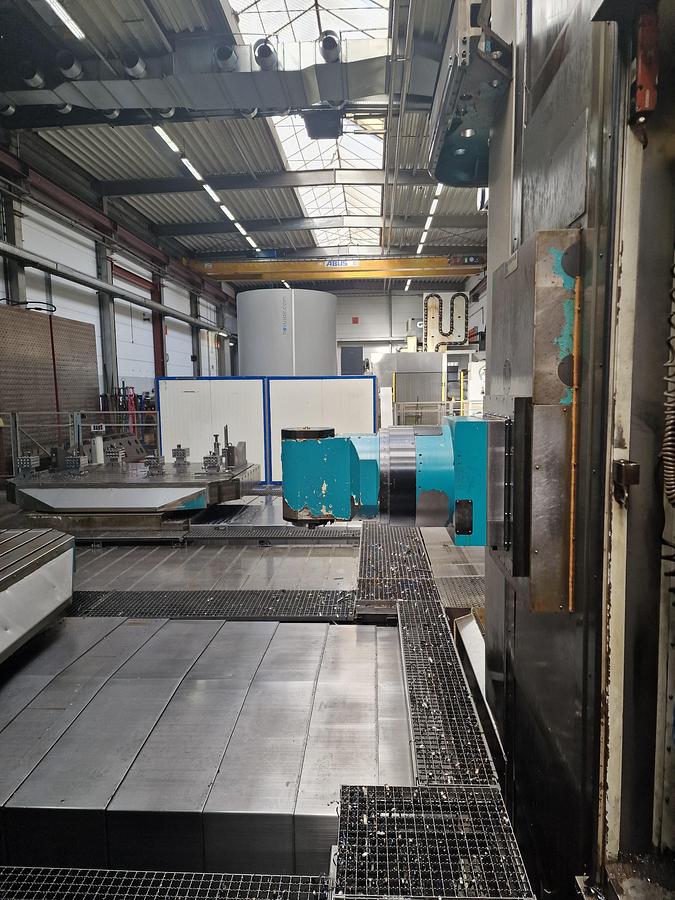

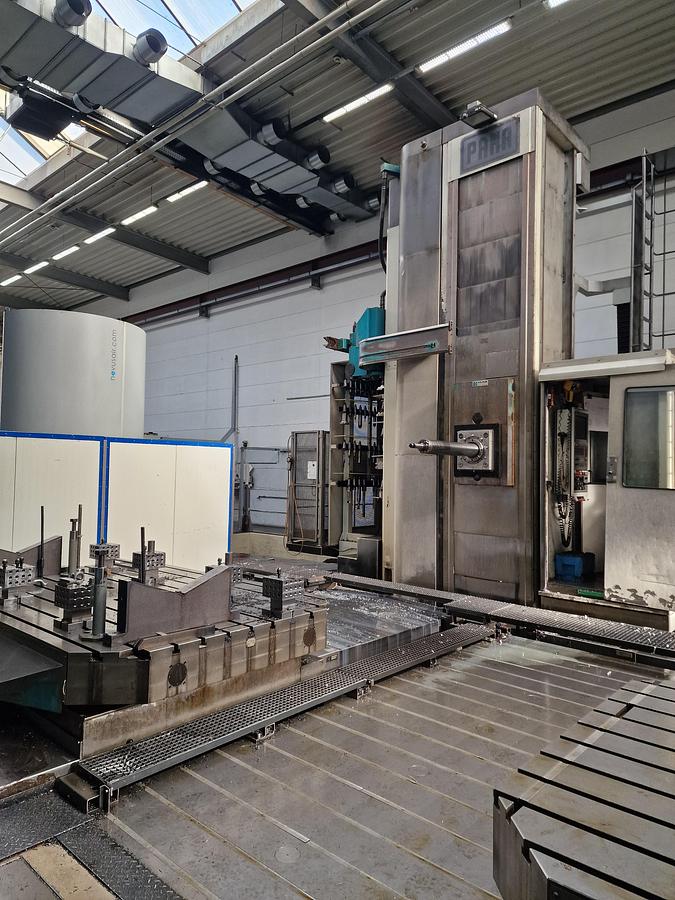

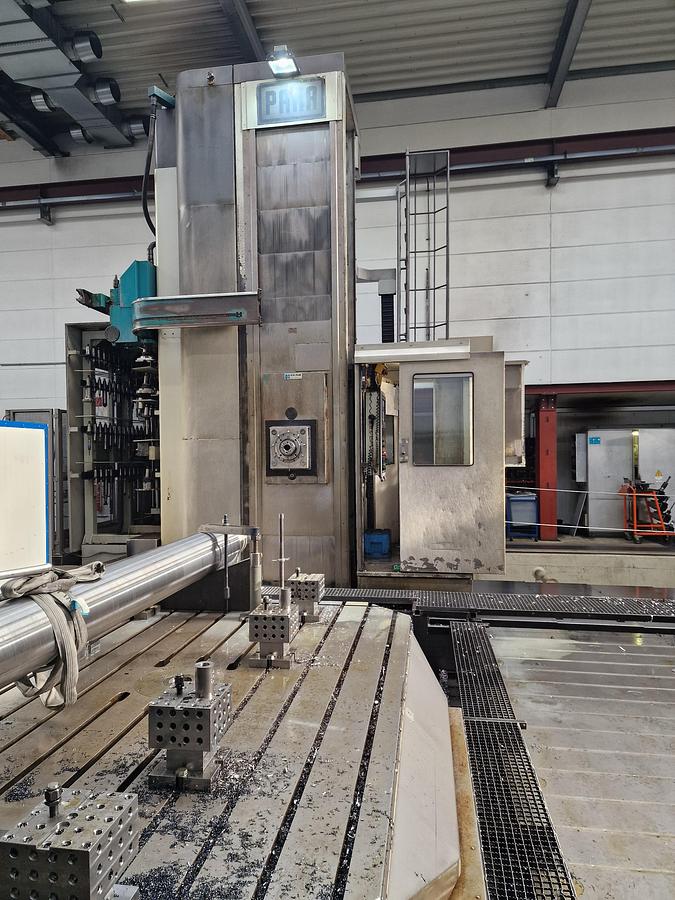

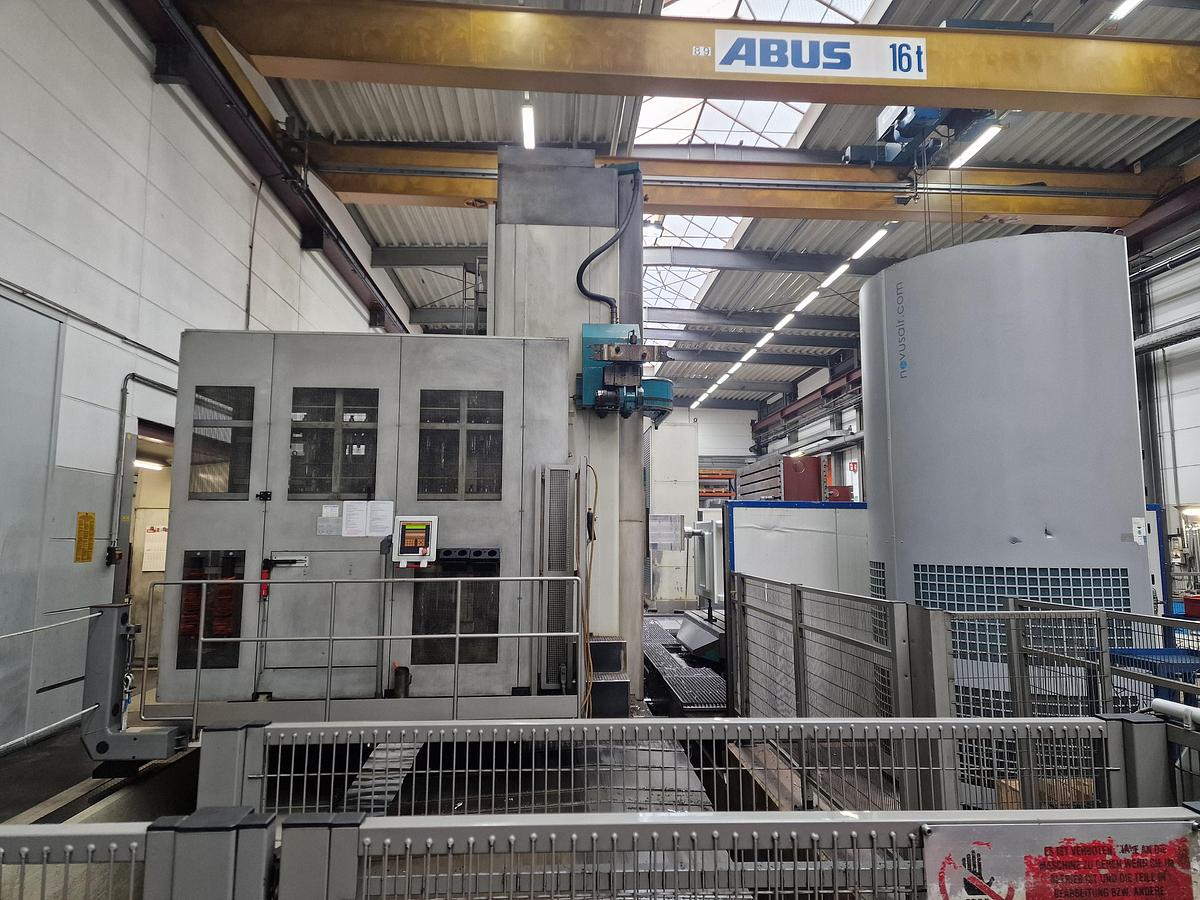

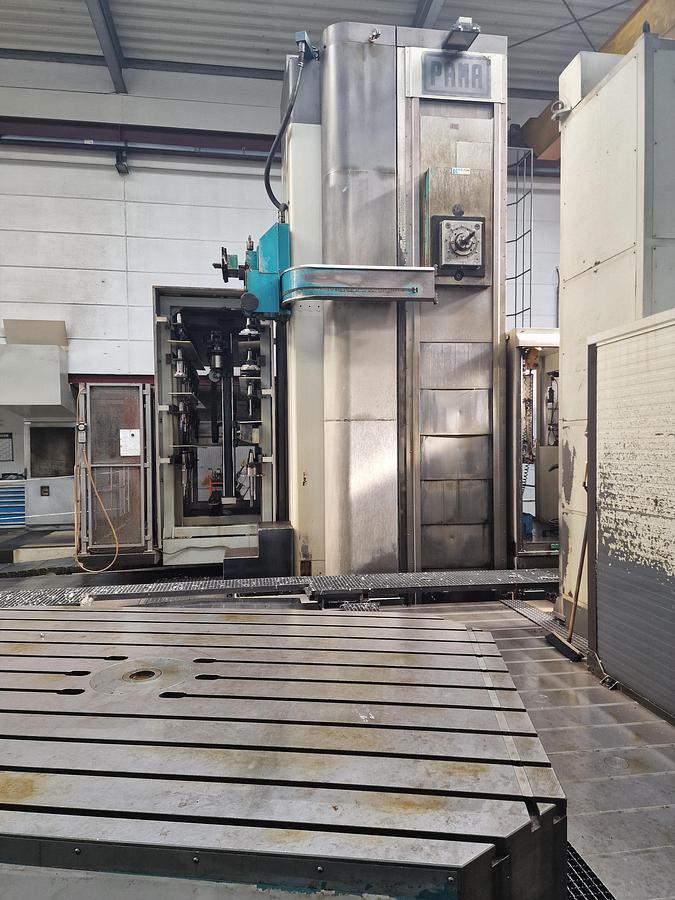

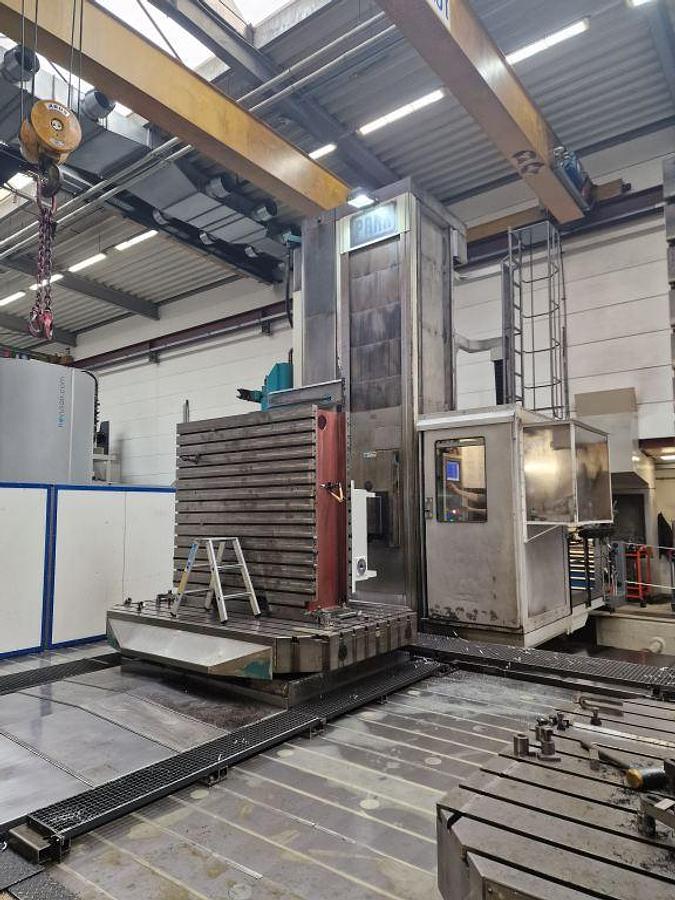

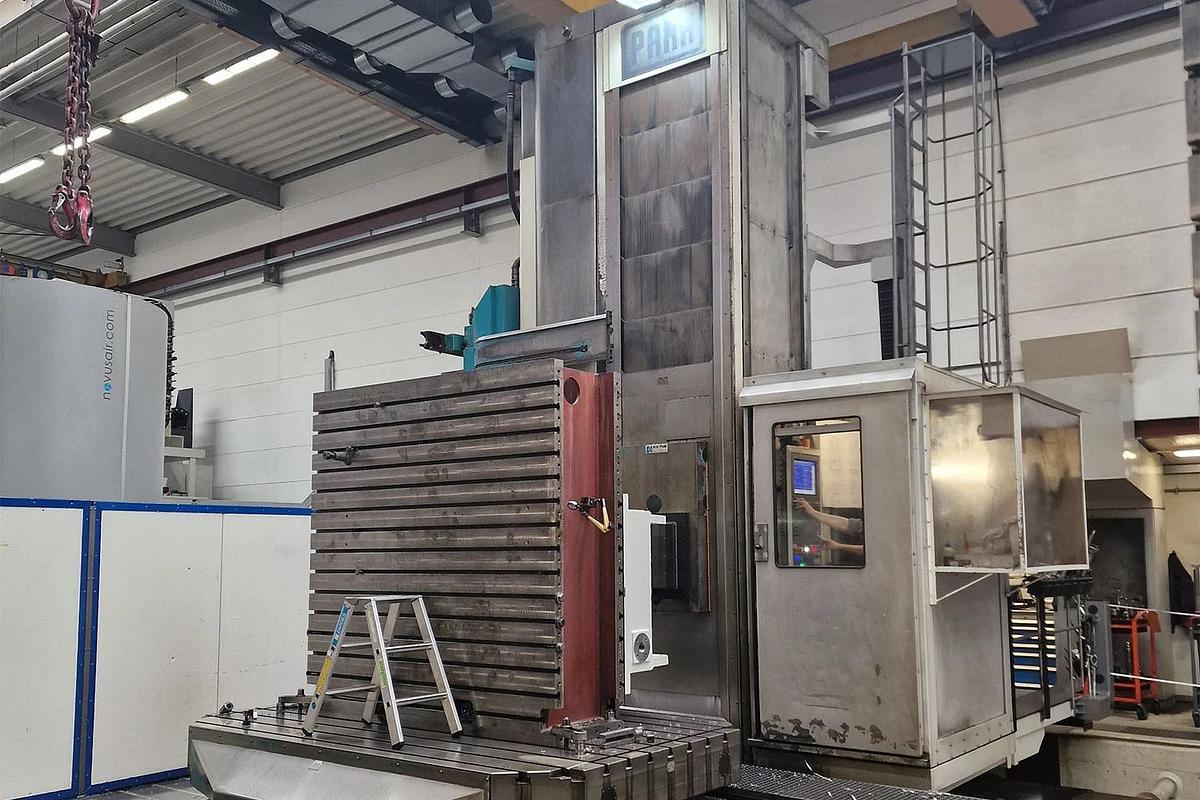

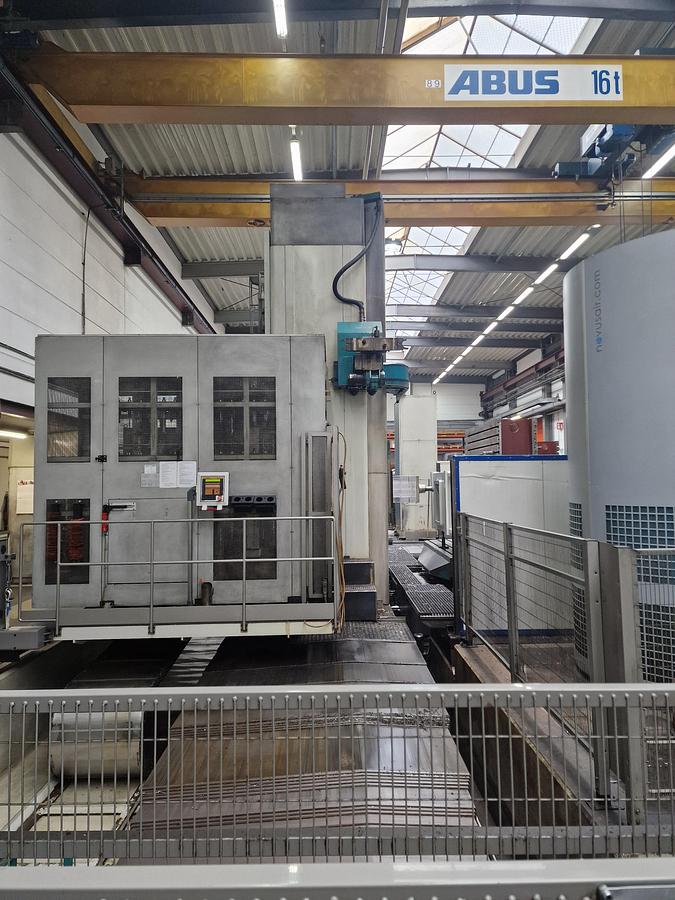

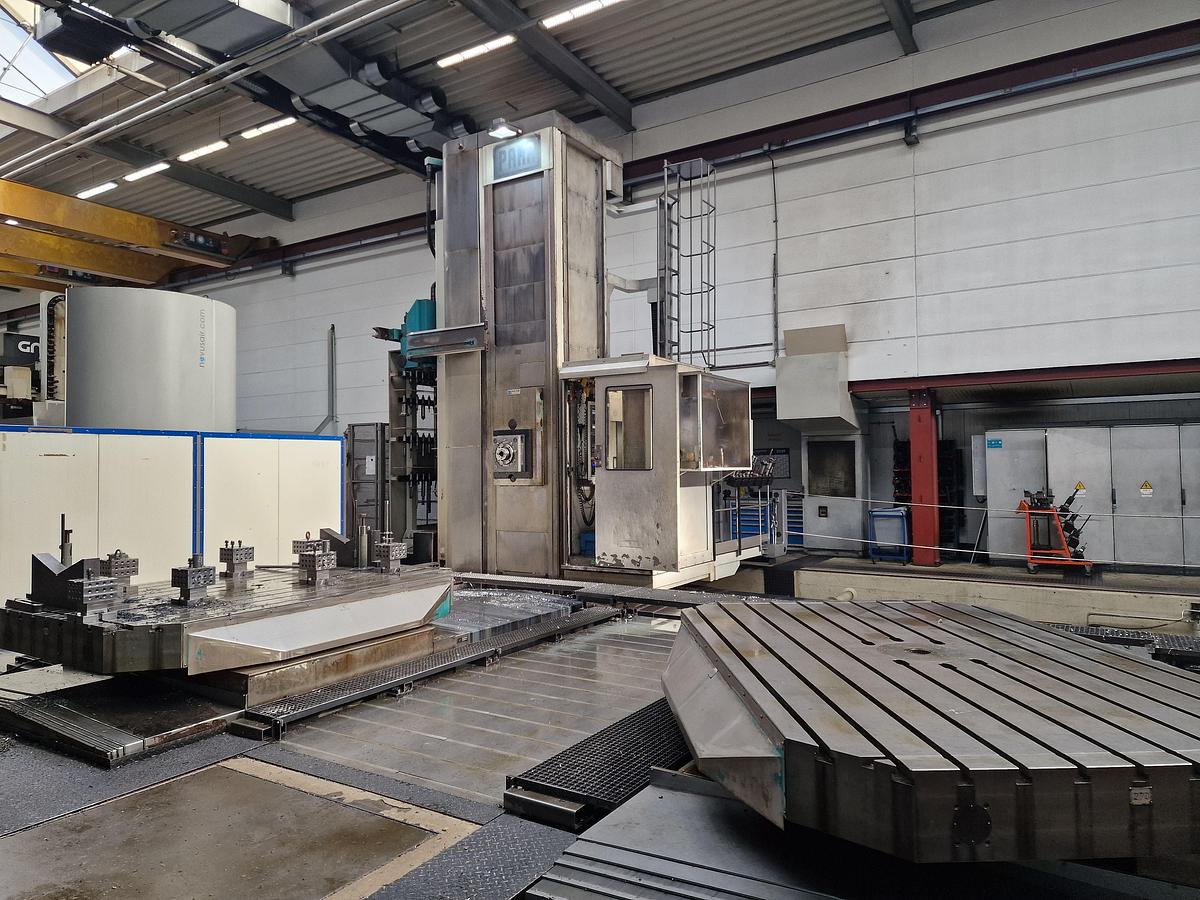

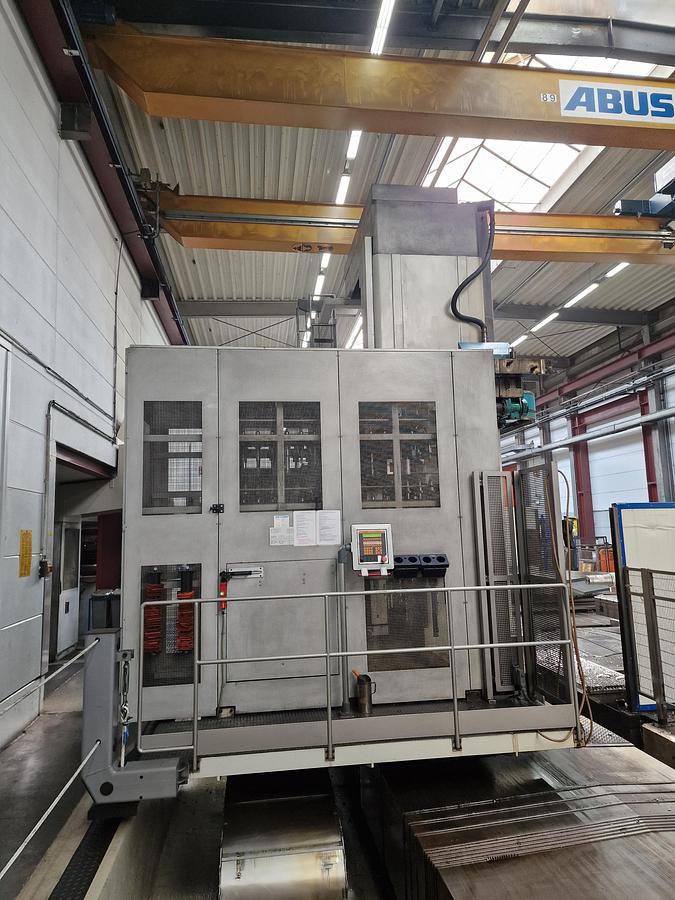

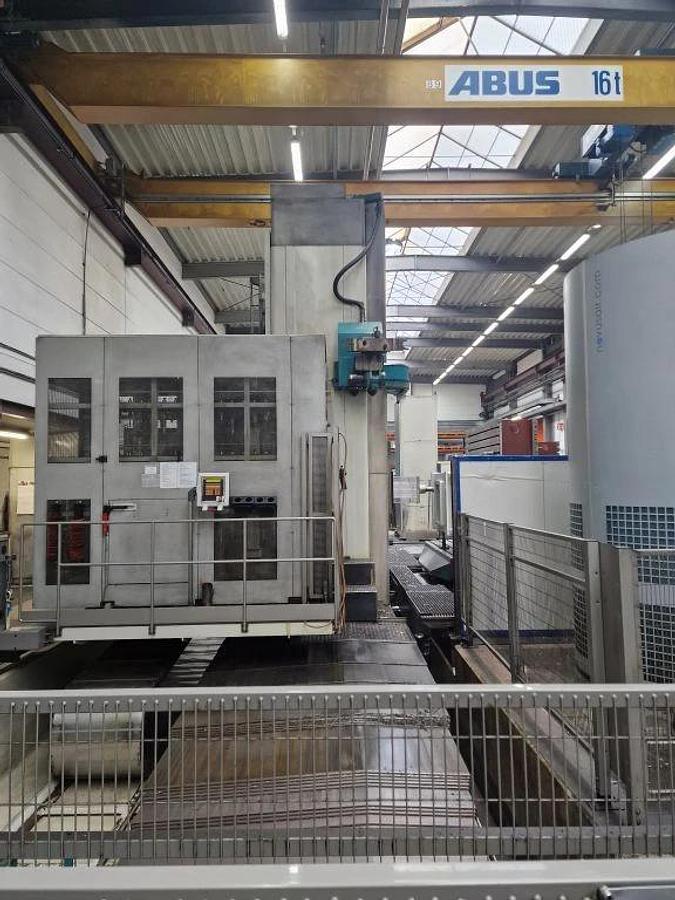

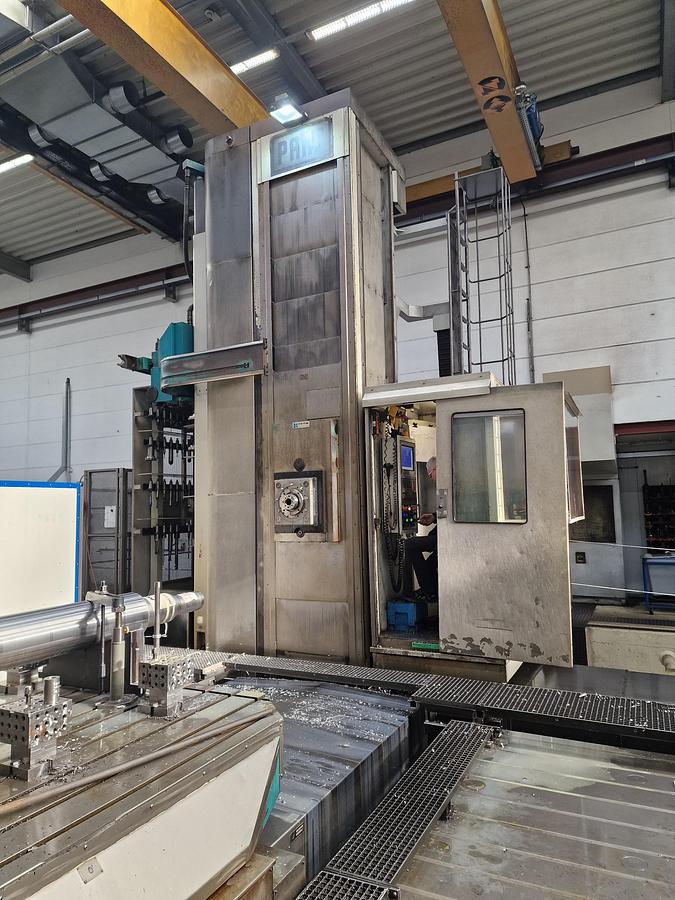

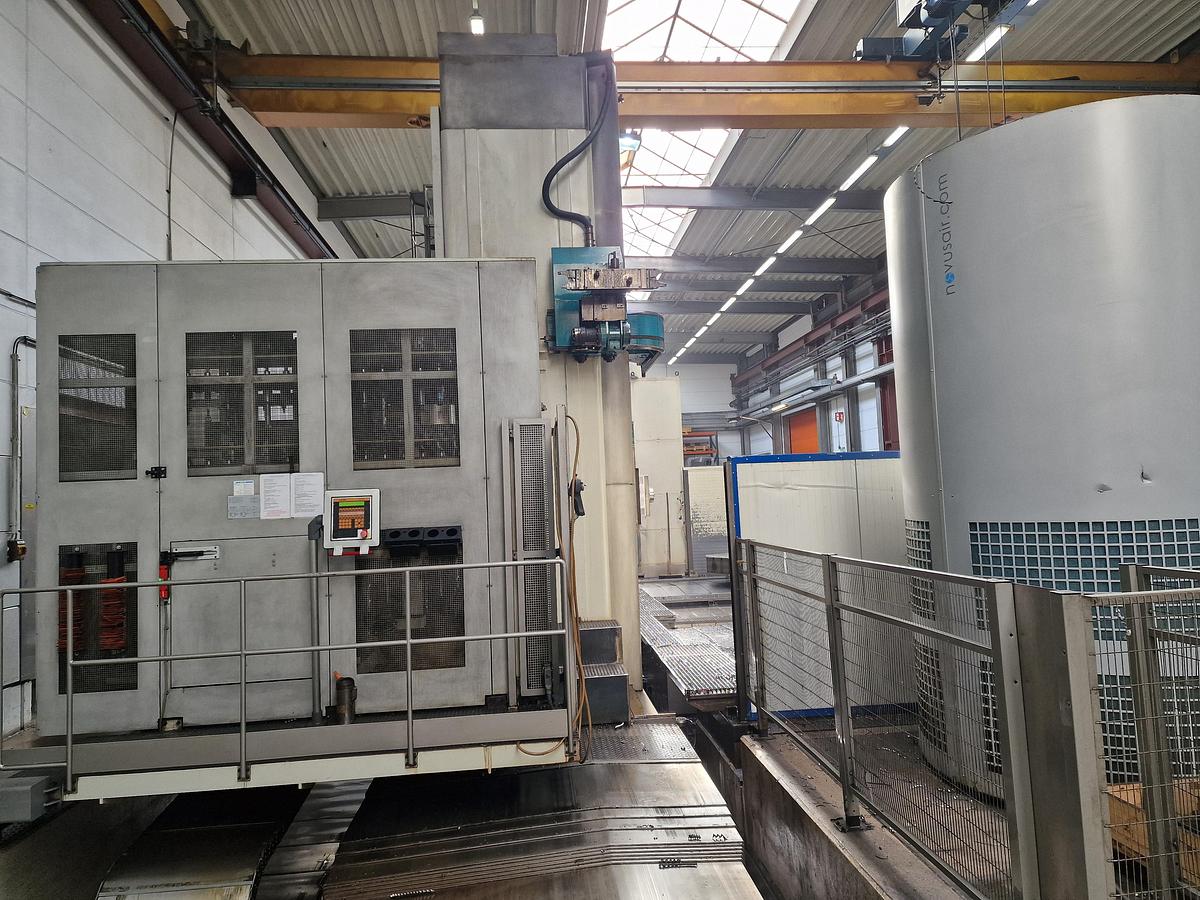

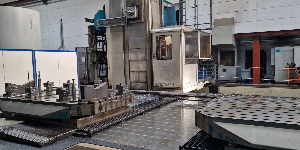

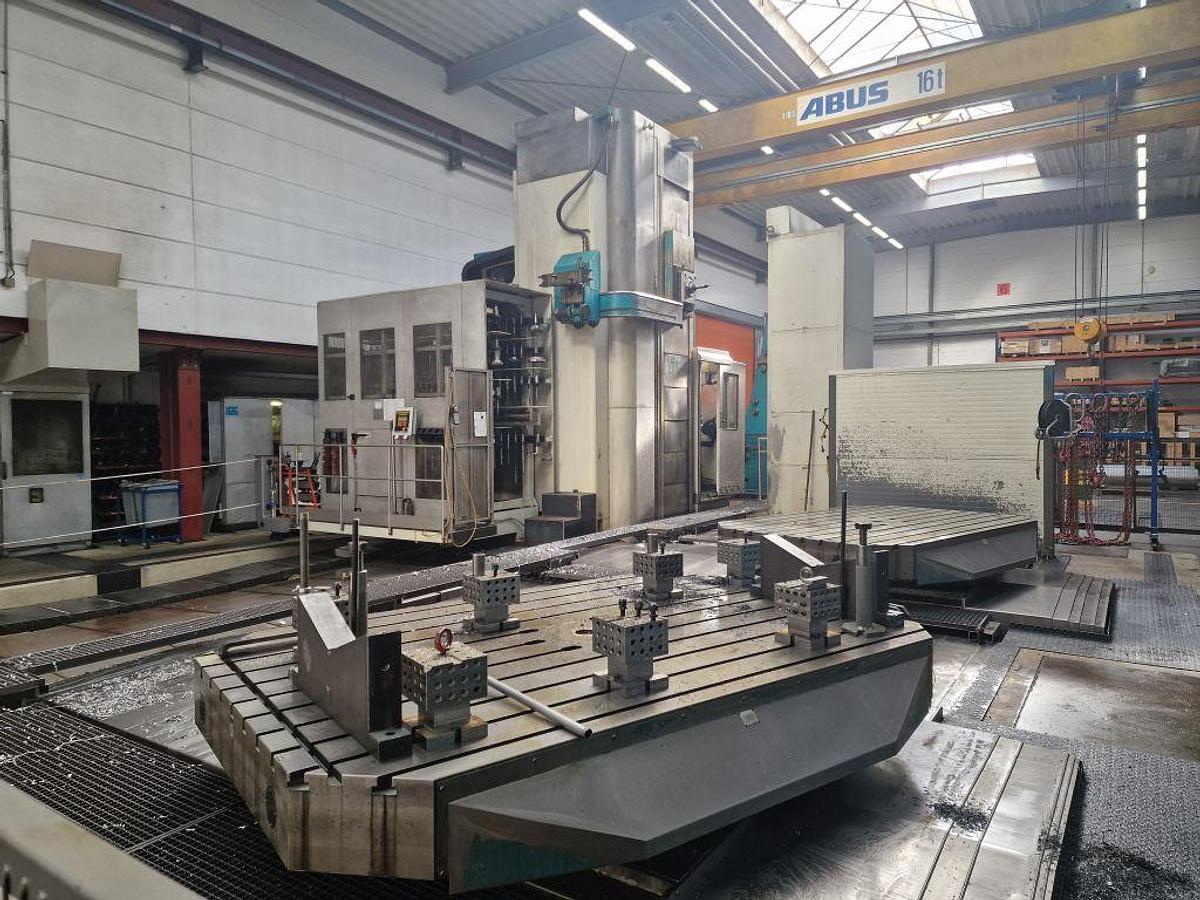

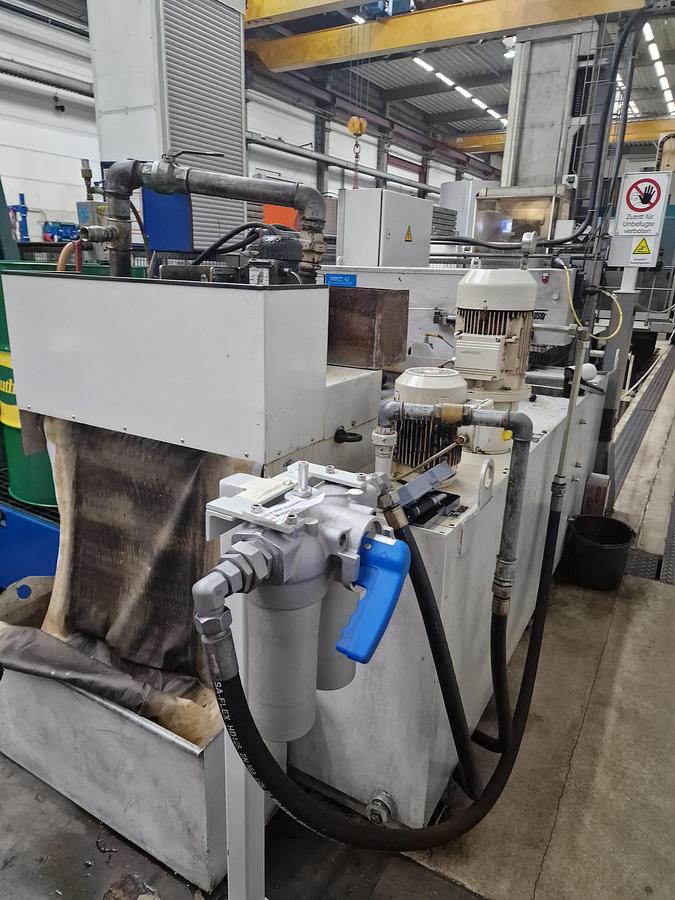

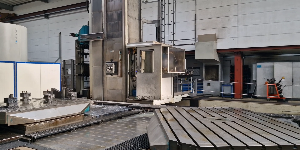

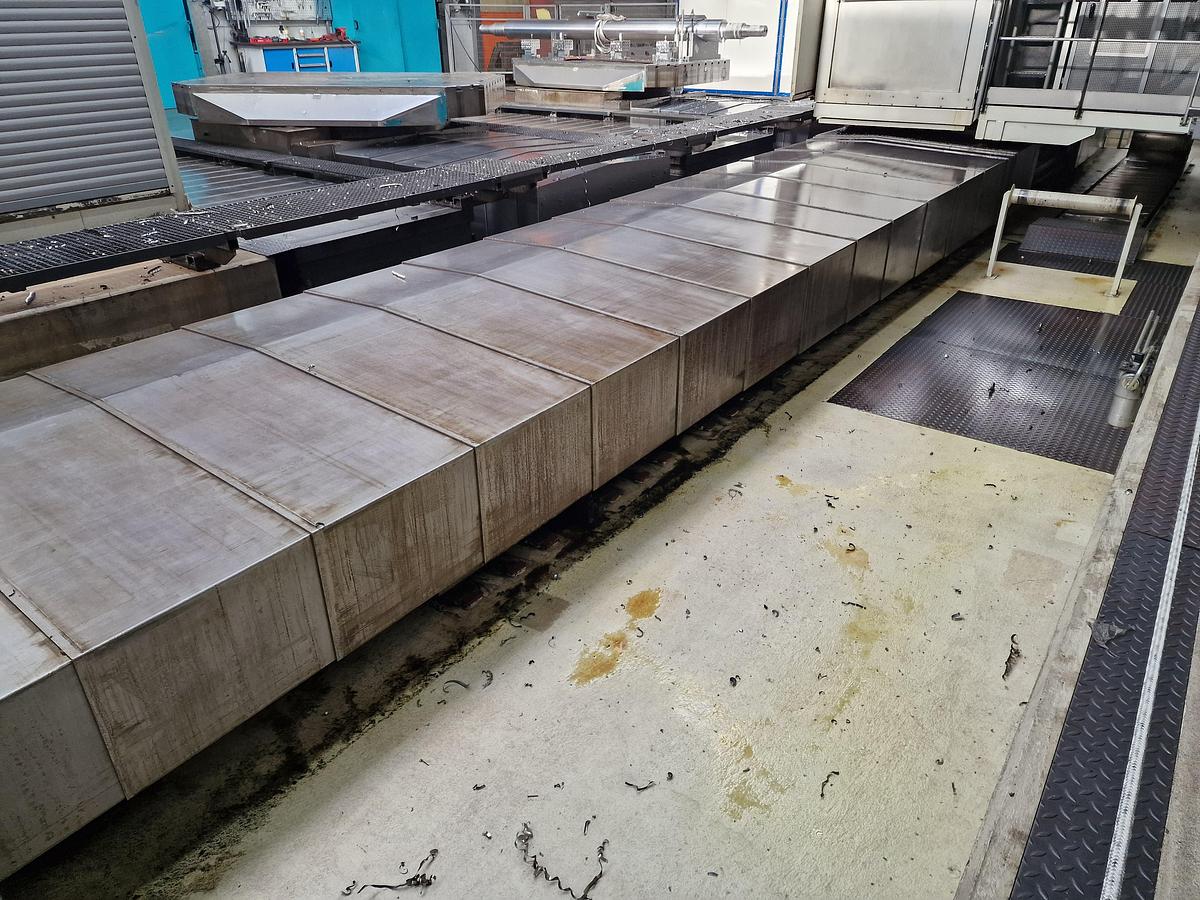

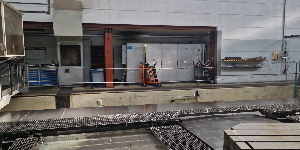

Pama Speedram 2000 CNC Floor/Ram Type Horizontal Boring Machine

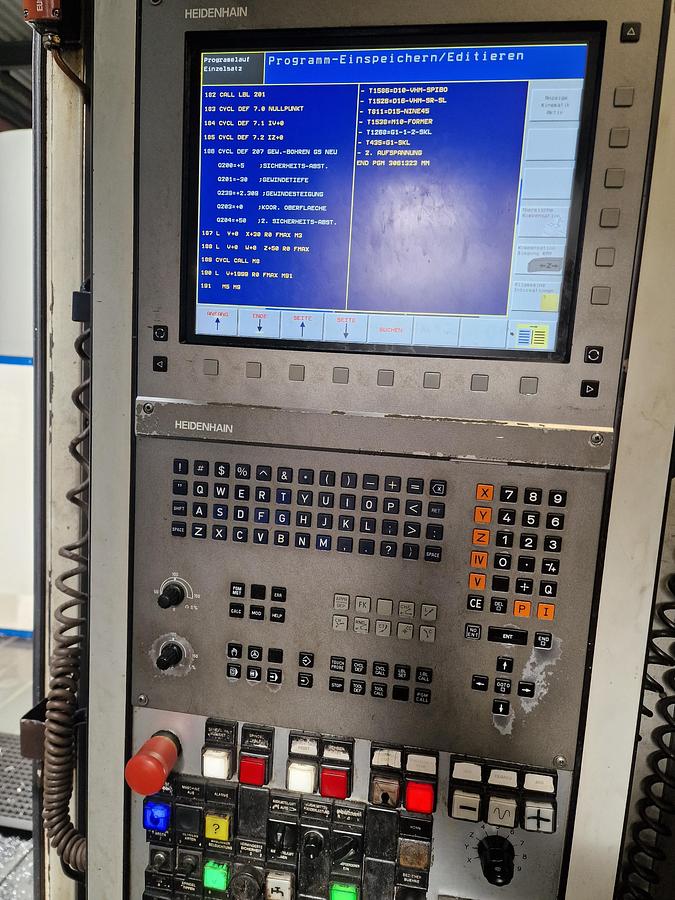

Heidenhain iTNC 530 CNC Control

Electronic handwheel

Chip conveyor (year of manufacture: 2023)

CE marking

Documentation

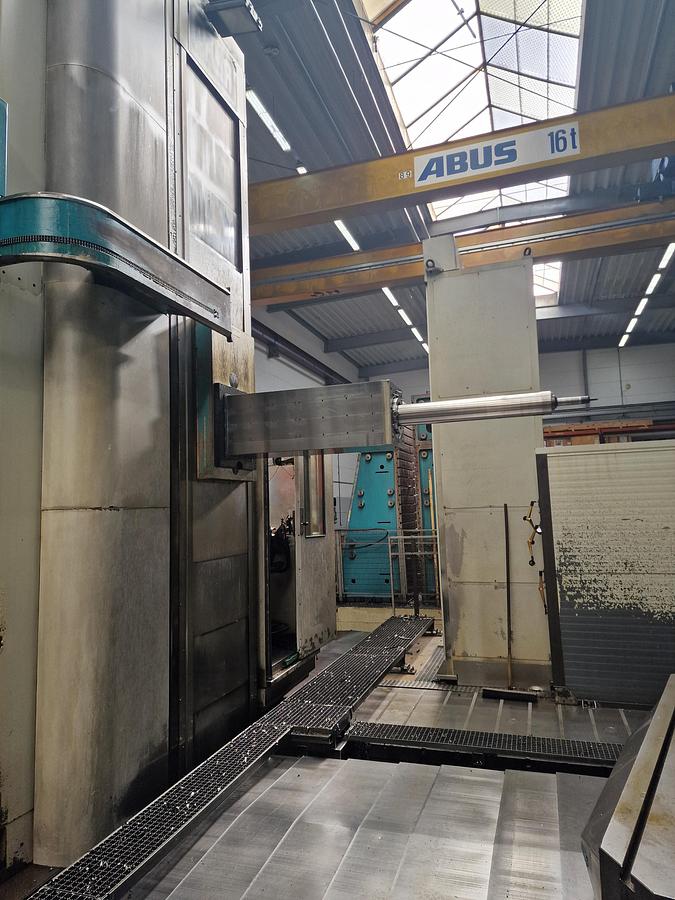

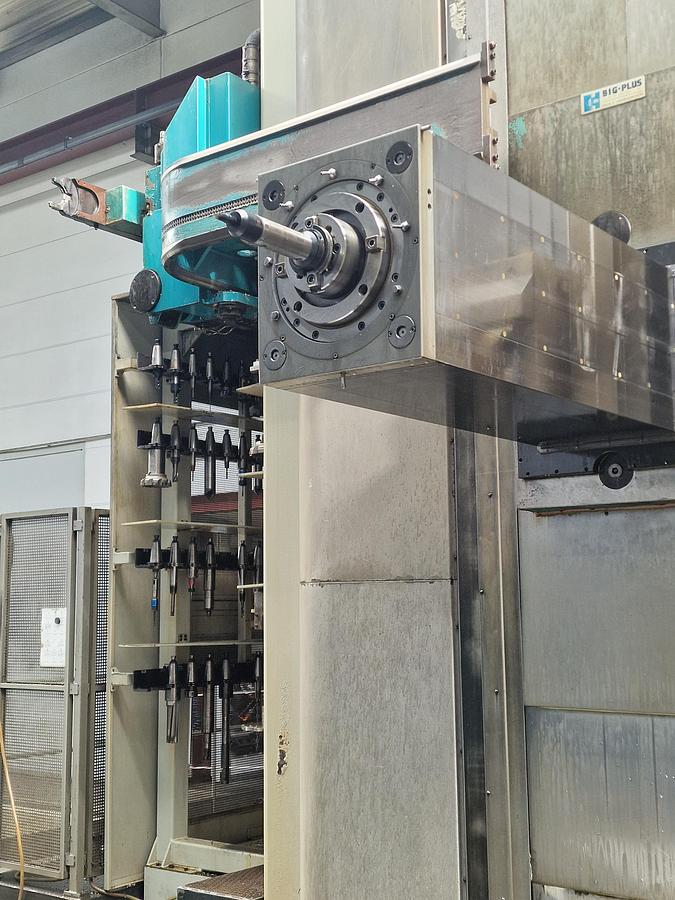

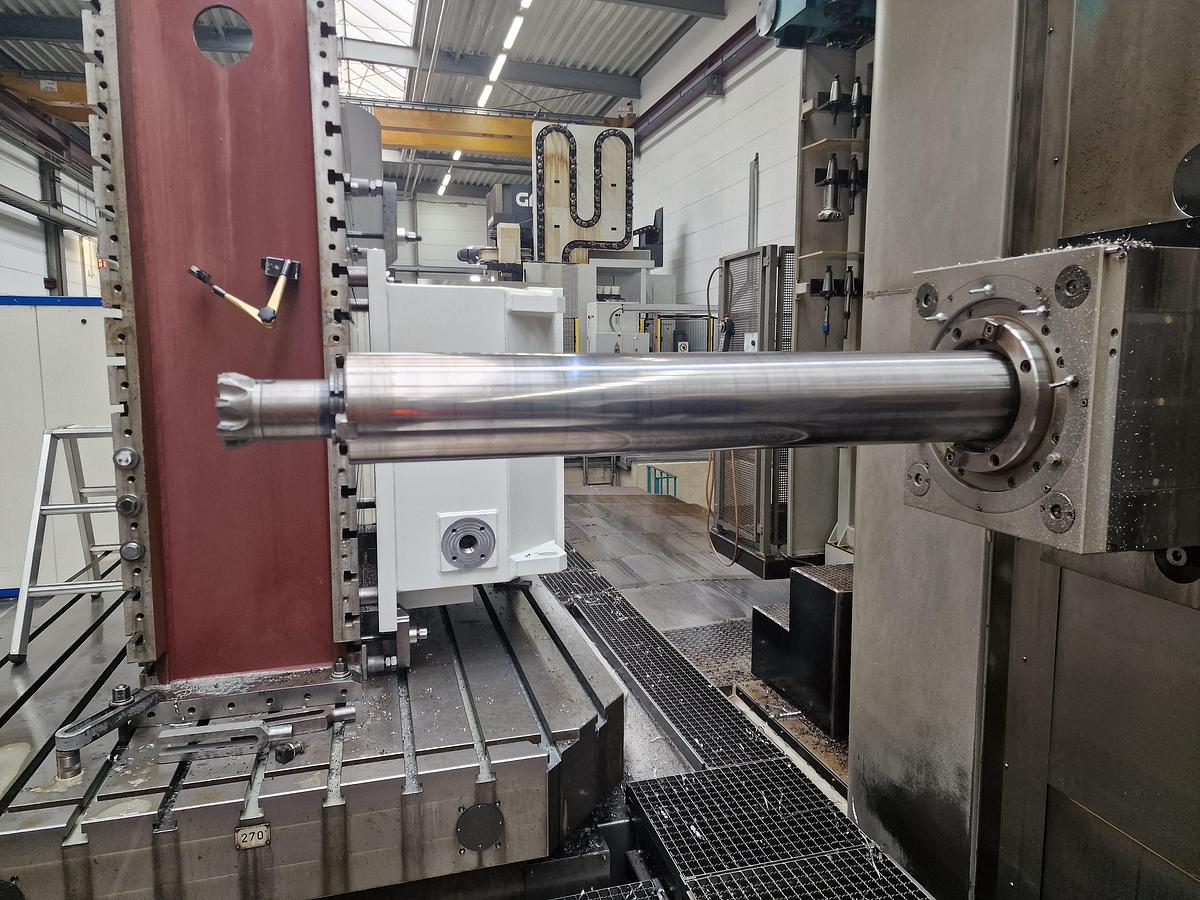

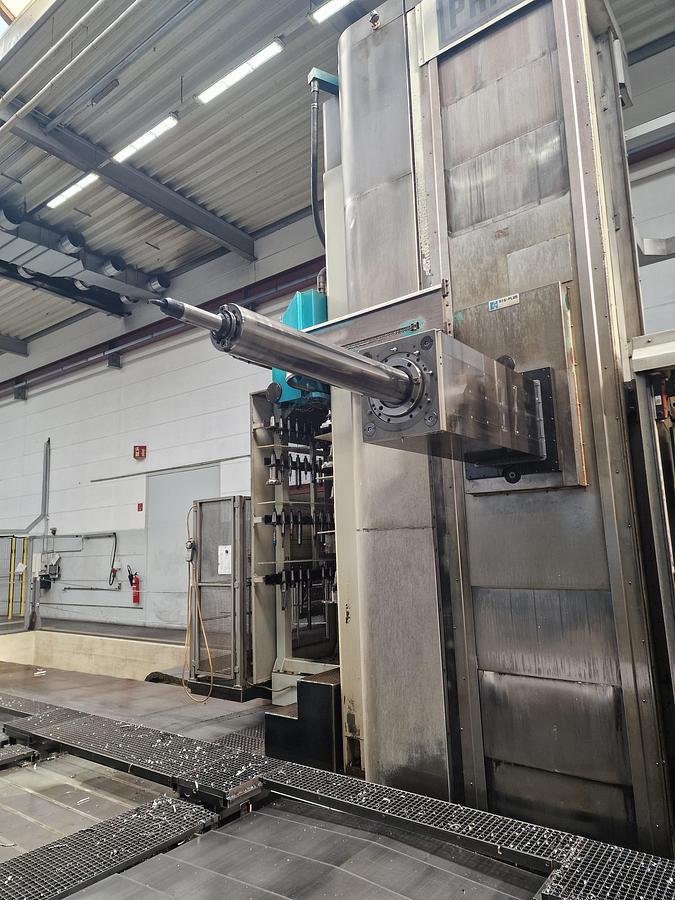

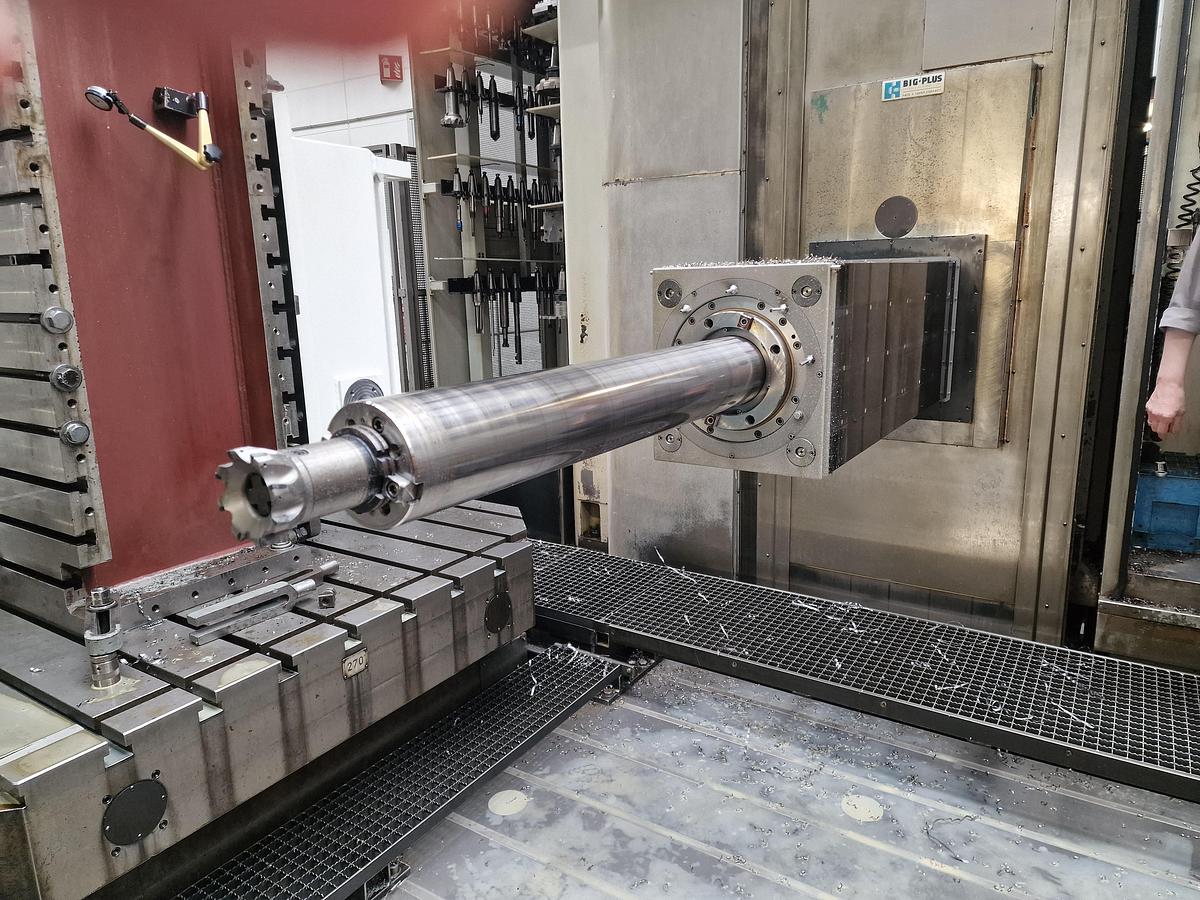

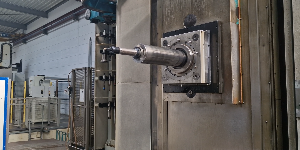

Z - W axis (spindle head):

- Drill spindle diameter: 150 mm

- Axial stroke of drill spindle (Z): 1.200 mm

- Rapid traverse Z axis: 20.000 mm

- Drill spindle internal cone: DIN 69871, ISO 50

- Drill spindle diameter: 254 mm

- Inner diameter of front spindle bearing: 200 mm

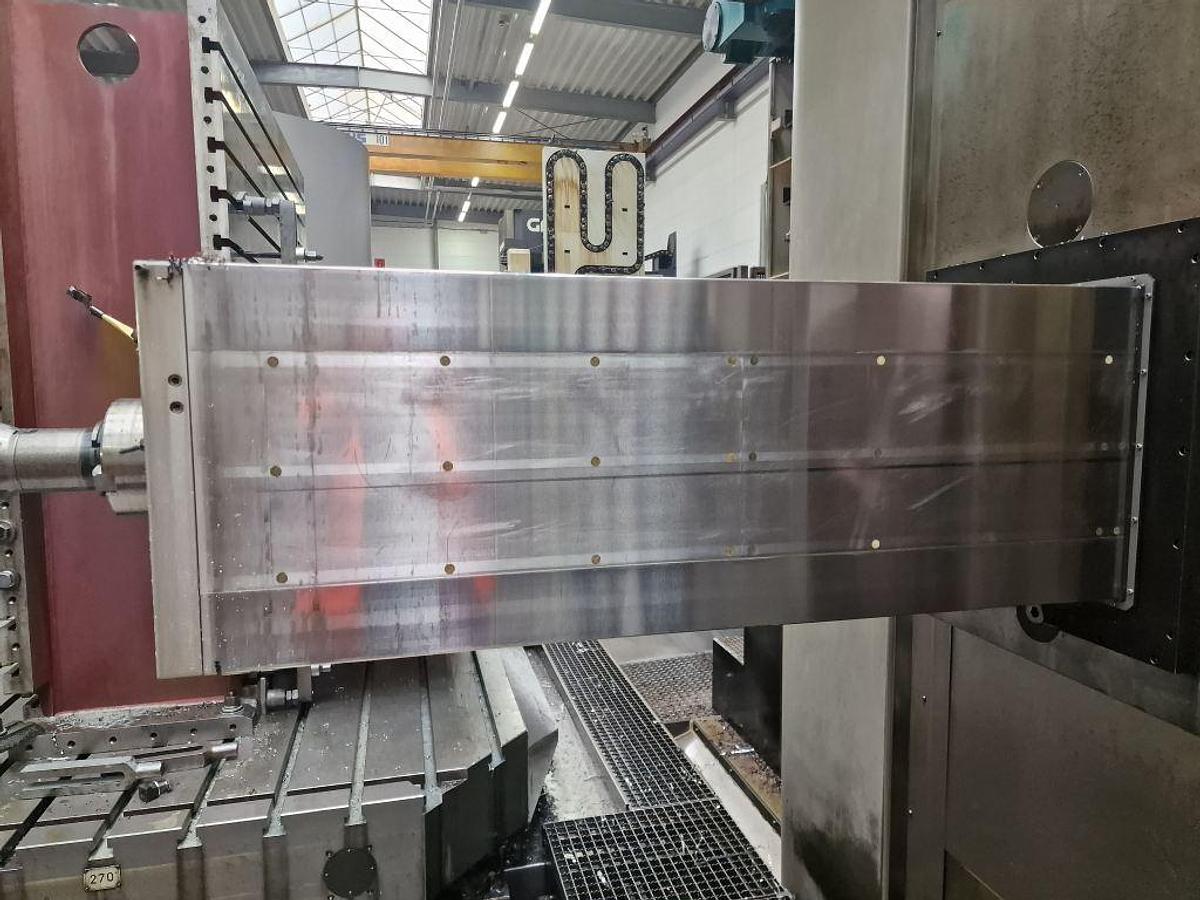

- RAM dimensions: 400 x 400 mm

- Axial stroke of drilling spindle (W): 1.000 mm

- Rapid traverse W axis: 15.000 mm

- Total axial stroke (Z+W): 2.200 mm

- Nominal torque spindle motor W and Z axis: 42 Nm

- Number of spindle gear stages: 2

- Spindle speed range: 6 : 3.500 rpm

- Spindle motor power: 60 kW

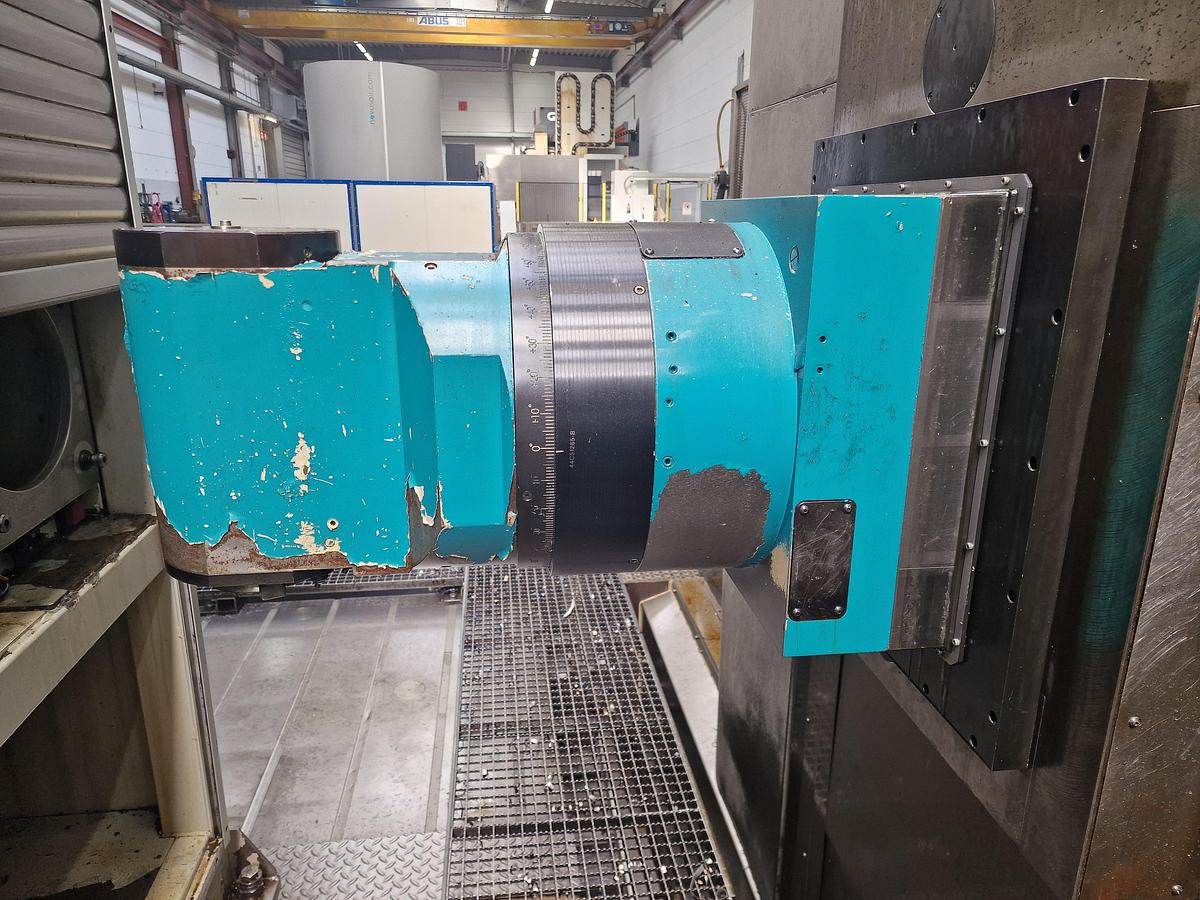

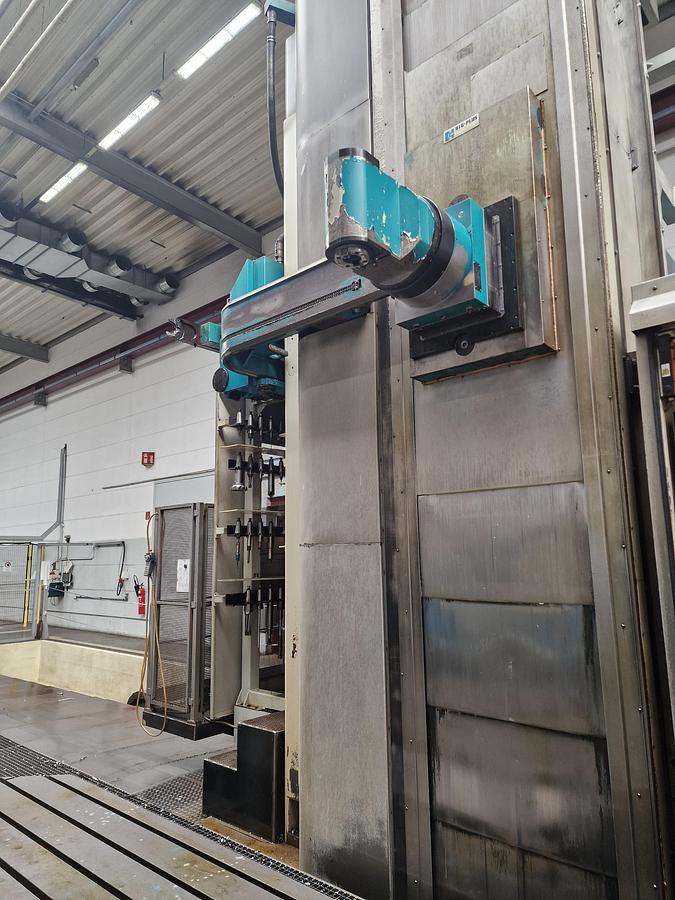

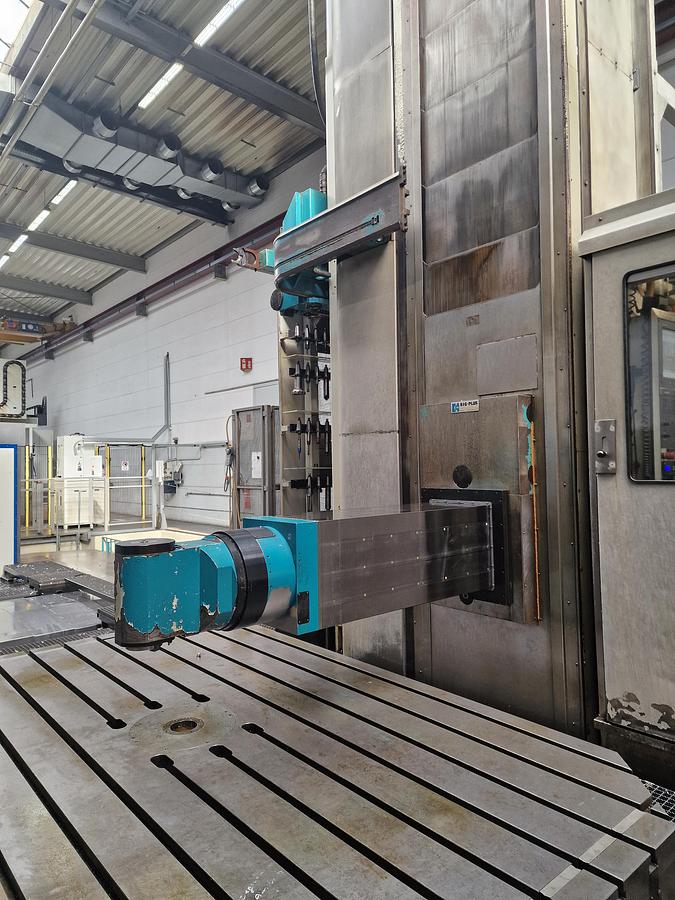

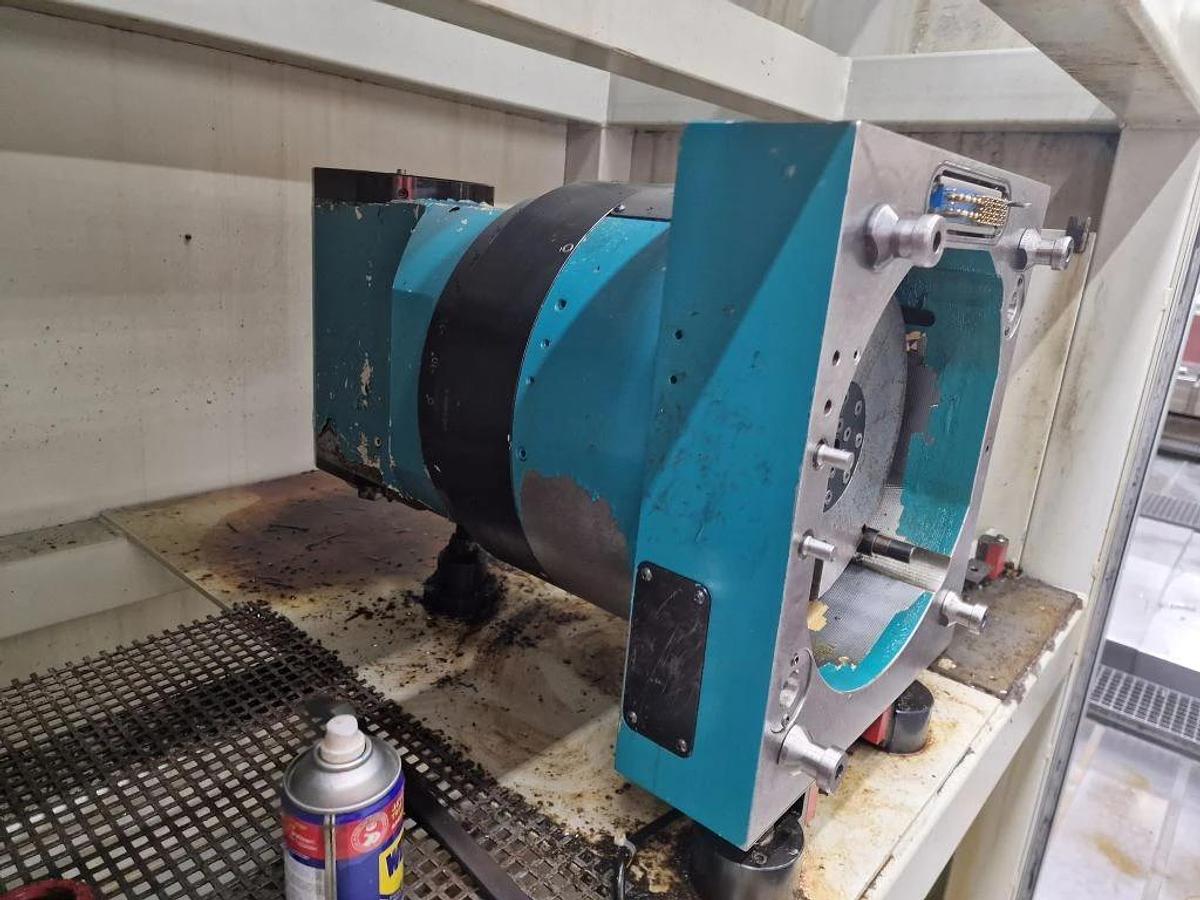

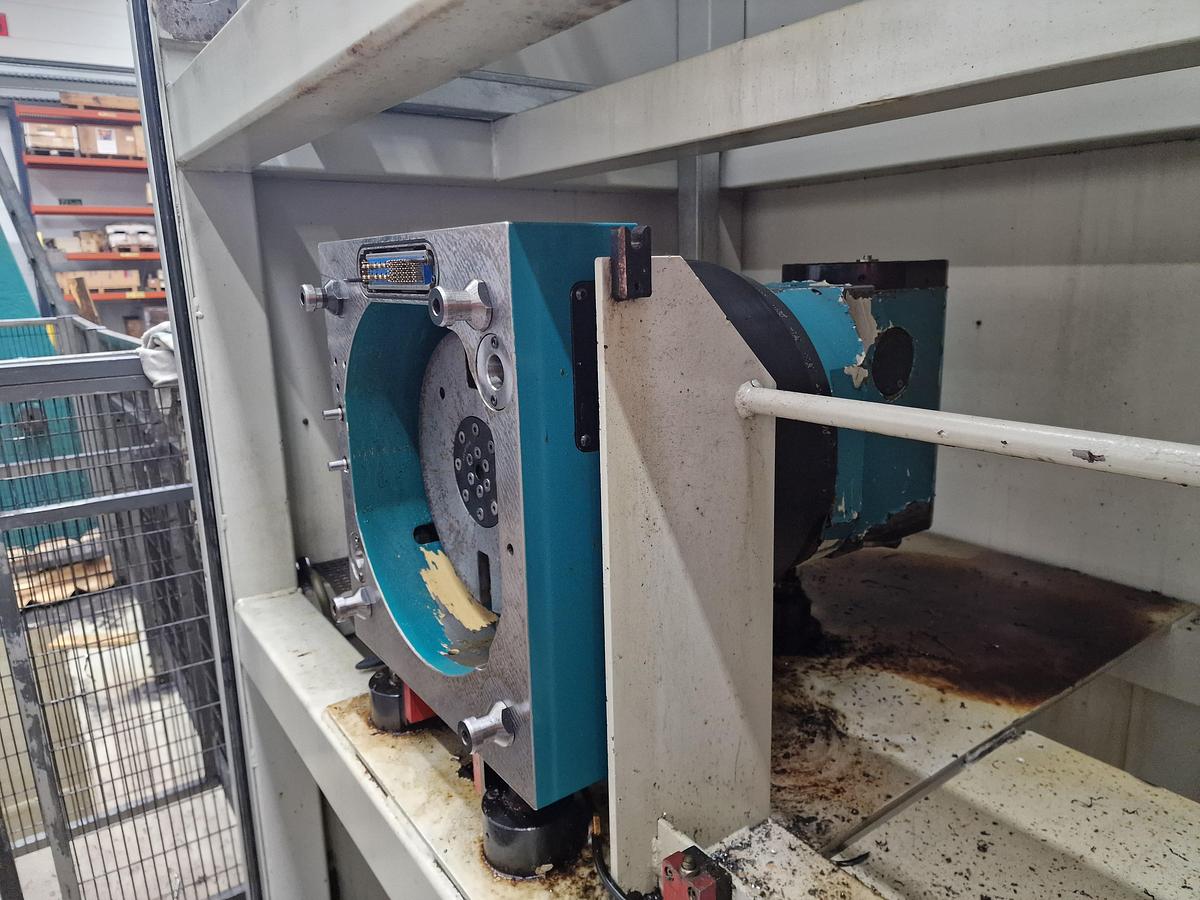

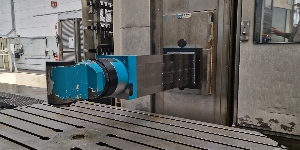

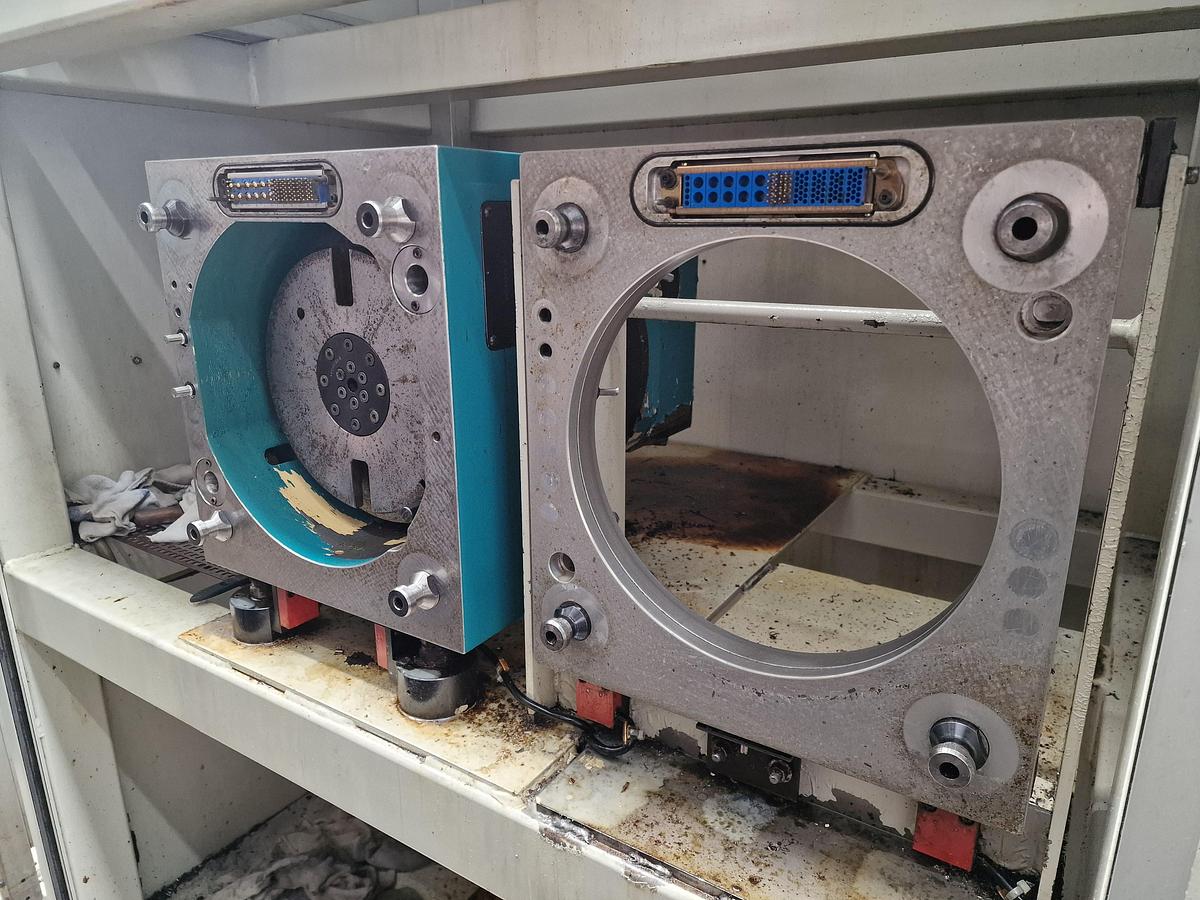

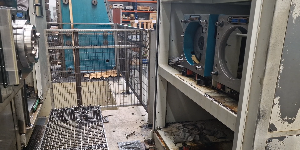

Milling head with indexed vertical axes, model TTL 2 18 360:

- Tool holder: ISO 50, DIN 69871

- Max. spindle power: 18 to 214 kW

- Max. spindle speed: 2.500 rpm

- Transmission ratio: 1:1

- Spindle indexing +/- 90°: 181 positions per 1°

- Milling head indexing +/- 180°: 360 positions per 1°

- Max. torque at the spindle: 800 Nm

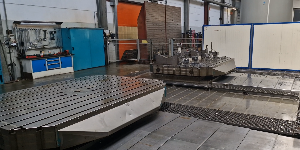

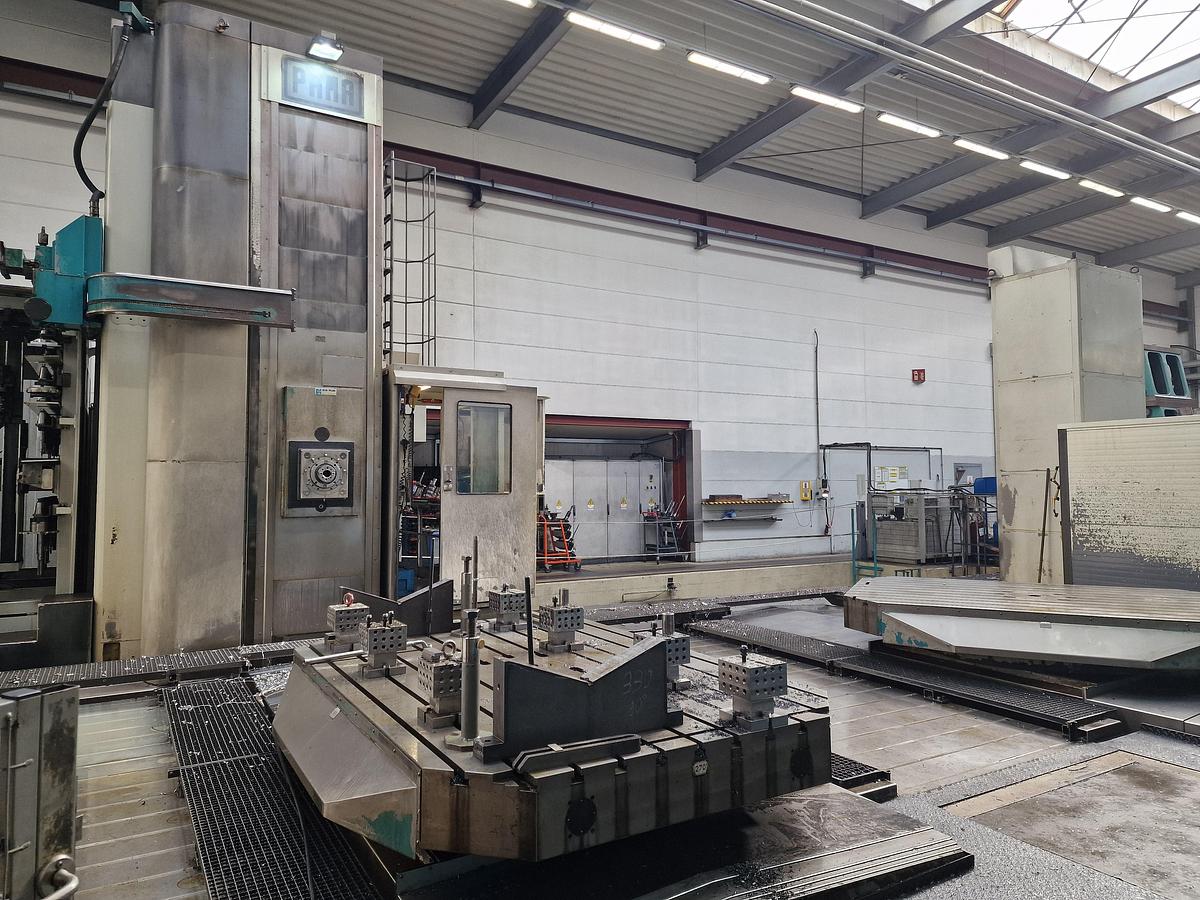

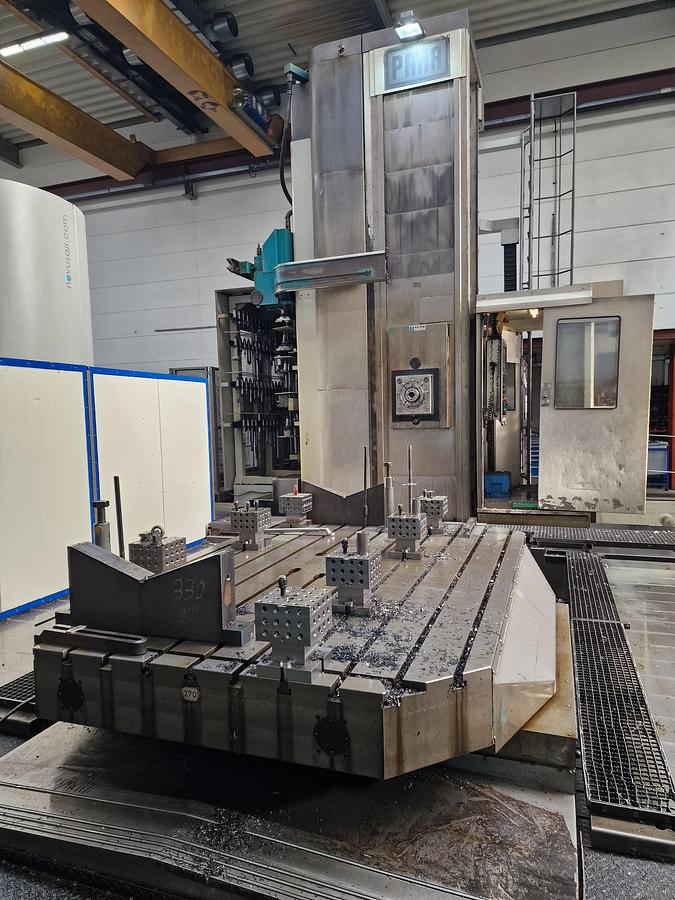

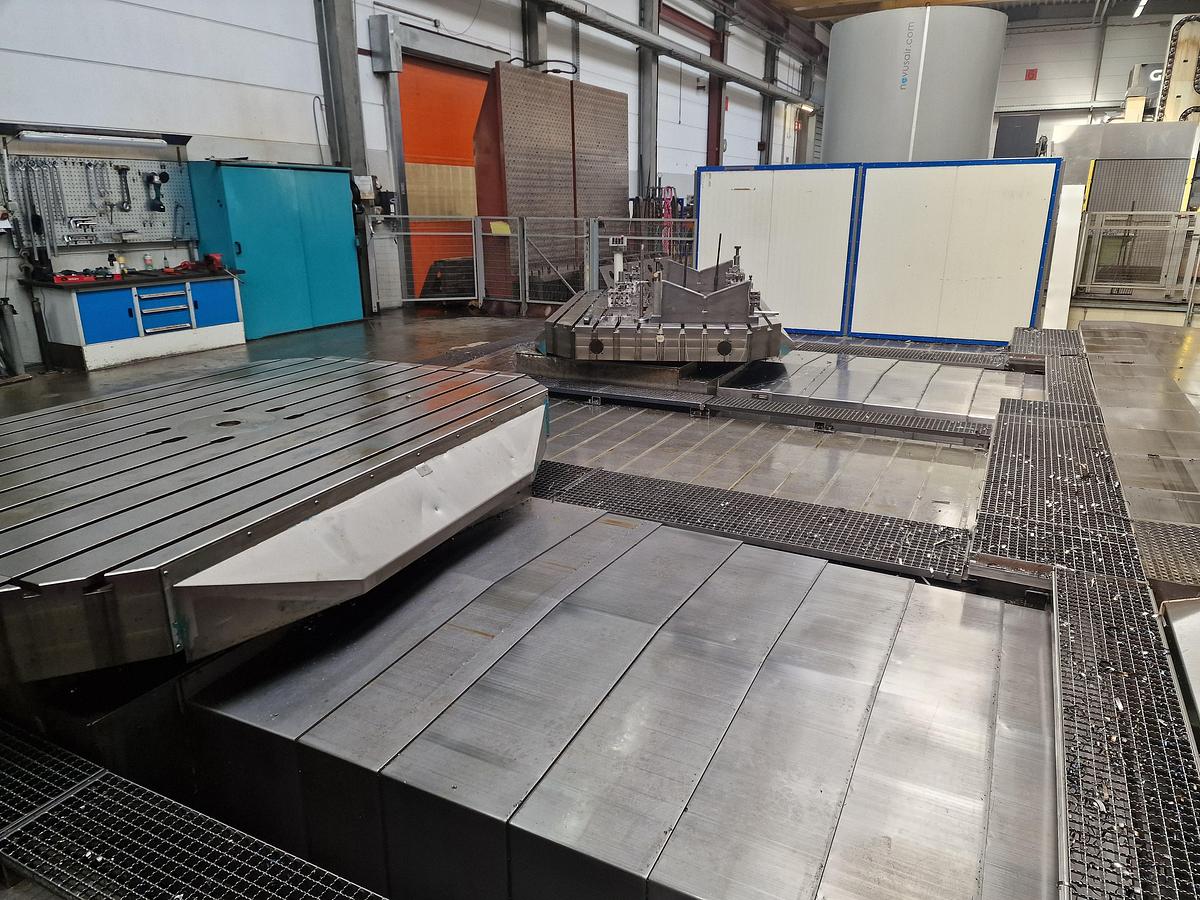

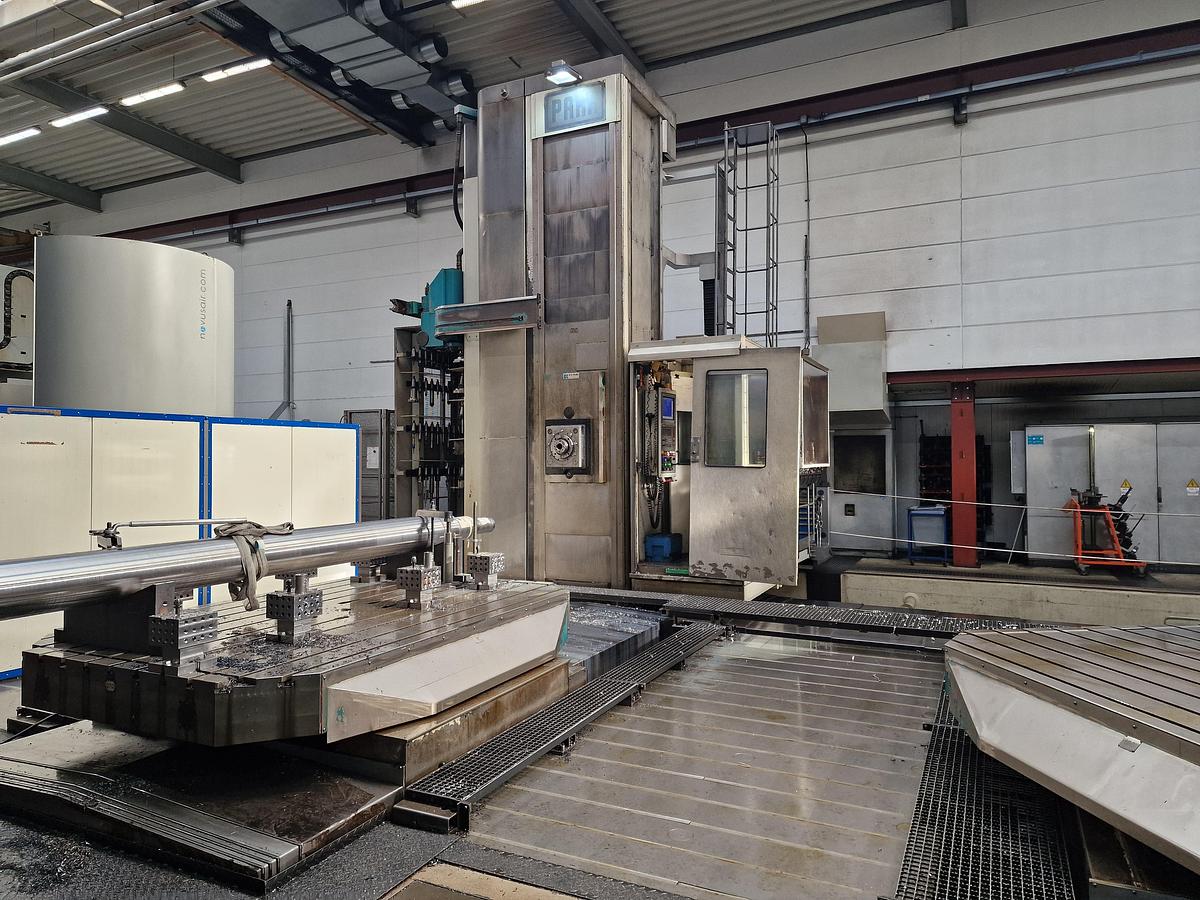

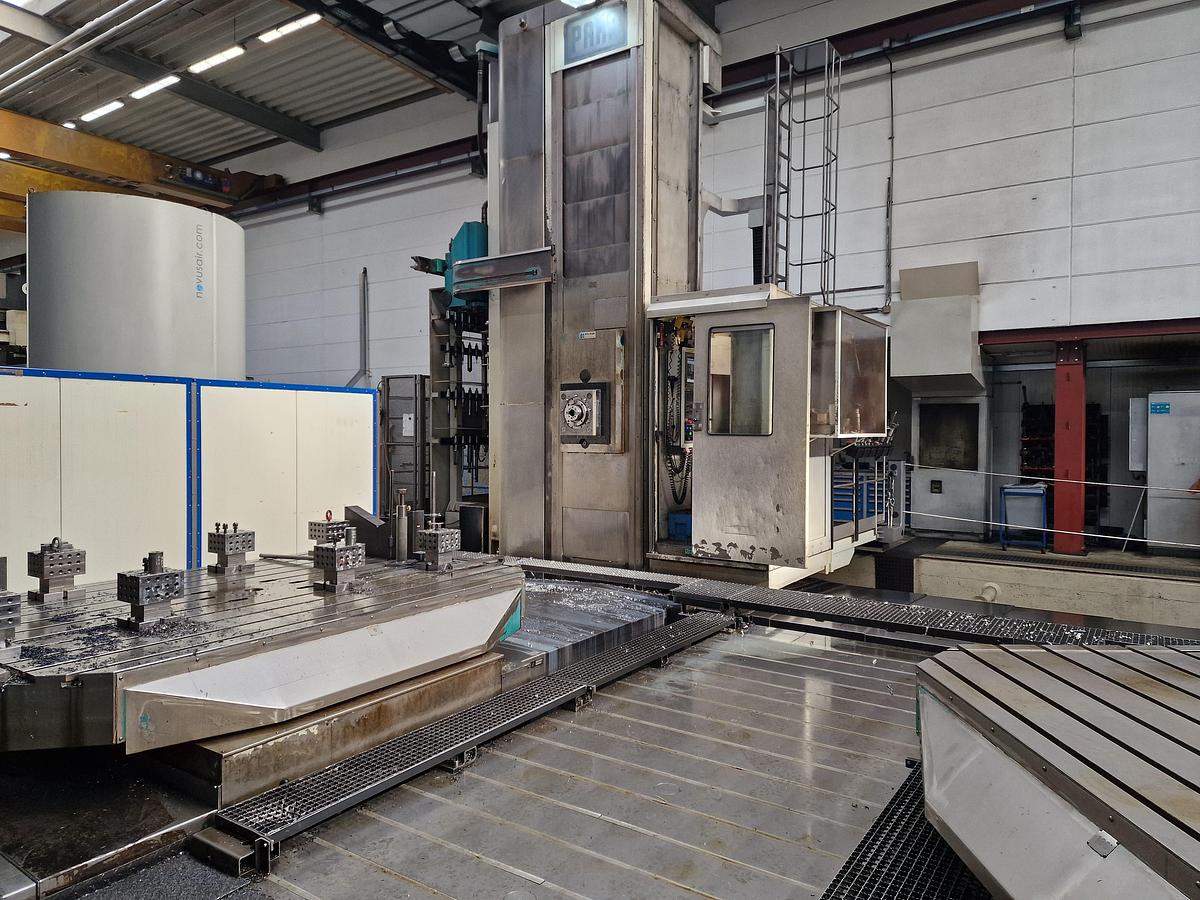

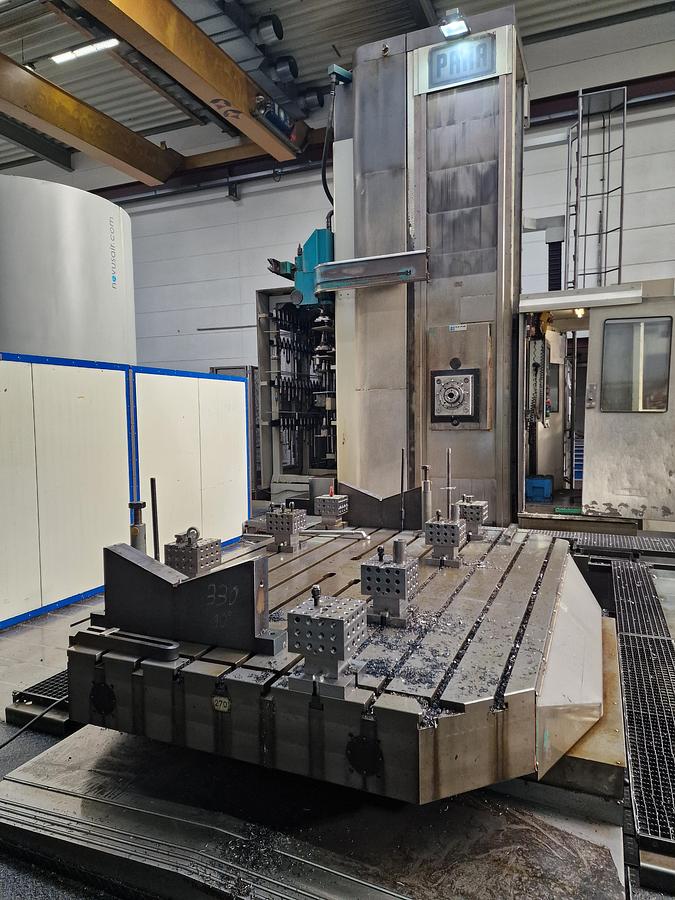

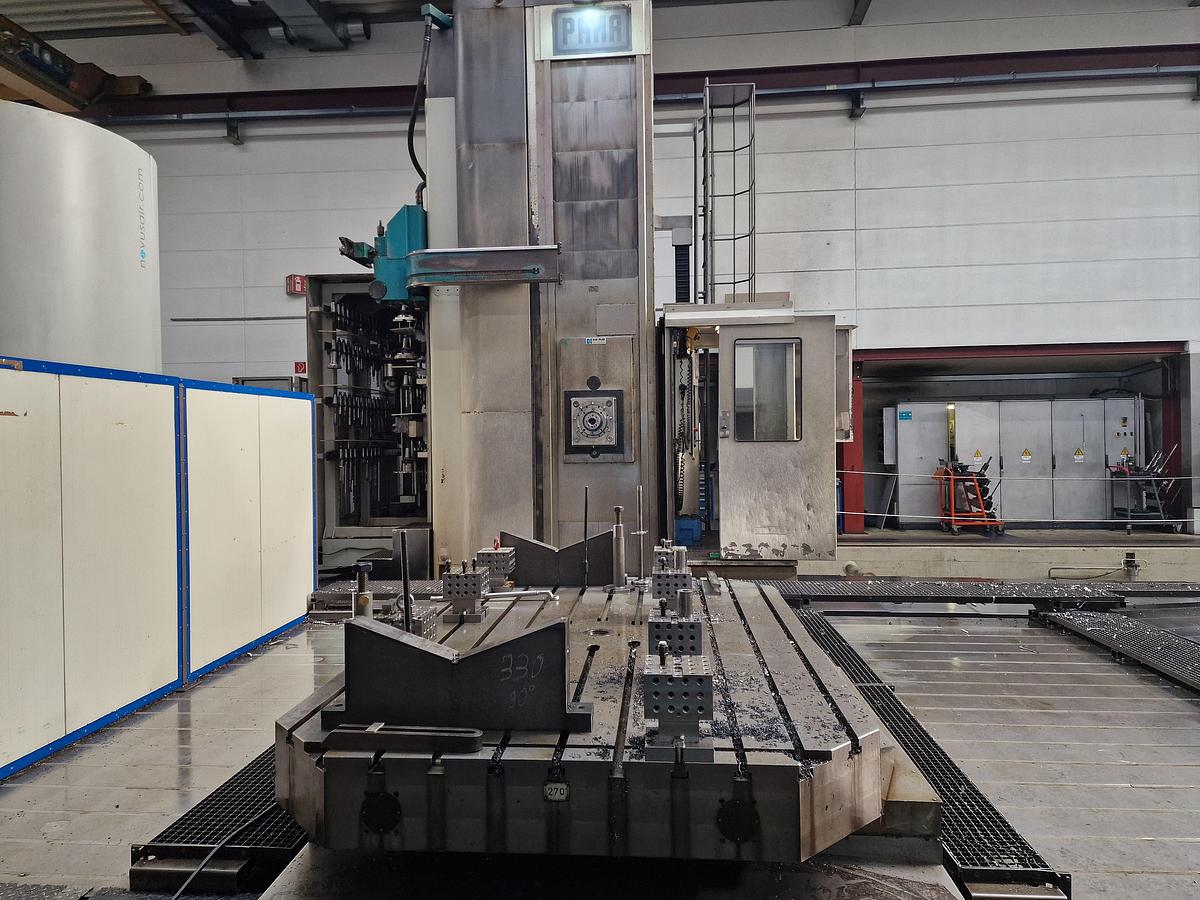

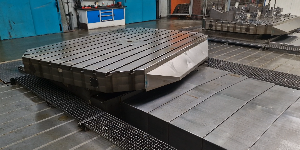

Workpiece table (axis V1 - B1 / V2 - B2):

- Table dimensions: 2.000 x 3.000 mm

- T-slot dimensions: 28 mm³

- Centre distance between T-slots: 180 mm

- Floor height of table top: 650 mm

- Load capacity: 40 t

- Longitudinal stroke (axis V1-V2): 2.000 mm

- Feed speed (axis V1-V2): 0.5 – 15.000 rpm

- Rapid traverse (axis V1-V2): 45.000 rpm

- Table rotation (axis B1-B2): 360° (degrees)

- Rapid feed (axis B1-B2): 0,0005 + 2 rpm

- Motor speed (axis B1-B2): 2.000 rpm

- Motor speed (axis V1-V2): 3.000 rpm

- Nominal motor torque (axis B1-B2 and V1-V2): 58 N

Clamping plate fields:

- Dimensions: 2 x 1.500 x 4.500 mm, 1 x 2.000 x 4.500 mm

- Load capacity: 15.000 kg/m²

- Plate thickness: 300 mm

- T-slot dimensions: 28 H12, DIN 650 mm

- T-slot centre distance: 250 mm

- Surface finish: DIN 876/III

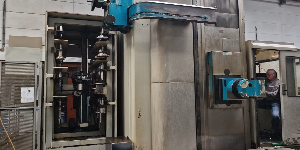

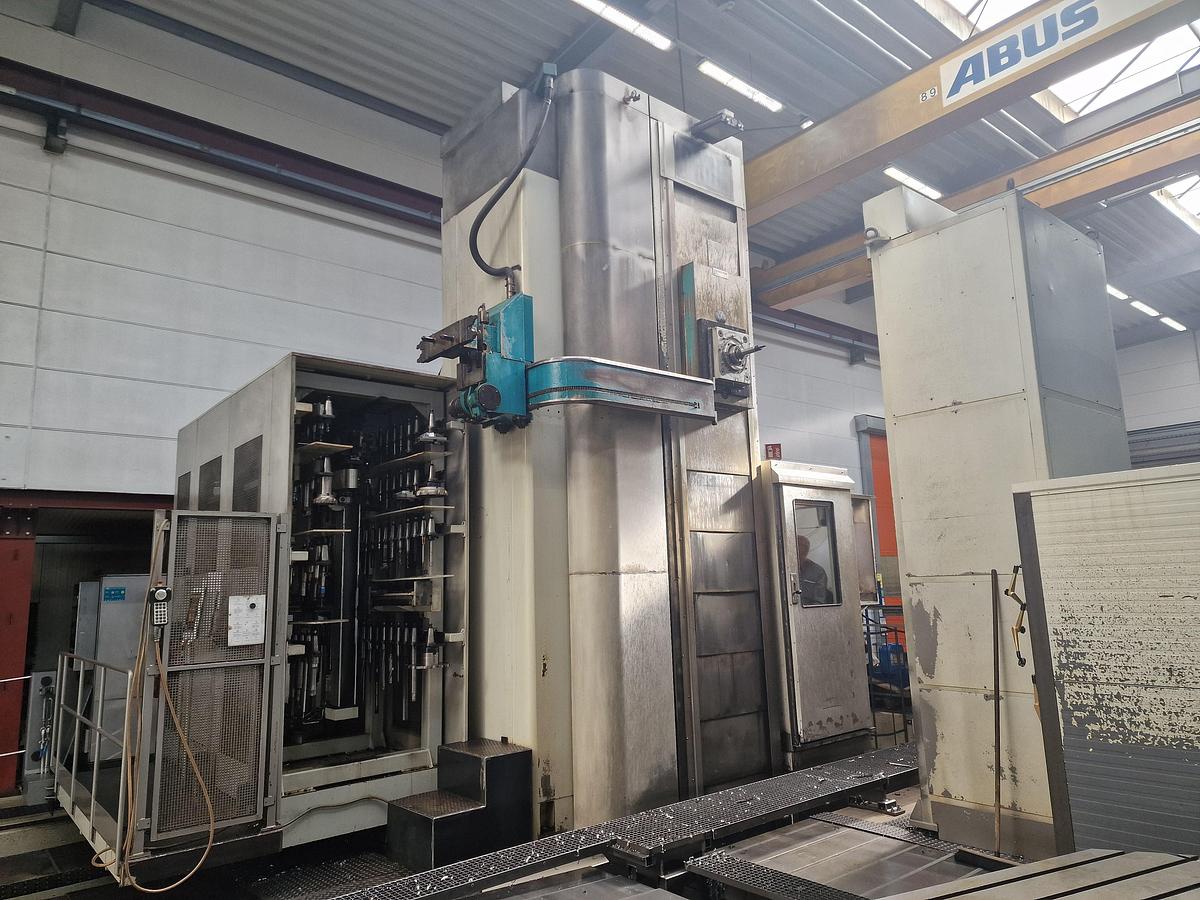

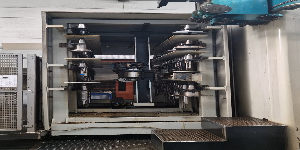

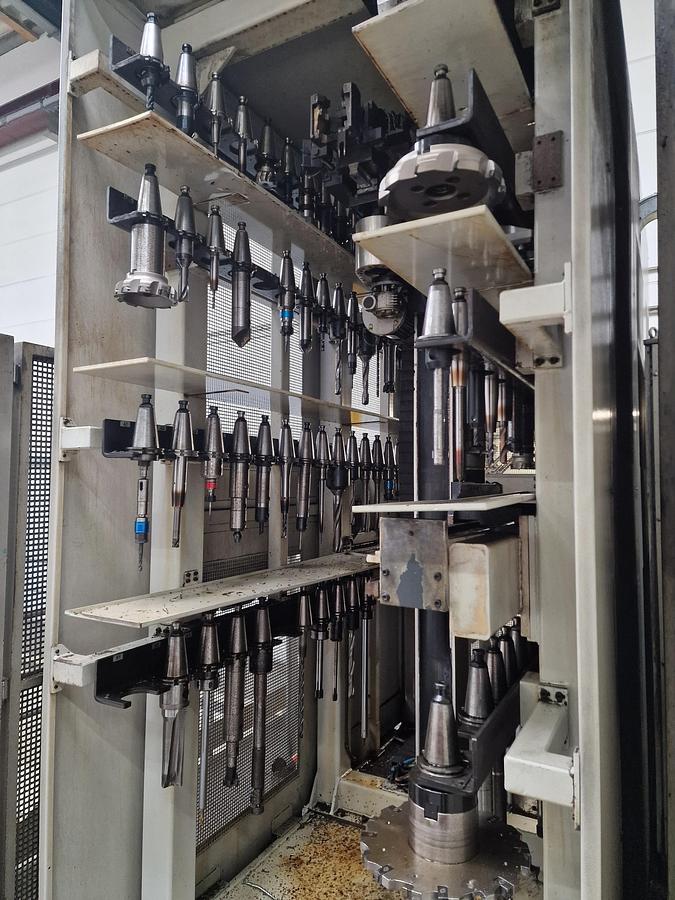

Tool rack magazine ATC 13-150 R 147:

- Max. capacity of the magazine: 147 pcs.

- Max. tool weight: 35 kg

- Max. tool length: 700 mm

- Tool taper: DIN 69871

- Tool change time: 28 sec.
