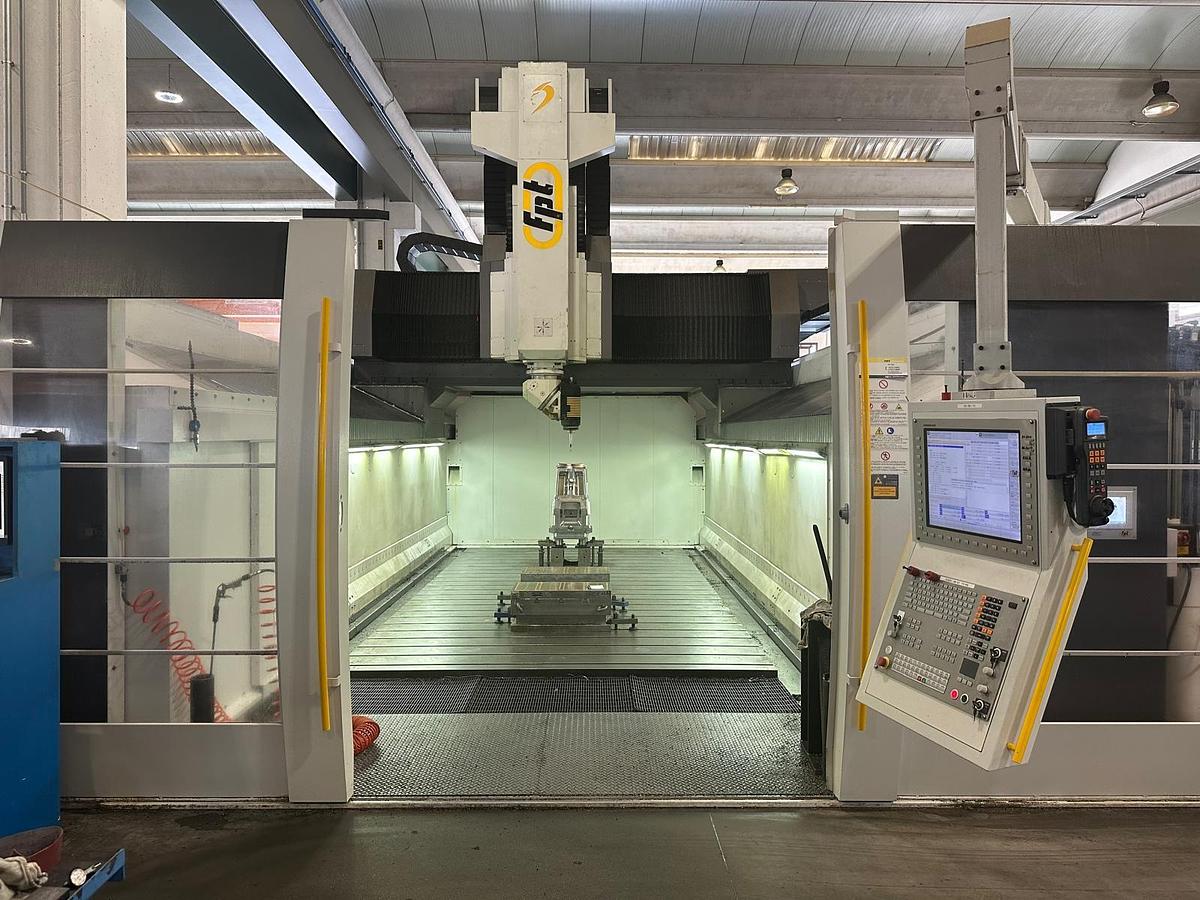

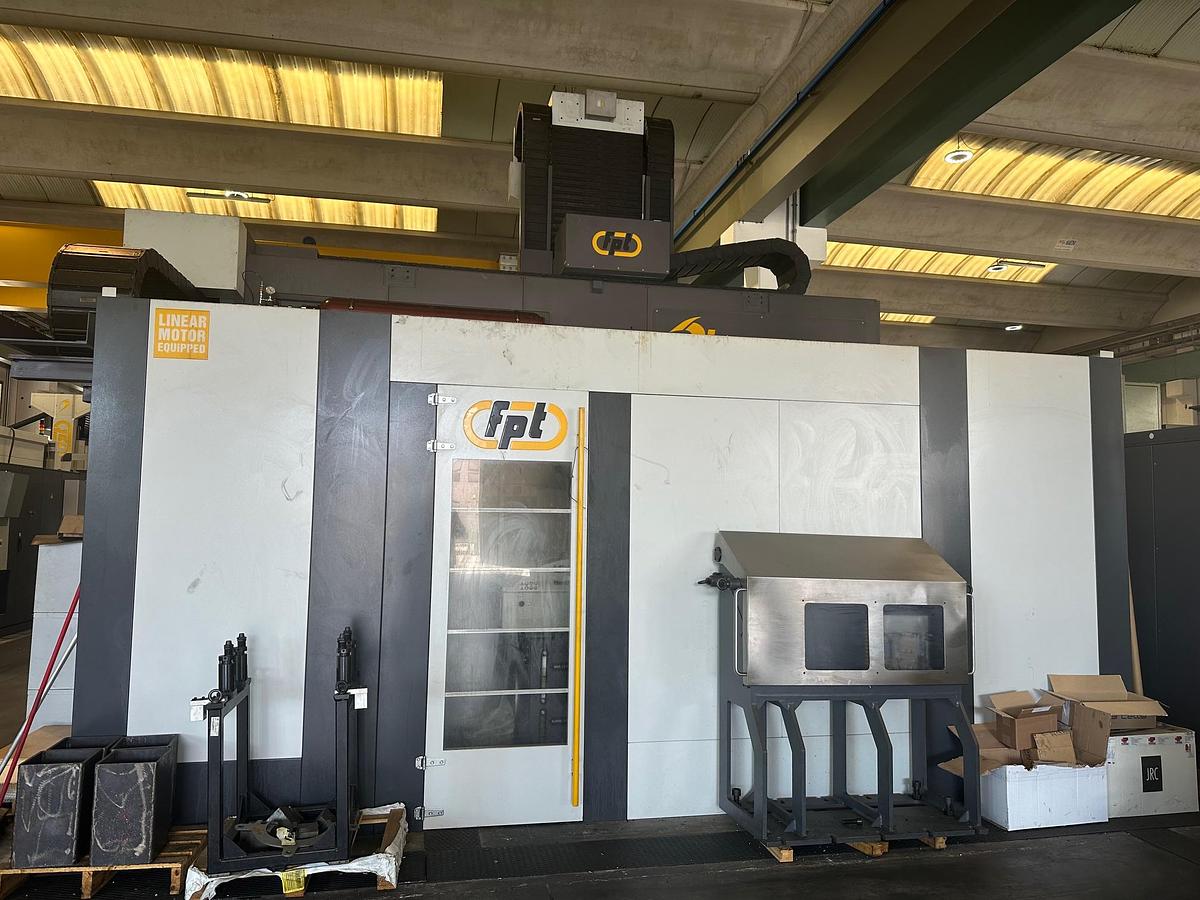

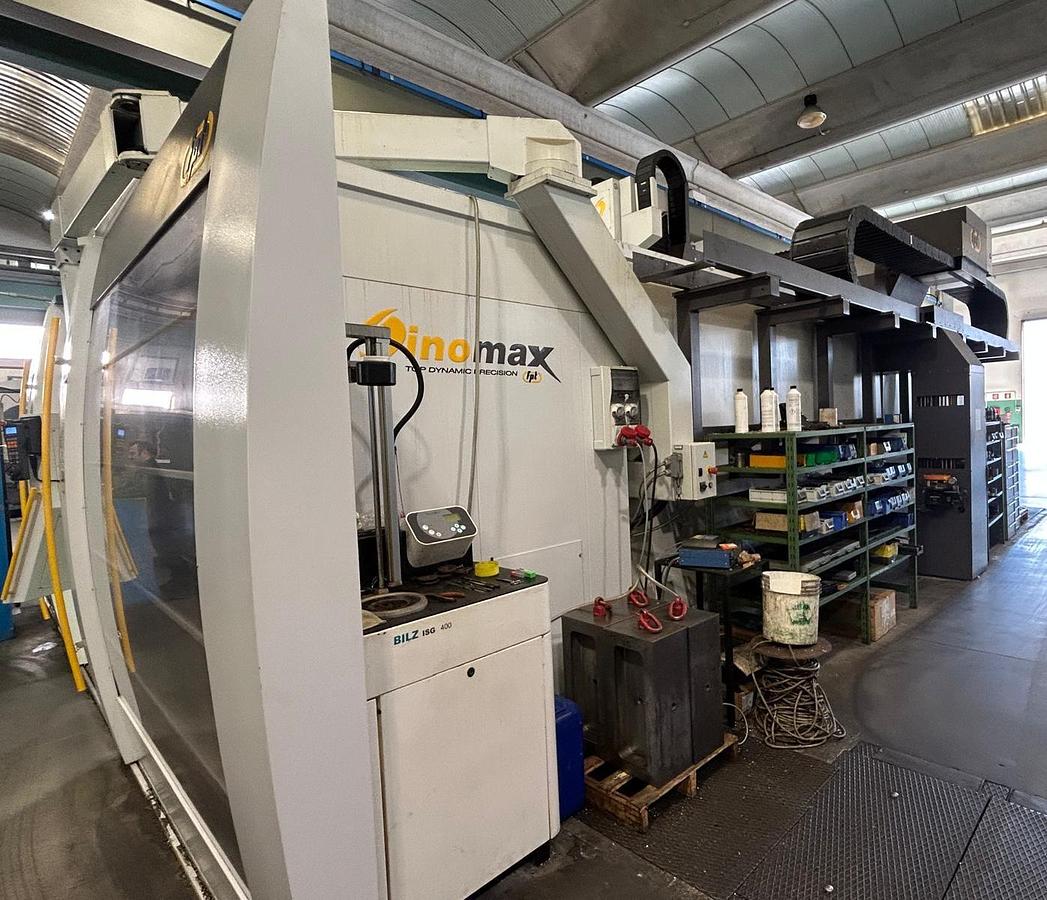

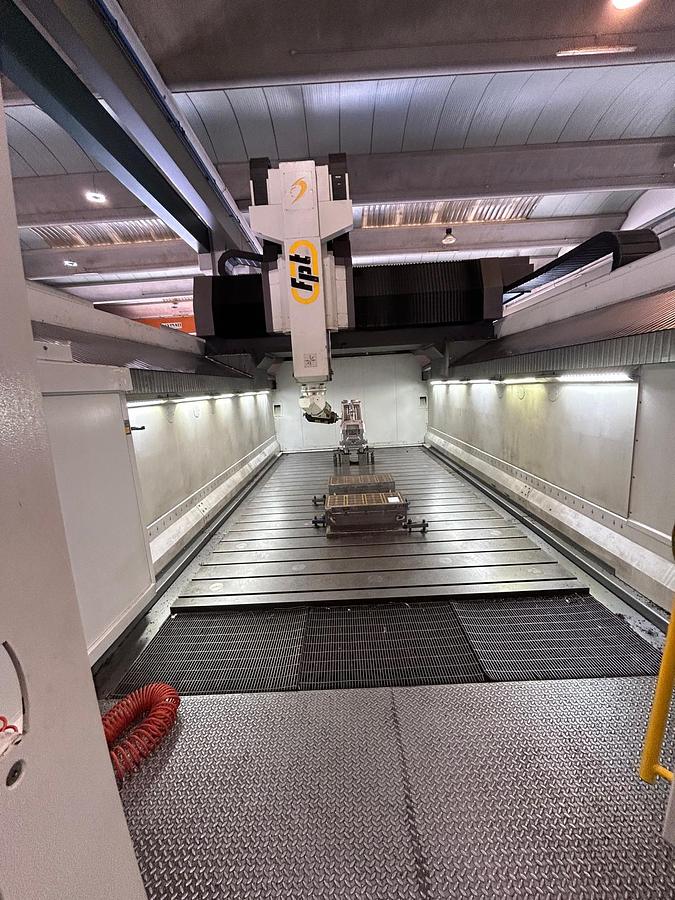

FPT DINOMAX 2 CNC 5-Axis Gantry Type Milling Machine

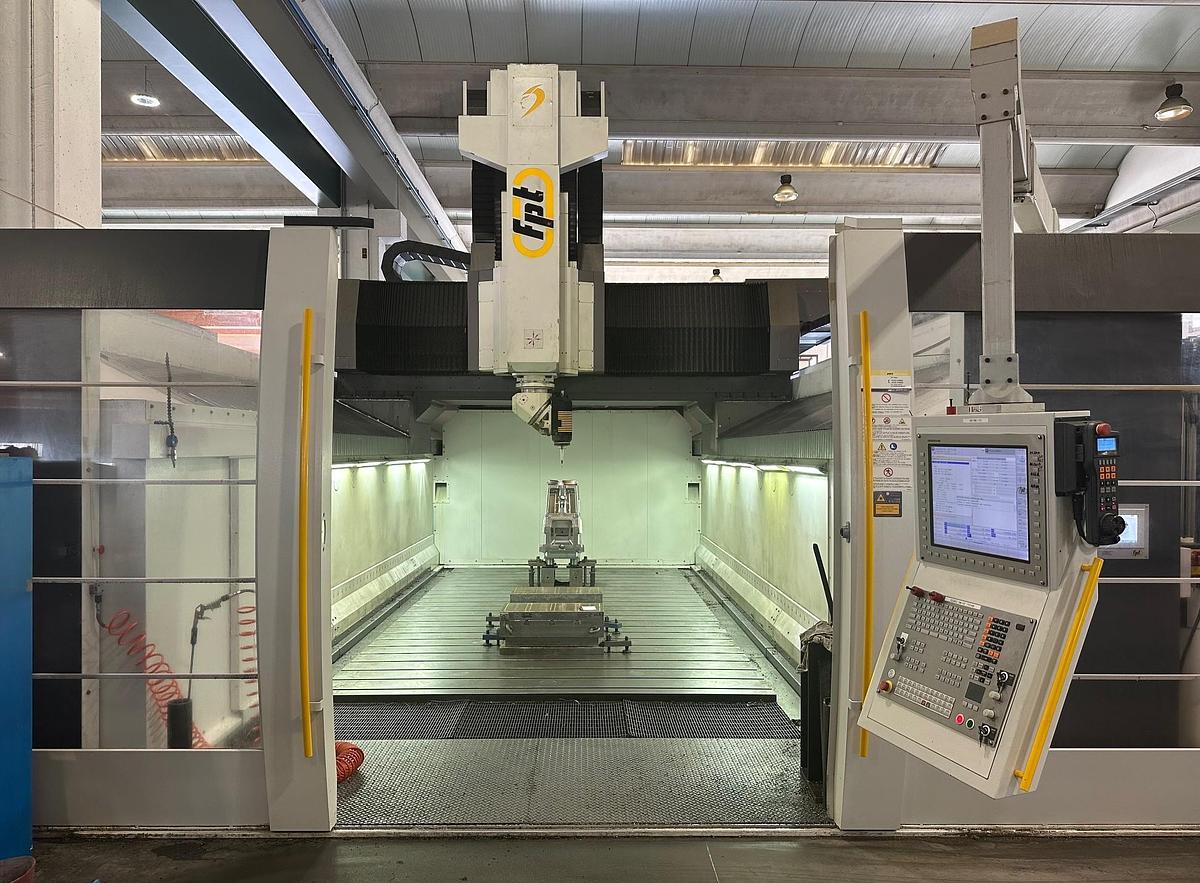

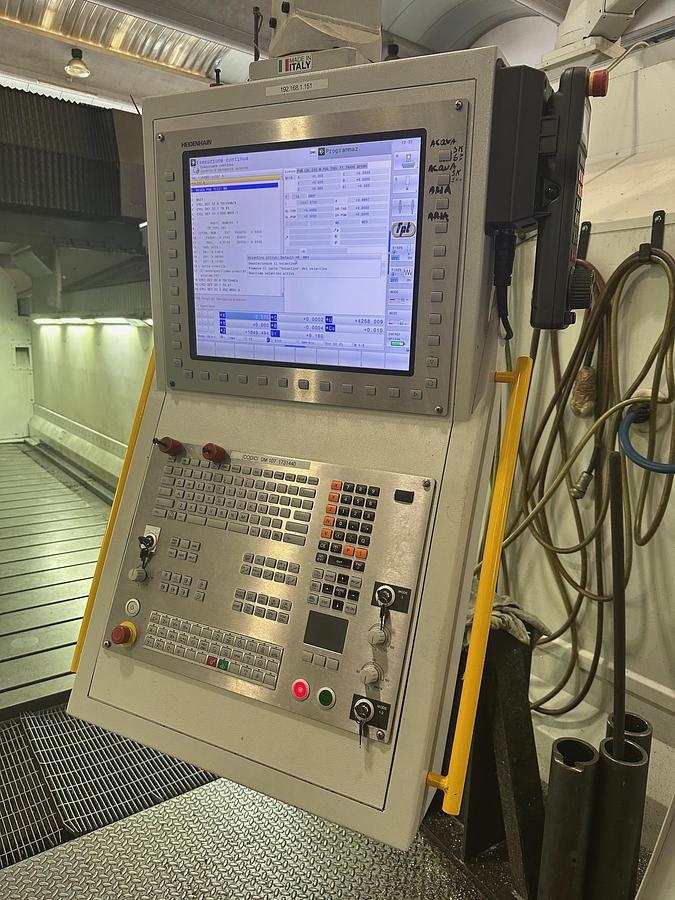

• Heidenhain iTNC 640 CNC Control
• Heidenhain HR550 remote electronic handwheel
• High-pressure water and air through the spindle
• Semi-automatic electrospindle change, with HSK-A63 and HSK-A100 interfaces
• Various tooling included with the machine
• Renishaw probe

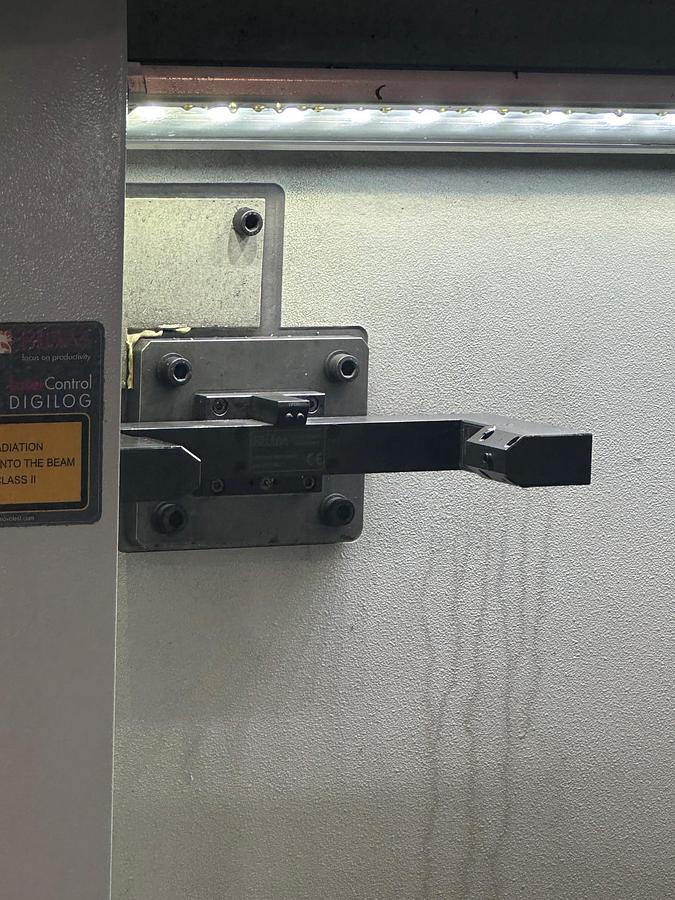

• BLUM laser presetting system
• AUTOCAL automatic head calibration system
• Visormax subscription for remote monitoring

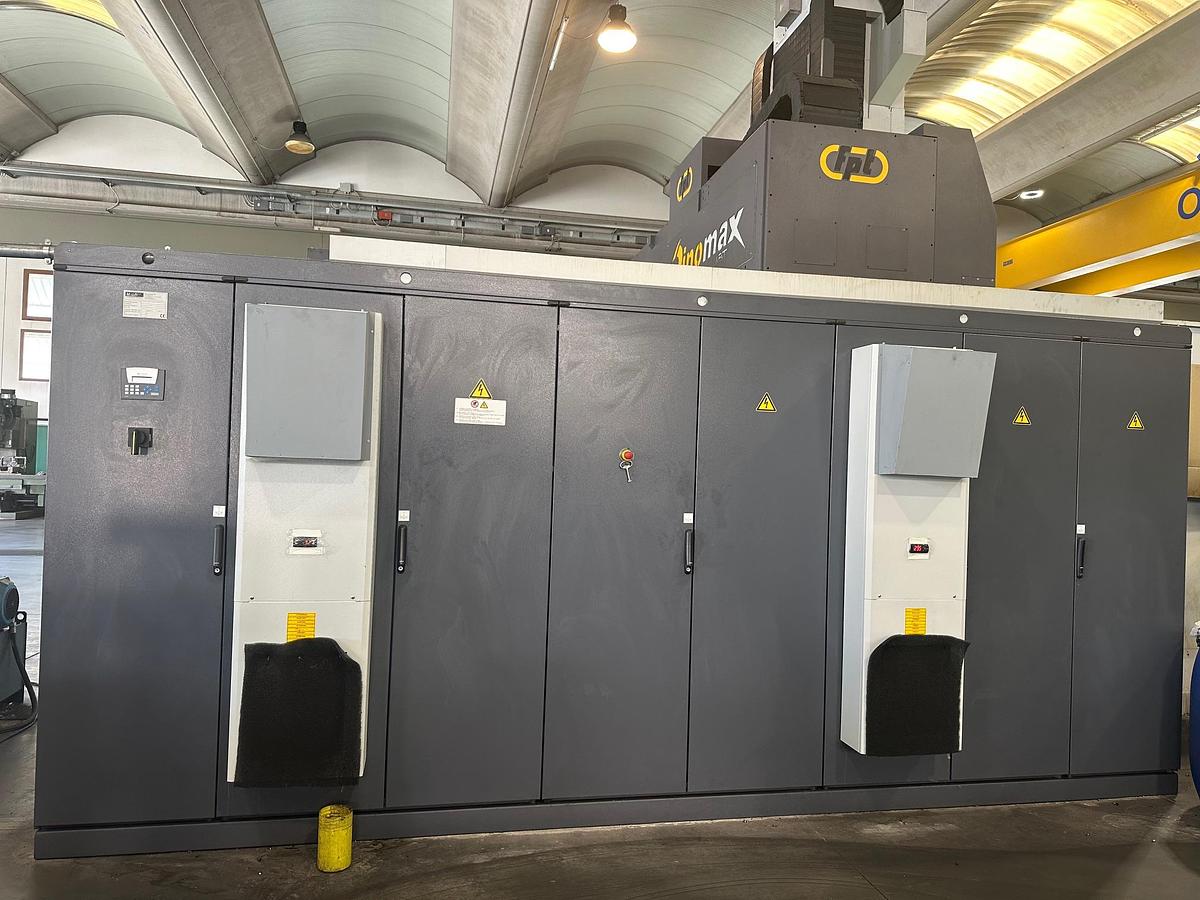

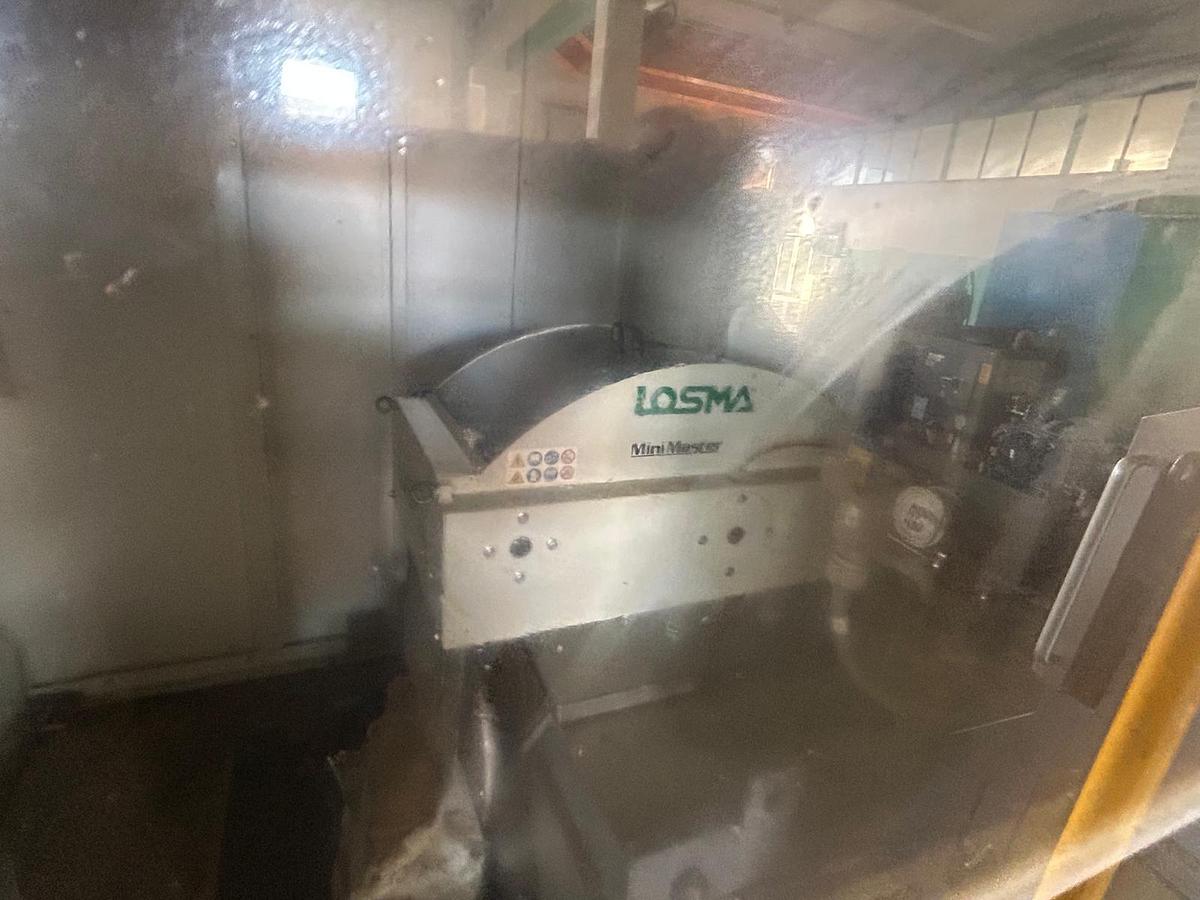

• Electrical cabinet air conditioning unit
• Cooling system for all axes and the electrospindle
• User and maintenance manual and CE declaration of conformity

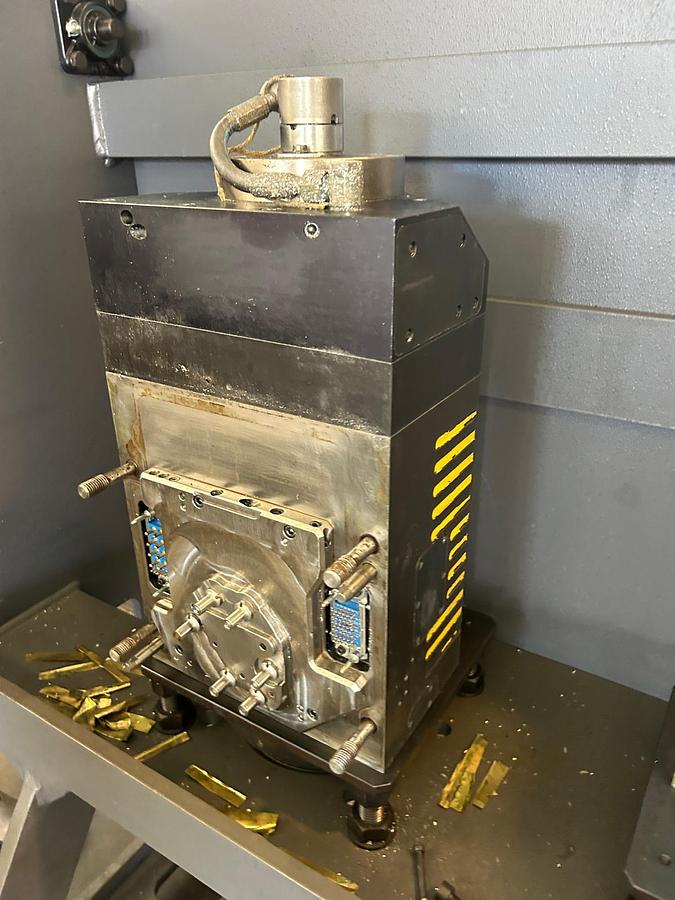

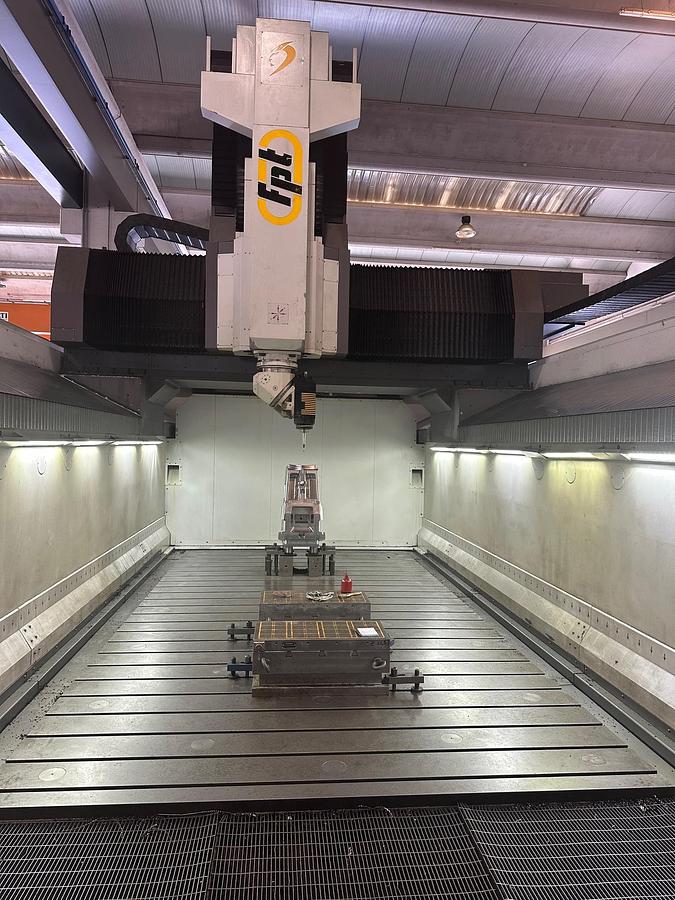

CONTINUOUS POSITIONING UNIVERSAL HEAD WITH MOTOR SPINDLE

Automatic universal indexed head with 360,000 positions (every 0.001°). Rotation is driven by direct drive motors and controlled by the CNC as a positioning axis. Automatic tool clamping. Allows 10° undercutting. Internal cooling system for bearings and axis motors.

• C-axis rotation range: +/- 270°
• A-axis rotation range: +/- 185°
• Maximum axis rotation speed: rpm 30
• Maximum torque on A/C axes during operation: Nm 450
• Axis clamping torque: Nm 1.400
• Spindle power (S1/S6): kW 22/33
• Spindle torque (S1/S6): Nm 84/128
• Maximum spindle speed: 22,000 rpm
• Constant power speed range: from 3,000 to 18,000 rpm
• Constant torque speed range: from 10 to 3,000 rpm
• Tool interface: HSK – A63 DIN 69893

HSK – A100 MOTOR SPINDLE WITH SEMI-AUTOMATIC CHANGE SYSTEM

• Spindle power (S1/S6): kW 37/43
• Spindle torque (S1/S6): Nm 140/165
• Maximum spindle speed: 12,000 rpm
• Constant power speed range: from 2,500 to 12,000 rpm
• Constant torque speed range: from 10 to 2,500 rpm
• Tool interface: HSK – A100 DIN 69893

CHAIN TOOL MAGAZINE – 55 POSITIONS, HSK-A100 / HSK-A63

Floor-mounted chain magazine located at the rear of the machine, enclosed for operator protection, with vertical tool change arm and automatic tool preselection. Fixed-position management.

• Hydraulic axis clamping
• Total tools: No. 55
• HSK-A63 tools (DIN 69893)
• Number of tools: No. 30
• Max tool diameter: mm 90
• Max tool diameter with adjacent free positions: mm 160
• Max tool length: mm 300
• Max tool weight: kg 10

HSK-A100 tools (DIN 69893): Number of tools: No. 25 Max tool diameter: mm 100 Max tool diameter with adjacent free positions: mm 160 Max tool length: mm 450 Max tool weight: kg 20
