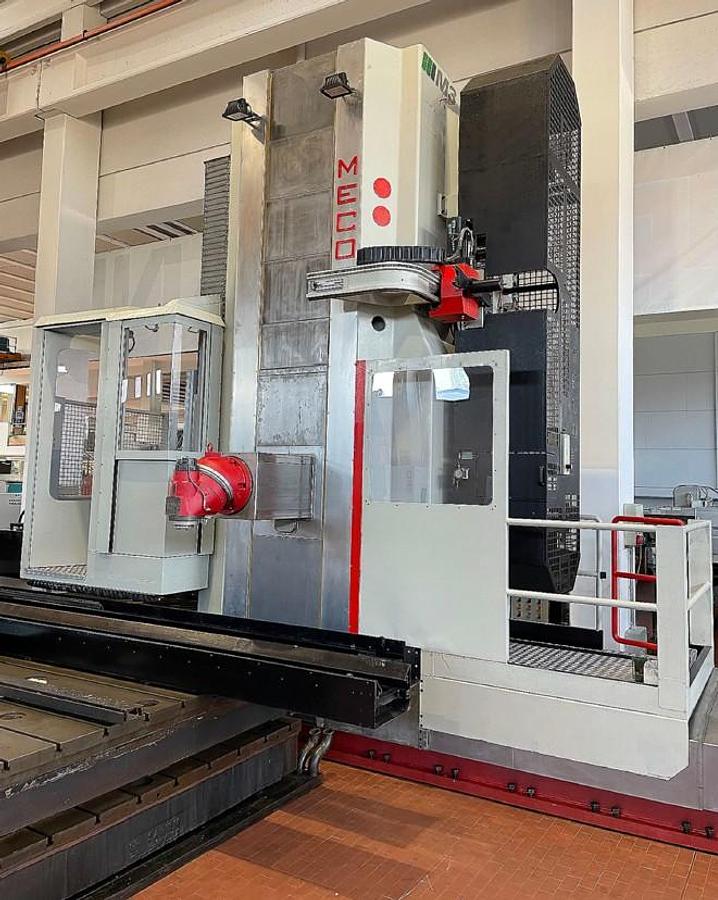

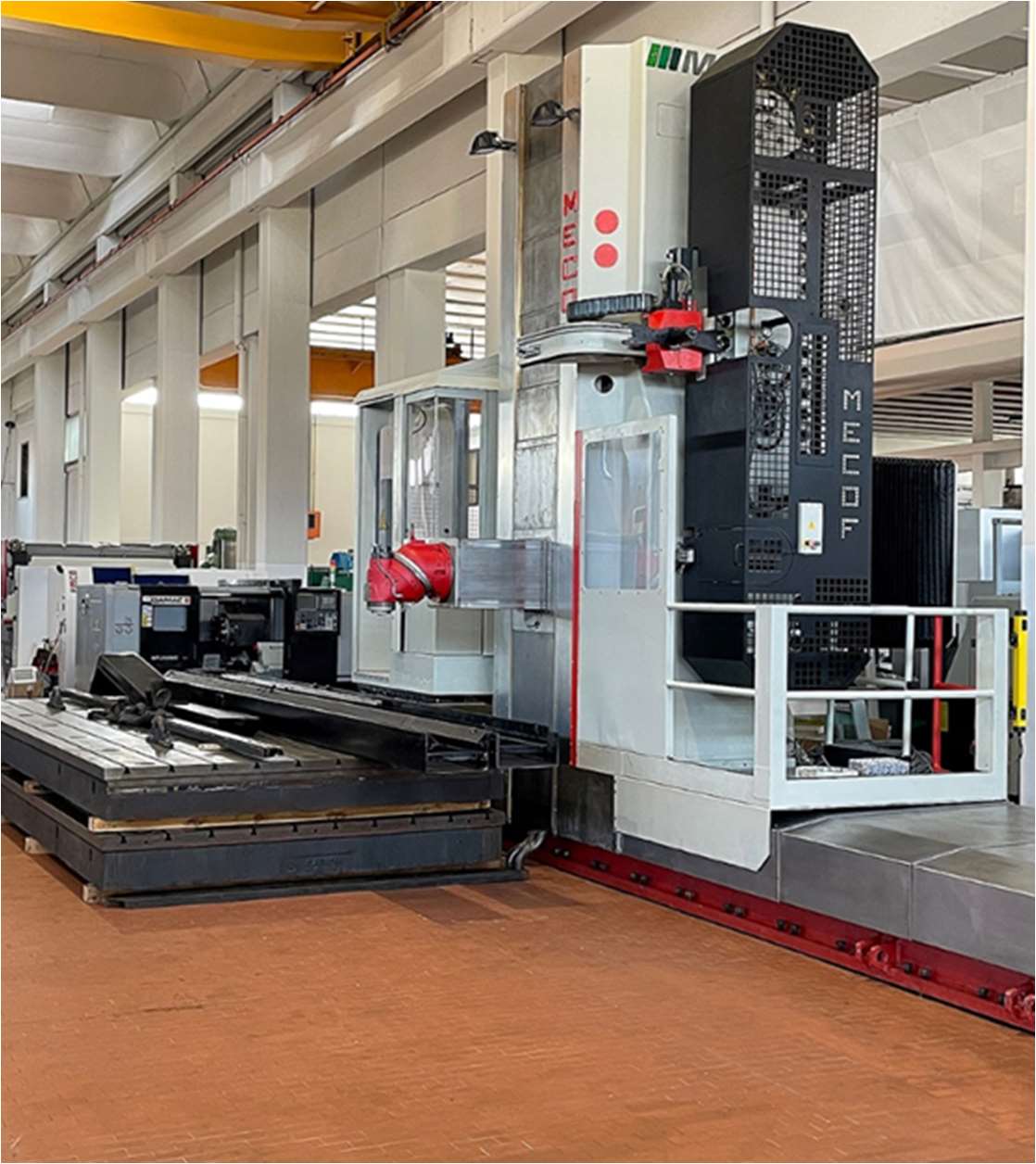

Mecof AGILE M3 CNC Floor Type Horizontal Boring Machine

HEINDENHAIN TNC i530M CNC Control

Electric Handwheel

Automatic bi-rotative head index 2.5°/1°

Automatic tool changer 60 positions - A.T.C. type with double exchanging arm

High pressure coolant device through spindle

N. 4 squares + Stolle plan

Chain type chip conveyor

Mobile Operator Cabinet

CE marks

TBA4 BIROTATIVE HEAD:

It is composed by two separate parts made in cast iron:

The main one is fixed to the platform and rotates jointed with it;

The spindle holder rotates around an axis inclined at 45° compared to the platform axis and can reach automatically 120 positions (1 position each 3°).

The positioning is obtained through frontal HIRTH toothing.

The spindle rotation is obtained by two couples of taper spiral gears concreted, hardened and run in as well.

Ther lubrication system is timed with a special grease.

The head is kept at a constant temperature by the circulation of the fluid (a mix of water and glycol) through the conditioning group.

This head is set for a double device for the distribution of the coolant both through and around the spindle.

With this head, the machine can be equipped with automatic tool changer.

Main features:

Spindle speed: 15 - 4,000 rpm

Spindle speed with constant torque: 15 - 370 rpm

Spindle speed with constant power: 370 - 4,000 rpm

Torque: 780 Nm

Positioning precision: ± 0.02 / 300 mm

Tool Shank: 50 ISO 7388/1 - (DIN 69871-A)

Tool clamping system: automatic

Tool clamping force: 20,000 N

Axial tool clamping: 100,000 N

PL15 – WORKING TABLE:

Working table in cast iron realized as per customer’s requirement and installed in front of it.

The table will be connected to the foundation plan trough anchoring devices, leveling pads, and lateral setting.

The table is equipped with T-slots for reference and the bracketing of the parts.

Main features:

Table size 12,000 x 2,500 mm

T-slot width 22 mm (H7)

lT slot lenght 22 mm (H11)

T-slot distance 250 mm

Table Thickness 300 mm

MACHINE COMPLETE WITH:

Remoted electric handwheel

Automatic bi-rotative head with index 1°/3° with HIRTH toothing OVERHAULED by EMCO MECOF with preparation for high pressure coolant through spindle

61 positions ATC

Programmable adaptabel controller

Software SUVT tool life

Chain type chip conveyor

Coolant device for tool refrigeration around the spindle;

Movable platform for te operatorPedana operatore mobile

STOLLE square 12000 x 2500 mm max. capacity 15000 Kg/m2

N°4 squares 2500 x 1000 x 1200 mm (weight per each one cad. 2,470 Kg)

CNC Control Features:

Up to eleven controlled axis + spindle axis;

Linear interpolation on 5-Axis

Circular interpolation in the coordinated plans;

Helical interpolation;

Metrical or Imperial programming;

Programming resolution: 0,0001 mm or 0,00001 inches (0,0001 degrees for the rotative axis);

Editor for the introduction and the modification of big dimensions.

Hard disk 6 Gb;

Graphic check of the program;

Radius and length compensation for 254 tools;

Remote controller HR410 with buttons for axis management and electric handwheel;

Cycles for deep drilling, threading, milling and grooving;

Cycles for emptying and contouring of regular pockets, circular and any profile;
