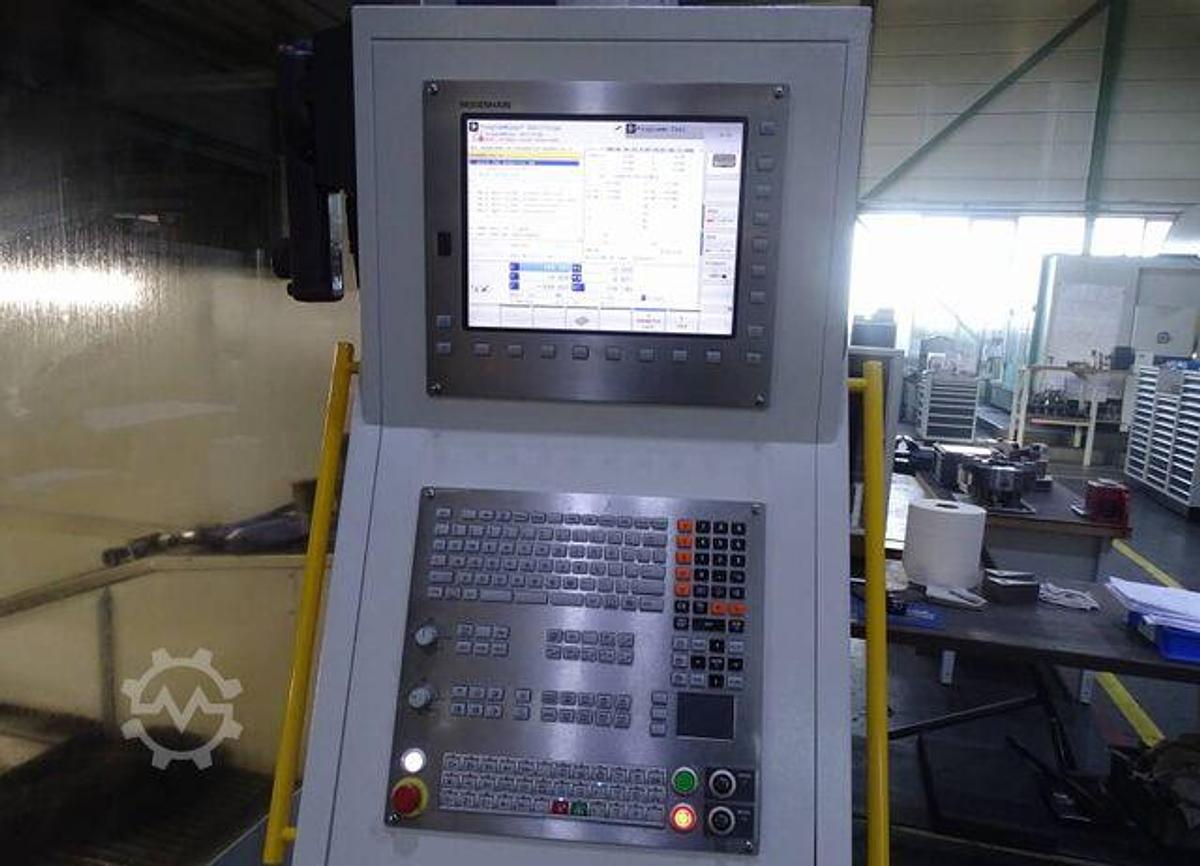

Heidenhain TNC 640 CNC Control

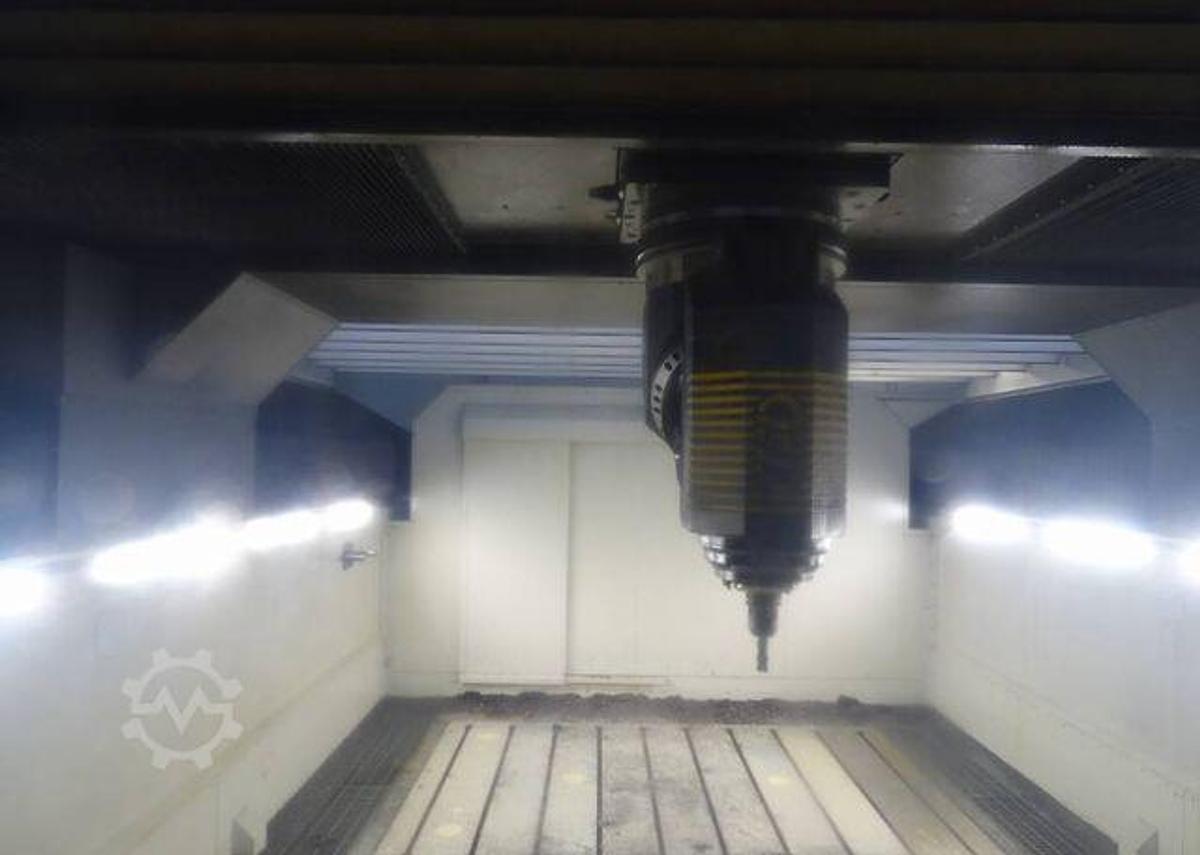

5-Axis Universal Piper Head - 18,000 rpm

C-Axis ± 270°

A-Axis ± 185°

Max Torque A/C Axis - 450 Nm

Max Axis Clamping Torque - 1,400 Nm

120 Position Automatic Tool Changer - HSK-A63 - DIN 69893

Electronic Handwheel

Internal External Coolant Supply

Compressed Air Through Spindle

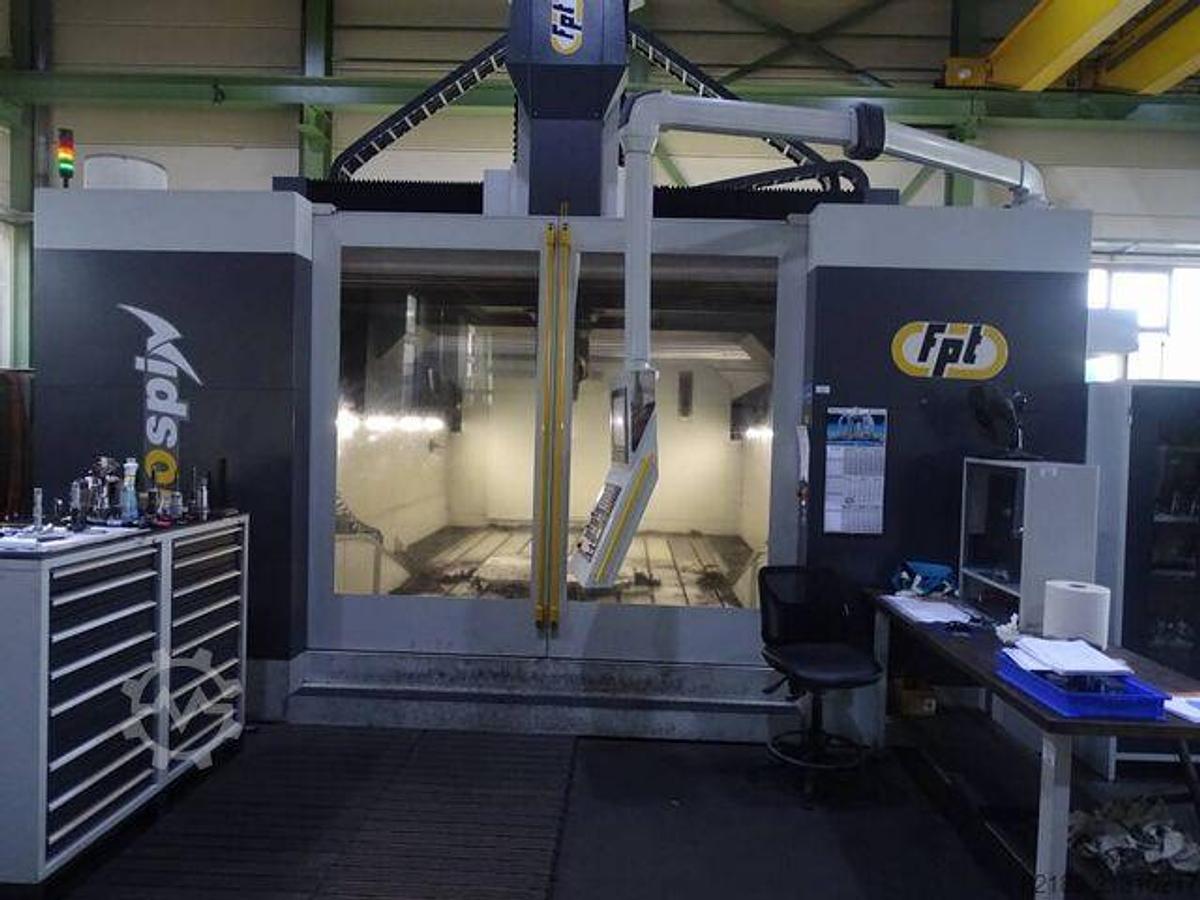

Machine Enclosure

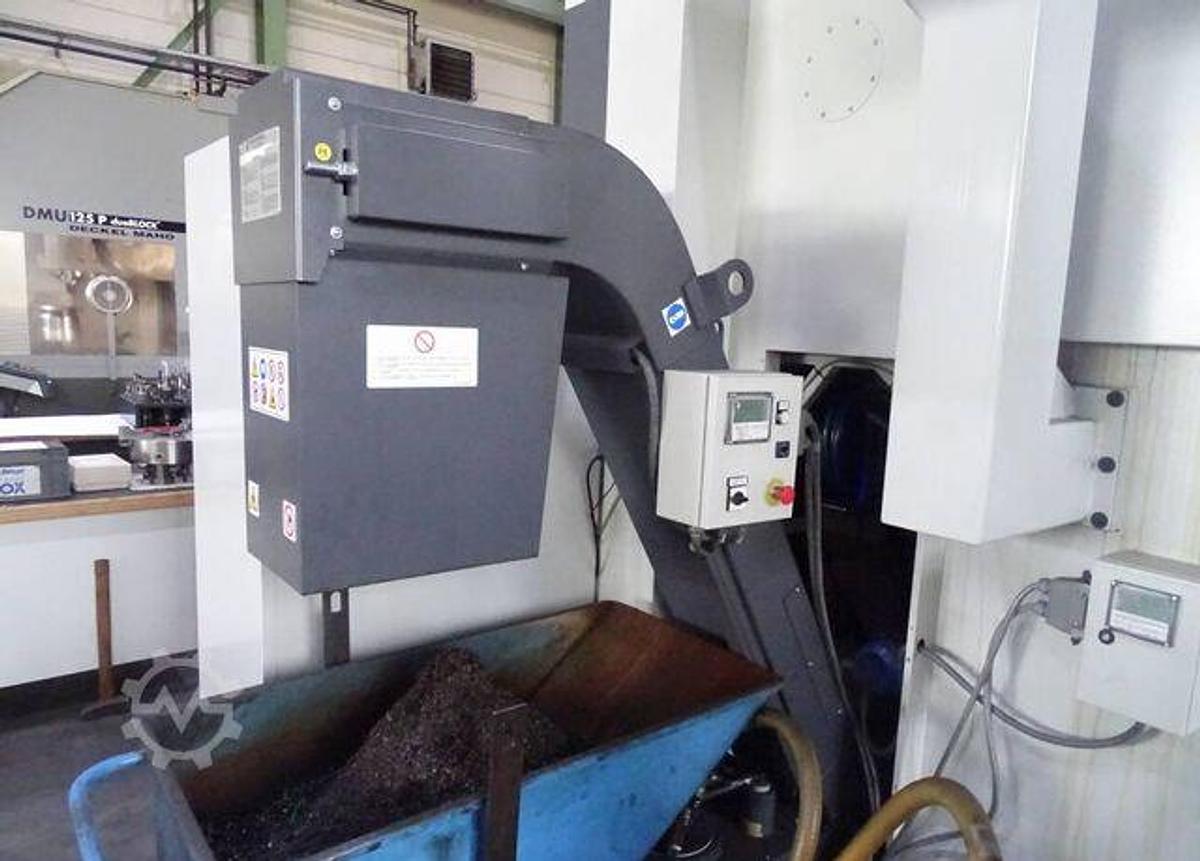

1x Chip Conveyor in front, 2x Chip Conveyors on sides

Manufacturer	FPT
Model	Dinospin
Year	2022
Condition	Used
Stock Number	5654332
Spindle speeds	18,000 rpm
X axis travel	4,000 mm
Y axis travel	2,500 mm
Z axis travel	1,300 mm

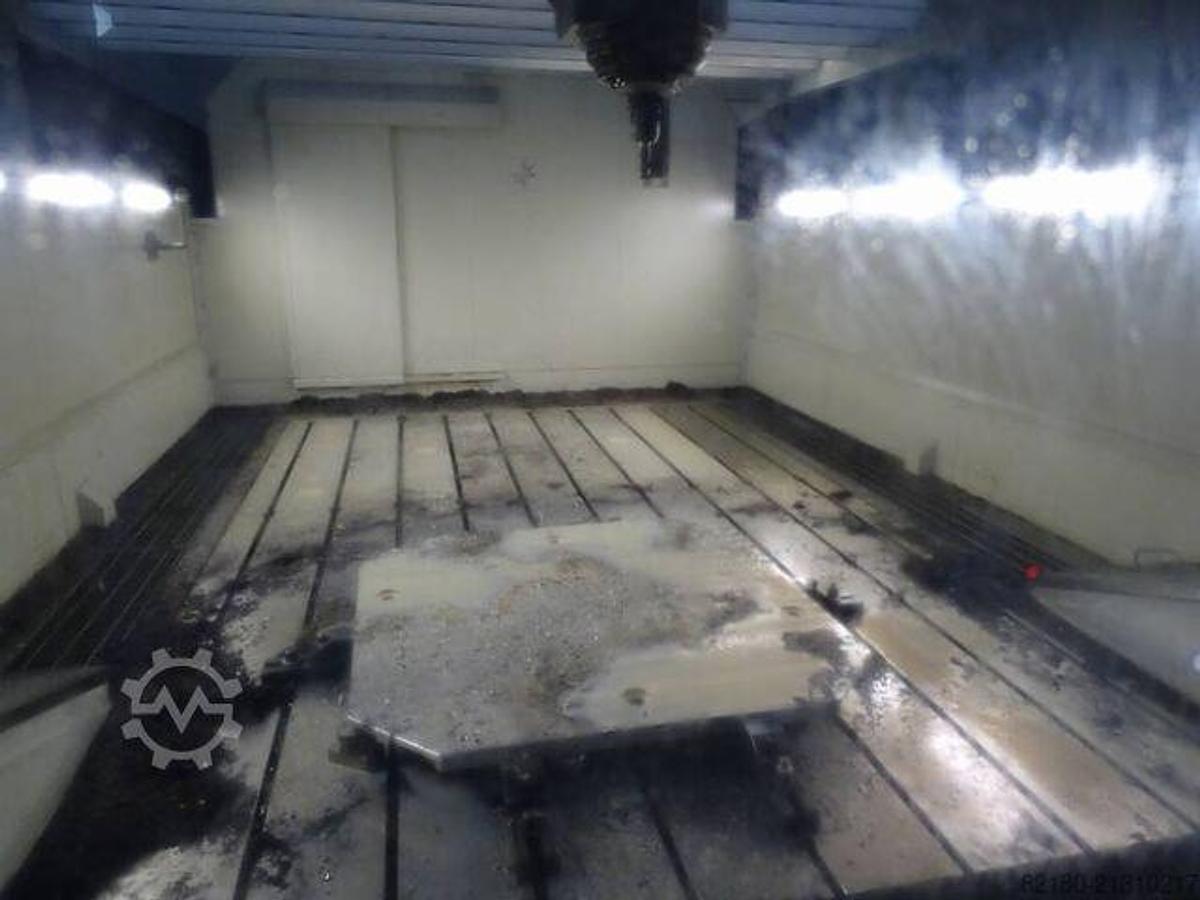

Table dimensions	2,500 x 4,000 mm
Table capacity	5 t/m²
Spindle taper	HSK-A63 - DOM 69893
Spindle power (S1/S6)	22 / 33 kW
Spindle torque (S1/S6)	84 / 128 Nm
Spindle speed at constant power	2,500 - 18,000 rpm
Spindle speed at constant torque	10 - 2,500 rpm
