Tacchi HD3 / 130L CNC Horizontal Lathe with Live Spindle Milling Tower & C-Axis
Tacchi HD3 / 130L CNC Horizontal Lathe with Live Spindle Milling Tower & C-Axis
or
Call 770-509-0744
Description

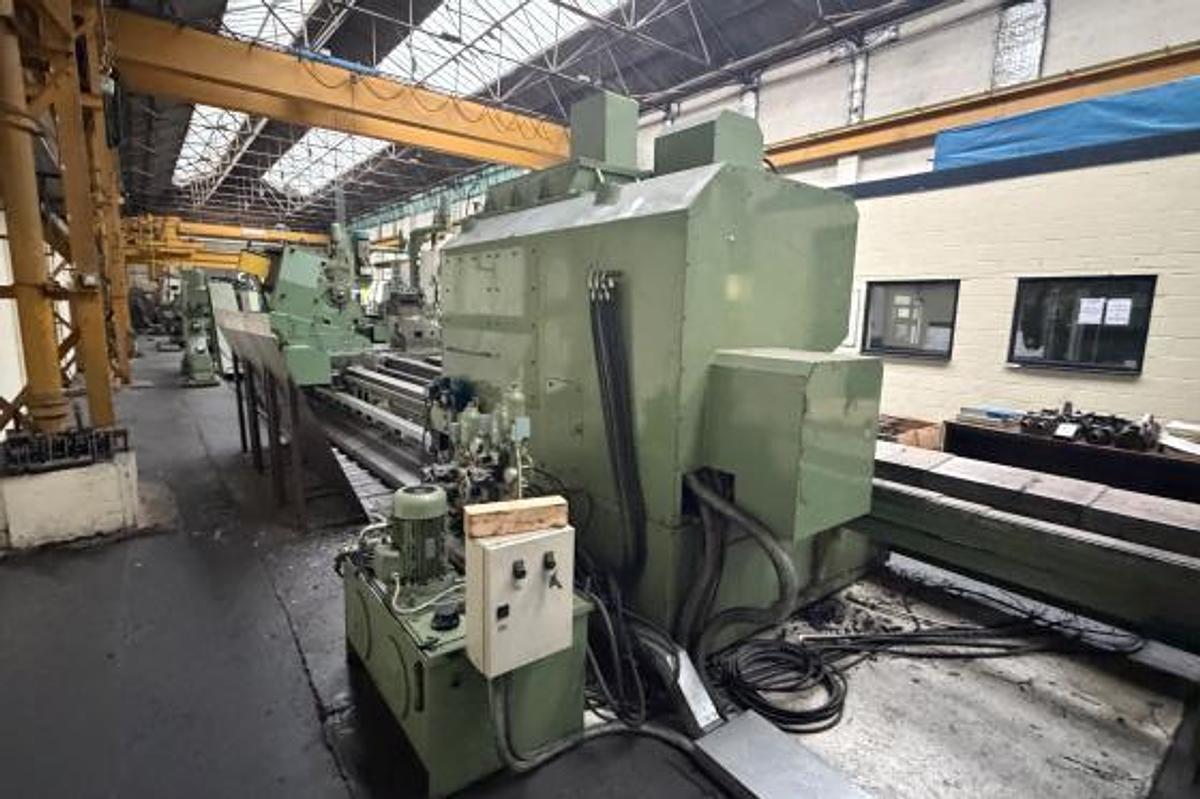

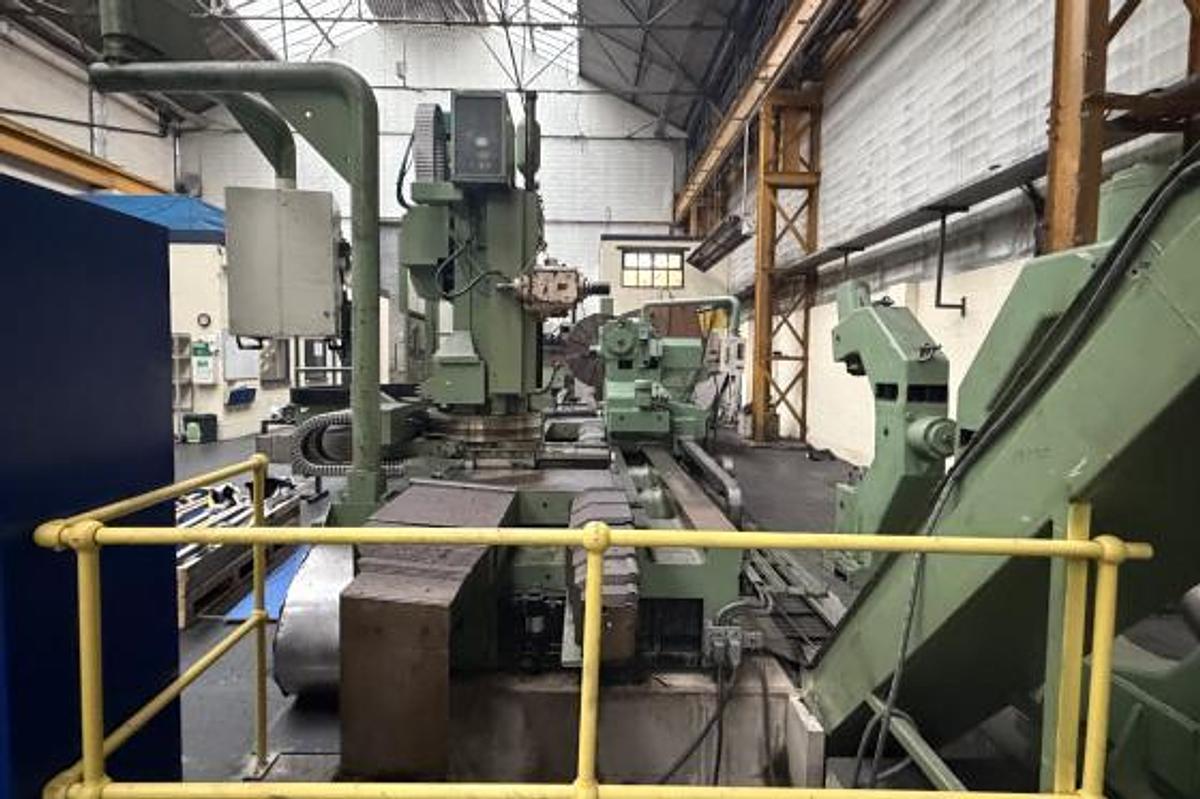

Tacchi HD3/140L CNC heavy duty lathe with milling capability. Year 2001. Built for large diameters, long shafts, and demanding roughing with reliable accuracy. With 95 kW spindle power, a 2,000 mm swing over bed, and 8,000 mm between centers, the Tacchi HD3/140L delivers capacity and rigidity for continuous industrial use.

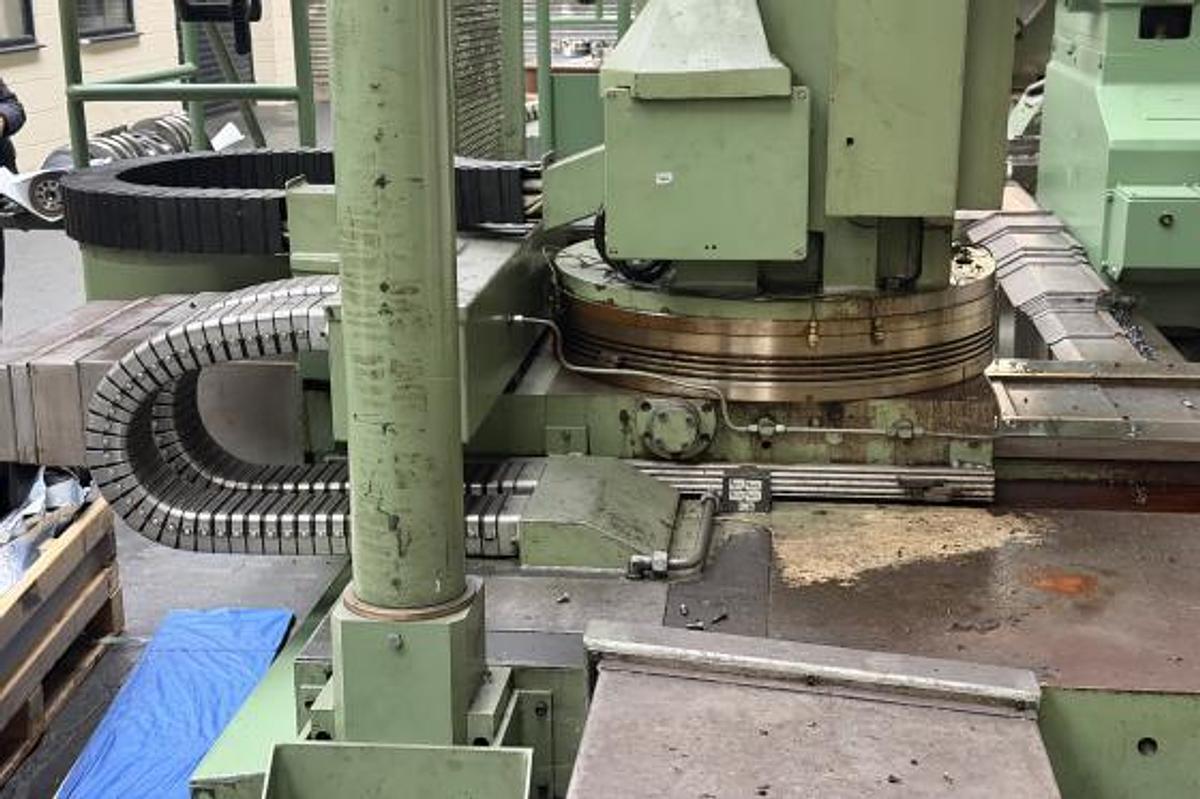

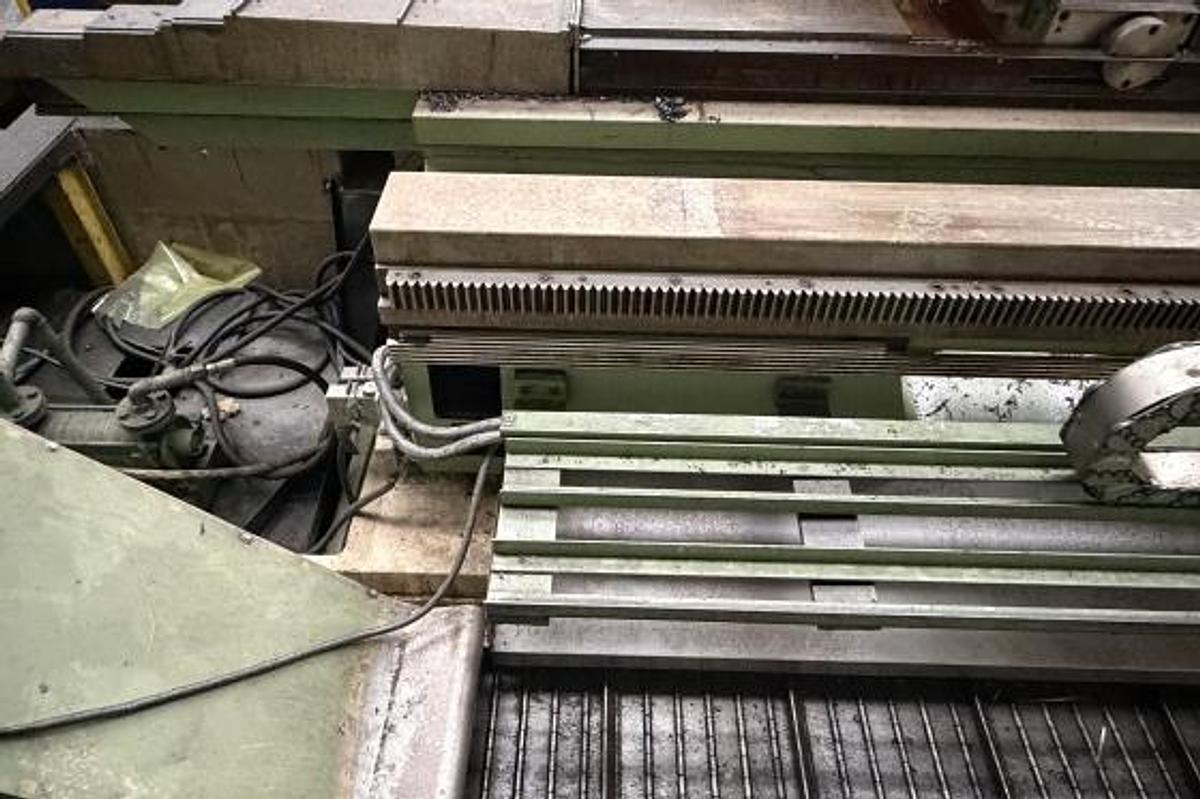

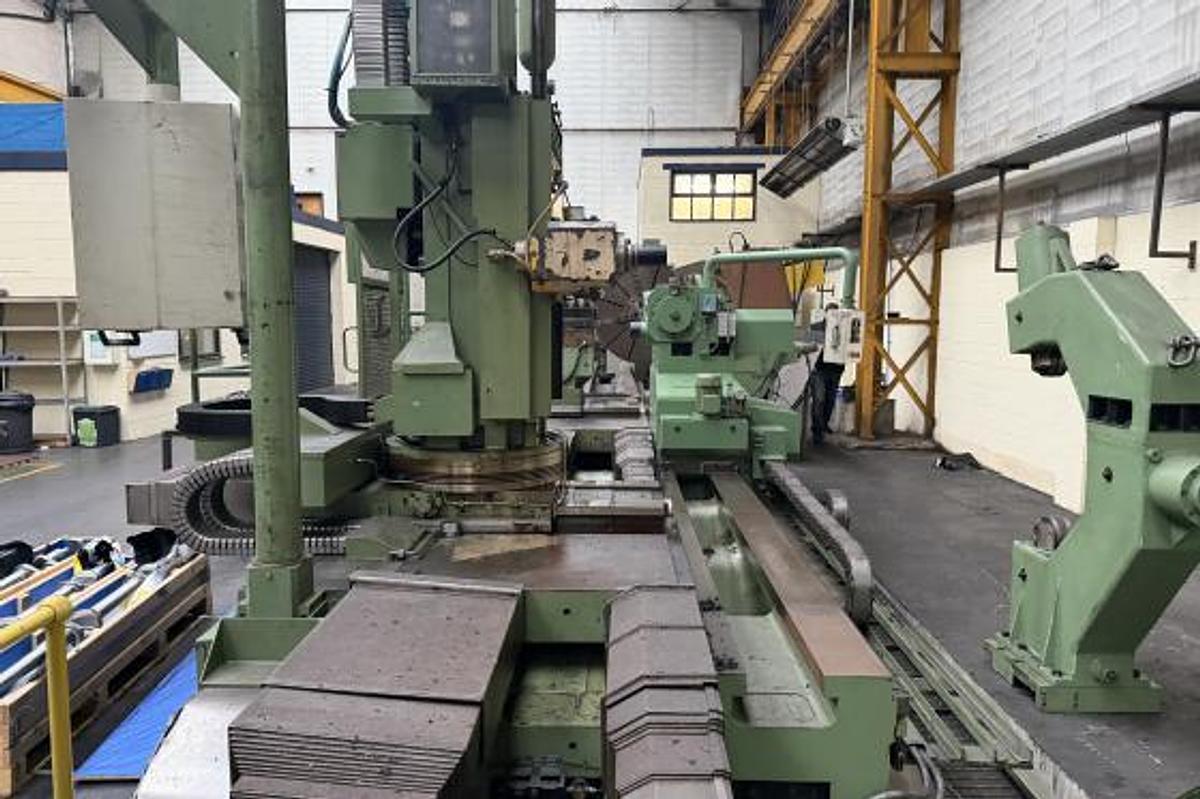

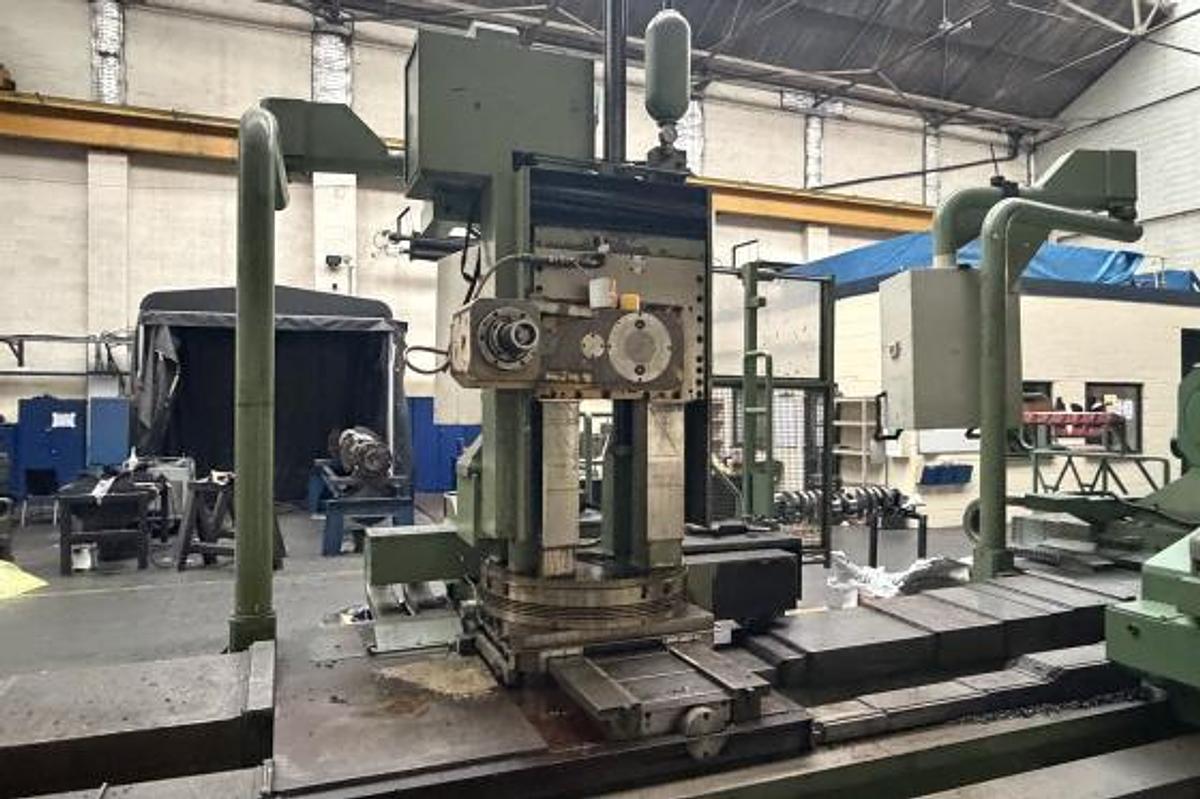

This used HD3/140L offers the power and stability you need for heavy cuts, confident finish quality, and fewer setups. The 3 bed way construction and 1,400 mm bed width enhance stiffness. The full C axis with 360,000 positions and a 22 kW milling tower enable complete machining in one clamping, reducing cycle time and handling.

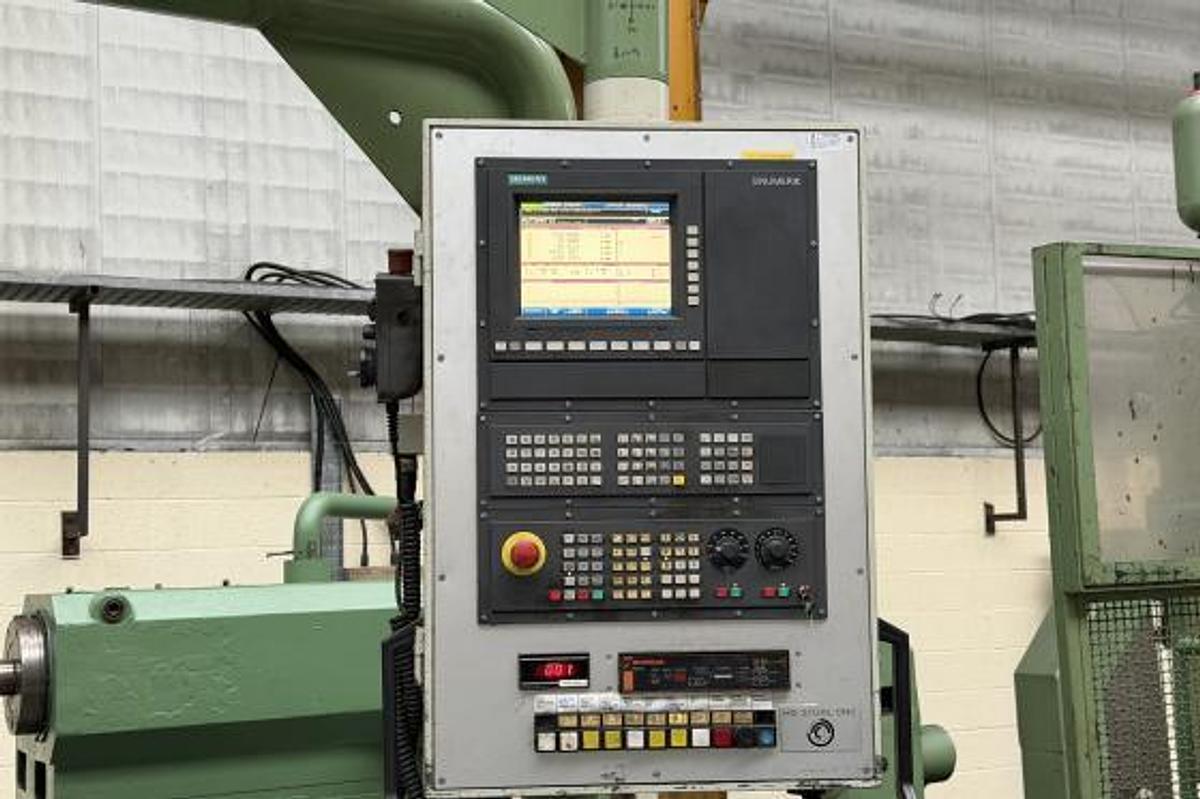

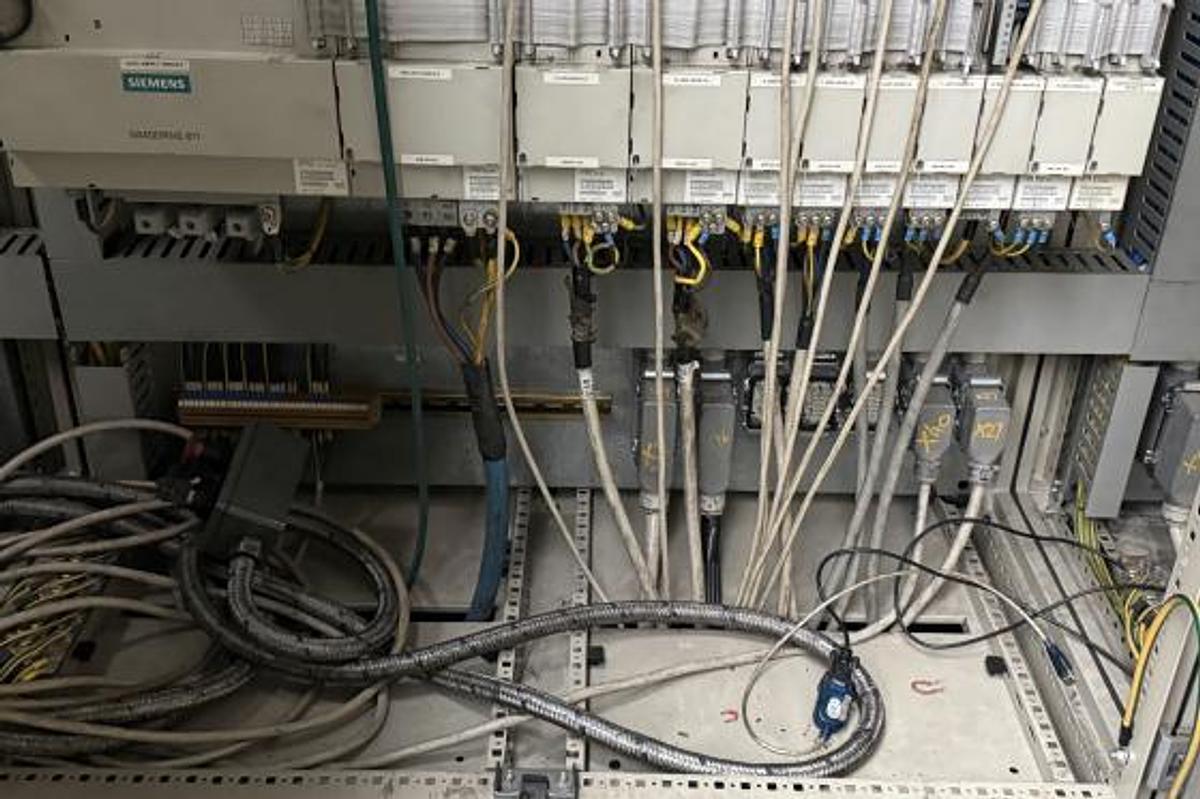

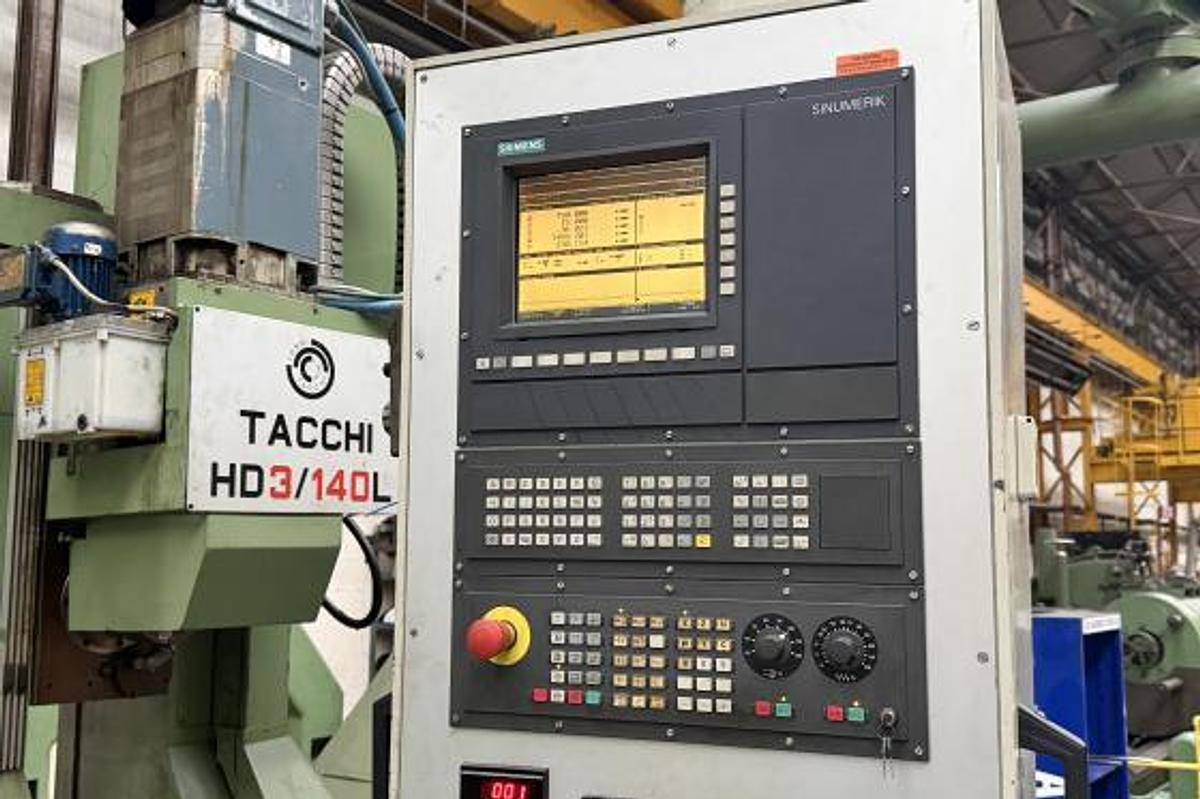

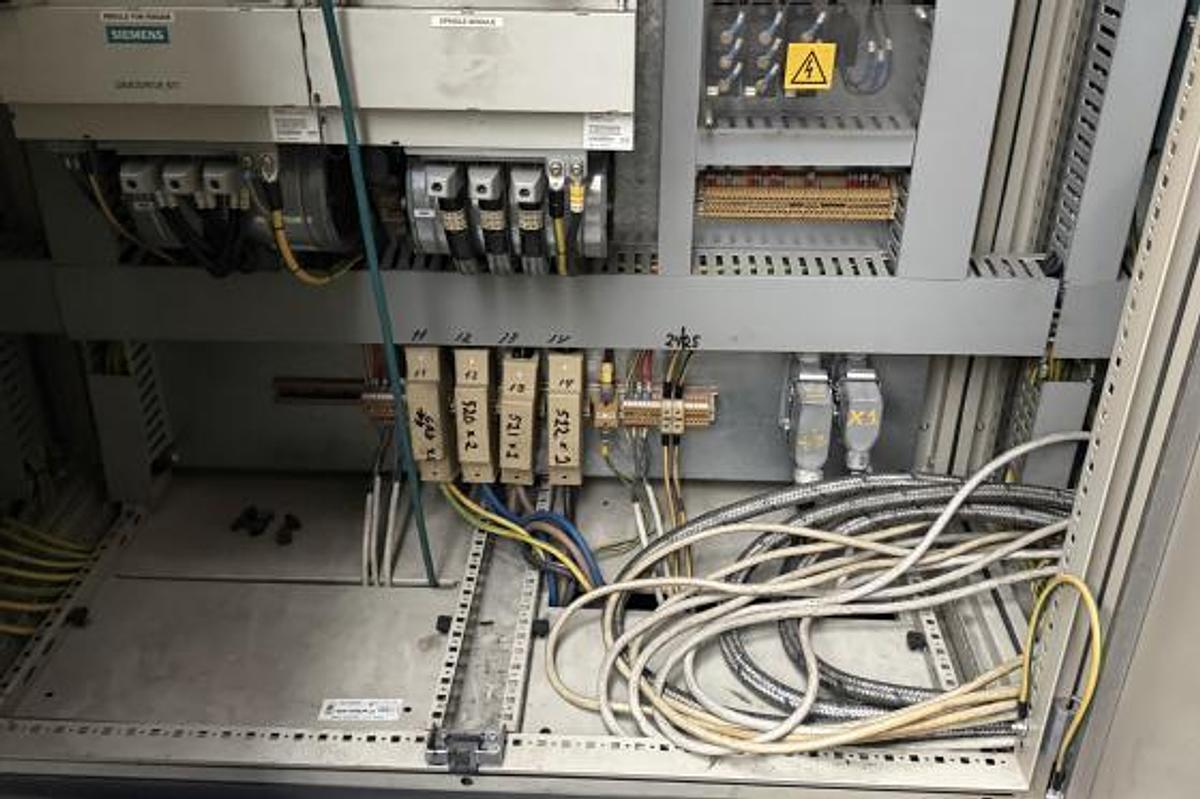

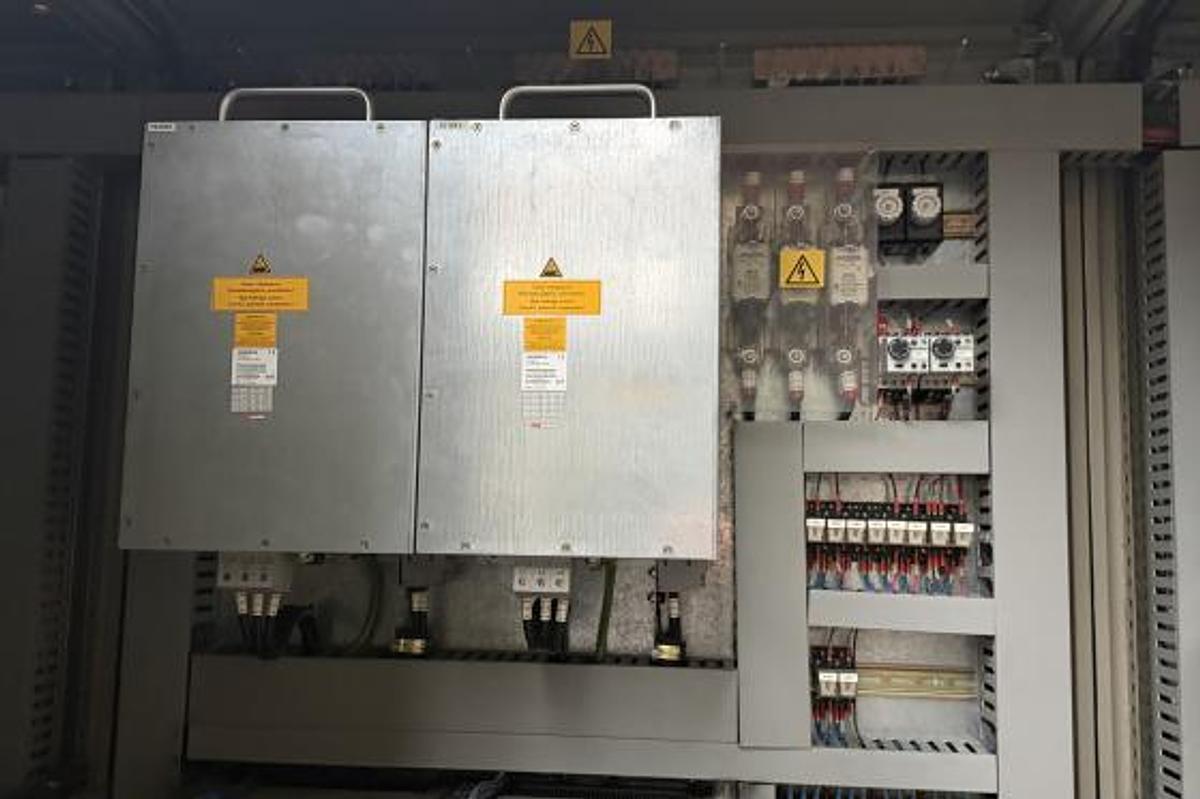

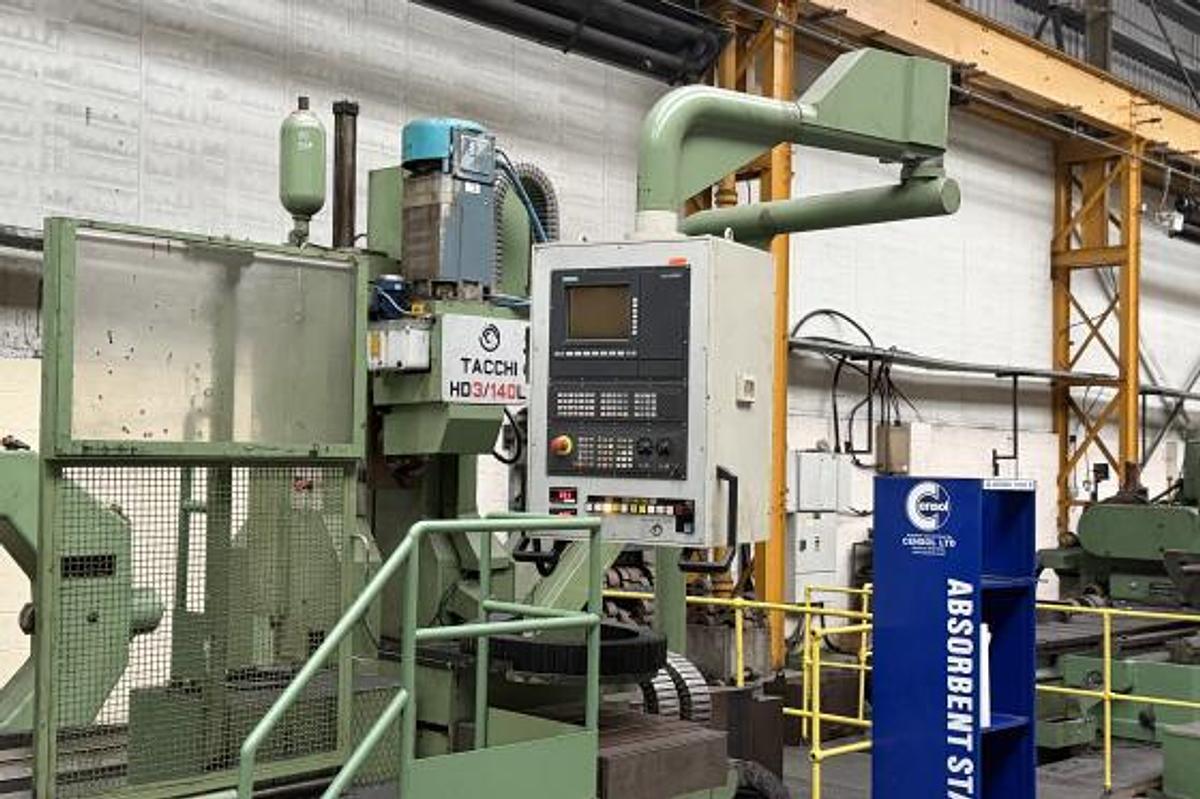

Siemens SINUMERIK CNC Control

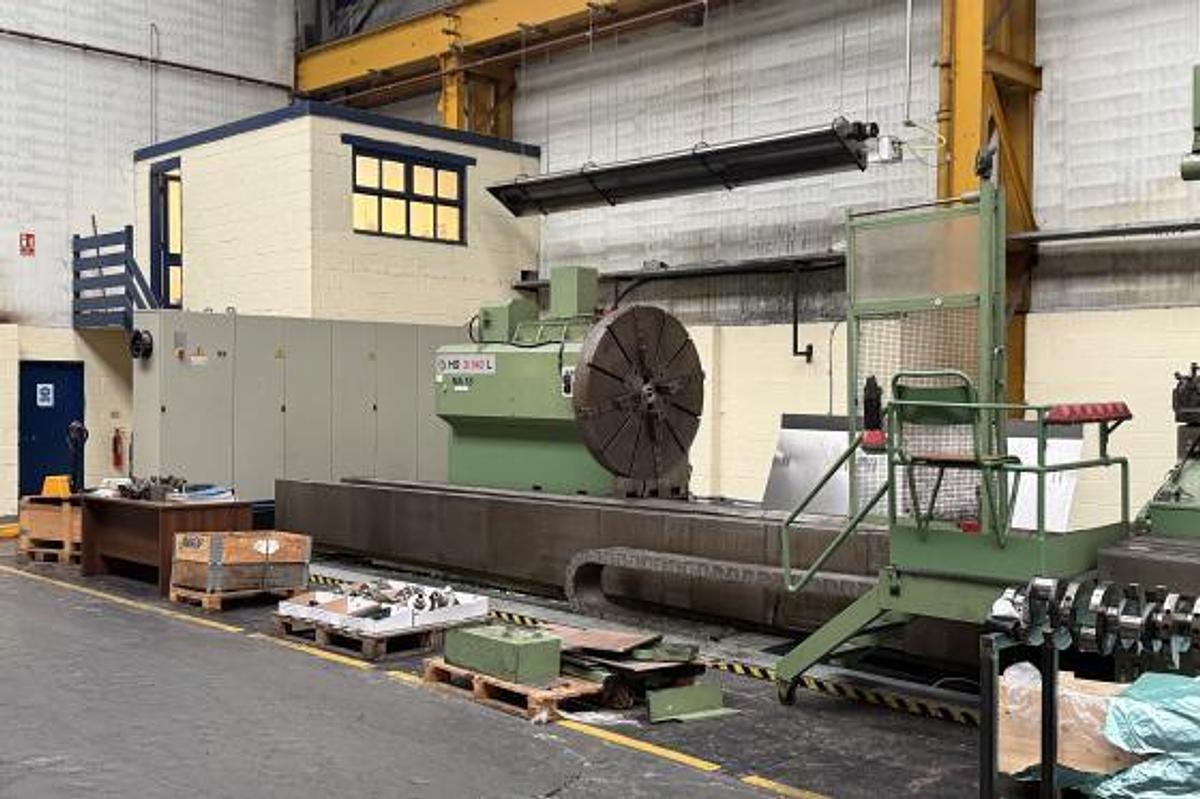

4 Jaw Chuck Diameter 1,500 mm

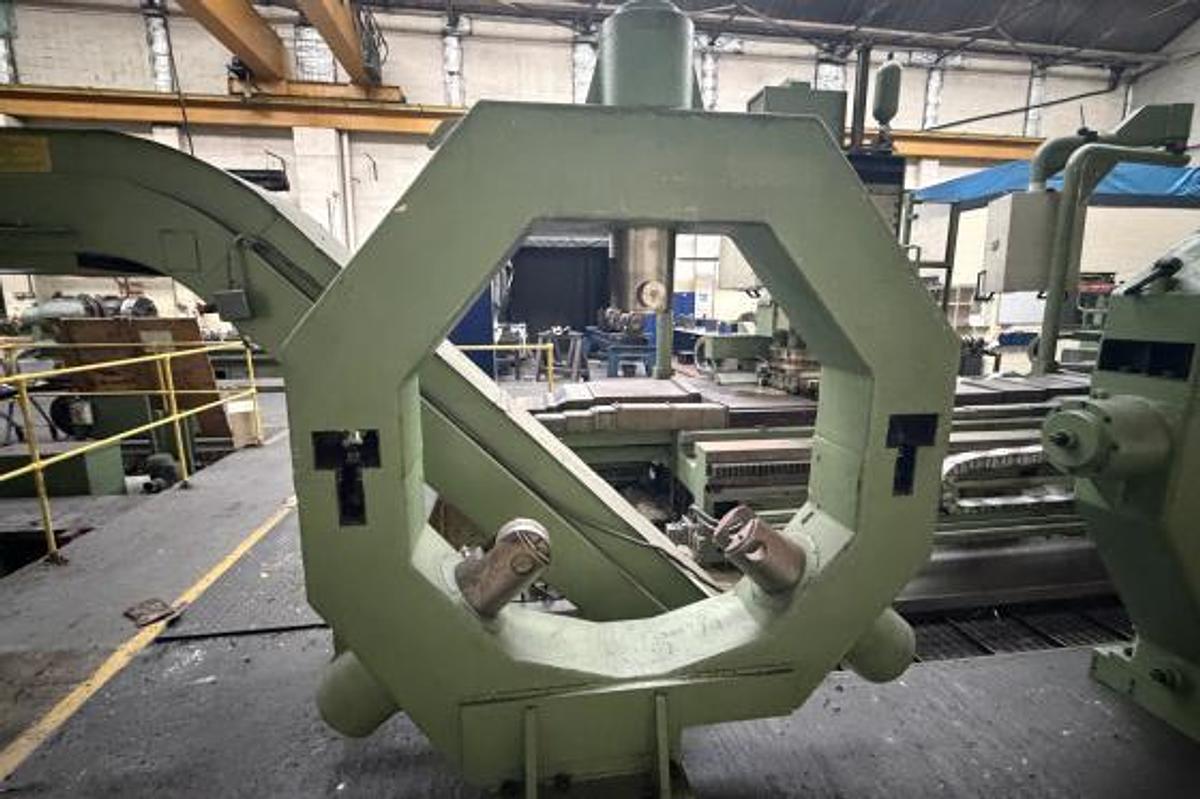

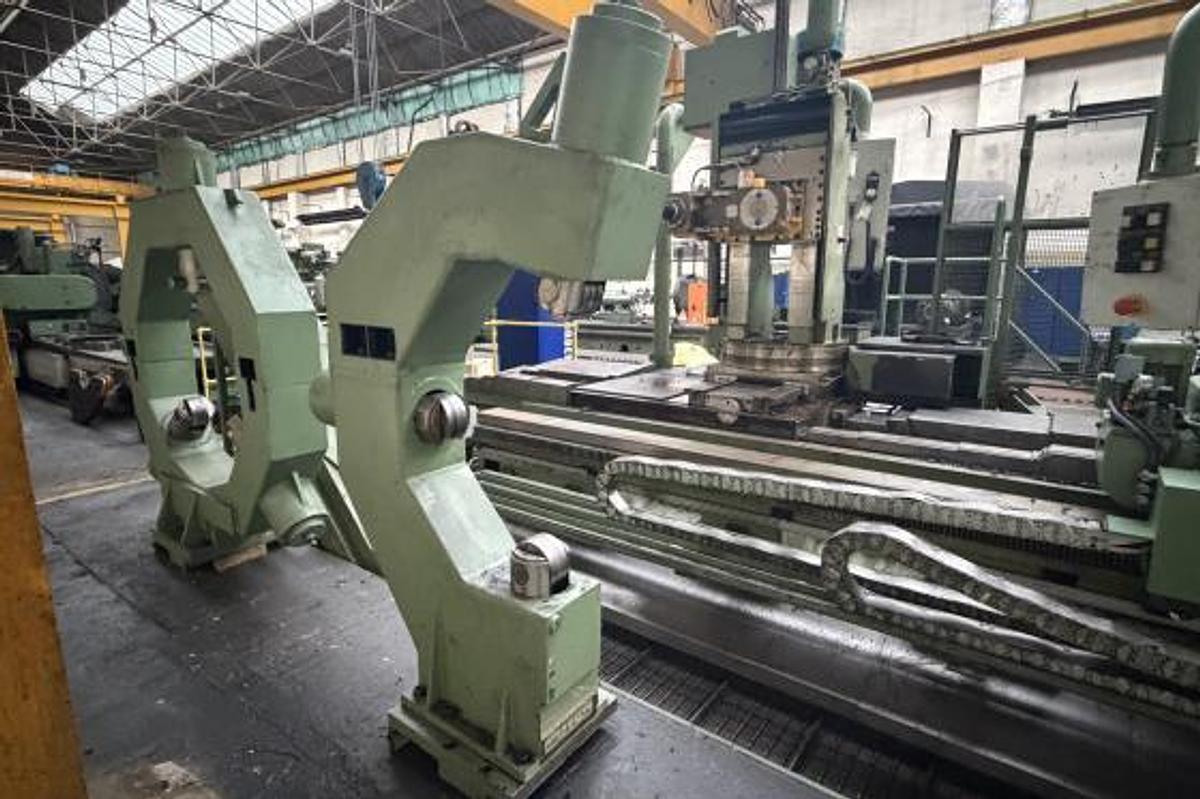

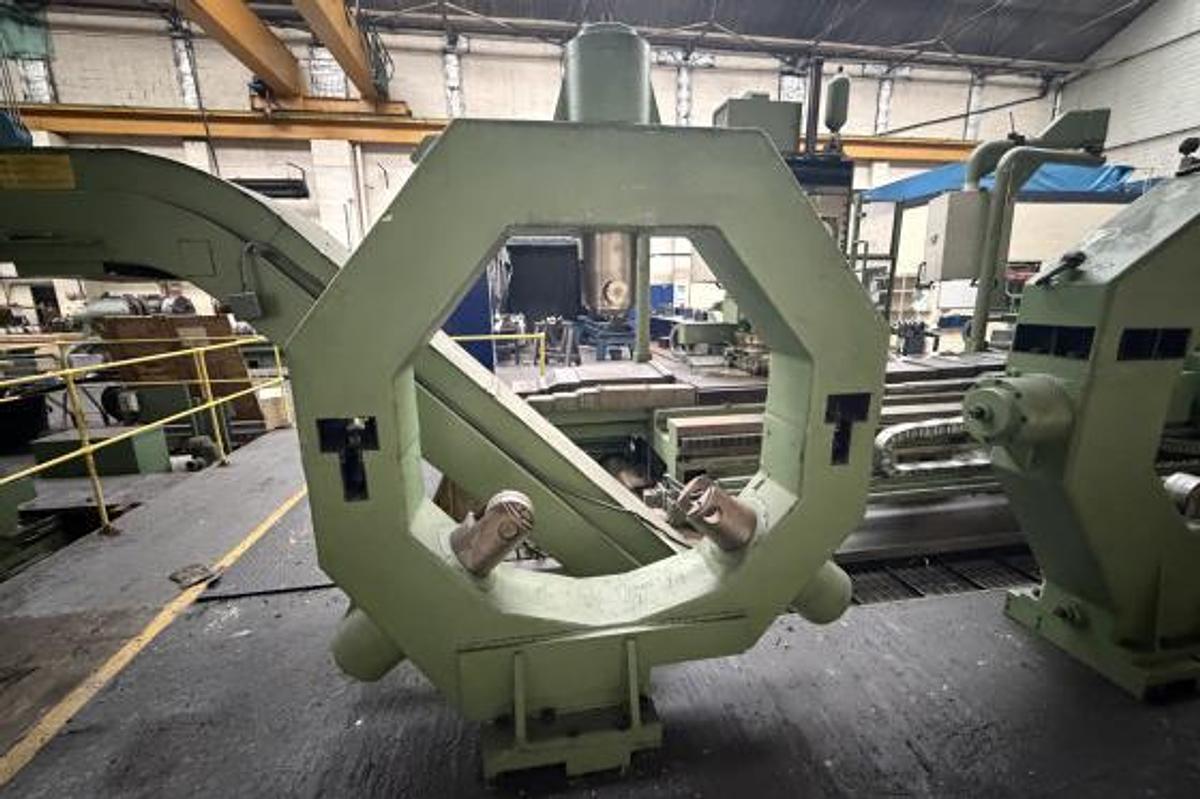

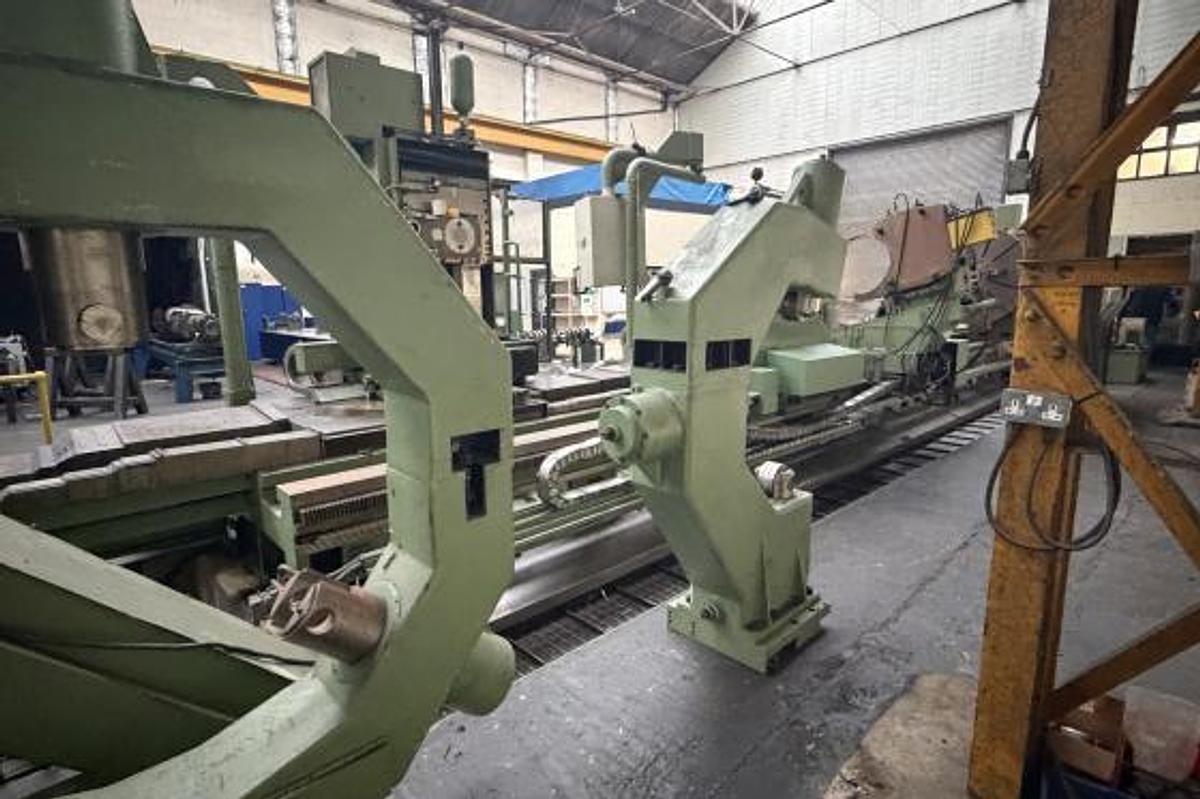

Steady rests for large diameters
- C type hydraulic 500 to 900 mm, 8 ton
- Fixed closed 800 to 1,200 mm, 10 ton
- Fixed closed 500 to 900 mm, 5 ton
Specifications
| Manufacturer | Tacchi |
| Model | HD3 / 140L |
| Year | 2001 |
| Condition | Used |
| Stock Number | 5654327 |
| Between centers | 8,000 mm |
| Capacity between centers | 25,000 kg |
| Swing over bed | 2,000 mm |
| Swing over slide | 1,550 mm |
| Chuck speed | 360 rpm |
| Chuck diameter - 4-Jaw | 1,500 mm |

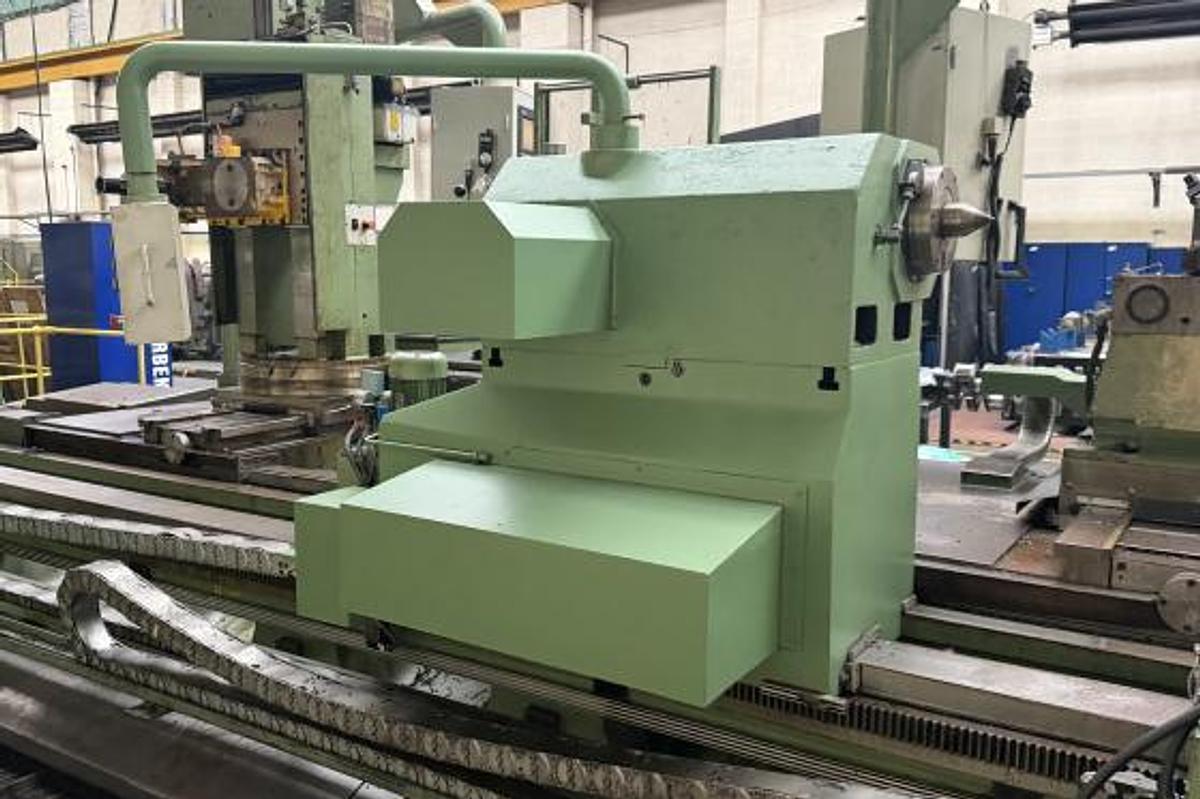

| Tailstock diameter | 260 mm |
| Tailstock stroke | 200 mm - taper Metric 80 |
| Spindle bore | 150 mm |

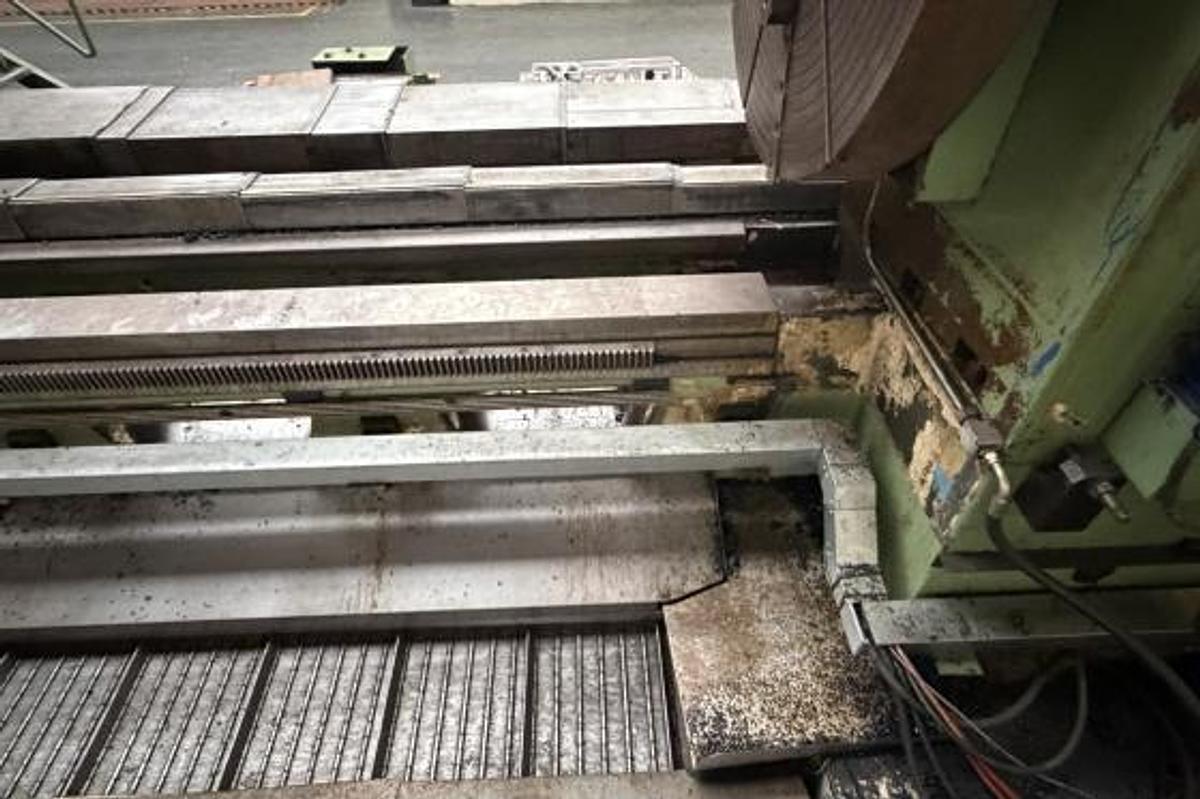

| Bed width | 1,400 mm |
| Live spindle speed | 1,800 rpm |
| Live spindle power / torque | 22 kW / 2,800 Nm |
| X axis travel | 900 mm |
| Y axis travel | 500 mm |
| Stroke pinhole | 200 mm |
| Full c axis for milling positioning | 360,000 |

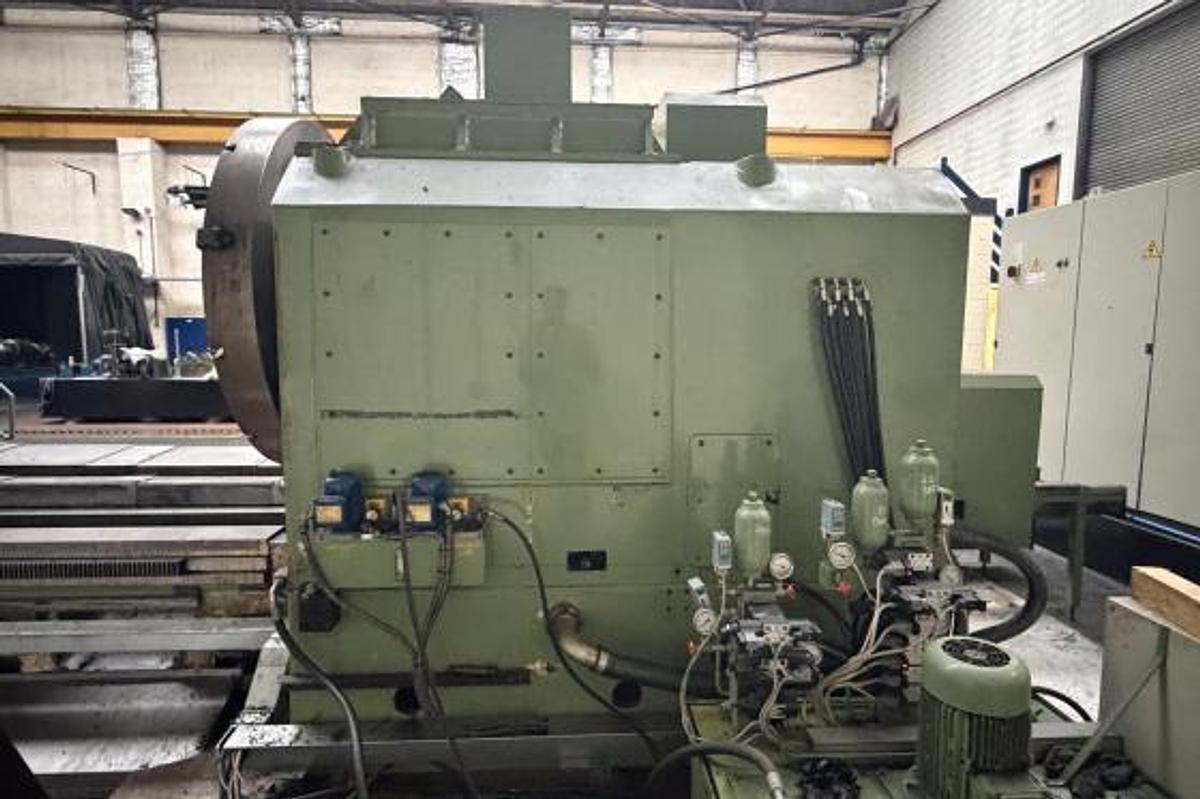

| Main motor power | 95 kW |
| Main motor torque | 45,000 Nm |
| Feed rate X/Z | 0 - 6,000 mm/min |
| Machine dimensions | 16 x 5 x 3.8 m |
