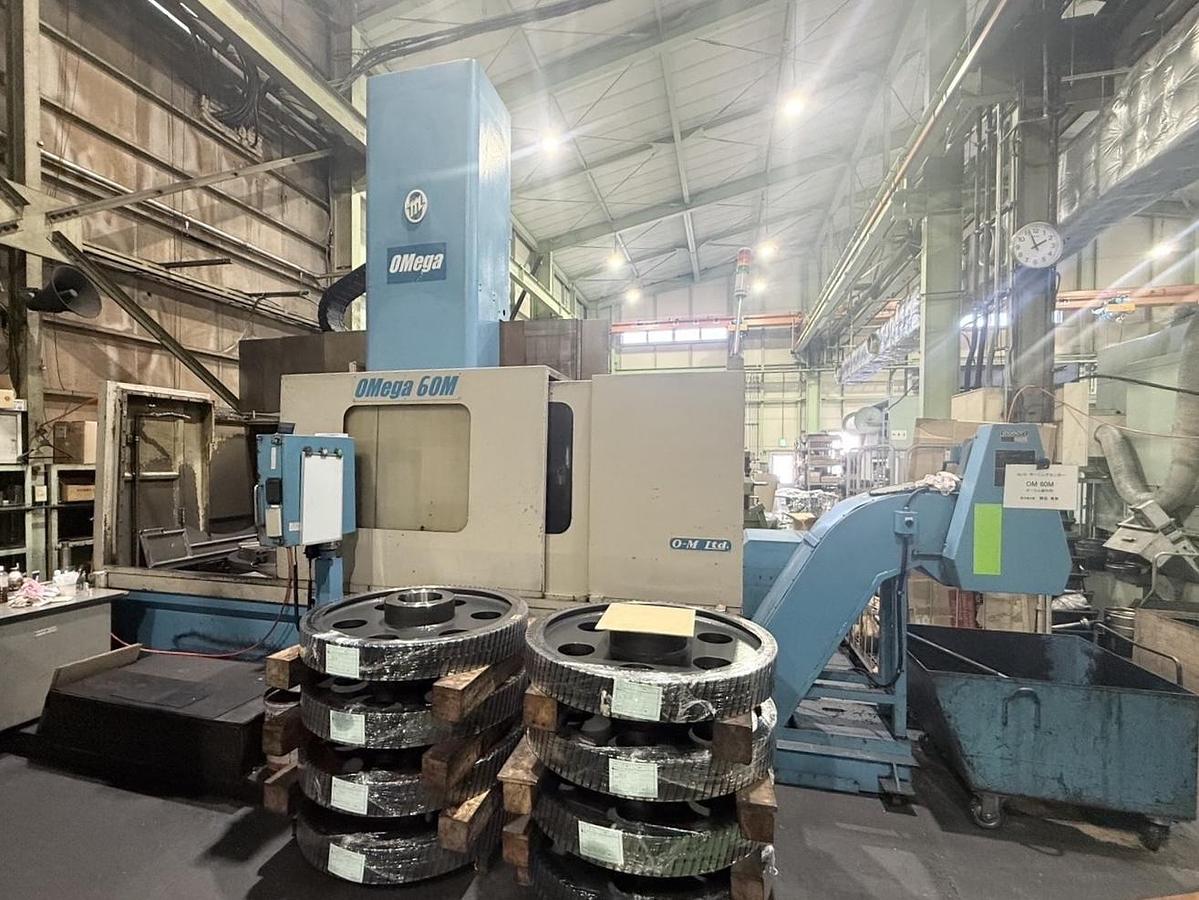

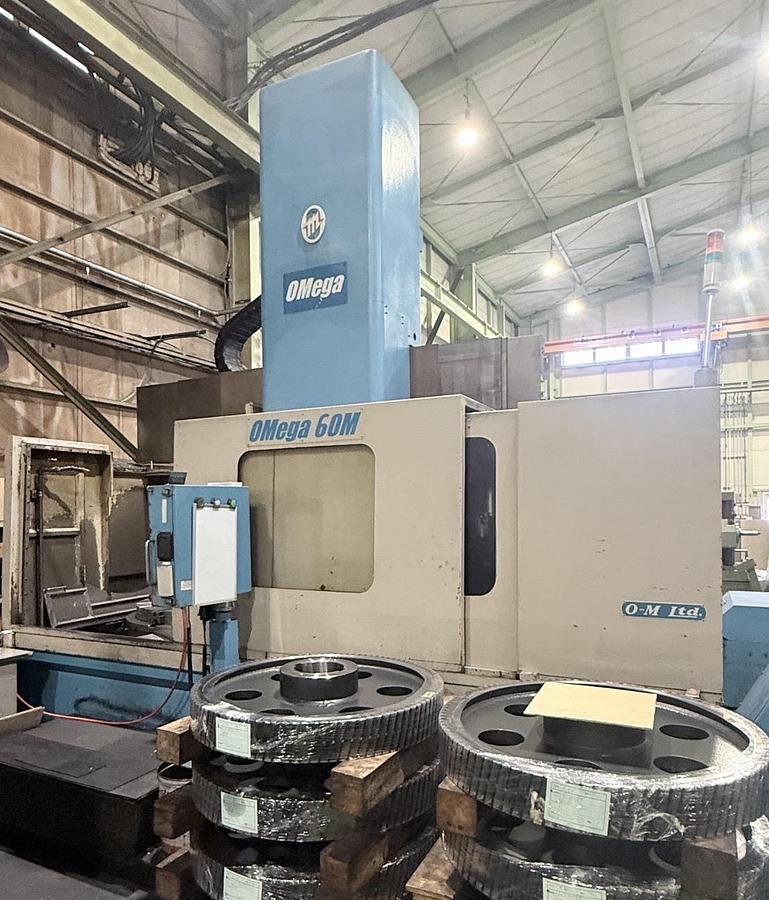

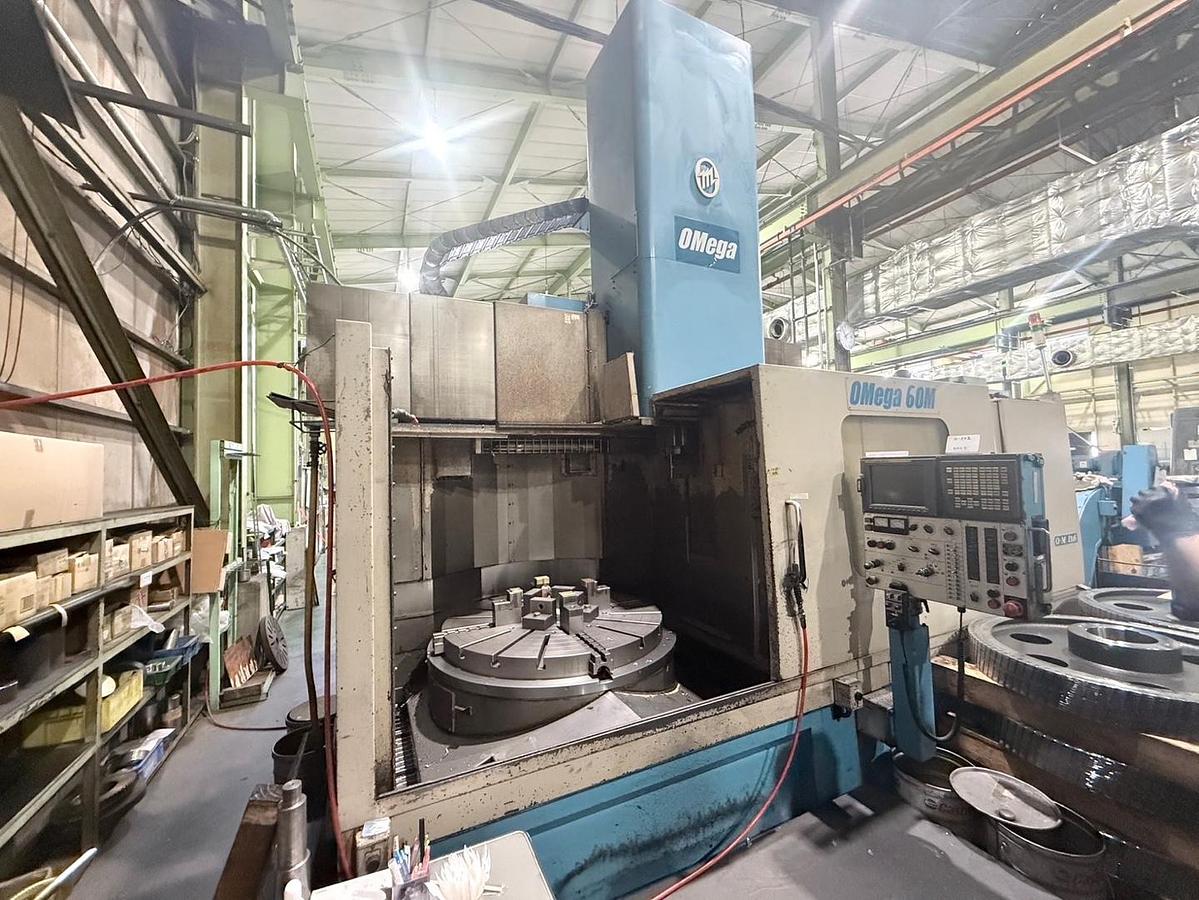

Omega 60M CNC Vertical Boring & Milling Machine with Live Spindle
Omega 60M CNC Vertical Boring & Milling Machine with Live Spindle
or
Call 770-509-0744
Description

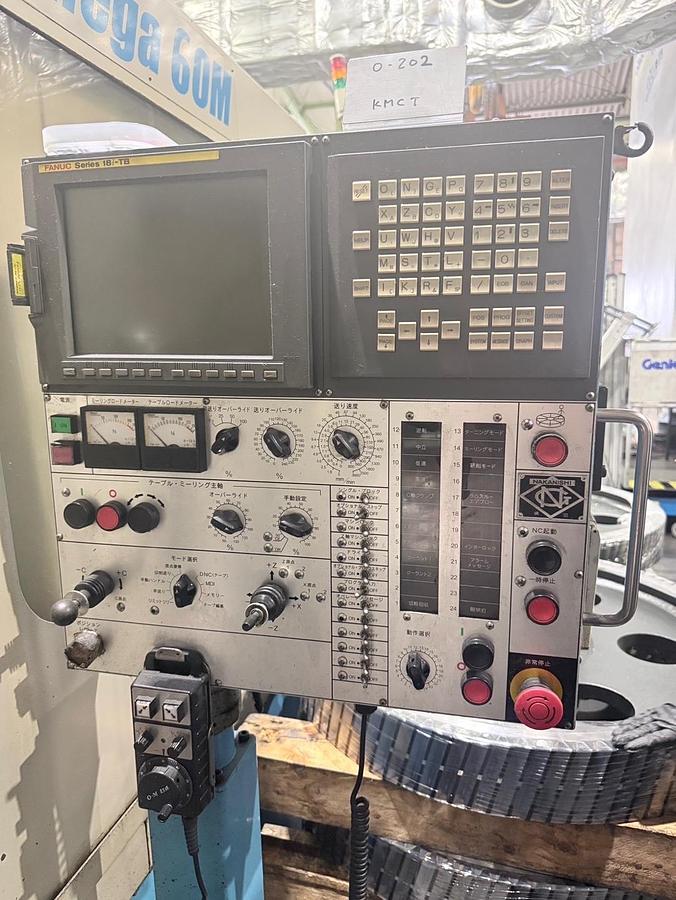

Fanuc 18iT CNC Control
24 Tool ATC

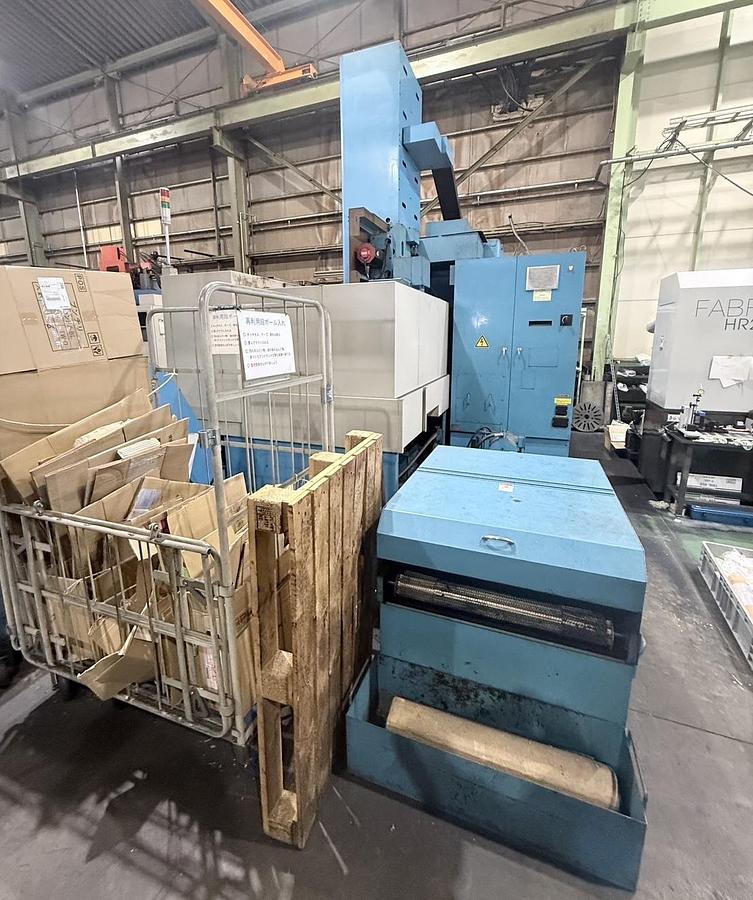

Chip Conveyor
Table Diameter: 1,100 mm (J-Jaw Manual Chuck) - 2,000 kg
Specifications
| Manufacturer | Omega |
| Model | 60M |
| Year | 2003 |
| Condition | Used |
| Stock Number | 5654326 |
| Table diameter | 1,100 mm |
| Max cutting diameter | 1,350 mm |
| Swing | 1,500 mm |
| Turning height | 750 mm |
| Table capacity | 2,000 kg |
| Table turn speed | 4 - 600 rpm |
| Live spindle speed | 4,500 rpm |
| Z axis travel | 800 mm |
| X axis travel | -50 ~ 1,410 mm |
| Live spindle motor | 11 / 15 kW |
| Ram size | 180 x 180 mm |
| Table motor | 30 / 37 kW |
