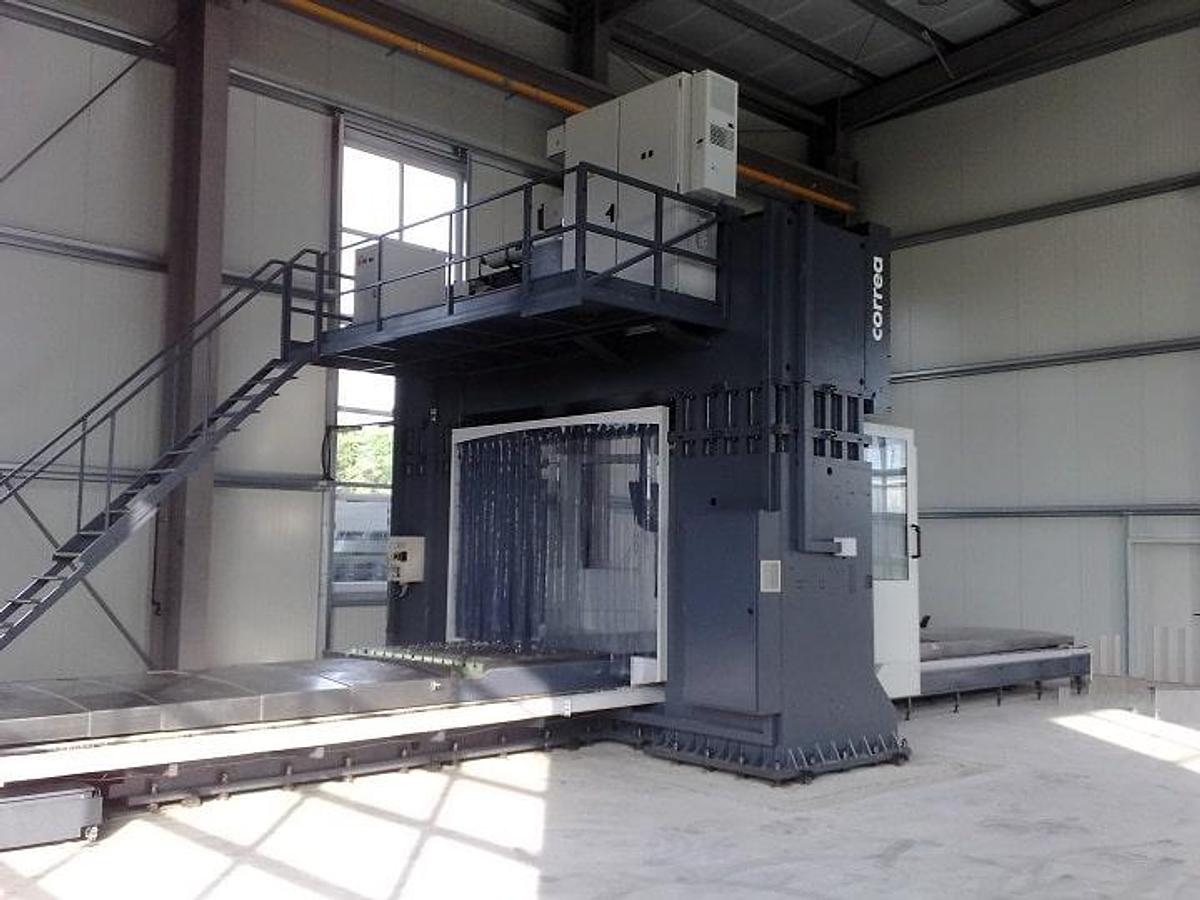

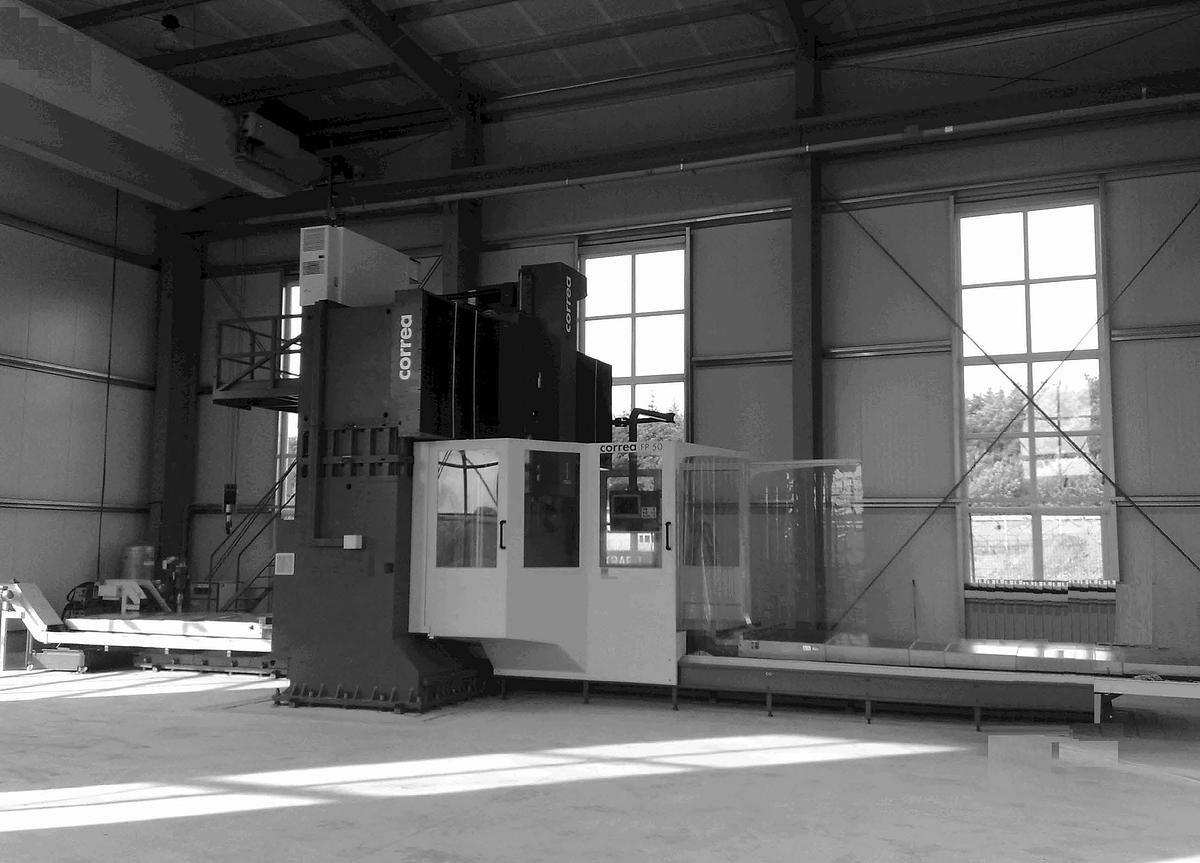

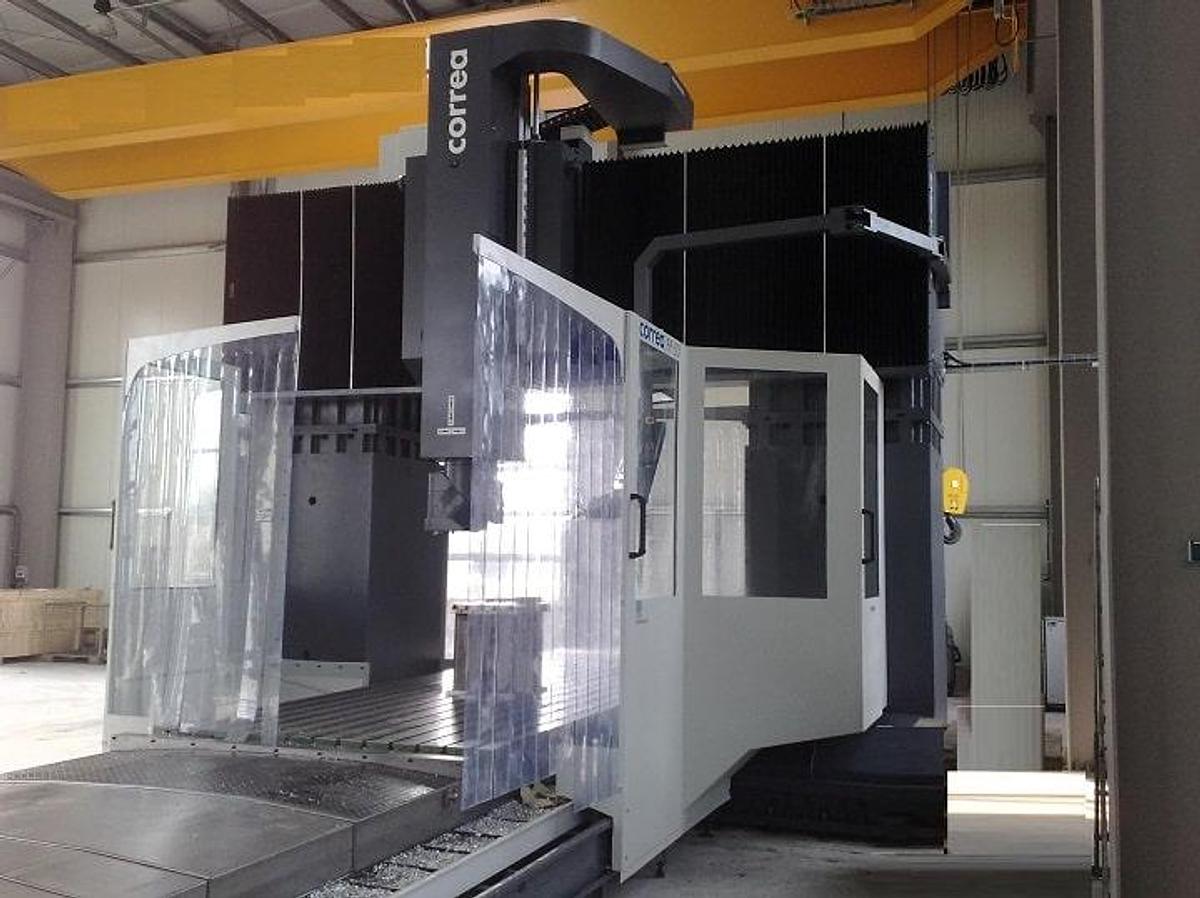

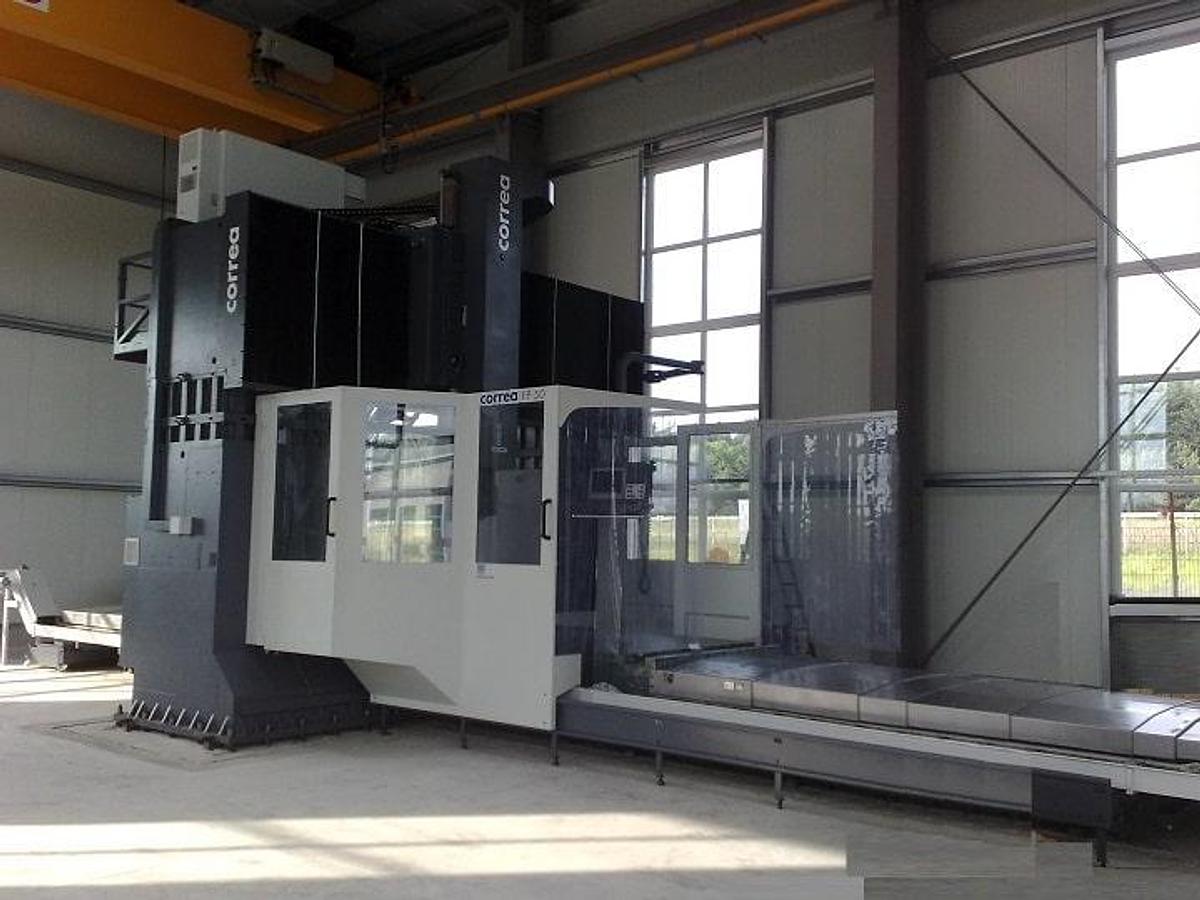

Correa FP 50/80 CNC Bridge Type Milling Machine

Complete Mechanical Rebuild & Retrofit in 2026 with the following:

General:

Disassembly of structural elements.

General inspection of the machine structural elements in its X, Y, Z axes.

Cleaning, sanding and painting of structural elements.

X-Axis:

Inspection of table guideways.

Ballscrews preloading adjustment.

Axis drive inspection (bearings, pulleys, belts…).

Inspection and cleaning of lubrication circuits.

Inspection of telescopic protections and replace new wipers.

Grinding or sanding of the working table.

Y & Z Axis:

Adjustment of ram-saddle-crossbeam guiding.

Ballscrews preloading adjustment.

Axes drive inspection (bearings, pulleys, belts…).

Inspection and cleaning of lubrication circuits.

Inspection of telescopic protections.

Head - Ram:

Inspection of spindle drive chain inside the ram with a replacement of the damage elements.

Complete dismantling the head for an inspection.

Damaged bearings and gears replacement.

Main axis rounds out calibration.

Electrical:

Inspection to check the correct performance of the electrical elements.

Disassembling, clean and inspect of electrical cabinet, drivers and CNC.

Disassembling, clean and inspection of X, Y, Z and spindle motors.

Disassembling the control panel, including cleanness, sanding and painting.

Reassembly of all inspected elements.

Auxiliary Element And Accessories:

Inspection of hydraulic, refrigeration, lubrication… circuits of machine and head.

Vertical counterbalance system inspection.

Revision and replacement of damage parts on accessories, ATC, rotary tables… (only when the machine is equipped with these

accessories).

Machine Adjustments:

Geometry setup and functionality of machine axis, performing the acceptance test protocols of geometry.

Safety:

Repair or replace all the damage elements of the guarding.

New perimetral safety fence installation.

Machine Testing Start-Up At NC Service:

Machine PLC installation or upgrading.

A full functionality testing.

Axis adjustments.

Accessories starting up.

Alarms testing.

Heidenhain TNC i530 CNC Control

• 60 Position Automatic Tool Changer

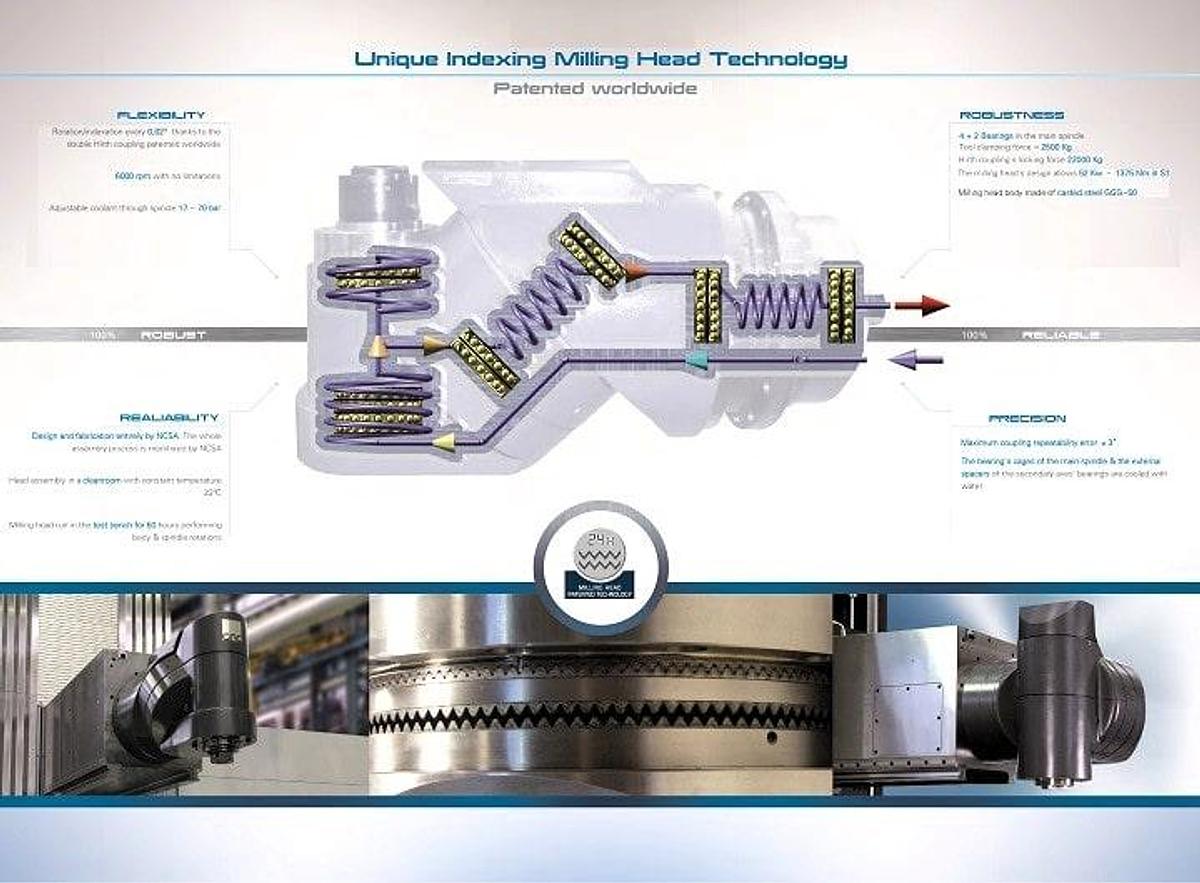

• Universal Auto-Indexing Head (0.02°)

Speed Range - 6,000 rpm

Spindle Power - 30 kW

• Hydraulic Tool Clamping
• ISO 50 Taper - DIN69872 Pull-stud
• Chip Conveyor - 2 Longitudinal Hinge Type
• Guarding
• External & Internal Coolant
• HR-510 Electronic Handwheel
