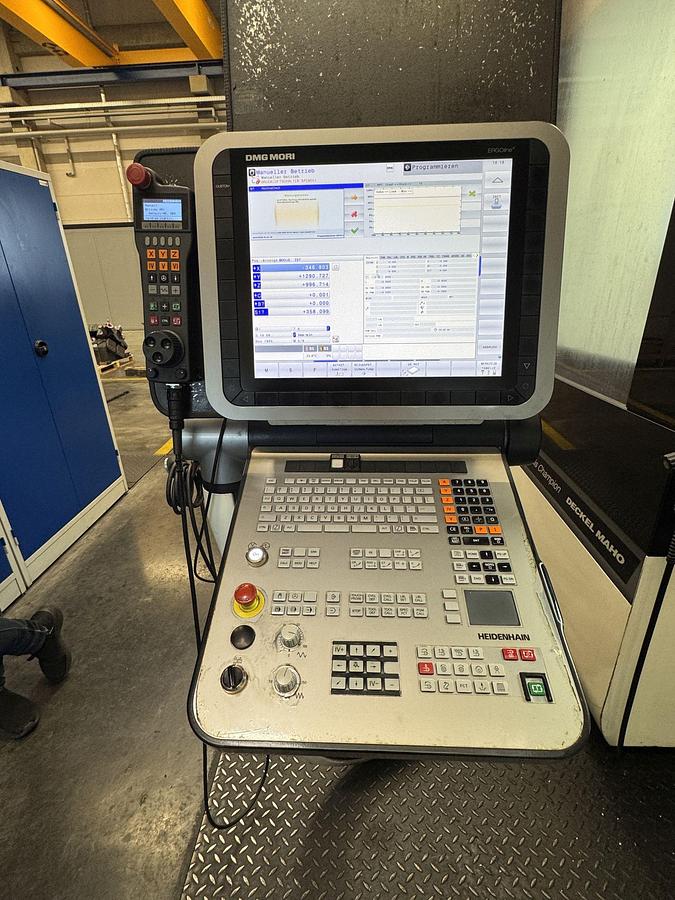

Heidenhain CNC Control

Number of Controlled Axes - 5

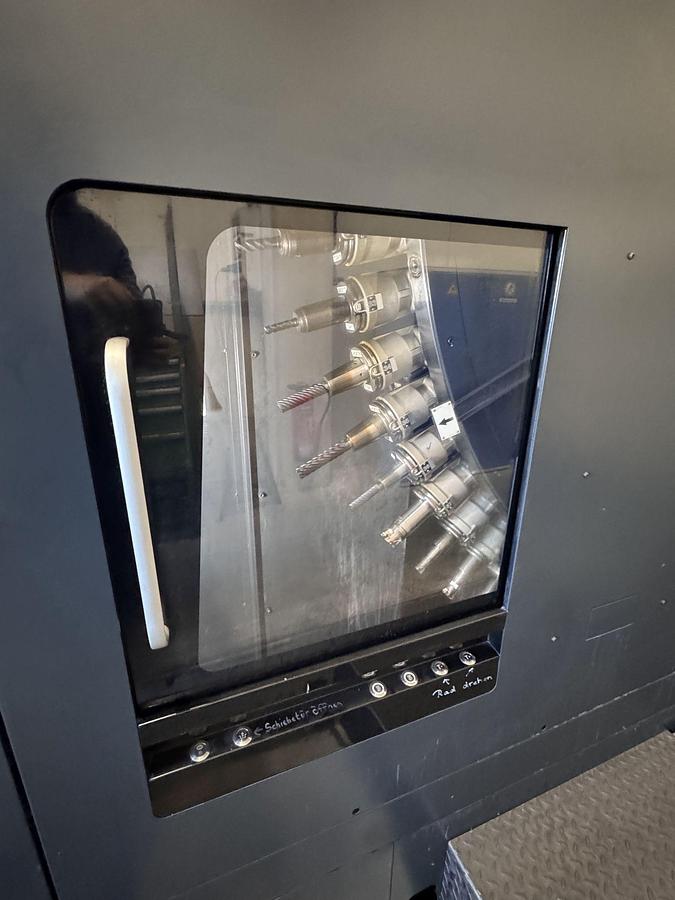

63 Position Automatic Tool Changer

High Pressure Cooling System (Through Spindle)

Closed Cabin

Chip Conveyor

Infrared touch sensor

Rotating viewing window

Paper belt coolant filter system

Internal coolant supply

Water/Air pressure

Handwheel operating terminal

Handheld scanner

Switch/control cabinets

Cooling unit.

Working Spindle / Head:

Spindle Type - Orthogonal Head

Spindle Speeds - 1-12,000 rpm

Taper Fixture - ISO SK 50

Manufacturer	DMG
Model	DMU 160 P duoBLOCK
Year	2016
Condition	Used
Stock Number	5654319
Spindle speeds	12,000 rpm
X axis travel	1,600 mm
Y axis travel	1,600 mm
Z axis travel	1,100 mm
A axis rotation	90°
C axis rotation	360°
Table clamping surface (front-back)	1,250 mm
Table clamping surface (diameter)	1,600 mm
Workpiece load	4,500 kg
Table rotation	360°
Spindle taper	ISO SK 50
Rapid traverse	60 m/min
