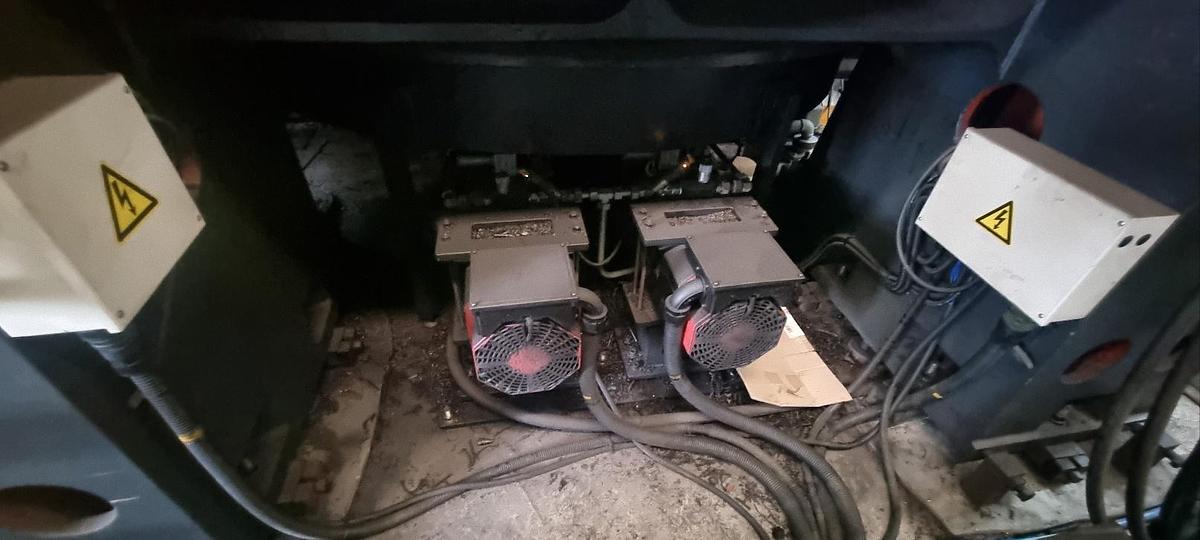

HNK VTC 20/25 CNC Vertical Turning Boring & Milling Machine with Live Spindle & Table C-Axis
HNK VTC 20/25 CNC Vertical Turning Boring & Milling Machine with Live Spindle & Table C-Axis
or
Call 770-509-0744
Description

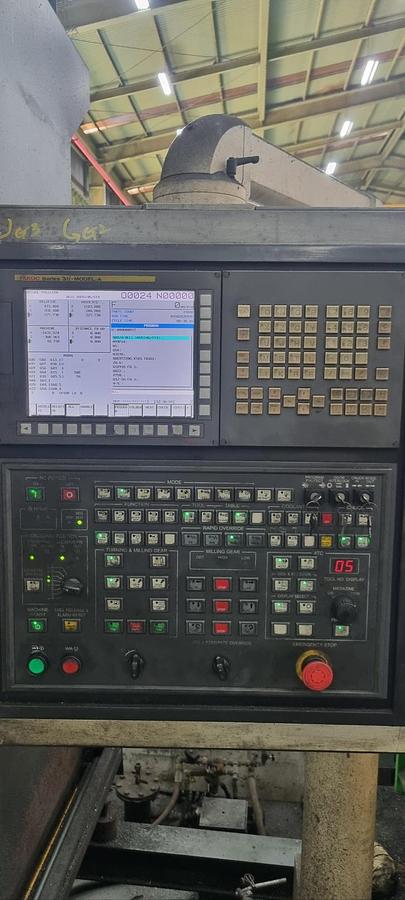

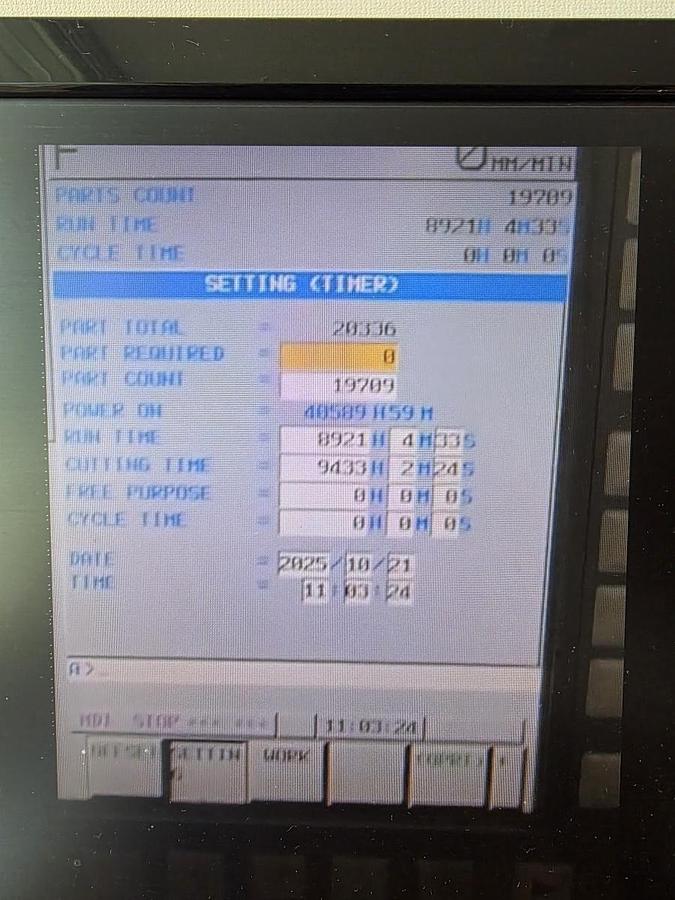

Fanuc 31iA CNC Control
Spindle Thru Coolant
Scales

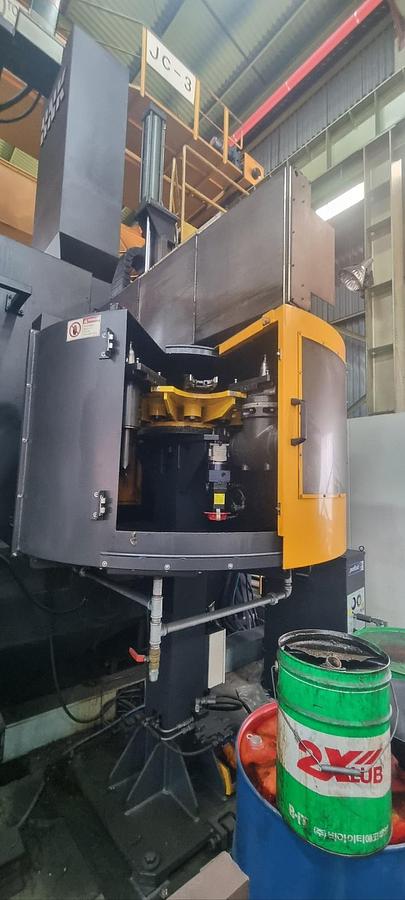

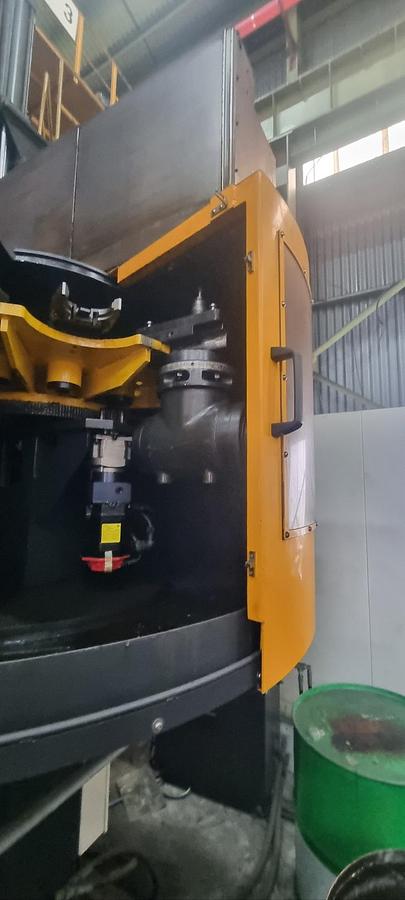

18 Position Automatic Tool Changer

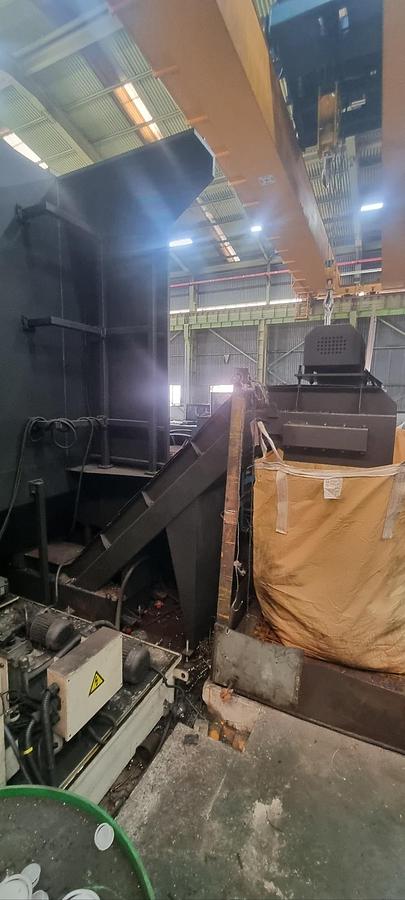

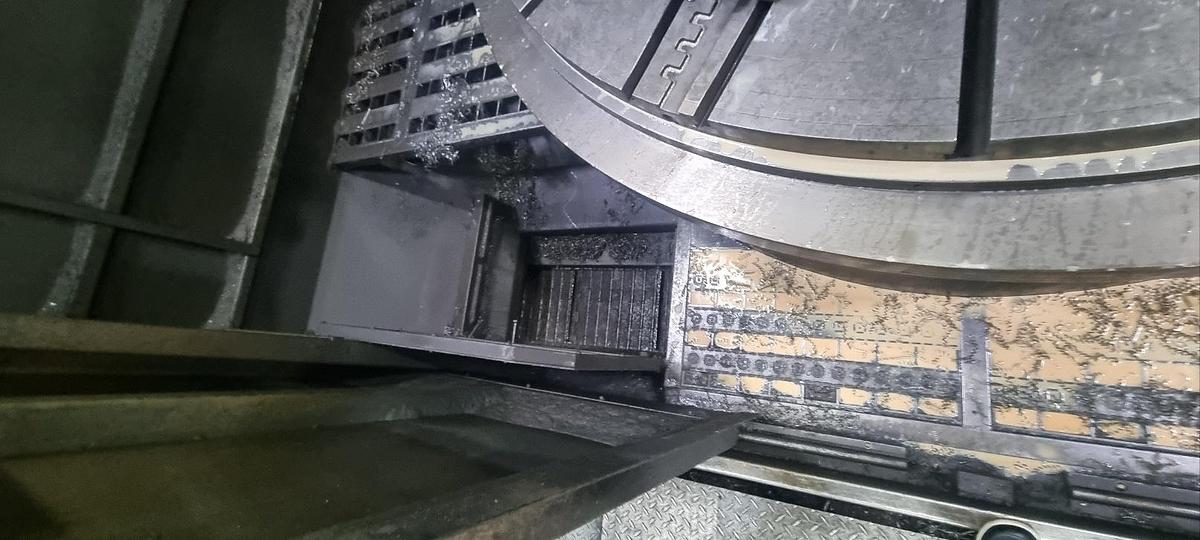

Chip Conveyor

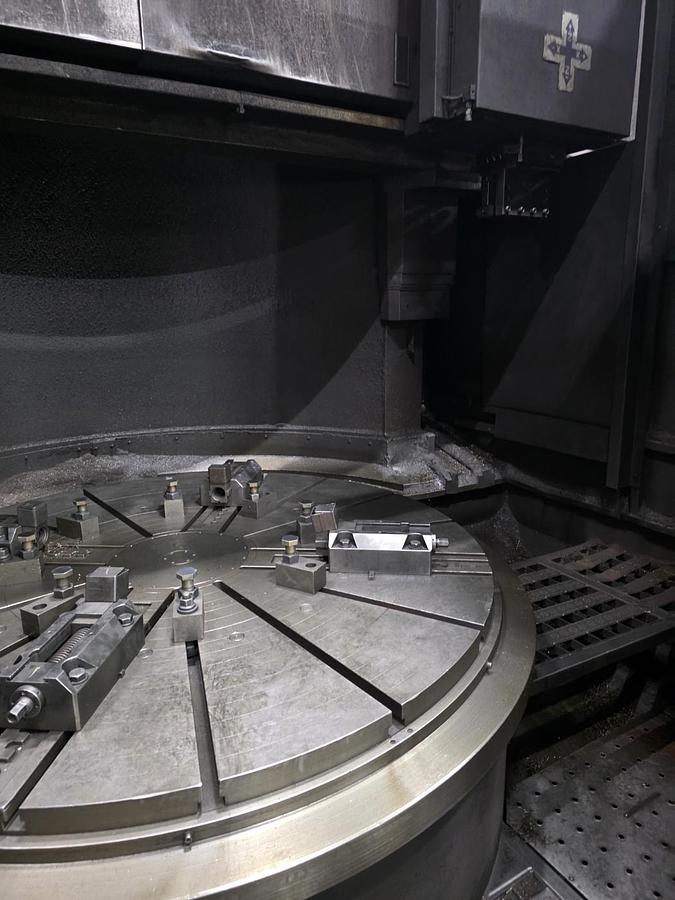

Rotary Table/Chuck:
Manual Chuck
Diameter 2,000 mm
Capacity 12,000 kg
Indexing 0.001°
Specifications
| Manufacturer | HNK |
| Model | VTC 20/25 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 5654318 |
| Table diameter | 2,000 mm |
| Swing | 2,500 mm |
| Turning height | 1,800 mm |
| Table capacity | 12,000 kg |
| Table turn speed | 1 - 200 rpm |
| Live spindle speed | 15 - 1,500 rpm |
| Z axis travel | 1,000 mm |
| X axis travel | -200 - +2,150 mm |
| Live spindle motor | 15 / 18.5 kW |

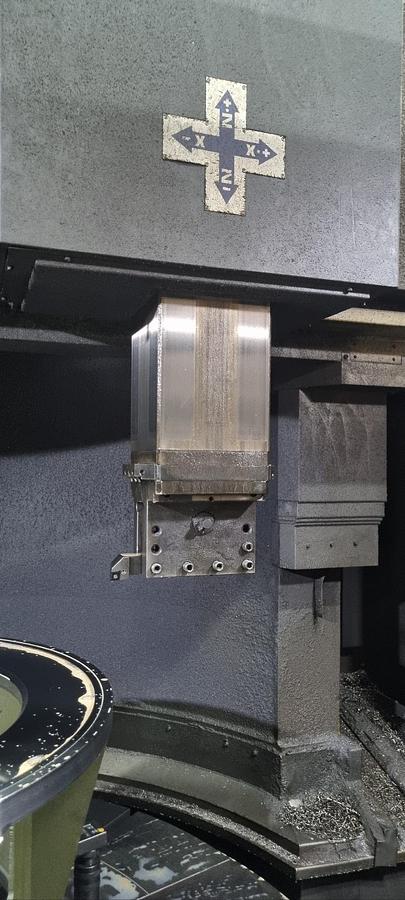

| Ram size | 240 x 240 mm |
| Table motor | 45 / 55 kW |
