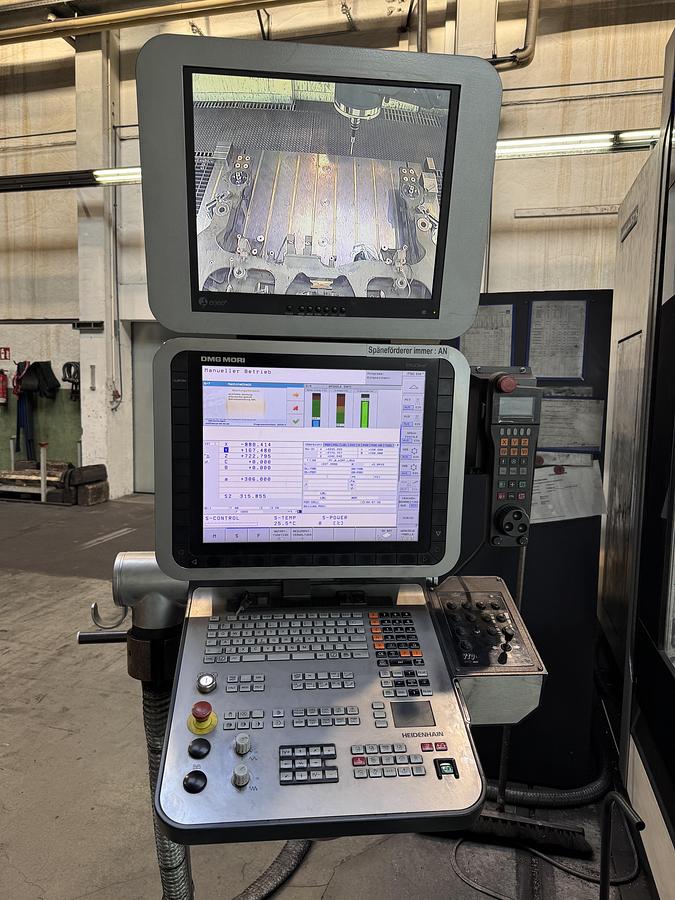

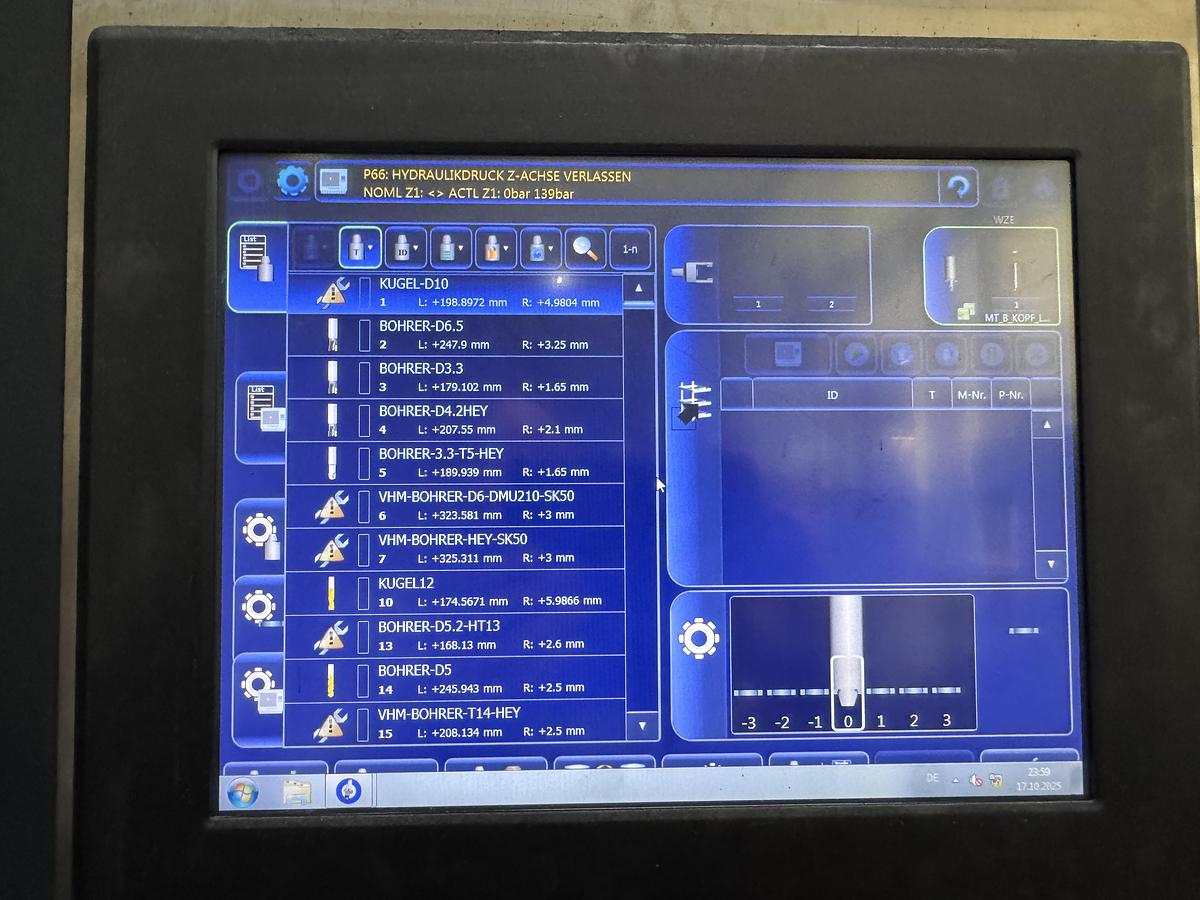

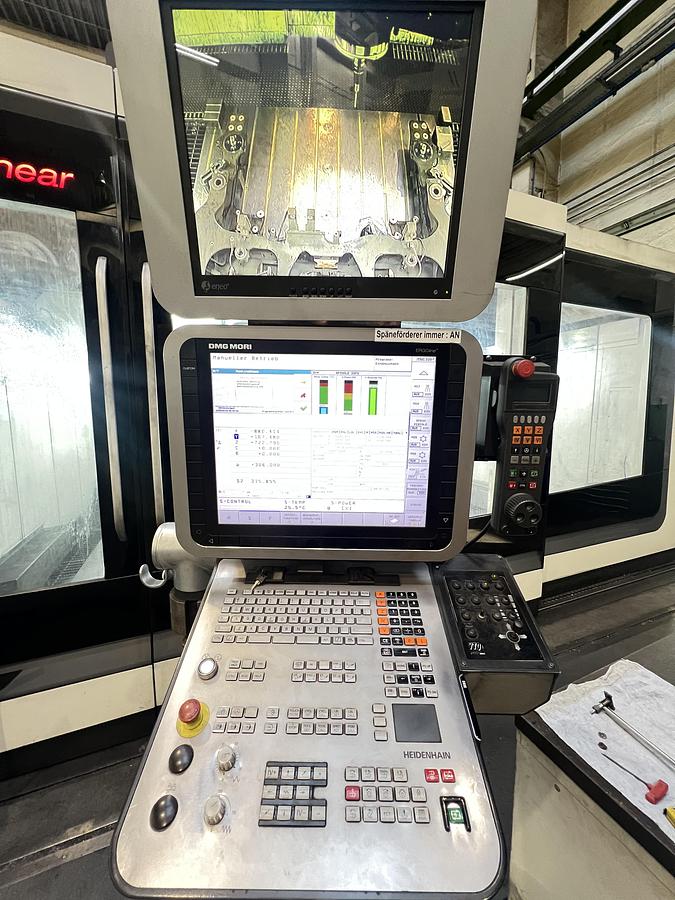

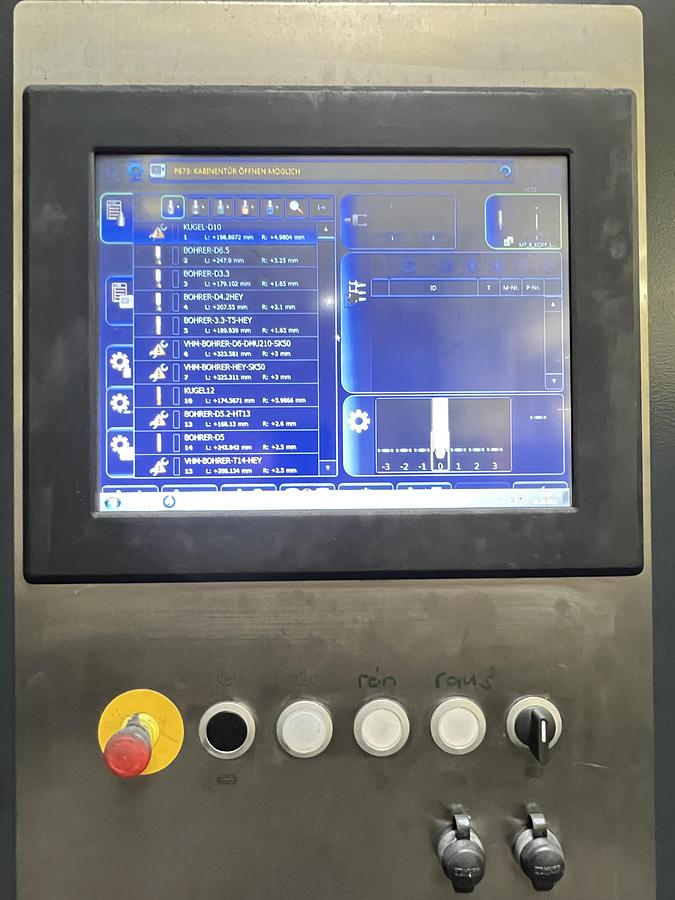

Heidenhain TNC i530 CNC Control

Number of Controlled Axes - 5

Tool Changer

Head Changer

Equipped with 3 Milling Heads

Head 1 - Rough milling, driven by gear unit, 6.000 rpm, 53 Kw Spindle Motor

Head 2 - Fine milling, driven by electric spindle,12.000 rpm, 43 kW Spindle Motor

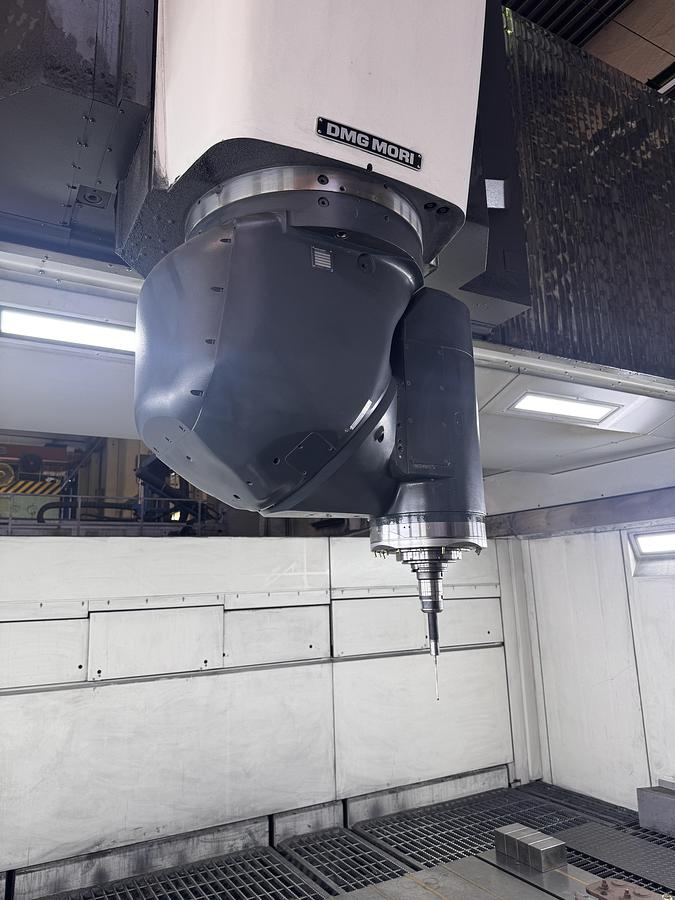

Head 3- Angle milling head 90°, driven by gear unit.

Option. Can order by the OEM Spindle Motor with 13 kw, 24,000 RPM

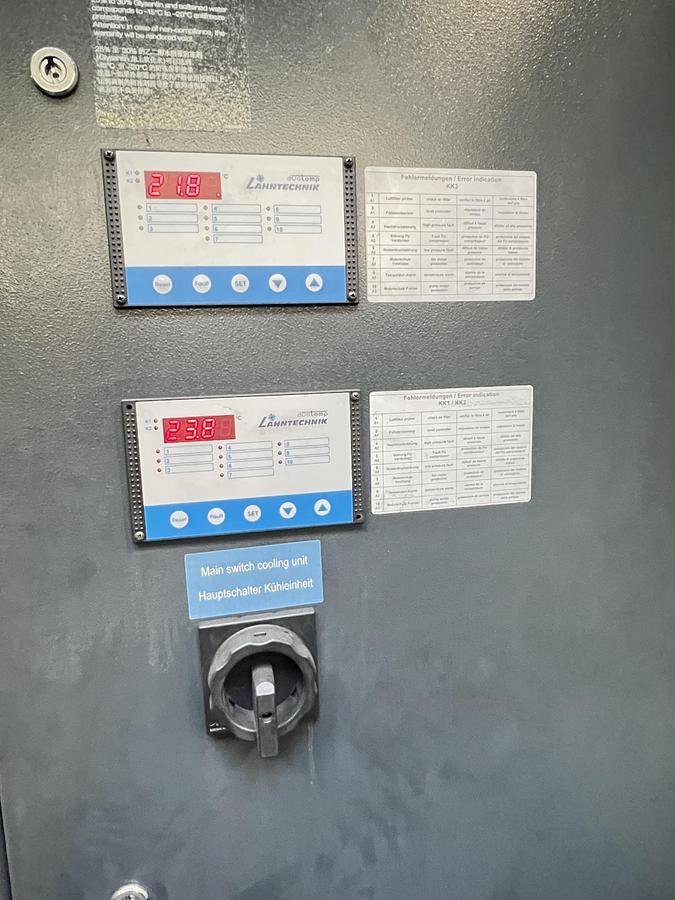

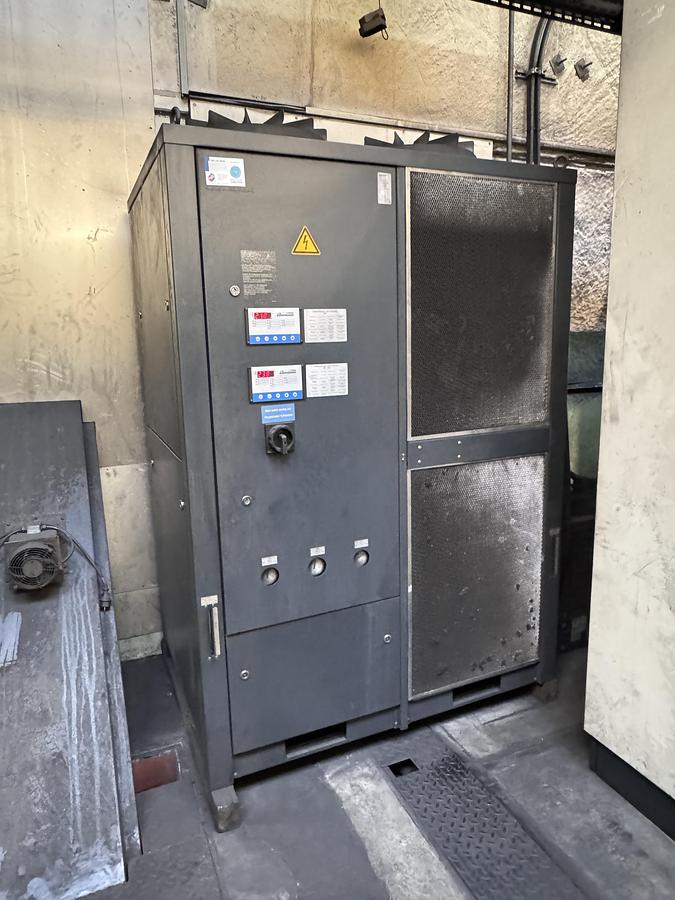

Cooling unit

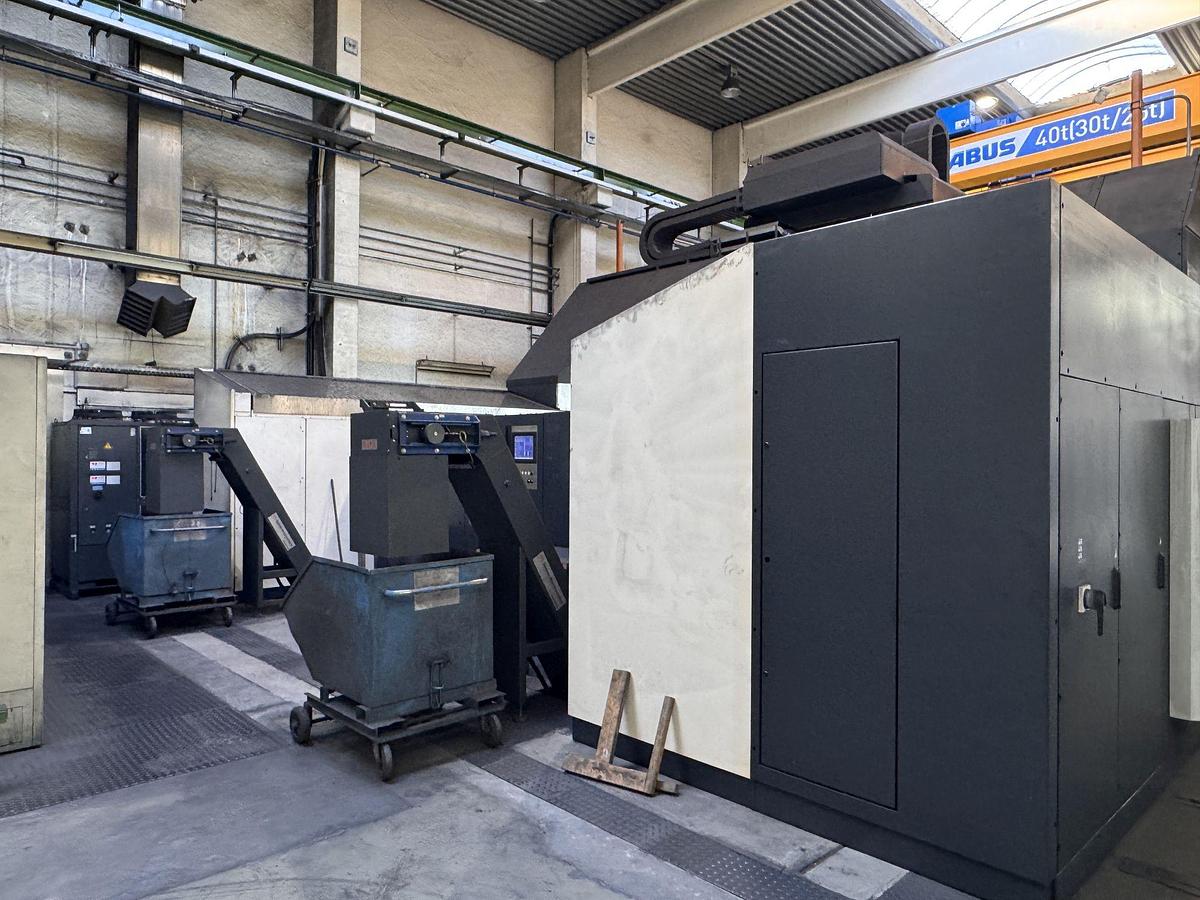

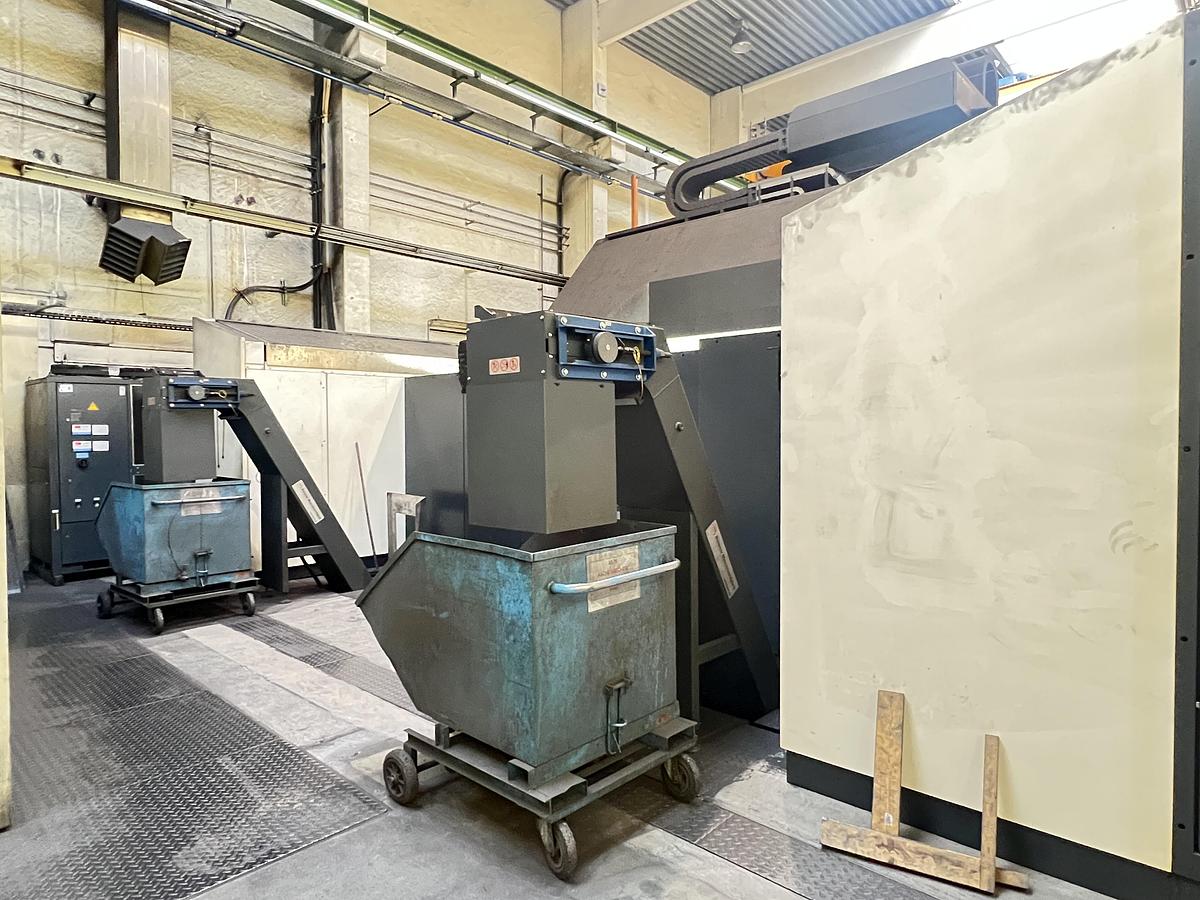

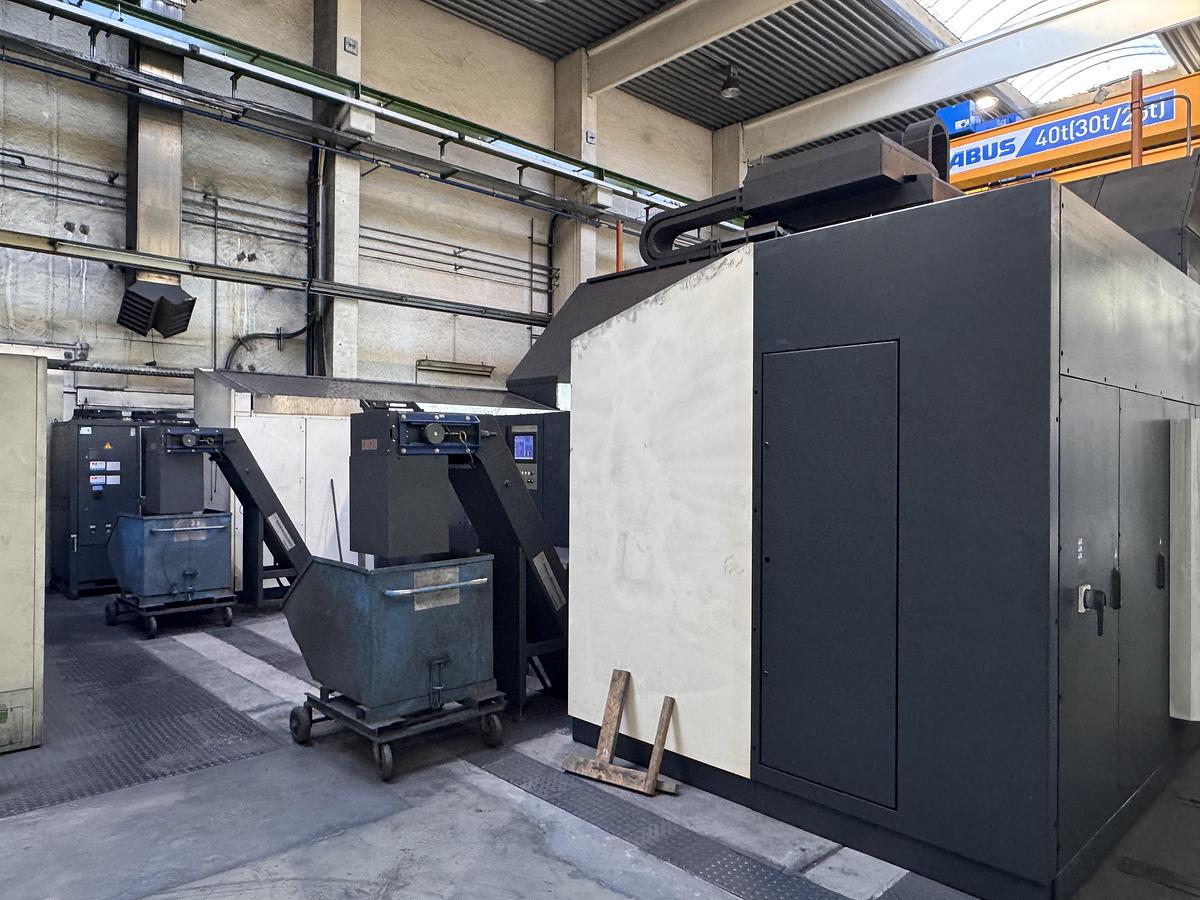

Chip conveyor (2 units)

Cabin

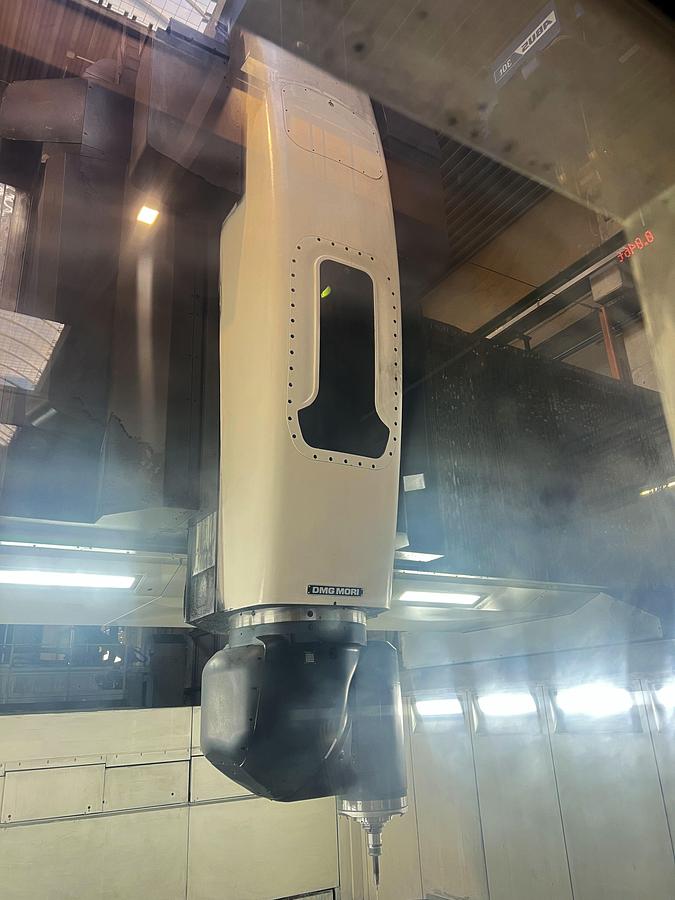

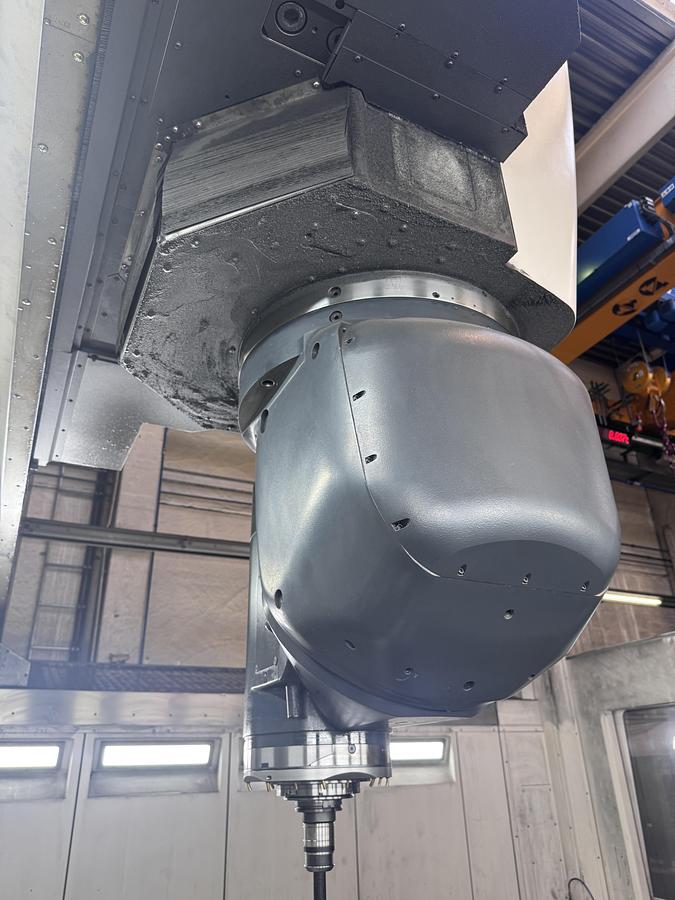

Working Spindle / Head:

spindle type orthogonal head

mode of operation automatic

spindle revolutions 1 - 12,000 rpm

Working Spindle / Head:

spindle type vertical

mode of operation automatic

spindle revolutions 1 - 6,000 rpm

number of gears 2

taper fixture ISO SK 50

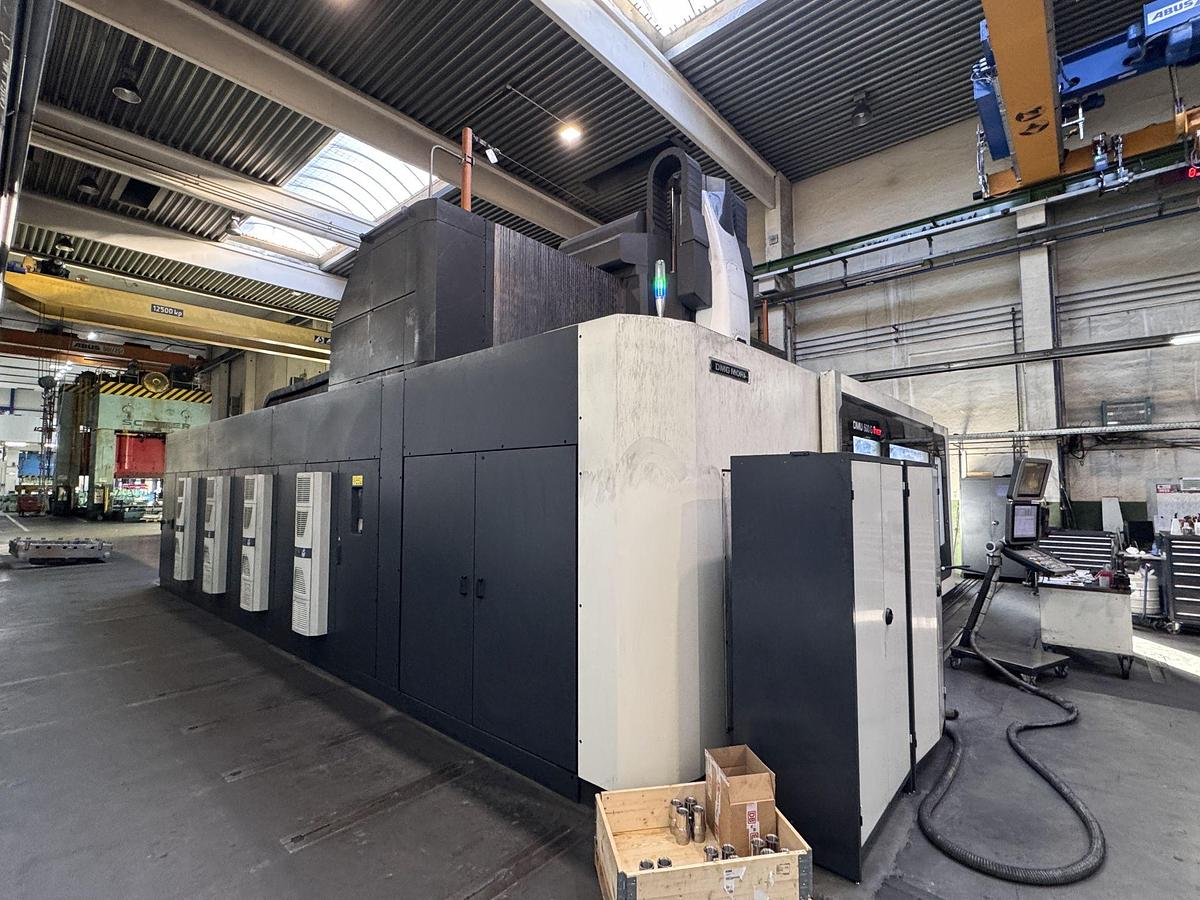

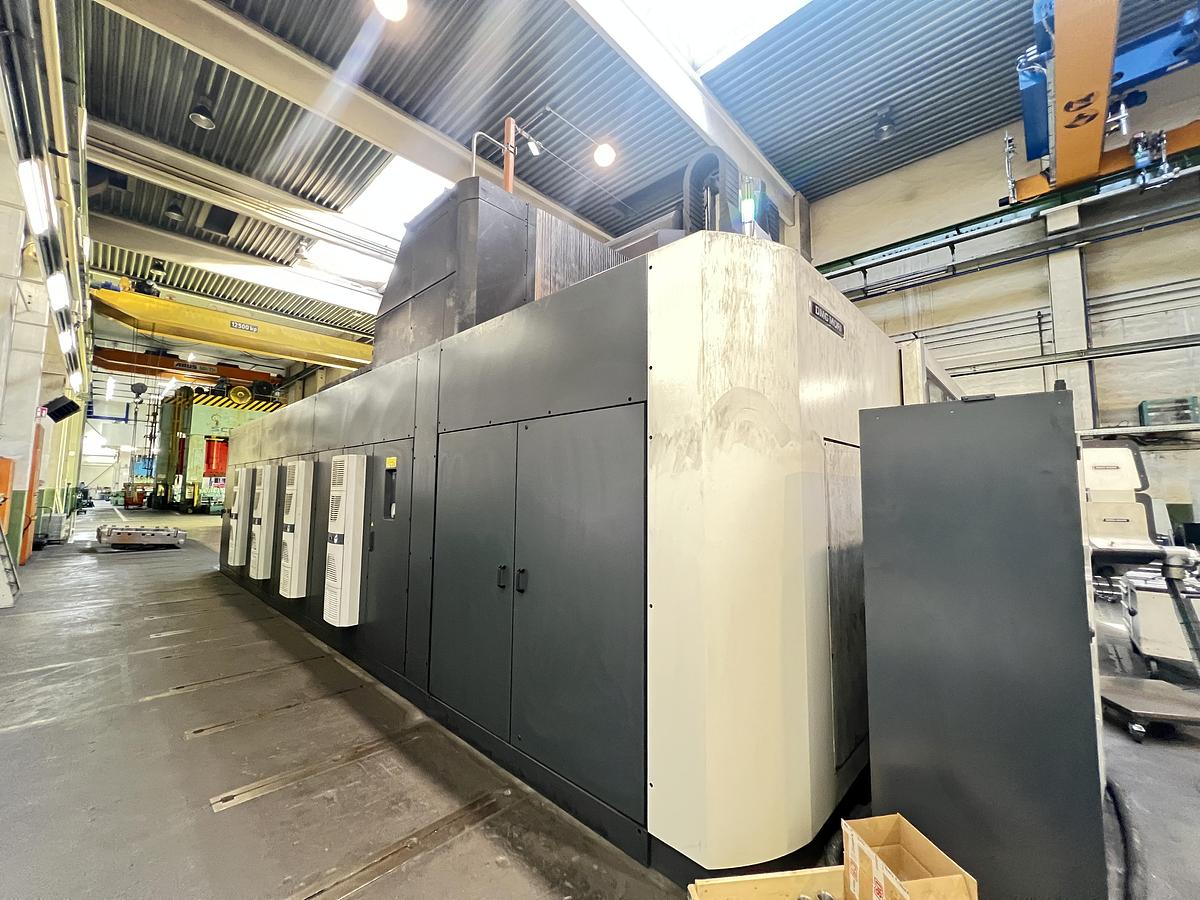

Manufacturer	DMG
Model	DMU 600 H Linear
Year	2017
Condition	Used
Stock Number	5654316
Spindle speeds	12,000 / 6,000 rpm
X axis travel	6,000 mm
Y axis travel	4,500 mm
Z axis travel	1,500 mm

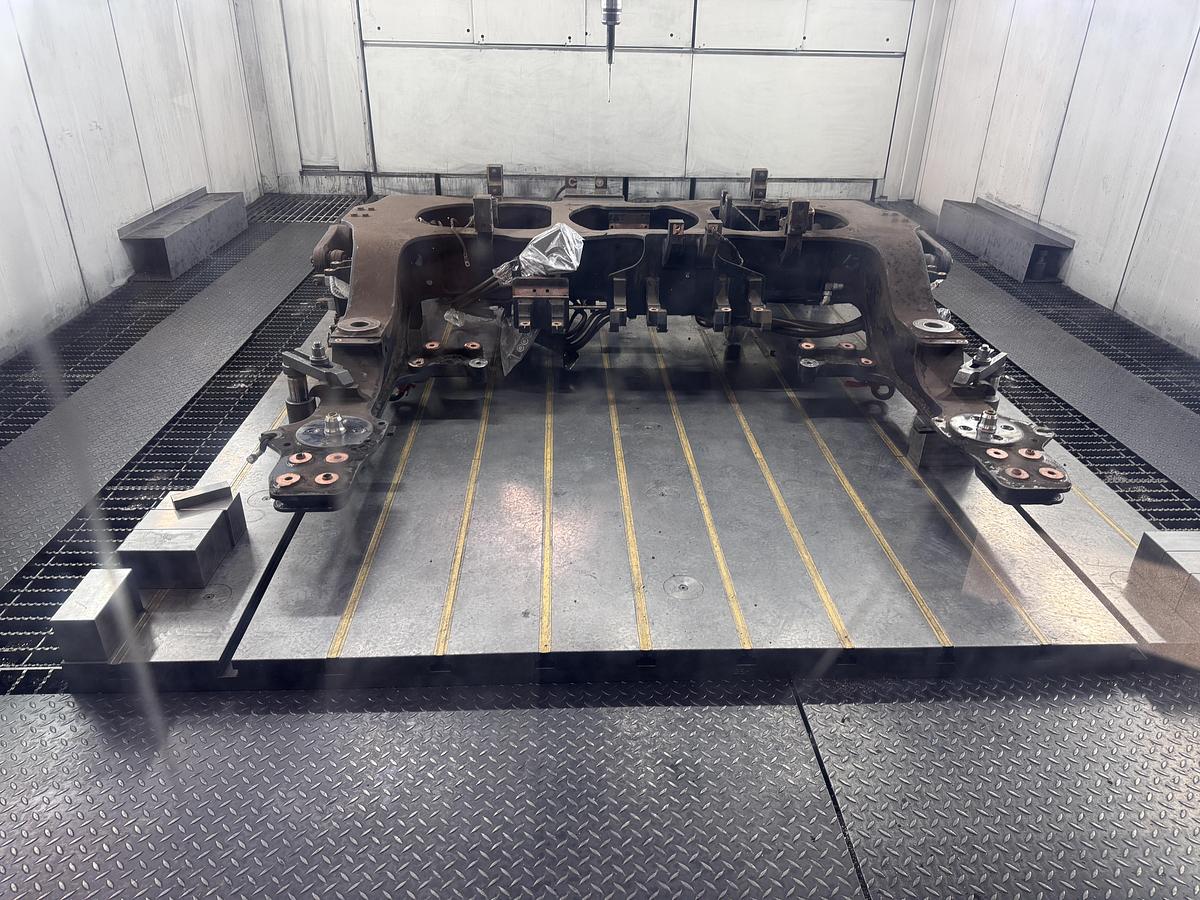

Floor plate clamping surface	3,000 x 5,000 mm
Workpiece load capacity	30,000 kg
