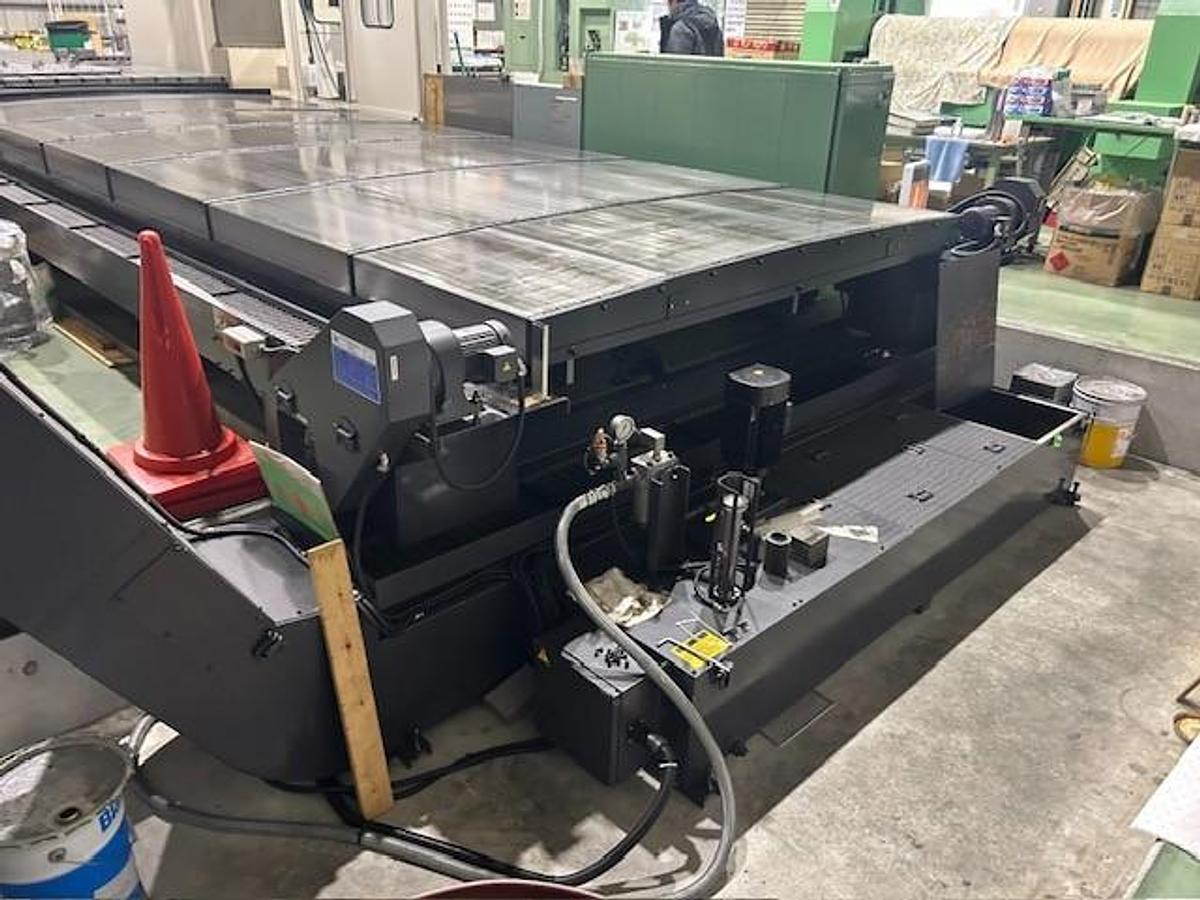

Toshiba Shibaura MPJ 3160 CNC Double Column Planer Type Milling Machine
Toshiba Shibaura MPJ 3160 CNC Double Column Planer Type Milling Machine
or
Call 770-509-0744
Description

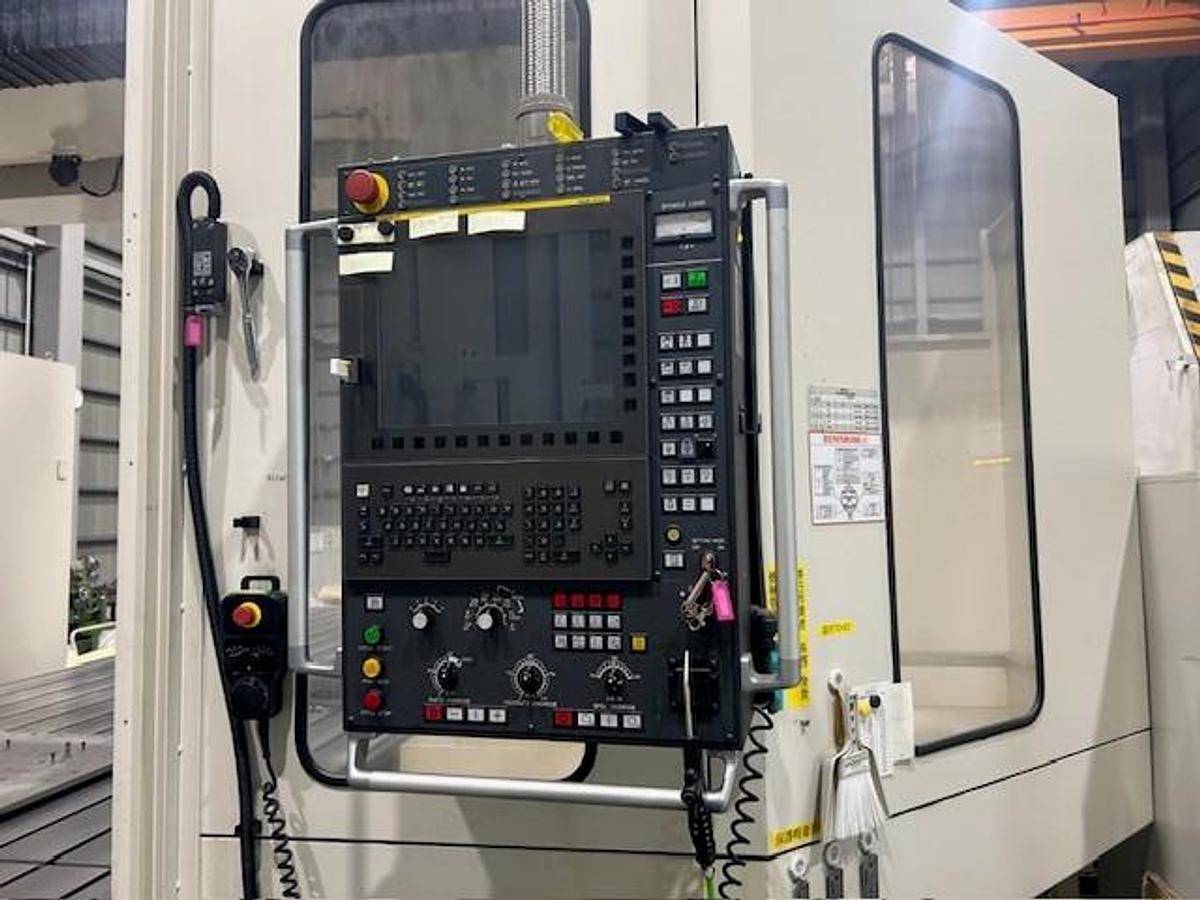

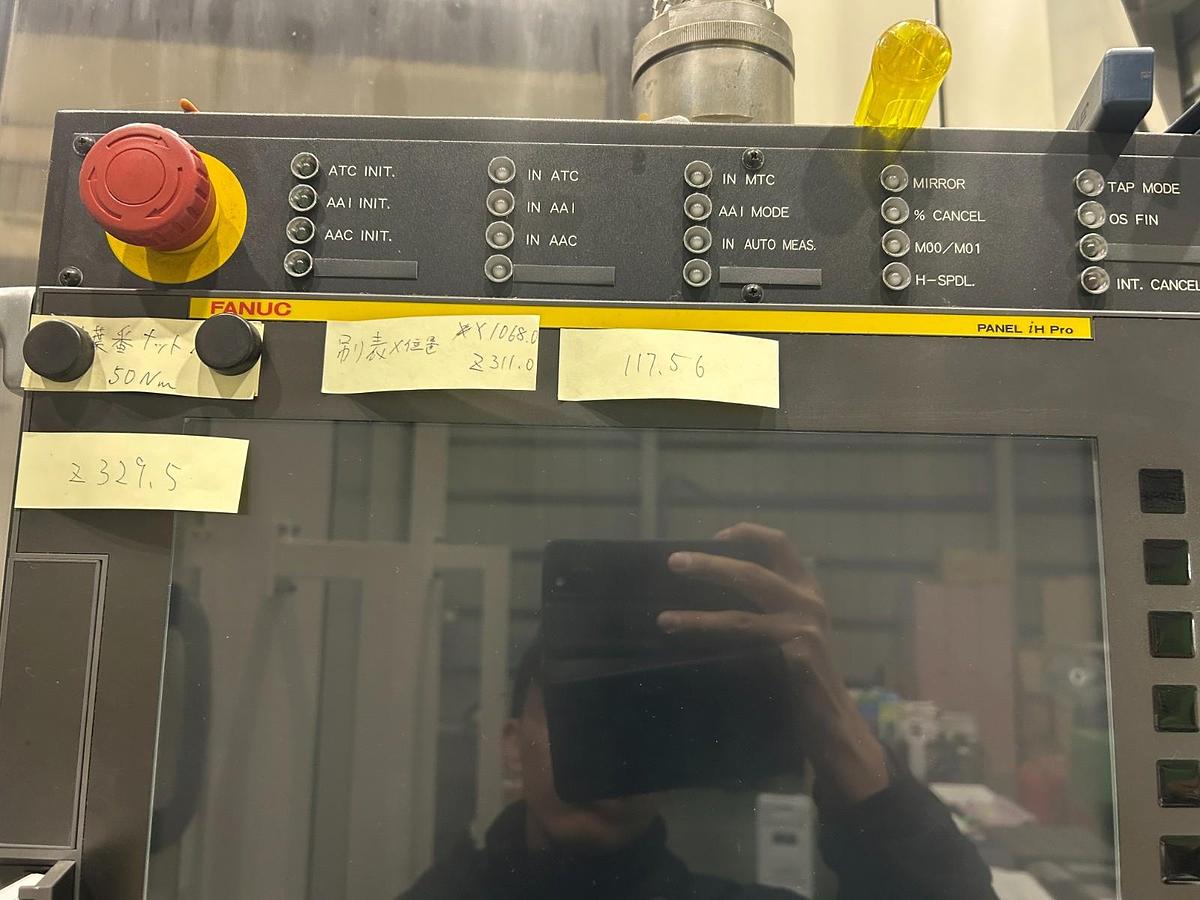

Fanuc 31i Model B5 CNC Control

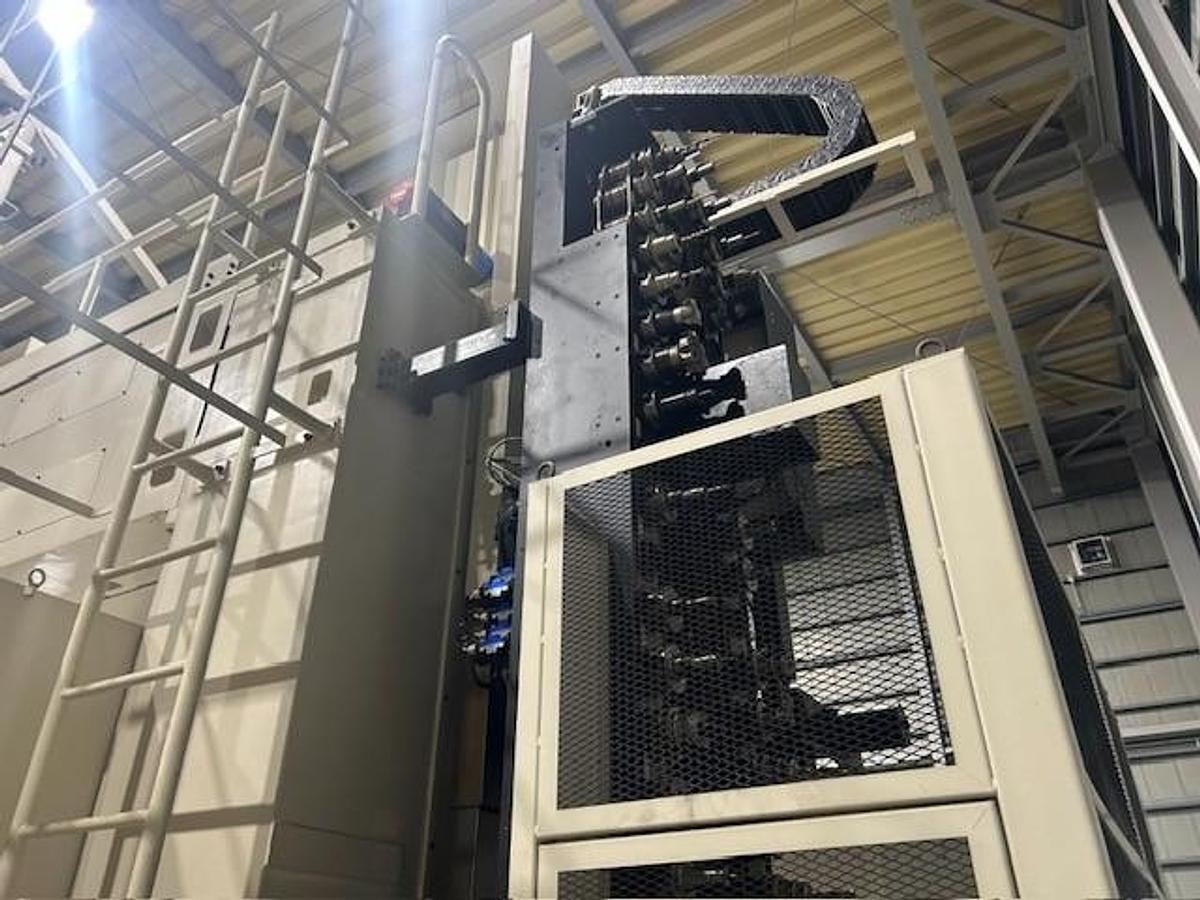

60 Position Automatic Tool Changer

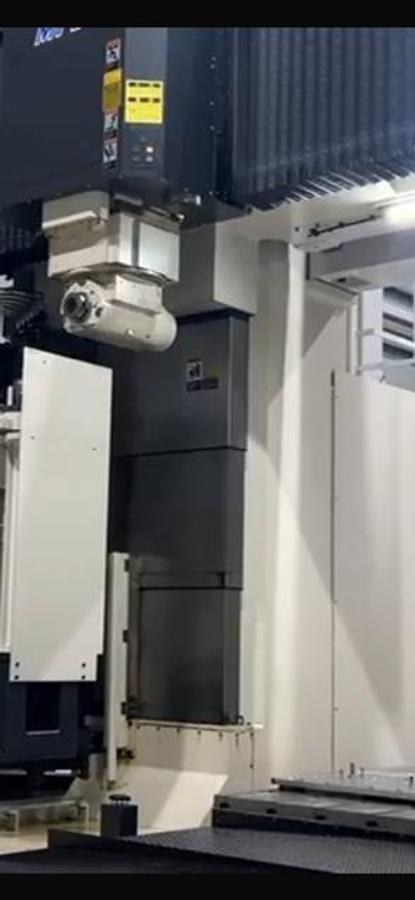

90° Angle Head

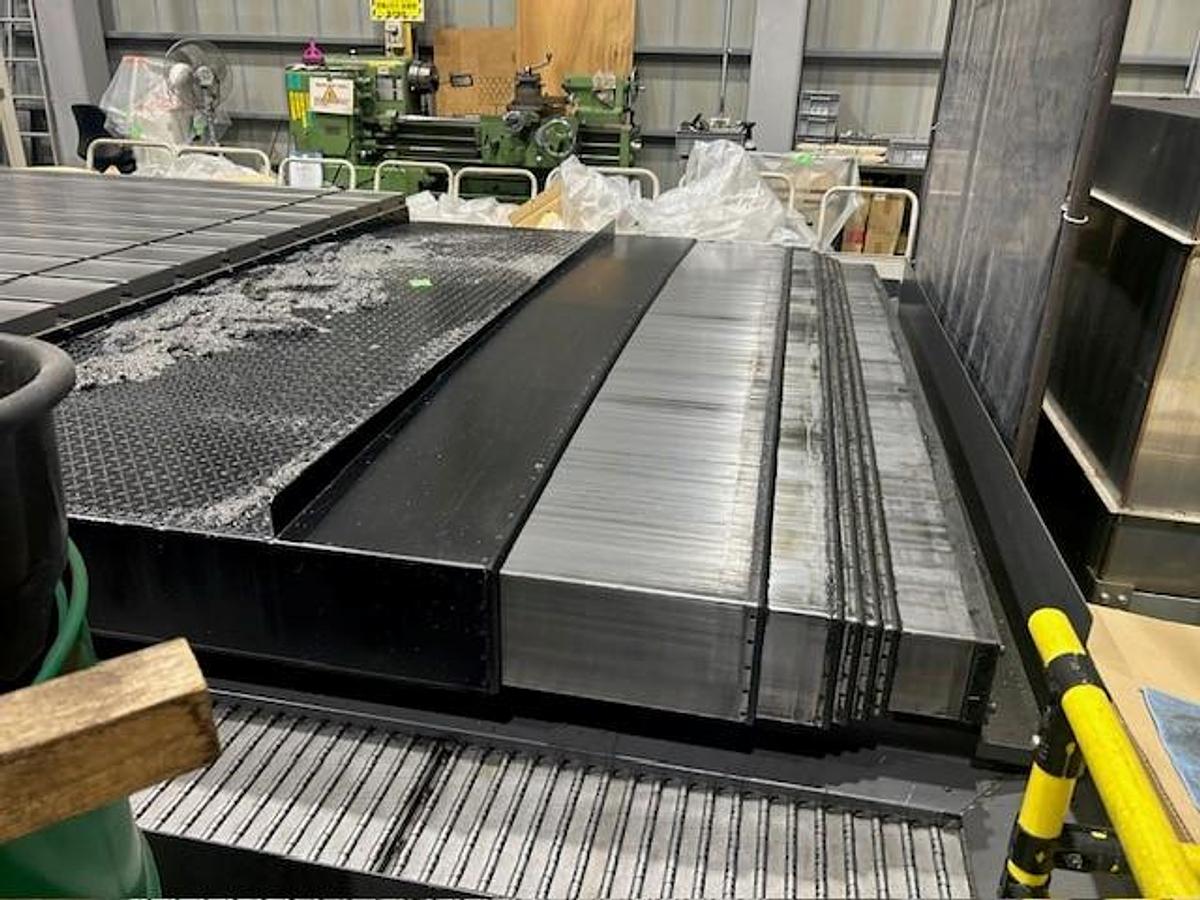

Chip Conveyor
Specifications
| Manufacturer | Toshiba Shibaura |
| Model | MPJ 3160 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 5654315 |
| Between columns | 3,100 mm |
| X axis travel | 6,200 mm |
| Y axis travel | 3,500 mm |
| Z axis travel | 800 mm |

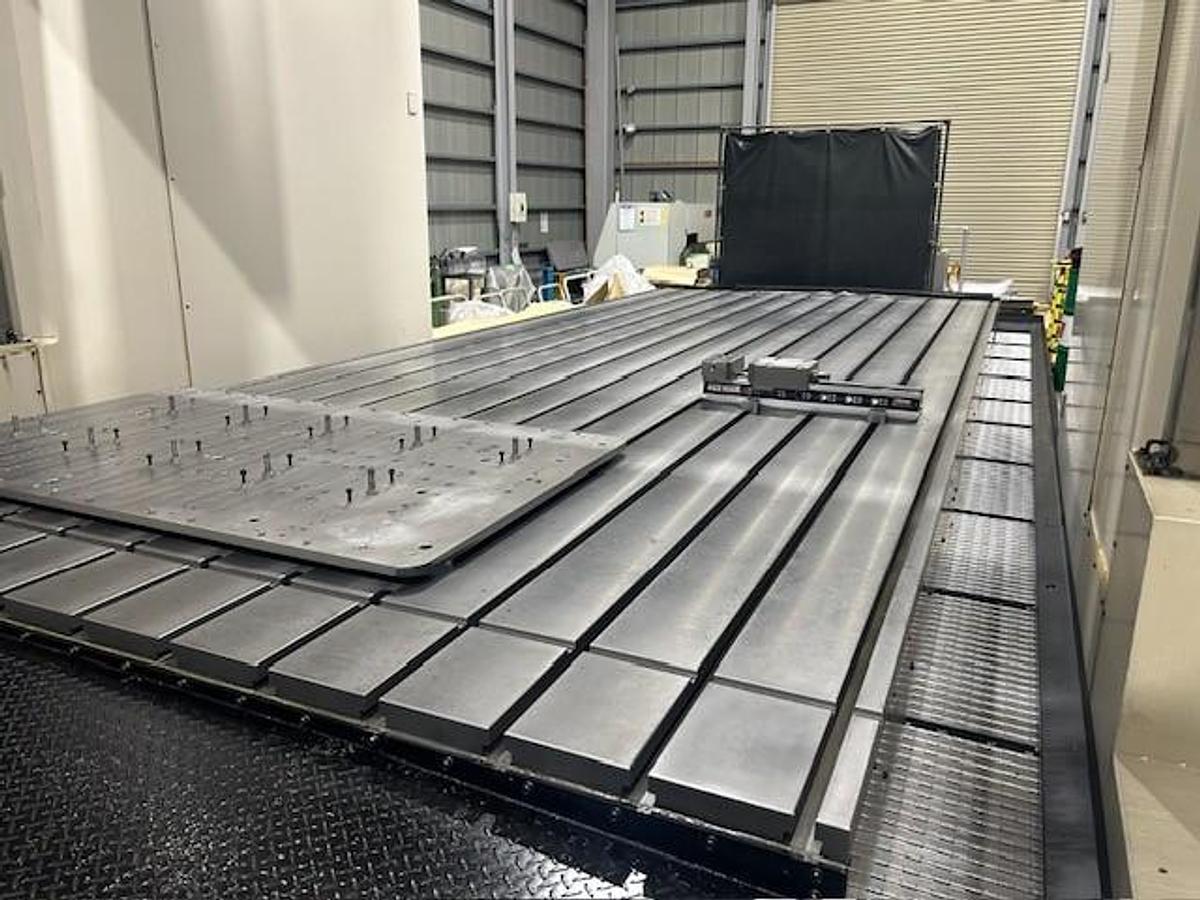

| Table size | 2,500 x 6,000 |
| Table capacity | 30,000 kg |
| W axis travel | 1,000 mm |
| Spindle taper | 7/24 No. 50 |
| Spindle speeds | 4000 rpm |
| Height from table to spindle | 1,850 mm |
| X、Y-Axis positioning accuracy | ±0.007mm / 1000mm |
| Z-Axis positioning accuracy | ±0.007mm / 800mm |
| X、Y、Z-Axis repeatablity | ±0.003mm |
| Machine weight | 56,600 kg |
