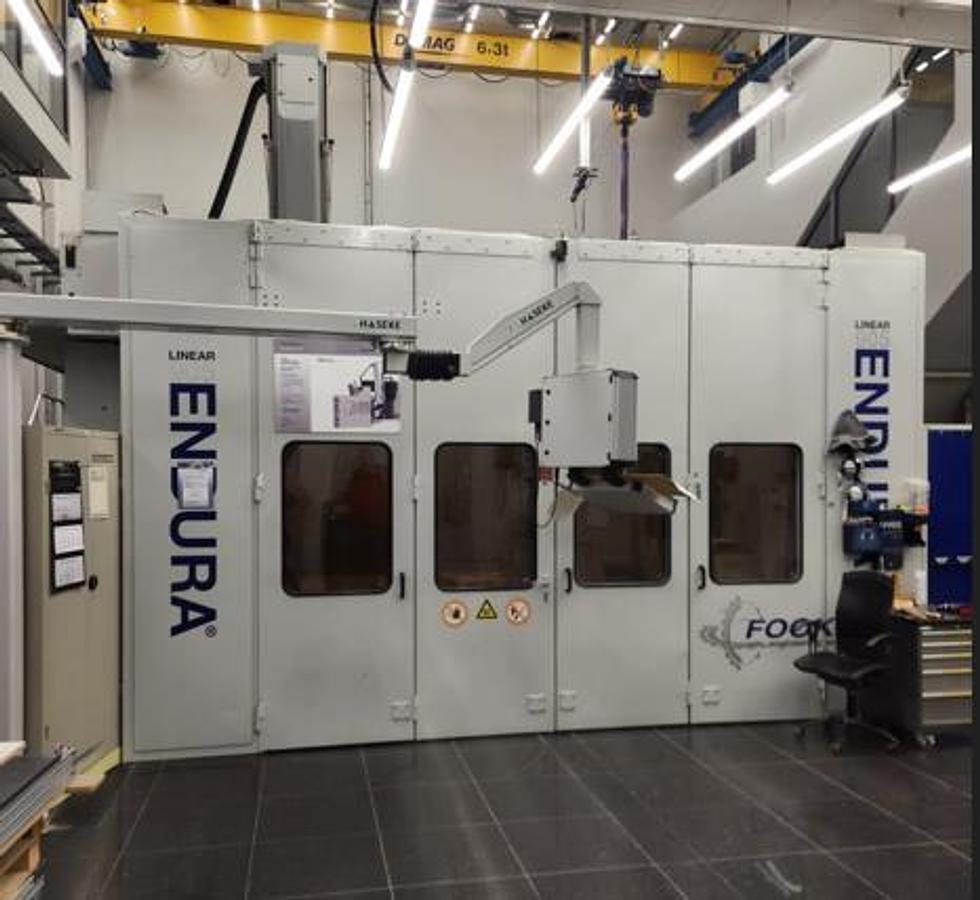

Fooke ENDURA 905 LINEAR CNC 5-Axis Gantry Type Milling Machine
Fooke ENDURA 905 LINEAR CNC 5-Axis Gantry Type Milling Machine
Description
Retrofitted in 2017

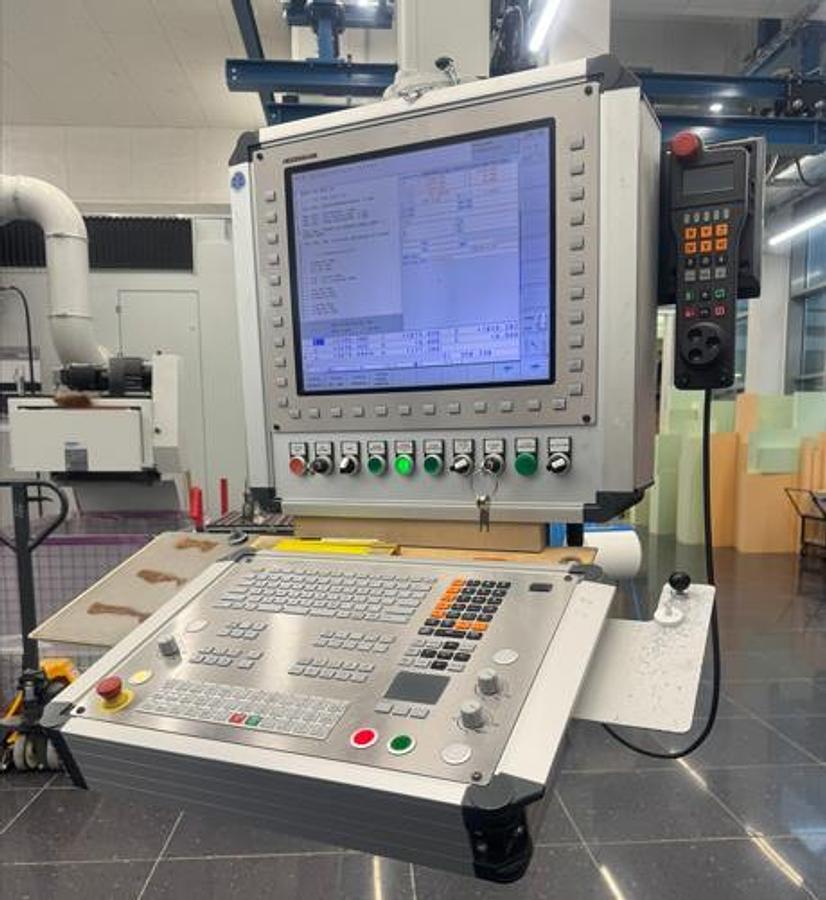

Heidenhain iTNC 530 CNC Control
5 simultaneous CNC Axes (Full 5-Axis Capability)
Drives - Linear Motors for High Dynamic Performance

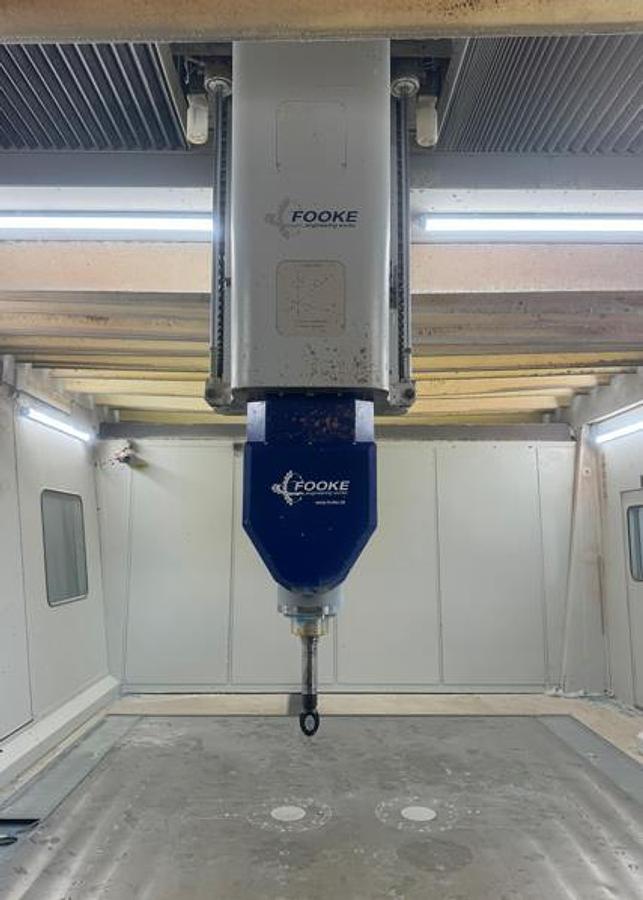

High Frequency Spindle - 32 kW - 24,000 rpm - HSK 63A Interface
Protection - IP54
Tool System:
Large capacity magazine
Max tool diameter 70 mm (140 mm with adjacent slots free)
Max tool length 400 mm
Max single tool weight 8 kg
Max cumulative load 200 kg
Cooling System Included:

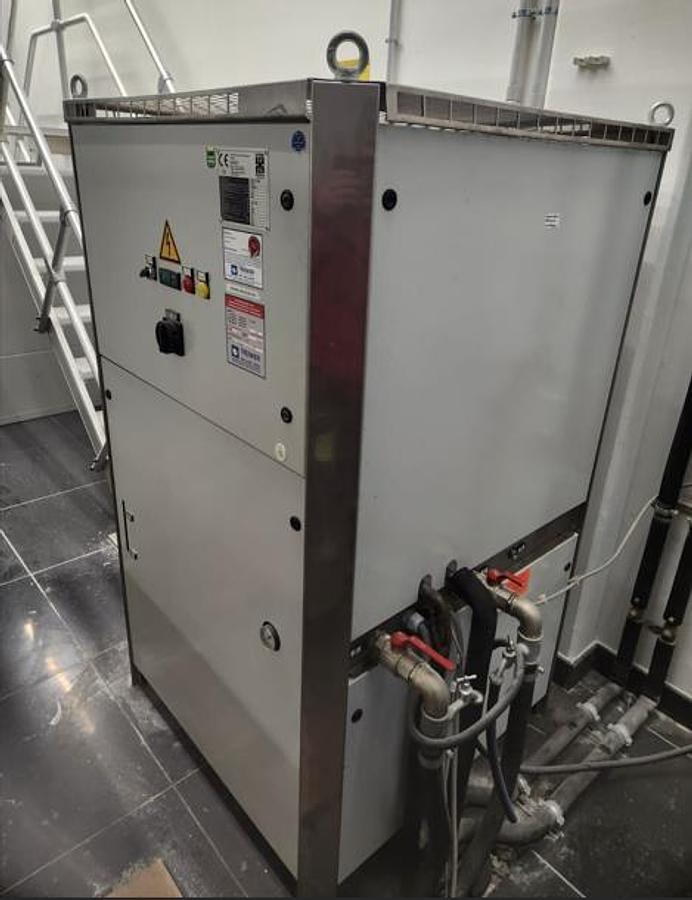

Industrial chiller by HYFRA SWK320-1-S-Spl (2007)
Cooling capacity 35 kW, R407C refrigerant, equipped for machine
Thermal stability and spindle cooling
Features & Benefits:
Large format gantry design —ideal for big parts
High accuracy 5-axis machining
Linear-motor dynamics for superior surface quality
Robust industrial cooling package included
German engineered, industrial production quality
Specifications
| Manufacturer | Fooke |
| Model | ENDURA 905 LINEAR |
| Year | 2008 |
| Condition | Used |
| Stock Number | 5654313 |
| Spindle speeds | 24,000 rpm |
| Spindle power | 32 kW |
| X axis travel | 7,500 mm |
| Y axis travel | 3,500 mm |
| Z axis travel | 2,300 mm |
| Spindle taper | HSK63 A |
| Electrics | 400/230 V - 50 Hz - 130 kW Installed |
| Machine weight | 120,000 kg |
