Mitsubishi MVR 30EX CNC Planer Type Milling Machine

Mitsubishi MVR 30EX CNC Planer Type Milling Machine

Description

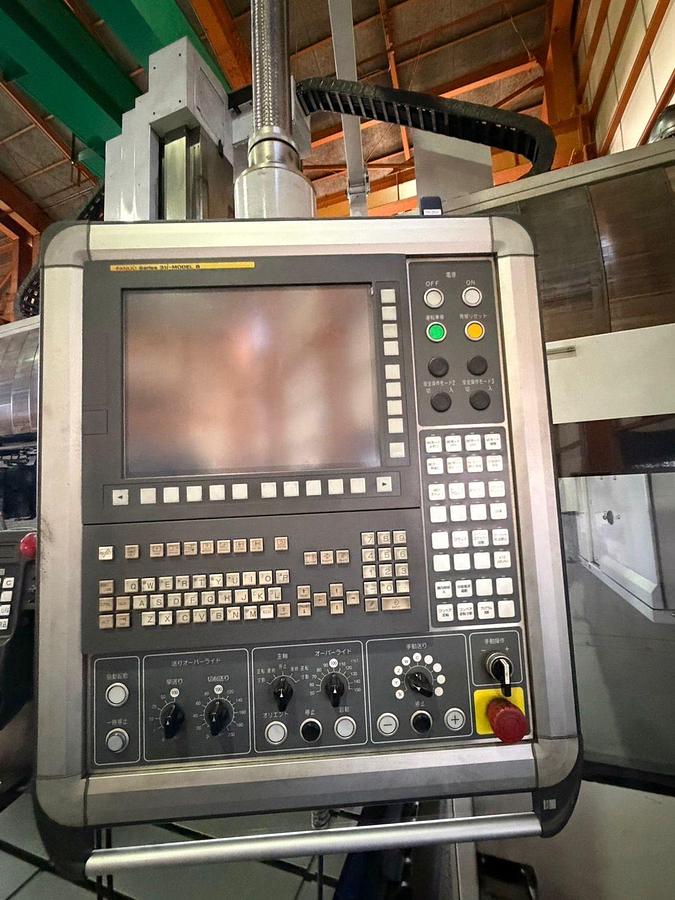

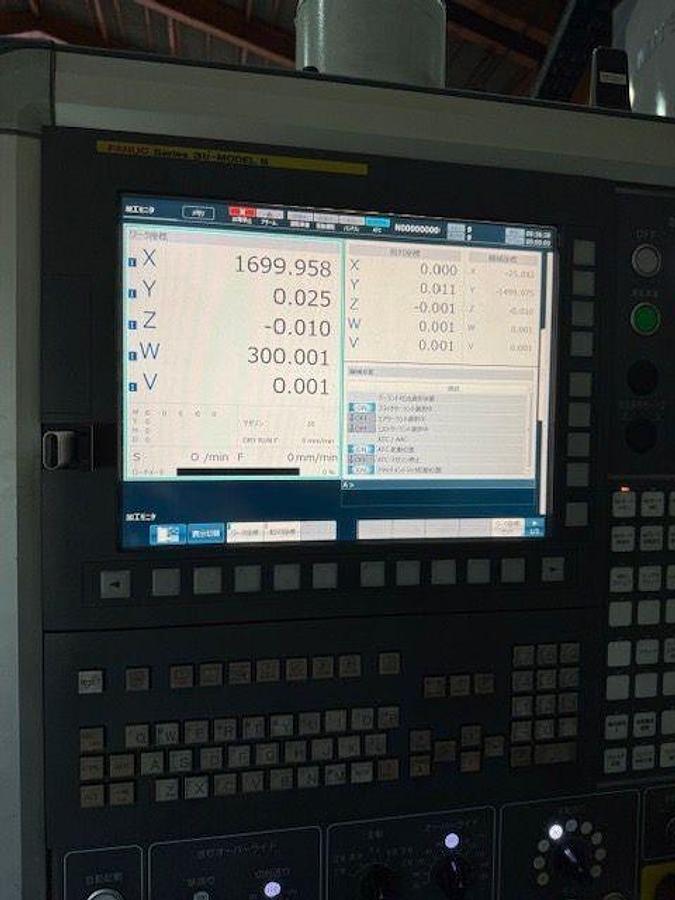

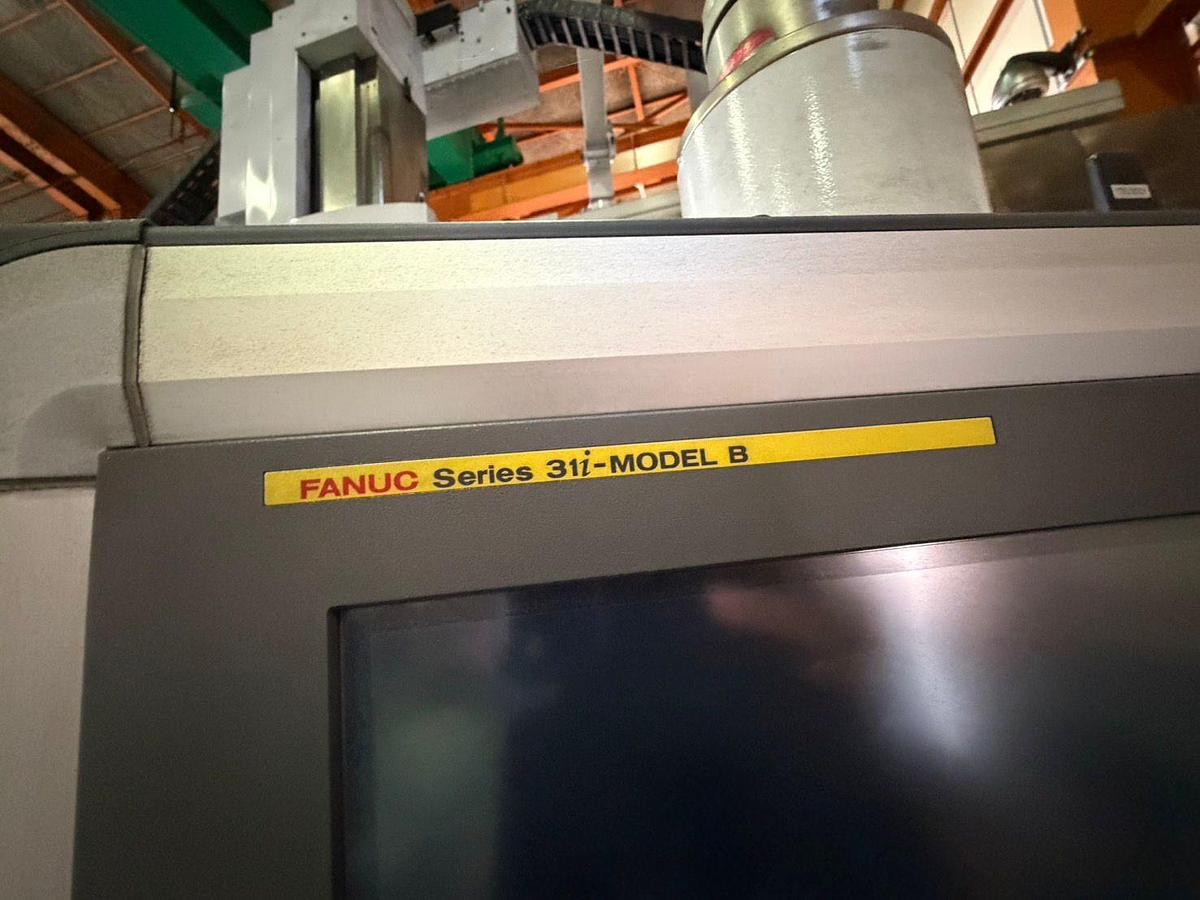

Fanuc 31i-B CNC Control

50 Position Automatic Tool Changer

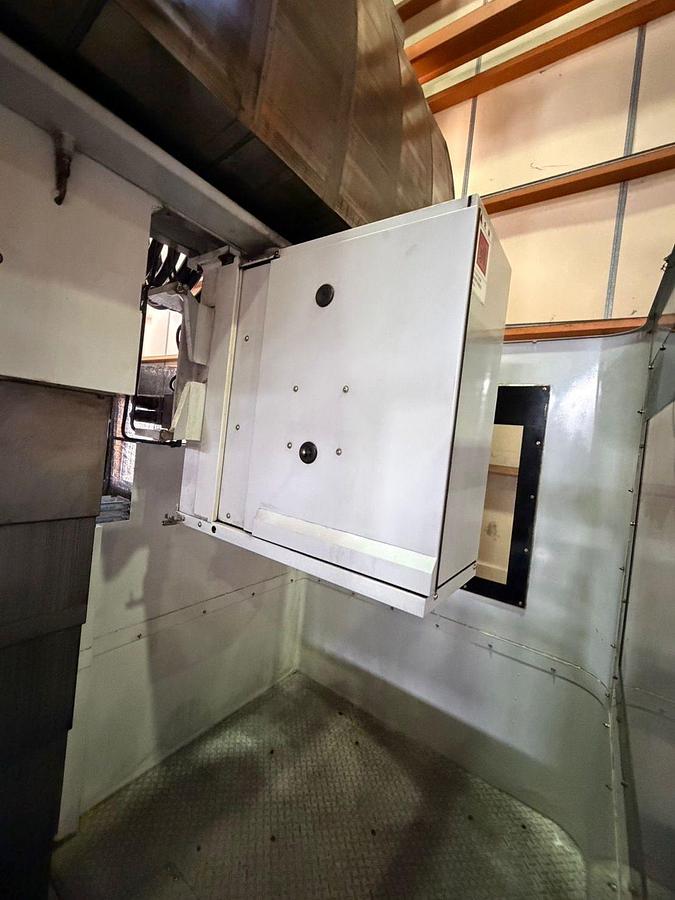

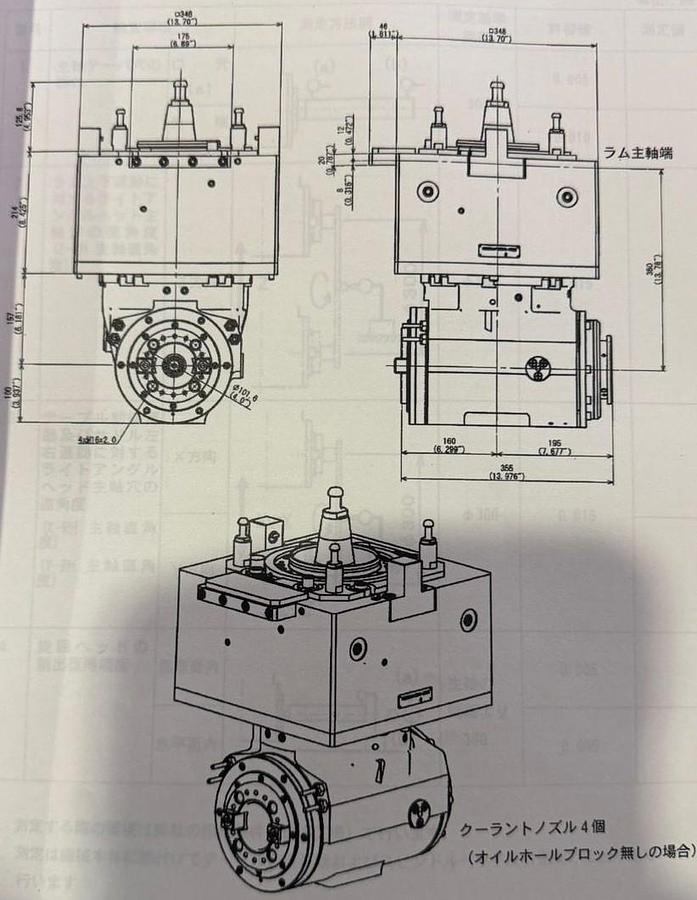

90° Angle Head

Specifications

ManufacturerMitsubishi
ModelMVR 30EX
Year2017
ConditionUsed
Stock Number5654308
Between columns2,550 mm
Spindle speeds20 - 6,000 rpm
X axis travel3,000 mm
Y axis travel3,000 mm
Z axis travel800 mm

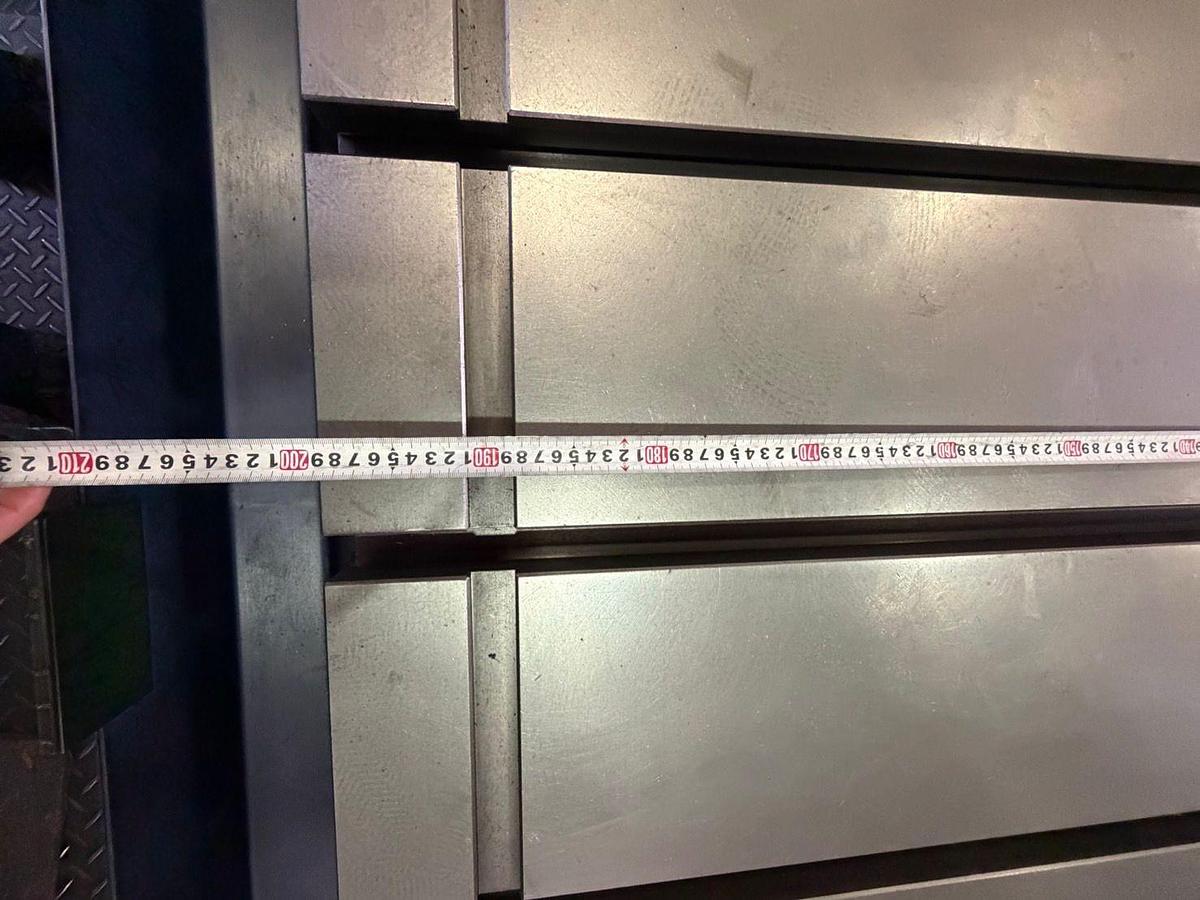

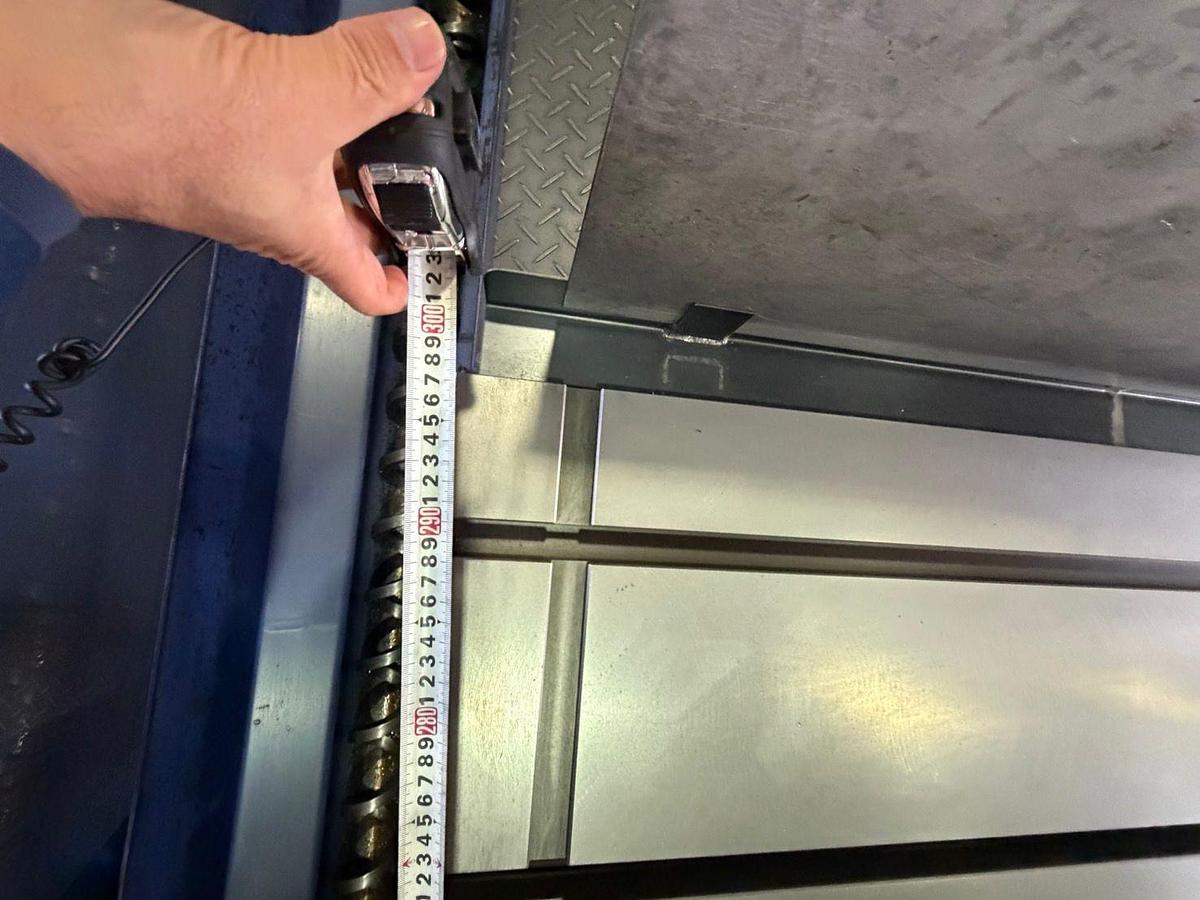

Table size3,000 x 2,000 mm
Table capacity20,000 kg
W axis travel1,100 mm
Z + w axis (ram + crossrail)1,900 mm
