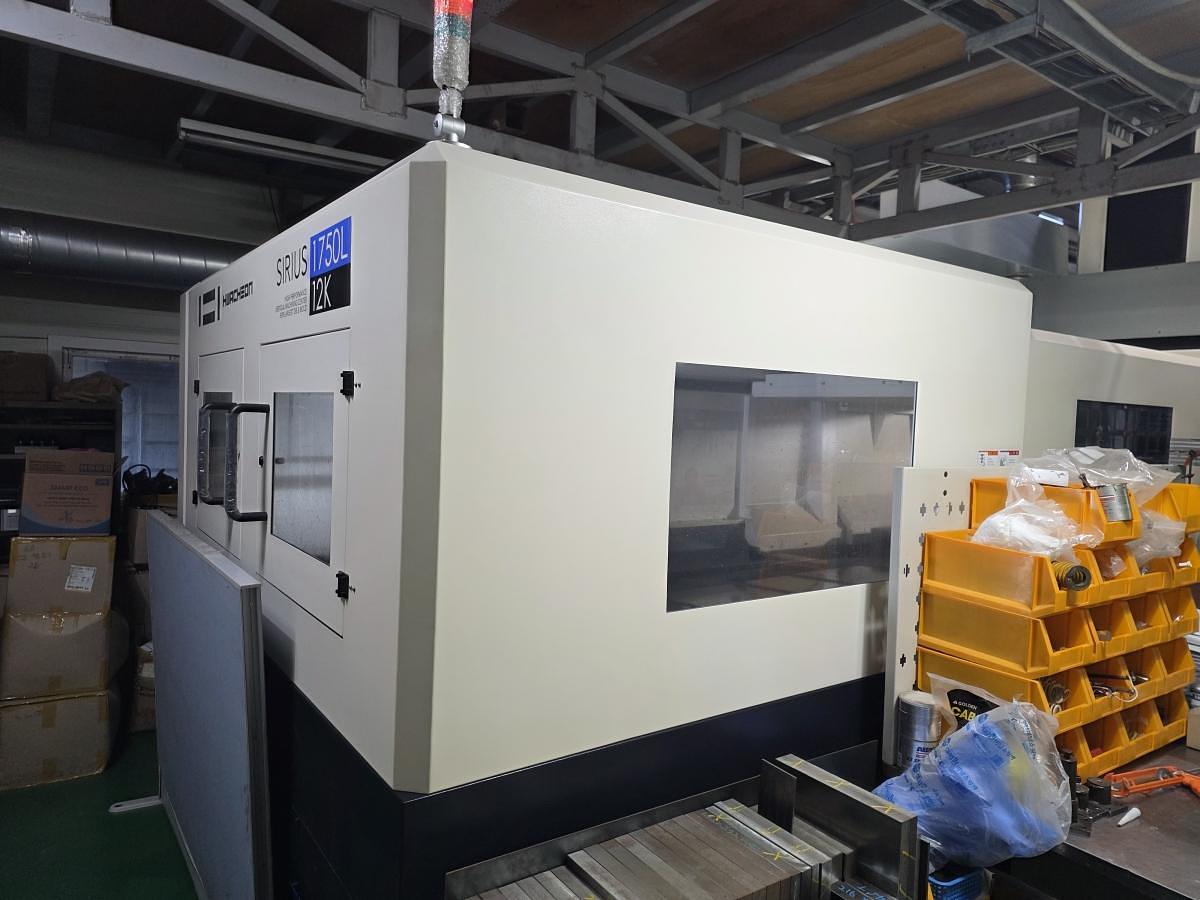

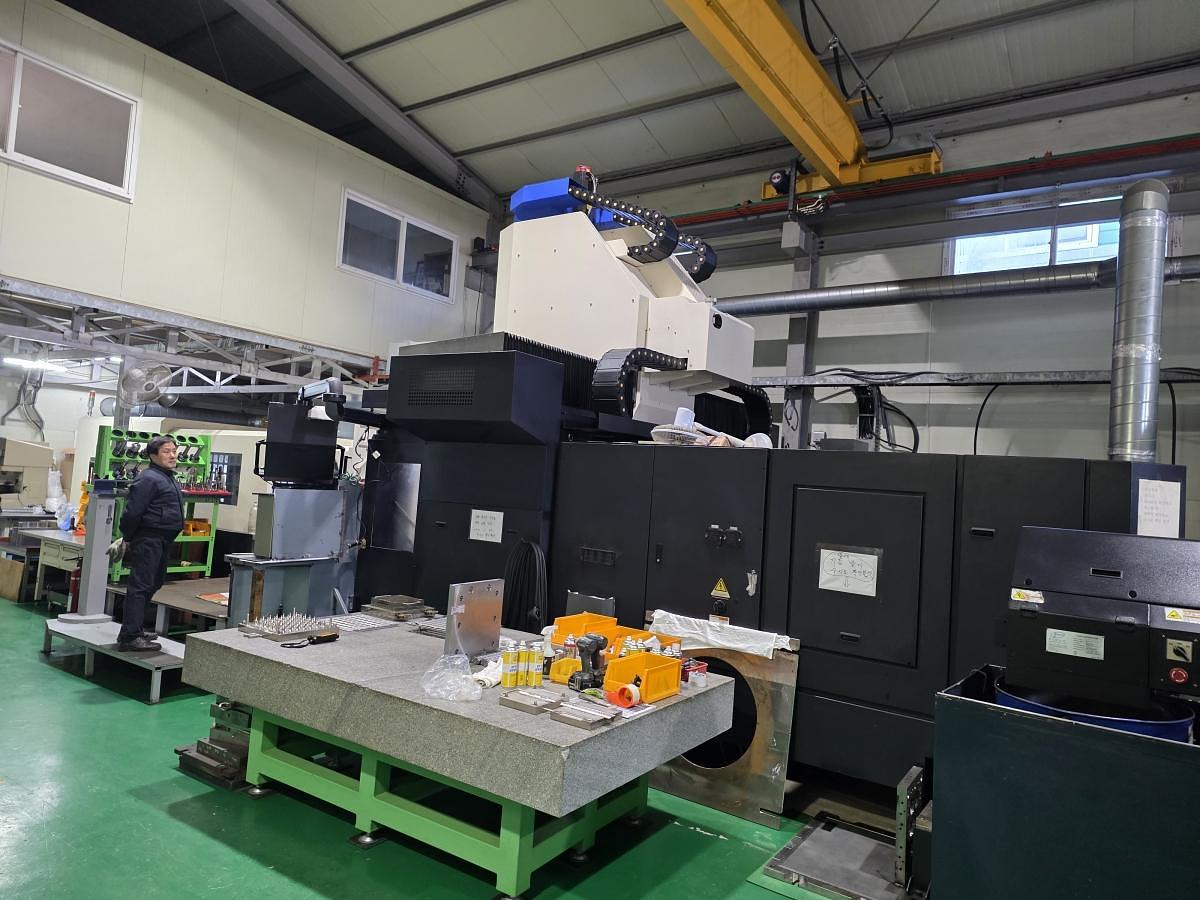

Hwacheon SIRIUS 1750L CNC Bright Type-High Speed Vertical Machining Center
Hwacheon SIRIUS 1750L CNC Bright Type-High Speed Vertical Machining Center
Description

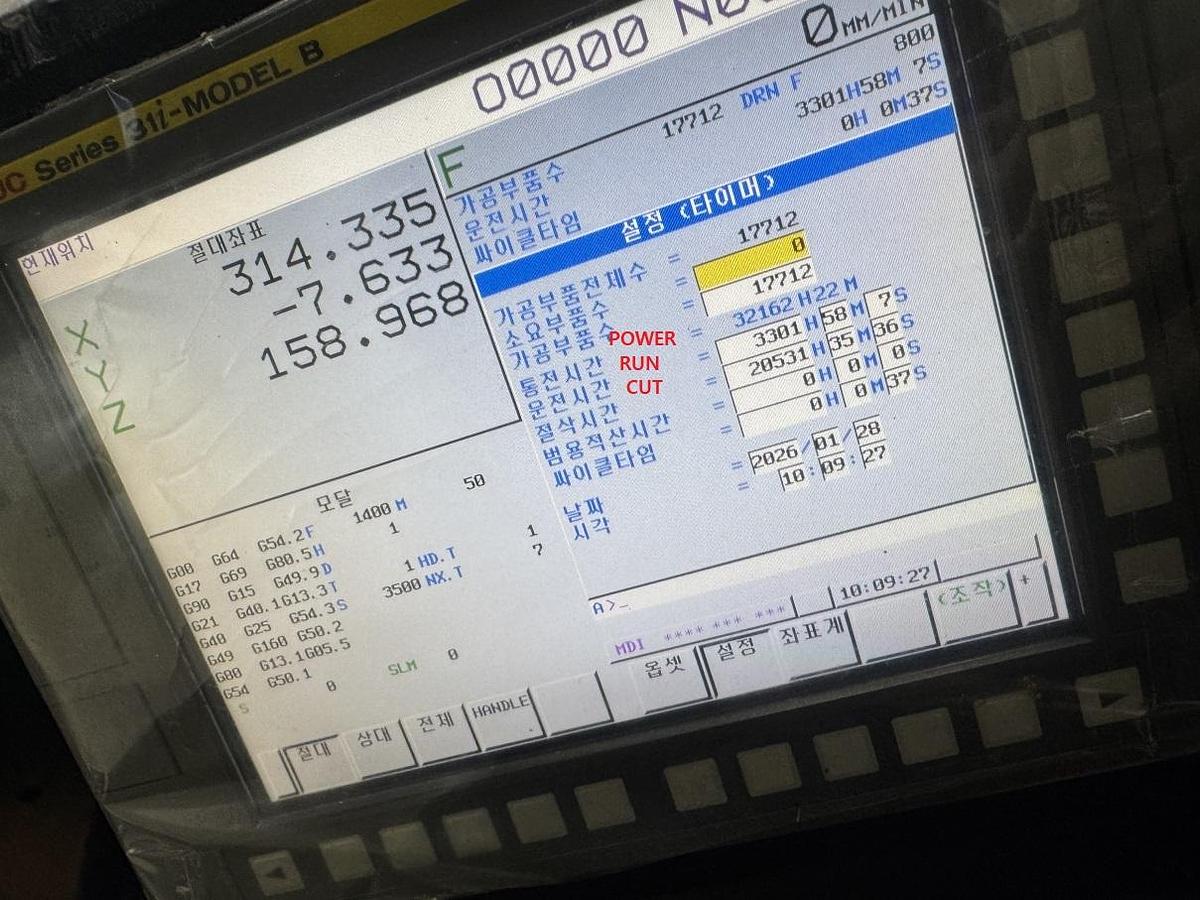

Fanuc 31iB CNC Control
40 Tool Automatic Tool Changer
X,Y & Z axis scales
Tool setter
Chip conveyor

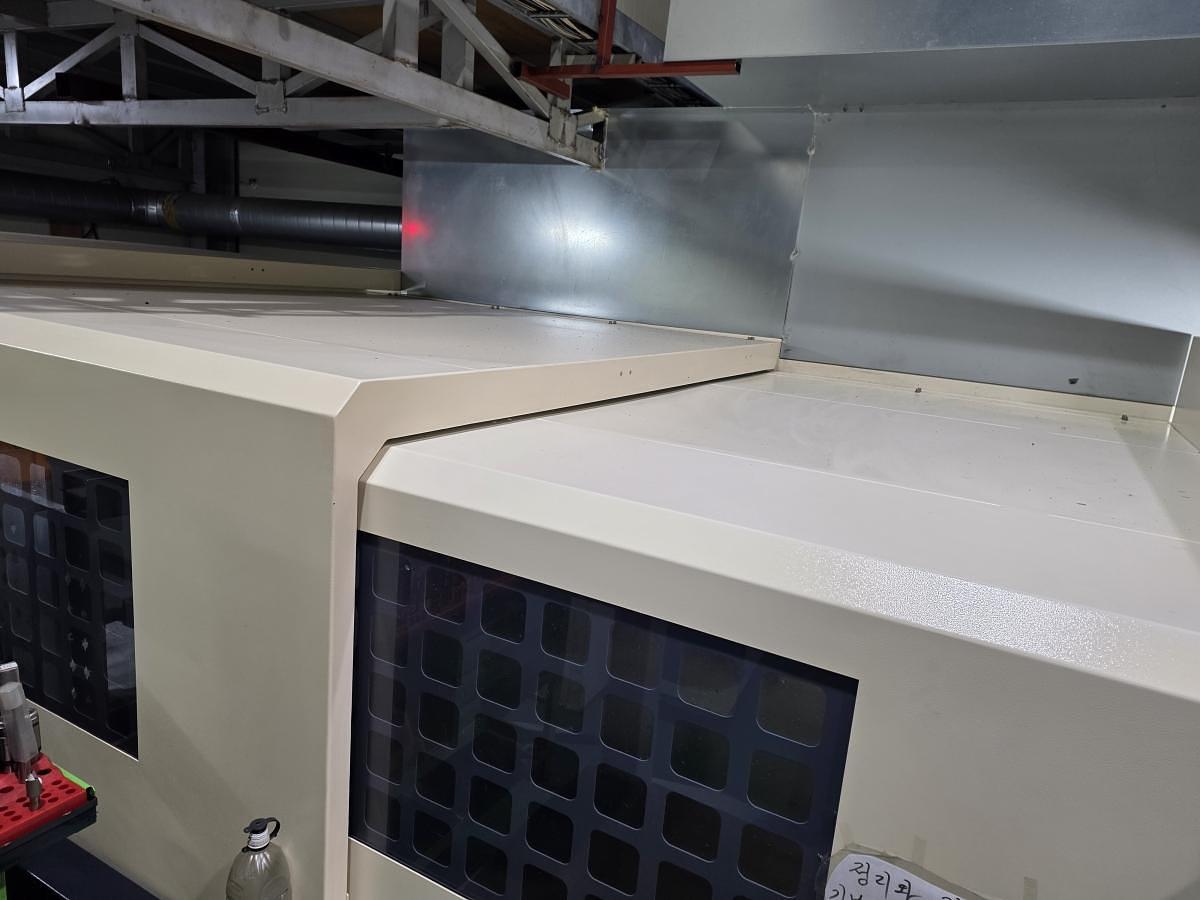

Full enclosure

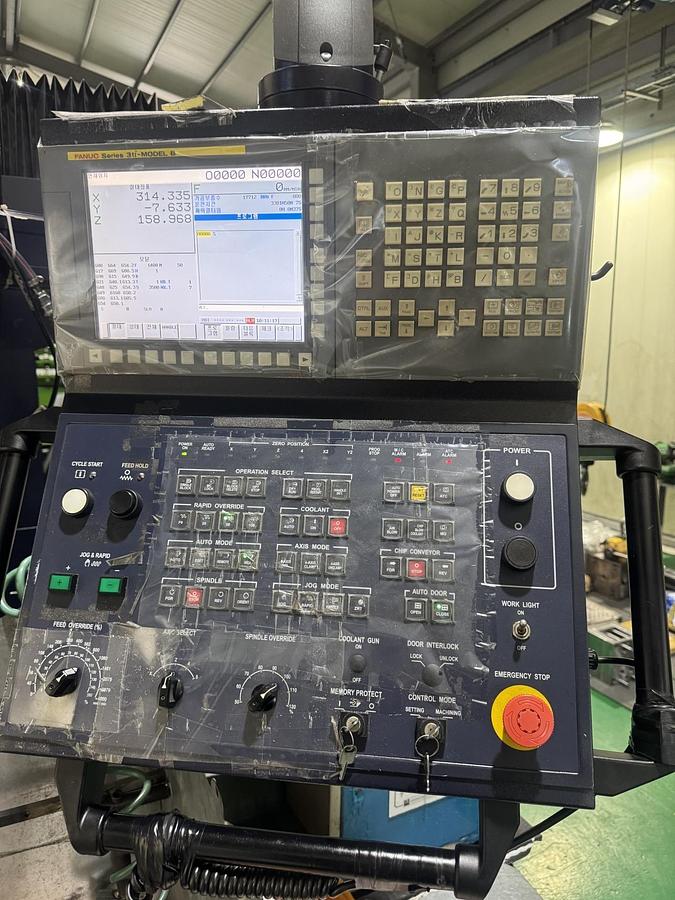

Fanuc control
Magnet on table is not included

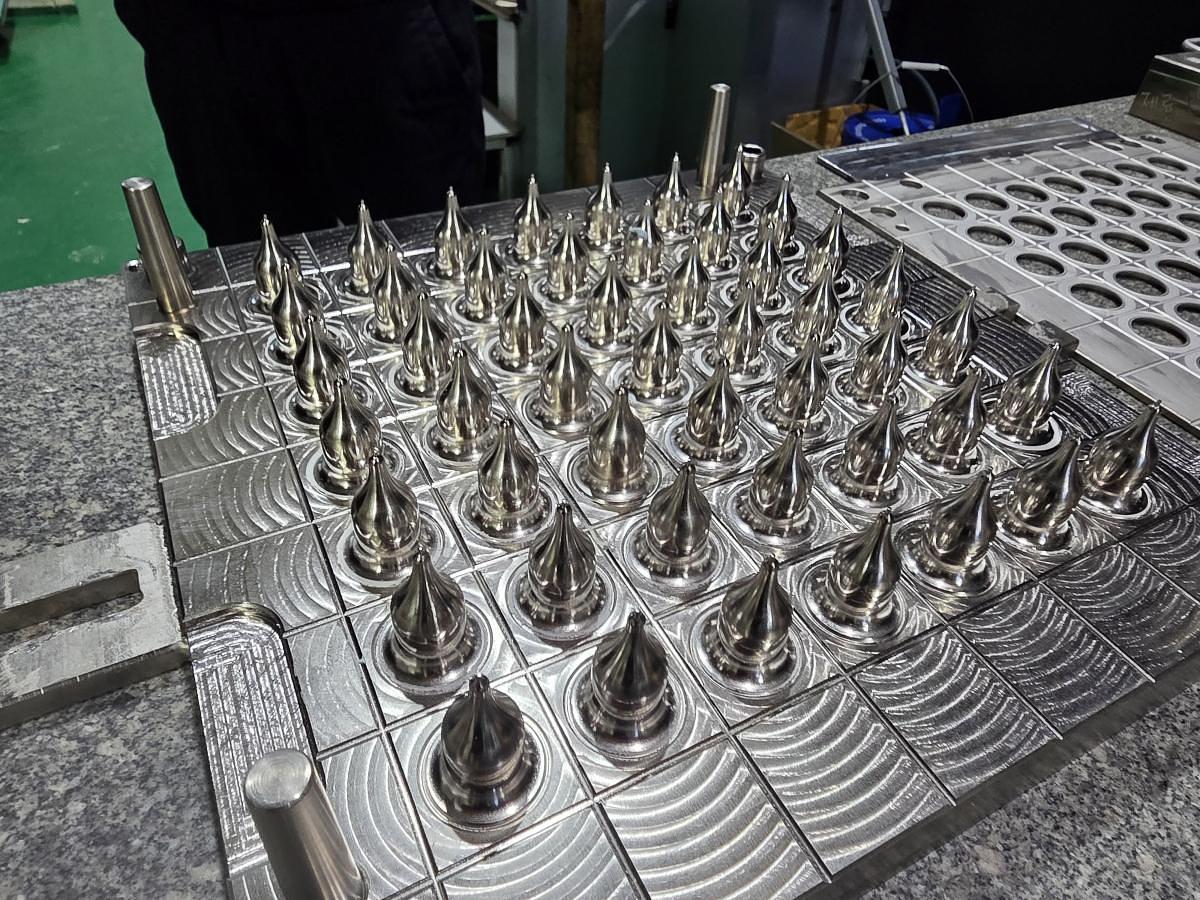

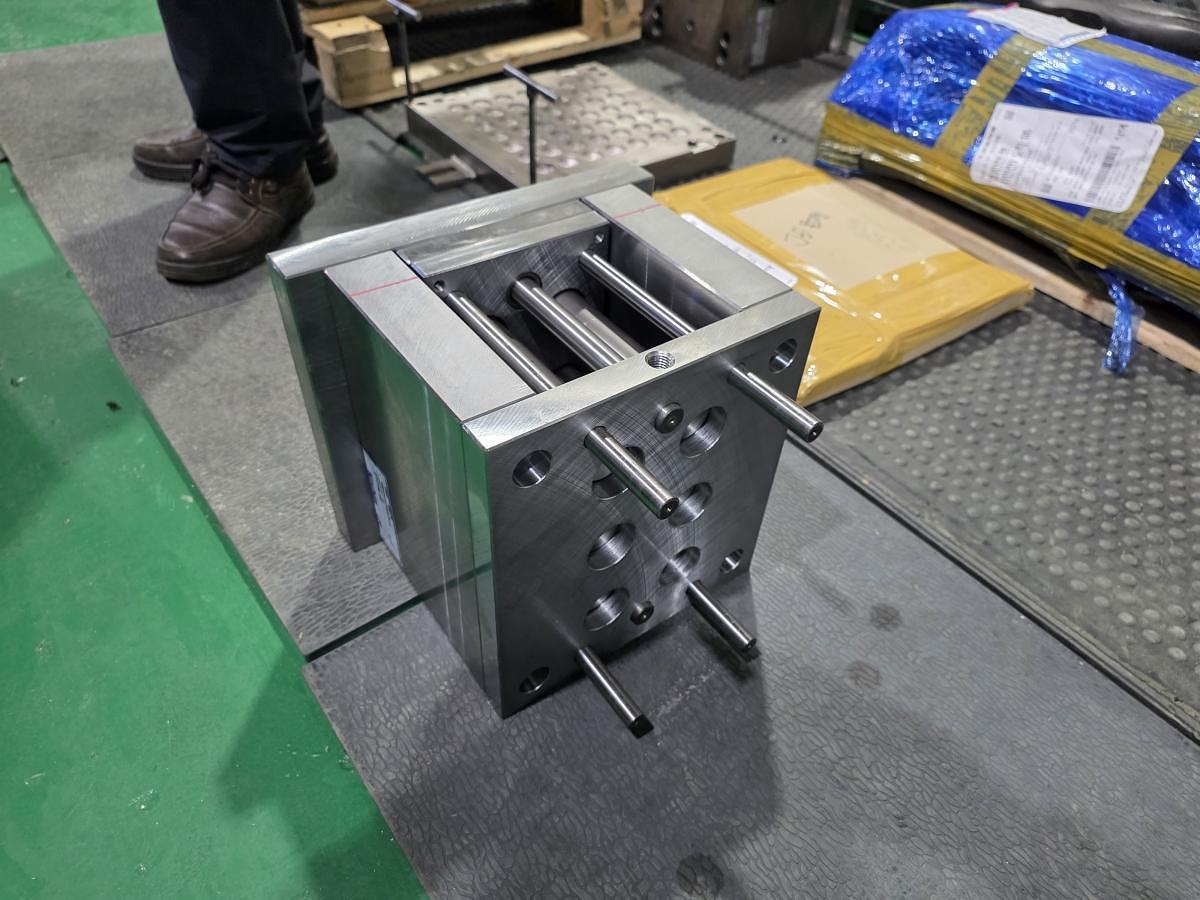

Hwacheon's extra-size bridge type vertical machining centers guarantee to enhance the quality of your large mold applications, such as large display frame, automotive and aerospace parts.
The SIRIUS series of large size vertical machining centers use powerful built-in motor spindles and high-speed, high precision milling heads complemented by Hwacheon's proprietary Oil-Jet cooling system to guarantee consistent strong roughing
performance and provide high quality product result hours after hours of high speed machining. Each SIRIUS vertical center is
designed using 3D simulation FEM analysis to achieve structural rigidity which can translate to quality product results; while the
Hwacheon designed machining software components enhance safety and work efficiency in your factory. The machines are
configurable with many different options so that they can integrate perfectly to your work environment and application
Specifications
| Manufacturer | Hwacheon |
| Model | SIRIUS 1750L |
| Year | 2017 |
| Condition | Used |
| Stock Number | 5654305 |
| Between columns | 2,000 mm |
| Spindle speeds | 12,000 rpm |
| Table to spindle gauge plane | 200 - 1,000 mm |
| X axis travel | 4,000 mm |
| Y axis travel | 1,750 mm |
| Z axis travel | 800 mm |

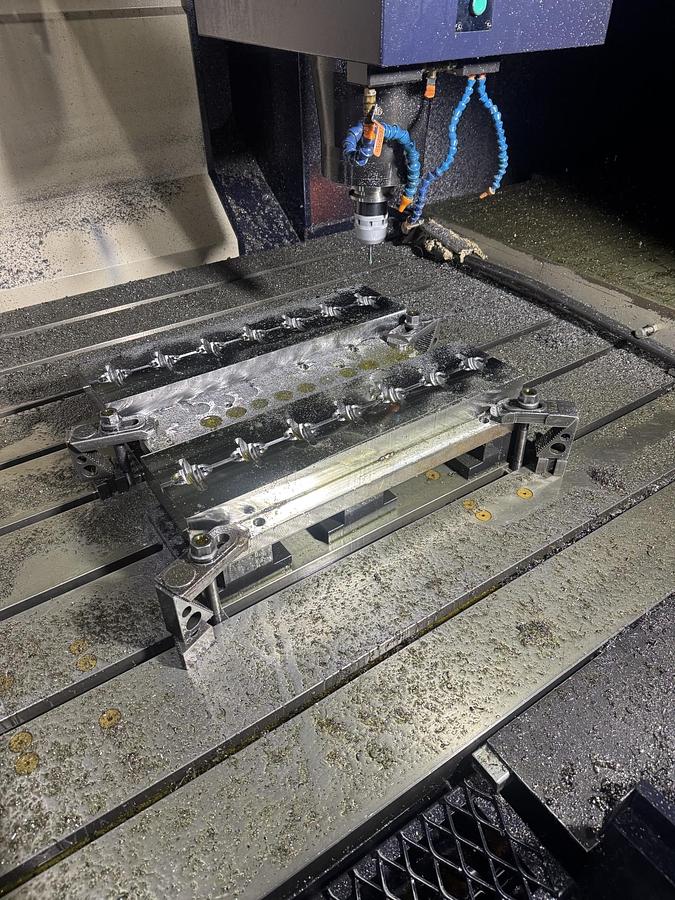

| Table dimensions | 1,750 x 4,200 mm |
| Table capacity | 15,000 kg |
| Spindle taper | BT 50 |
| Feedrate X/Y/Z | 1 - 8,000 mm/min |
| Machine weight | 43,000 kg |
| Rated voltage | 3 / 220 V |
| Frequency | 60 Hz |
| Electric Power Supply | 75 kVA |
