Droop + Rein FPV 2500 SL50-15N CNC Planer Type Double Column Milling Machine
Droop + Rein FPV 2500 SL50-15N CNC Planer Type Double Column Milling Machine
or
Call 770-509-0744
Description

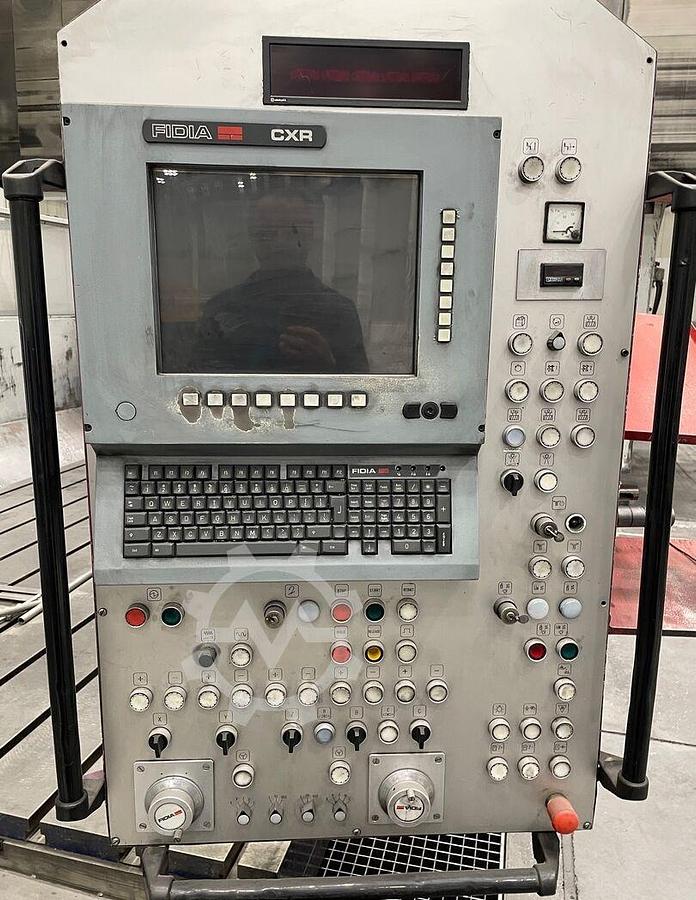

FIDIA System C20 CNC Control, new in 2002

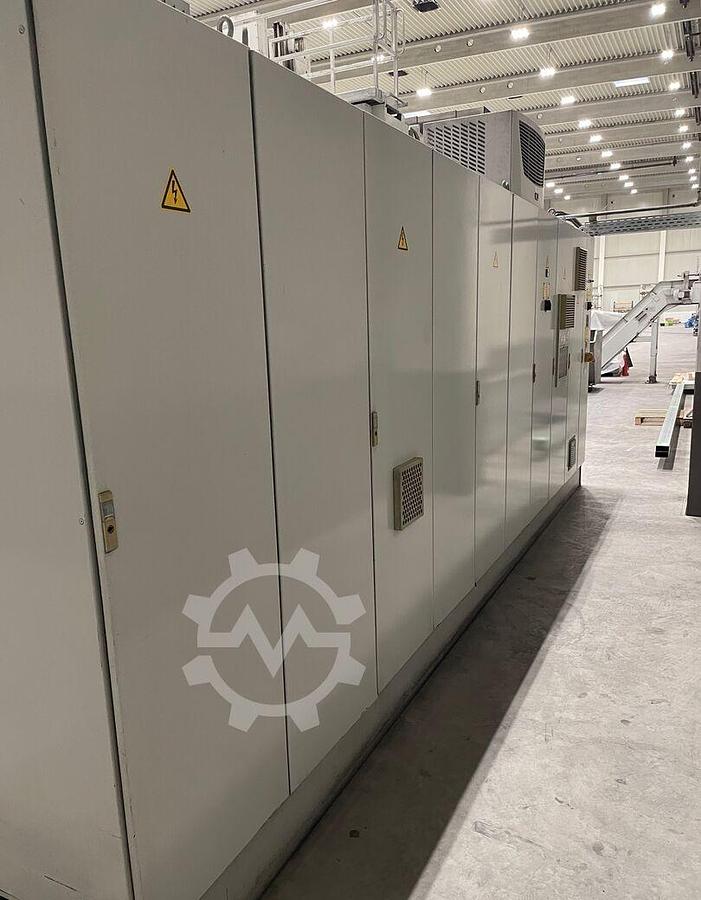

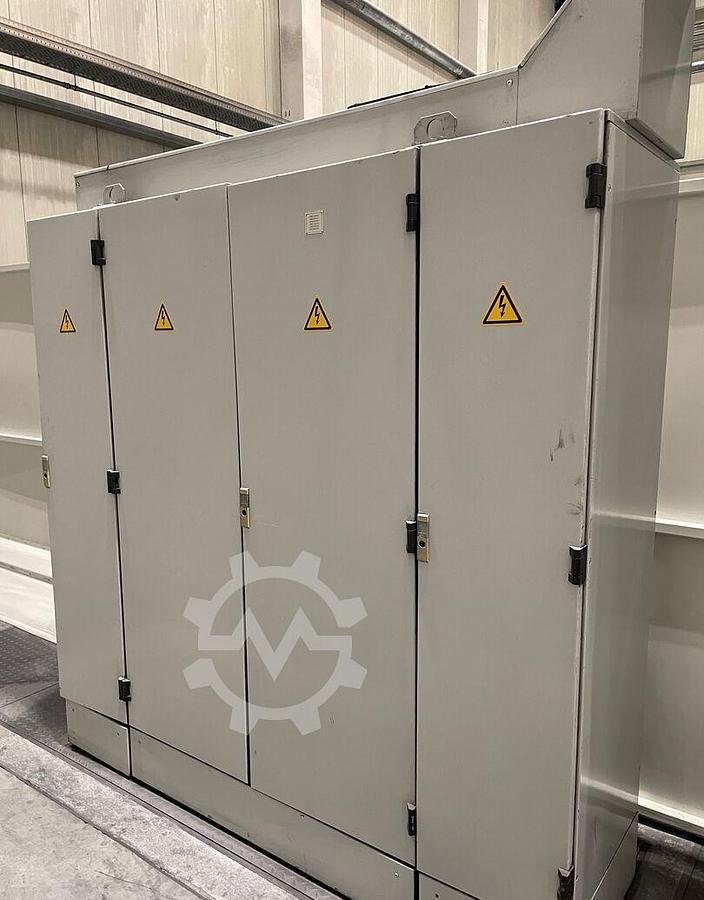

New Electrics in 2018

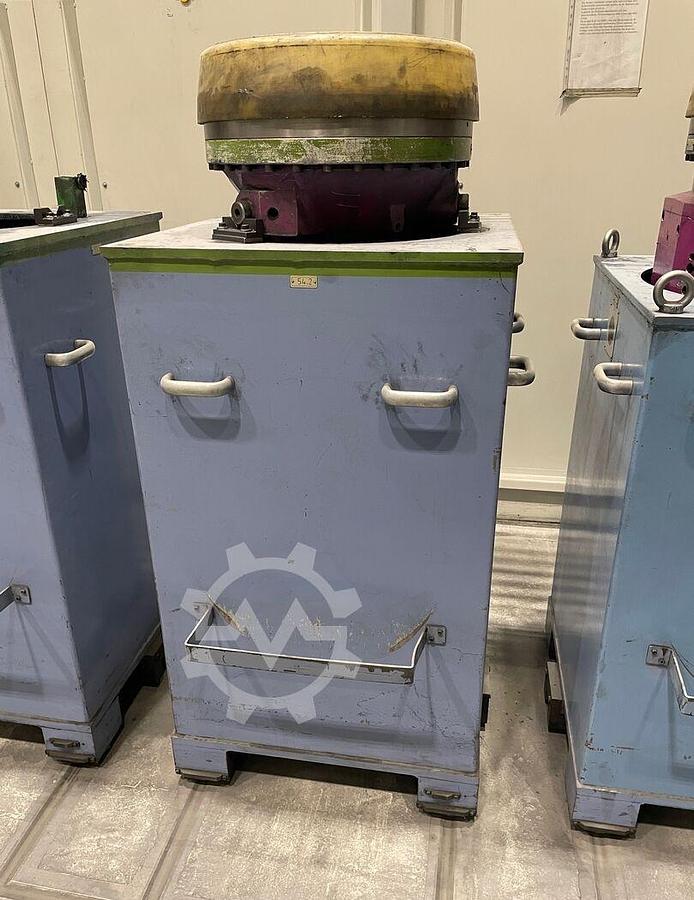

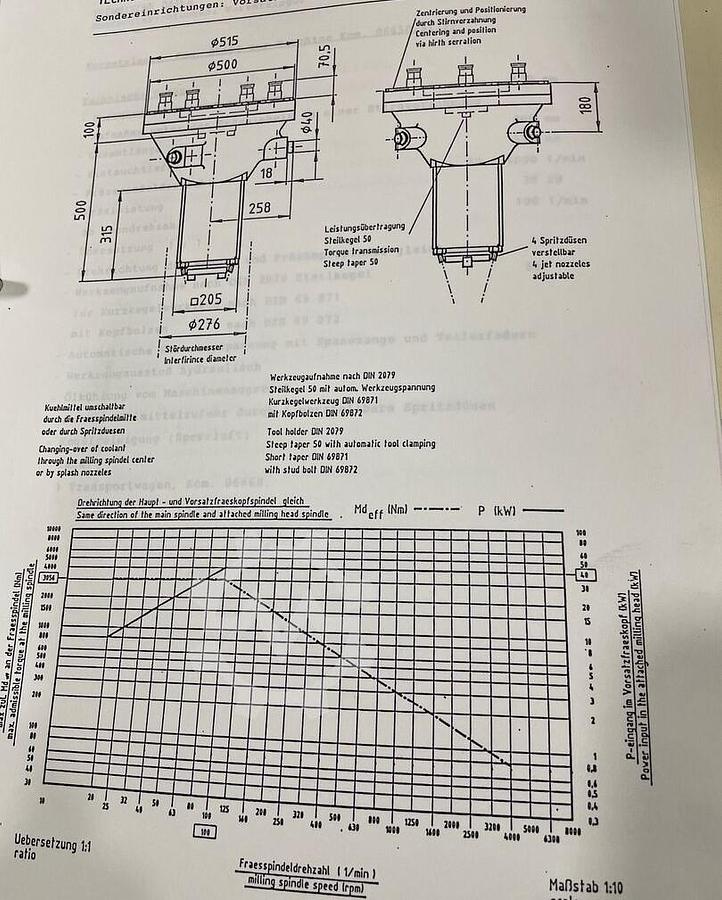

CNC biaxial continuous milling head

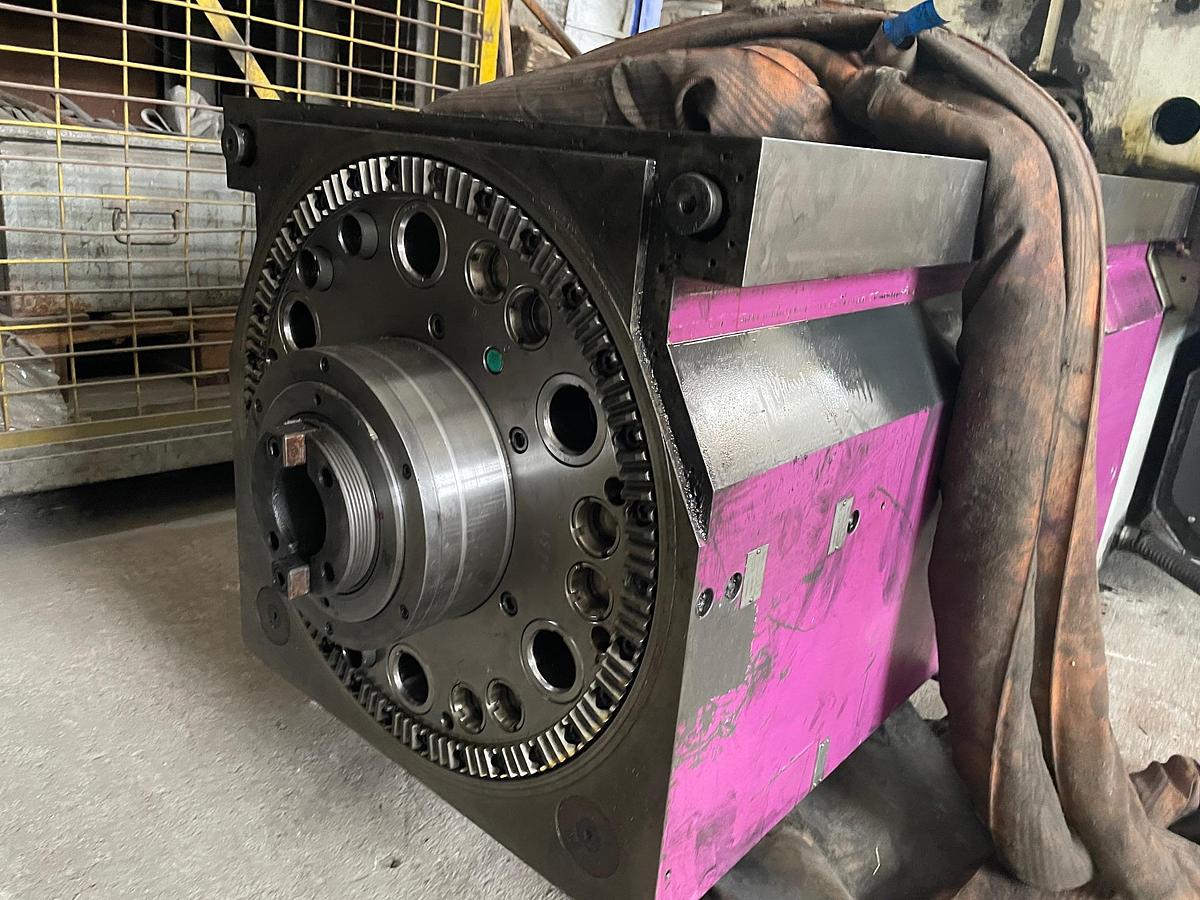

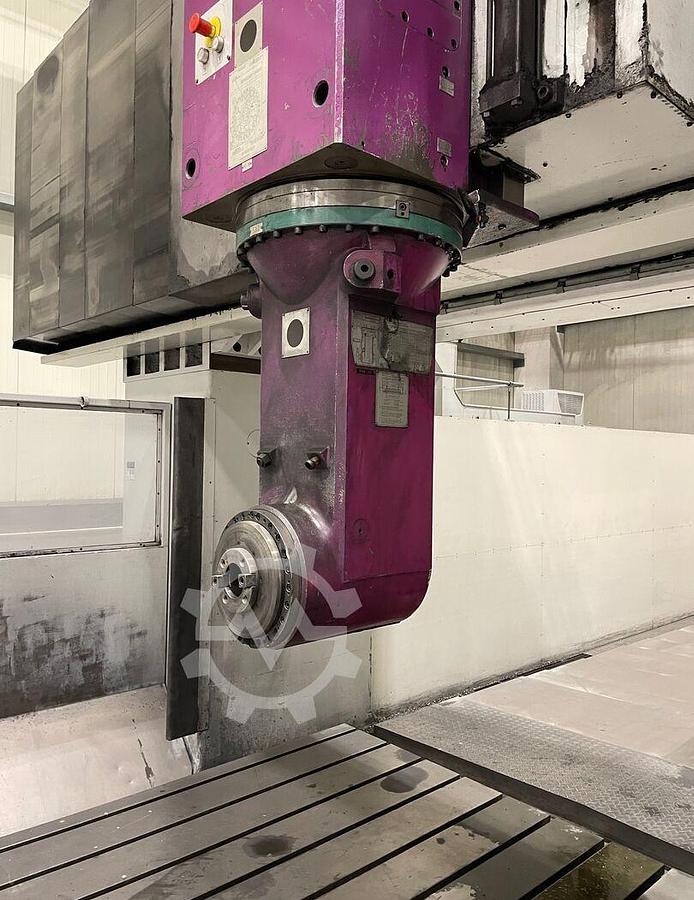

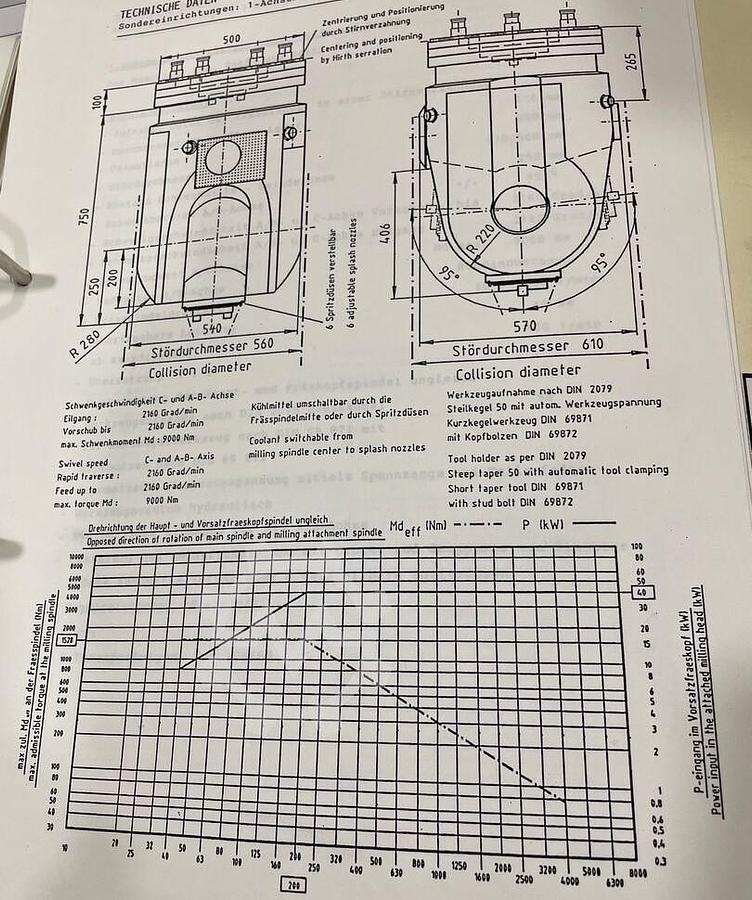

Universal Milling Head with Auto Indexing

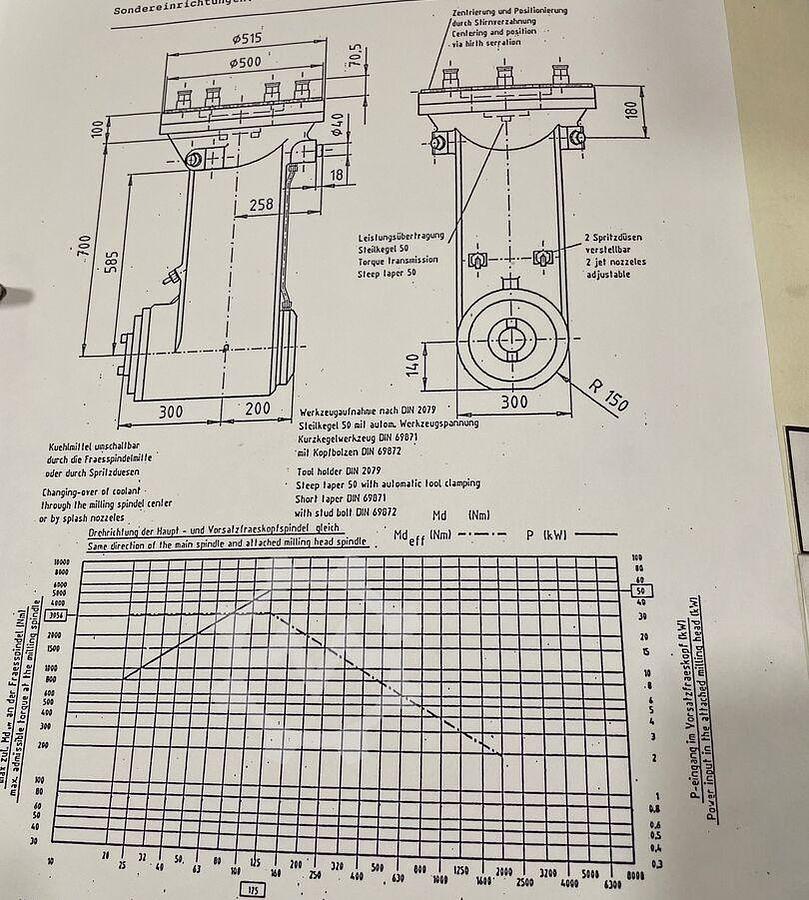

Right Angle Head with Auto Indexing
Straight Milling Head

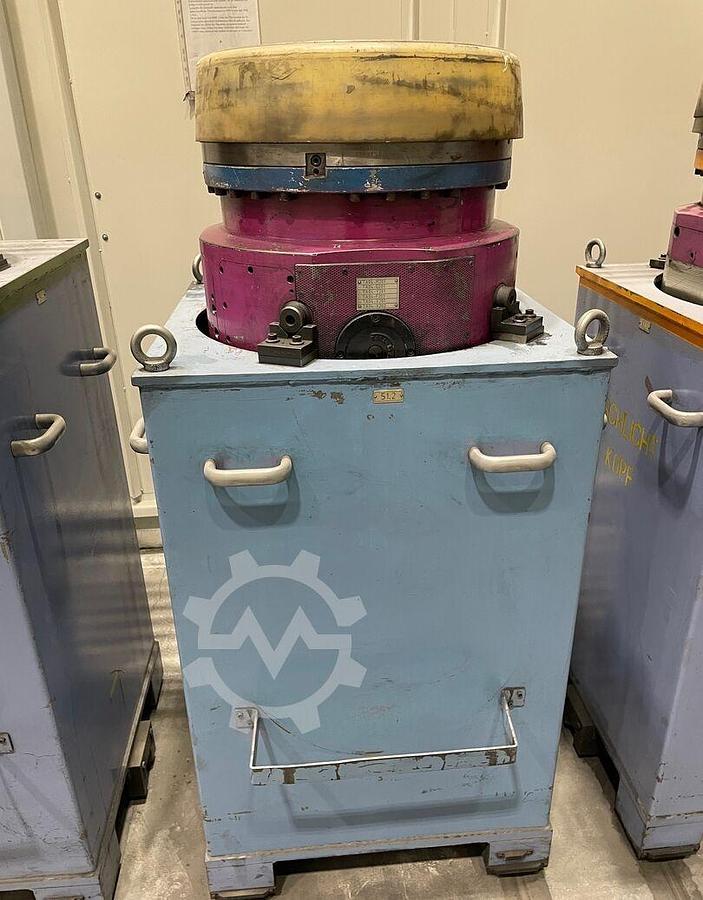

Wagons for Head Change and Tool Pick-up Change
Hydrostatic Bearings

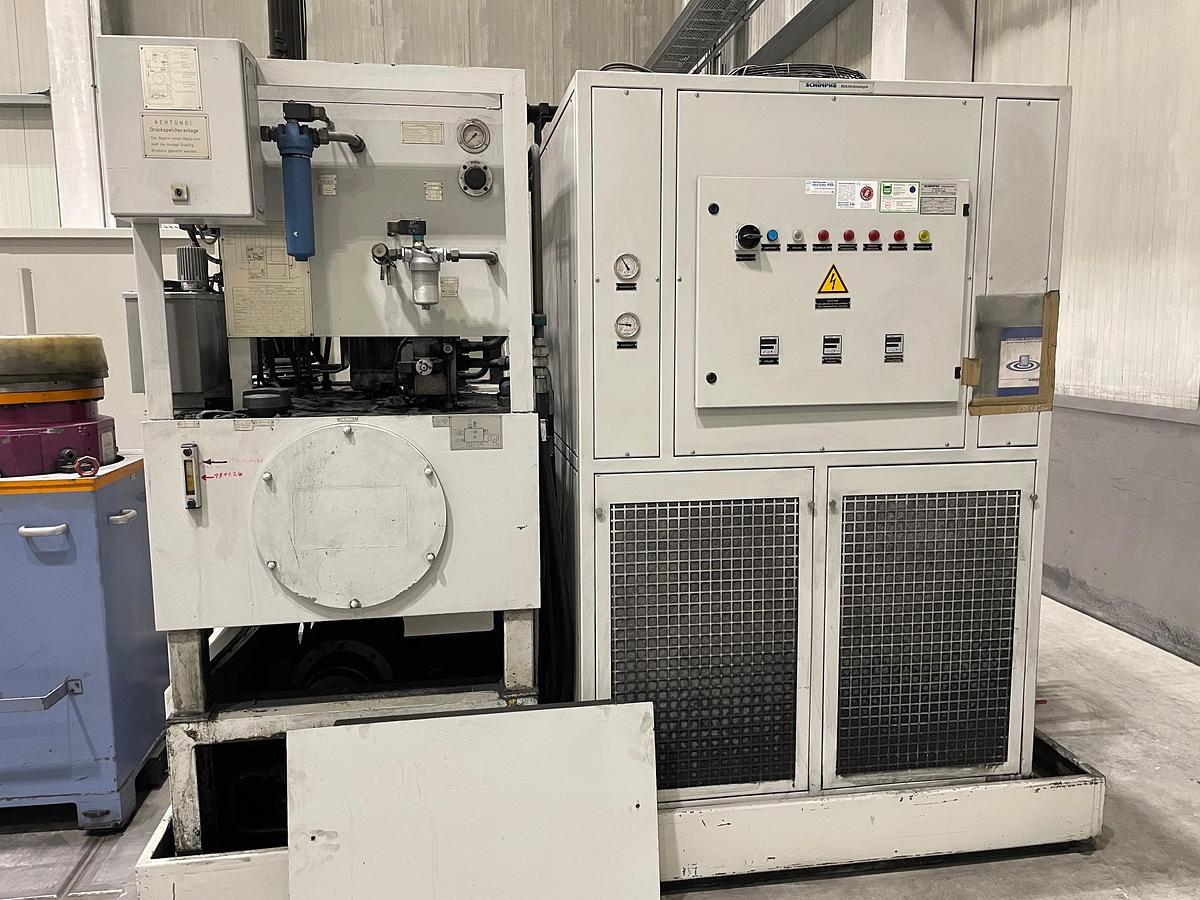

Coolant System

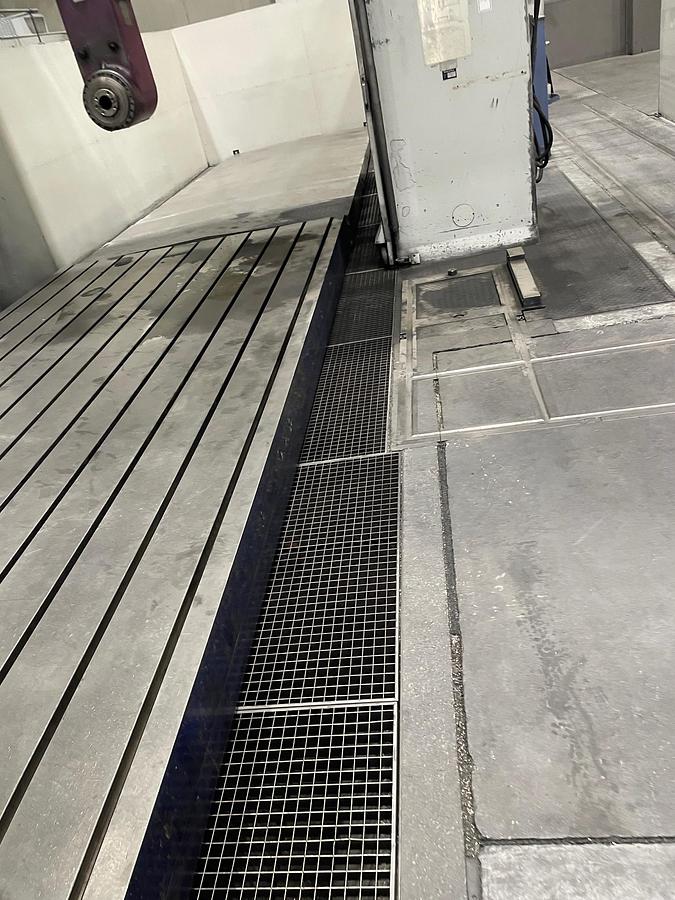

Full Length Chip Conveyors both side
Way Covers
Fixed Crossrail Machine
Three Phase Current Input
Specifications
| Manufacturer | Droop + Rein |
| Model | FPV 2500 SL50-15N |
| Year | 1992 |
| Condition | Used |
| Stock Number | 5654304 |
| Spindle quill diameter | 250 mm |
| Between columns | 3,300 mm |
| Spindle speeds | 4,000 rpm |
| Distance table to spindle nose | 2,110 mm |
| X axis travel | 6,800 mm |
| Y axis travel | 3,700 mm |
| Z axis travel | 1,500 mm |
| Table size | 6,000 x 2,500 x 1,100 mm |
| Table capacity | 50,000 kg |
| Spindle motor power | 50 kW |
| Spindle taper | ISO #50 |
| Vertical passage | 2,000 mm |
| Feed rate X/Y | 15 m/min |
| Feed rate Z | 10 m/min |
| Rapid traverse X/Y | 15 m/min |
| Rapid traverse Z | 10 m/min |
| Machine weight | 110,000 kg |

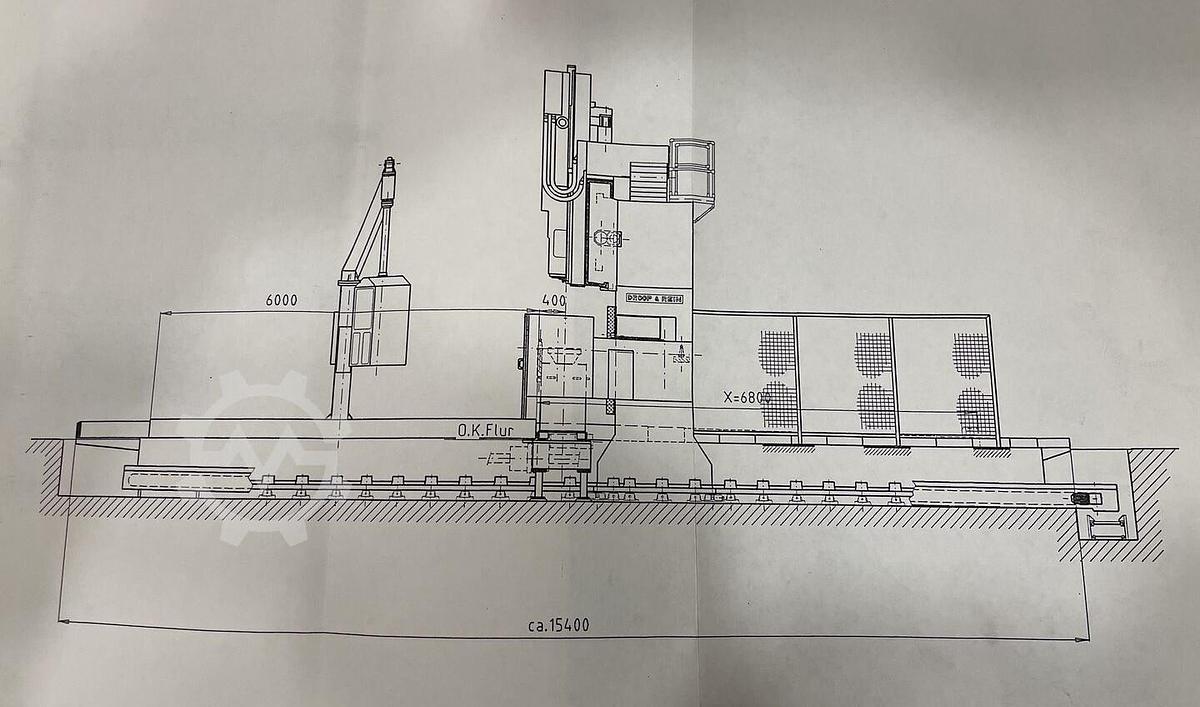

| Machine dimensions | 15 x 7.5 x 7 m |
