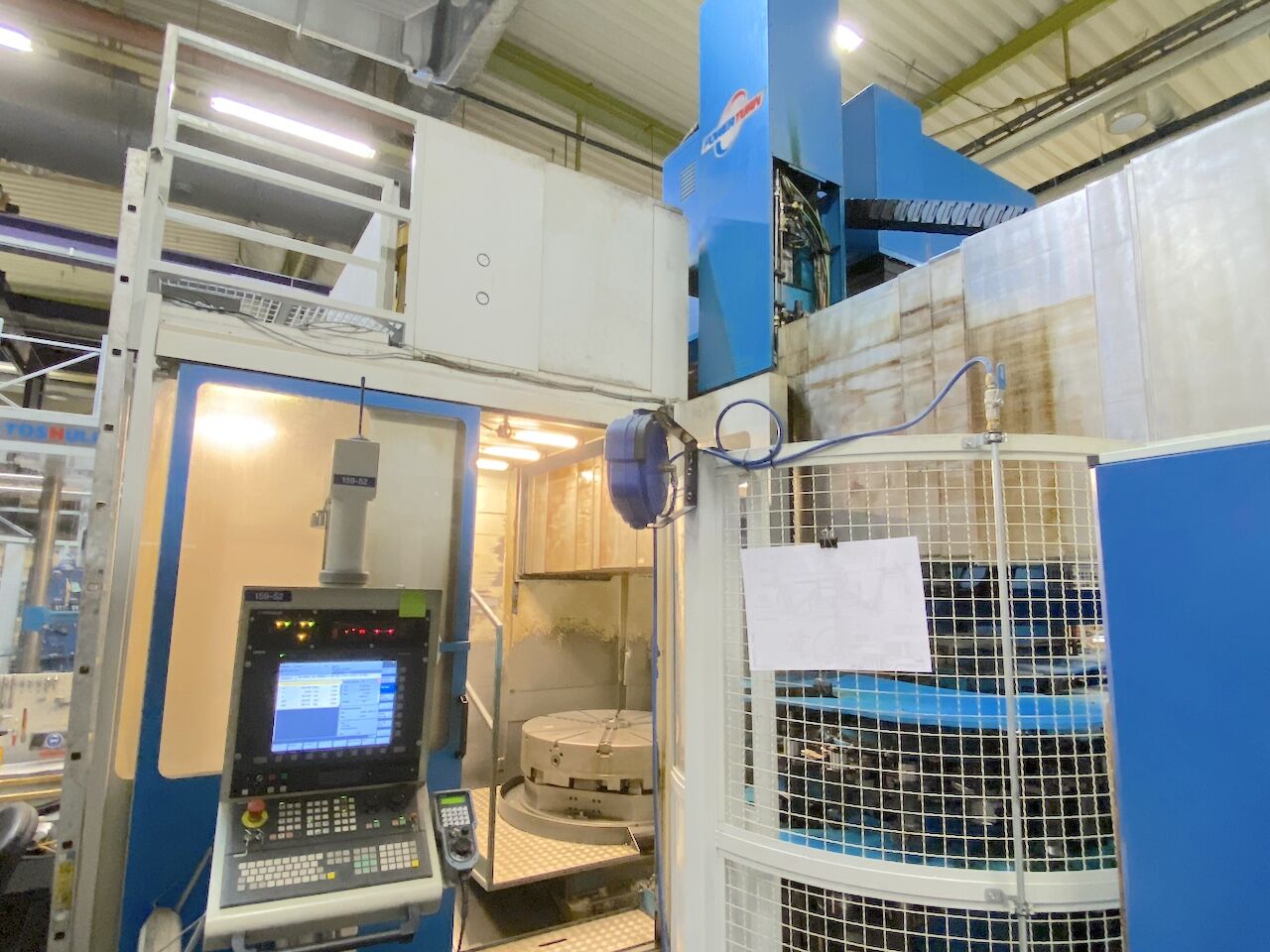

TOS HULIN PowerTurn 1250 Y CM2APC CNC Vertical Boring & Milling Machine with Live Spindle Table C-Axis & Automatic Pallet Changer
TOS HULIN PowerTurn 1250 Y CM2APC CNC Vertical Boring & Milling Machine with Live Spindle Table C-Axis & Automatic Pallet Changer
or
Call 770-509-0744
Description
Siemens 840D SL CNC Control

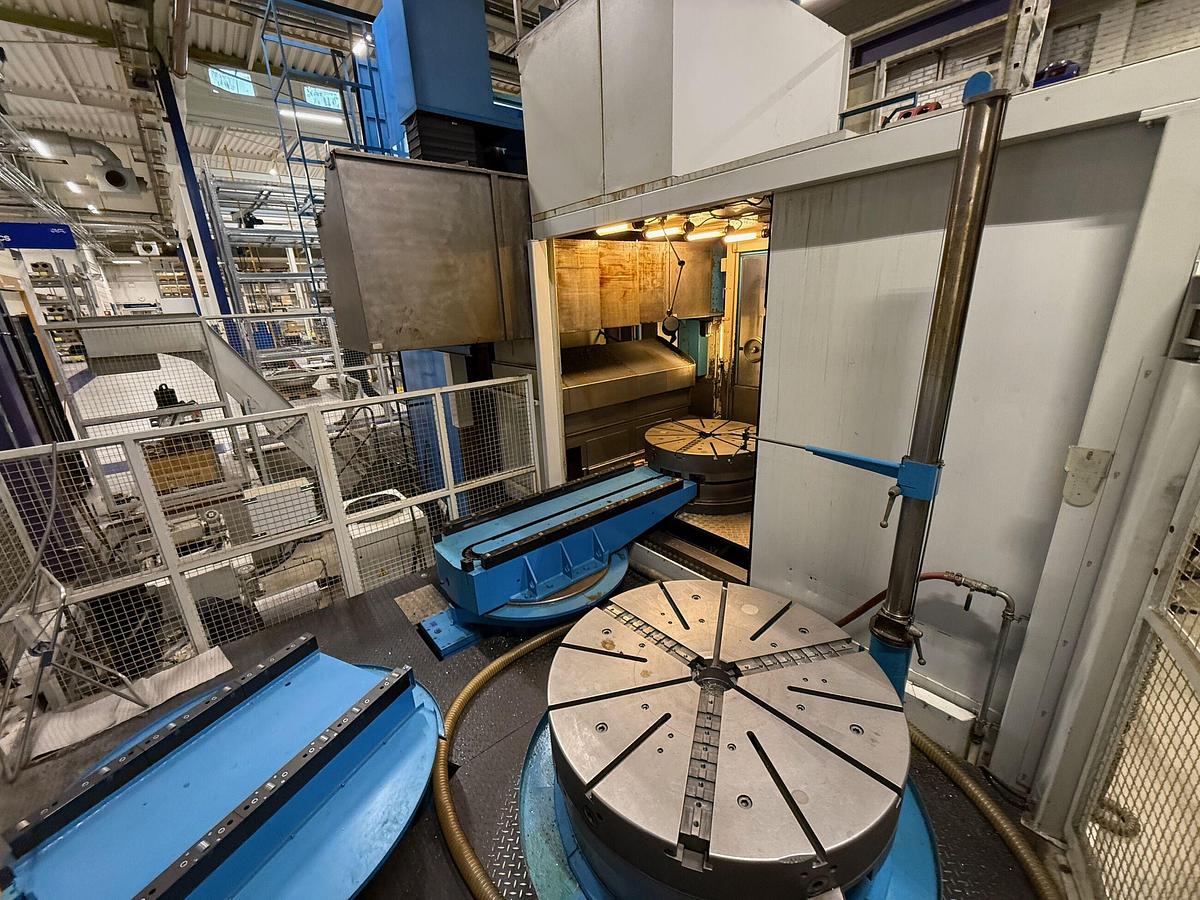

Automatic Pallet Changer with 2 Pallets

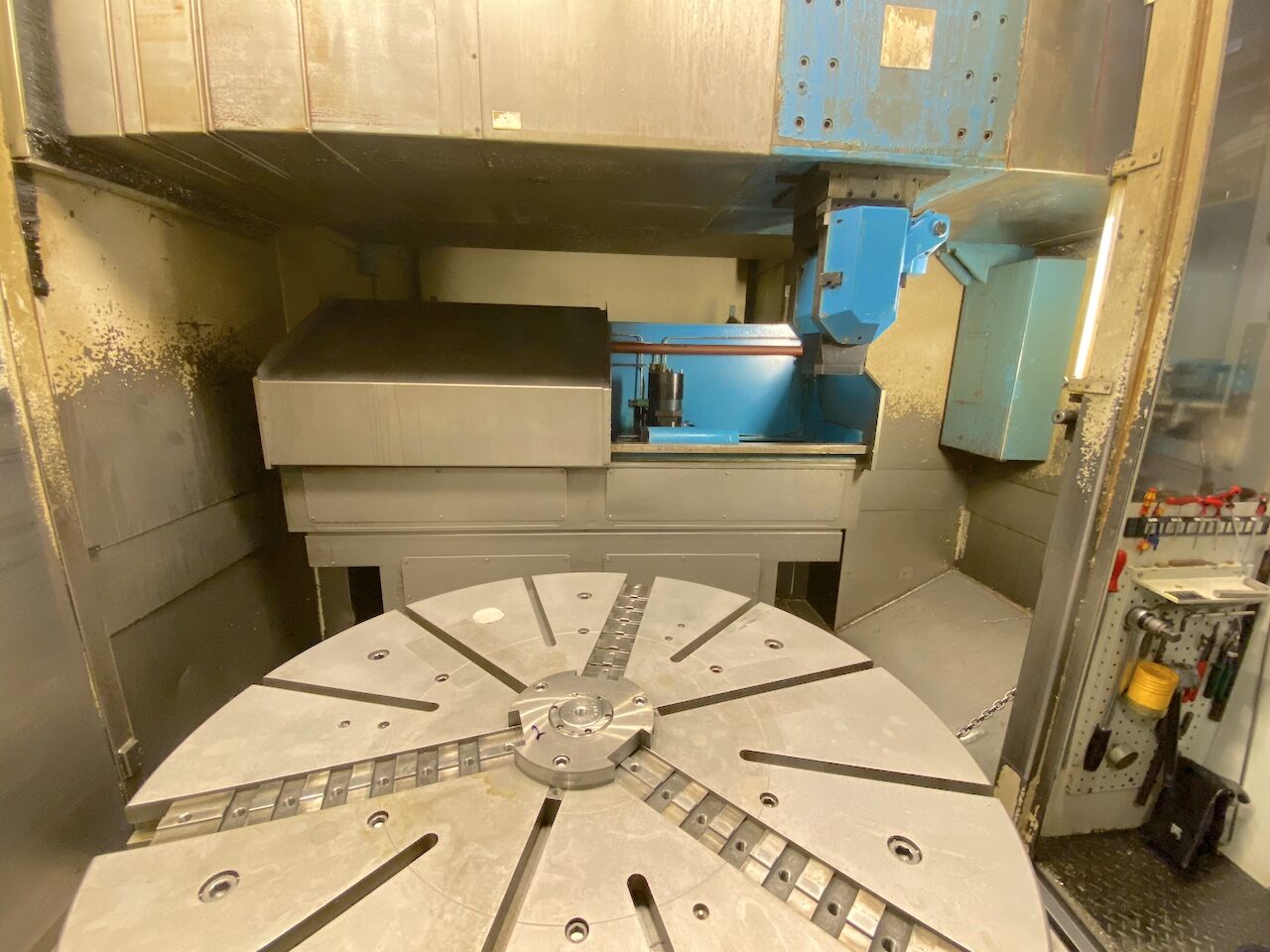

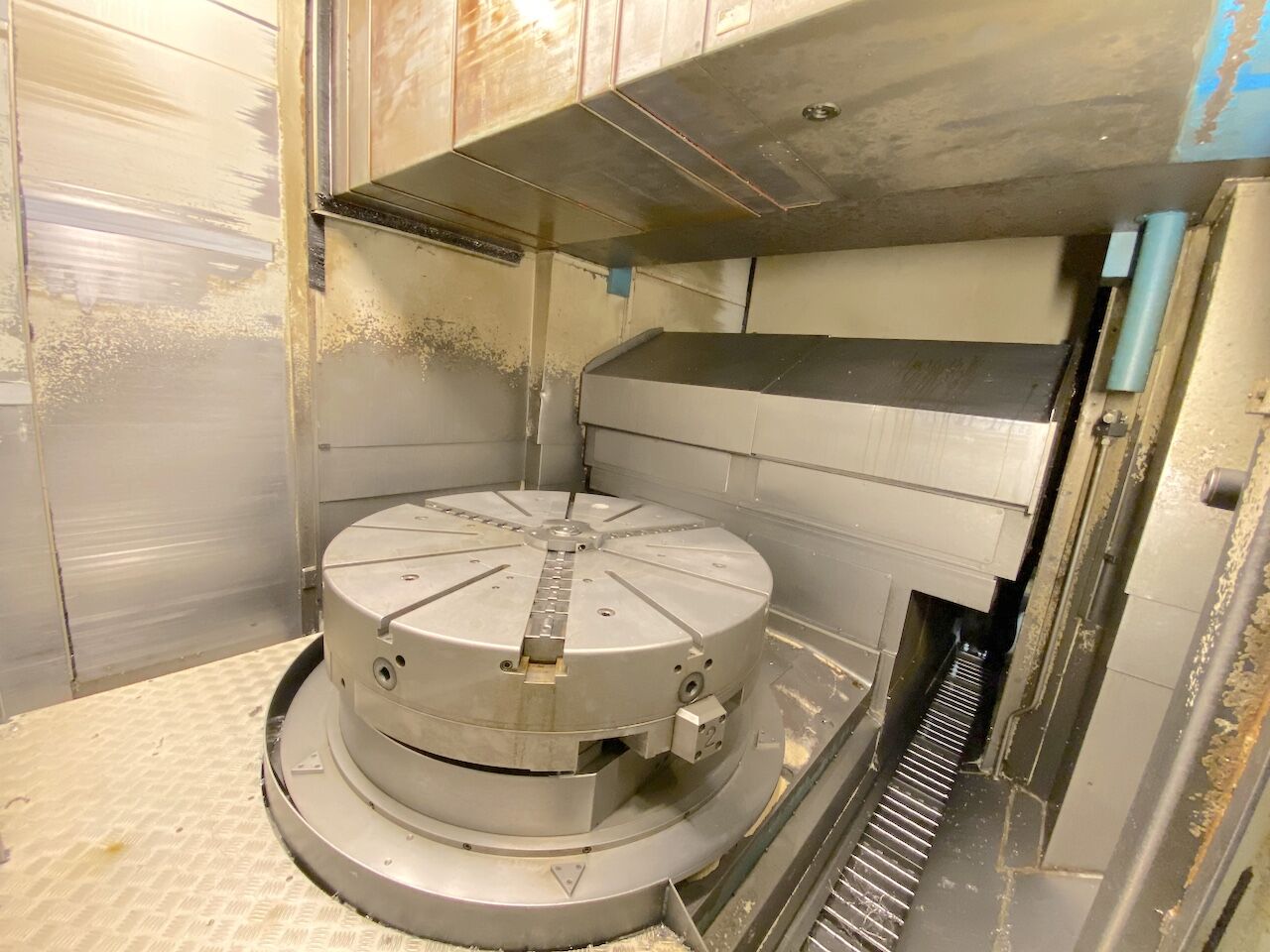

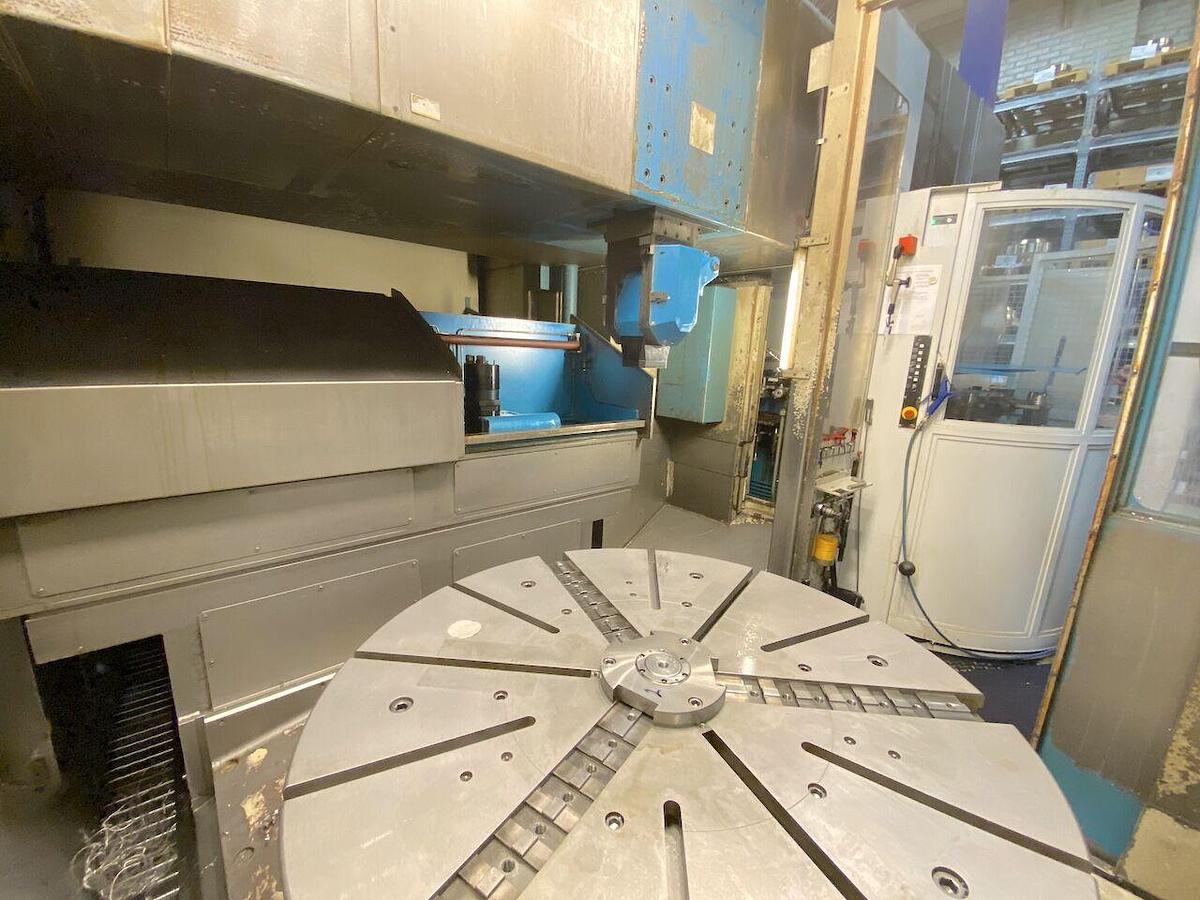

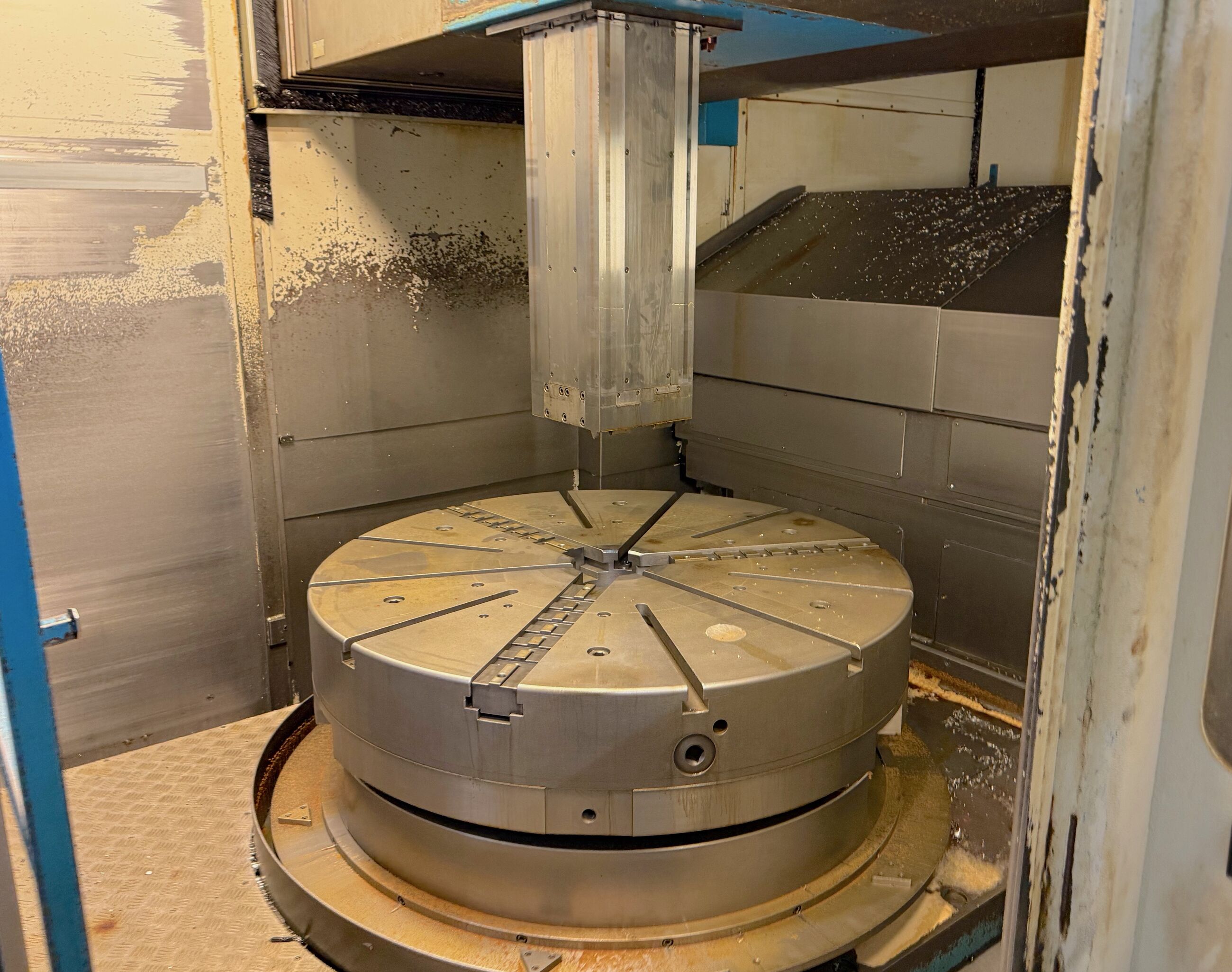

Pallet Diameter 1,250 mm - Self-Centering ROHM

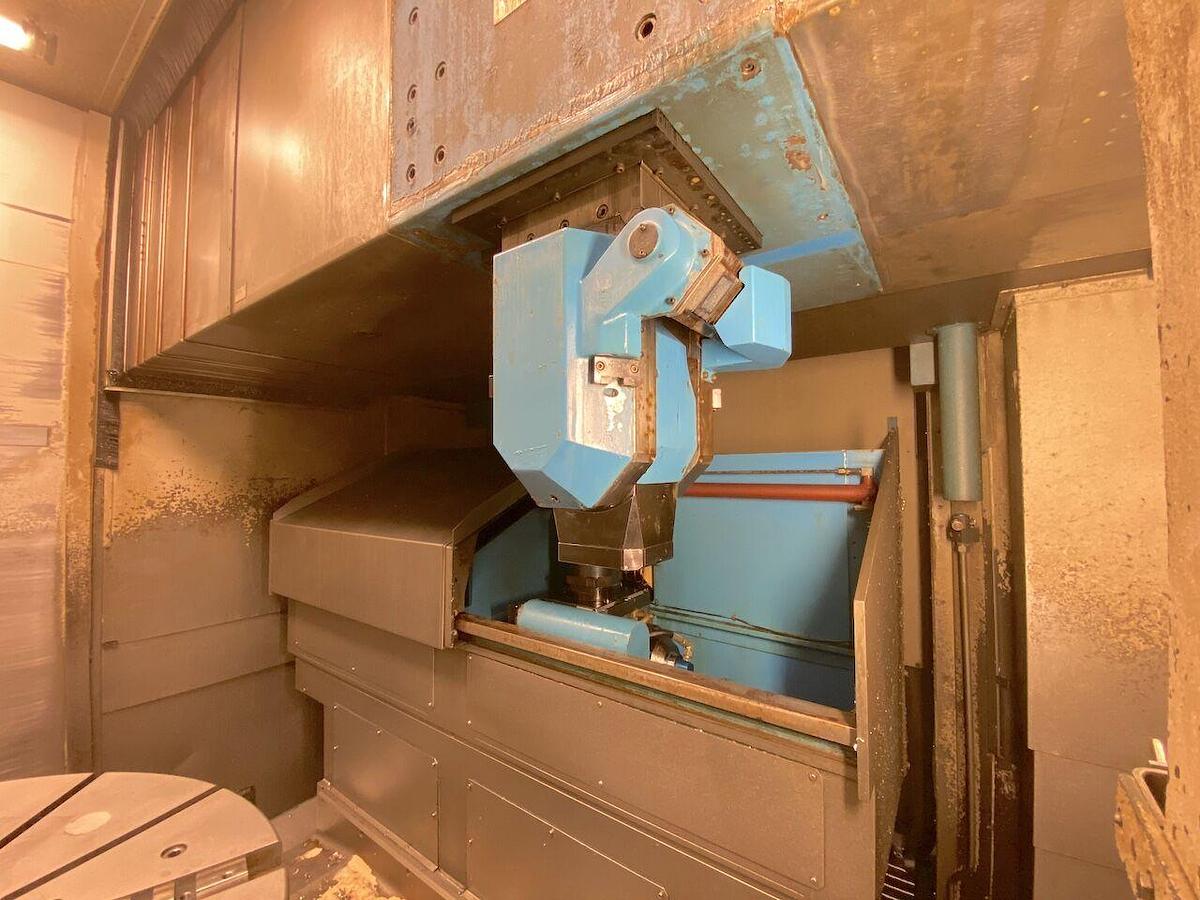

Vertical & Horizontal Milling Head
Automatic Milling Head with Millesimal B-Axis
C Axis Continuous Controlled Spindle
Table Indexing - 0.001°
144 Position Automatic Tool Changer
Moving Cross-rail
Tool Setting

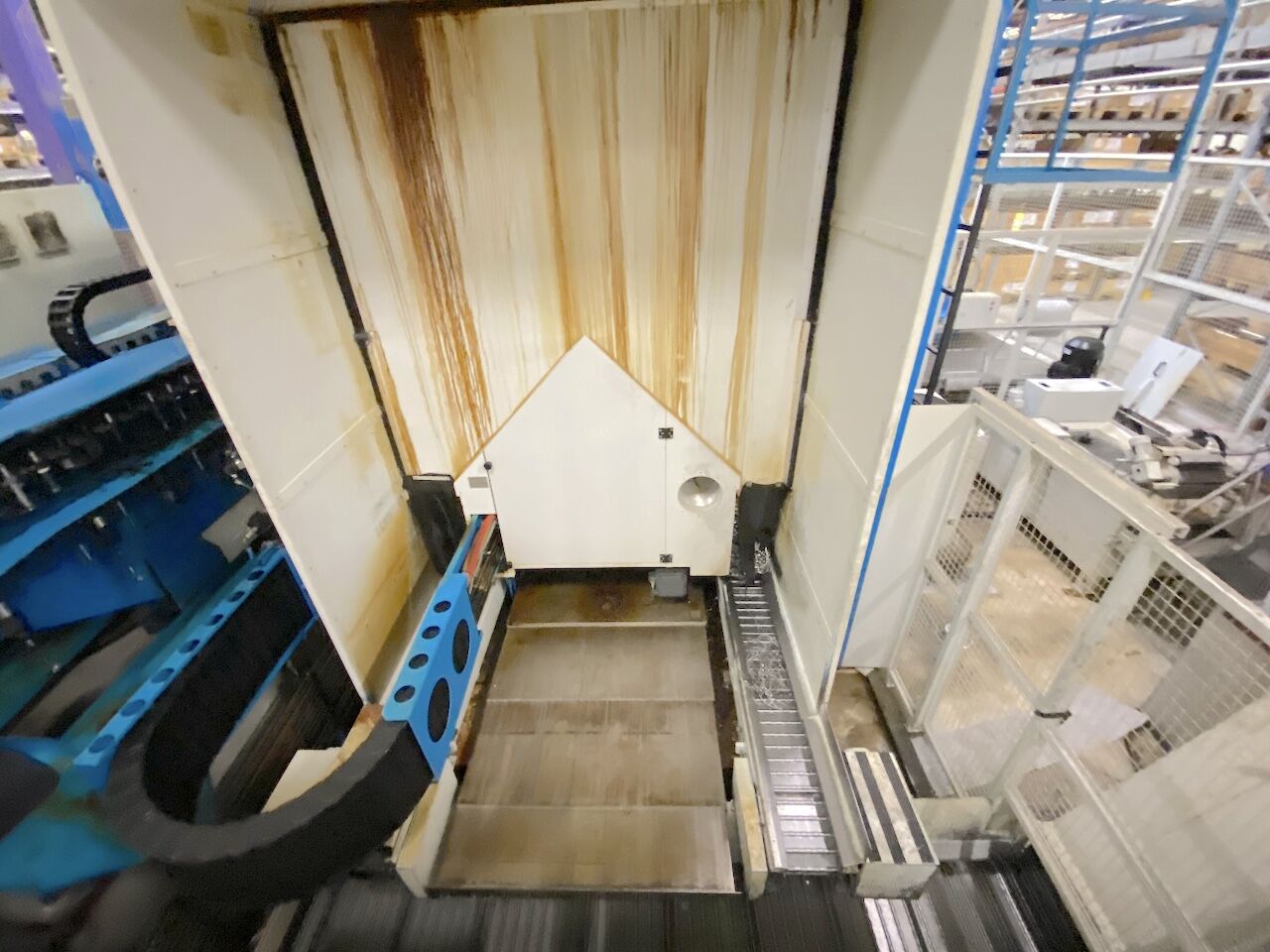

Chip Conveyor
Specifications
| Manufacturer | TOS HULIN |
| Model | PowerTurn 1250 Y CM2APC |
| Year | 2006 |
| Condition | Used |
| Stock Number | 5654300 |
| Table diameter | 1,250 mm |
| Swing | 1,400 mm |
| Max height vertical carriage (with tool holder 185mm) | 1,600 mm |
| Table capacity | 5,000 kg |
| Table turn speed | 2 - 400 rpm |
| Live spindle speed | 3,000 rpm, 750 Nm |
| Live spindle motor | 28 kW |
| Table indexing | 0.001° |
| Z axis ram stroke | 1,500 mm |
| Y axis spindle travel | 1,800 mm (±900 mm) |
| W axis moving crossrail | 1,000 mm |
| Motor power | 60 kW, 16,483 Nm |
| Ram size | 240 x 240 mm |
| Machine weight | 85,000 kg |
| Number of pallets | 2 |
