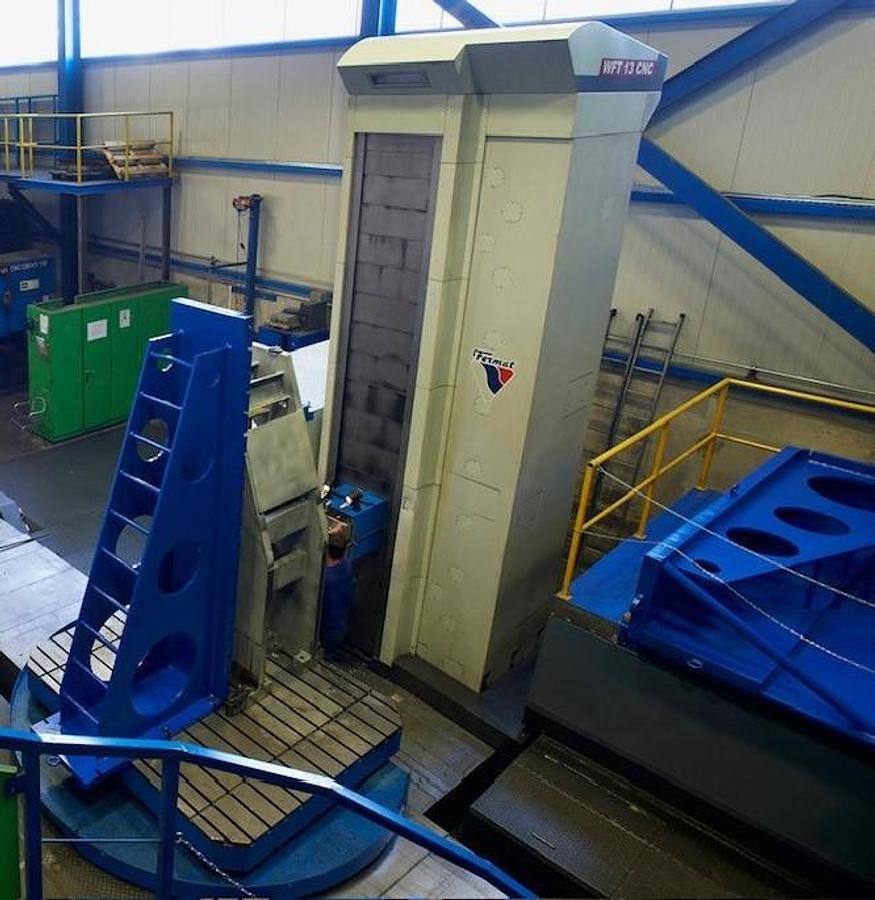

Fermat WFT 13 R CNC Table-Type Horizontal Boring Machine
Fermat WFT 13 R CNC Table-Type Horizontal Boring Machine
or
Call 770-509-0744
Description
Heidenhain TNC 530 CNC Control
Continuously Controlled Table-Type Milling Machine
4 Linear Axis + Rotary Table

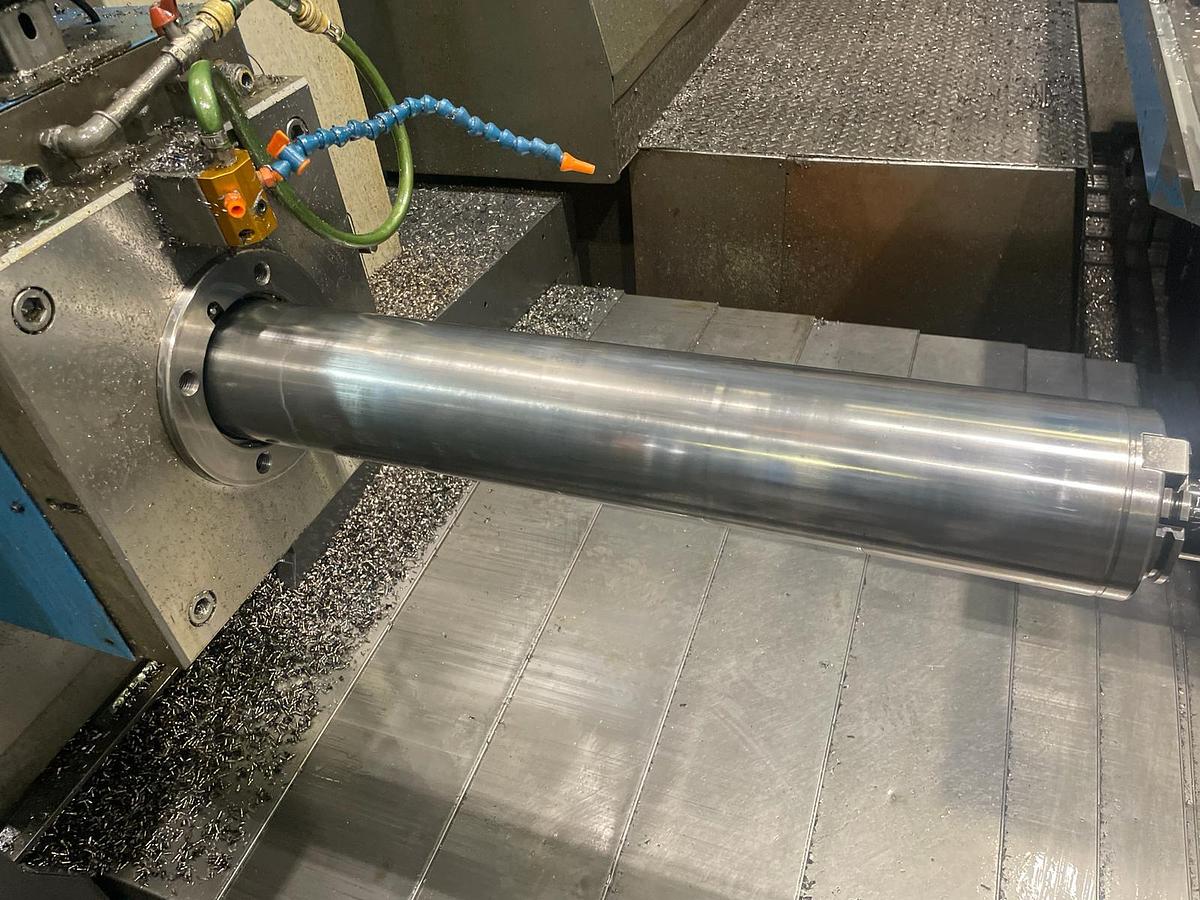

Out-Travel Working Spindle

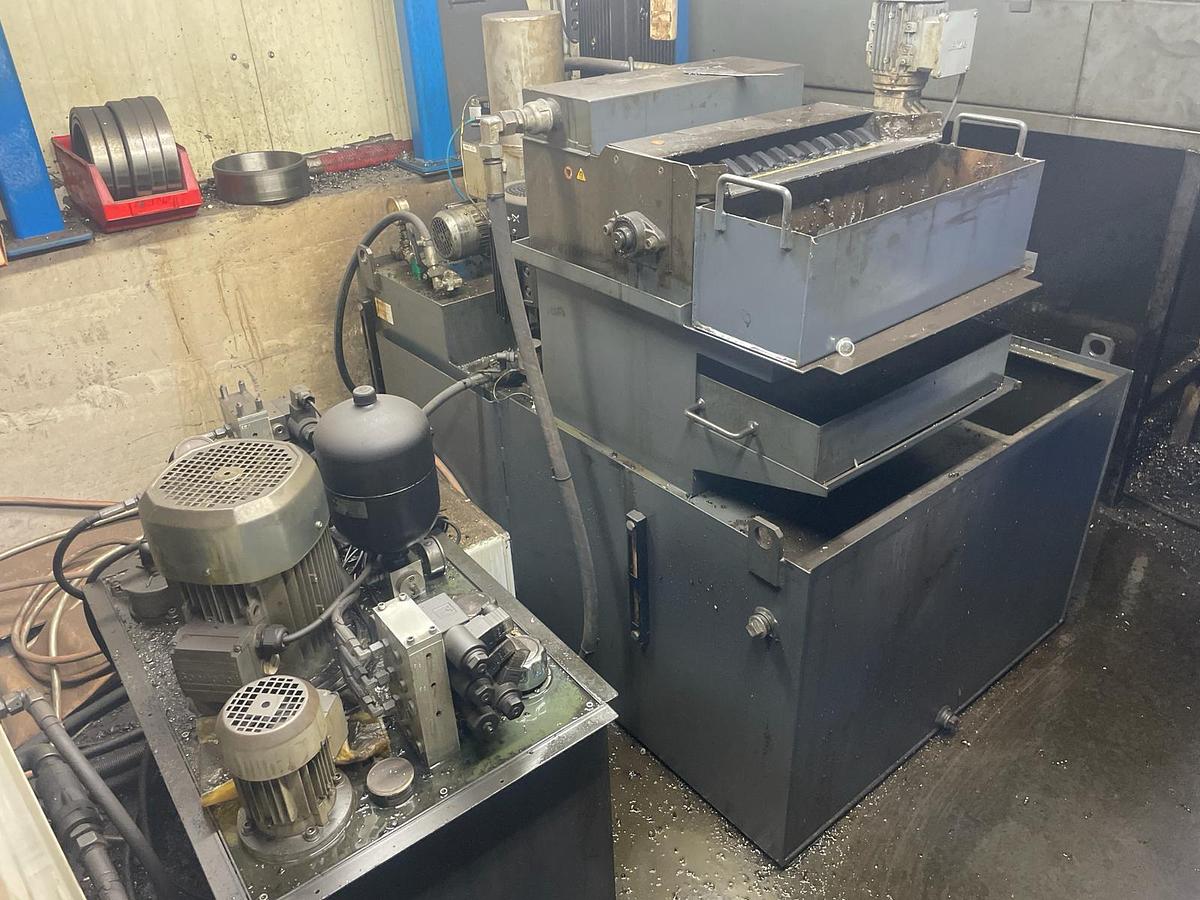

Coolant System
Specifications
| Manufacturer | Fermat |
| Model | WFT 13 R |
| Year | 2012 |
| Condition | Used |
| Stock Number | 5654297 |
| Spindle diameter | 130 mm |
| Spindle speeds | 3,000 rpm |
| X axis travel | 5,000 mm |
| Y axis travel | 3,500 mm |
| Z axis travel | 2,000 mm |
| W axis travel | 730 mm |

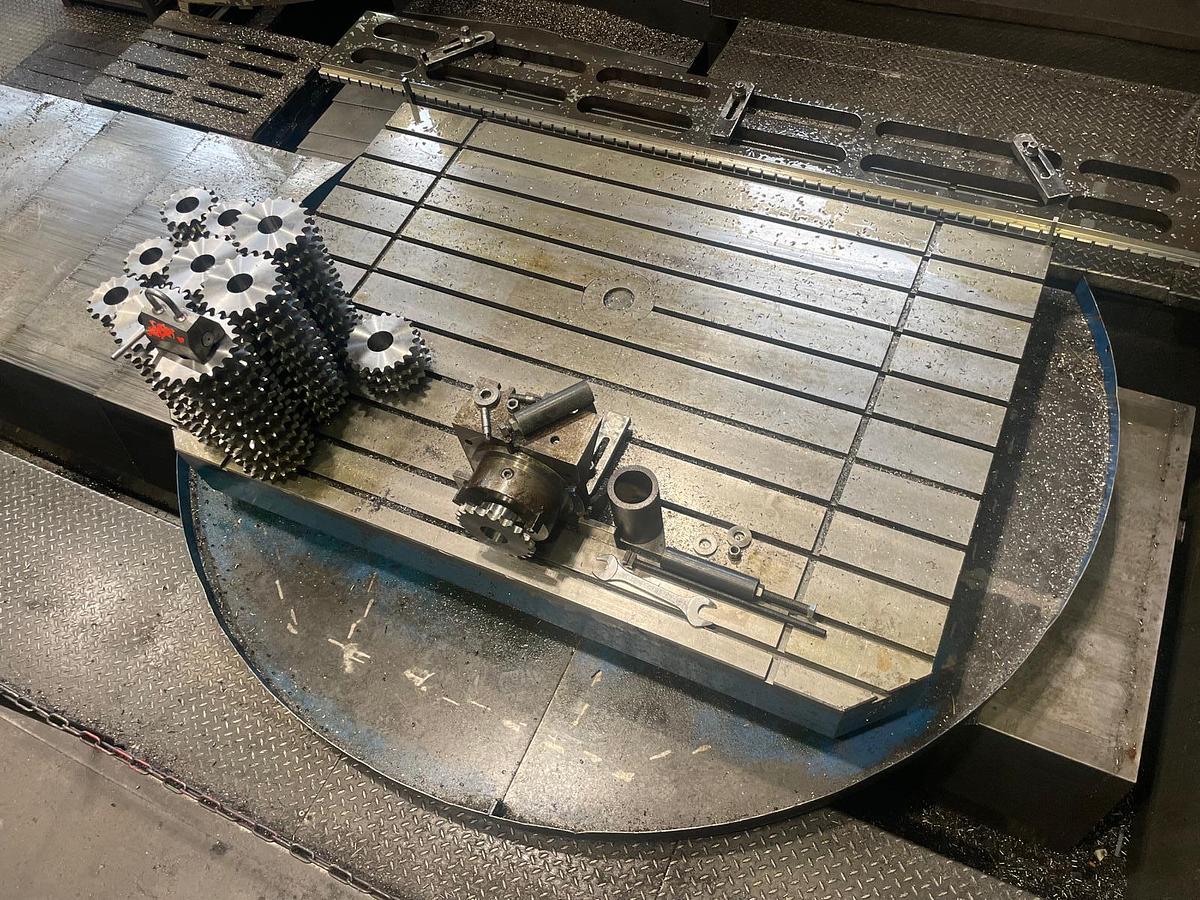

| Table dimensions | 2,400 x 2,000 mm |
| Table capacity | 20 Ton |
| Table height | 1,200 mm |
| Spindle taper | ISO 50 |
| Spindle torque | 2008 Nm |
| Slide dimensions | 400 x 400 mm |
| Main motor output | 37 kW |
| Working feed all axes | 1 - 8,000 mm/min |
| Travel speeds X/Y | 12,000 mm/min |
| Travel speeds Z/W | 10,000 mm/min |
| Machine dimensions | 11,200 x 12,440 x 6,350 mm |
| Machine weight | 58,100 kg |
| Total installed power | 80 kVA |
| Operational voltage | 3 x 400 V |
| Operational voltage frequency | 50 Hz |
