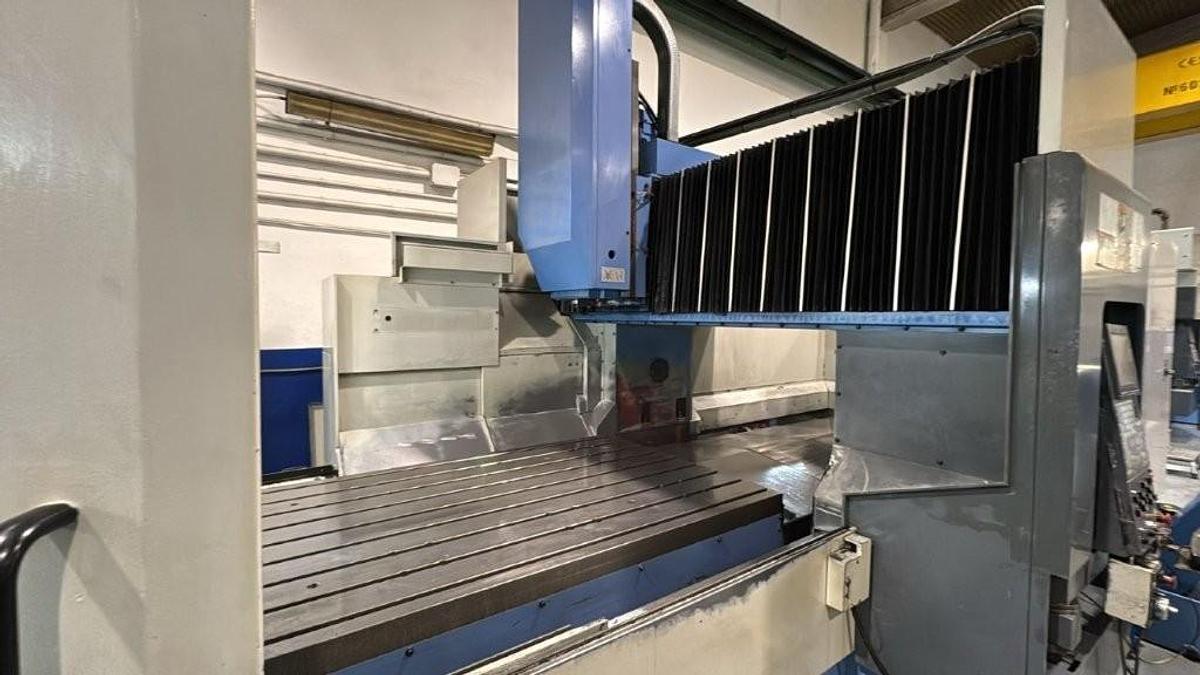

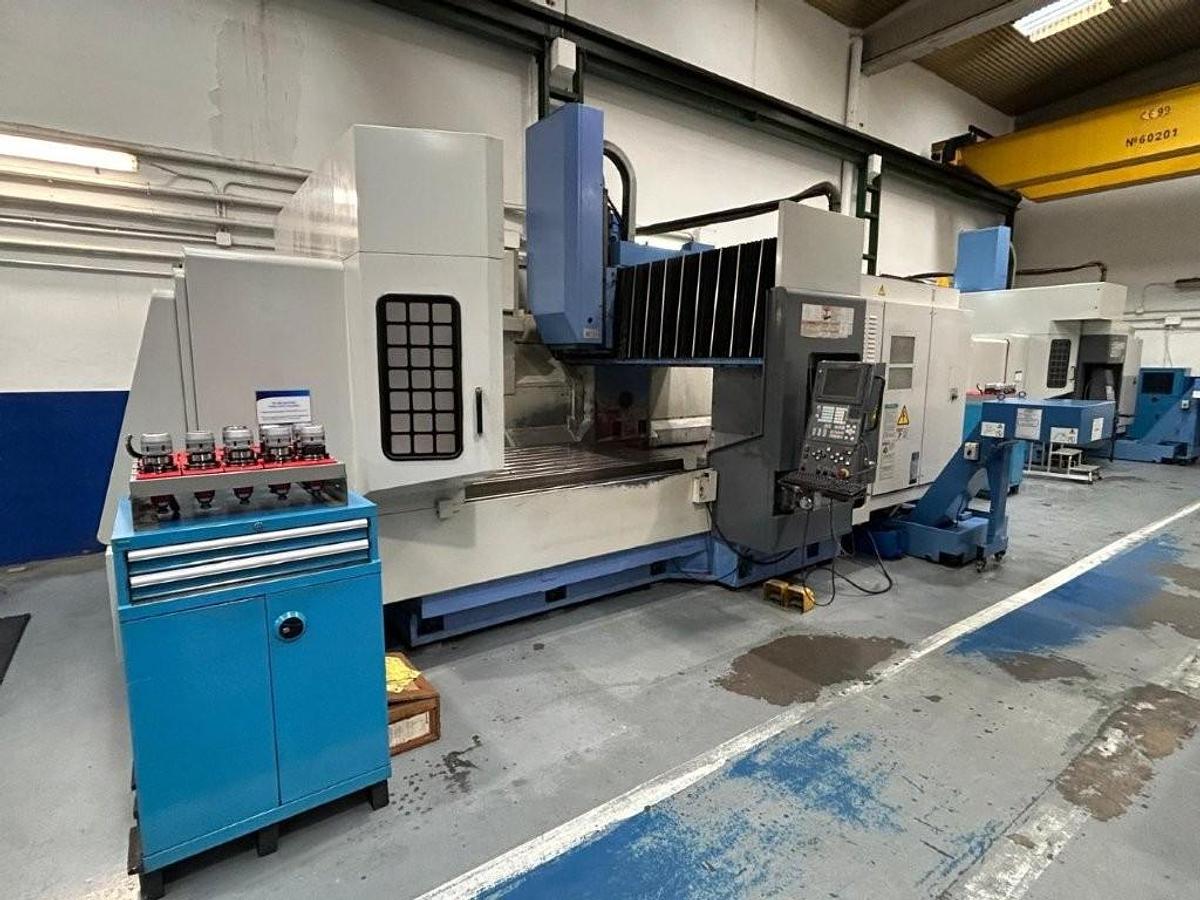

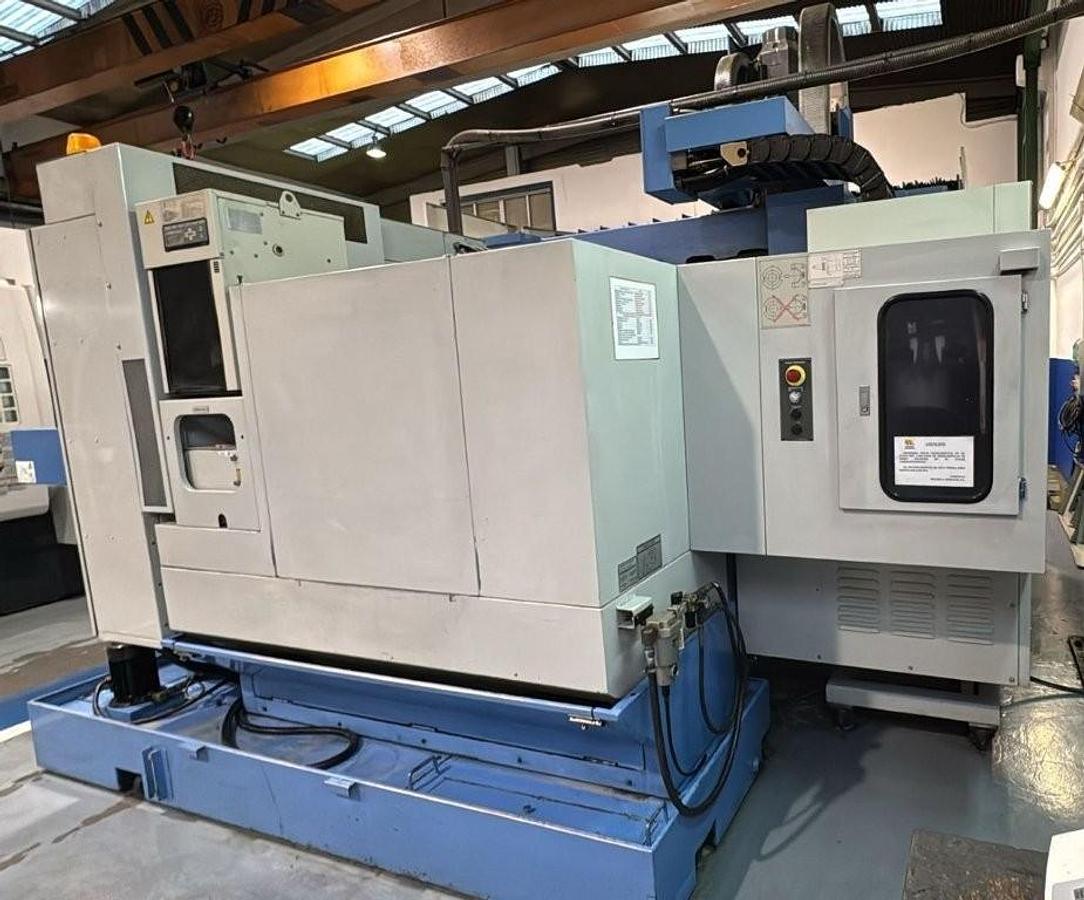

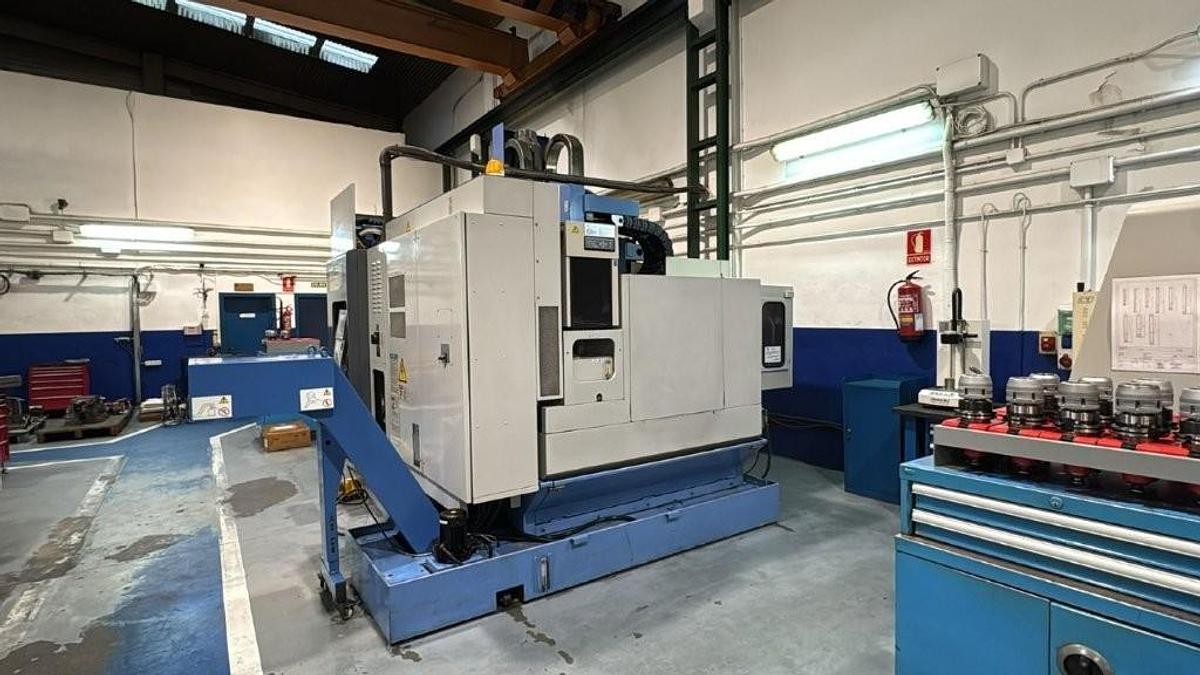

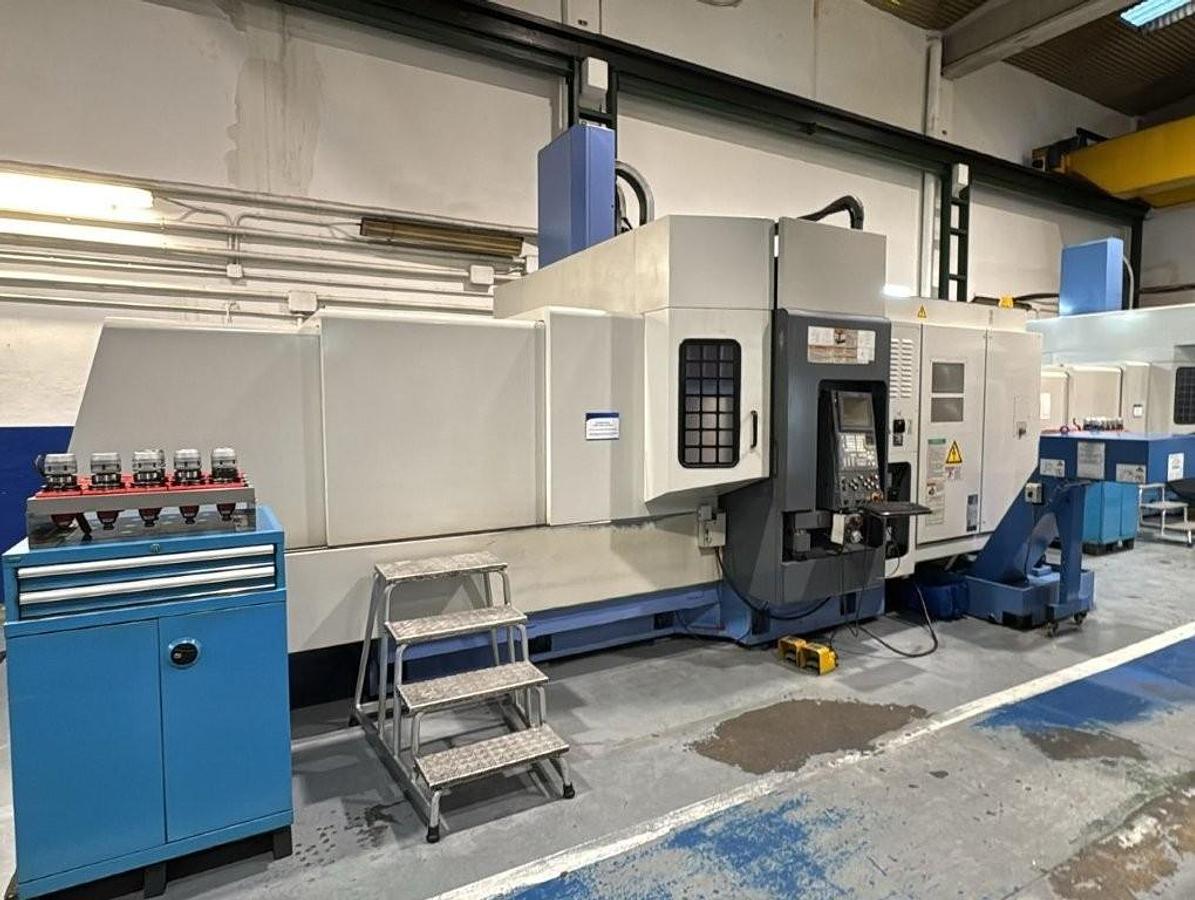

Mazak FJV 60/80 CNC Double Column Vertical Machining Center
Mazak FJV 60/80 CNC Double Column Vertical Machining Center
or
Call 770-509-0744
Description
Retrofitted in 2006

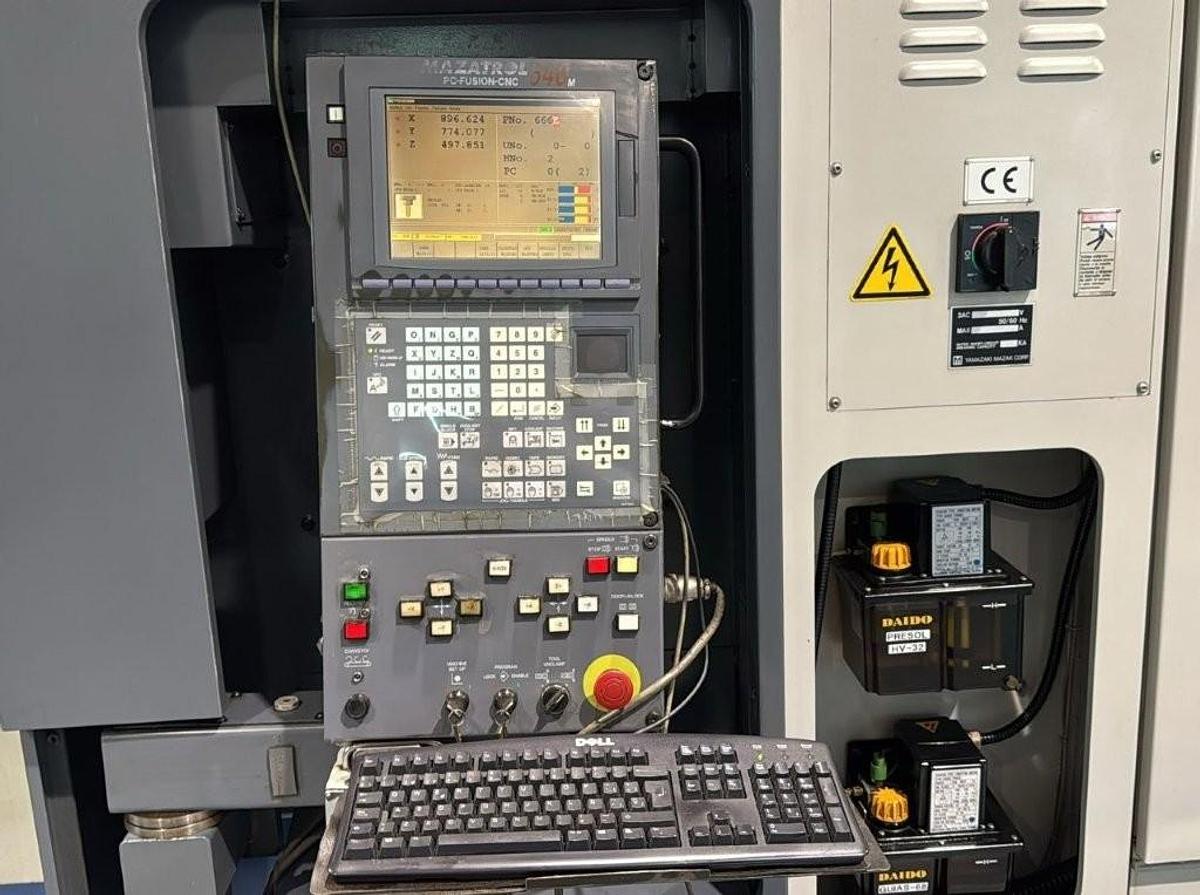

MAZATROL FUSIÓN 640M 3 AXIS CNC CONTROL
REMOTE CONTROL
CHIP CONVEYOR
TOOL CABINET AND DIVERS QUALTY TOOLING
Automatic Tool Changer:
NUMBER OF TOOLS: 30
DIAMETER/LENGHT/WEOGHT OF TOOLS: 125 (210) MM / 380 MM / 20 KGS
CHANGE TIME (CHIP TO CHIP): 6,2 SEG.
CHANGE TIME (TOOL TO TOOL): 2,1 SEG.
MOTORS, TOTAL POWER: 74,6 KVA, 380 V, 50 HZ
Specifications
| Manufacturer | Mazak |
| Model | FJV 60/80 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 5654291 |
| Between columns | 1,500 mm |
| Spindle speeds | 10,000 rpm |
| Spindle to table | 160 - 820 mm |
| X axis travel | 3,200 mm |
| Y axis travel | 1,400 mm |
| Z axis travel | 660 mm |

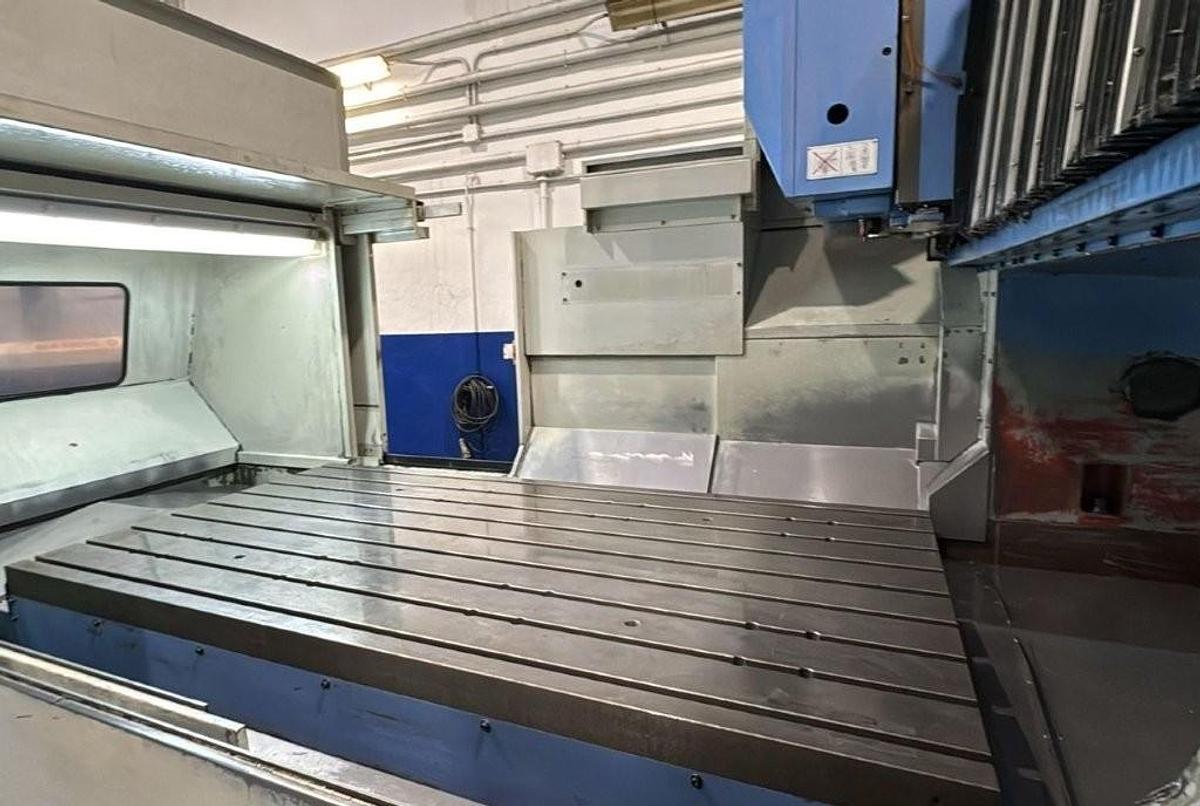

| Table size | 3,000 x 1,250 mm |
| Table capacity | 5,000 kg |
| Spindle drive motor | 30 kW |
| Spindle taper | ISO 50 |
| Cutting feed X/Y/Z | 1 - 19,000 mm/min |
| Rapid traverse X/Y/Z | 32/40/30 m/min |
| Machine dimensions | 8,970 x 3,864 x 3,405 mm |
| Machine weight | 31,000 kg |
