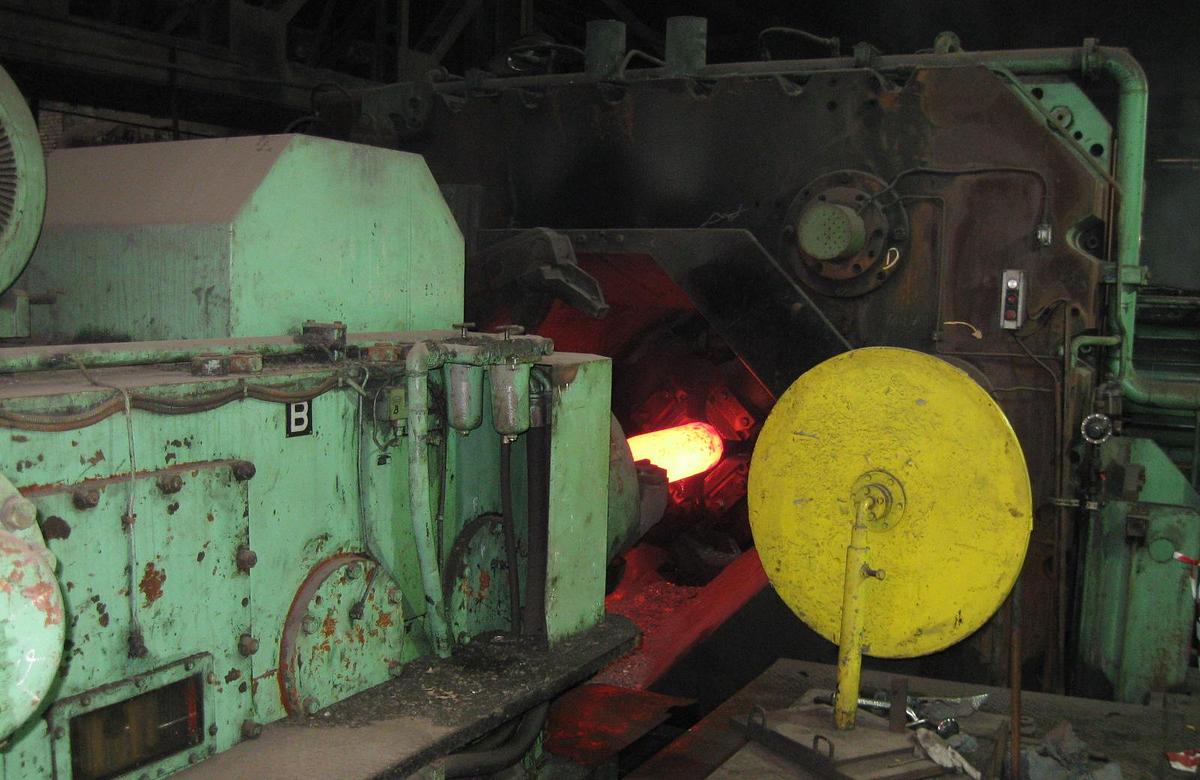

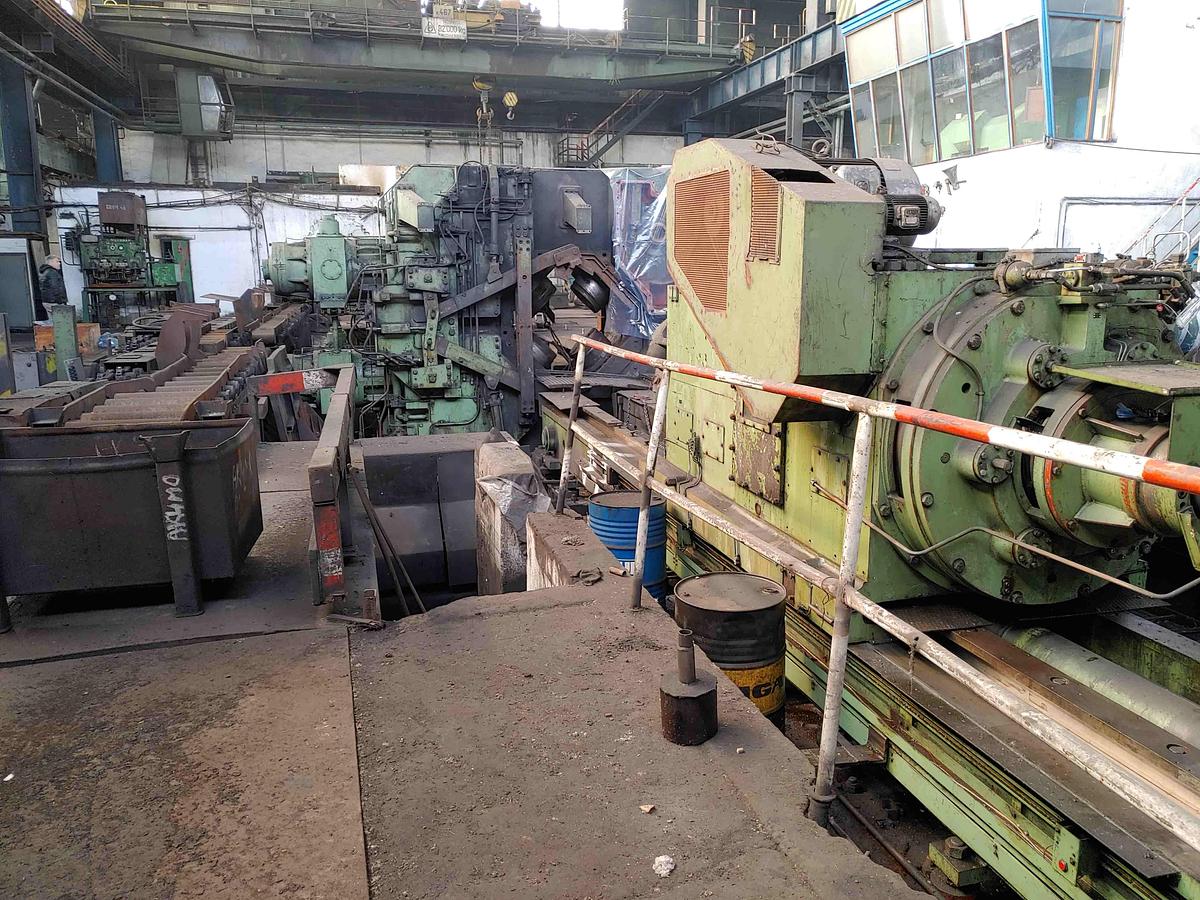

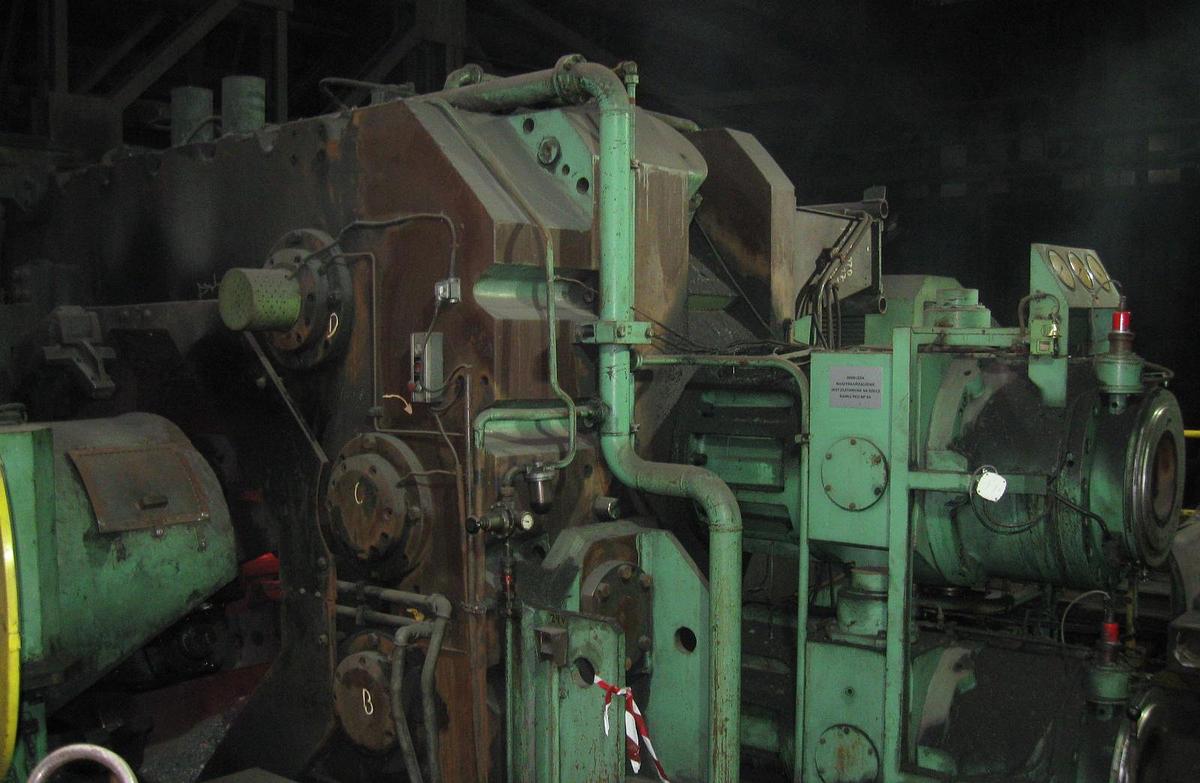

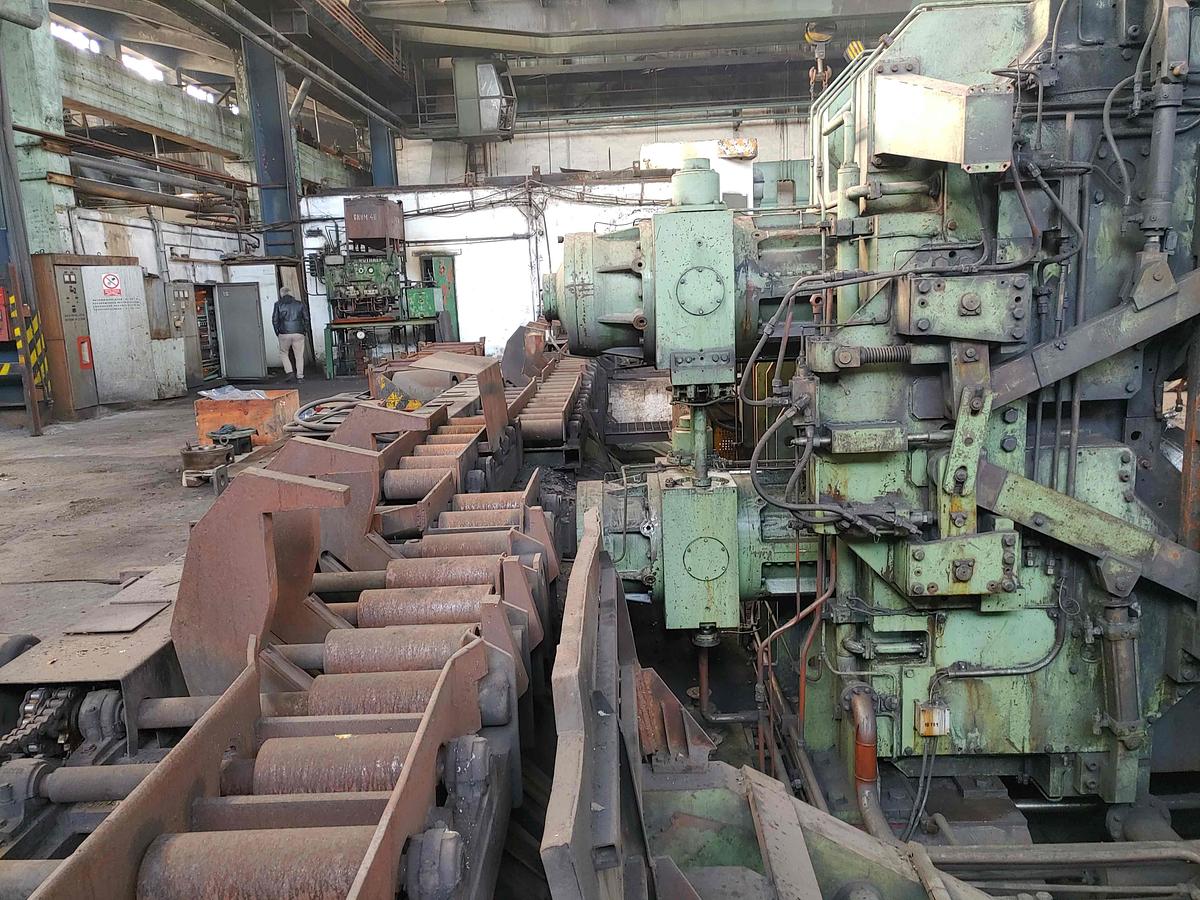

GFM SXL 40 Radial Forging Machine
GFM SXL 40 Radial Forging Machine
or
Call 770-509-0744
Description
Reconditioning by GFM 1991 from 650 Ton per Hammer to 800 Ton per Hammer
Machine Dimension:
Axis height of forging above the hall level - 750 mm
Maximum height of machine above the hall level - 2,950 mm
Maximum length of machine at the hall level - 30,000 mm
Foundation length - 44,000 mm
Maximum width of machine at hall level without loading device - 8,020 mm Foundation width - 18,600 mm
Machine weight - 439,220 kg
Specifications
| Manufacturer | GFM |
| Model | SXL 40 |
| Year | 1977 |
| Condition | Used |
| Stock Number | 5654290 |
| Number of Hammers - 4 Forging Force | 3,200 Ton |
| Strokes per minute | 270 |
| Hammer length | 550 mm |
| Circular cross section | 450 mm |
| Square cross section | 320 mm |
| Minimum outer diameter - circular | 60 mm |
| Minimum outer diameter - square | 50 mm |
| Max length of forgin with/without lateral reception | 8,000 / 9,700 mm |

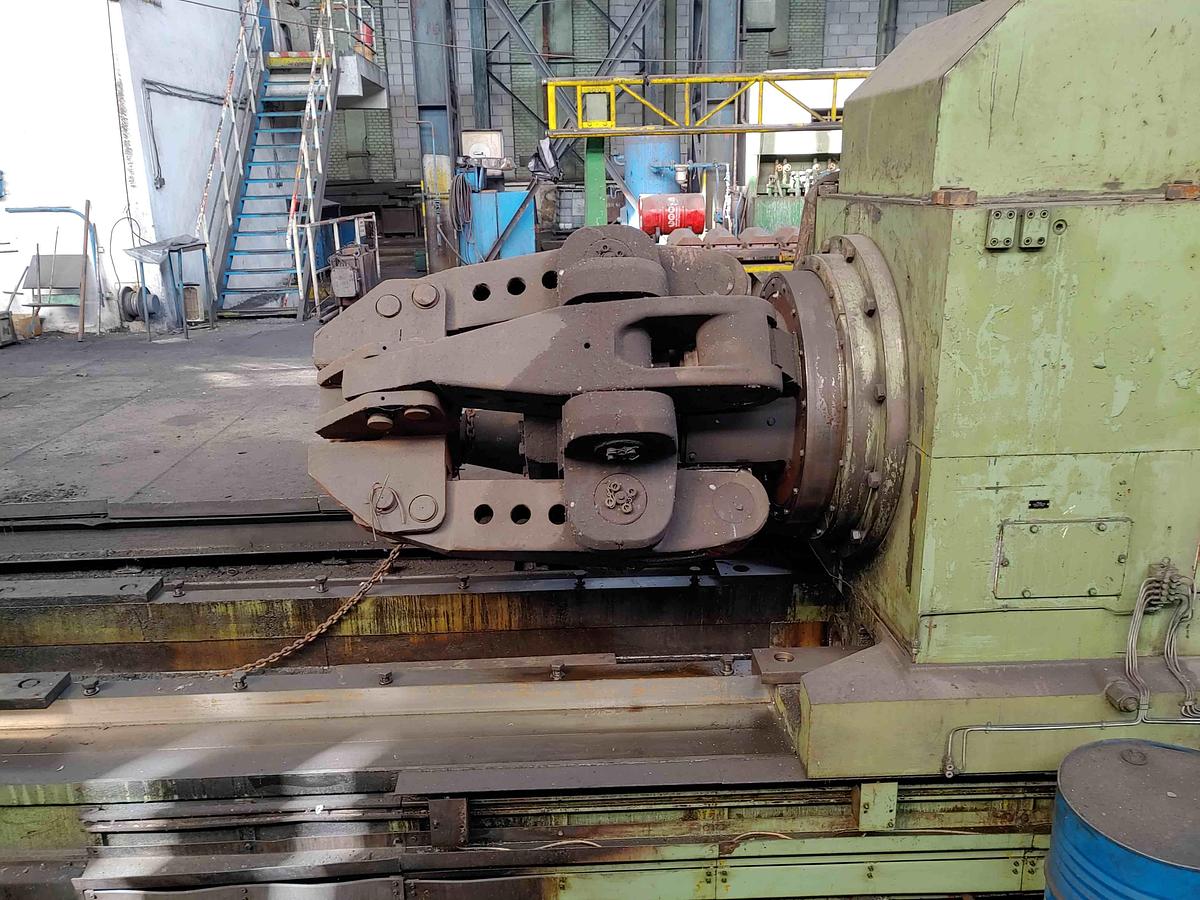

| Feed of manipulator A | 7,200 mm |
| Feed of manipulator B | 10,000 mm |
| Manipulators speed in fast moving | 350 mm/s |
| Feed speed of manipulators (steeples regulation) | 10 |
