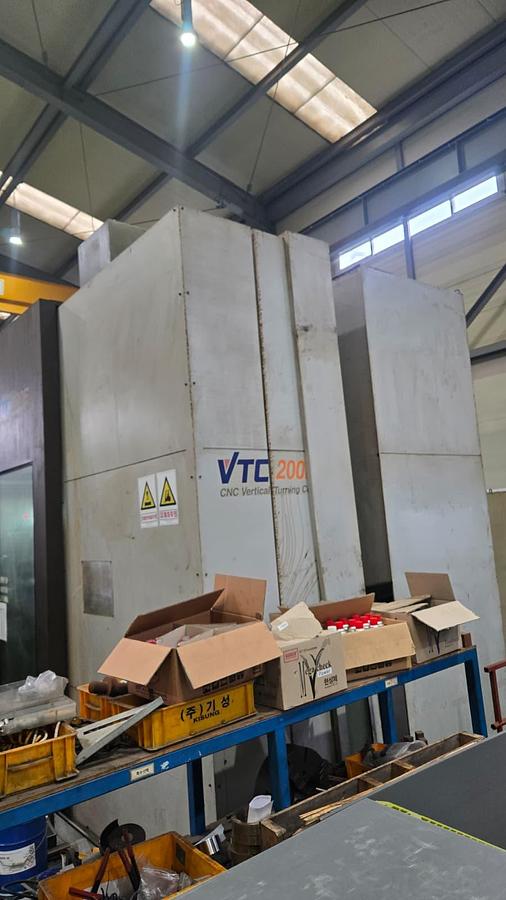

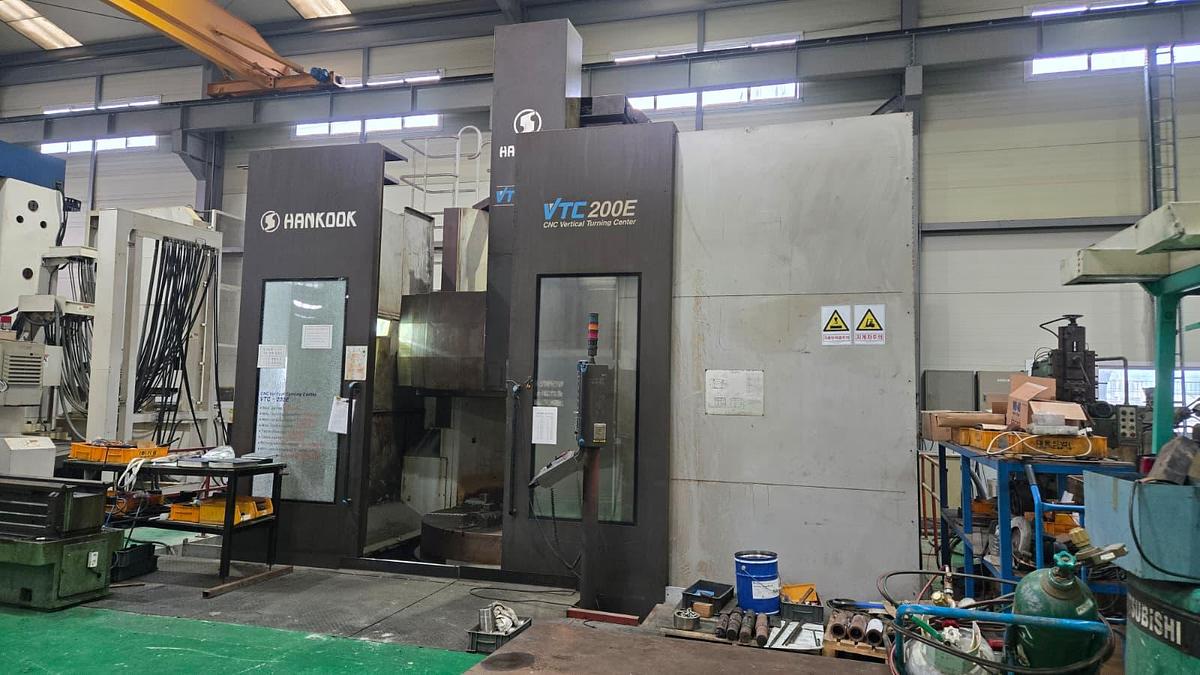

Hankook VTC 200E CNC Vertical Turning & Milling Machine with Live Spindle & Table C-Axis
Hankook VTC 200E CNC Vertical Turning & Milling Machine with Live Spindle & Table C-Axis
or
Call 770-509-0744
Description

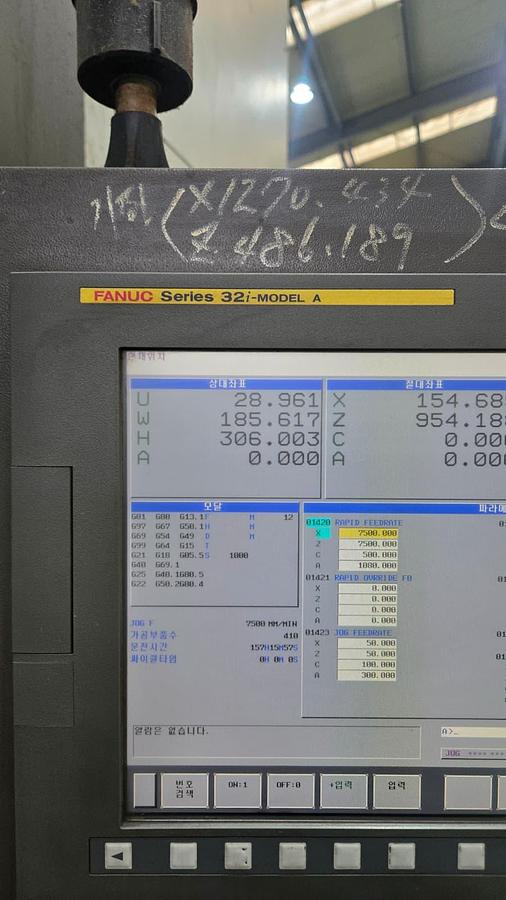

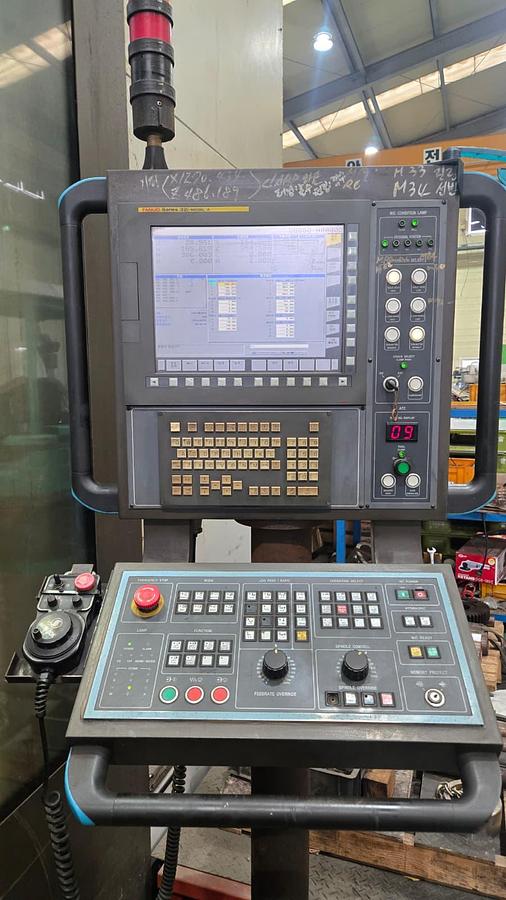

Fanuc 32i A CNC Control
24 Position Automatic Tool Changer
Scales
Chip Conveyor
Specifications
| Manufacturer | Hankook |
| Model | VTC 200E |
| Year | 2010 |
| Condition | Used |
| Stock Number | 5654286 |
| Table diameter | 2,000 mm |
| Swing | 2,700 mm |
| Max cutting diamater | 2,500 mm |
| Max cutting height | 2,000 mm |
| Table capacity | 12,000 kg |
| Table turn speed (2 Step) | 1 - 200 rpm |
| Table indexing | 0.001° |
| Live spindle speed | 3,000 rpm |
| Table motor | DC 45/55 kW |
| Live spindle motor | 9 kW |
| Ram size | 240 x 240 mm |
