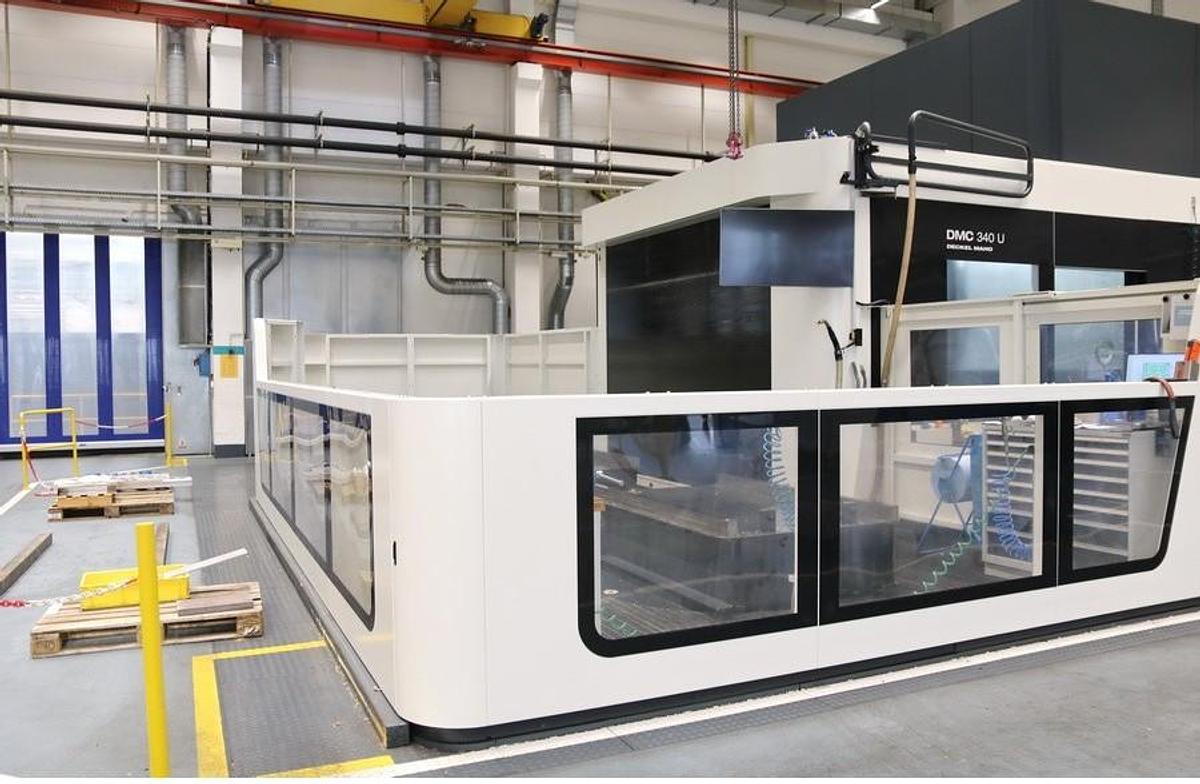

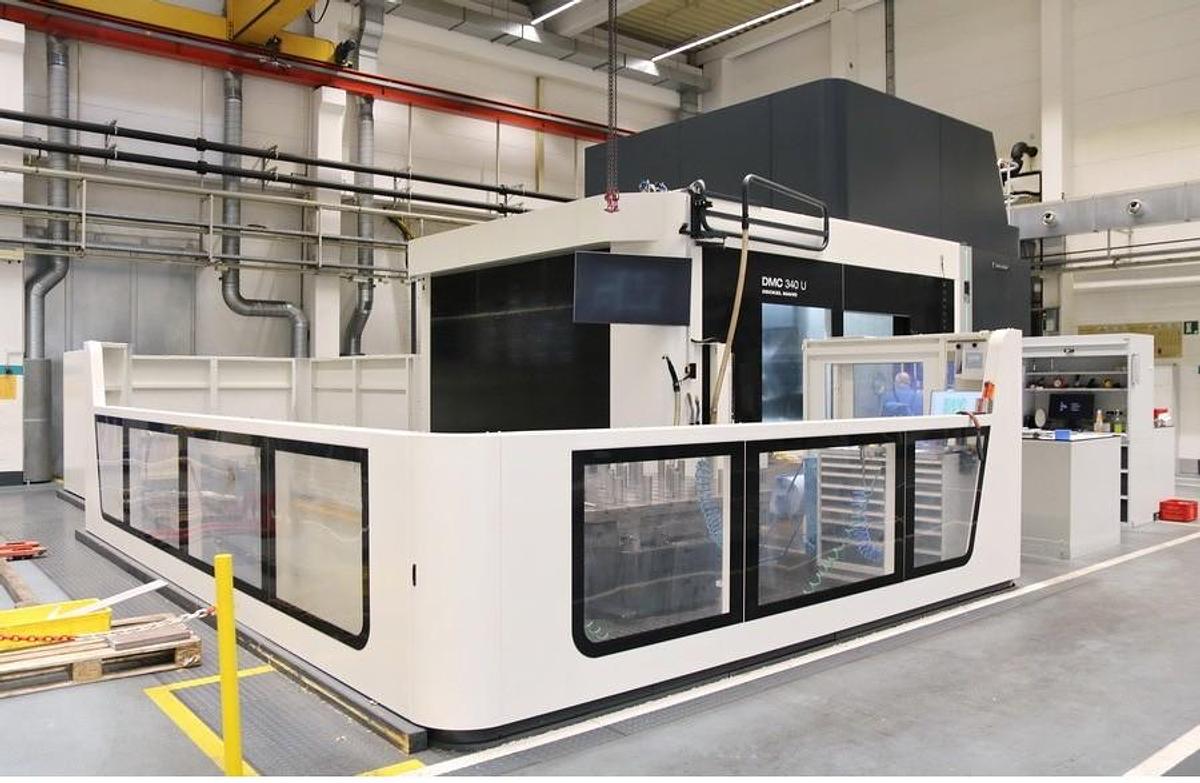

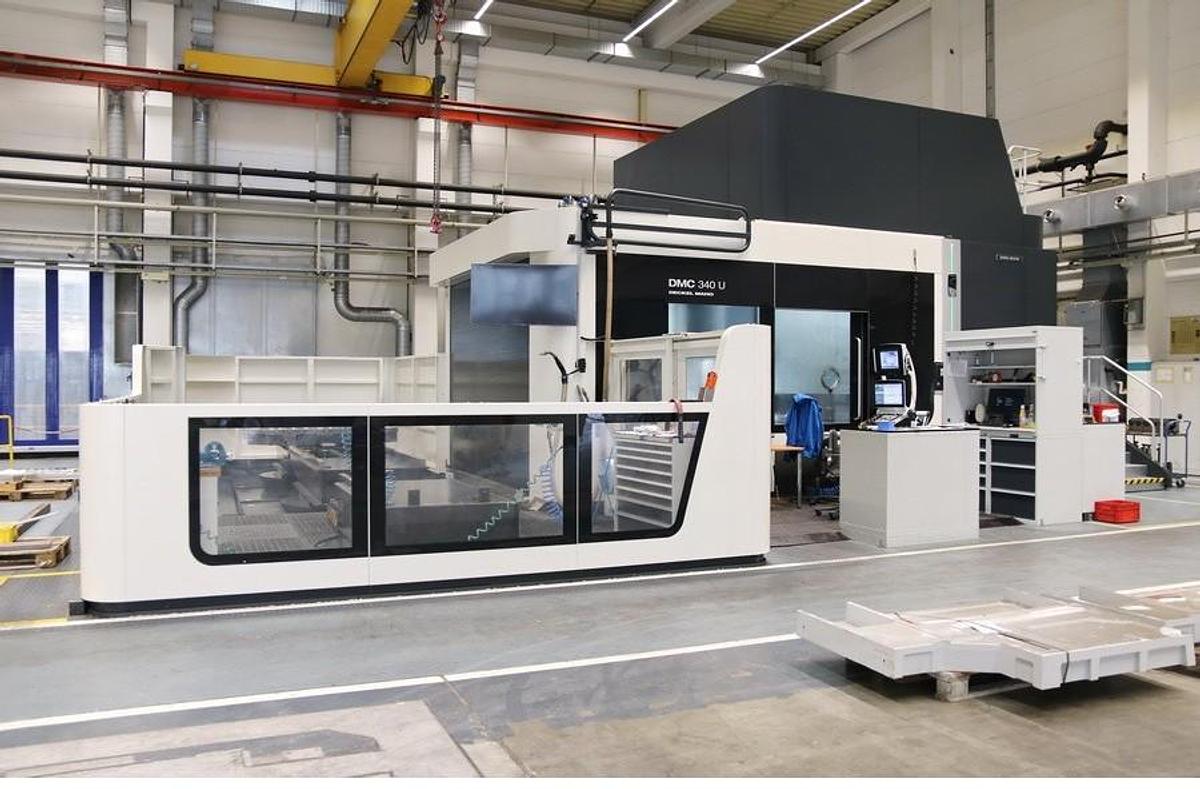

DMG DMC 340 U CNC 5-Axis Universal Machining Center with 2 Pallet Changer

Only approx. 10,500 spindle hours

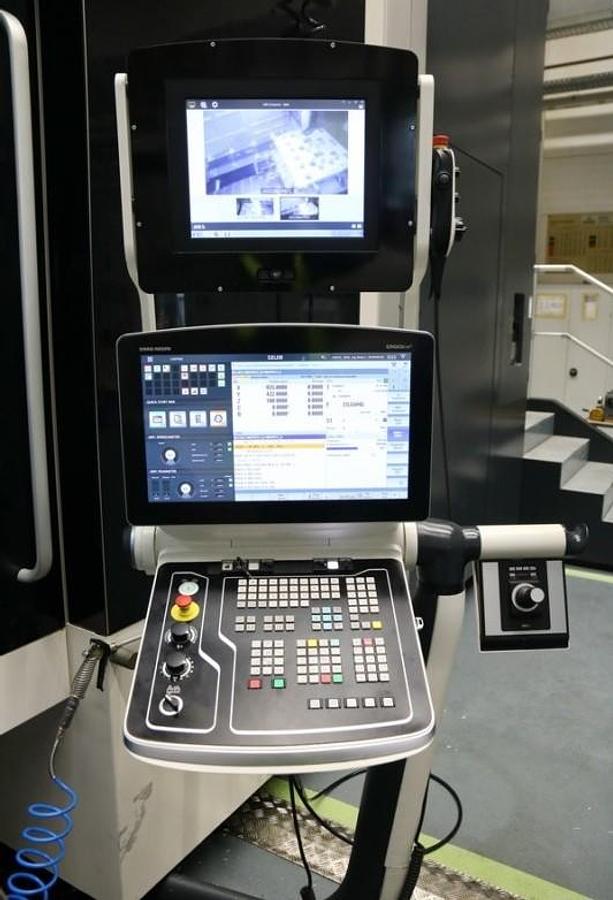

Siemens CELOS 840D SL Op CNC Control

DMC 340 U

Accuracy package

MDynamics package (Improved surface finish with reduced machining time)

Cone cleaning station with rotating brushes

Balluff tool identification

Machine protection via rapid shutdown (MPC)

Laminated safety glass

Machine design for pit installation

Heidenhain linear scales (instead of Magnescale)

Camera remote system with screen on the control panel

Features:

• 3D quickSET
• Airblow through center of spindle
• autom. Frontdoor

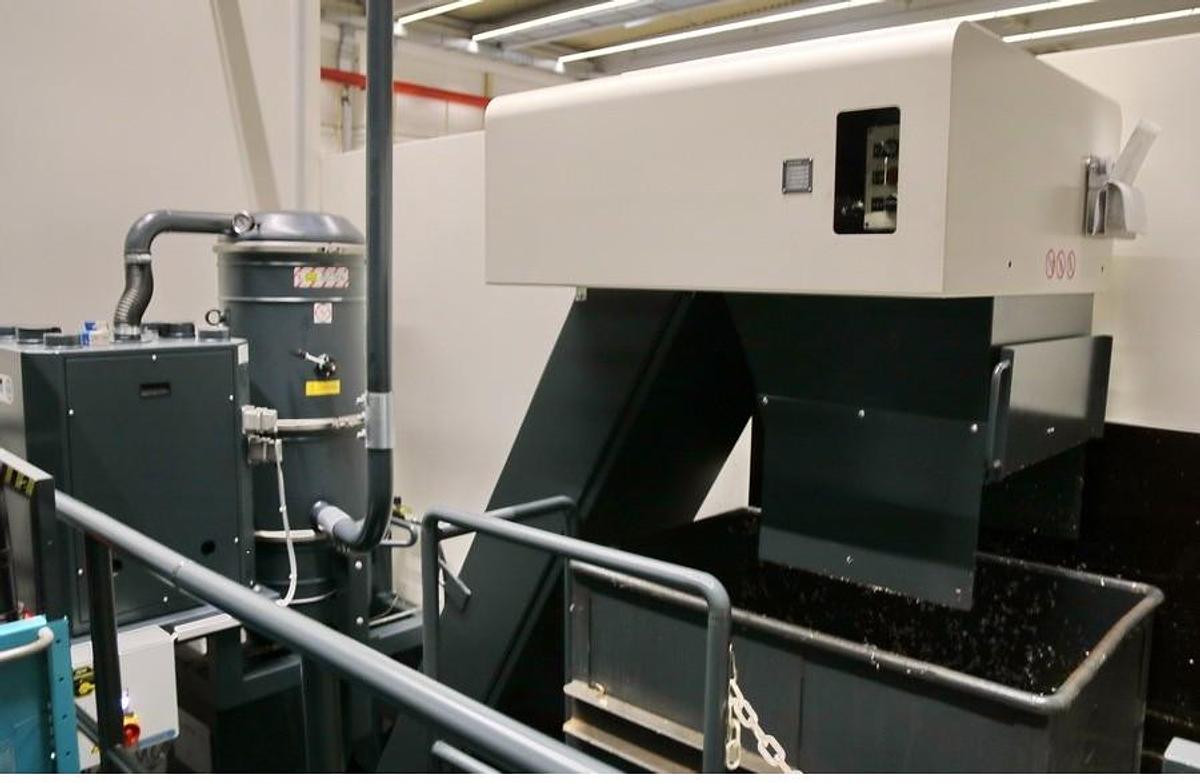

• Chip conveyor
• Coolantsystem
• Documents
• elektr. hand wheel
• flush system

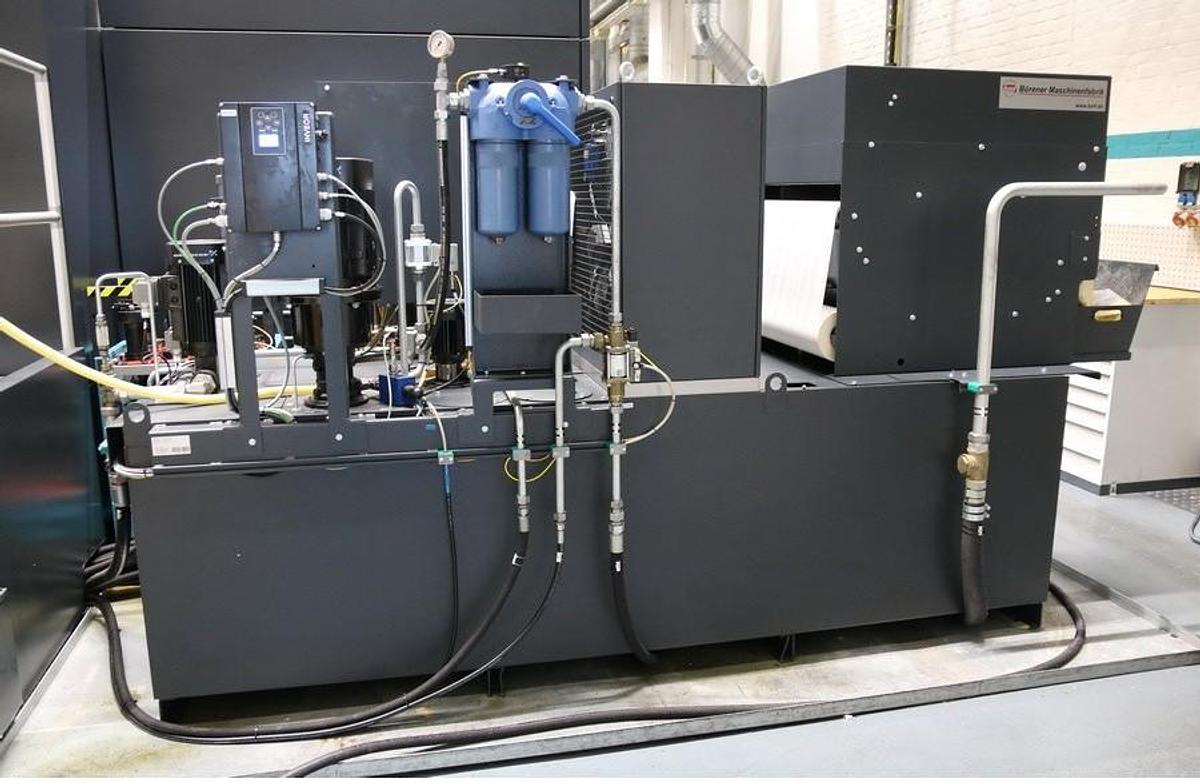

• high pressure coolant 10-80 bar
• oil mist extraction
• pallet changer 2 pos.
• Rotary screen
• Signal lamp - 4 color
• test probe Renishaw RMP 60
• through spindle coolant
• tool setting (Blum Laser NT Hybrid)

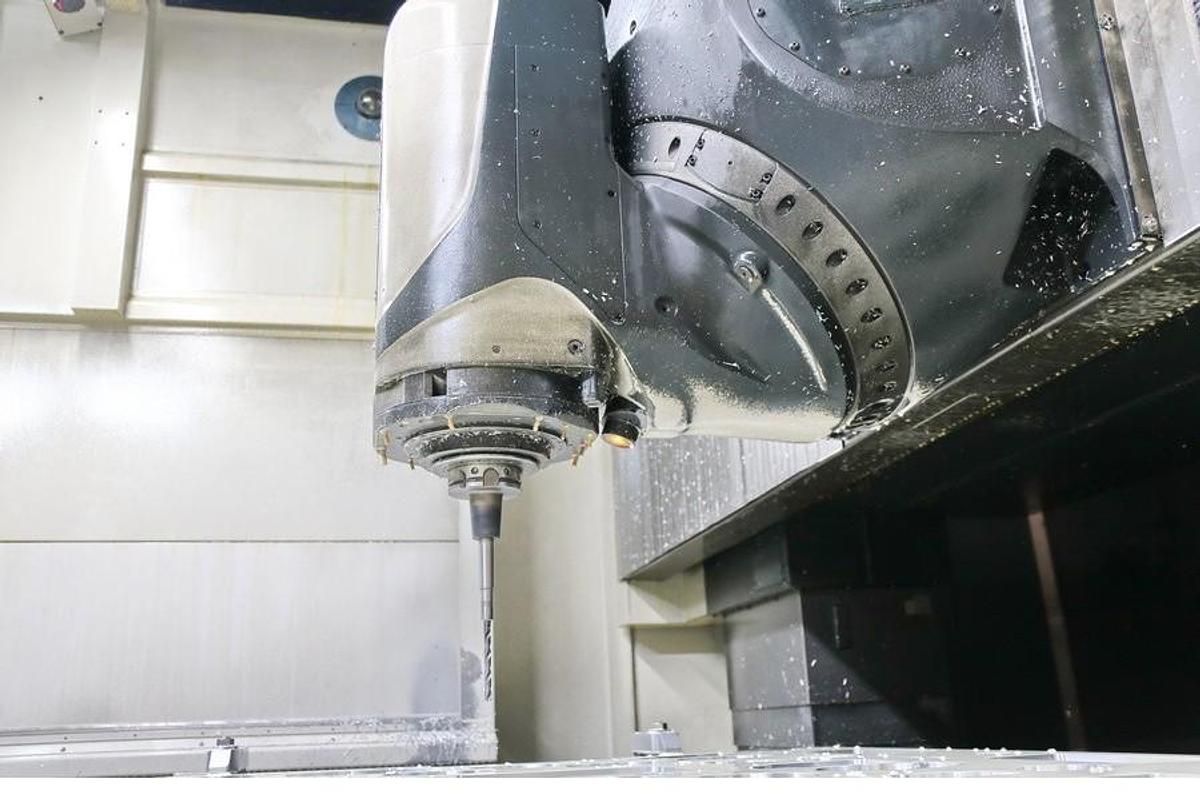

Main Spindle:

max. spindle speed 20 - 15.000 rpm

power capacity - main spindel 52 / 42 kW

tool taper HSK-A100

max. Torque 404 / 280 Nm

swivellable B: -30° / +180 °

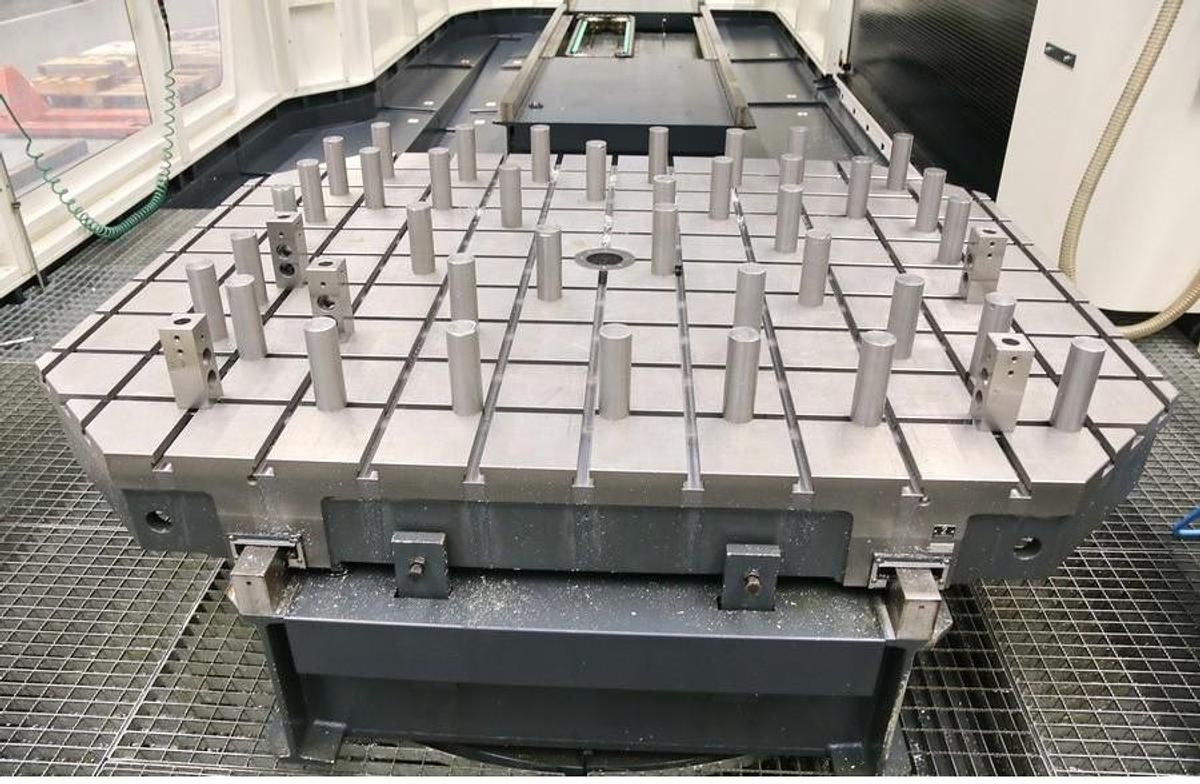

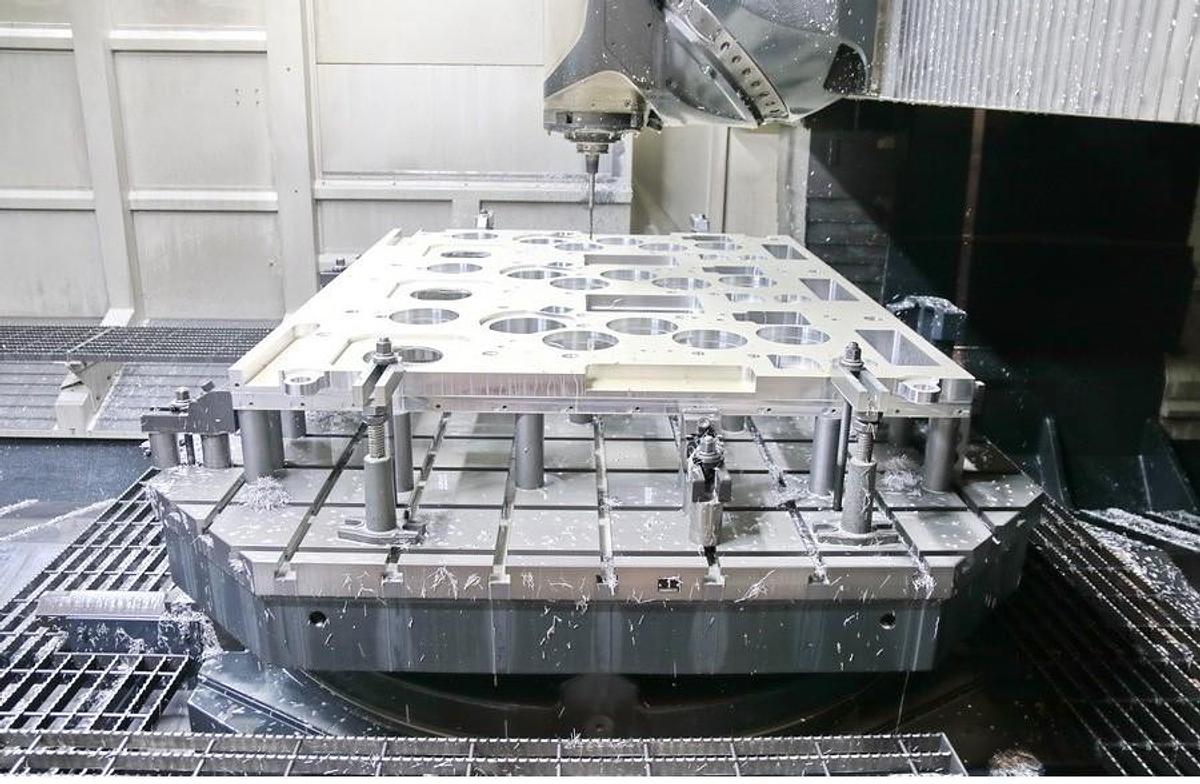

NC-Rotary Table:

table diameter 2,500 x 2,000 mm

max. table load 10,000 kg

table speed 5 rpm

distance spindle center to table - vertical 230 - 1,830 mm

distance spindle nose and table - vertical -1,600 - 1,800 mm

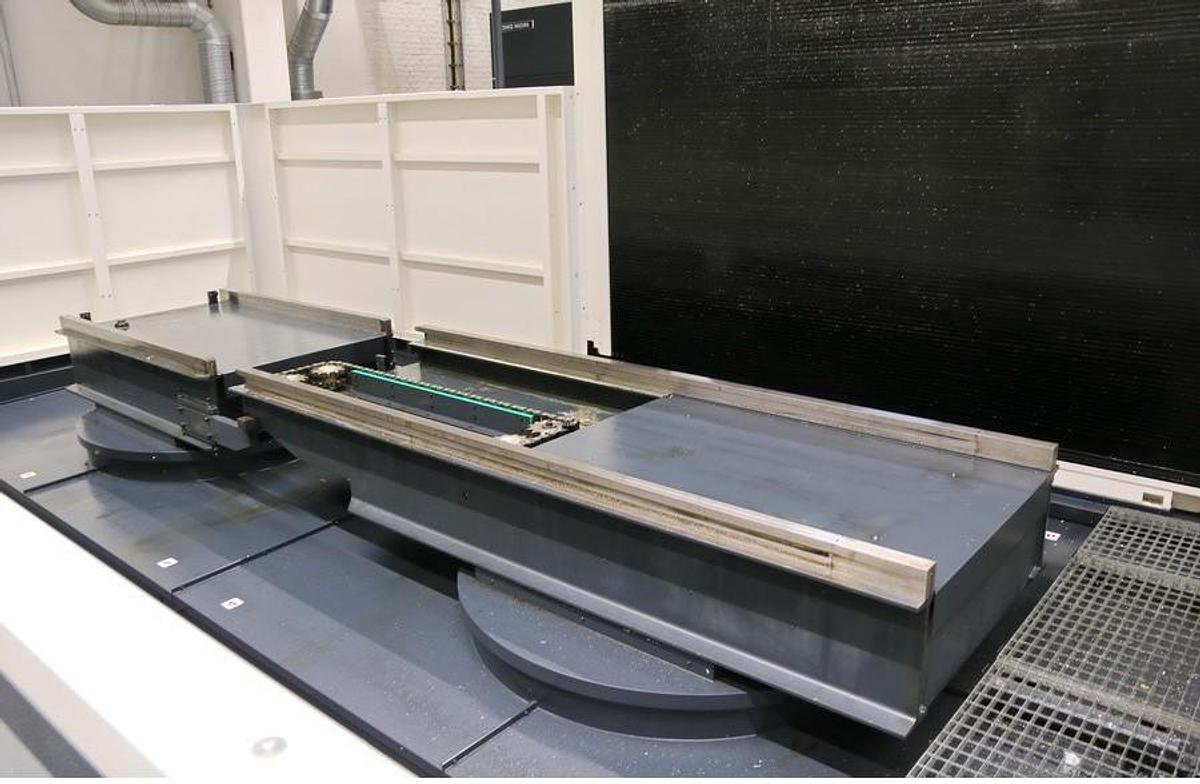

2 Pallet with Changer

Tool-Presetter:

type - 5x Rad- / Wheel

number of toolpositions 303 pos.

max. tool diameter110 mm

max. tool-dia with free toolbox 280 mm

max. tool length 900 mm

max. tool weight 45 kg

tool changing time 7.5 sec
