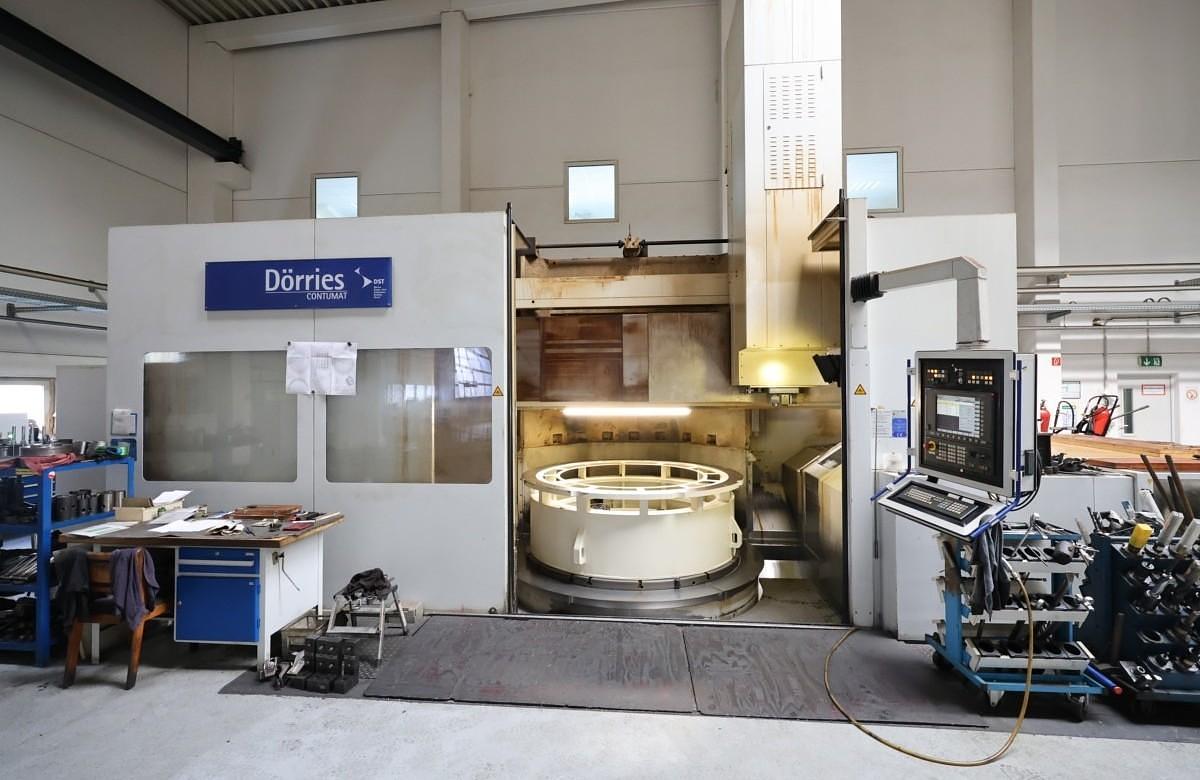

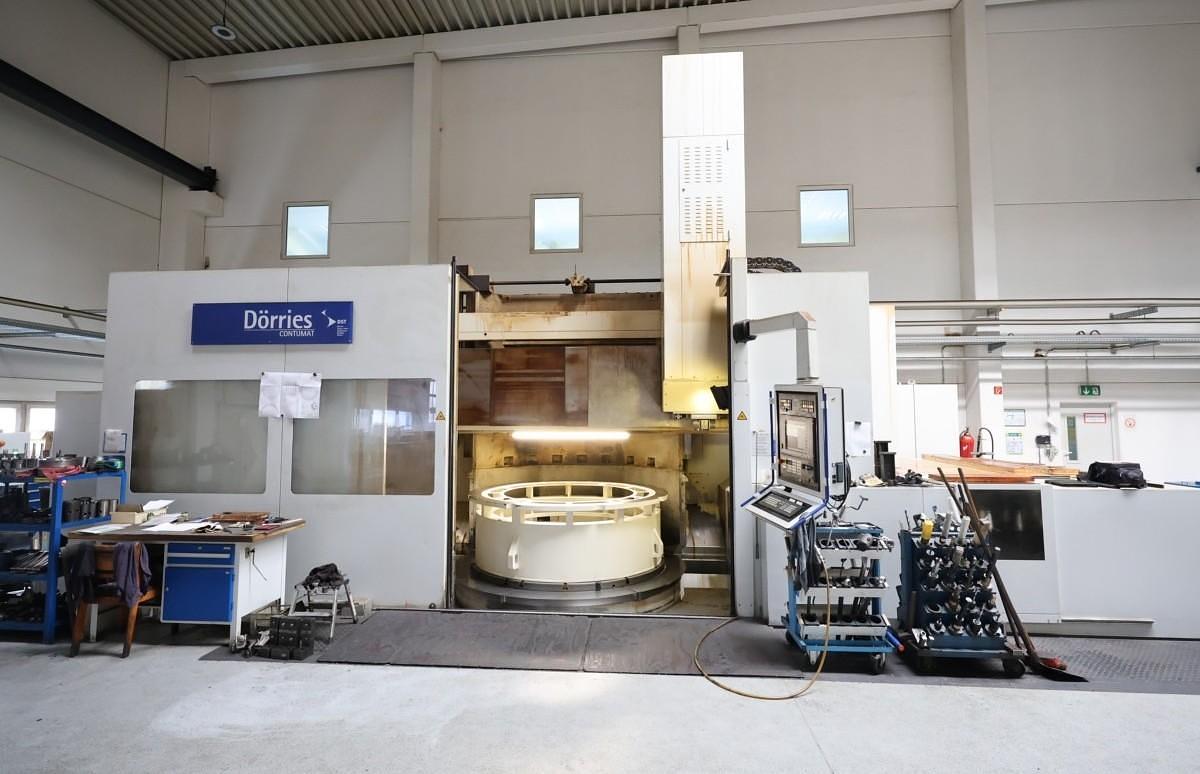

Dorries VCE 2800/220 MC So CNC Single Column Vertical Boring & Milling Machine with Live Spindle & Table C Axis

Dorries VCE 2800/220 MC So CNC Single Column Vertical Boring & Milling Machine with Live Spindle & Table C Axis

or
Call 770-509-0744

Description

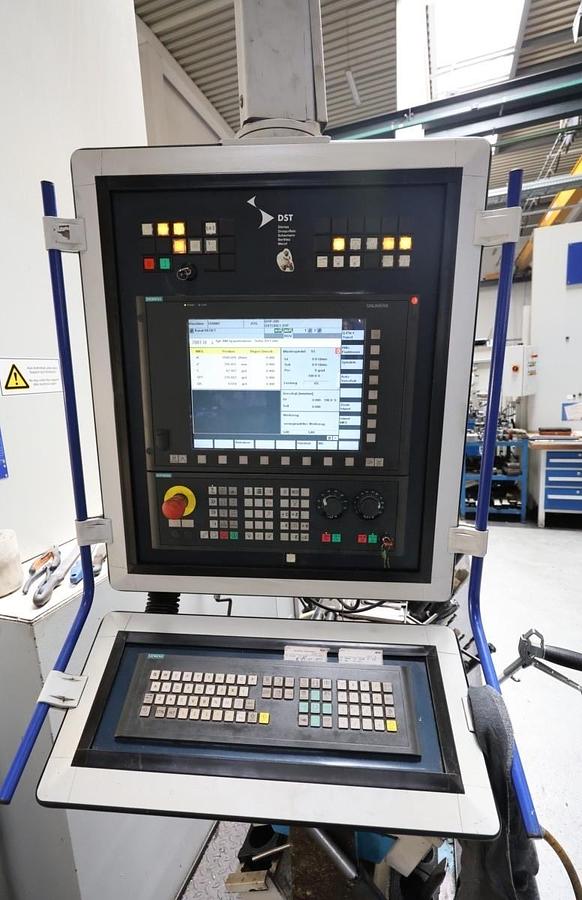

  • Siemens SINUMERIK 840D CNC Control
  • Live Spindle & Table C-Axis

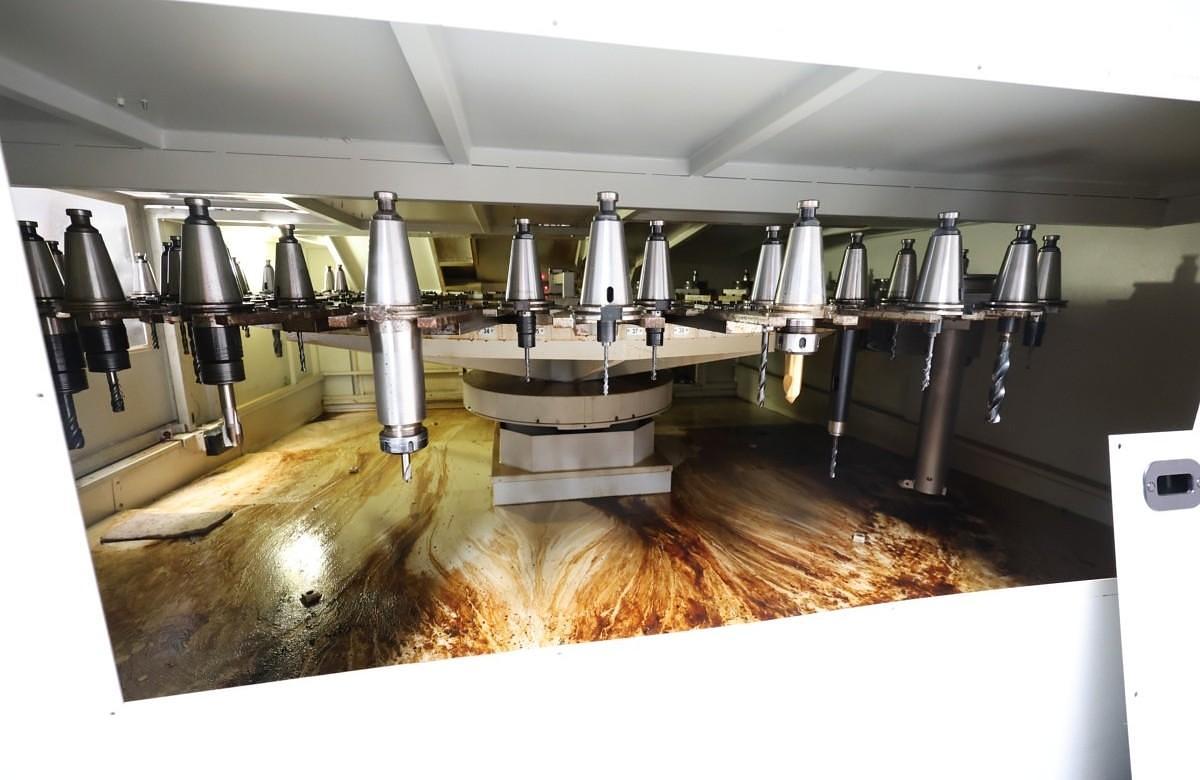

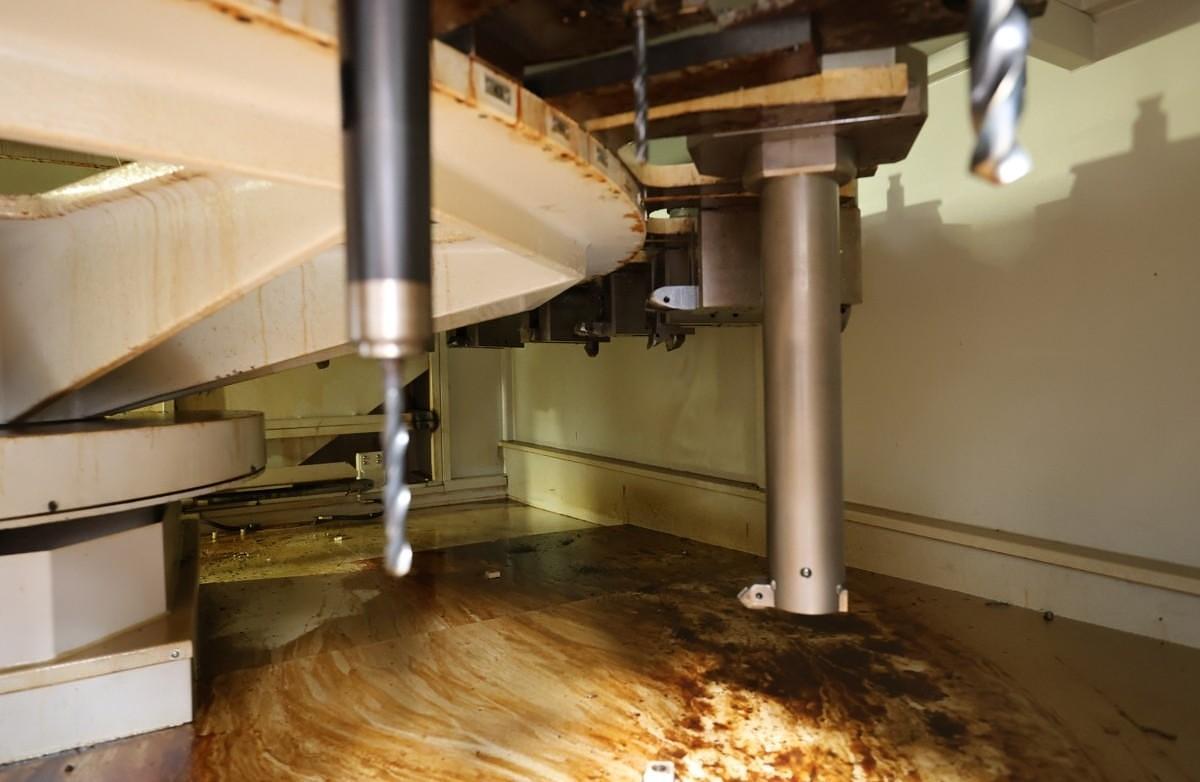

  • 24-72-fold pick-up magazine
  • Protective device
  • Various turning tool holders
  • Various SK50 tool holders and tools
  • Various clamping devices
  • Coolant device with filter

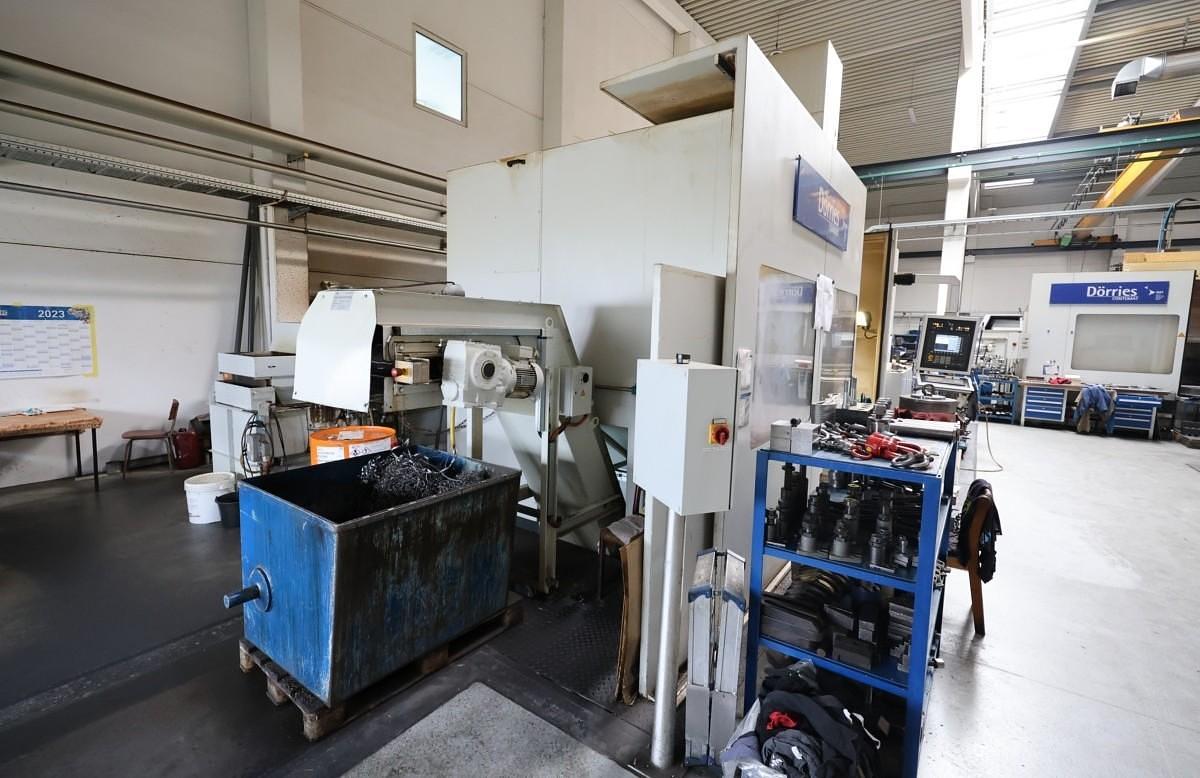

  • Chip conveyor
  • Documentation


Crossbeam Support:

Travel range X-axis: ± 1,550 mm

Crossbeam stroke W-axis: 1,200 mm


Ram:

Cross-section Ram: 300 x 250 mm

Plunging diameter: 380 mm

Travel Z-axis Ram: 1,750 mm


Drilling and Milling Device:

Tool holder SK 50

Drive power 30 kW

Speed range 2,000 rpm

Torque 1395 Nm

Specifications

ManufacturerDorries
ModelVCE 2800/220 MC So
Year2009
ConditionUsed
Stock Number5654277
Table diameter2,200 mm
Swing2,800 mm
Turning height2,140 mm
Table capacity17,000 kg
Table turn speed280 rpm
Live spindle speed2,000 rpm
Live spindle motor30 kW
C axis speeds0.006 - 7.5 rpm
Table torque44,900 Nm
Table drive80 kW
Feed rates18,000 mm/min
Machine weight61.1 Ton
Total power requirement160 kW
