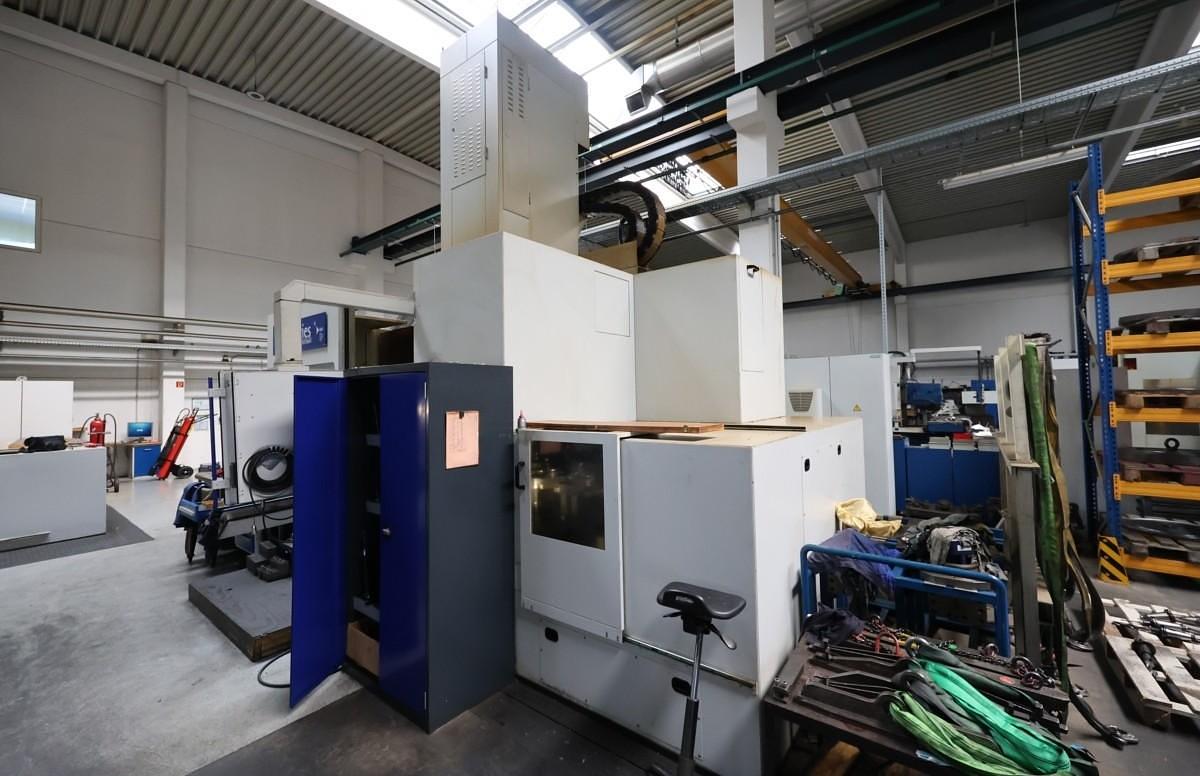

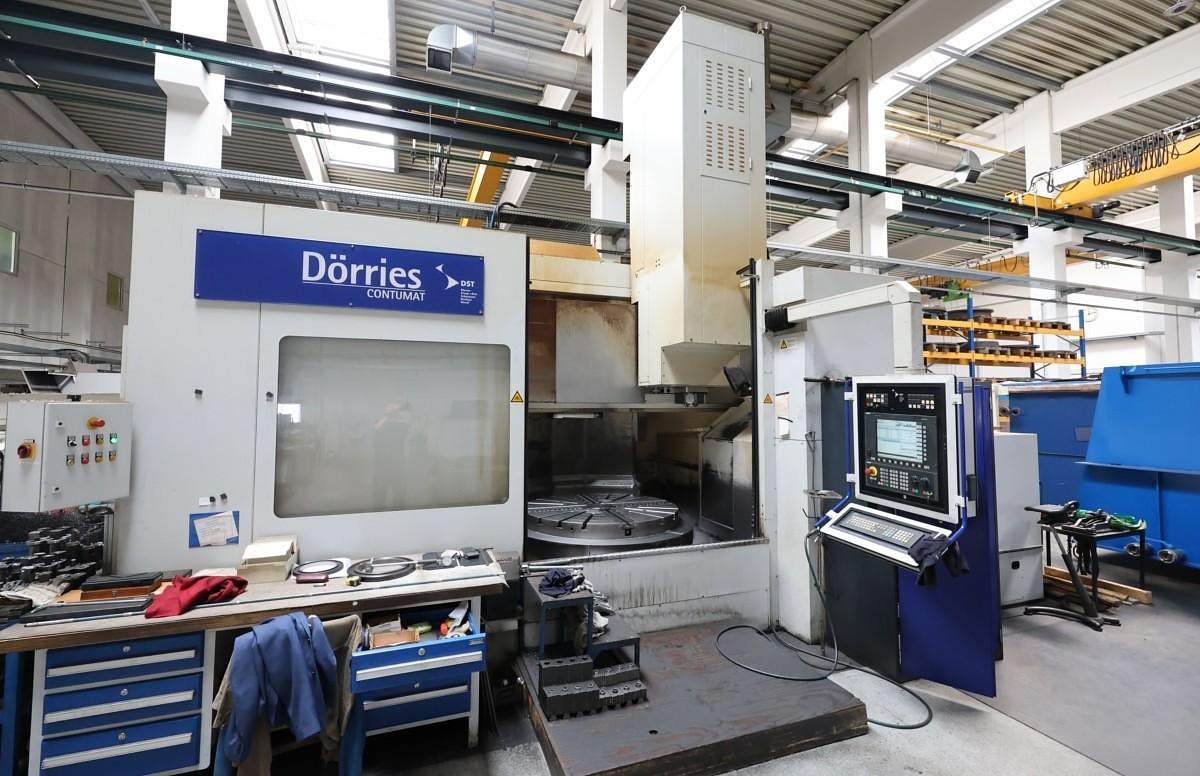

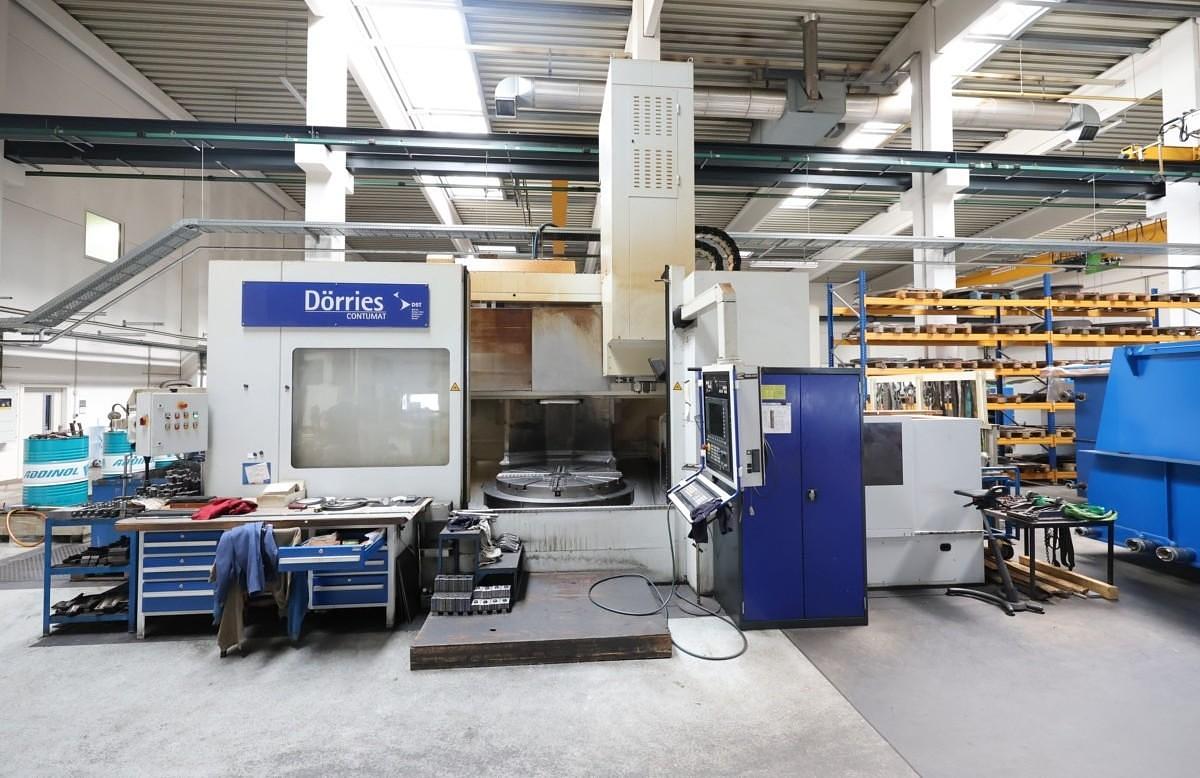

Dorries VCE 1600/140 MC F CNC Single Column Vertical Boring & Milling Machine with Live Spindle and Table C-Axis

Dorries VCE 1600/140 MC F CNC Single Column Vertical Boring & Milling Machine with Live Spindle and Table C-Axis

or
Call 770-509-0744

Description

  • Siemens SINUMERIK 840D SL CNC Control
  • Live Spindle & Table C-Axis
  • 16-40-fold pick-up magazine

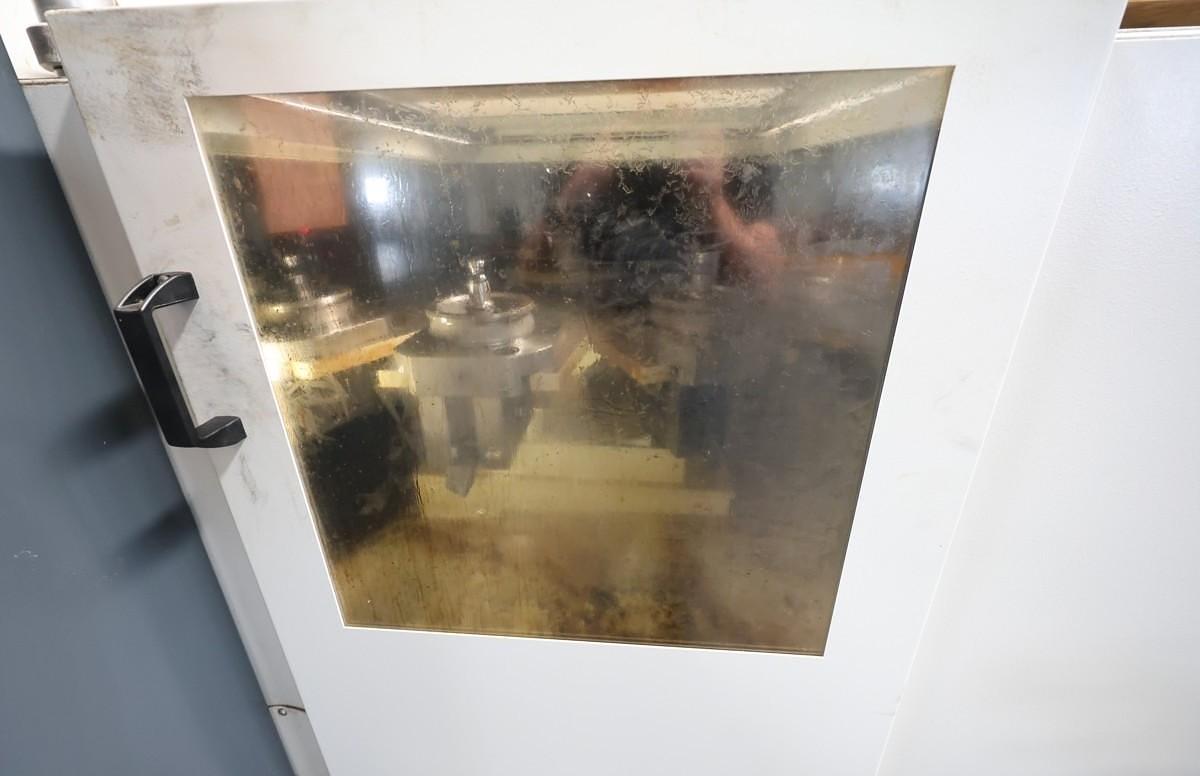

  • Protective device
  • Various turning tool holders

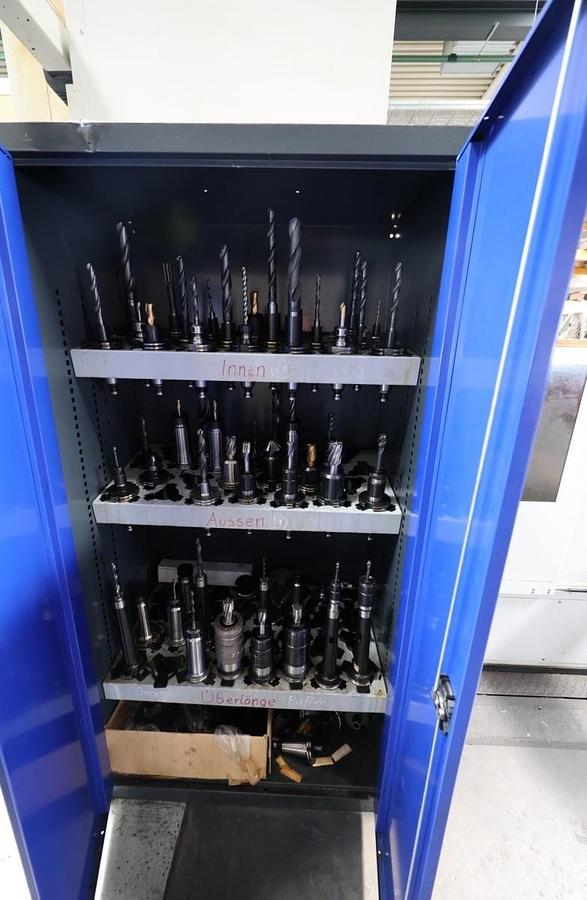

  • Various SK50 tool holders and tools
  • Various clamping devices
  • Coolant device with filter
  • Chip conveyor
  • Documentation


Crossbeam Support:

Travel range X-axis: ± 950 mm

Crossbeam stroke W-axis: 600 mm


Ram:

Cross-section Ram: 250 x 250 mm

Plunging diameter: 340 mm

Travel Z-axis Ram: 1100 mm


Drilling and Milling Device:

Distance between milling spindle and machine table 1245 mm

Tool holder SK 50

Drive power 30 kW

Speed range 2,000 rpm

Torque 1395 Nm

Specifications

ManufacturerDorries
ModelVCE 1600/140 MC F
Year2010
ConditionUsed
Stock Number5654276
Table diameter1,400 mm
Swing1,600 mm
Turning height1,245 mm
Table capacity9,000 kg
Table turn speed450 rpm
Live spindle speed2,000 rpm
Live spindle motor30 kW
C axis speeds0.004 - 5 rpm
Table torque13,400 Nm
Table drive60 kW
Feed rates18,000 mm/min
Machine weight47.4 Ton
