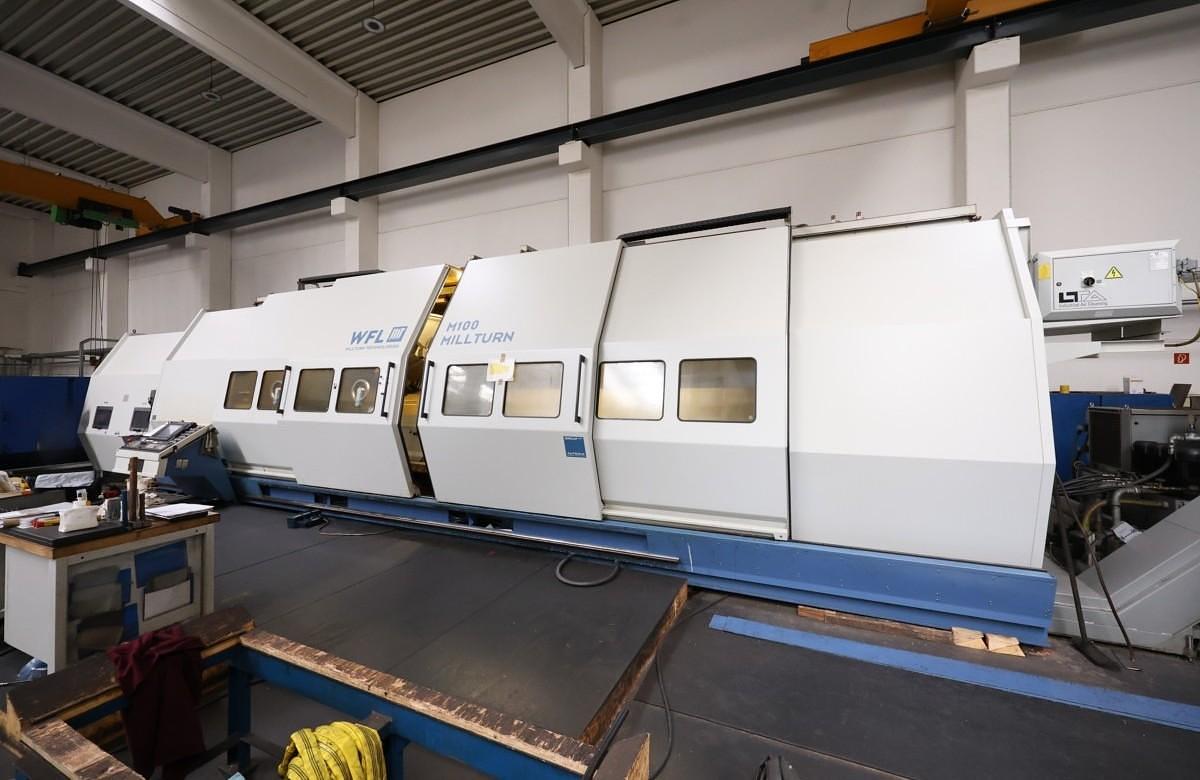

WFL MillTurn M100 x 6500 CNC Turning & Milling Center
WFL MillTurn M100 x 6500 CNC Turning & Milling Center
or
Call 770-509-0744
Description
- Siemens SINUMERIK 840D CNC Control
- with internal coolant supply
- chip conveyor

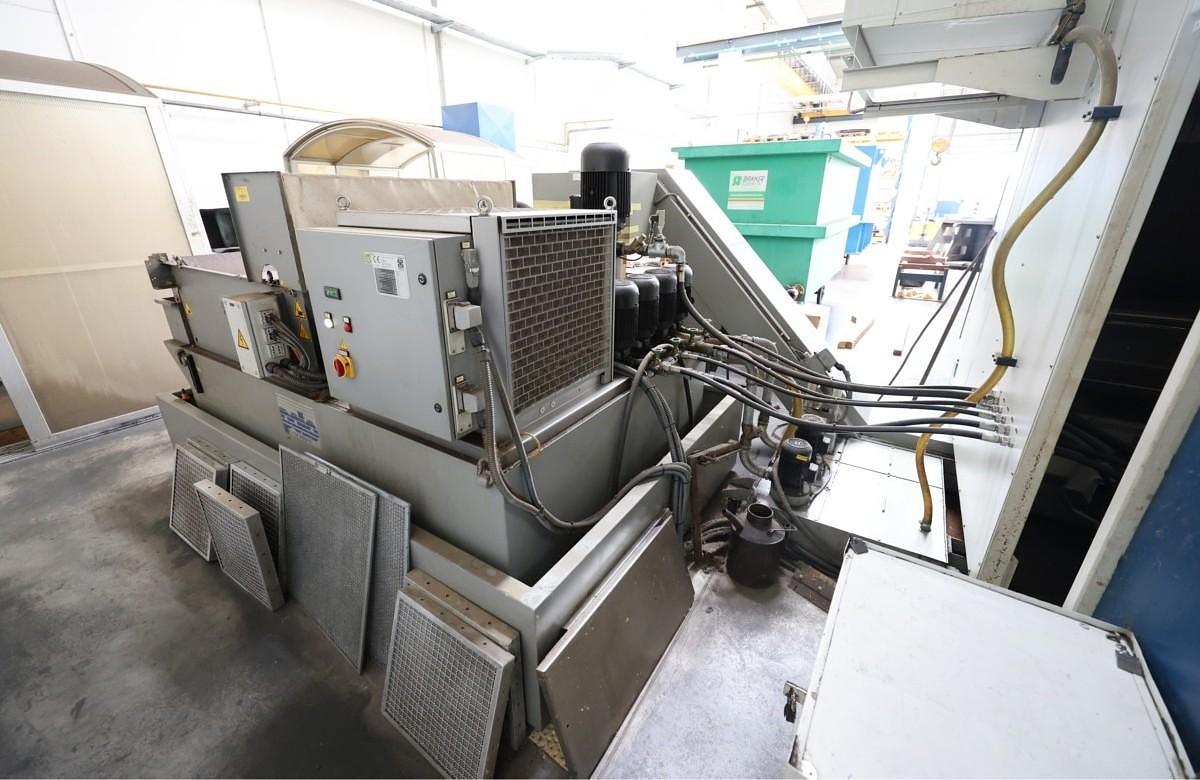

- paper belt filter system
- boring bar with device
- measuring equipment
- clamping sleeves
- tool holders
- spare parts
- technical documentation
Rotary Spindle:
Spindle diameter - 320 mm
Spindle bore - 245 mm
Main drive:
Max. spindle speed - 1,600 rpm
Max. torque at the spindle - 4472 Nm
C-axis servo-controlled main spindle:
Max. speed - 20 rpm
Max. torque at the spindle - 3000 Nm
Holding torque of the disc brake - 6000 Nm
Tailstock:
Quill diameter - 180 mm
Quill stroke - 200 mm -Quill force (adjustable) - 5400 to 40000 N
Tool holder:
AC drive power - 30 kW
Max. spindle speed - 6000 rpm
Max. torque at the spindle - 315 Nm
Travel perpendicular to the X/Z plane (y-axis) - 500 mm [-200/+300] mm
Milling spindle diameter in the front bearing - 100 mm
Specifications
| Manufacturer | WFL |
| Model | MillTurn M100 x 6500 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 5654275 |
| Center distance | 6,500 mm |
| Swing diameter over slide rest | 900 mm |
| Chuck speed | 1,600 rpm |
| Milling head speed | 6,000 rpm |
| Z axis travel | 6,870 mm |
| X axis travel | 920 mm |
| Tool taper | CAPTO C8 |
| Max workpiece weight | 7,352 kg |
| Total power requirement | 72 kW |
| Machine dimensions | 11 x 3.2 x 3.5 m |
