FPT DINOX 350 CNC 5-Axis Gantry Type Milling Machine
FPT DINOX 350 CNC 5-Axis Gantry Type Milling Machine
or
Call 770-509-0744
Description

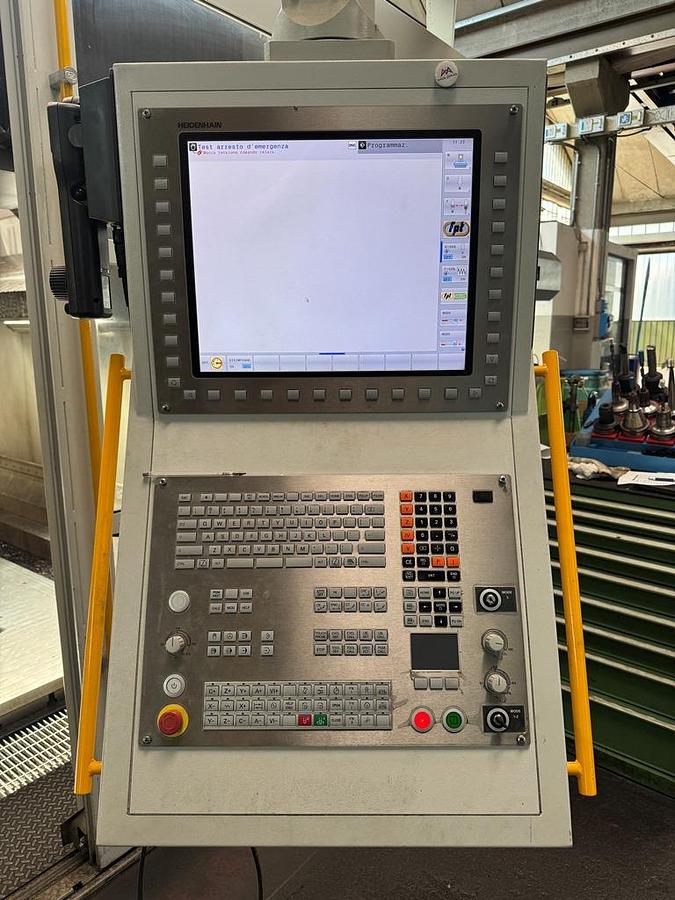

Heidenhain TNC 640 CNC Control
5-Axis Machining

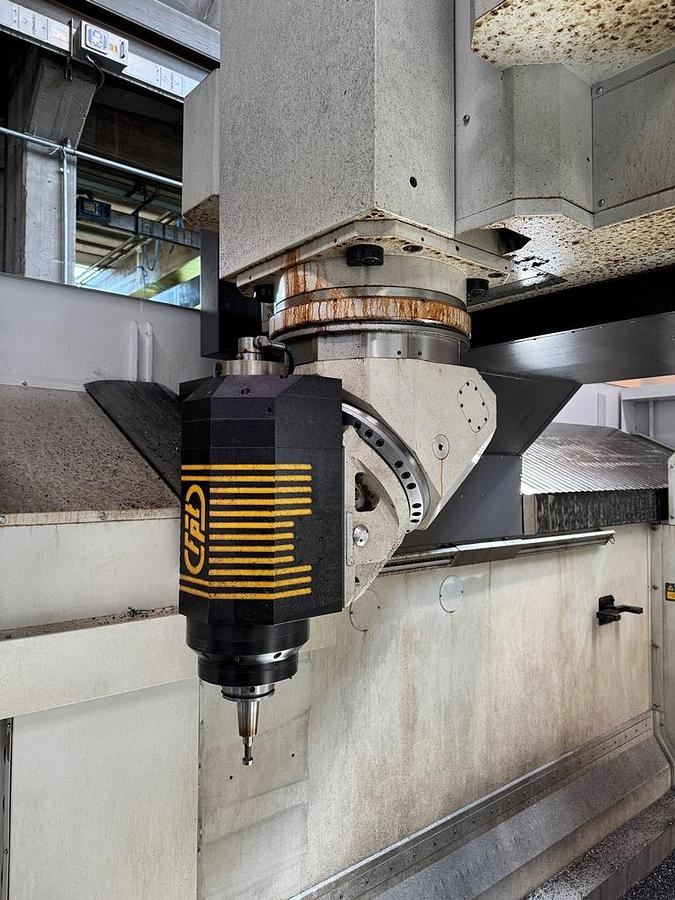

Universal head with continuous positioning
Spindle taper HSK A100
Max spindle speed 12,000 rpm
A-axis ±185°
C-axis ±270°

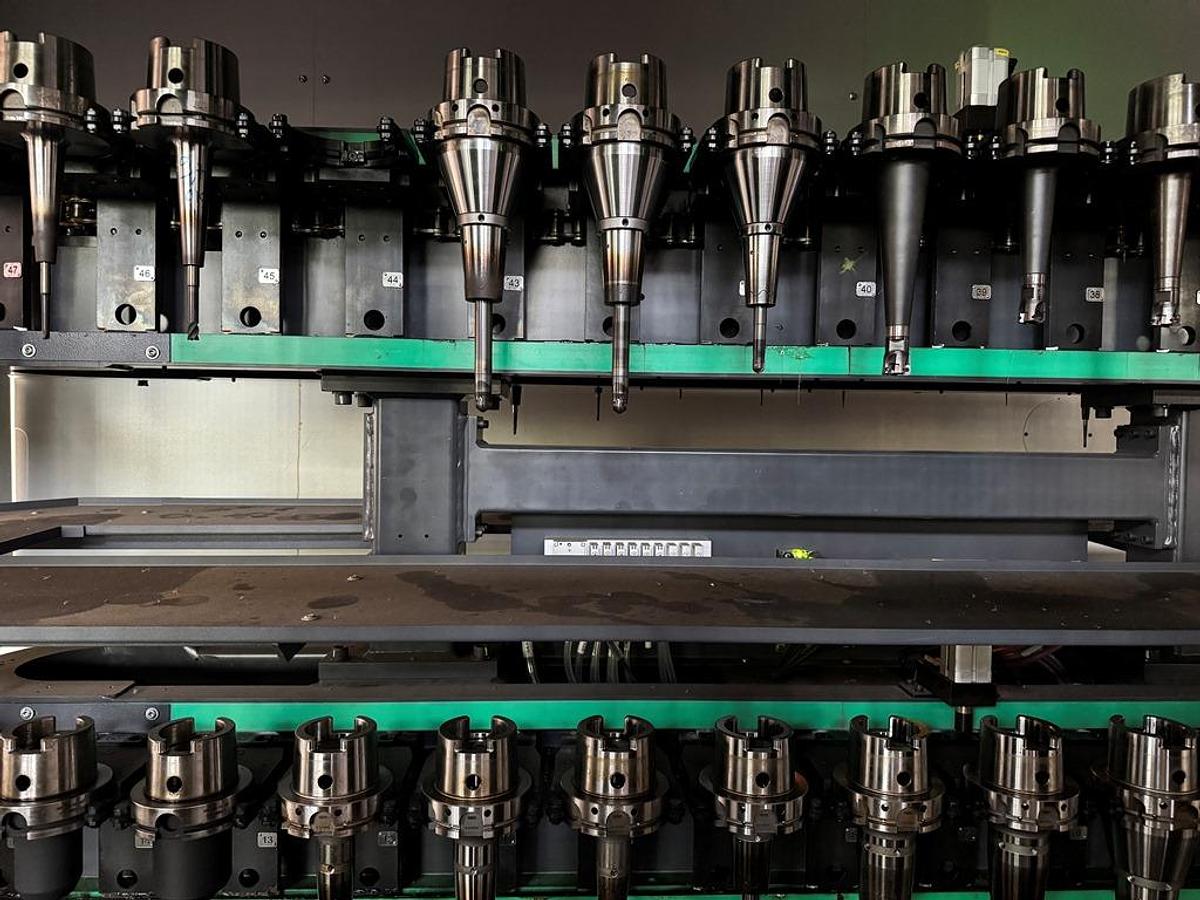

64 Position Automatic Tool Changer
Laser probe and software for tool integrity check and tool length/radius measurement
Workpiece measuring and alignment probe
External/internal coolant, 1500 l tank, p=40 bar
Wash gun for workpiece cleaning with dedicated coolant pump
Internal air coolant for High-Speed tools
Chip conveyor
Specifications
| Manufacturer | FPT |
| Model | DINOX 350 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 5654267 |
| Spindle speeds | 12,000 rpm |
| X axis travel | 2,500 mm |
| Y axis travel | 3,500 mm |
| Z axis travel | 1,300 mm |
| Table dimensions | 3,500 x 2,500 x 300 mm |
| Table capacity | 15 ton/m² |
| Rapid traverse | 40,000 mm/min |
| Spindle taper | HSK A100 |
| Total power | 85.13 kW |
| Machine Weight | 51,370 kg |
