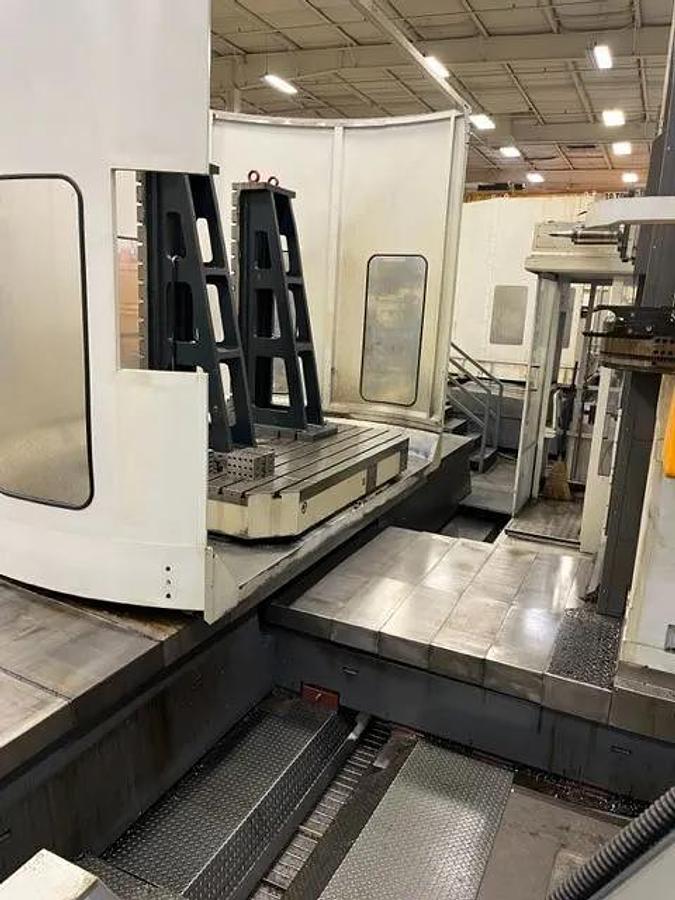

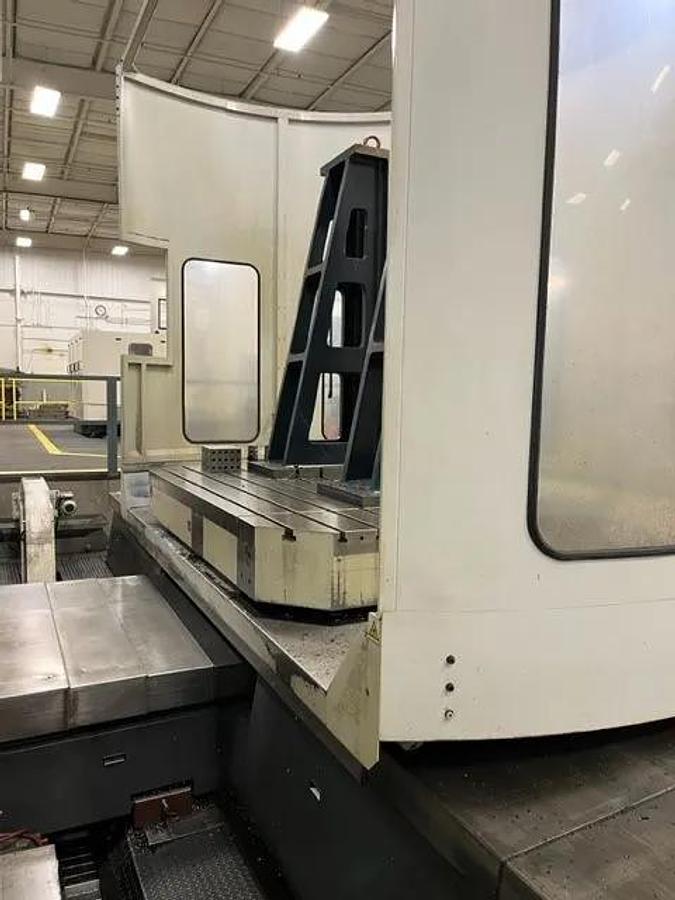

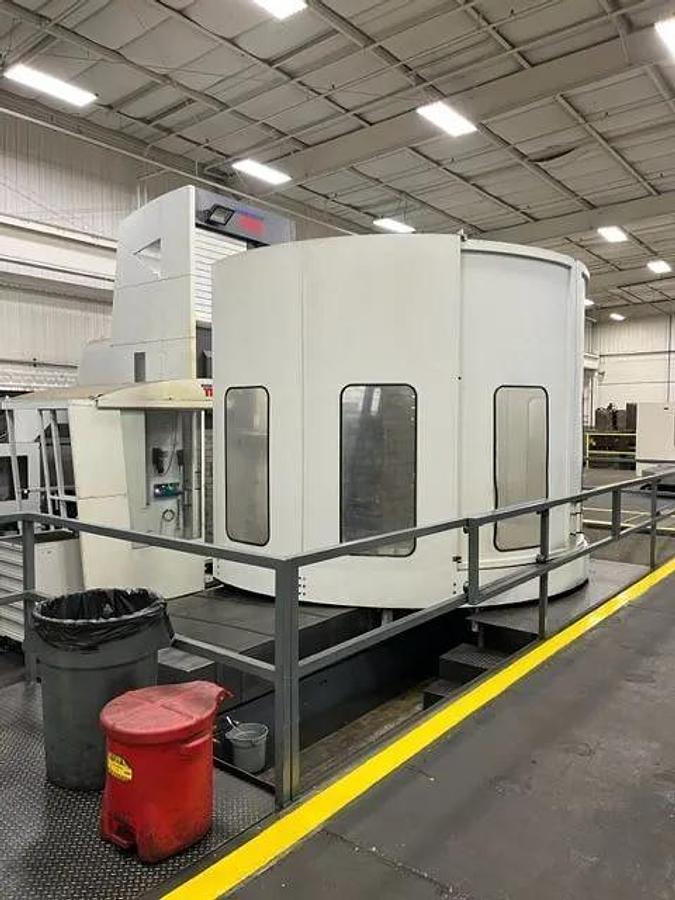

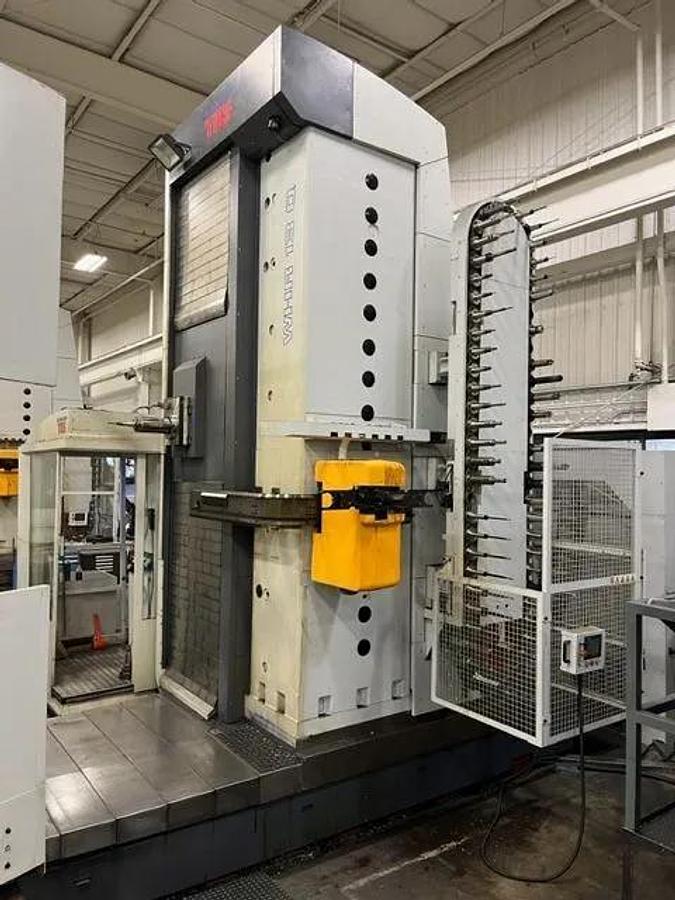

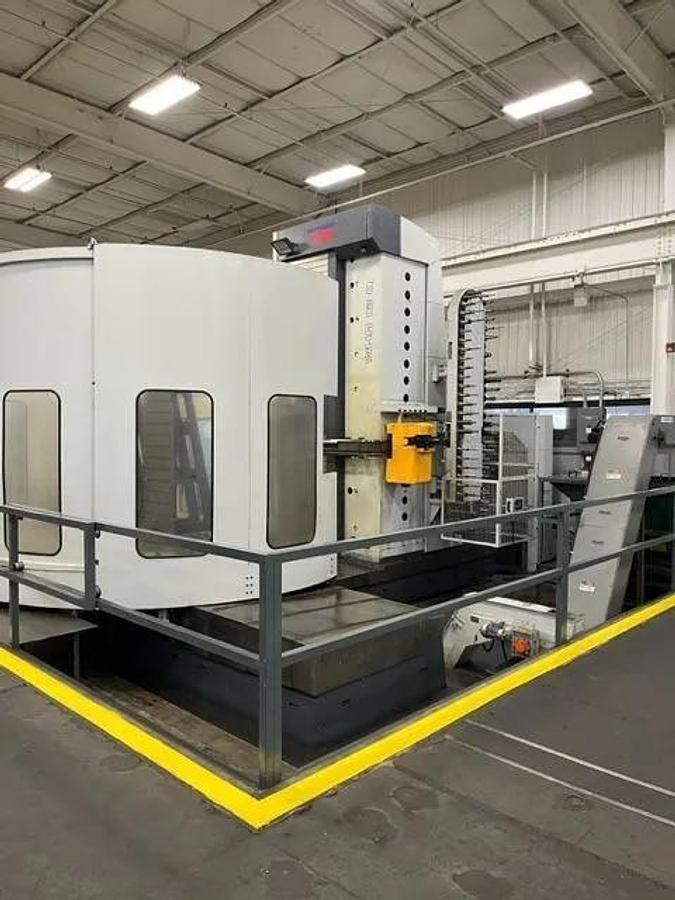

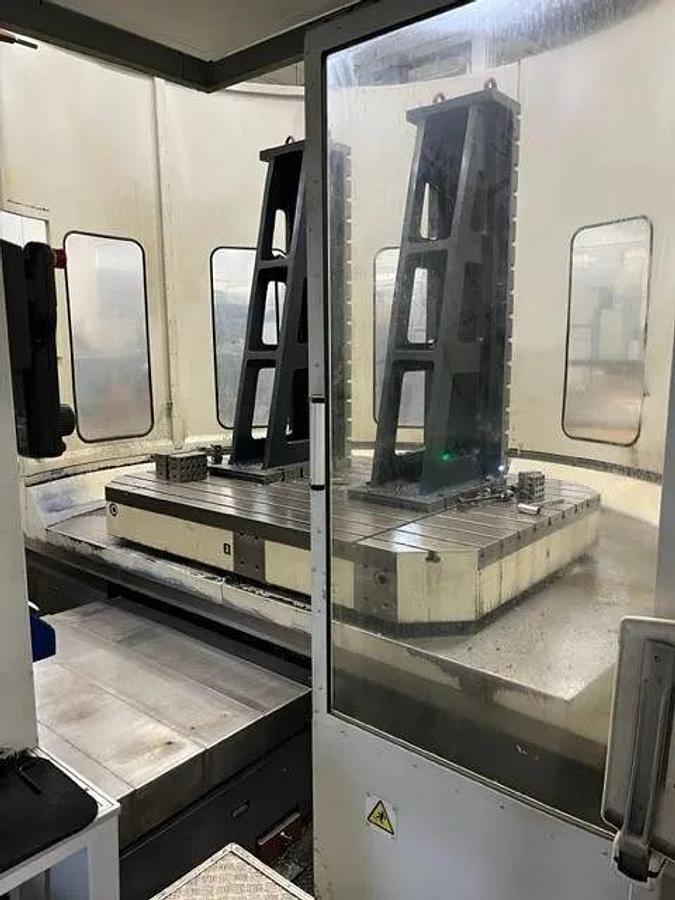

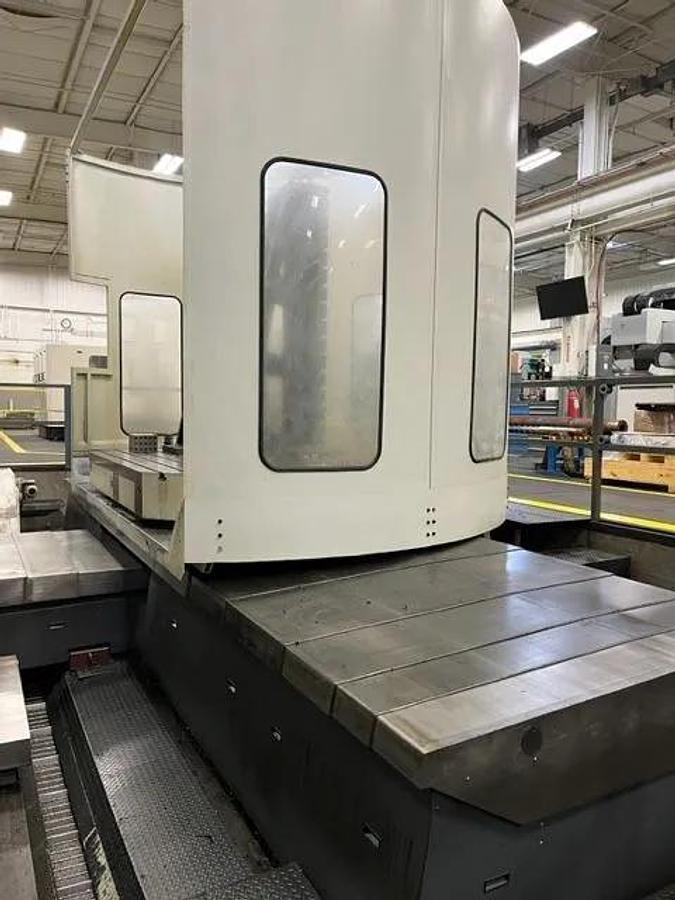

Tos WHR-13Q CNC Table Type Horizontal Boring Machine
Tos WHR-13Q CNC Table Type Horizontal Boring Machine
or
Call 770-509-0744
Description

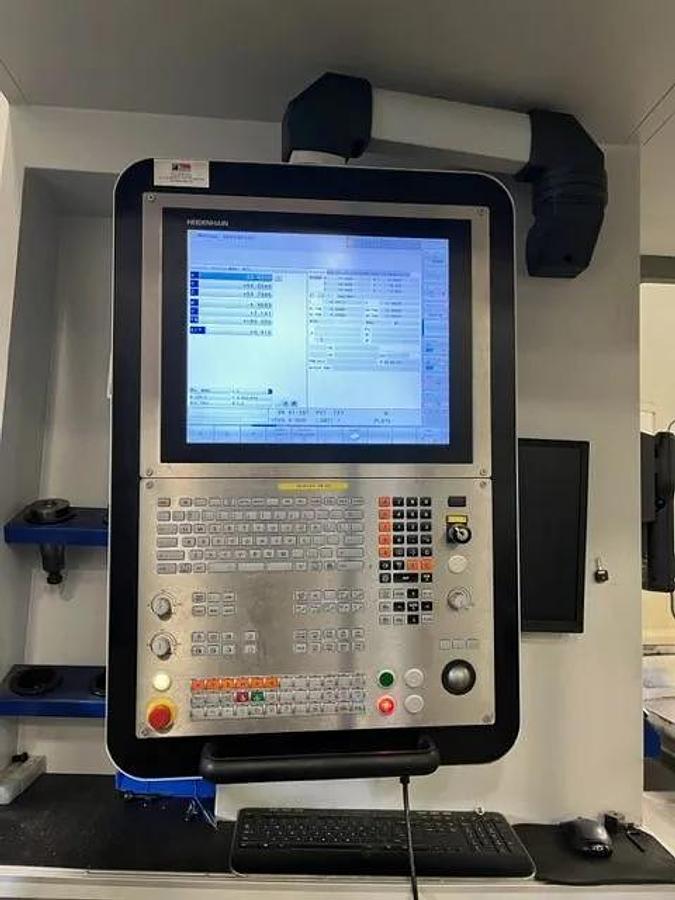

HEIDENHAIN ITNC 530 CNC CONTOURING CONTROLS
40-STATION AUTOMATIC TOOL CHANGER
THRU-SPINDLE COOLANT
T-TYPE CONSTRUCTION, INFEEDING COLUMN
BUILT B-AXIS ROTARY TABLE
OPERATORS PLATFORM
HARDENED WAYS
STEEL TELESCOPING WAY COVERS
CHIP AND SPLASH ENCLOSURE
50 HP SPINDLE DRIVE
Specifications
| Manufacturer | Tos |
| Model | WHR-13Q |
| Year | 2015 |
| Condition | Used |
| Stock Number | 5654266 |
| Spindle diameter | 130 mm |
| Spindle speeds | 3,000 rpm |
| Spindle taper | ISO 50 |
| X axis travel | 3,500 mm |
| Y axis travel | 2,500 mm |
| W axis spindle | 800 mm |
| Z axis column | 1,400 mm |
| Table dimensions | 1,800 x 2,500 mm |
| Table B-axis | 360,000 positions |
| Table capacity | 17,900 kg |
