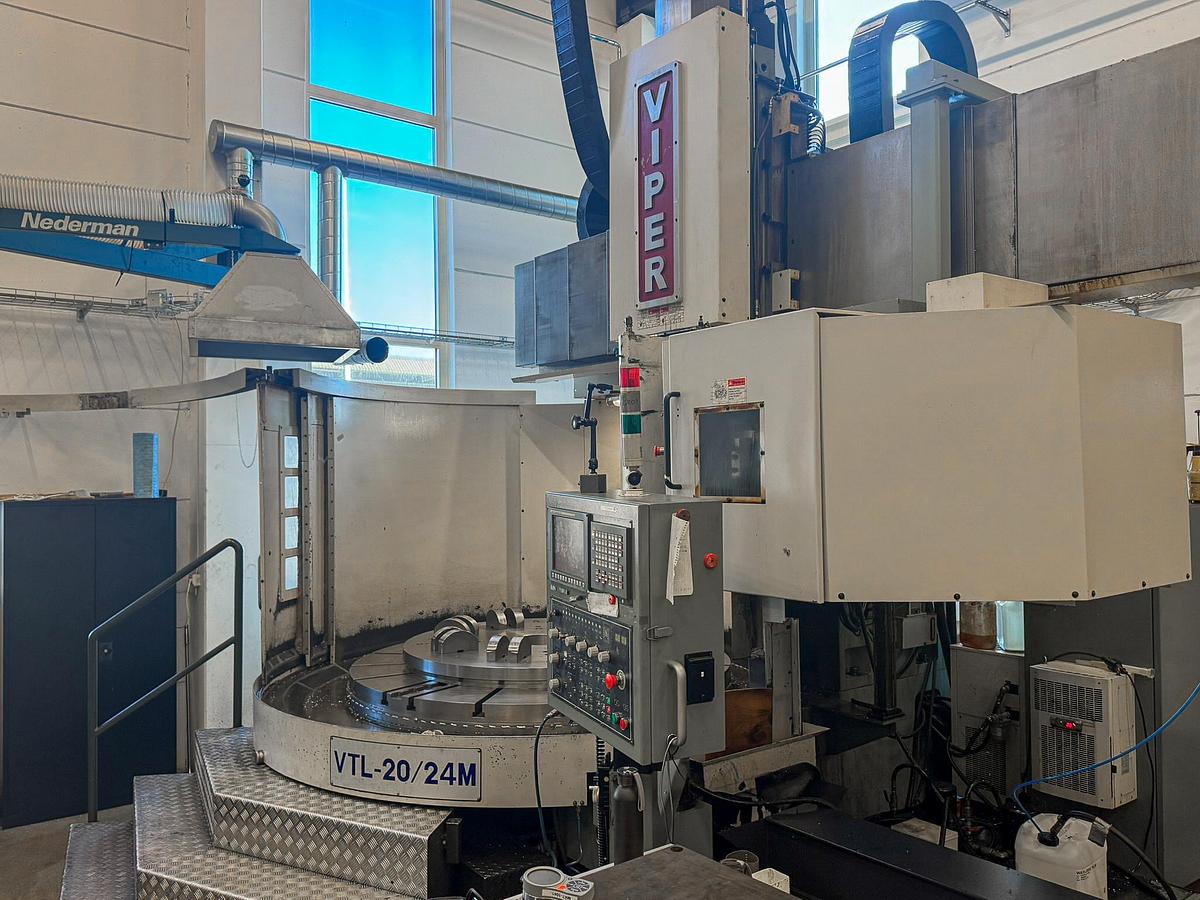

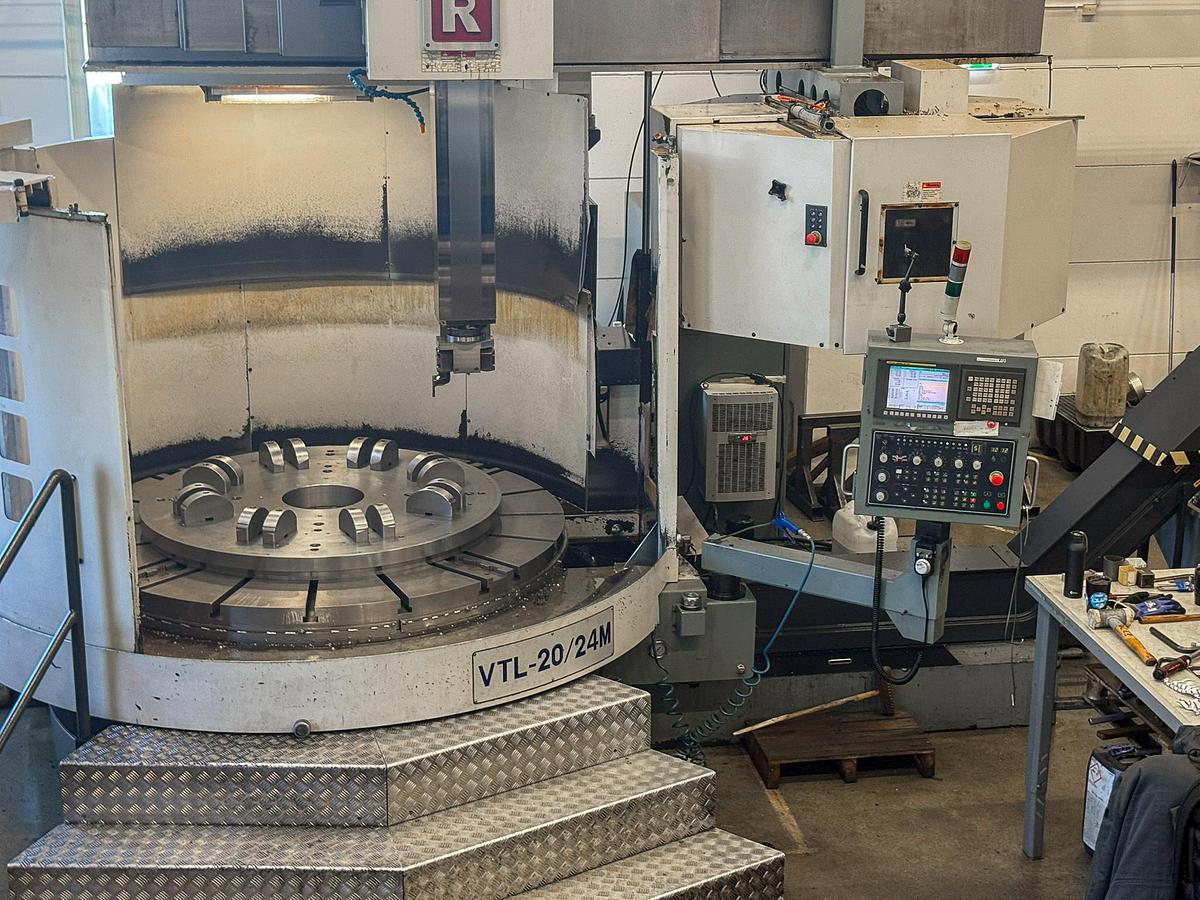

Viper 20/24 M CNC Vertical Milling & Boring Machine with Live Spindle & Table C-Axis

Viper 20/24 M CNC Vertical Milling & Boring Machine with Live Spindle & Table C-Axis

or
Call 770-509-0744

Description

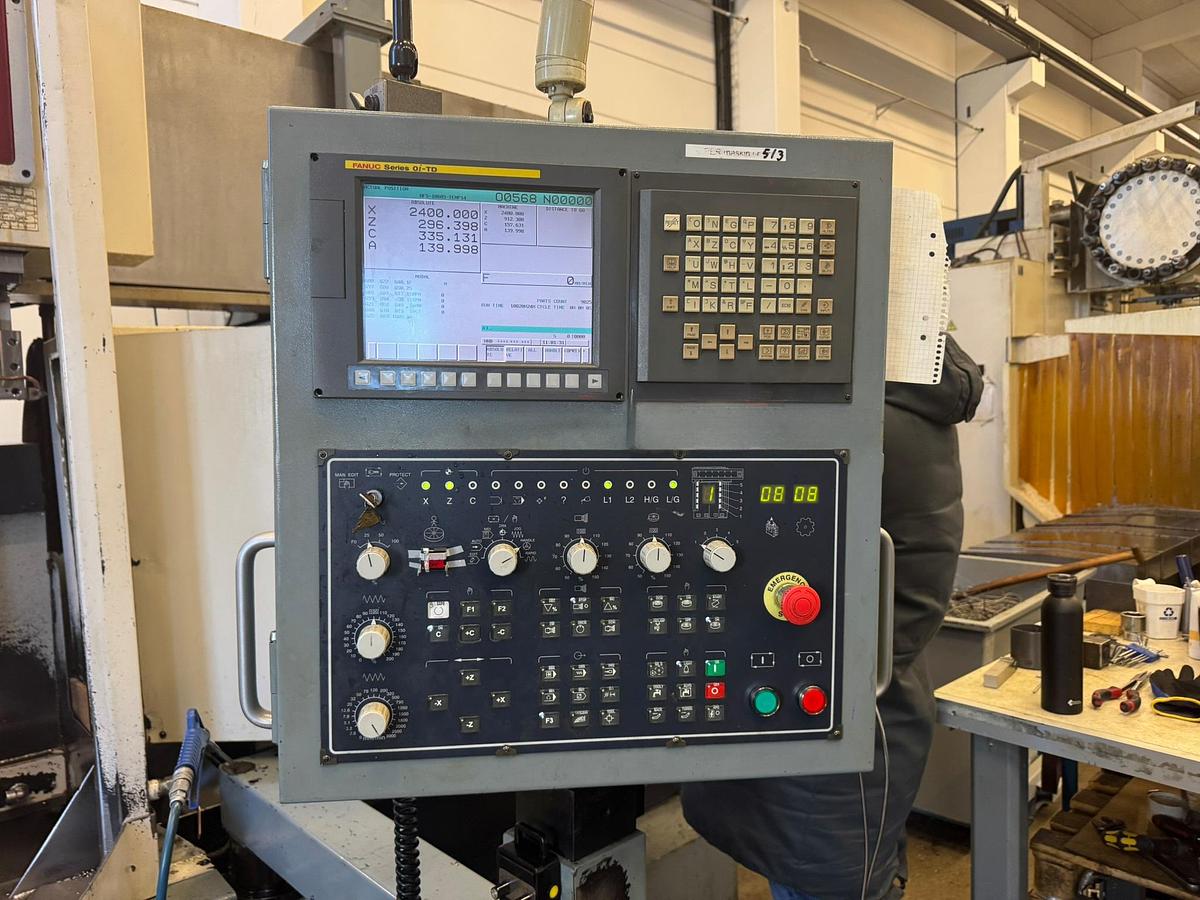

Fanuc Oi-TD CNC Control

18 Position Tool Changer (9 Turning - 9 Milling) - ISO 50

Chip Conveyor (New in 2025)

Coolant

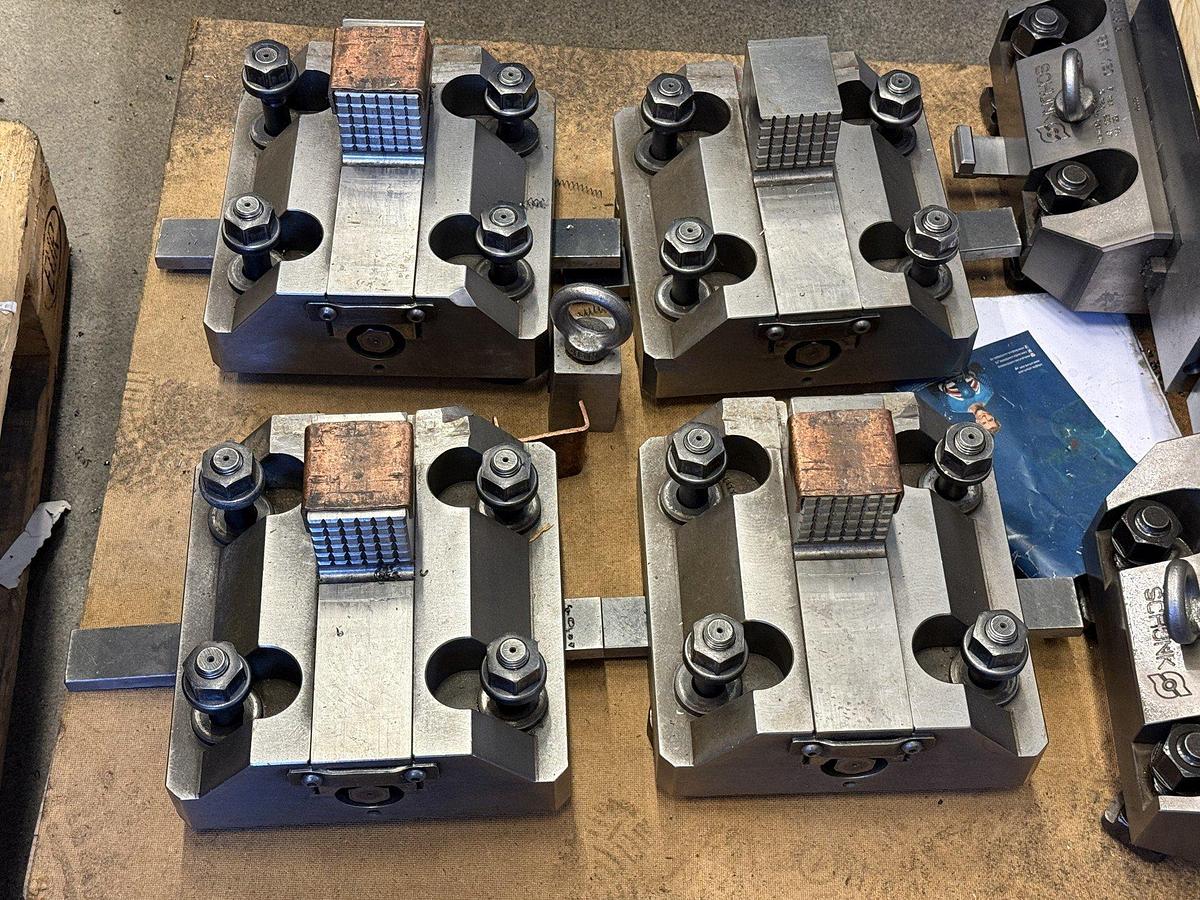

Various accessories

Coolant Through Spindle

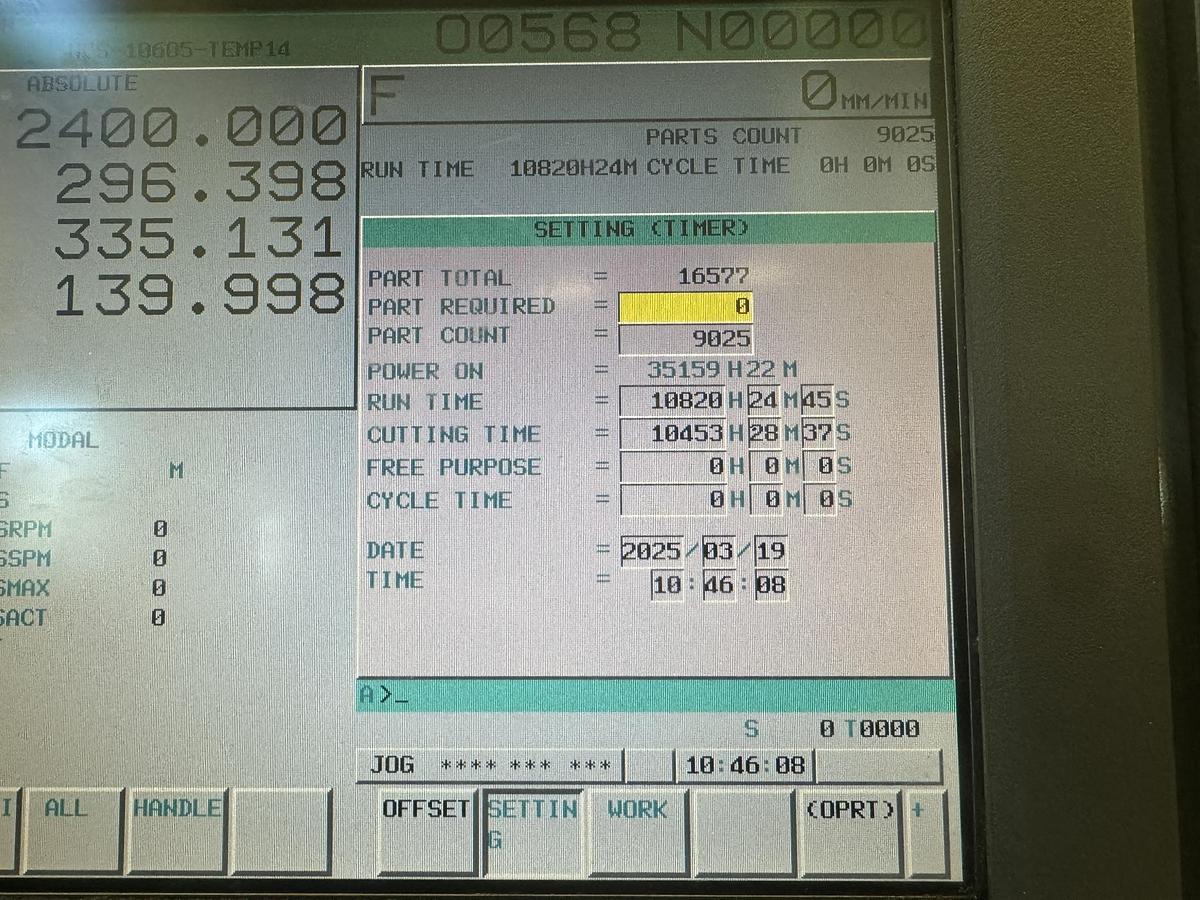

Spindle Hours - 10,453

Specifications

ManufacturerViper
Model20/24 M
Year2008
ConditionUsed
Stock Number5654262

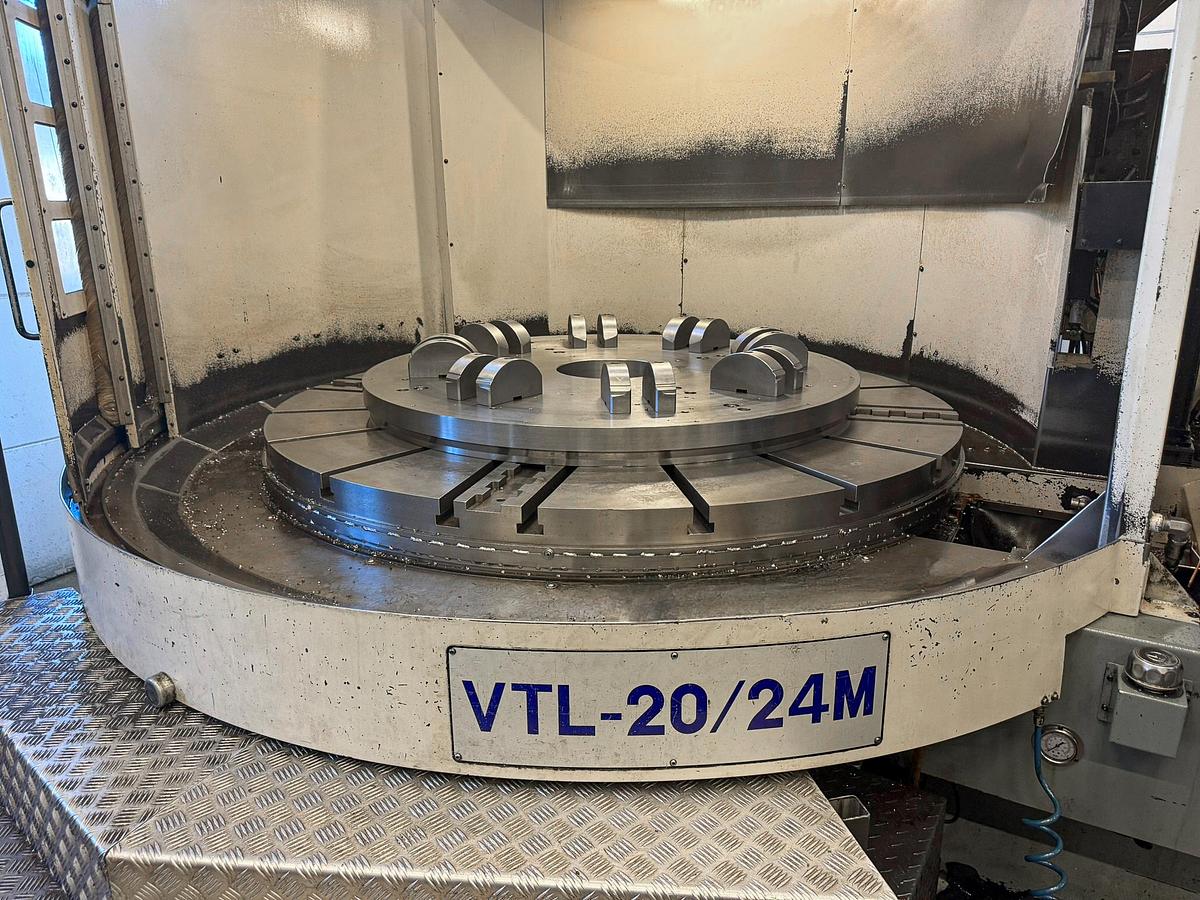

Table diameter2,000 mm
Swing2,400 mm
Turning height1,500 mm
Table capacity20 Ton
Table turn speed1 - 73, 1 - 200 rpm (2 step)

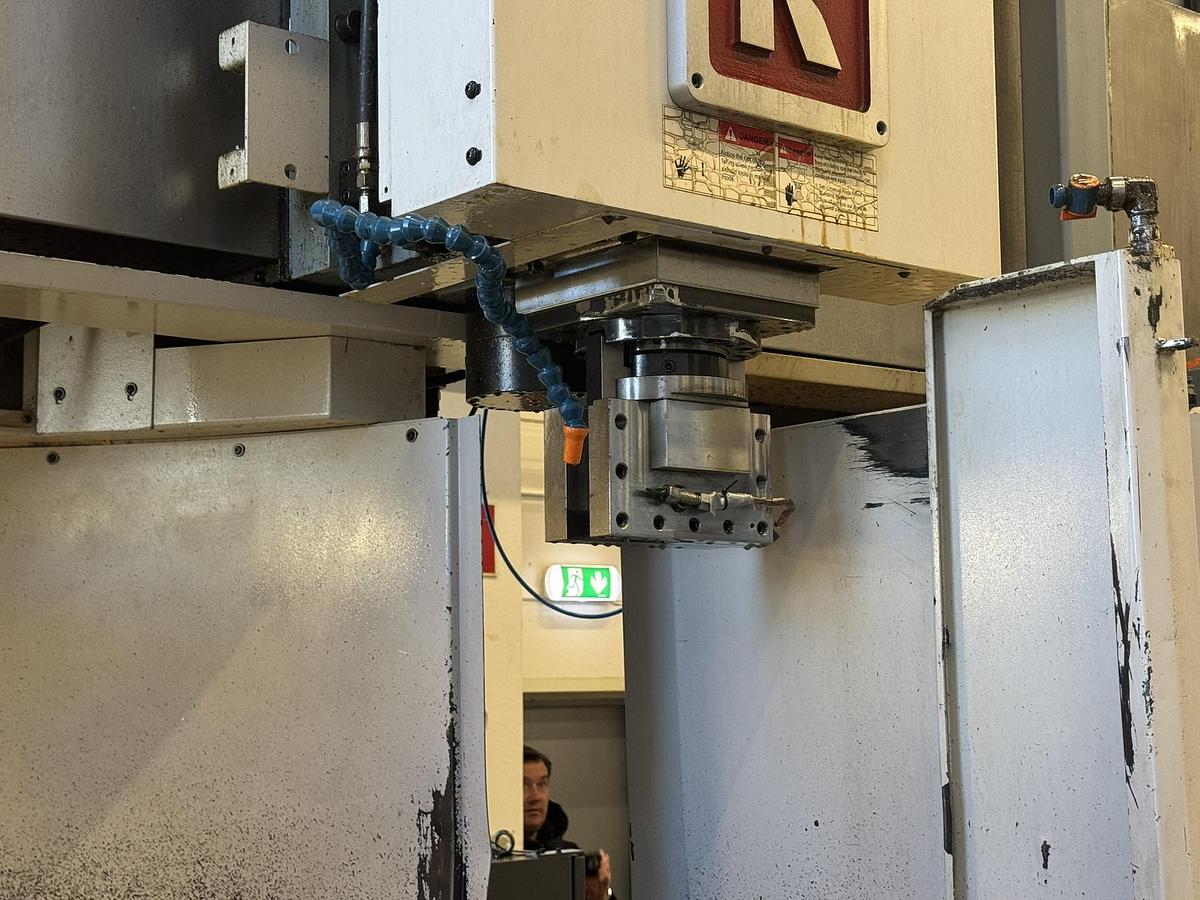

Live spindle speed2,000 rpm
X axis travel1,800 mm
Z axis travel1,000 mm
Y axis travel (crossbeam)800 mm (5 x 200 mm)
Live spindle motor11/15 kW
Spindle taperISO 50
C axis0.001°
Ram size230 x 230 mm
Main drive45 kW
Voltage400 V
Machine dimensions5,400 x 4,300 x 5,750 (height) mm
Machine weight32 Ton
