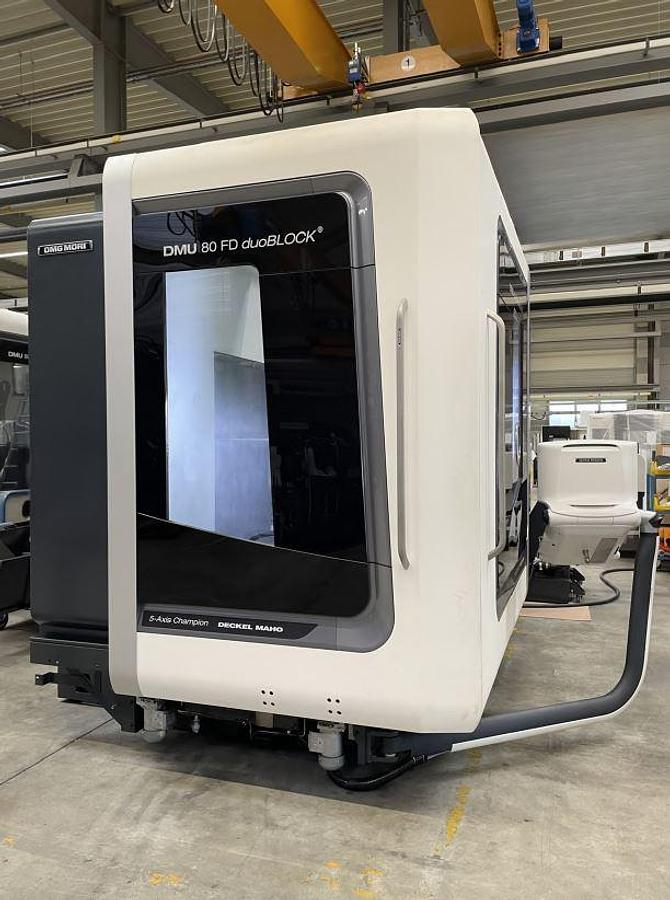

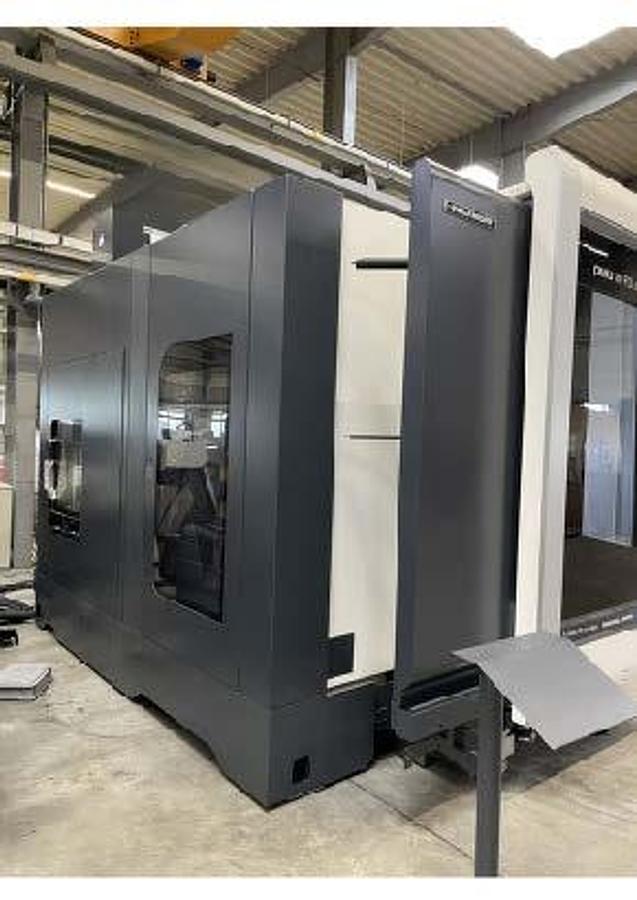

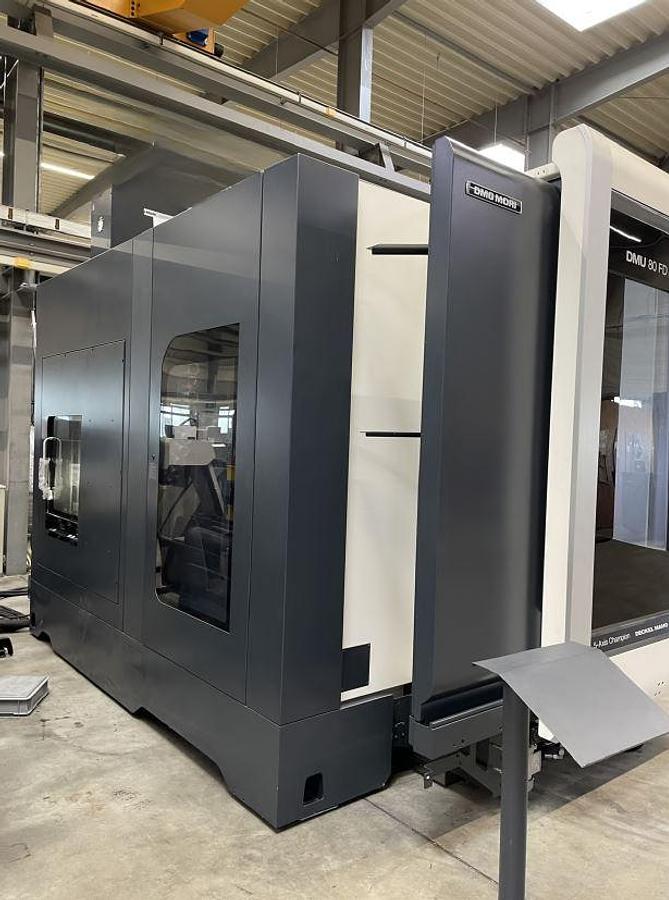

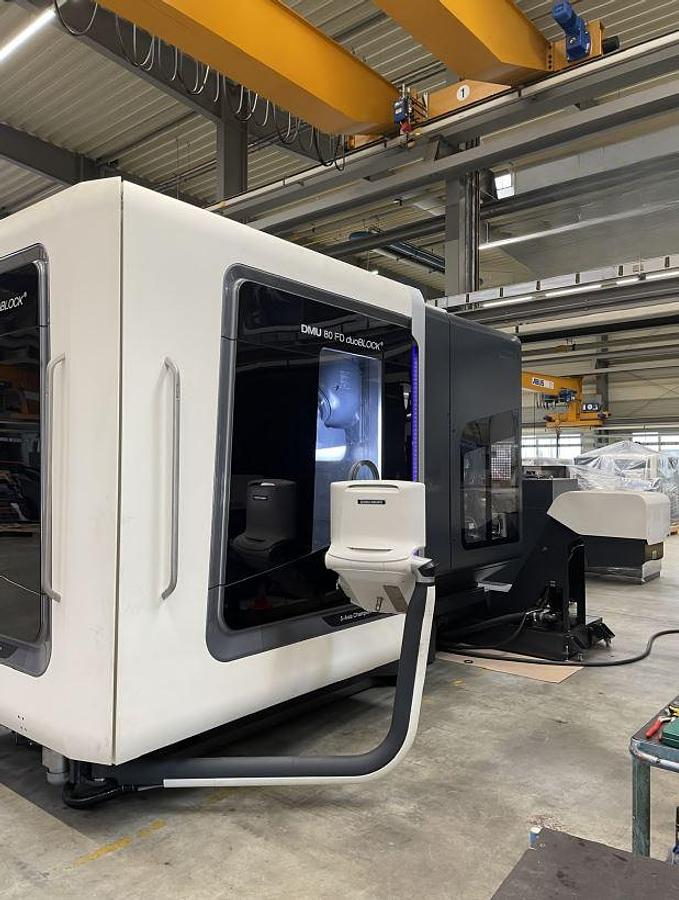

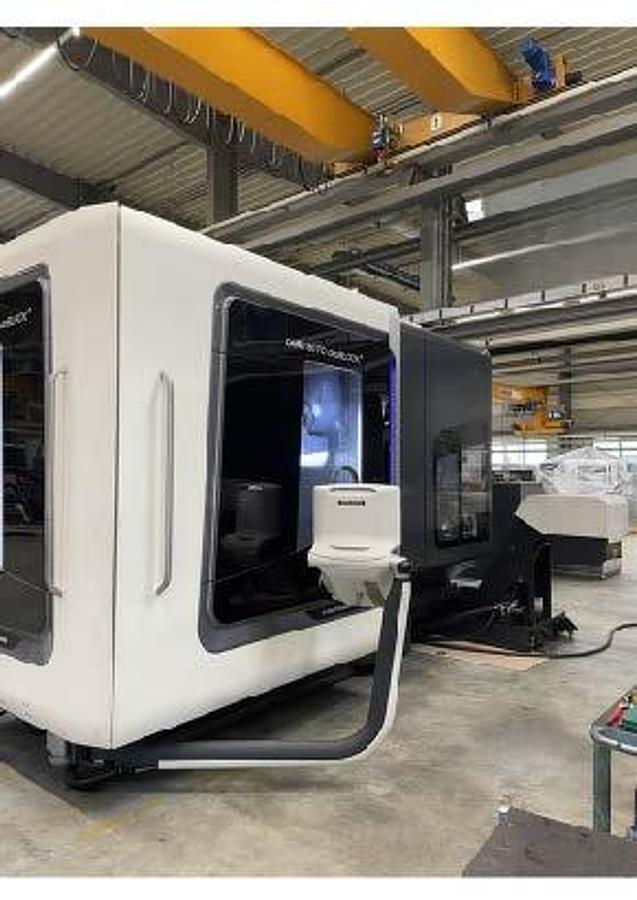

DMG DMU 80 FD duoBLOCK CNC Universal Machining Center
DMG DMU 80 FD duoBLOCK CNC Universal Machining Center
Description
DEMO Machine with only 515 Spindle Hours
Siemens 840D 3D CNC Control

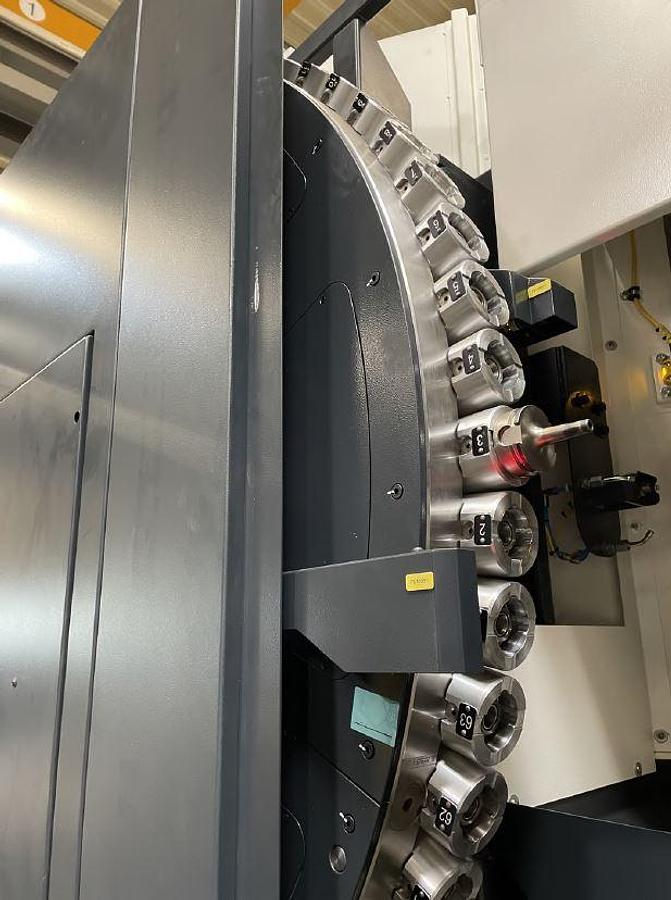

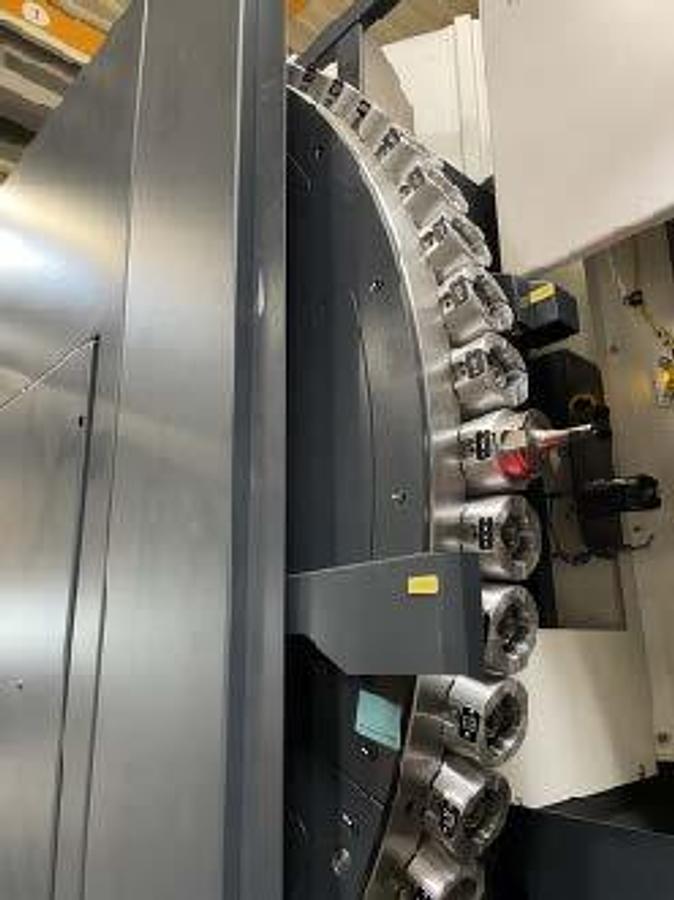

63 Position Automatic Tool Changer:
Tool holder: HSK-A 63
Tool magazine slots: 63
Tool changer: Double gripper
With free neighboring places mm: 120
With occupied neighboring places mm: 80
Max. Tool Length mm: 650
Max tool weight kg: 15
Chip-to-chip time s: 4.2
Electronic Handwheel
Chip conveyor
Internal cooling lubricant supply
Rotating inspection windows

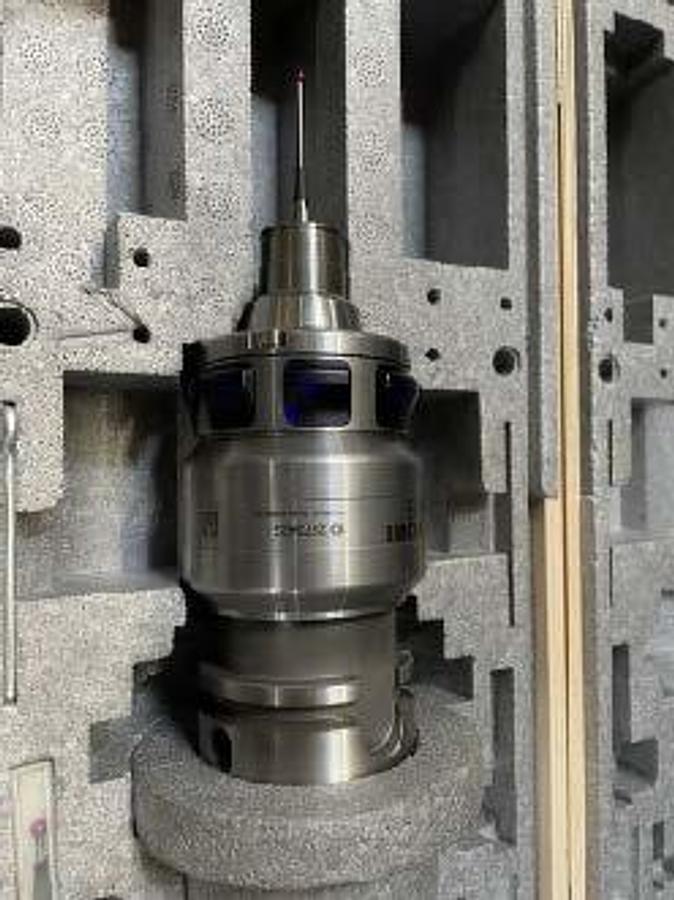

Tool breakage probe

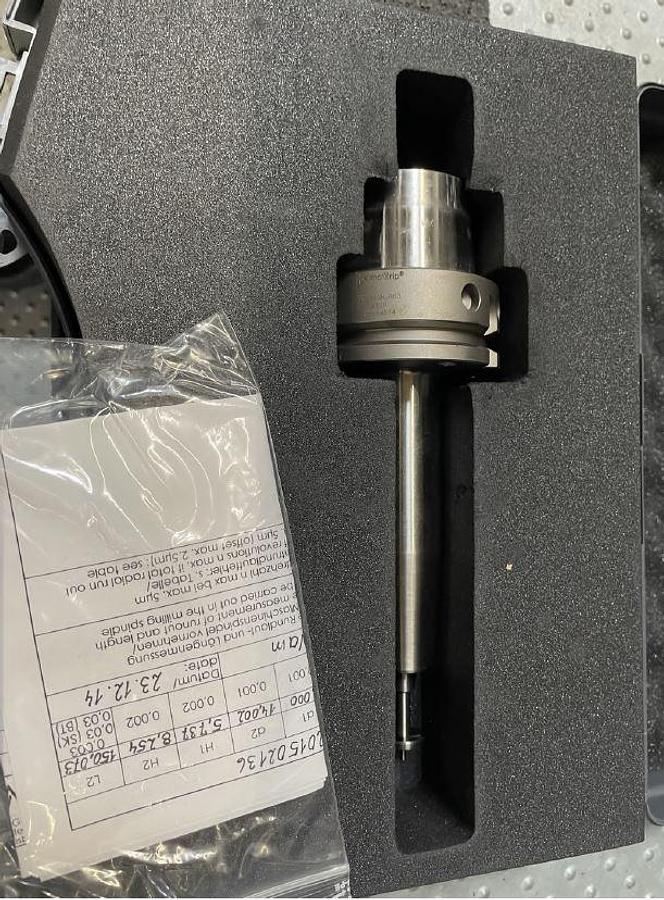

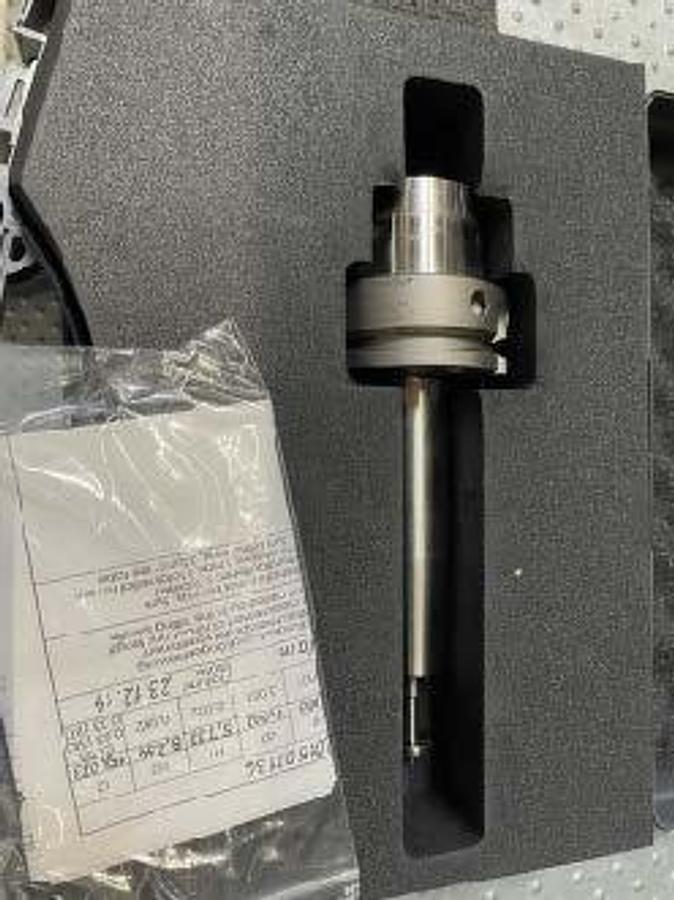

Laser tool measurement for measuring tool length and diameter
4th axis

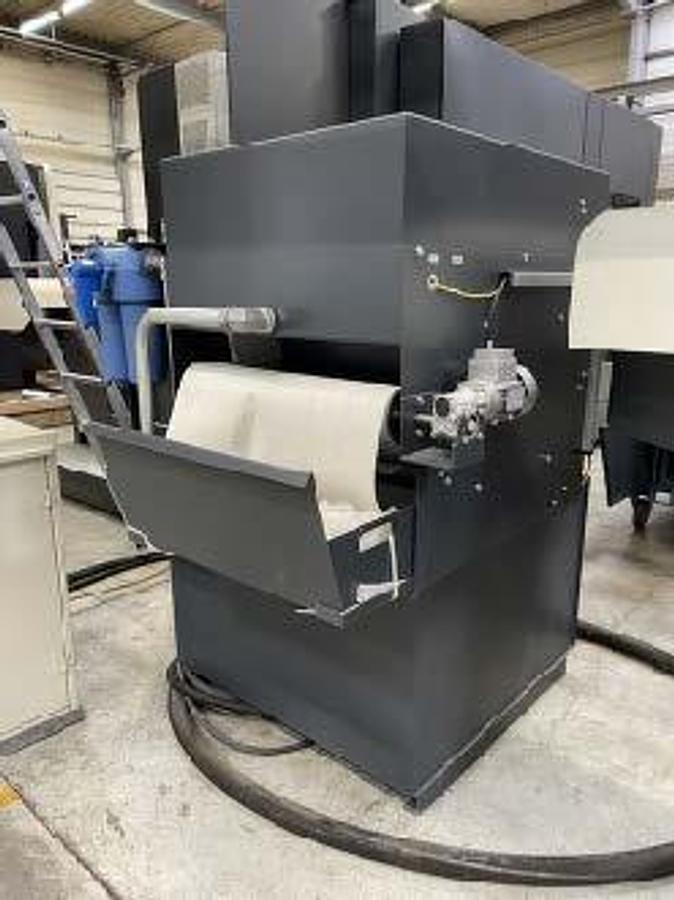

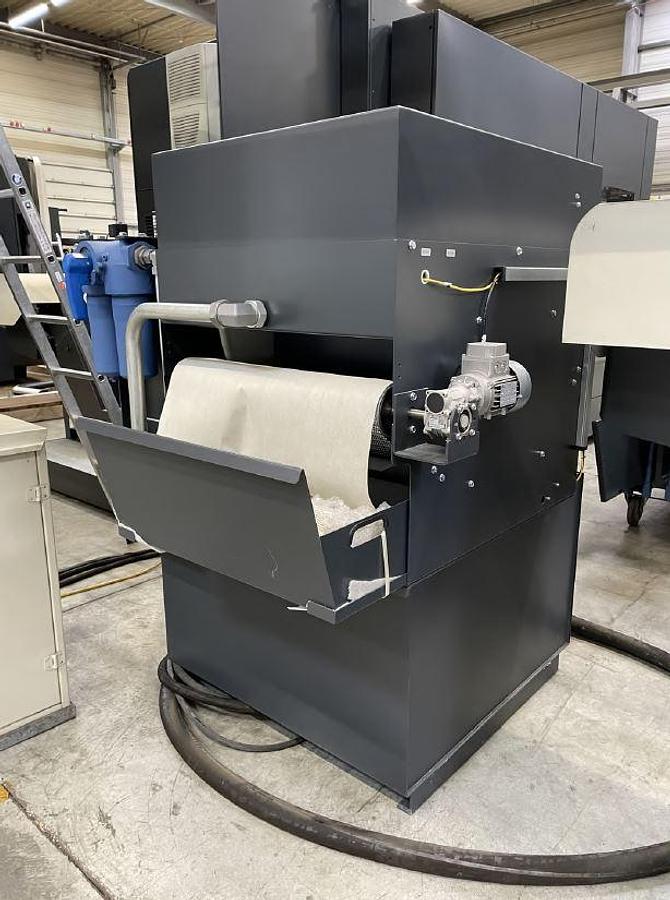

Paper band filter
Milling/turning table nc:
Number of pallets: 1
Table dimensions mm: Ø800
Maximum workpiece size (D x H) mm: Ø900x1300
Max. workpiece weight kg: 1300
Table rotation speed rpm: 800
Cooling
Cooling through the Spindle Center bar: 40
Tank capacity: 600

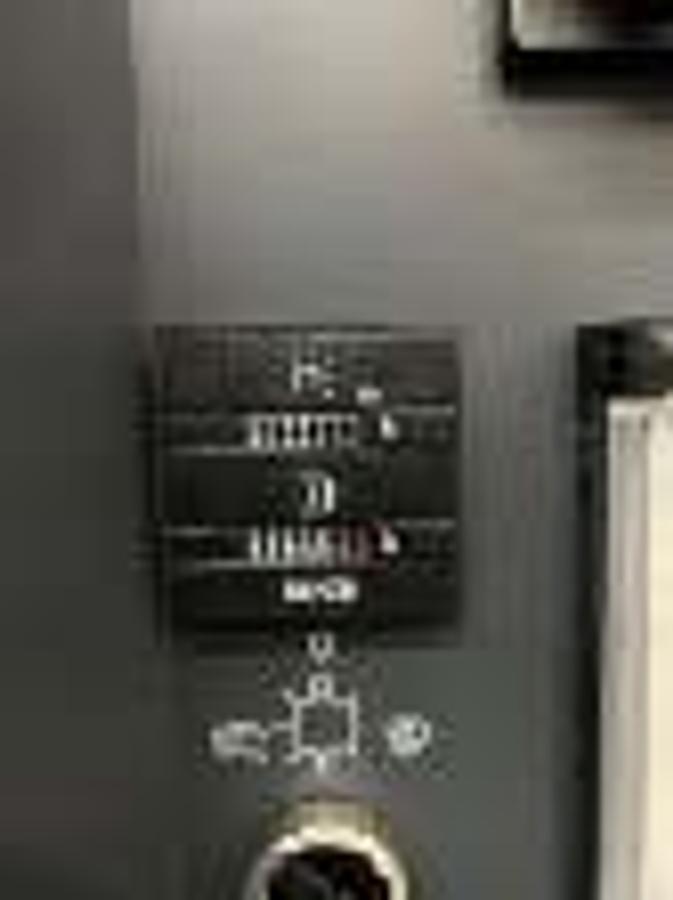

Machine running times
Under power: 1885
Spindle Working: 515
Specifications
| Manufacturer | DMG |
| Model | DMU 80 FD duoBLOCK |
| Year | 2015 |
| Condition | Used |
| Stock Number | 5654260 |

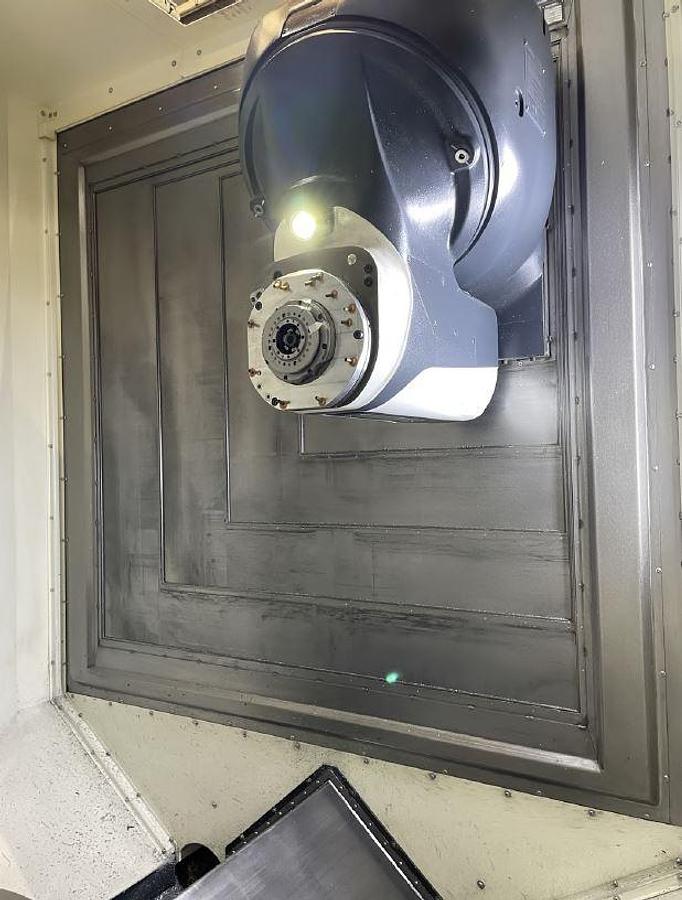

| Spindle speeds | 18,000 rpm |
| X axis travel | 800 mm |
| Y axis travel | 1,050 mm |
| Z axis travel | 850 mm |
| C axis | 360° (0.001°) |
| B axis | -30°/180° |
| Feed rates | 60 m/min |
| Rapid traverse | 60 m/min |
| Acceleration | 7 m/s² |
| Pallet diameter | 800 mm |
| Max workpiece size | 900 x 1,300 mm |
| Max workpiece weight | 1,300 kg |
| Table turn speed | 800 rpm |
| Spindle drive power (40% ED / Cont.) | 35 / 24 kW |
| Spindle torque | 111 / 77 Nm |
| Machine size | 5,534 x 3,427 x 3,665 mm |
| Machine weight | 21,500 kg |
