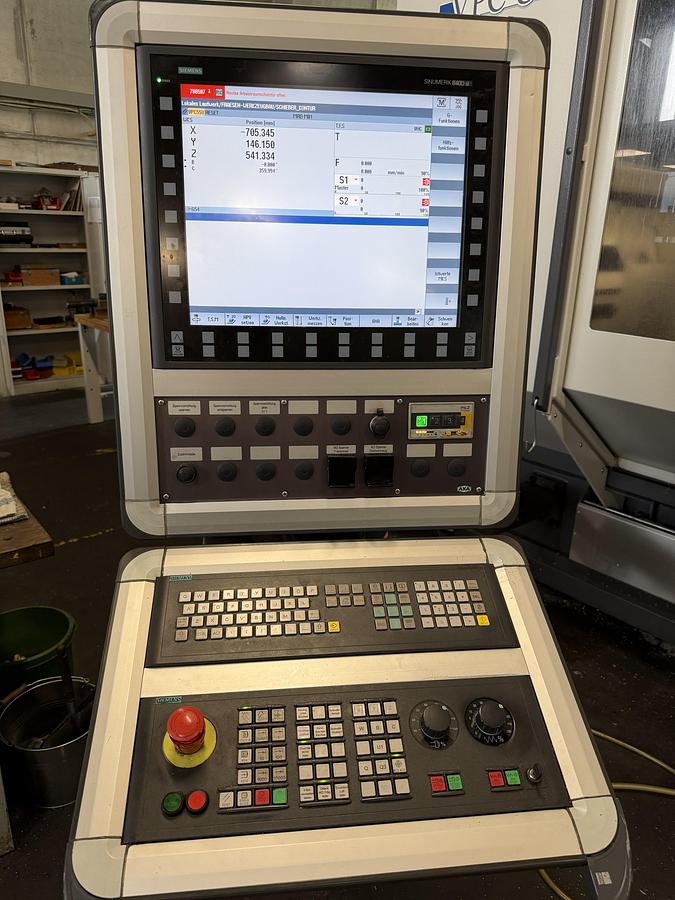

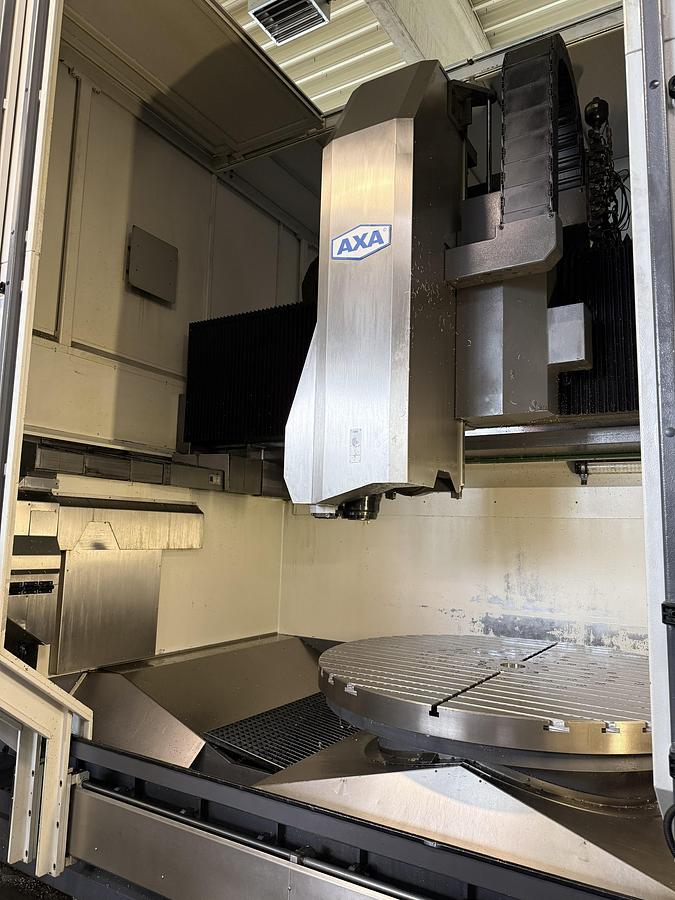

Siemens 840D SL CNC Control
5-Axis Simultaneous Machining

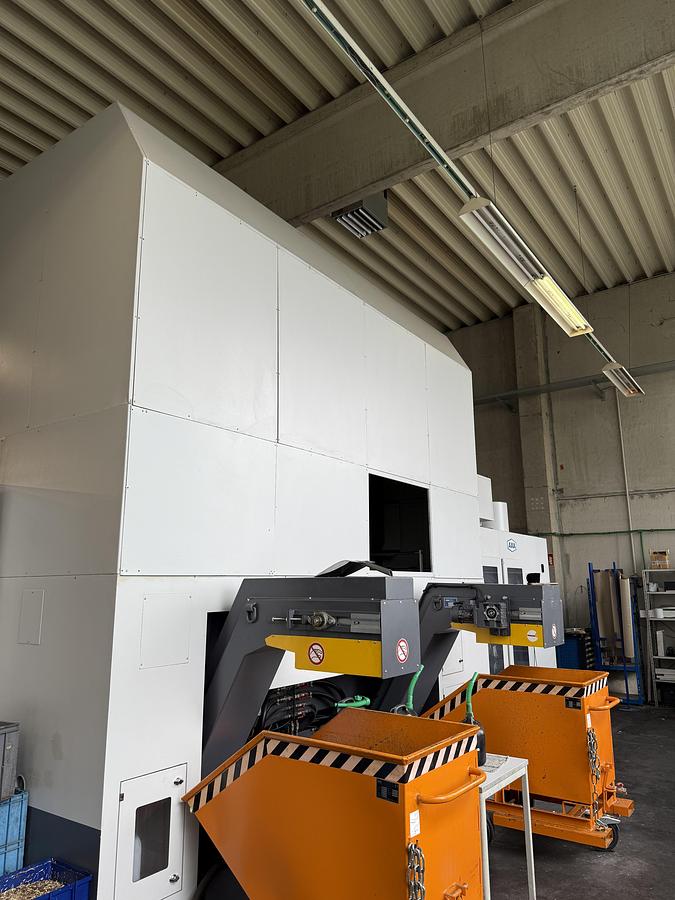

Two hinged belt chip conveyors, discharge backward. Discharge height approx. 1250 mm.

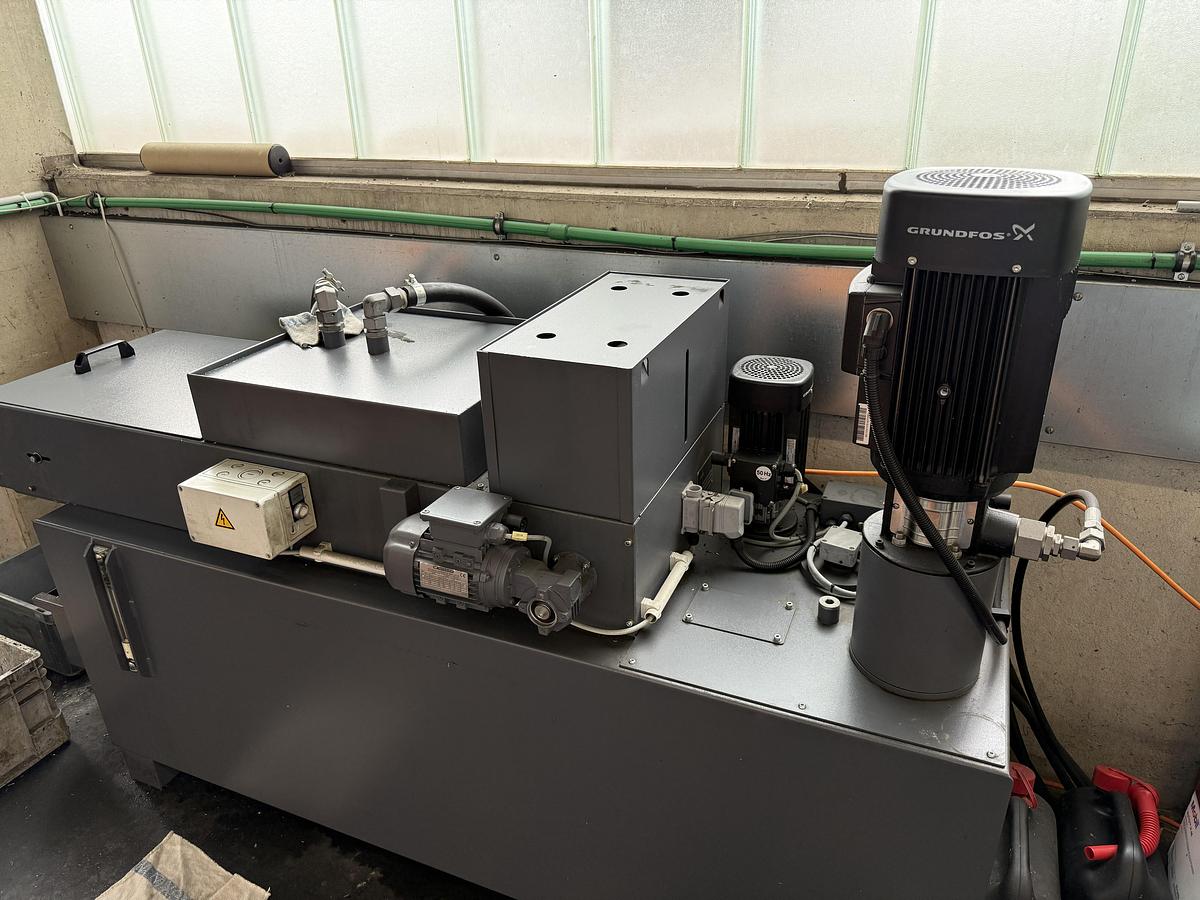

Internal coolant supply through the spindle. Coolant pressure up to 30 bar.

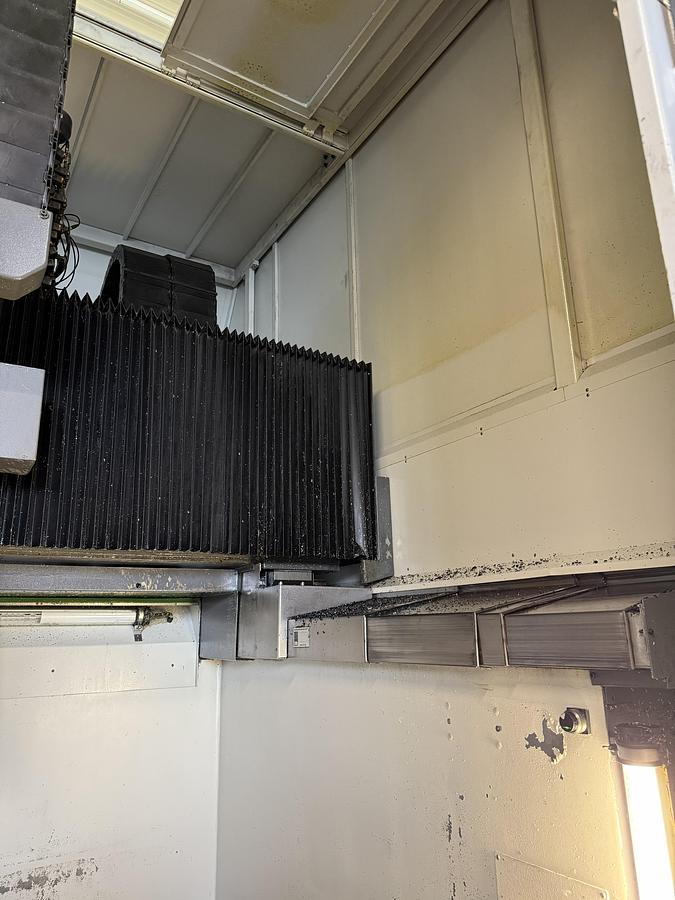

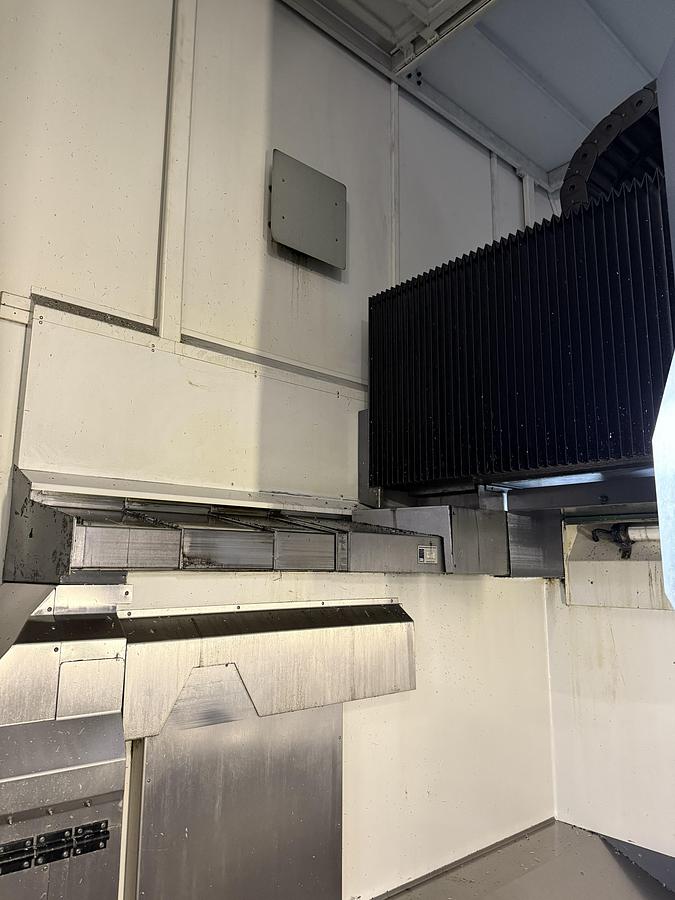

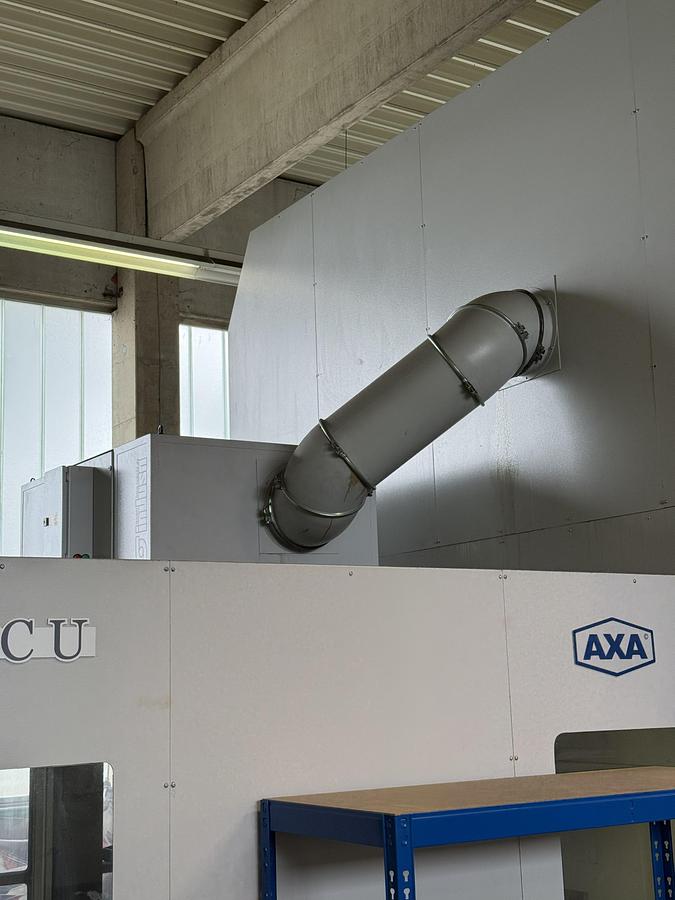

Complete machine enclosure with driven doors

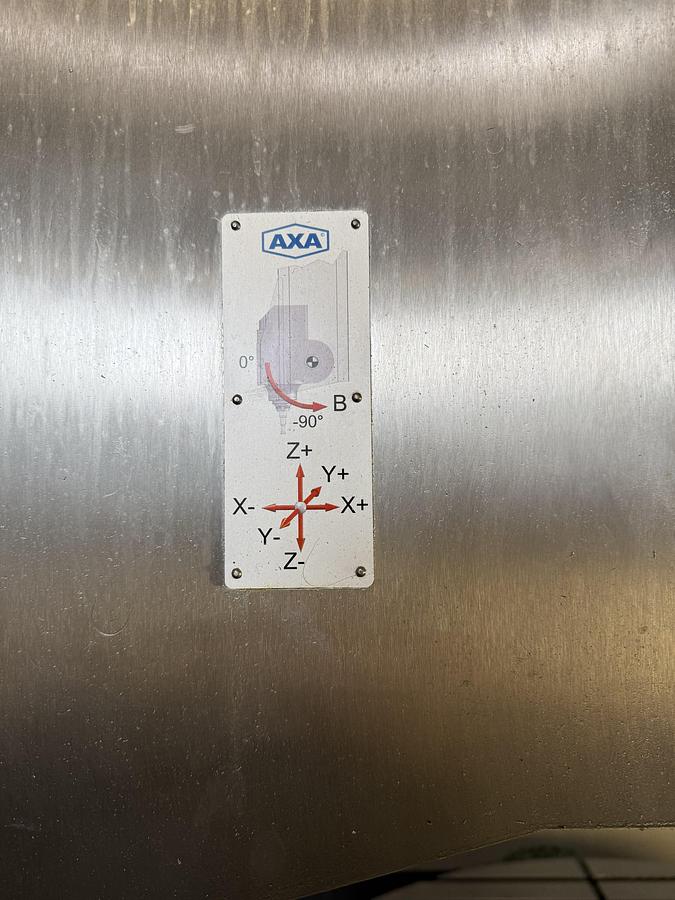

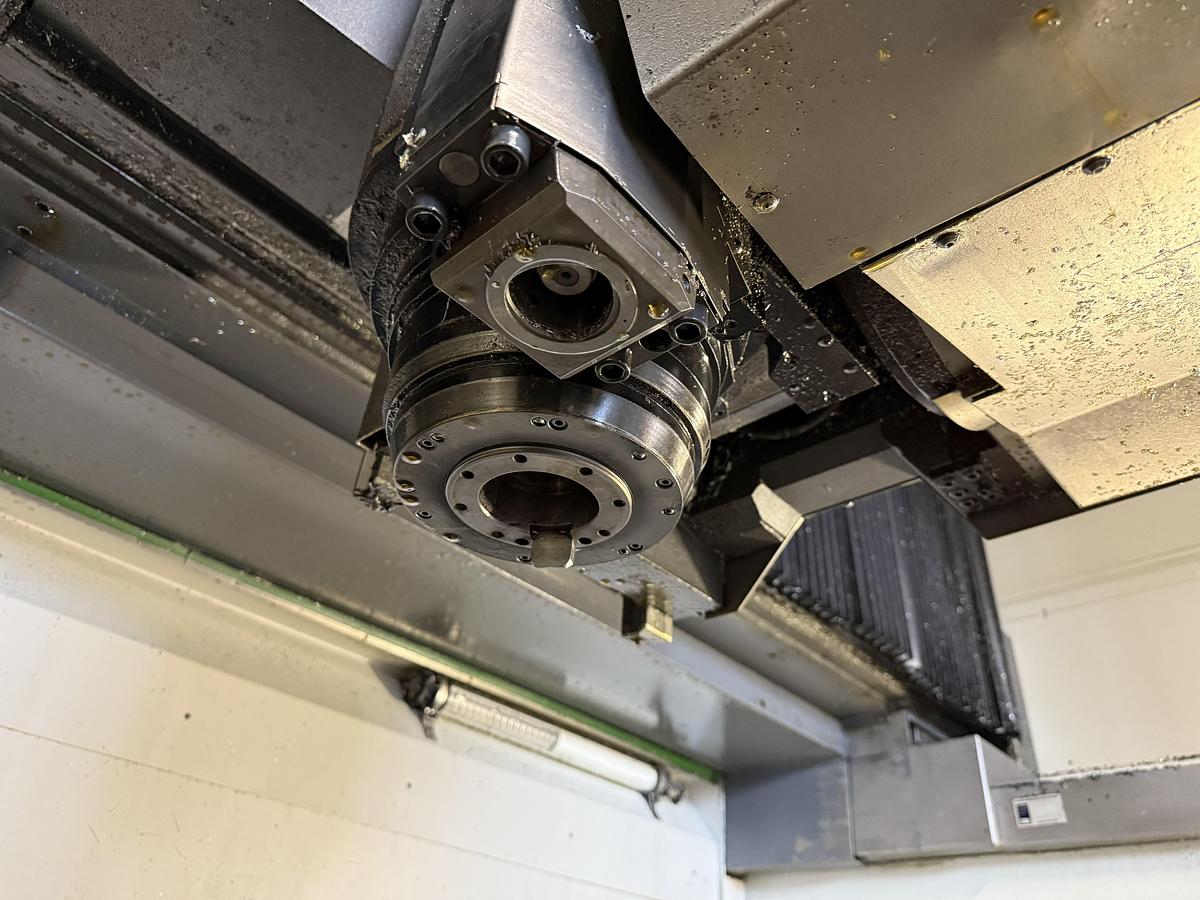

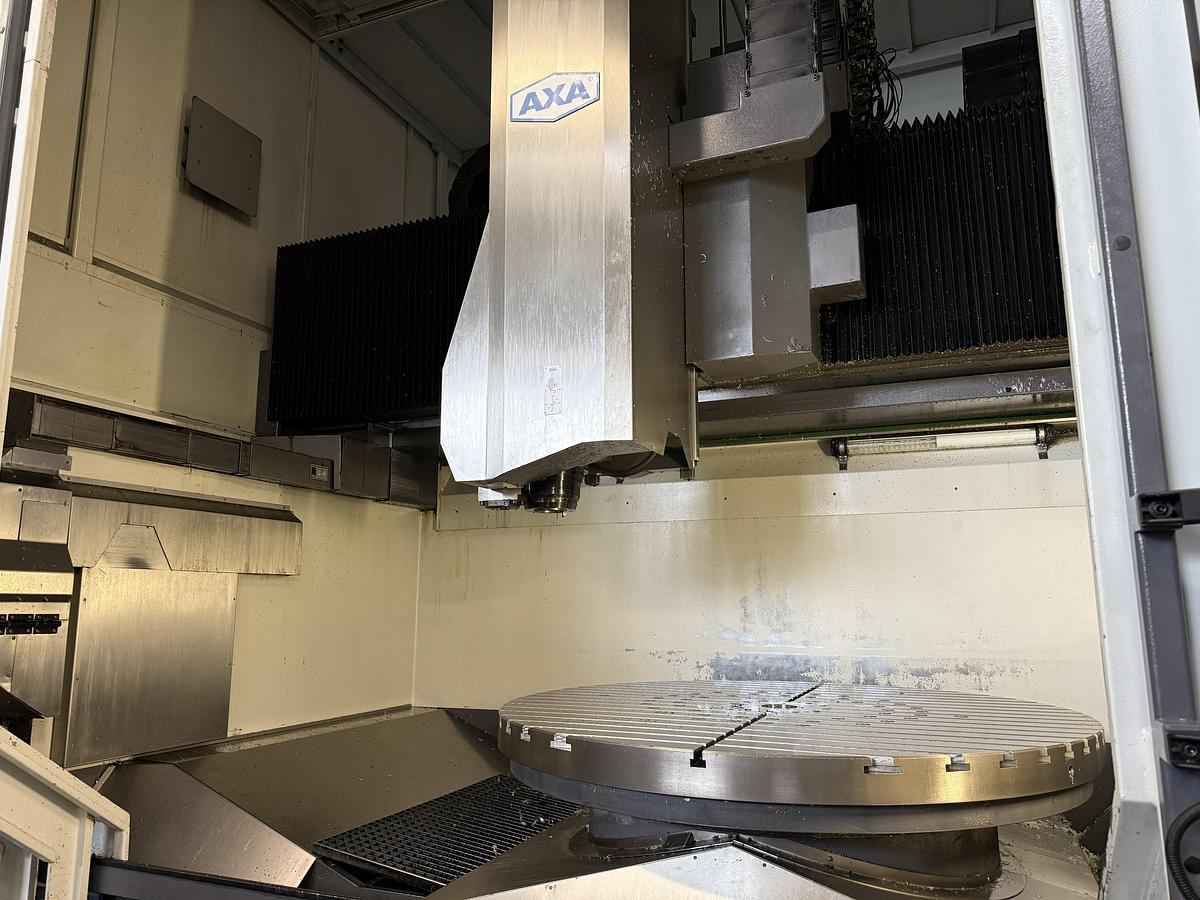

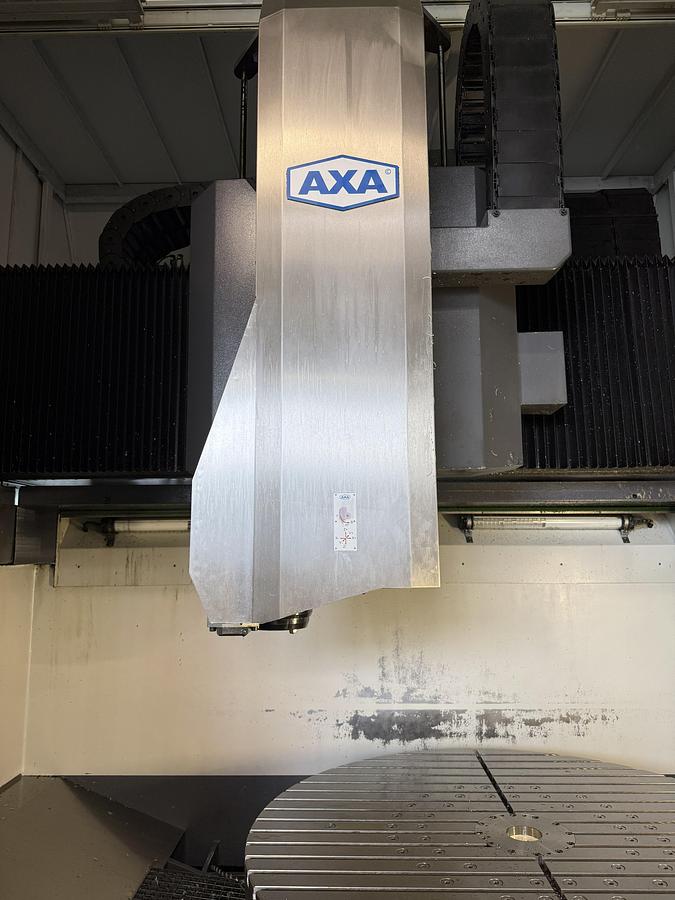

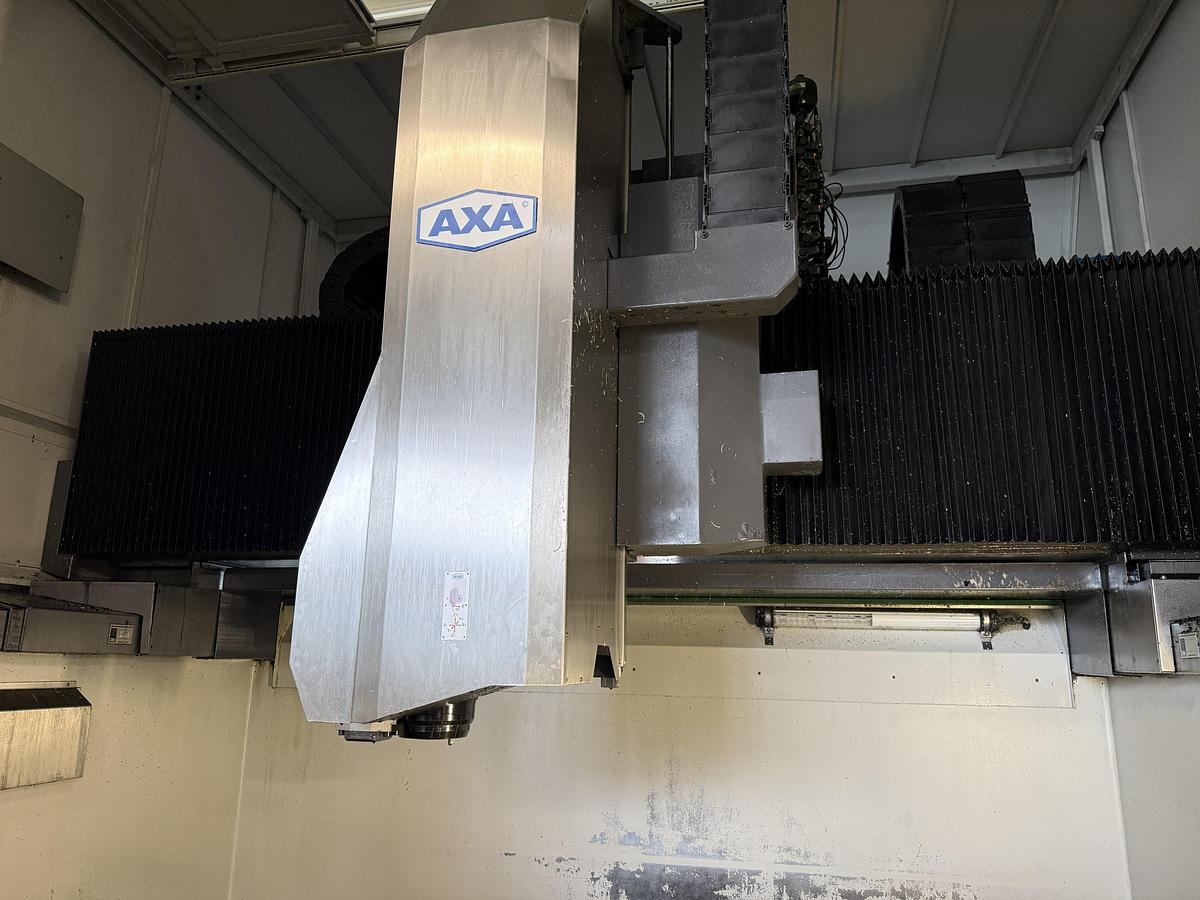

Swivel head

Type 1-axis

Swivel head infinitely variable positioning or freely interpolating

Swivel movement: Over B-axis

Swivel range B-axis: 0° to -90°

Pitch: 0.001°

Swivel radius: Pivot point - Spindle nose: 290 mm

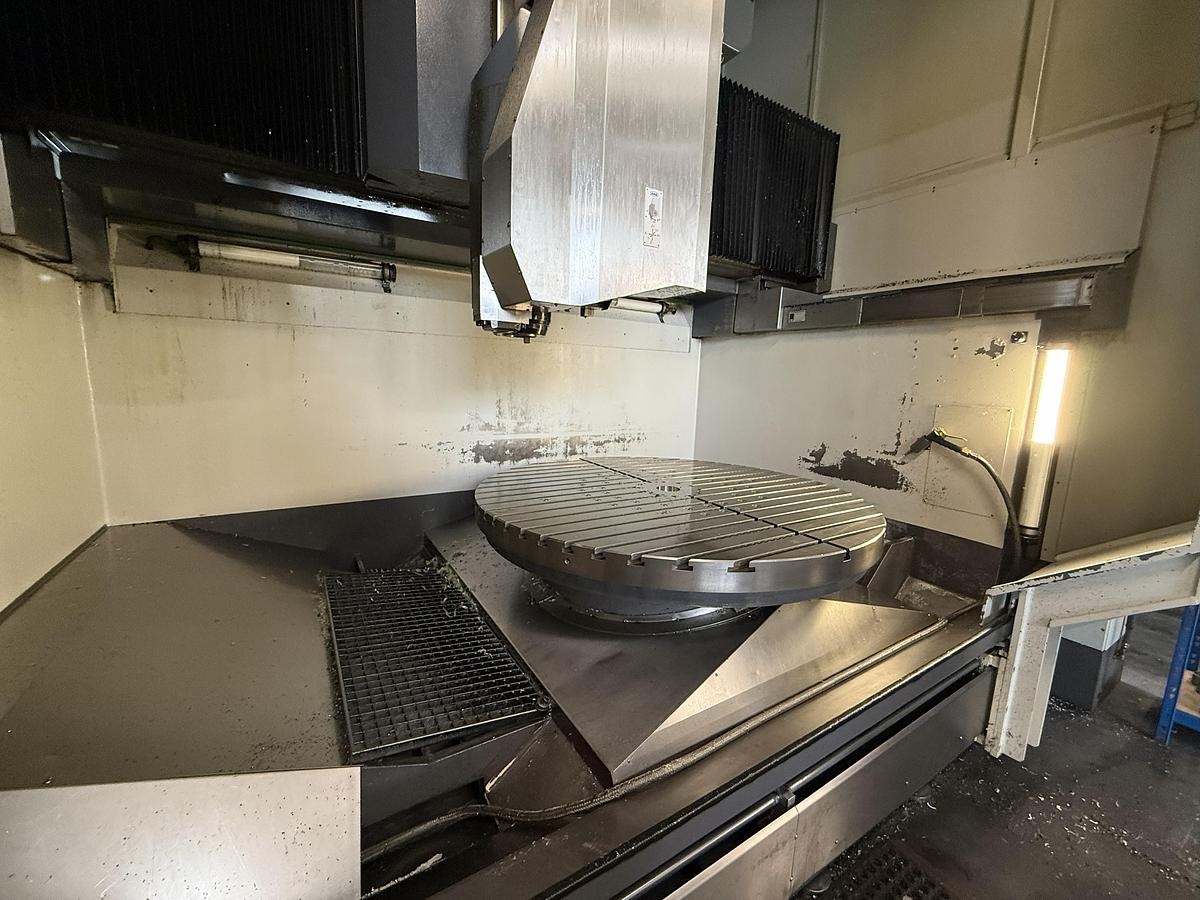

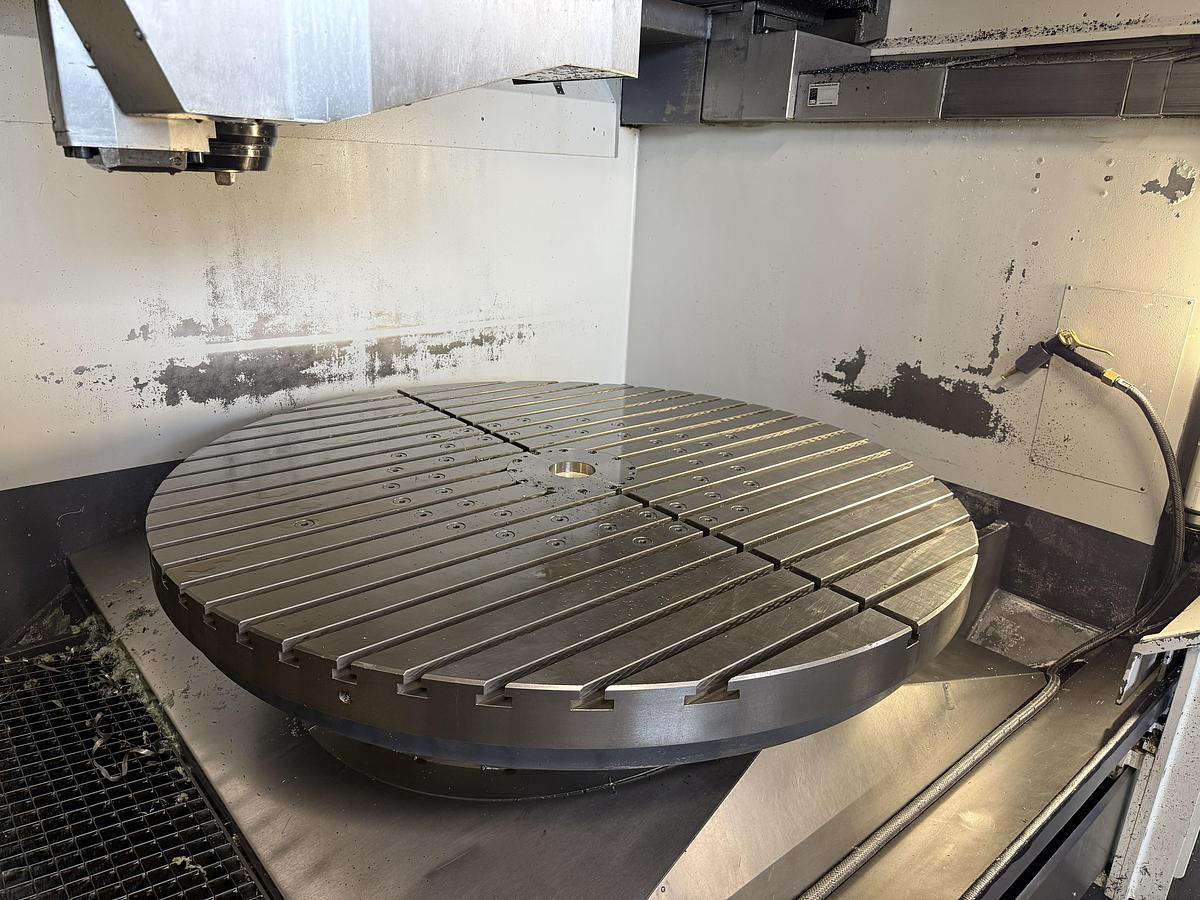

Machine table

Clamping surface Rotary table: Diameter 1600 mm

NC Rotary table: AXA RTA 6D, face plate 1600 mm

T-slots: 18 mm H9, Straightening groove H7

T-slot course: Star-shaped

T-slot pitch: 80 mm

Table load - Positioning operation Max. 5000 kg at max. 10 1/min

Table load - Turning operation Up to 2500 kg

Turning operation: Up to max. 250 1/min

Measuring system: Direct measuring system, accuracy +/- 1''

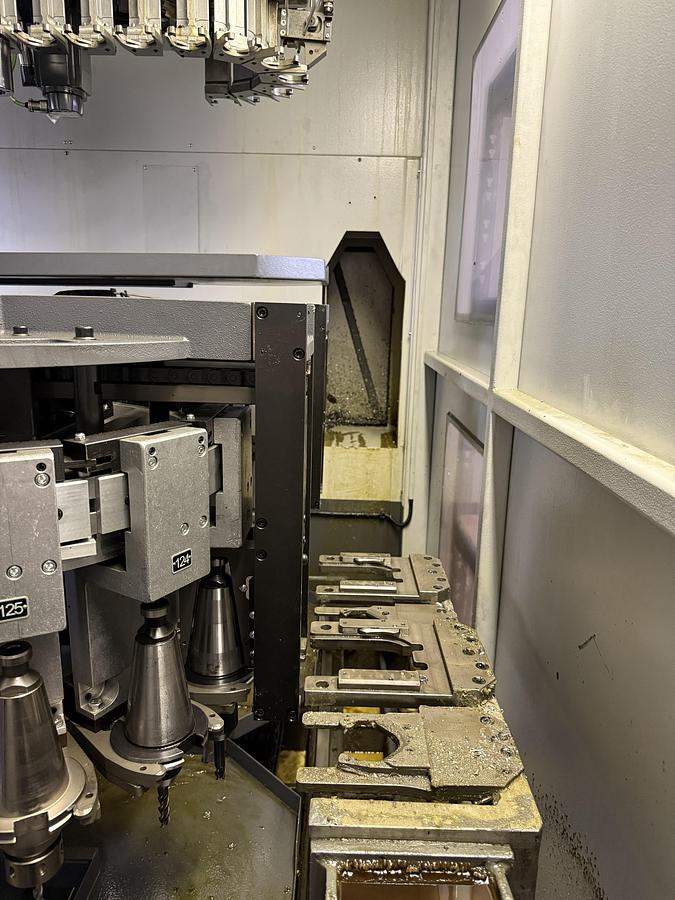

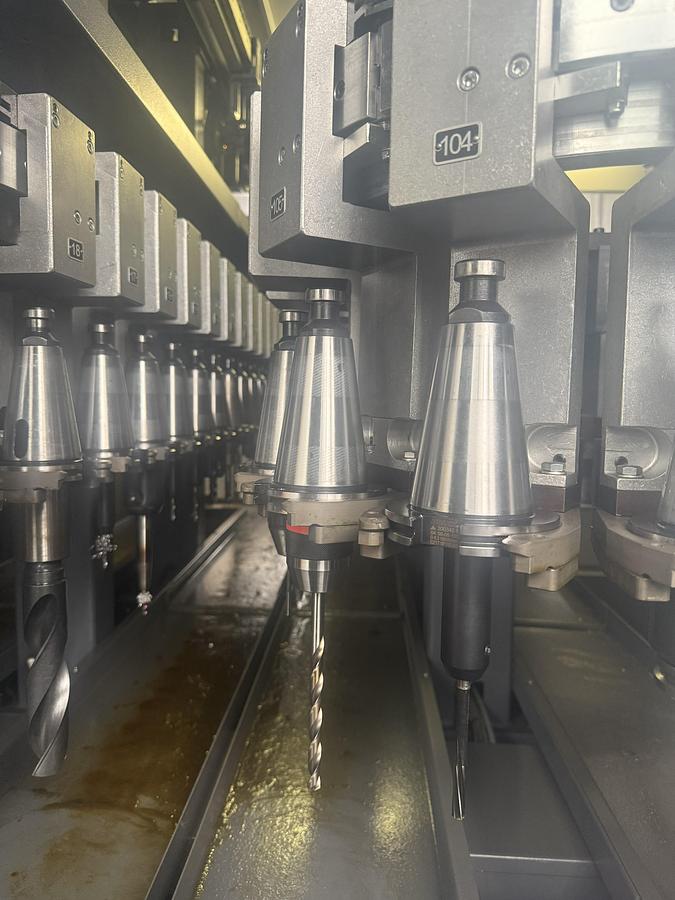

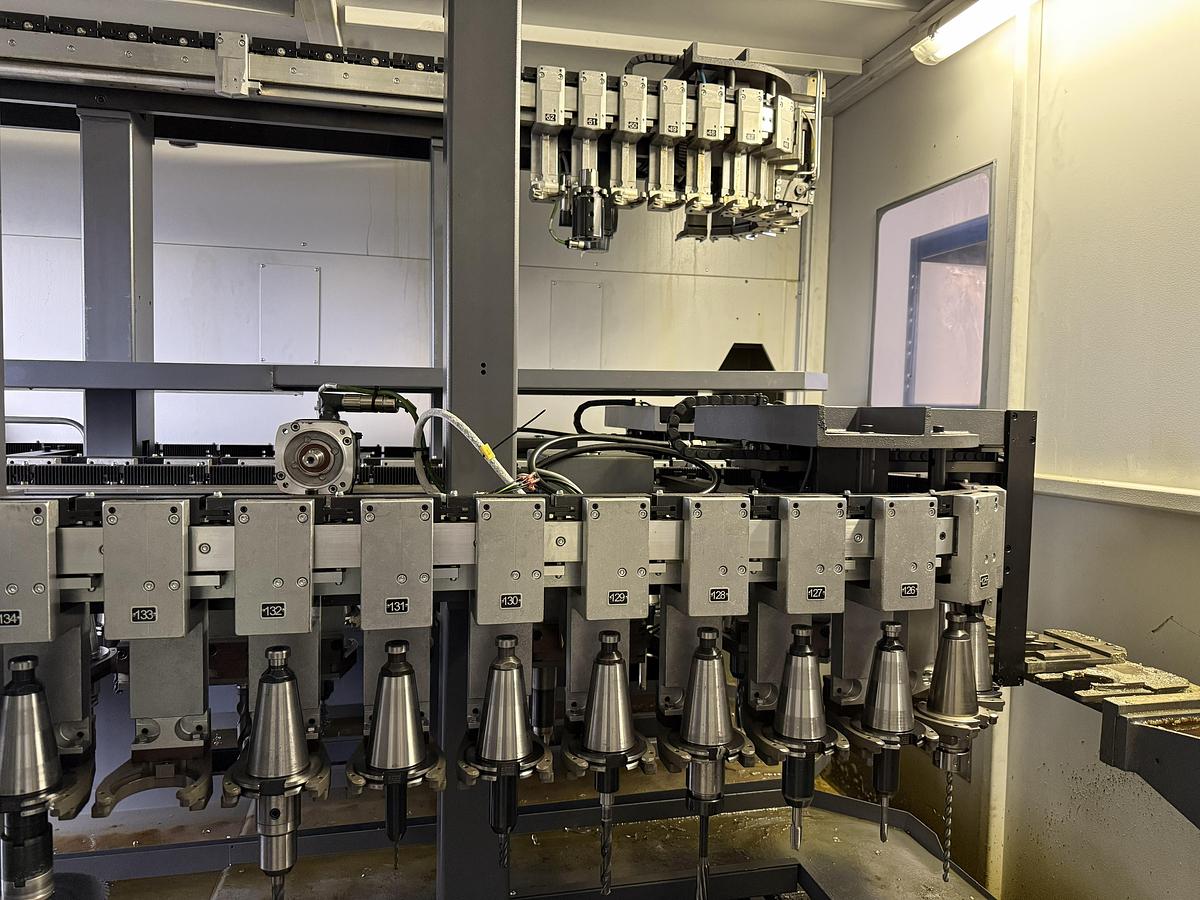

Tool changer (SK50)

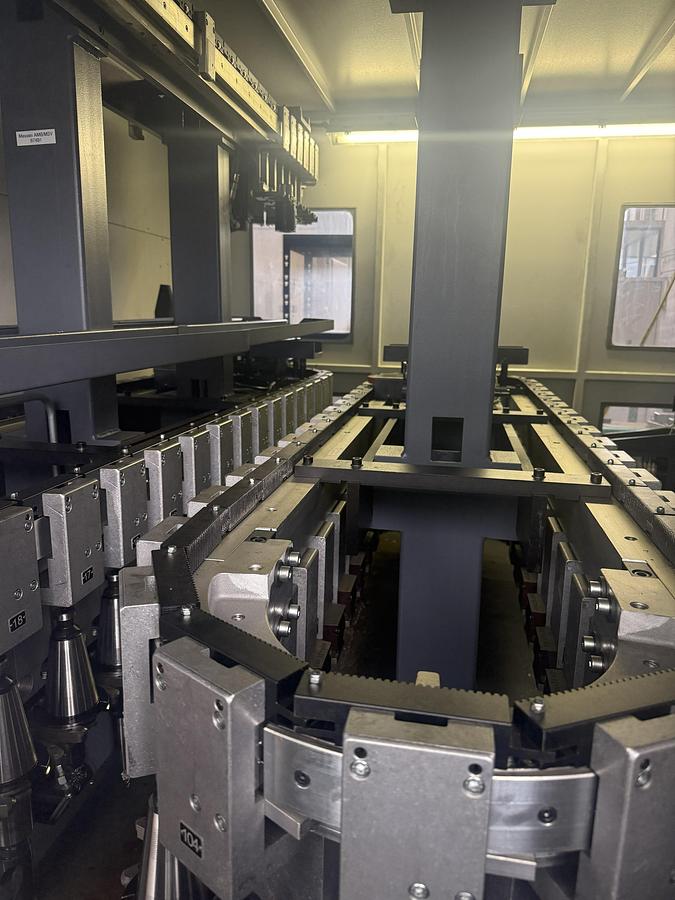

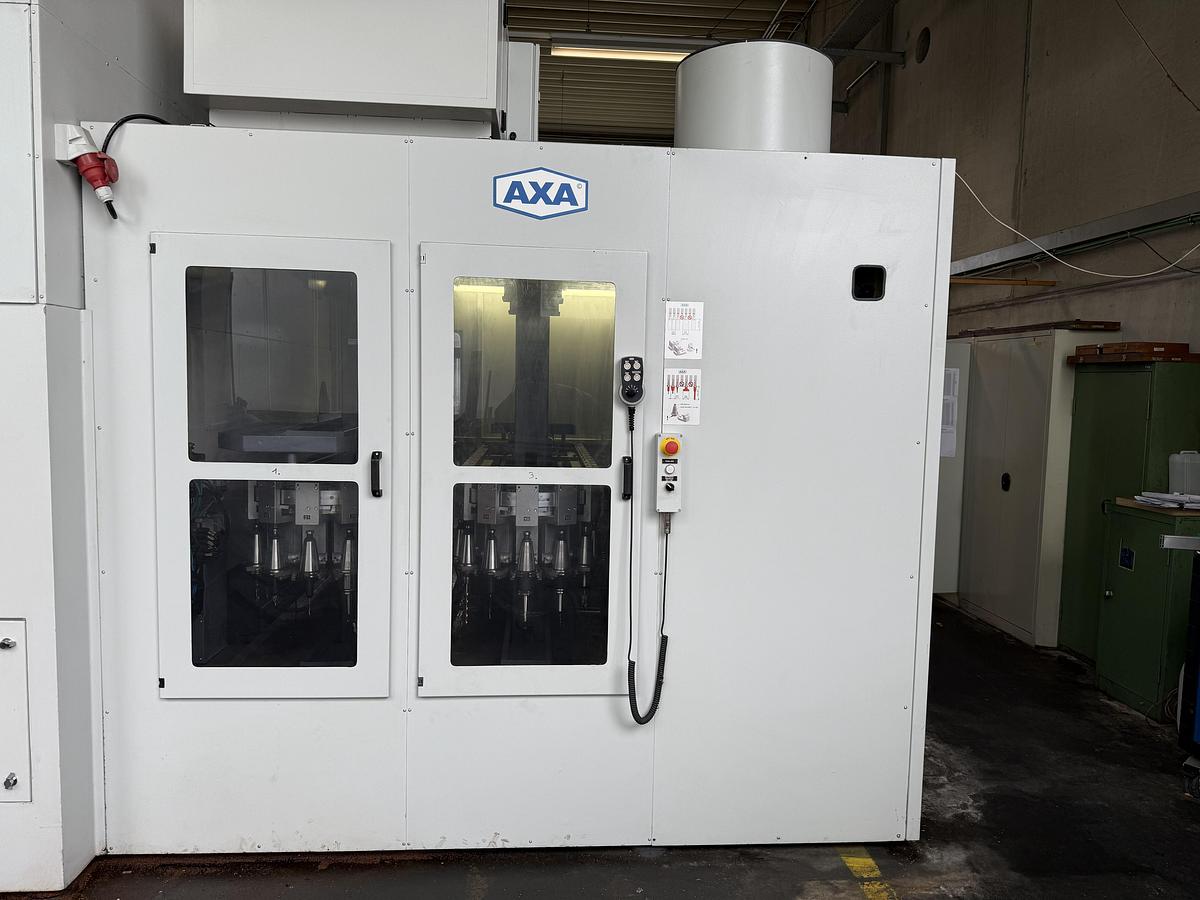

Type: Side-mounted chain magazine, outside the working area

Tool holder SK 50, DIN ISO 7388-1 AD / DIN ISO 7388-3 AD

Tool places 60 (tower 1 / 1st chain = 30 places, tower 2 / 1st chain = 30 places)

Max. tool width (standard) Max. diameter 110 mm

Tool width for free adjacent spaces Max. diameter 180 mm

Tool length Max. 400 mm

Tool weight Max. 15 kg per tool

Weight in gripper Max. 15 kg

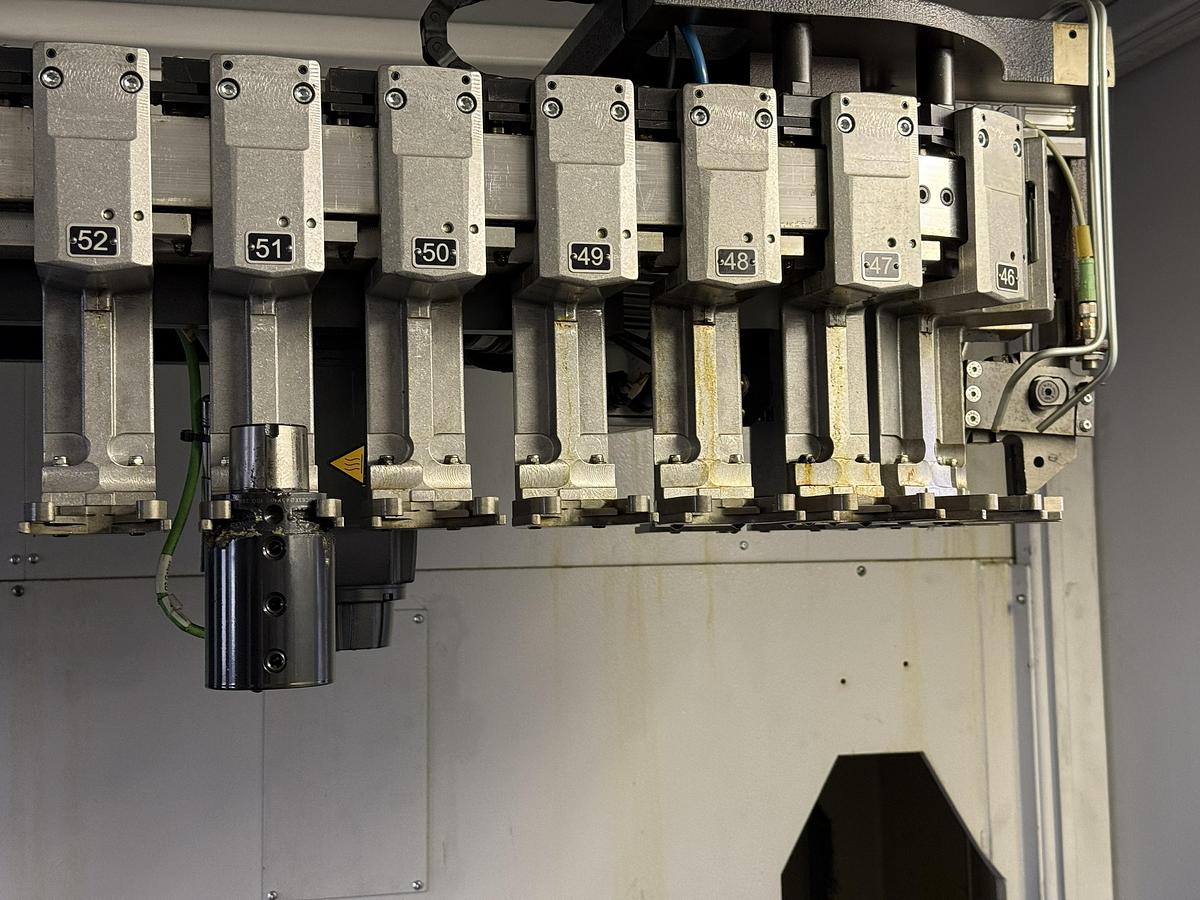

Tool changer (CAPTO C6)

Type: Second magazine chain in the XTS tower for turning tools

Tool holder CAPTO C6

Tool places Tower 1 / 2nd chain = 12 places

Max. tool width (standard) Max. diameter 85 mm

Tool width with free neighboring positions Max. diameter 135 mm

Tool length Max. 400 mm

Tool weight Max. 8 kg per tool

Spindle & drives

Feed force X/Y/Z (Feed Force) Max. 9000 N

Rapid Traverse X/Y/Z (Rapid Traverse) 30/30/25 m/min

Feed X/Y/Z (Feed Rate) Standard 1 - 9999 mm/min

Power Max. 56 kW at 40% ED

Torque Max 355 Nm at 40% ED

Speed Range Up to 9000 rpm

Critical Speed 1500 rpm
