DMG DMU 65 monoBLOCK CNC Universal Machining Center
DMG DMU 65 monoBLOCK CNC Universal Machining Center
or
Call 770-509-0744
Description

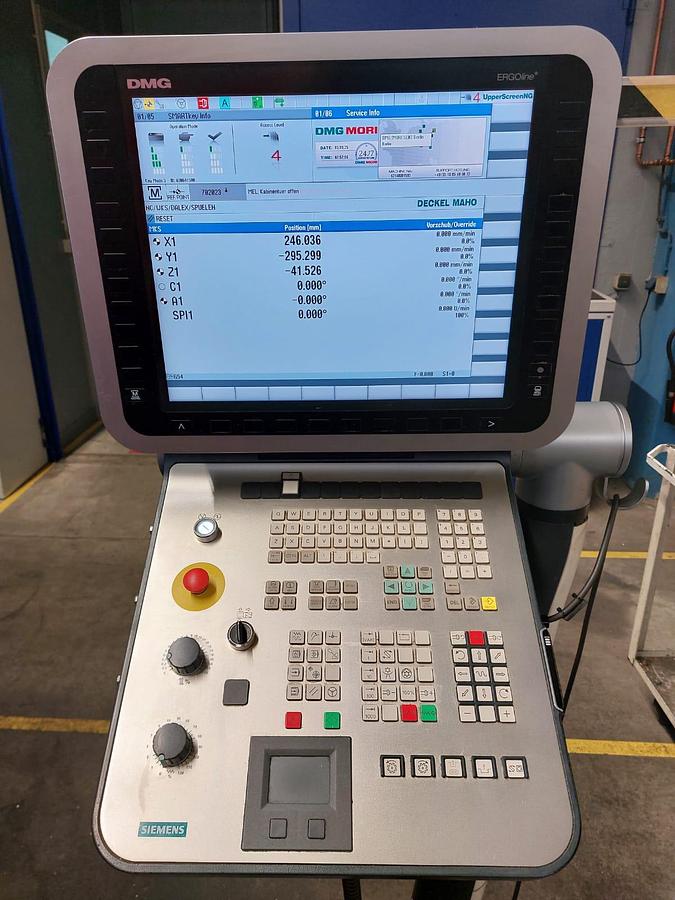

Siemens 840D 3D-Control CNC Control
Milling/turning table NC:
Number of pallets: 1
Table dimensions mm: Ø650
Maximum workpiece size (D x H) mm: Ø840x500
Max. workpiece weight kg: 600
Electronic Handwheel
Chip conveyor
Rigid table with integrated rotary table
Infrared probe
Internal cooling lubricant supply
Rinsing gun

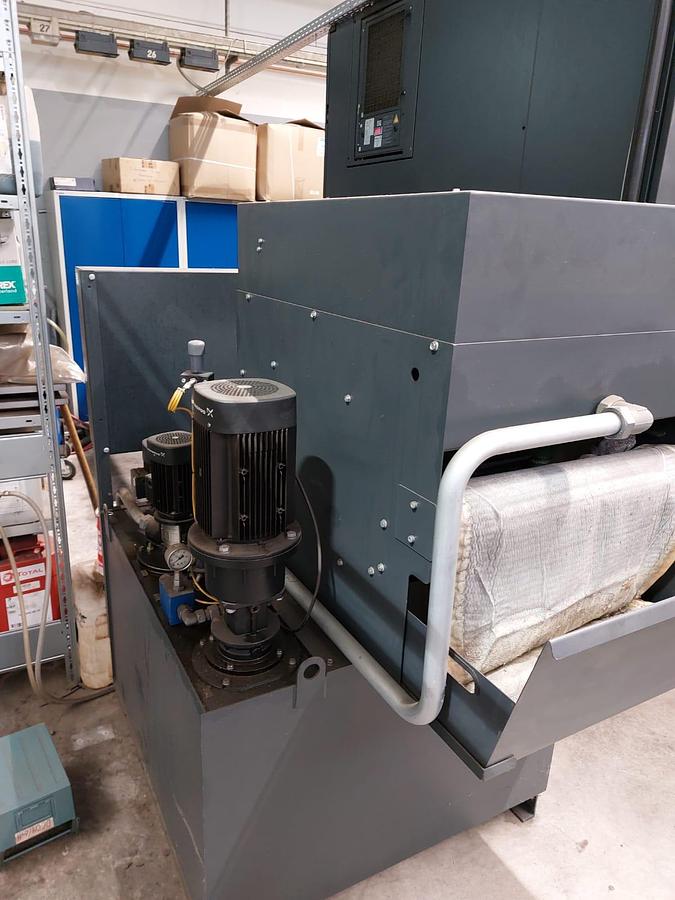

Paper band filter
Cooling through the Spindle Center bar: 40
Tank capacity: 600
Tool system
Tool holder: SK 40
Tool magazine slots: 30
Tool changer: Double Gripper
With free neighboring places mm: 160
Max. Tool Length mm: 315
Max tool weight kg: 8
Chip-to-chip time s: 4.9
Specifications
| Manufacturer | DMG |
| Model | DMU 65 monoBLOCK |
| Year | 2012 |
| Condition | Used |
| Stock Number | 5654257 |
| Spindle speeds | 18,000 rpm |
| X axis travel | 735 mm |
| Y axis travel | 650 mm |
| Z axis travel | 560 mm |
| C axis | 360° (0.001°) |
| A axis | ±120° (0.001°) |
| Spindle drive motor (40%ED/Cont.) | 13 / 9 kW |
| Feed rates | 40 m/min |
| Rapid traverse | 40 m/min |
| Acceleration | 6 m/s² |
| Machine dimensions | 3,567 x 2,615 x 2,897 mm |
| Machine weight | 12,100 kg |
