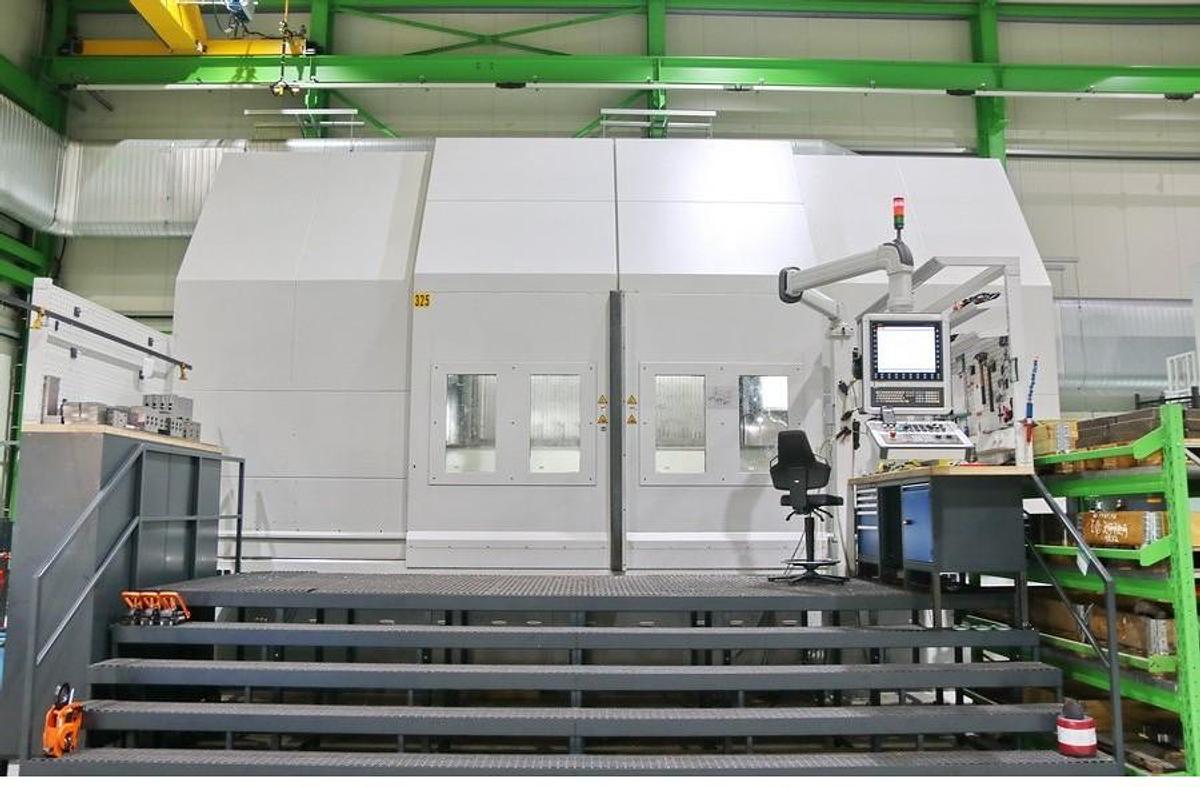

Pittler PV 2500 CNC Vertical Turning & Milling Machine with Live Spindle 2 Tool Mounts
Pittler PV 2500 CNC Vertical Turning & Milling Machine with Live Spindle 2 Tool Mounts
or
Call 770-509-0744
Description

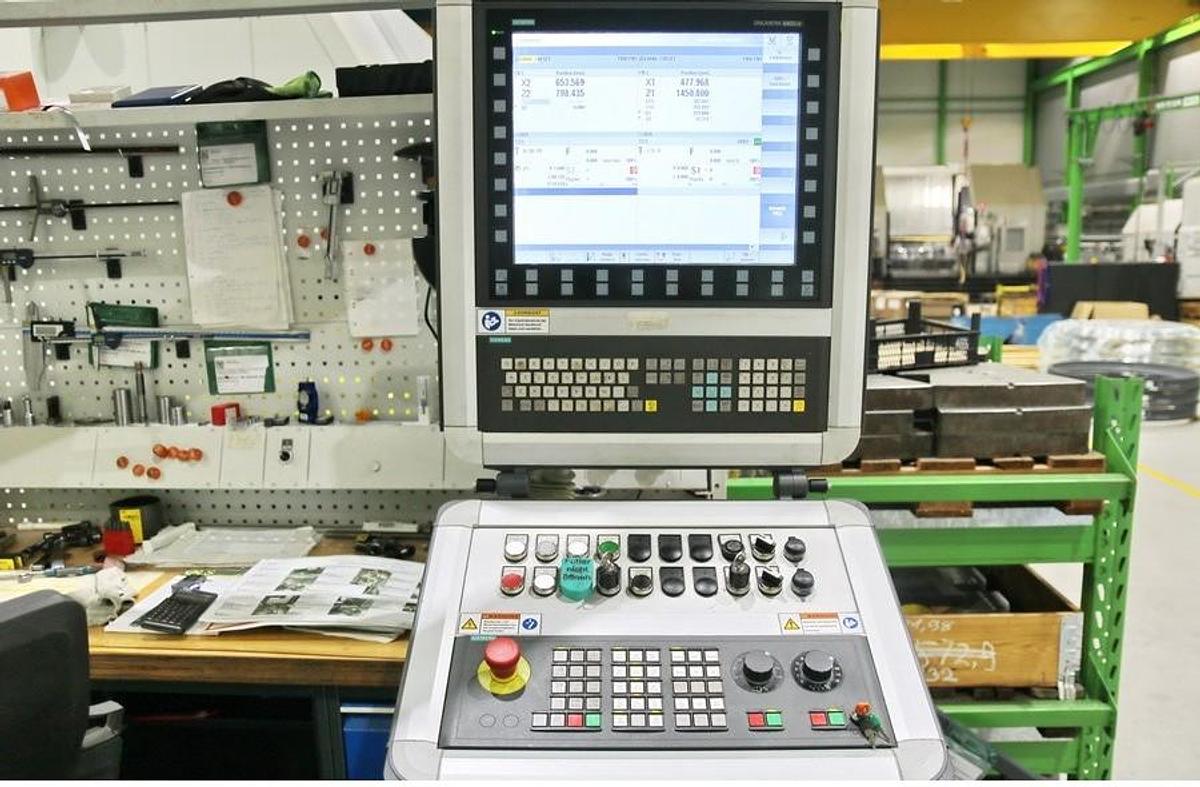

Siemens 840D SL CNC Control

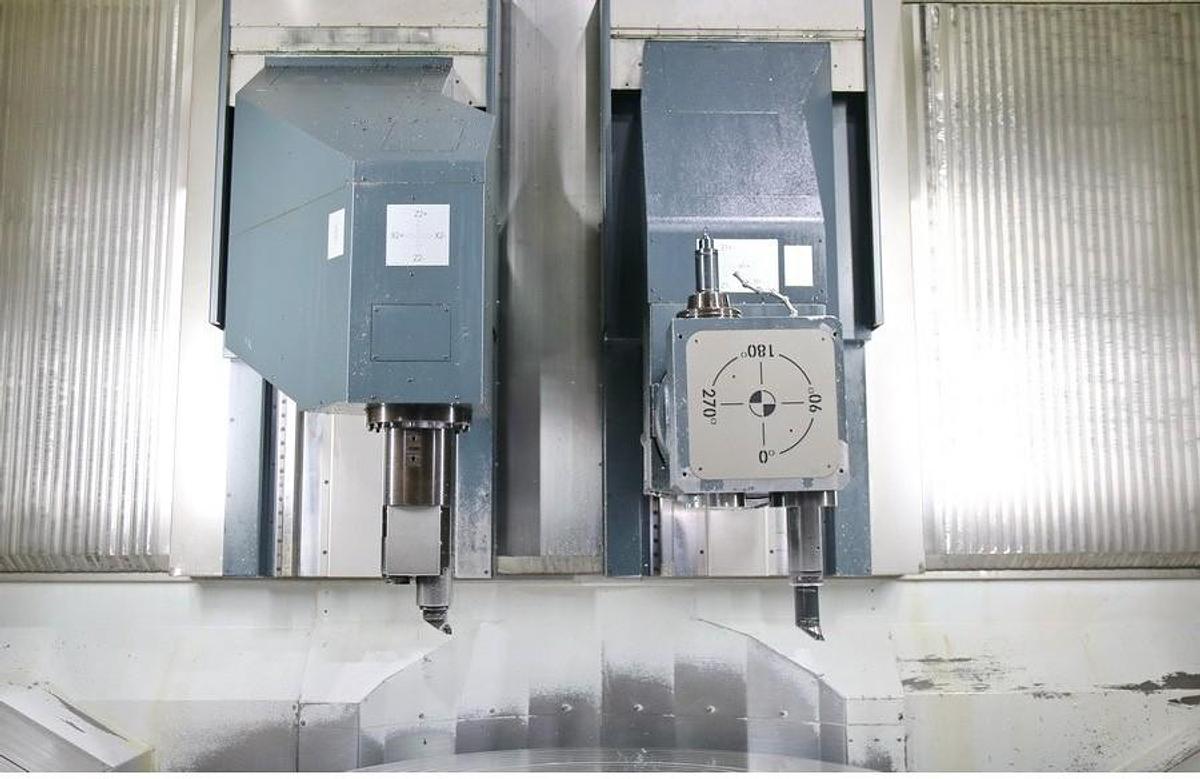

2 Tool Mounts:

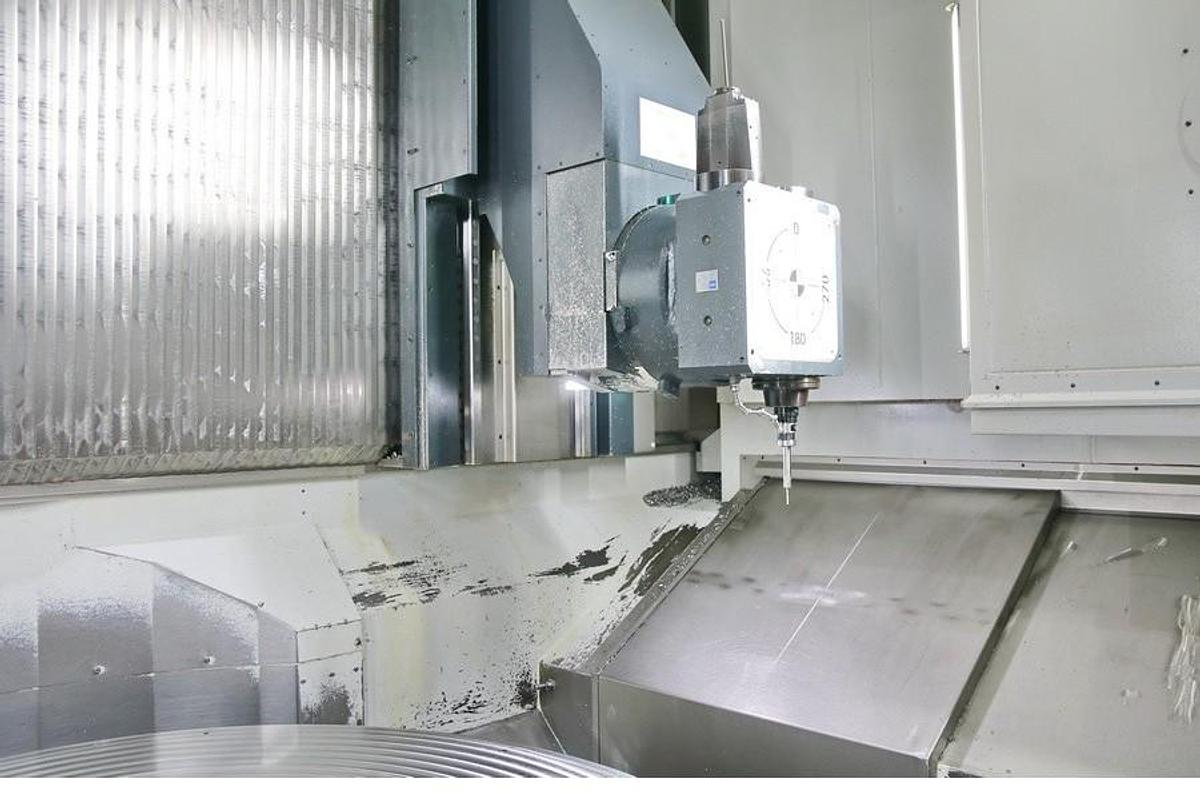

Tool Mount: Right
tool taper Capto C8
swivellable B: 0 - 270 °
Spindle speed - driven tool pos. max. 6.000 rpm
max. Torque 120 Nm
Tool Mount: Links / Left
tool taper Capto C8
Chip conveyor 2x

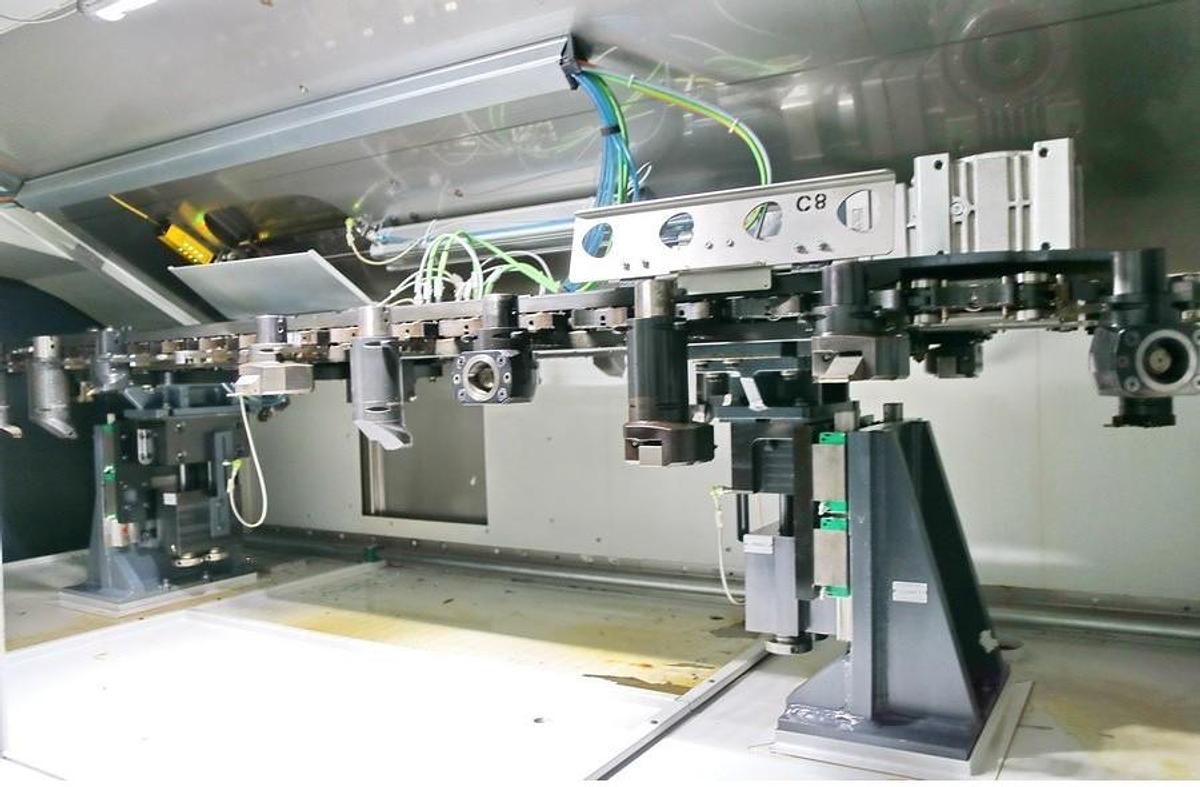

Tool magazine: Right
number of tool positions 41 pos.
max. tool weight 20 kg
max. tool length 400 mm
workpiece diameter at full load 150 mm
tool taper Capto C8
Tool magazine: Left
number of tool positions 25 pos.
workpiece diameter at full load 150 mm
max. tool weight 20 kg
max. tool length 400 mm
tool taper Capto C8
Coolant system 6 bar
High pressure coolant 70 bar
Through spindle coolant
Signal-Light
Paper band filter Knoll
Electronic hand wheel
Hydraulic system
Automatic Front door
Specifications
| Manufacturer | Pittler |
| Model | PV 2500 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 5654248 |
| Turning diameter | 2,800 mm |
| Diameter spindle flange | 1,100 mm |
| Swing diameter | 3,000 mm |
| Table turn speed | 230 rpm |
| Table power | 206 kW |
| Max torque table | 53,000 Nm |
| Tool taper | Capto C8 |
| B axis | 0 - 270° |
| Spindle speeds | 6,000 rpm |
| Max torque spindle | 120 Nm |
| X axis travel | 2,700 mm |
| x axis 2 | 2,700 mm |
| Z axis travel | 2x 1,000 mm |
| Rapid traverse X | 40 m/min |
| Rapid traverse Z | 24 m/min |
| Total power requirement | 200 kVA |
| Machine weight | 30 Ton |
| Machine dimensions | 10.4 x 6.3 x 5.7 m |
