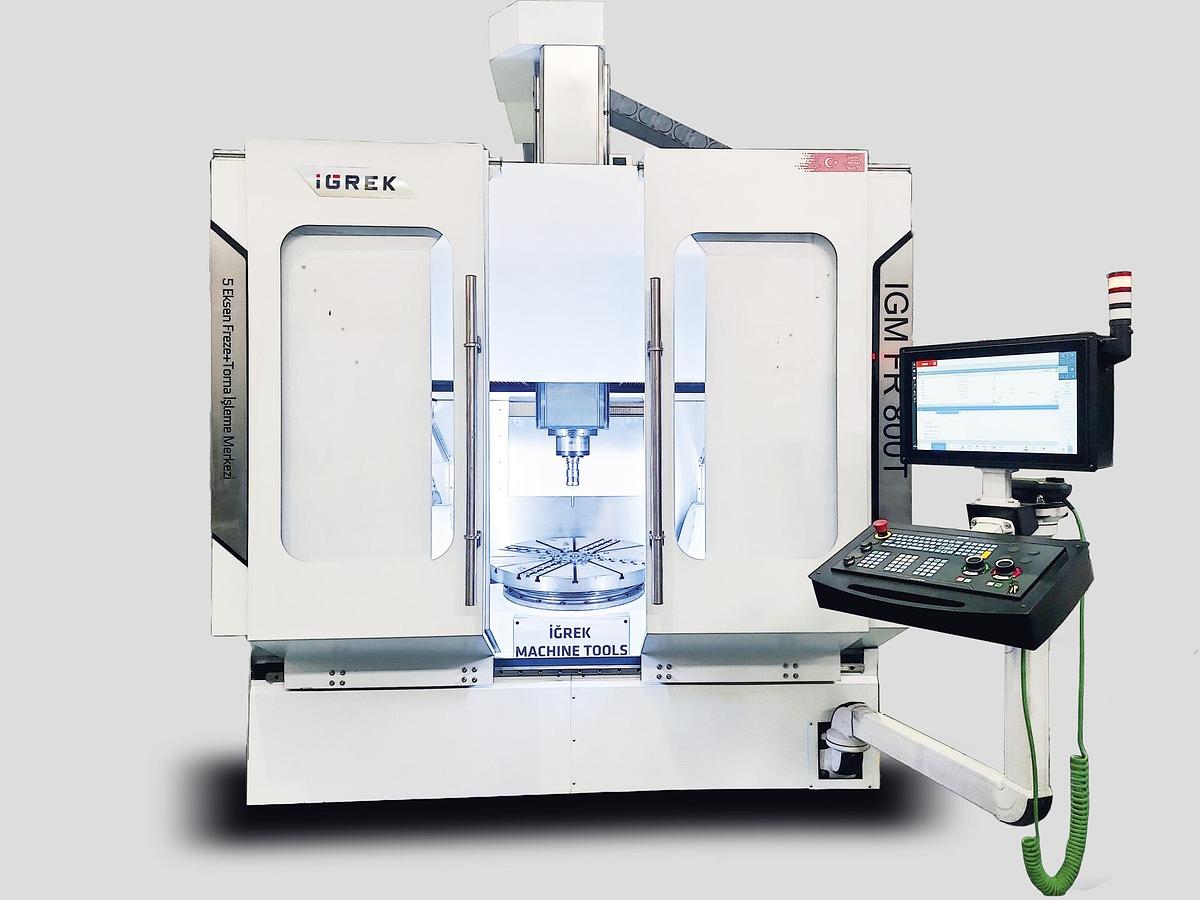

Igrek FR 800T CNC 5-Axis Milling & Turning Center with Tilting Table
Igrek FR 800T CNC 5-Axis Milling & Turning Center with Tilting Table
or
Call 770-509-0744
Description
NEW MACHINE
5-Axis Milling & Turning Center with Tilting Table
A compact yet powerful machine tool designed for high precision and efficiency. With its rigid cast iron monoblock body and advanced automation, the FR 800T performs all complex milling and turning operations in a single setup, delivering exceptional performance and reduced lead times.
Catch Performance with Precision and Efficiency!
Compact size with high productivity

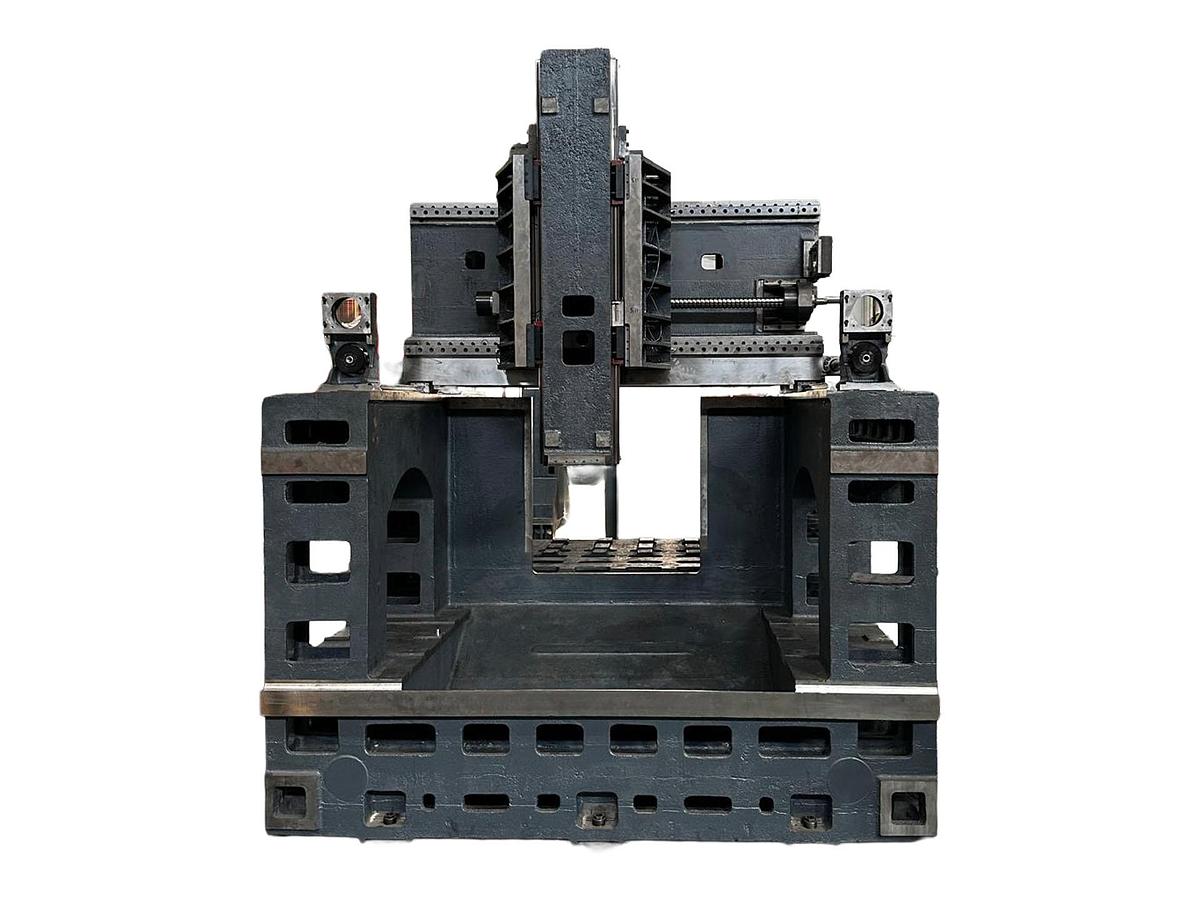

Monoblock cast iron body for maximum rigidity
Workload capacity: 1500 kg
All milling & turning operations in one adjustment
Siemens SINUMERIK ONE CNC Control
40 Position Automatic Tool Changer

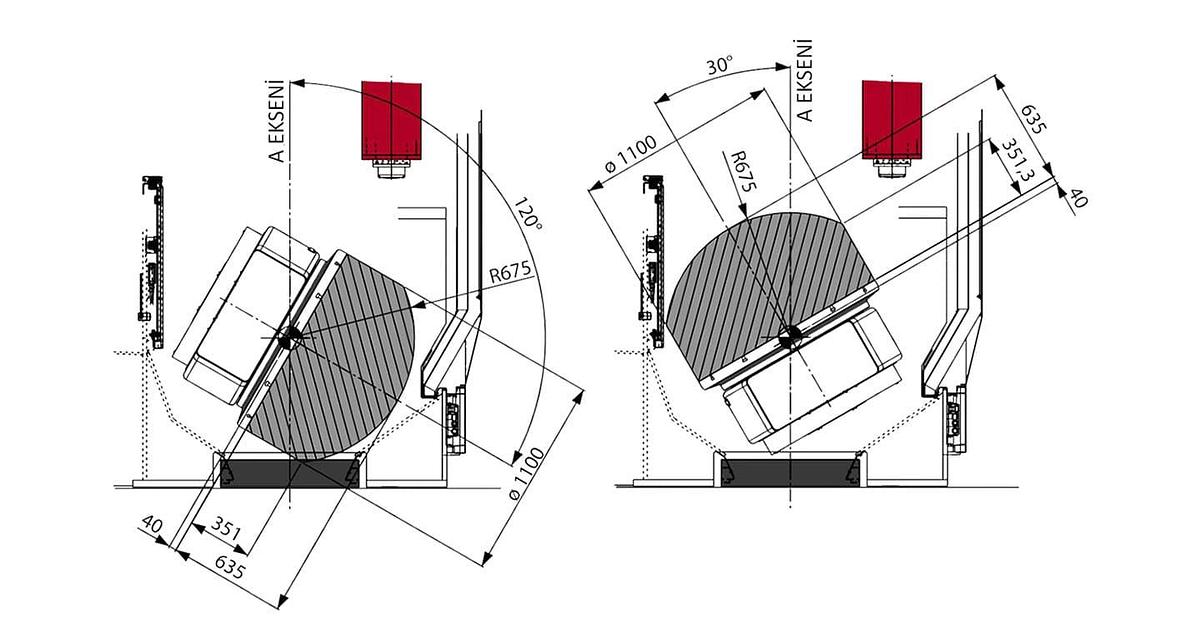

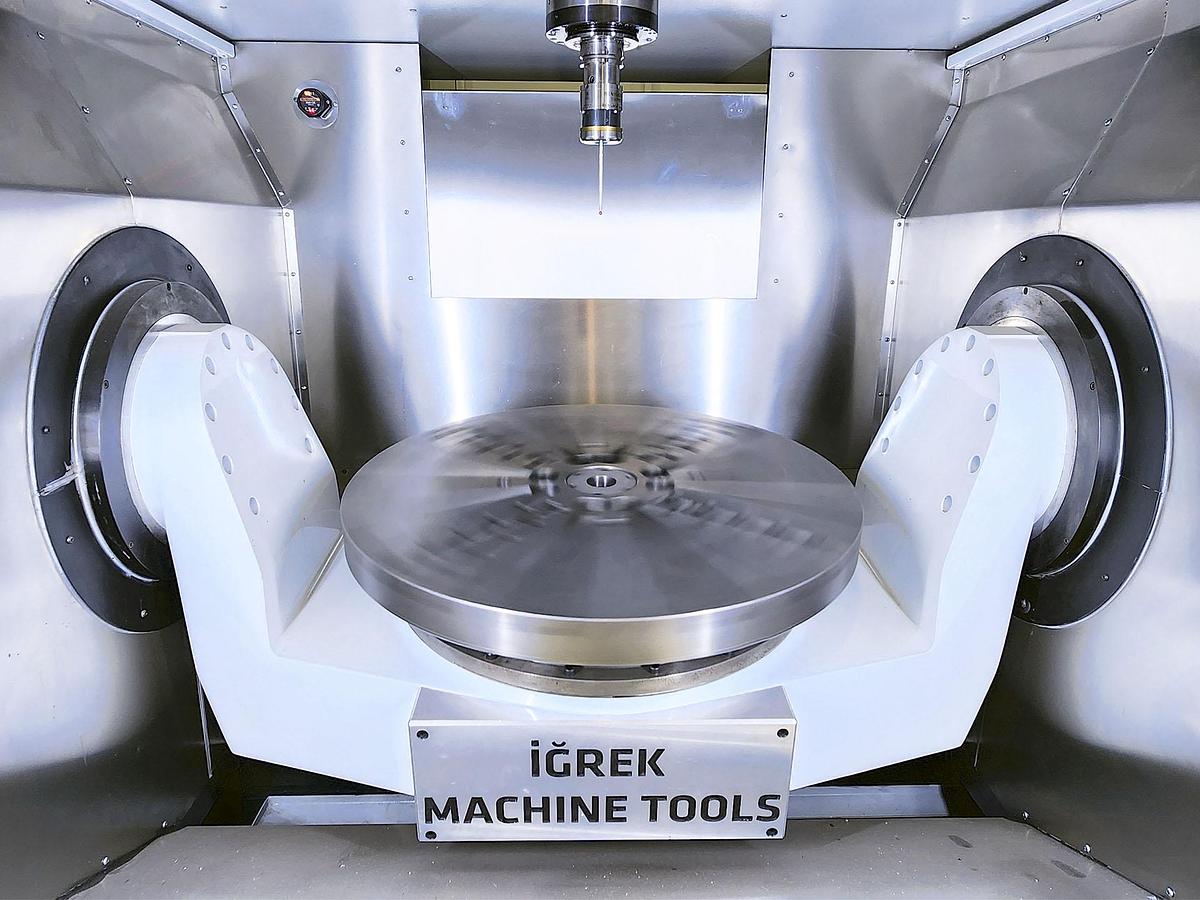

Tilting Table
Specifications
| Manufacturer | Igrek |
| Model | FR 800T |
| Year | 2025 |
| Condition | Used |
| Stock Number | 5654247 |
| Spindle speeds | 20,000 rpm |
| X axis travel | 900 mm |
| Y axis travel | 900 mm |
| Z axis travel | 600 mm |
| A axis | +130° / -100° |
| C axis | ±360° |
| Acceleration Y | 2.5 m/s² |
| Acceleration X | 48 m/s² |
| Rapid feedrate Y/Z | 48 |
| Spindle power | 25 kW |
| Spindle torque | 87 Nm |
| Tooling taper | HSK-T63 |
| Max workpiece diameter | 800 mm |
| A axis power | 124 kW |
| A axis speed | 100 rpm |
| Table load | 2,000 kg |
| A axis max brake torque | 10,000 Nm |
| C axis power | 54.2 kW |
| C axis speed | 450 rpm |
| Machine size | 3,200 x 2,550 x 4,400 mm |
| Machine weight | 18,000 kg |
