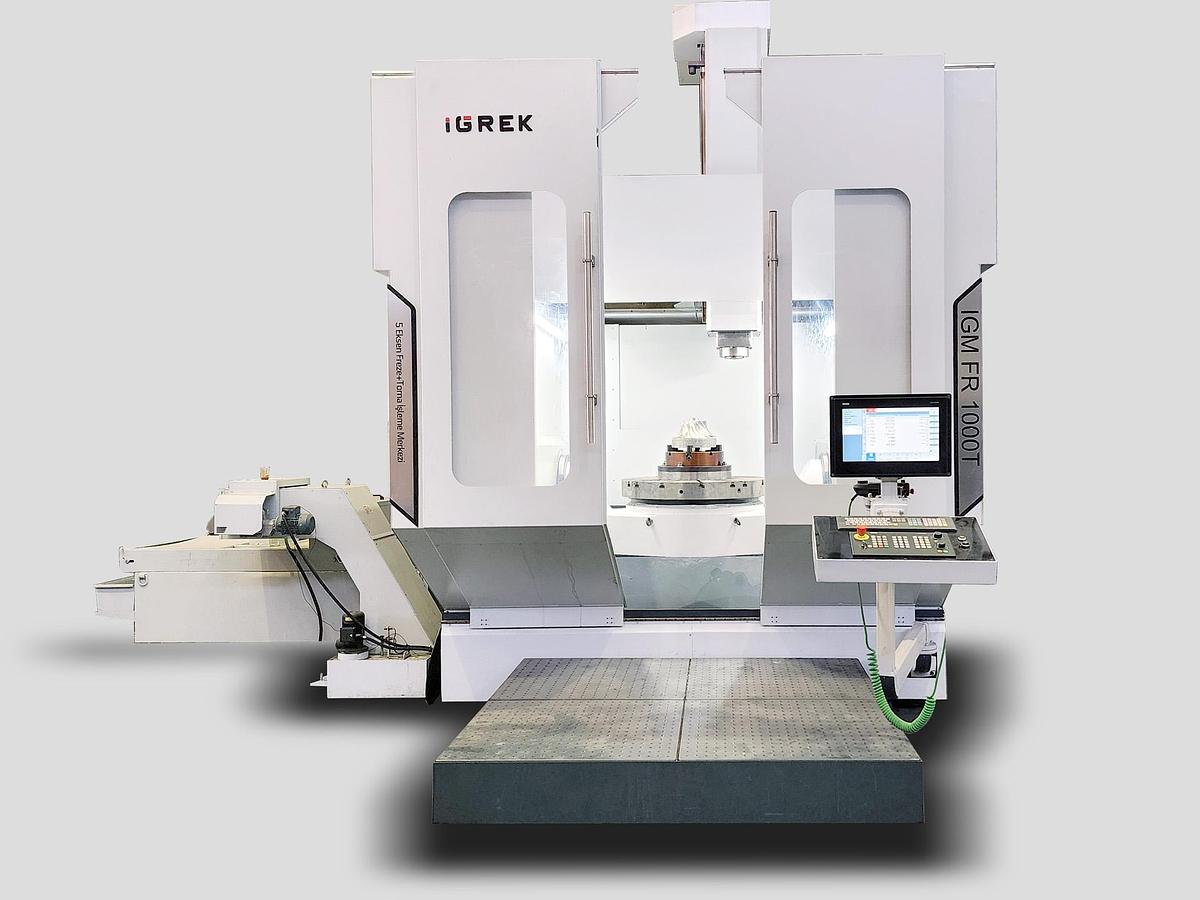

Igrek FR 1000T CNC 5-Axis Milling & Turning Center with Tilting Table
Igrek FR 1000T CNC 5-Axis Milling & Turning Center with Tilting Table
or
Call 770-509-0744
Description
NEW MACHINE
5-Axis Milling & Turning Center with Tilting Table
A high-end, mass production machine for precise milling and turning operations. With its cast iron single block body structure and superior automation, capable of processing all operations of complex geometry parts in one adjustment with high performance and short lead times.

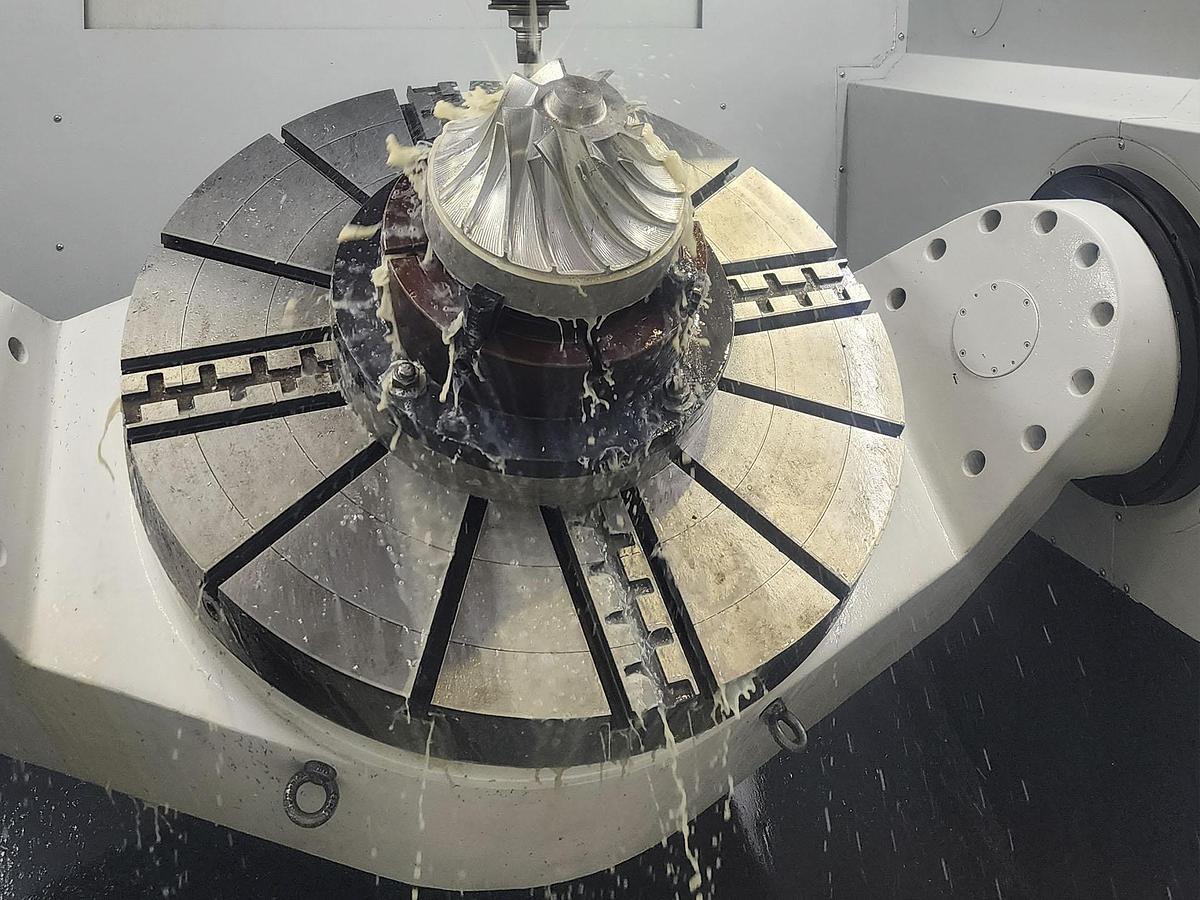

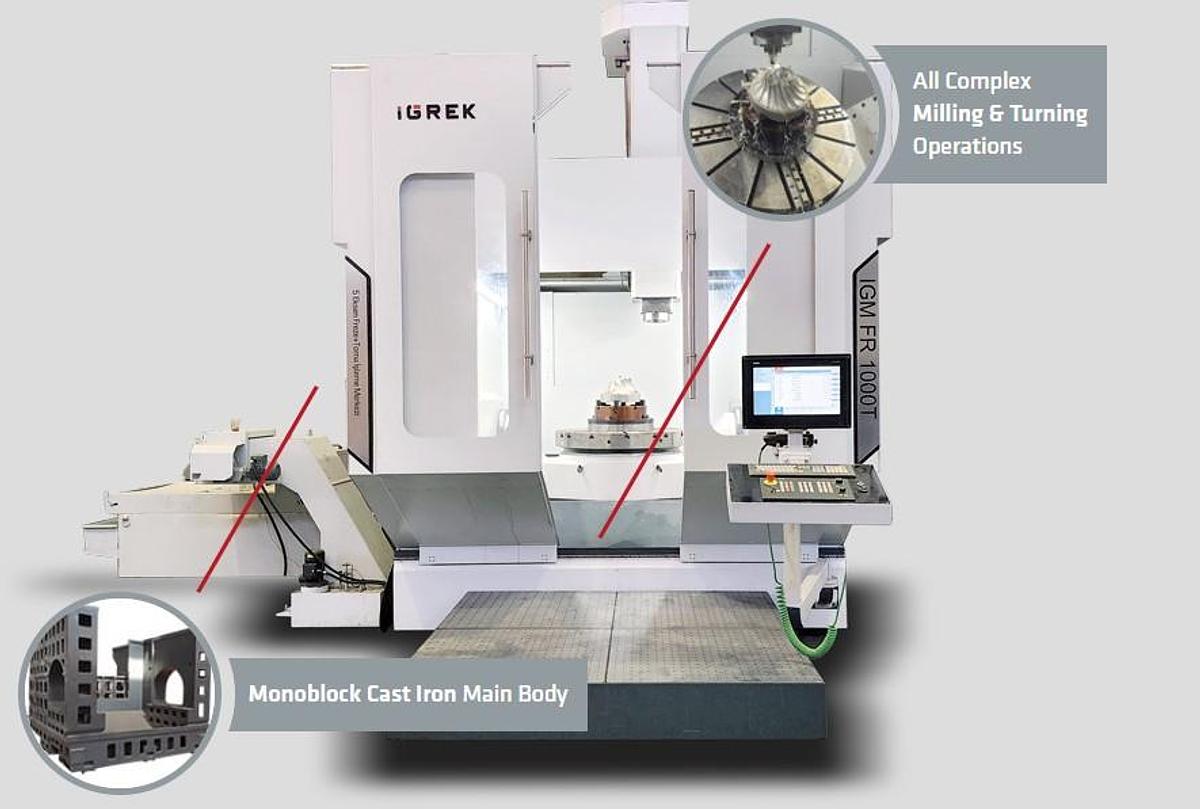

- All Complex Milling & Turning Operations
- Monoblock Cast Iron Main Bod
- Work Load Capacity: 2000 kg
Siemens 840D SL CNC Control
40 Position Automatic Tool Changer
Tilting Table
Specifications
| Manufacturer | Igrek |
| Model | FR 1000T |
| Year | 2025 |
| Condition | Used |
| Stock Number | 5654246 |
| Spindle speeds | 16,000 rpm |
| X axis travel | 1,350 mm |
| Y axis travel | 1,500 mm |
| Z axis travel | 900 mm |

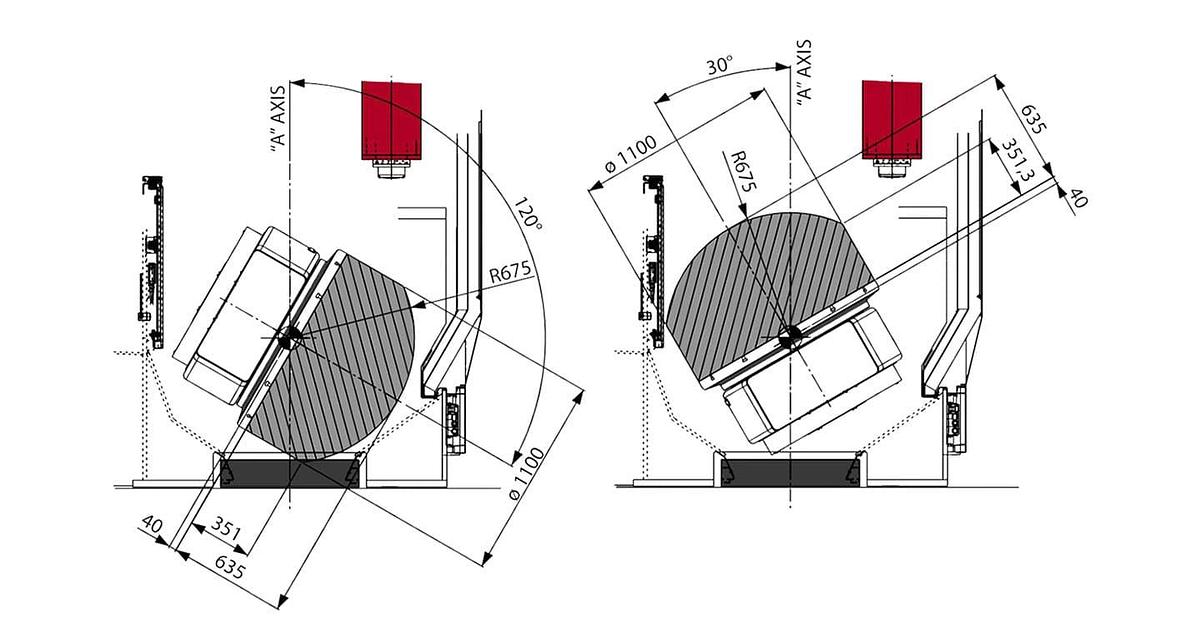

| A axis | +120° / -30° |
| C axis | ±360° |
| Acceleration Y | 4 m/s² |
| Acceleration X | 48 m/s² |
| Rapid feed Y/Z | 48 |
| Spindle power | 46 kW |
| Nominal spindle torque | 220 Nm |
| Tooling taper | HSK-T100 |
| Max workpiece diameter | 1,000 mm |
| A axis power | 20, 34 kW |
| A axis speed | 100 rpm |
| Table load | 2,000 kg |
| A axis max brake torque | 10,000 Nm |
| C axis power | 43 kW |
| C axis speed | 600 rpm |
| Machine size | 3,200 x 6,400 x 4,050 mm |
| Machine weight | 40,000 kg |
