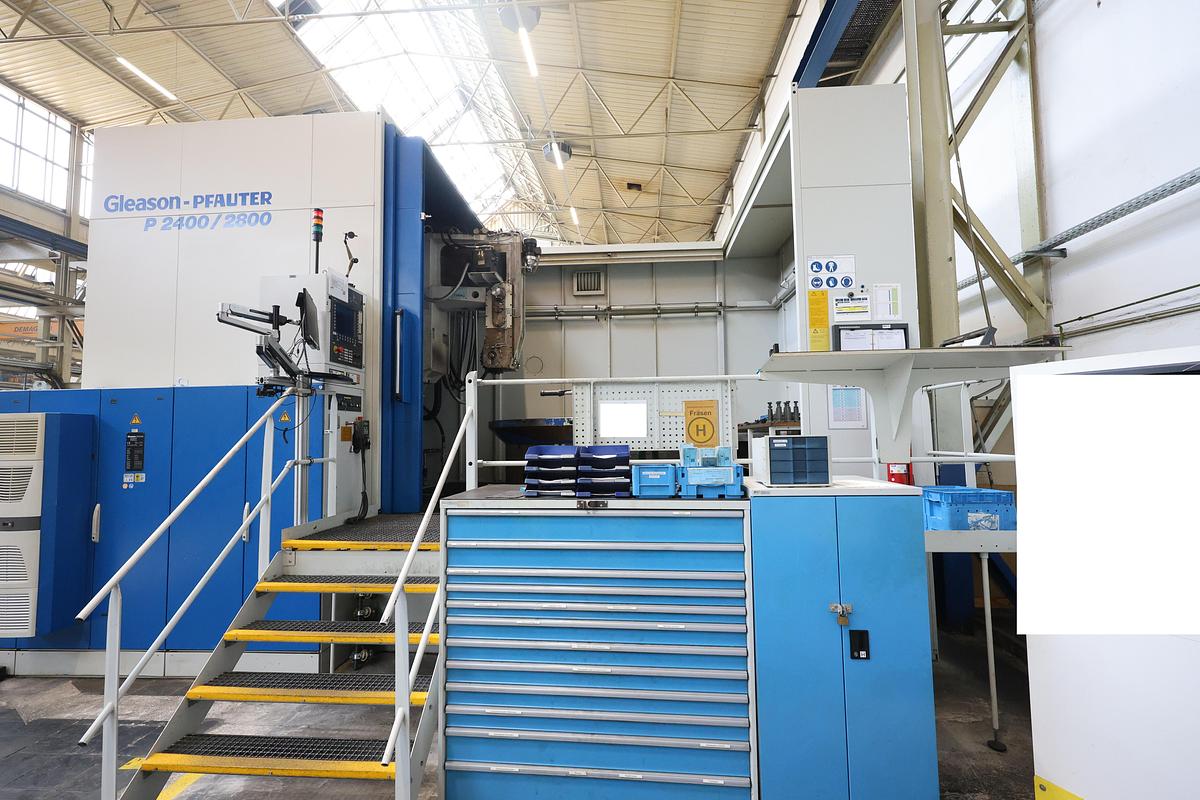

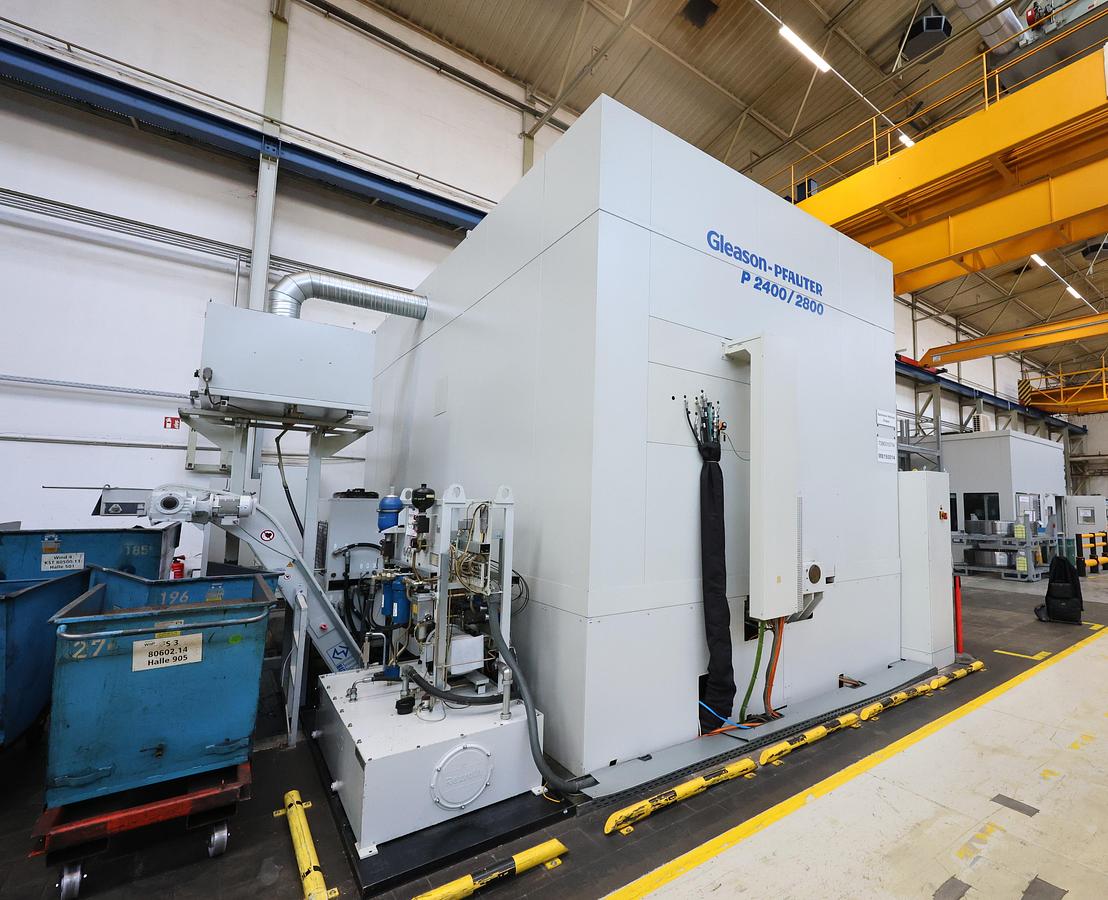

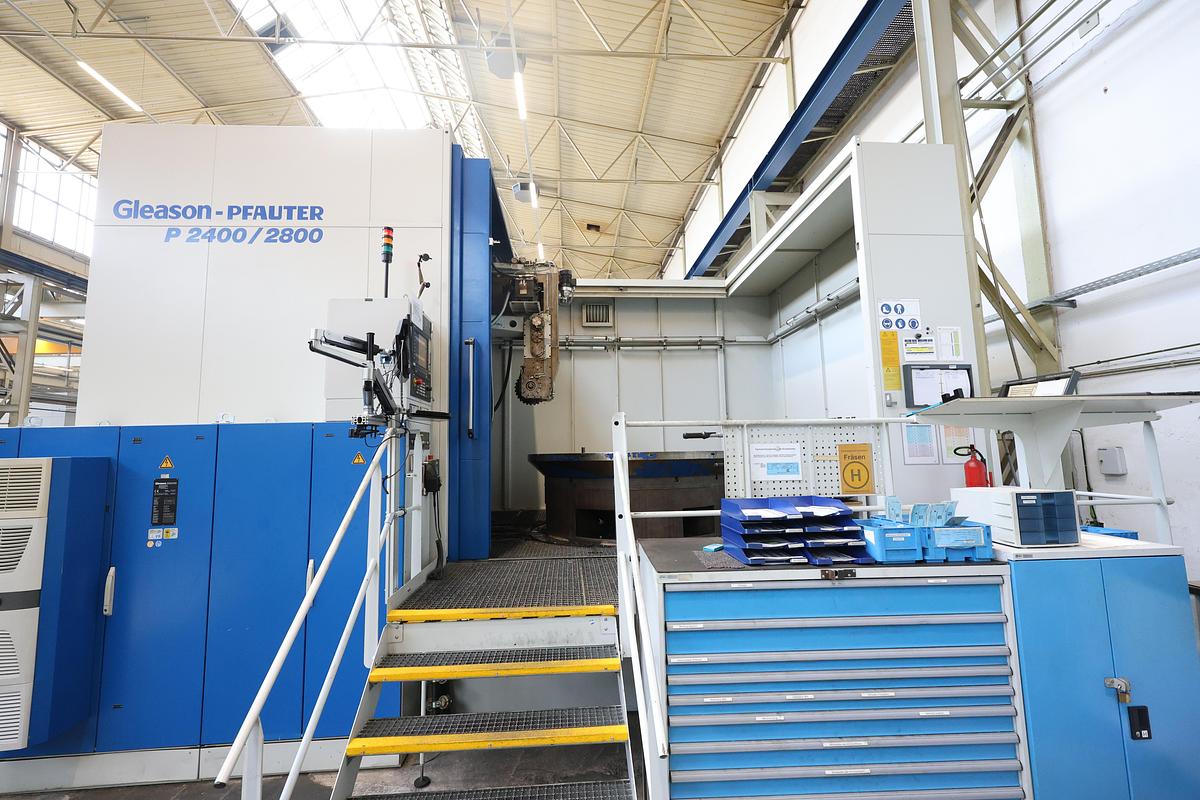

Gleason Pfauter P 2400/2800 CNC Vertical Gear Hobbing Machine

Gleason Pfauter P 2400/2800 CNC Vertical Gear Hobbing Machine

or
Call 770-509-0744

Description

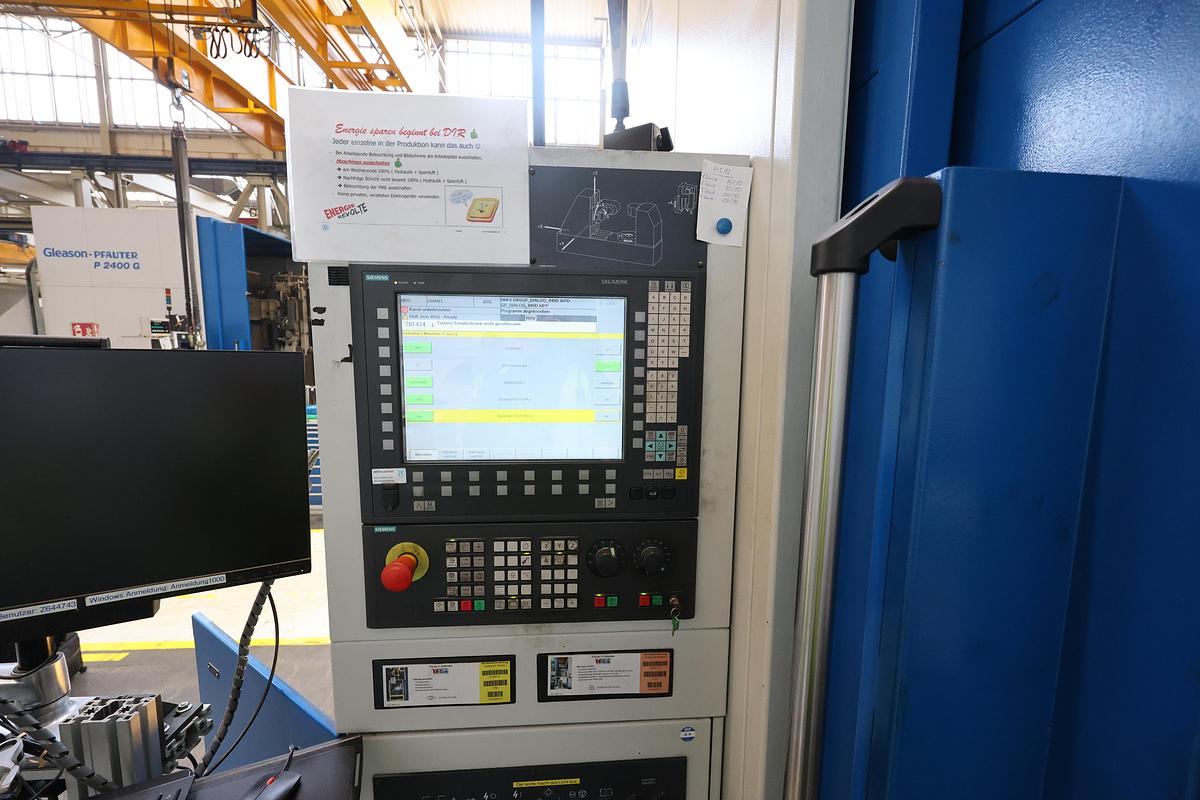

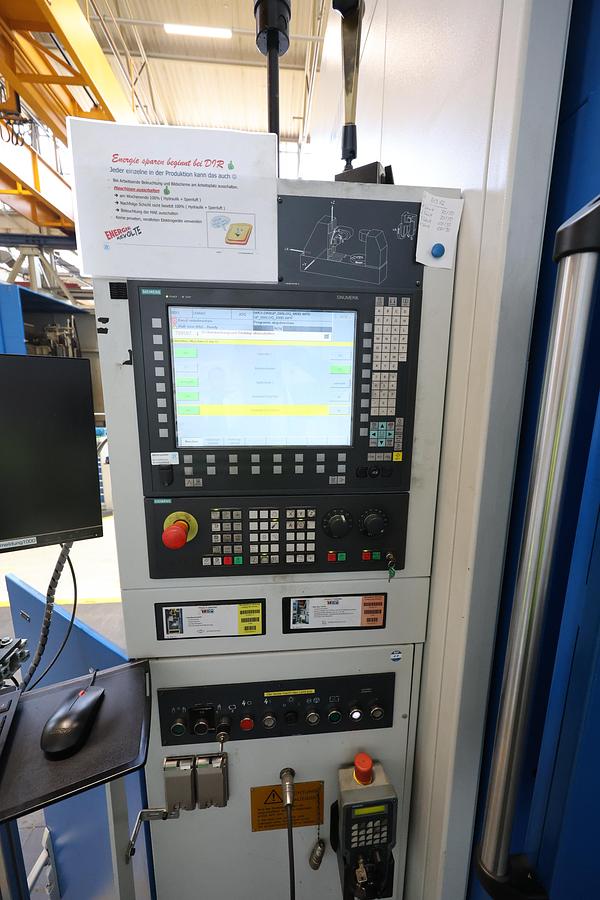

Siemens Sinumerik 840D CNC Control

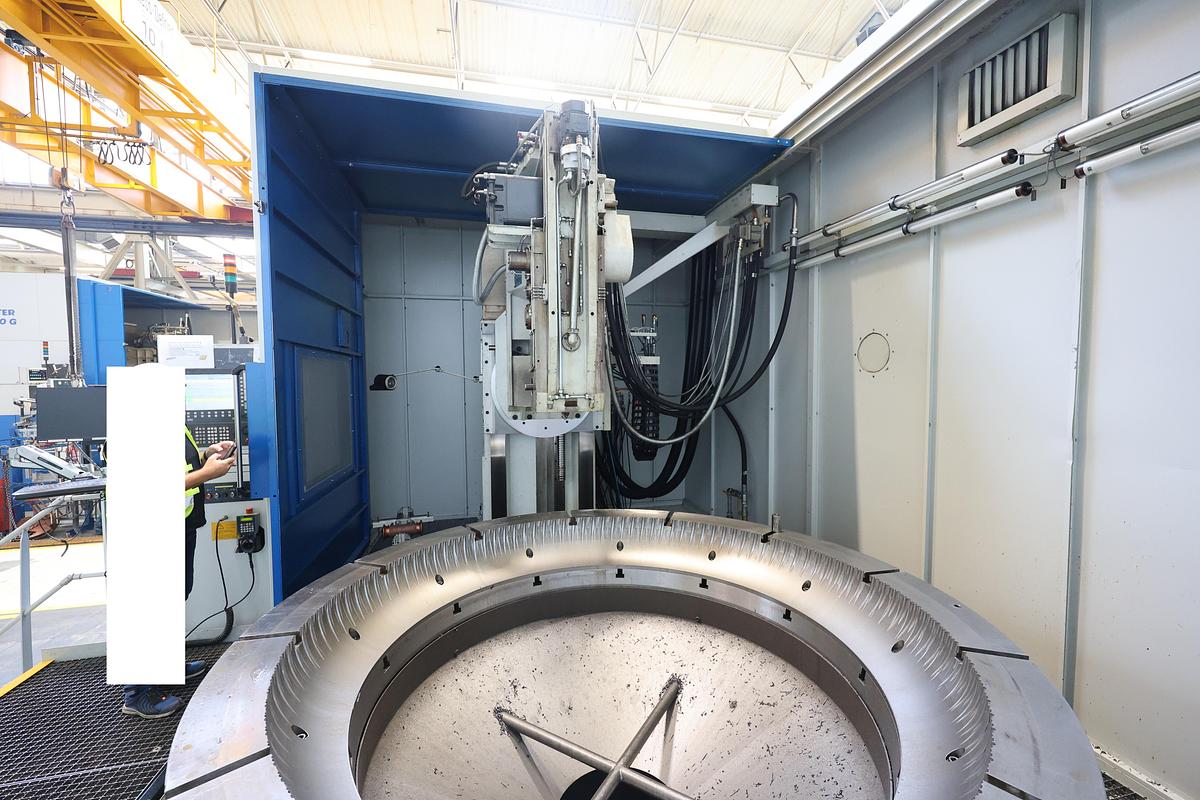

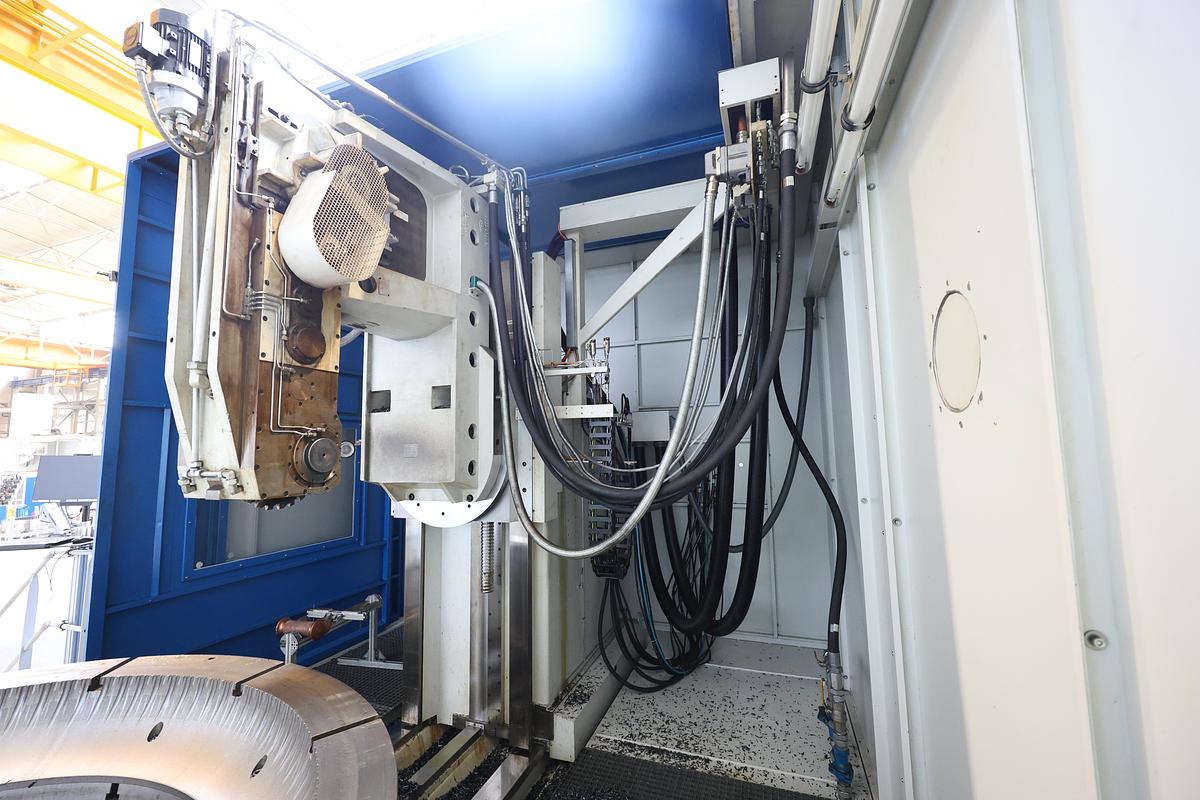

IFK2 Internal Milling Head

Milling Arbor with Spacers

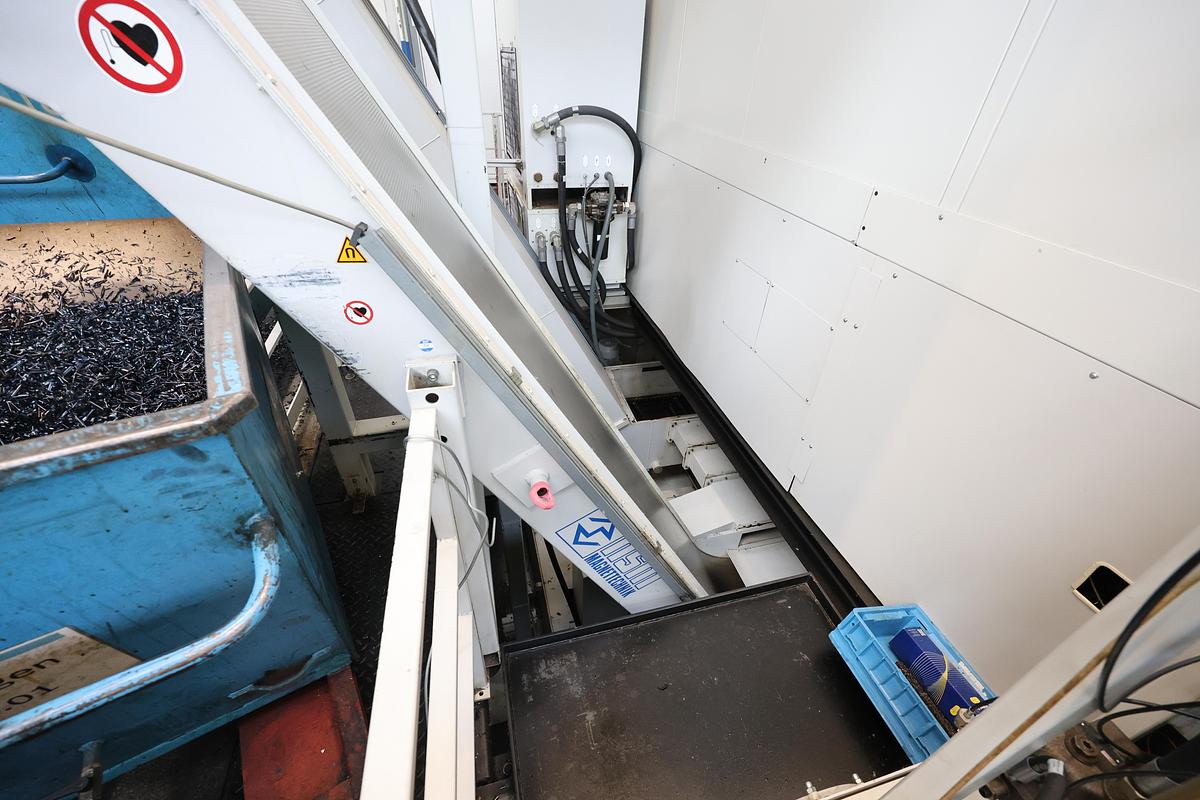

Chip Conveyor

Oil Mist Extraction

Technical Documentation

Slide Drives:

Feed & Rapid Traverse Speed:

Axial 4,000 mm/min

Radial 3,000 mm/min

Tangential 3,000 mm/min

Specifications

ManufacturerGleason Pfauter
ModelP 2400/2800
Year2007
ConditionUsed
Stock Number5654240
Workpiece diameter nominal2,400 mm
Max workpiece diameter2,800 mm
Max module30 mm
Dividing plate diameter2,200 mm
Table diameter2,500 mm
Table hole diameter / depth800 / 875 mm
Max table load40,000 kg
Table speed4.5 rpm
Max clamping length375 mm
Max clamping diameter350 mm
Max cutter diameter2,800 mm
Cutter arbor coneHSK-B160
Milling head swivelling range+30° / -45°
Distance cutter - workpiece615 / 1,600 mm
Machine weight57 ton
