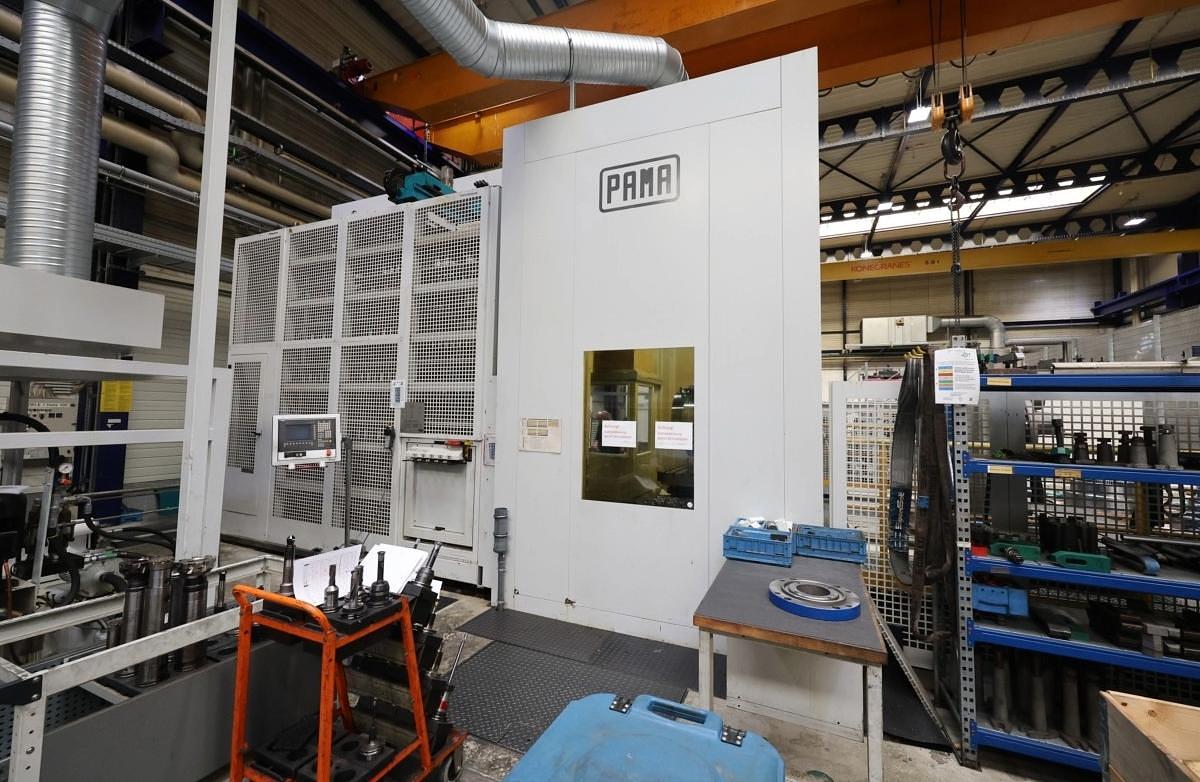

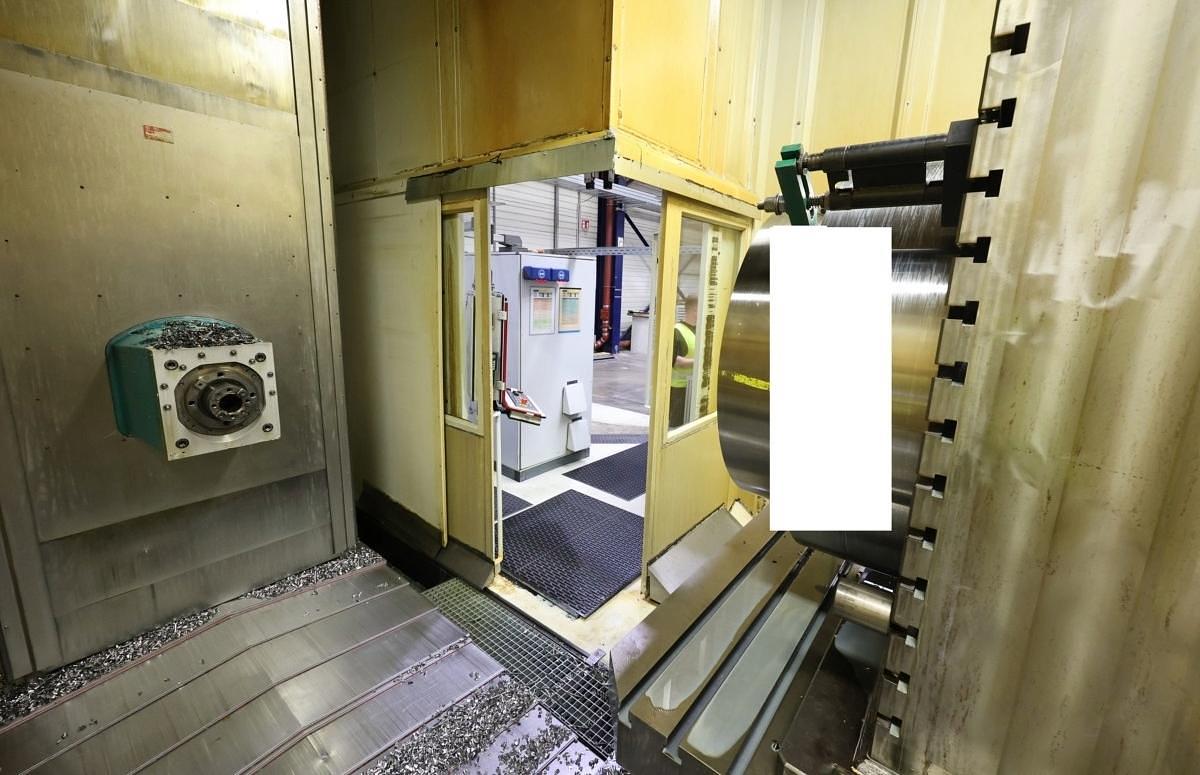

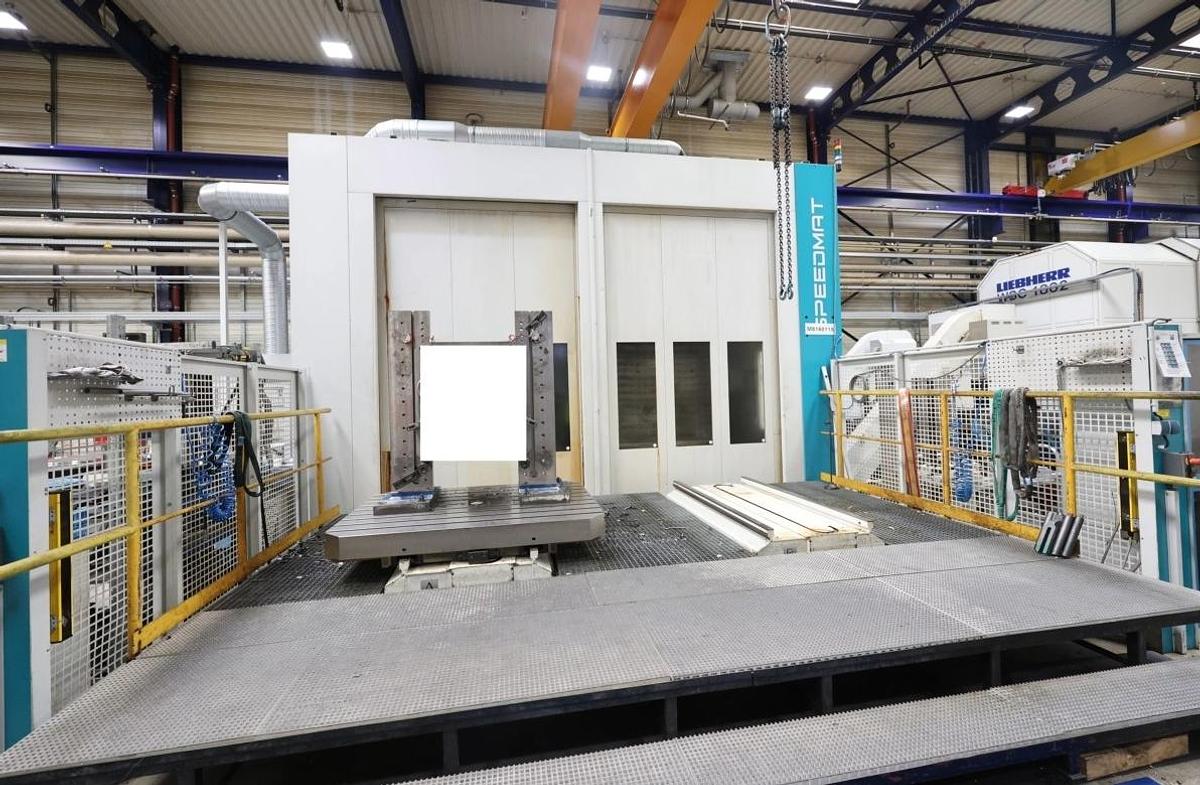

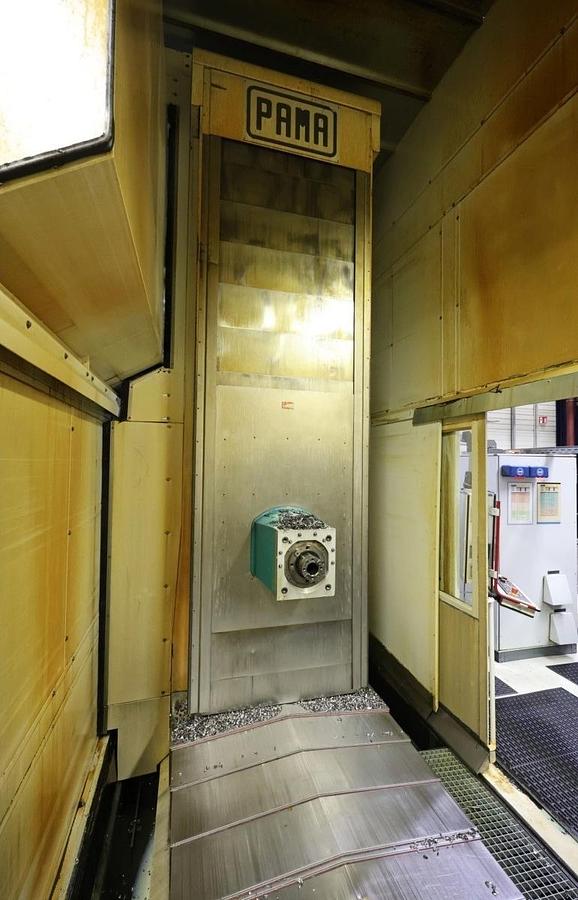

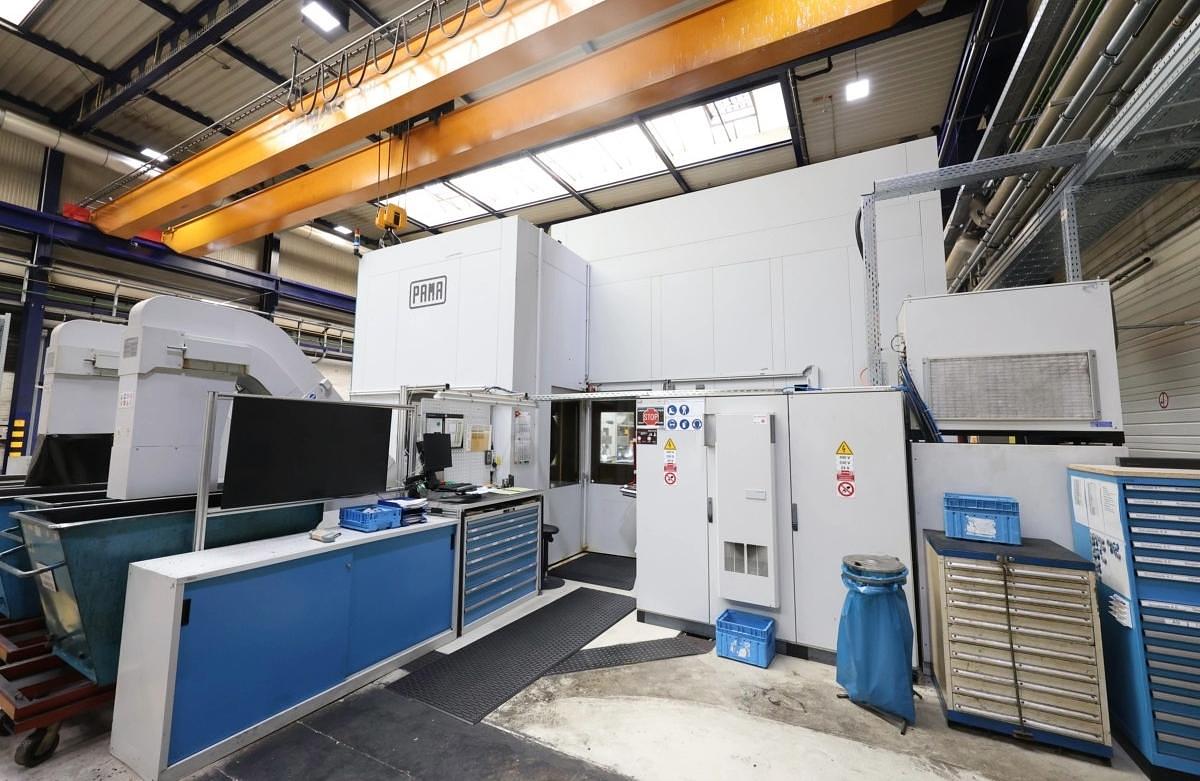

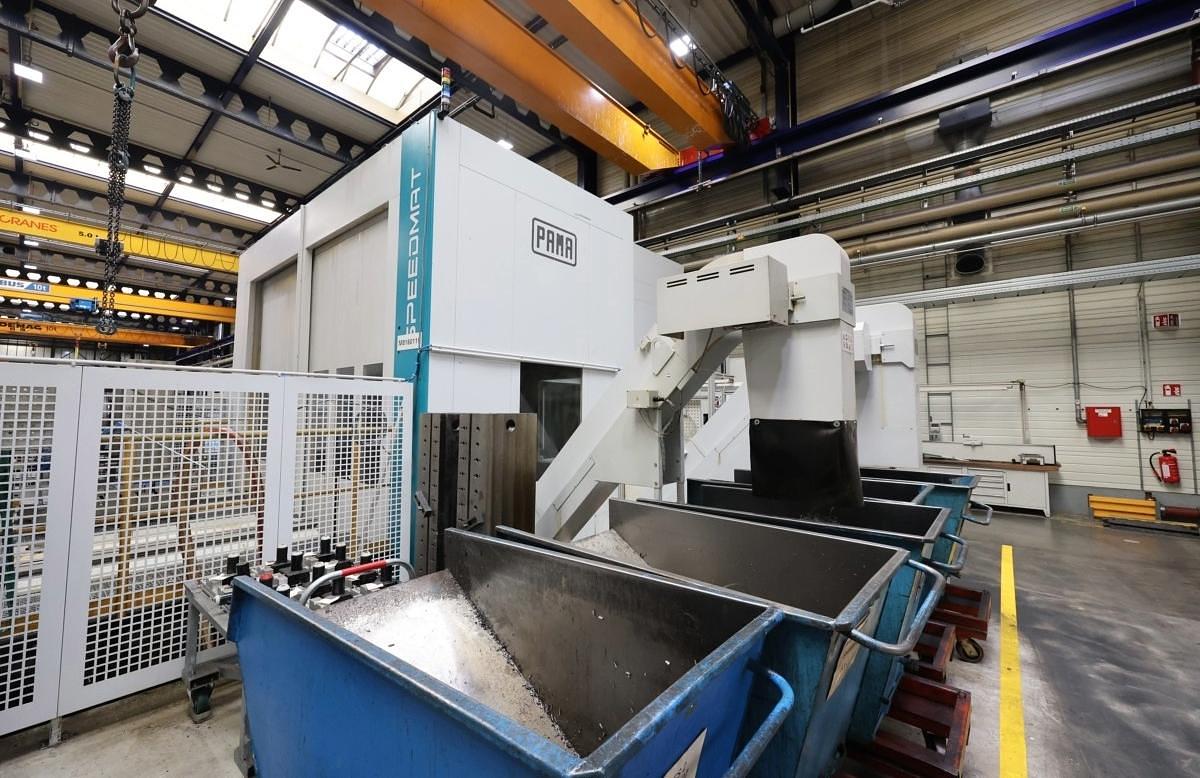

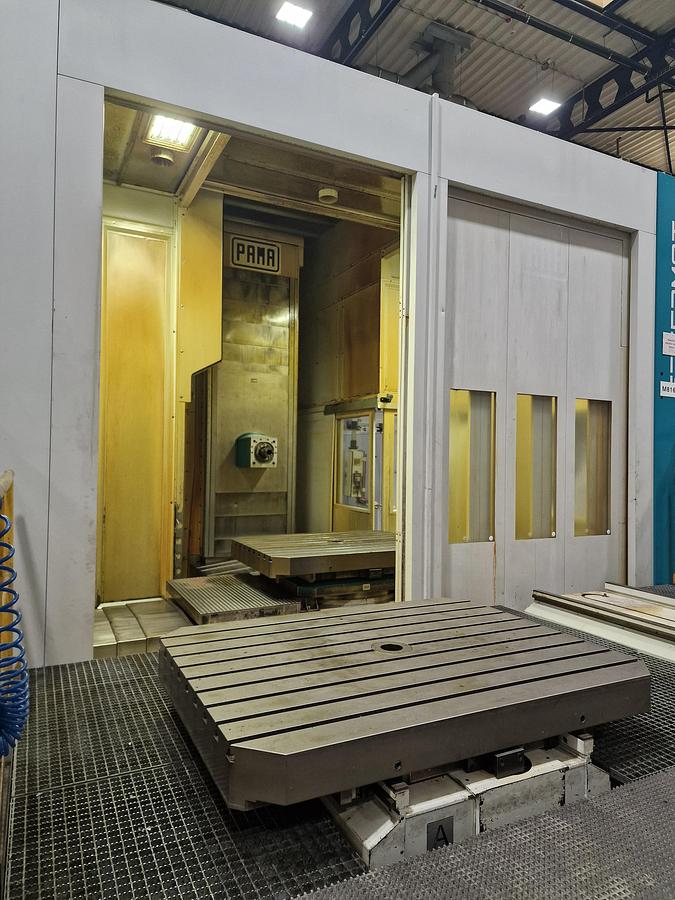

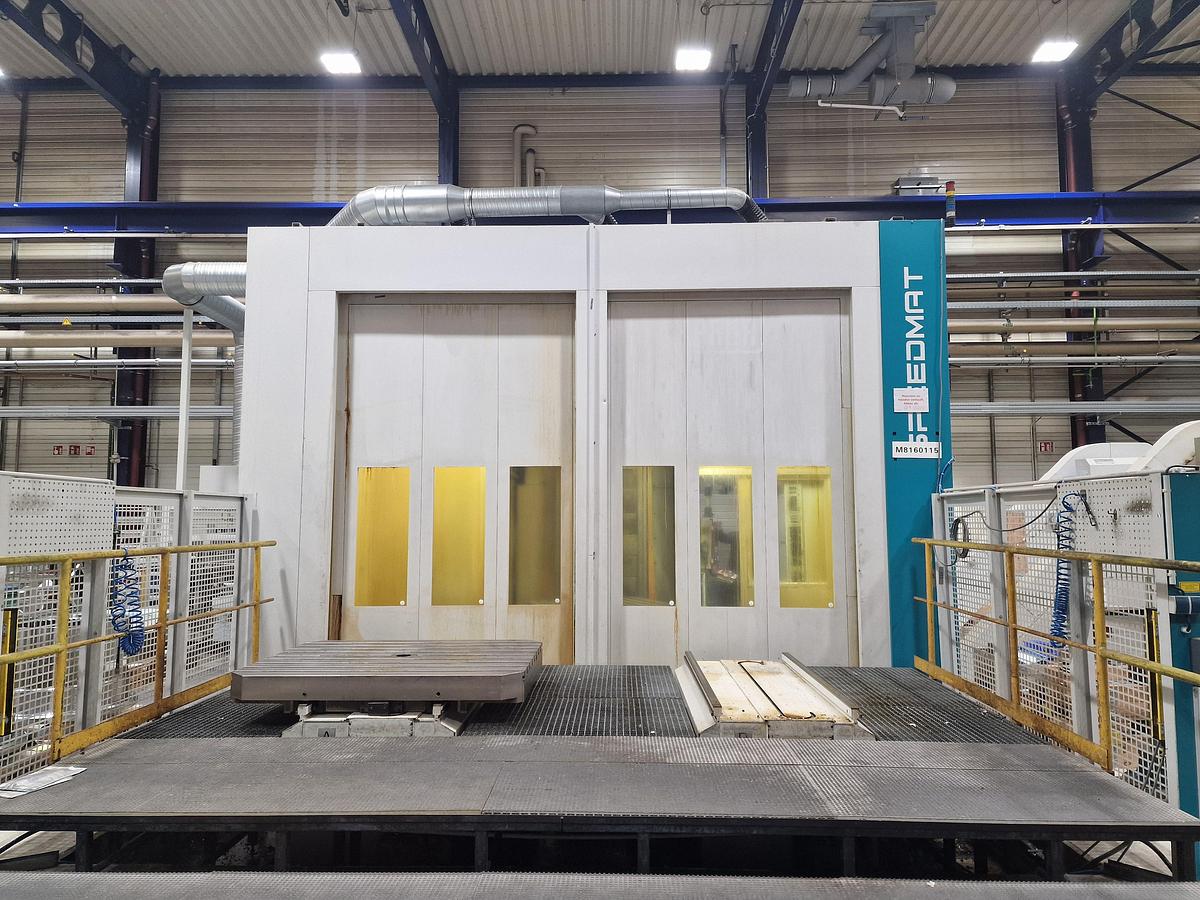

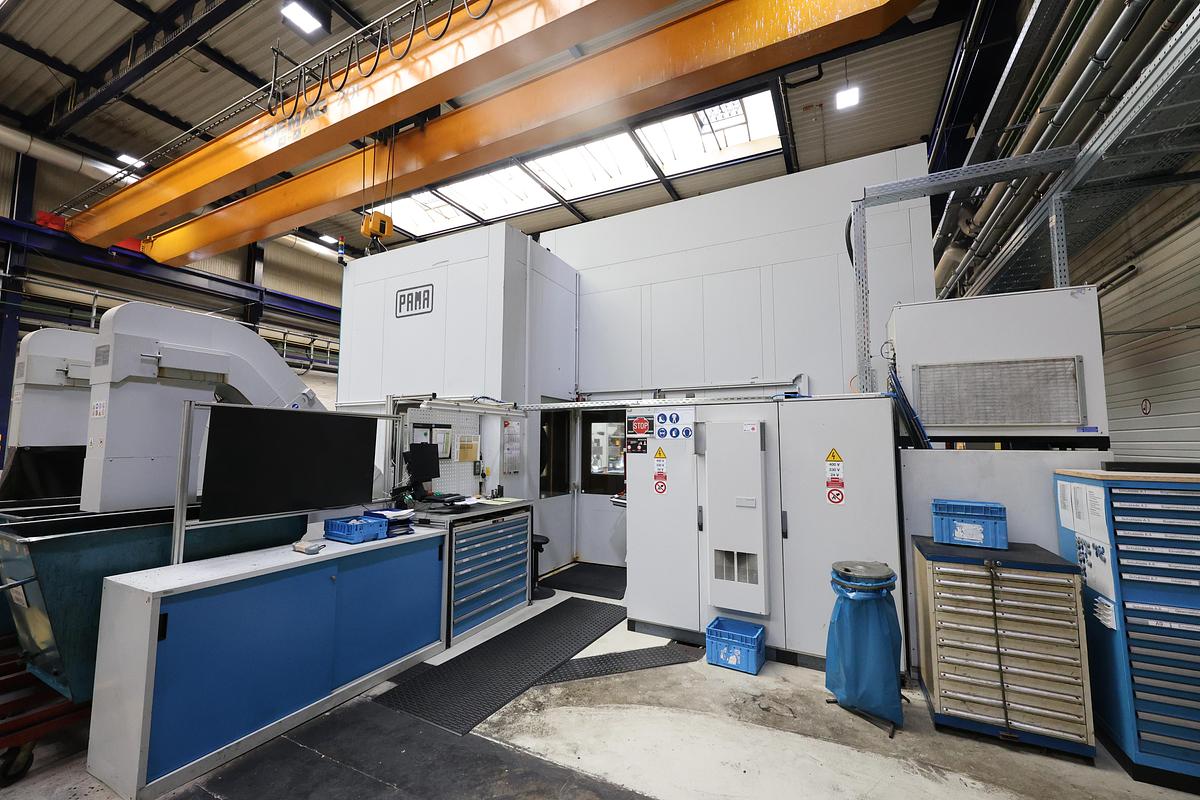

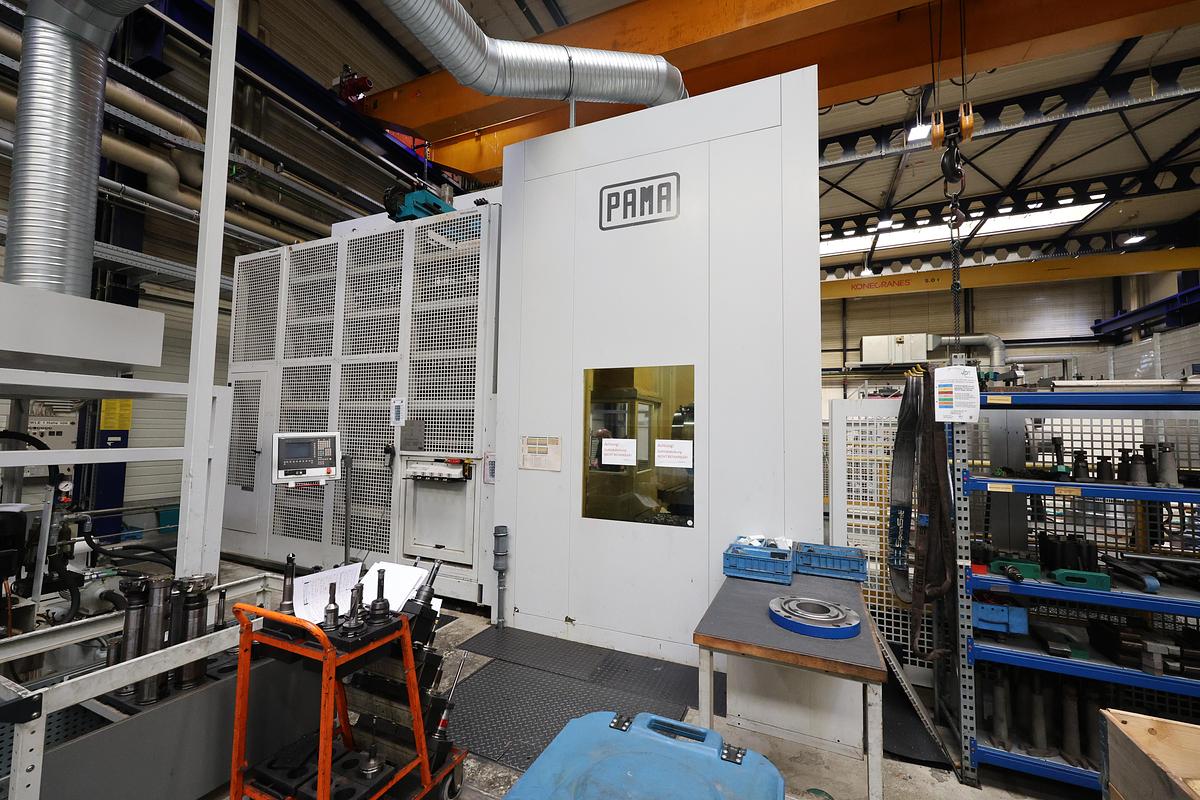

Pama Speedmat 2/TR 8 CNC Universal Machining Center with Twin Pallet Changer
Pama Speedmat 2/TR 8 CNC Universal Machining Center with Twin Pallet Changer
or
Call 770-509-0744
Description

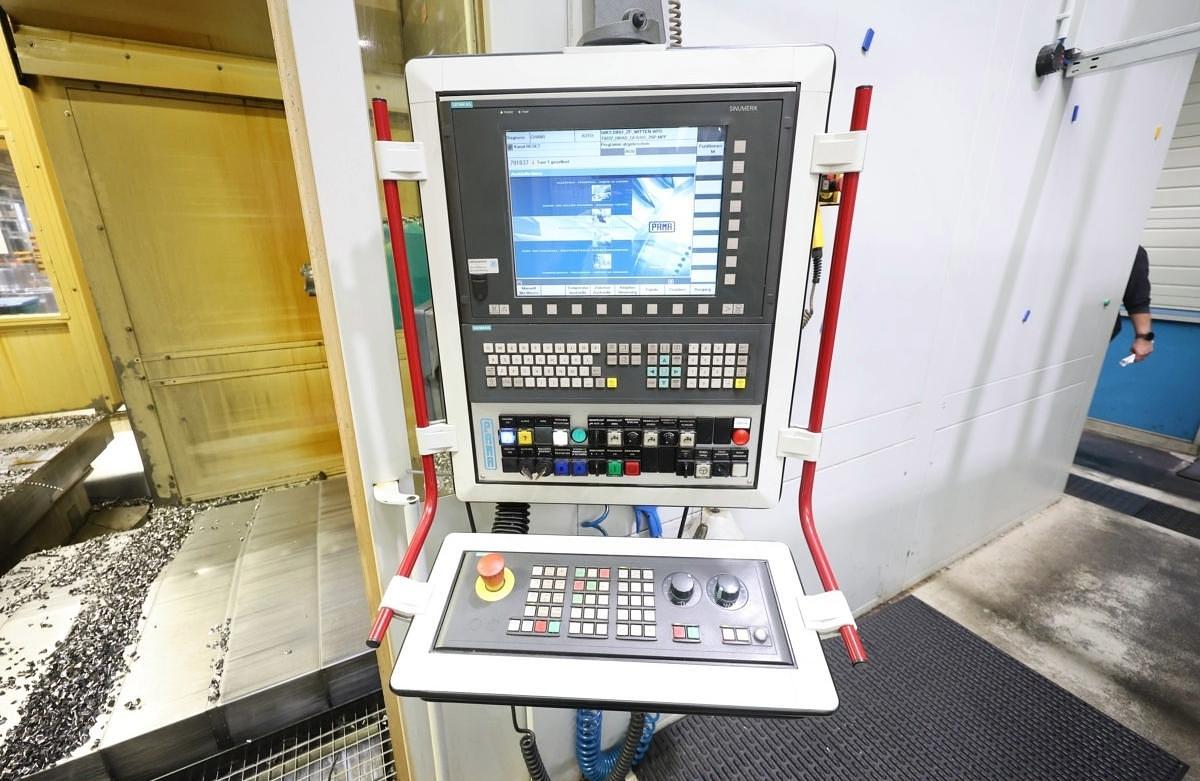

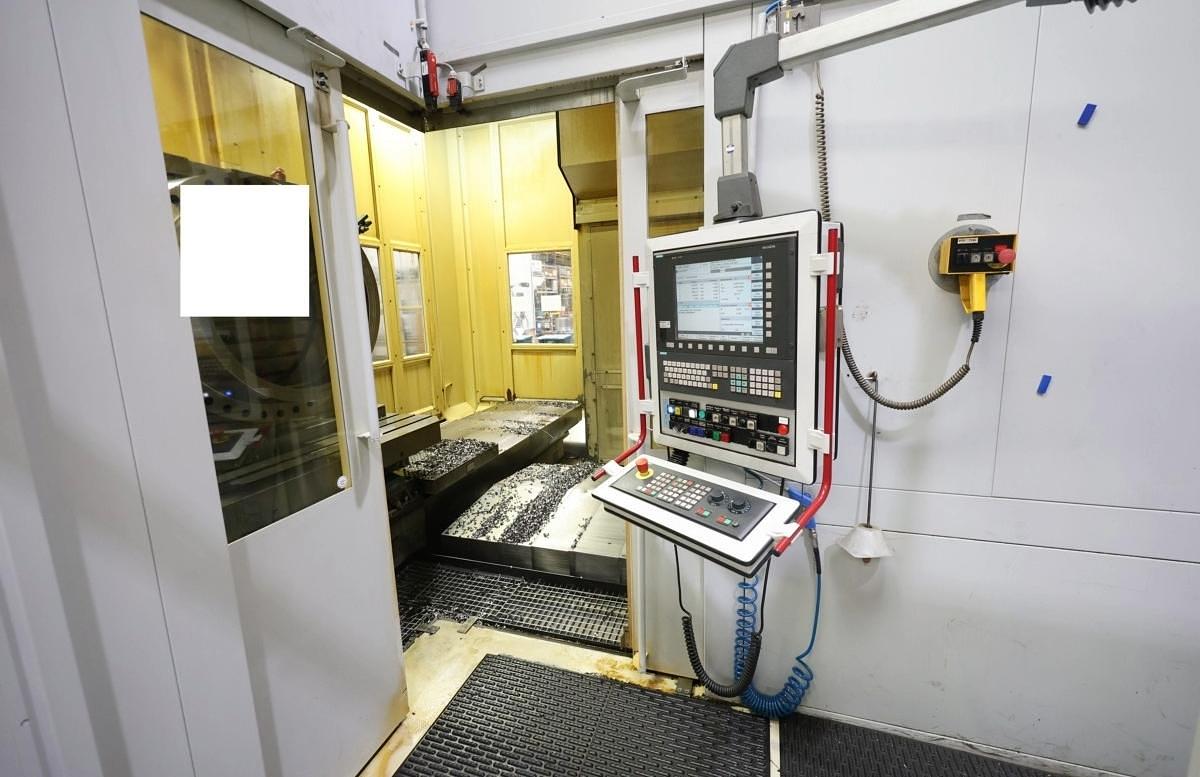

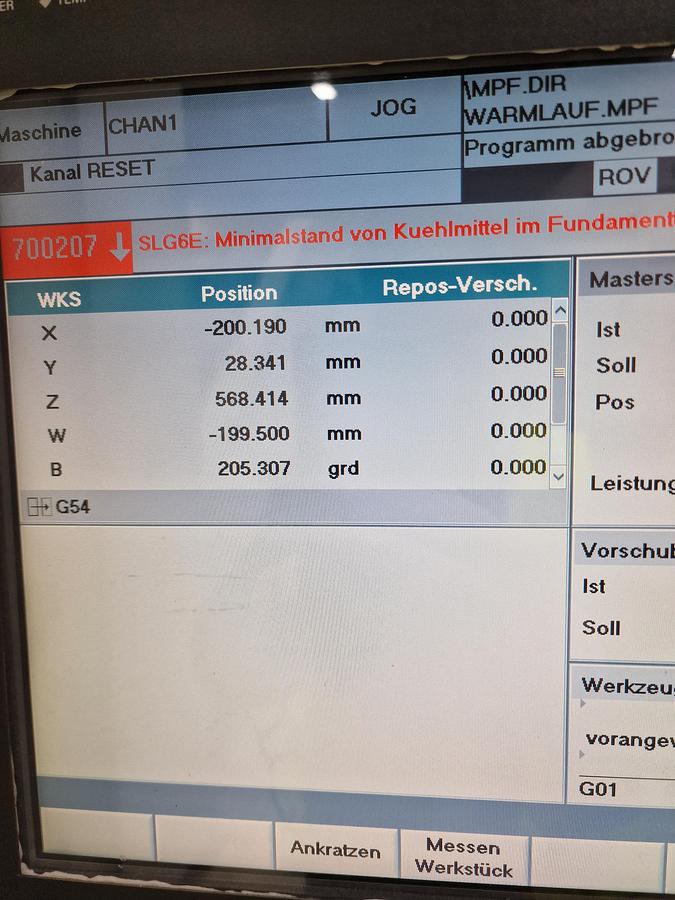

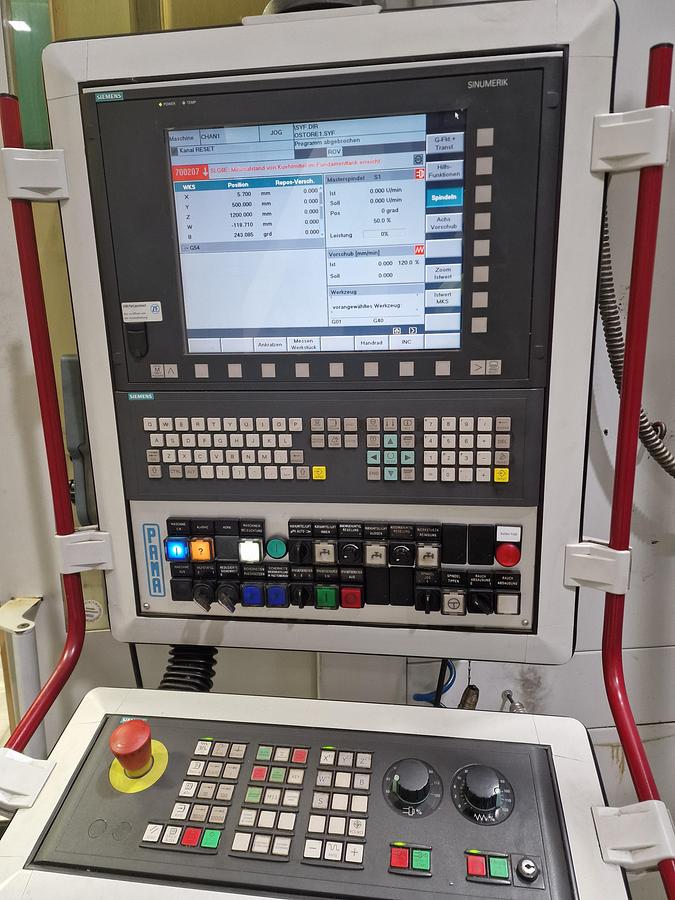

Siemens Sinumerik 840D CNC Control

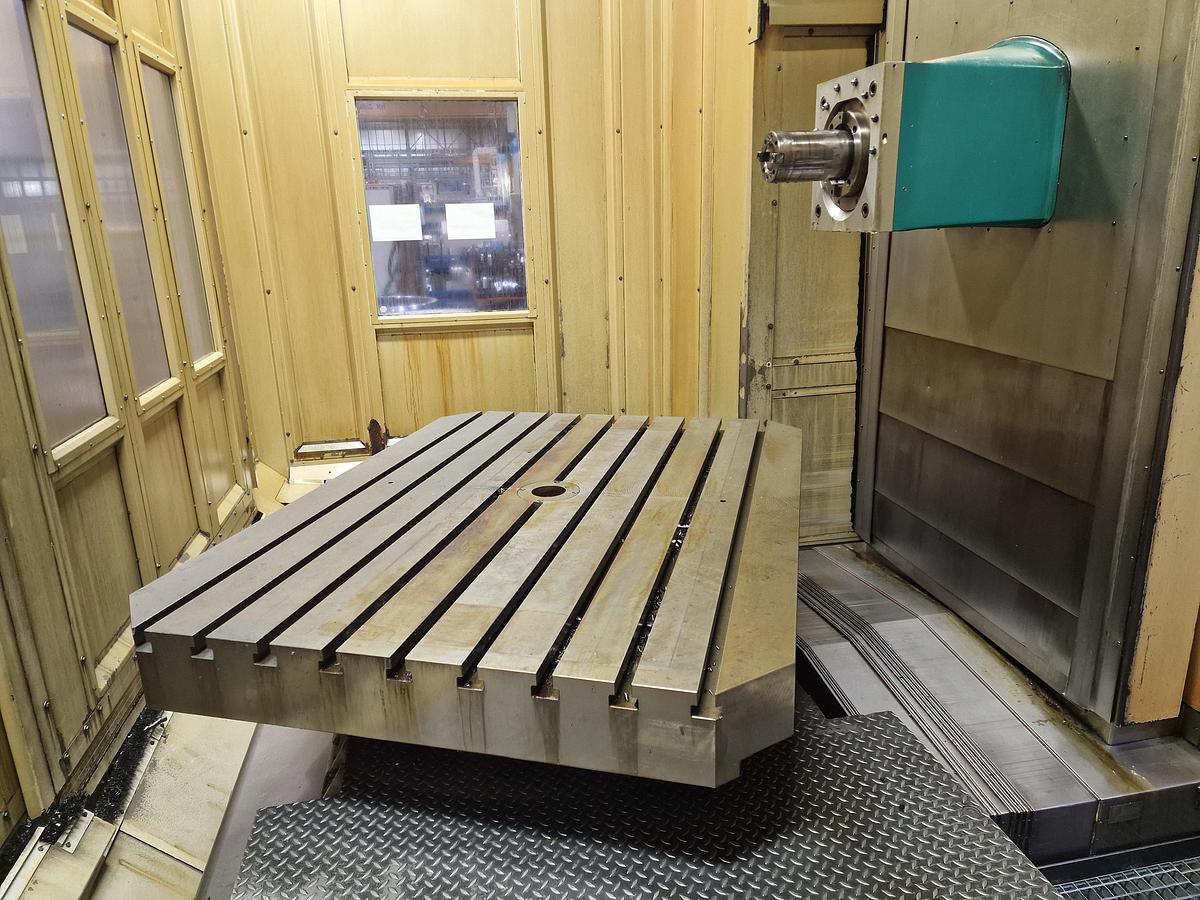

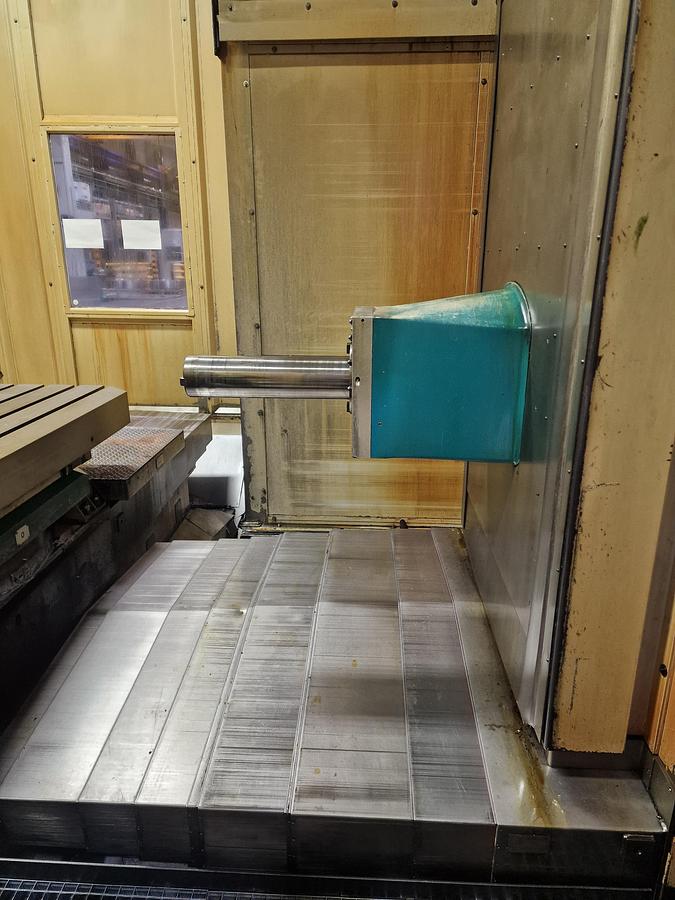

Work Table
Clamping surface 2500 x 2000 mm
Table height above floor 800 mm
Feed speed
x-axis 0.5 to 10000 mm/min
y-axis 0.5 to 10000 mm/min
Z-axis 0.5 to 10,000 mm/min
Rapid traverse (X/Y/Z) 25 / 25 / 25 m/min
Max. feed force (X/Y/Z) 28,000 / 27,000 / 28,000 N
Spindle speeds
Gear stage 1: 6 to 1004 rpm
Gear stage 2: 950 to 4000 rpm
Accessories

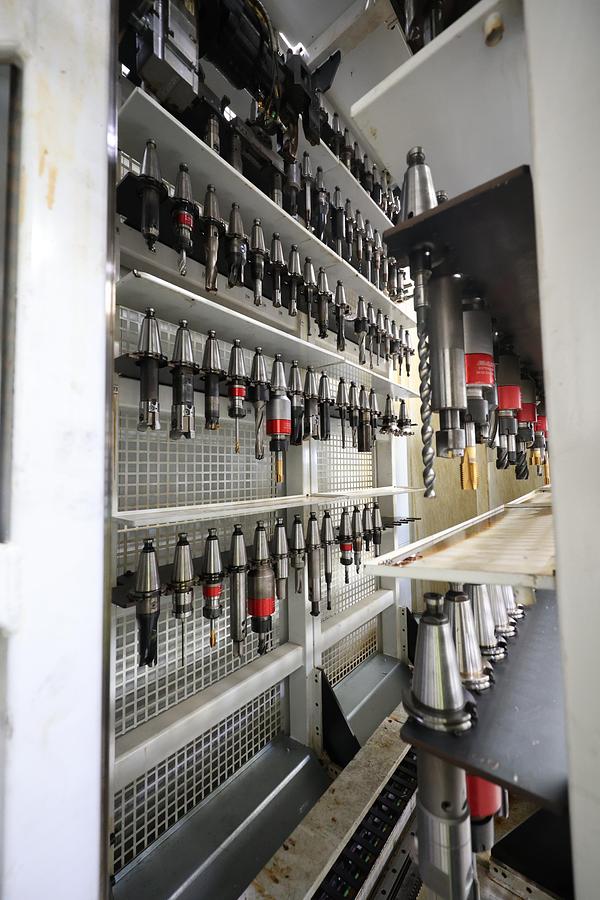

Approx. 30 SK 50 tool holders

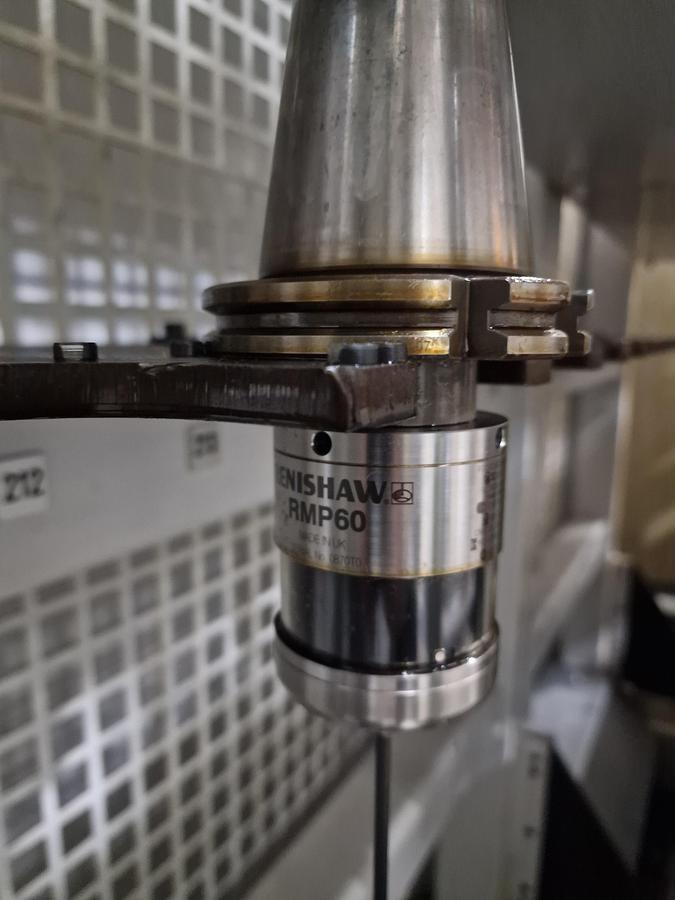

1 measuring probe

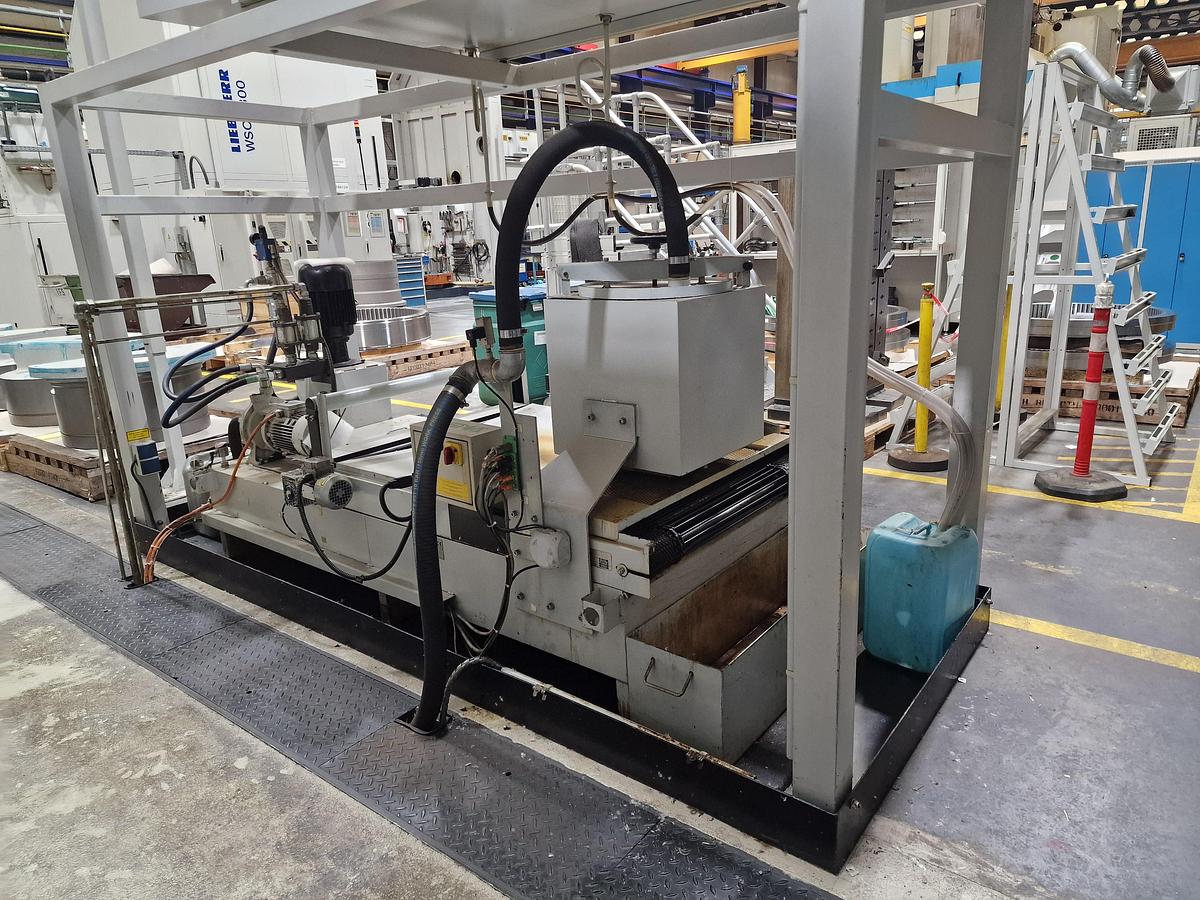

Coolant system/paper belt filter & chip conveyor
Cooler
Oil mist extraction
Fixators
Technical documentation
Specifications
| Manufacturer | Pama |
| Model | Speedmat 4/TR 25 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 5654239 |
| Spindle diameter | 130 mm |
| Spindle speeds | 4,000 rpm |
| X axis travel | 2,500 mm |
| Y axis travel | 2,500 mm |
| Z axis travel | 1,700 mm |
| Quill stroke | 700 mm |
| Max workpiece weight | 6,000 kg |
| Tool taper | ISO 50 DIN 69871-AD |
| Max torque at spindle | 1,847 Nm |
| Total power requirement | 65 kW |
| Machine dimensions | 10,9 x 9,3 x 5,7 |
