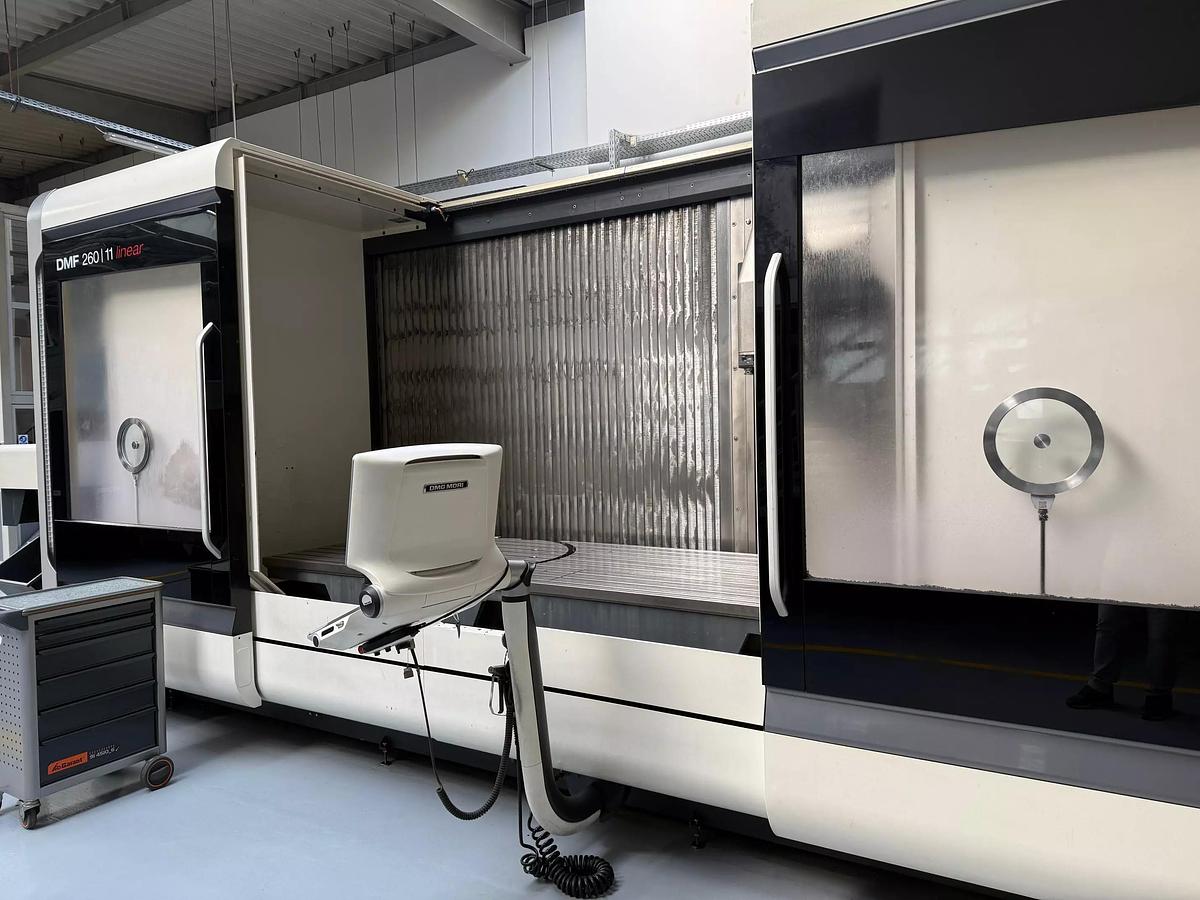

DMG DMF 260/11 CNC Universal Machining Center
DMG DMF 260/11 CNC Universal Machining Center
or
Call 770-509-0744
Description
Siemens 840D CNC Control
5 Controlled Axis
Chip Conveyor
Internal Cooling 40 bar, 600 L tank
Chip rinsing pistol
Minimal spray lubrication
Caliper3D, Heidenhain TS 649
3D Quickset
Electronical handwheel
Direct linear scales
Software - DMG netservice
Specifications
| Manufacturer | DMG |
| Model | DMF 260/11 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 5654238 |
| Spindle speeds | 15,000 rpm |
| X axis travel | 2,600 mm |
| Y axis travel | 1,100 mm |
| Z axis travel | 900 mm |
| NC Rotary Table (integrated) diameter | 1,050 mm |
| Table size | 3,200 x 1,100 mm |
| Table capacity | 1,200 kg |
| Spindle power | 46/30 kW |
| Spindle torque | 200/130 Nm |
| Tool taper | SK 40 |
| Rapid traverse X/Y/Z | 80/60/60 m/min |
