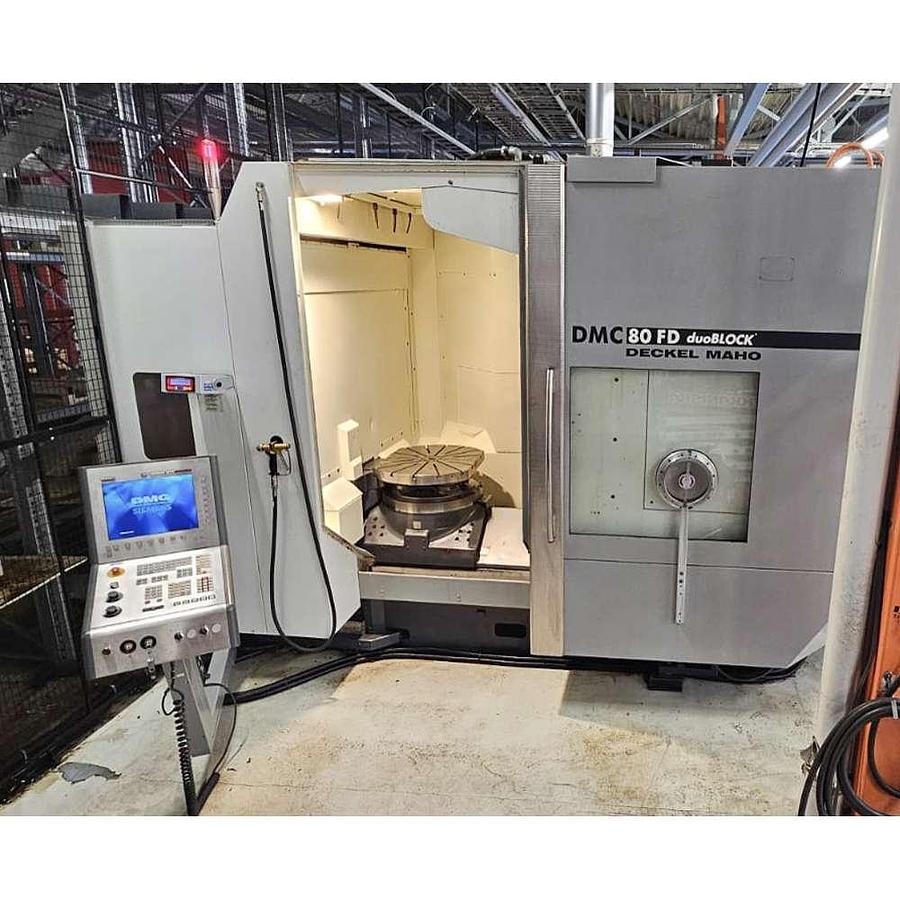

DMG DMC 80 FD duoBLOCK CNC Machining Center

DMG DMC 80 FD duoBLOCK CNC Machining Center

Description

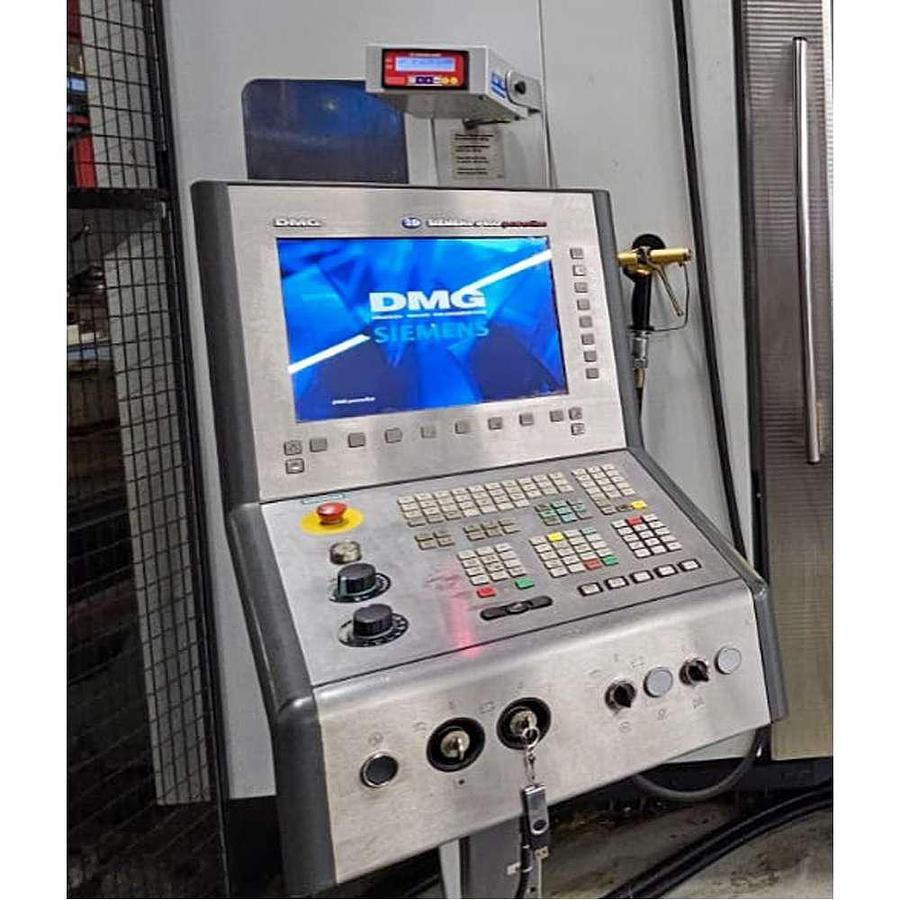

Siemens 840D Powerline CNC Control

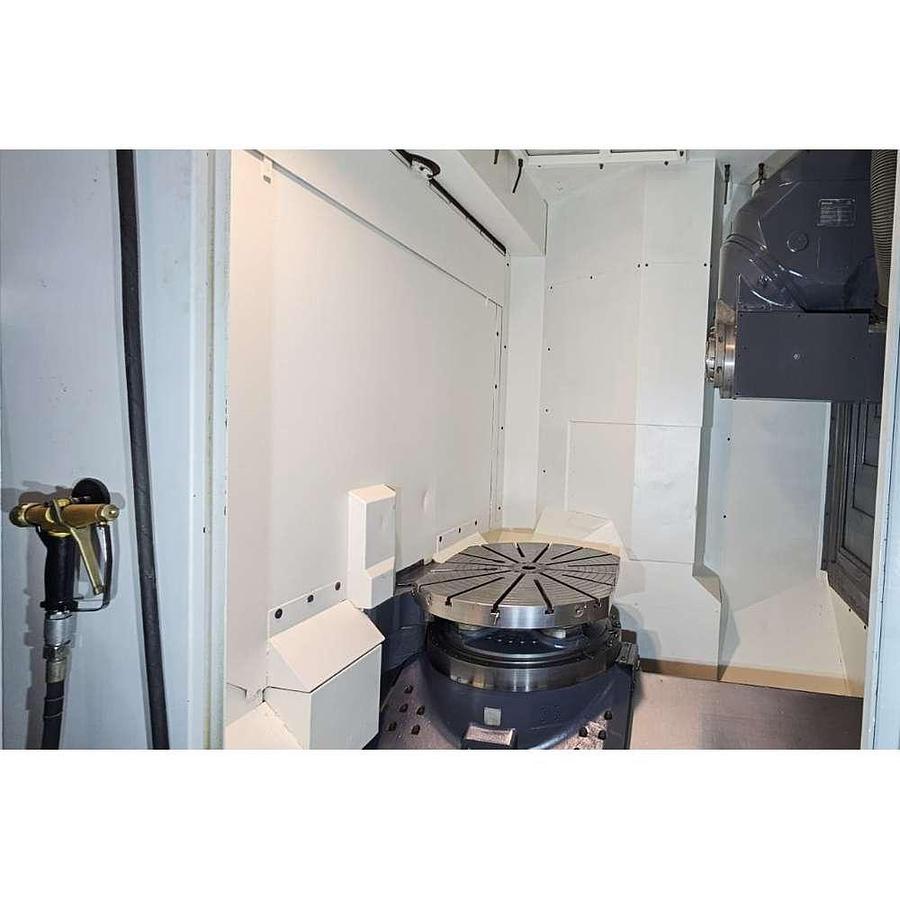

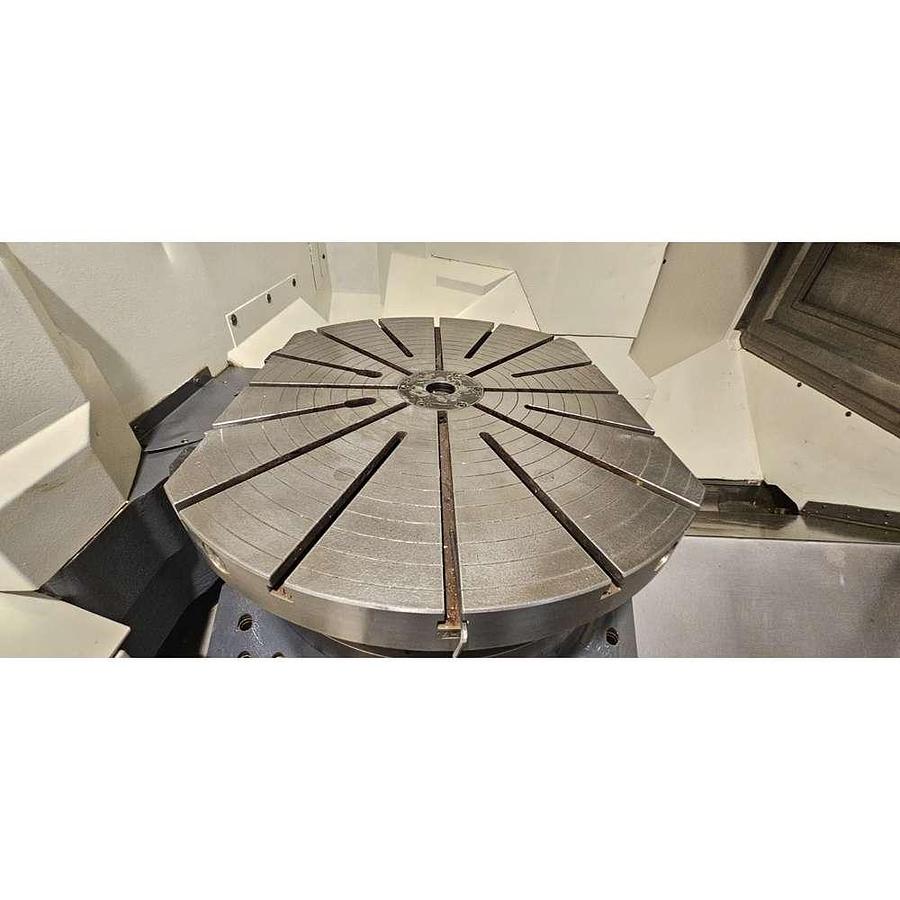

2 Pallets (Milling/Turning Table NC)

Diameter 800 x 630 mm

Capacity 1,000 kg

Table Rotation 800 rpm

Max Torque 980 Nm

180 Position Automatic Tool Changer - HSK A100 - Chip-to-chip time 4.5 s

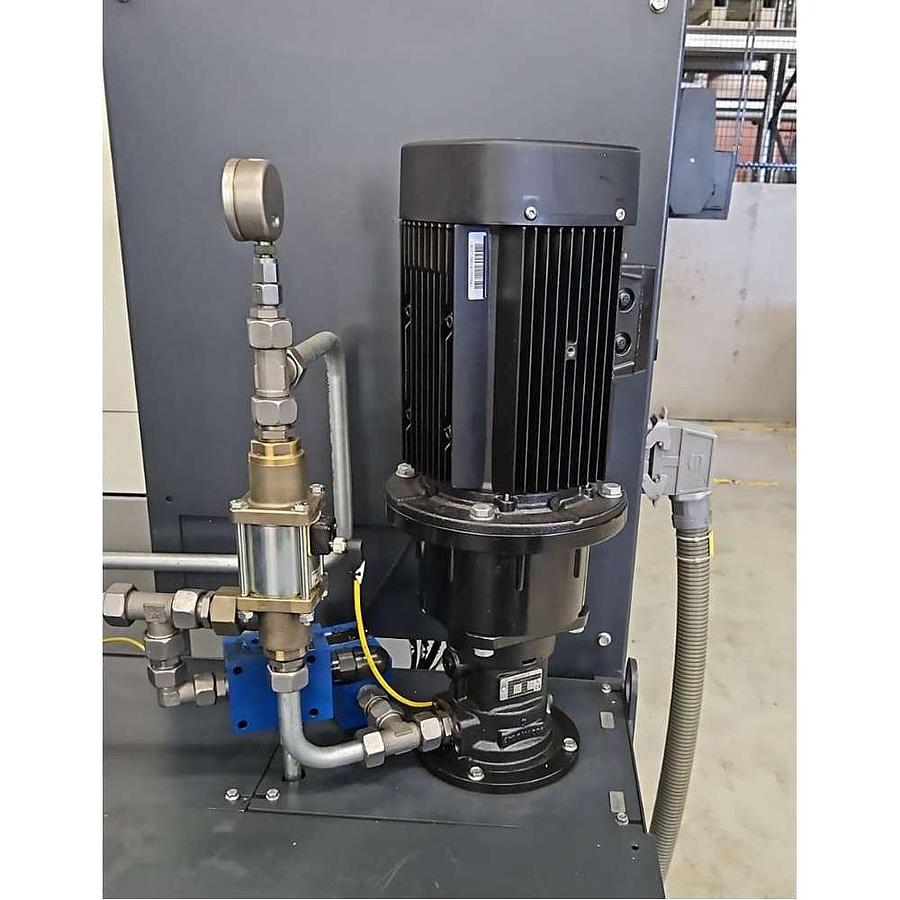

Cooling through the Spindle Center bar: 40

Tank capacity: 980

Electronic Handwheel

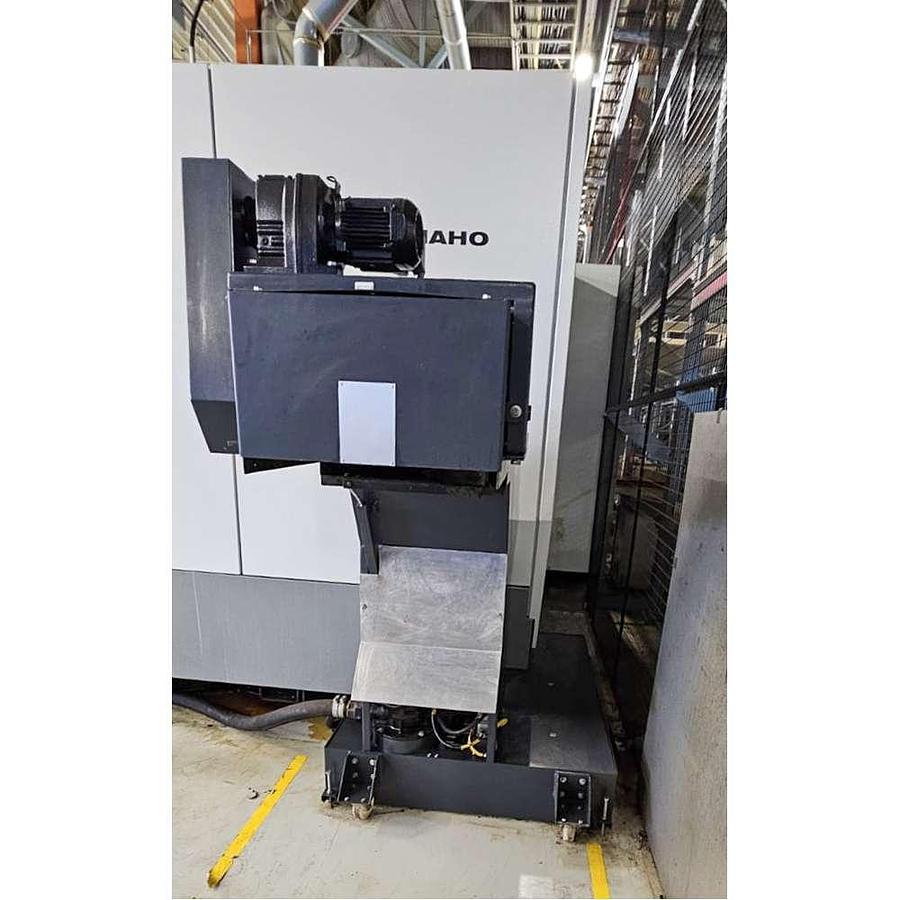

Chip conveyor

Infrared probe

Rinsing gun

Operating mode 4

Blowing air through spindle center selectable via M-function

Signal lamp

3D quickSET

Machine interface for FASTEMS system

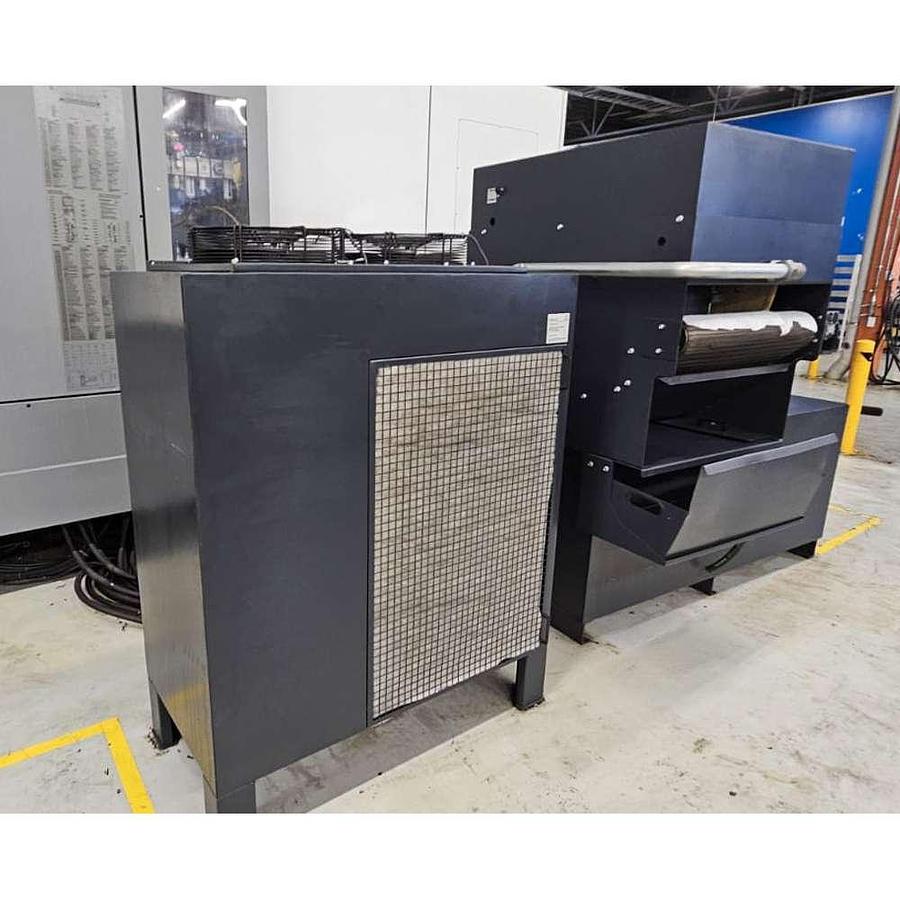

Paper band filter

Specifications

ManufacturerDMG
ModelDMC 80 FD duoBLOCK
Year2009
ConditionUsed
Stock Number5654235

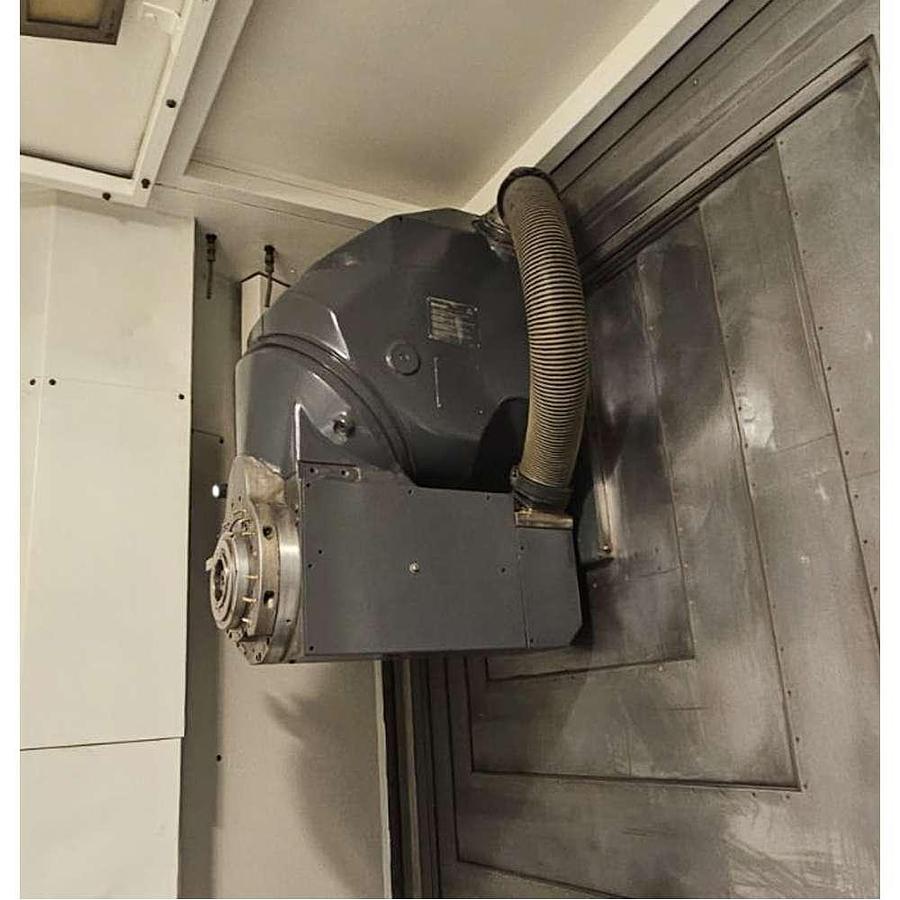

Spindle speeds10,000 rpm
X axis travel800 mm
Y axis travel800 mm
Z axis travel800 mm
C axis360° - 0.001°
B axis0 - 190°
Feed rates60 m/min
Rapid traverse60 m/min
Spindle power (40%/Cont.)44/32 kW
Spindle torque288/187 Nm
Machine dimensions4,956 x 5,064 x 2,900 mm
Machine weight14,000 kg
