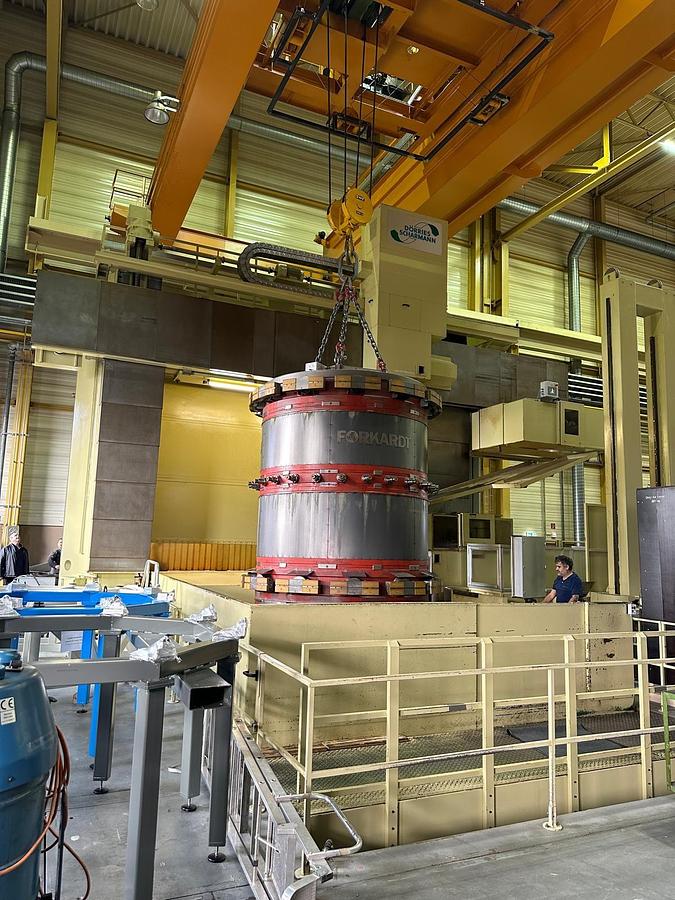

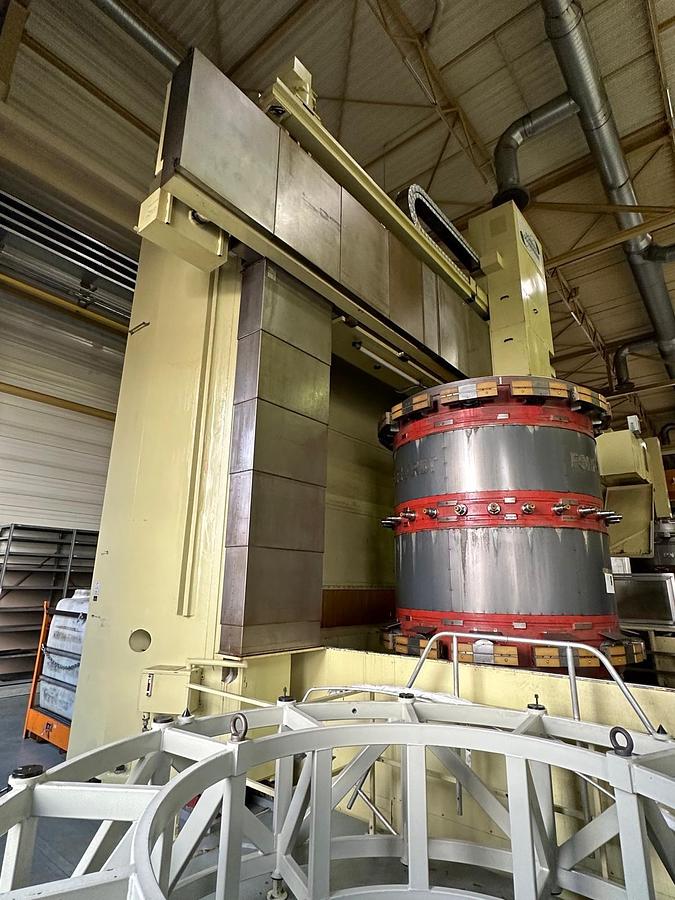

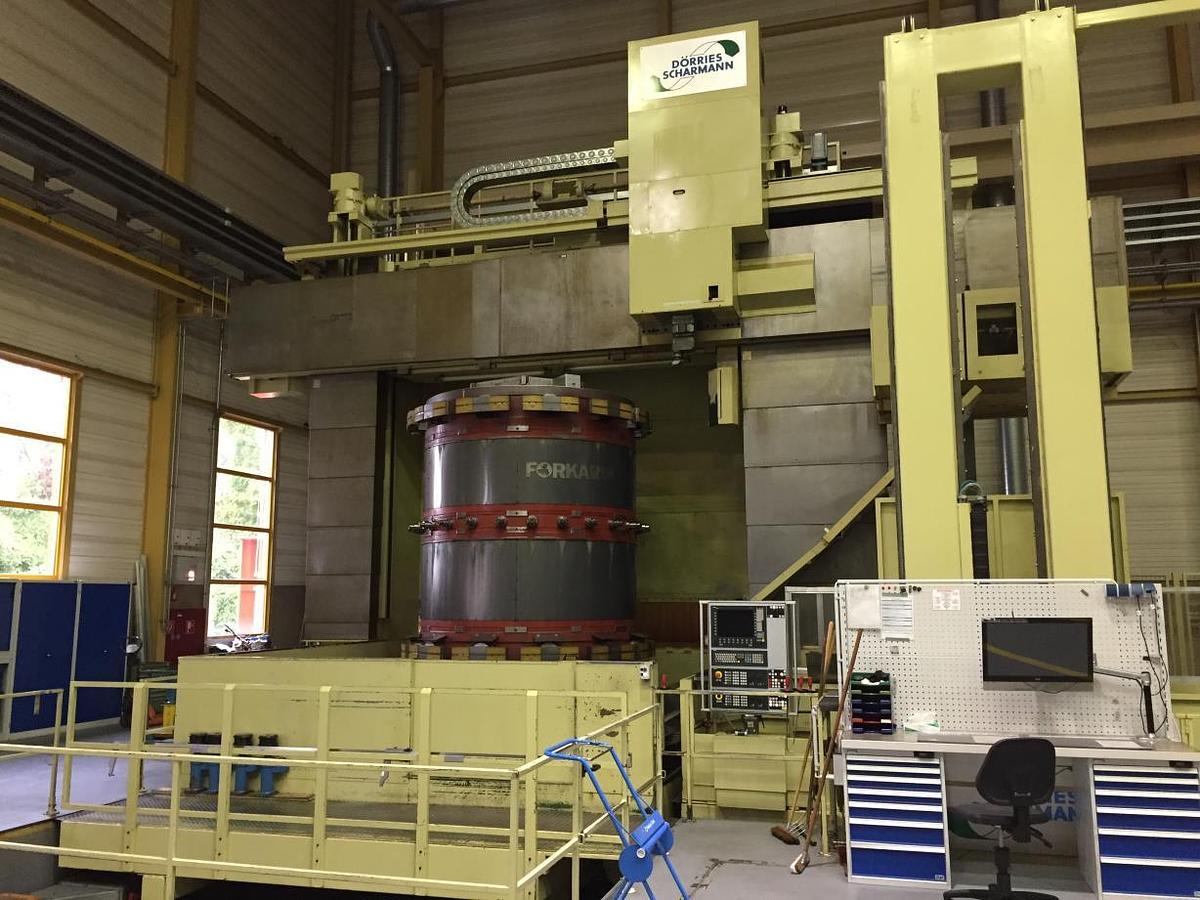

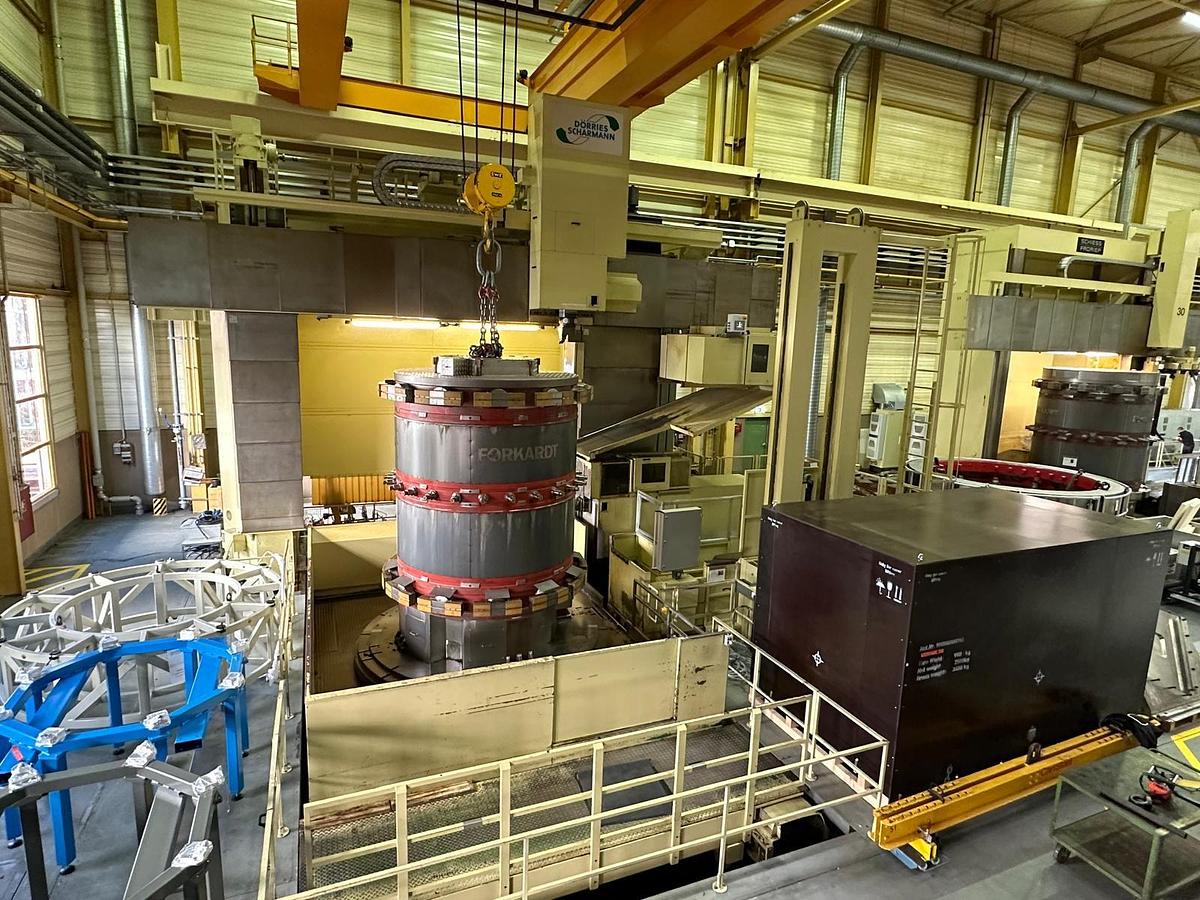

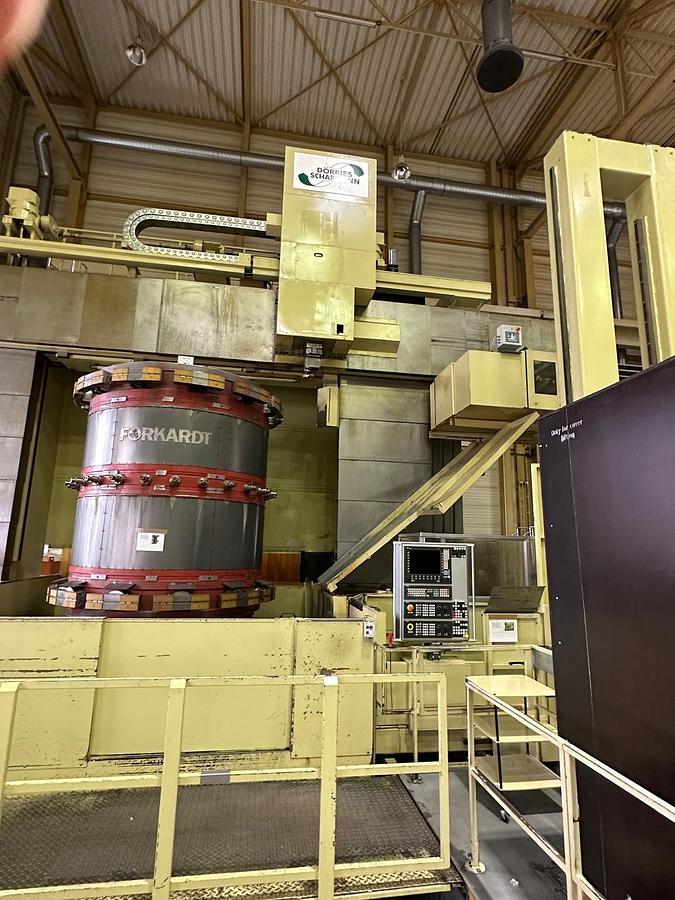

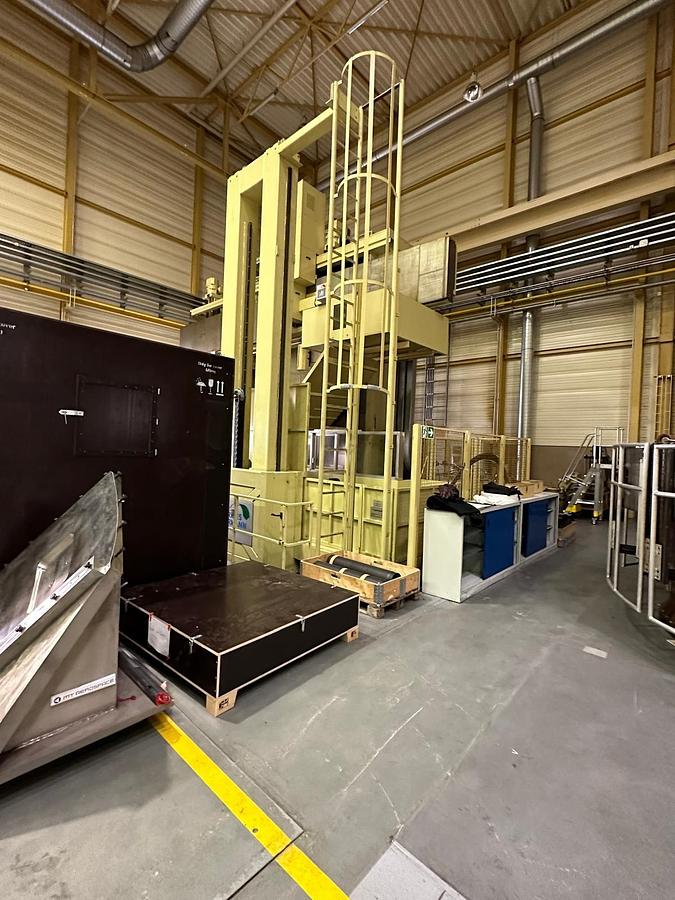

Dorries Scharmann Contumat 3 MC: VC 4200/360 CNC Vertical Boring & Milling Machine with Vertical Ram & Live Spindle on Side Head, C -Axis Table with Y-Axis Movable Travel. Excellent Condition Not Used Much
Dorries Scharmann Contumat 3 MC: VC 4200/360 CNC Vertical Boring & Milling Machine with Vertical Ram & Live Spindle on Side Head, C -Axis Table with Y-Axis Movable Travel. Excellent Condition Not Used Much
or
Call 770-509-0744
Description
Fully Rebuilt & Retrofitted in 2015
Complete New Electrics & New Siemens 840 Dsl CNC Control

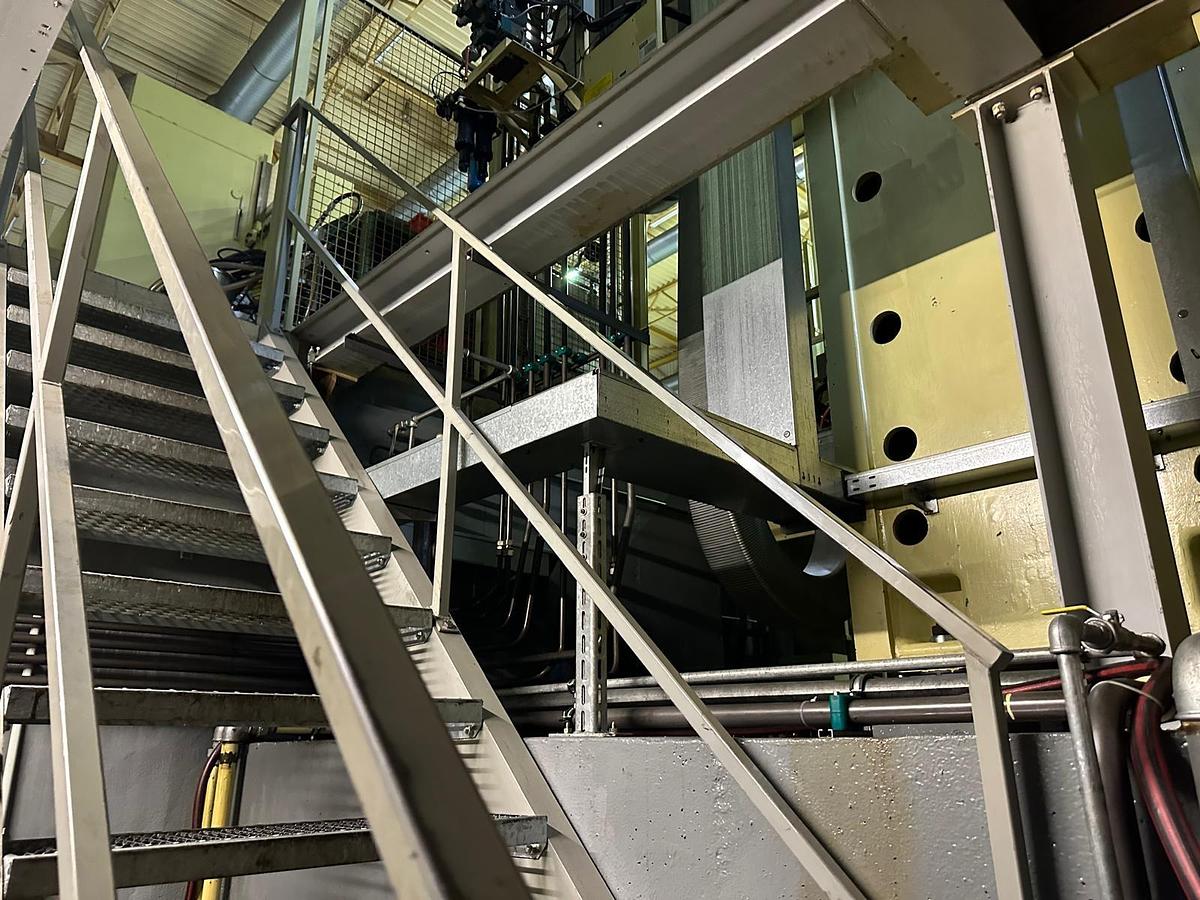

Operator Lifting Platform
Chip Conveyor
Coolant Unit
Tool Changer
RENISHAW Probe
Siemens 840D D SL CNC Control
Vertical Ram
Horizontal travel Support - 1800 bis + 2200 mm
Vertical travel of the RAM 1.500 mm
Cross-section oft he RAM 240x240 mm
Tool changer places 20 Pc.
Side Head with Live Spindle
Vertical travel of the Ram 2.800 mm
Horizontal movement of RAM 1.000 mm
Turning diameter (max./min.) 4500/2500 mm
Tool changer
Live Spindle Side Support:
Motor Power 22,5 kW
Max. Torque 900 Nm
Specifications
| Manufacturer | Dorries Scharmann |
| Model | Contumat 3 MC: VC 4200/360 |
| Condition | Refurbished |
| Stock Number | 5654233 |
| Table diameter | 3,600 mm |
| Swing | 4,200 mm |
| Turning height | 4,800 mm |
| Table capacity | 80 Ton |
| Table turn speed | 90 rpm |
| Y axis table travel | 2,000 mm |
| Crossrail travel | 2,800 mm (in 100 mm steps) |
| Ram size | 240 x 240 mm |
| Main drive | 105 kW |
| Machine height above floor | 8,700 mm |
| Connection to power | 380V / 50 Hz - 220V AC / 24V DC - 150 kVA - 400 A |
