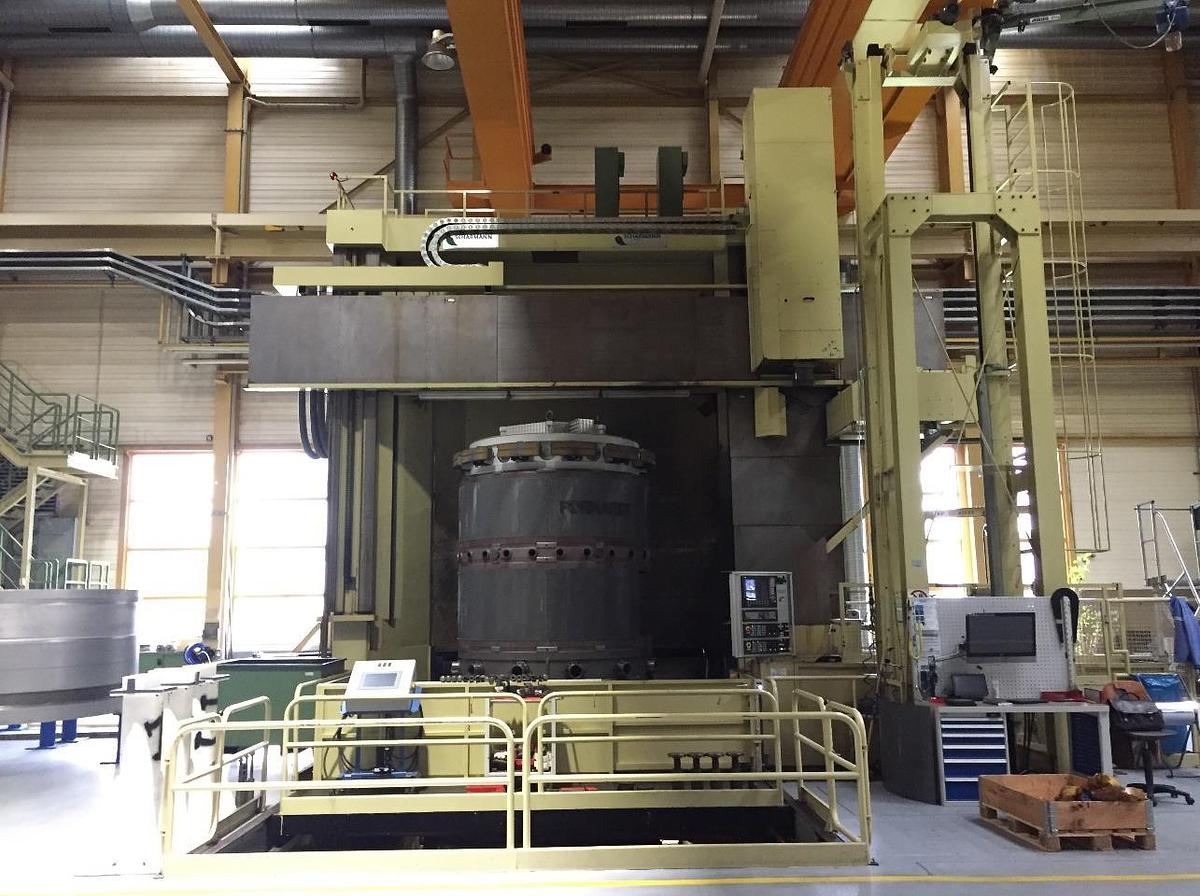

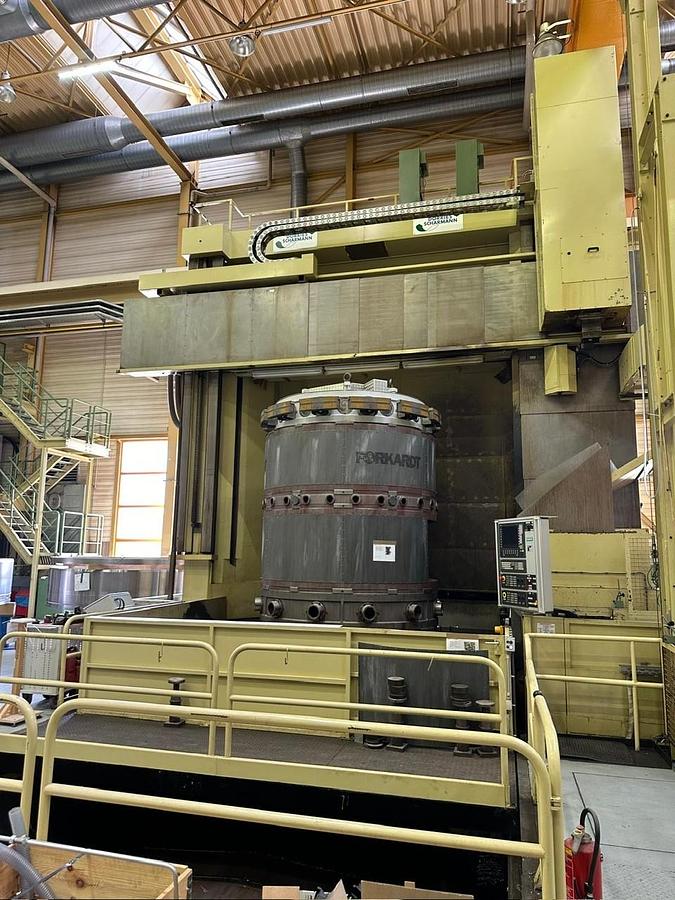

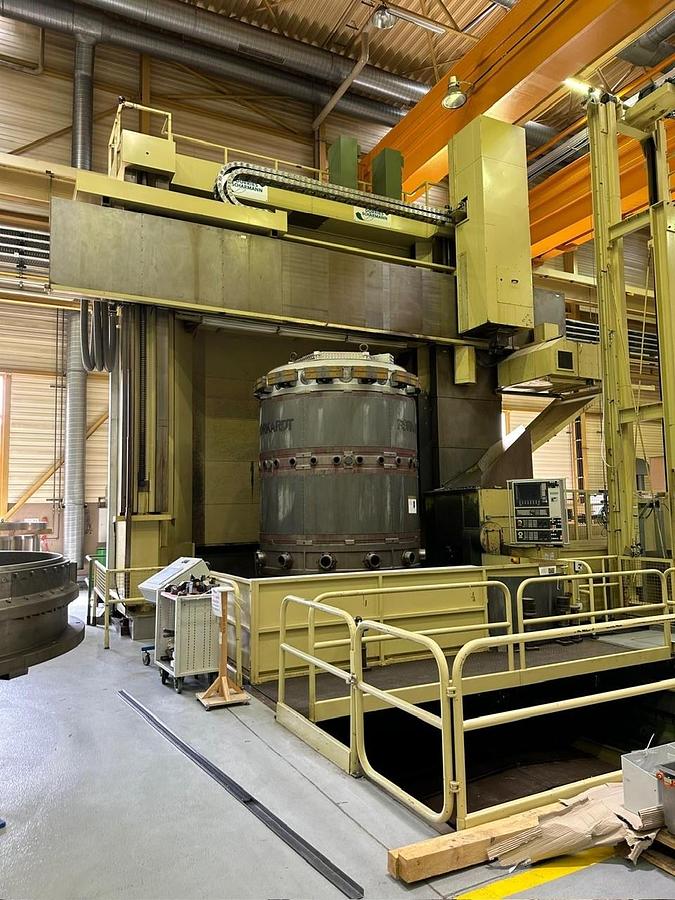

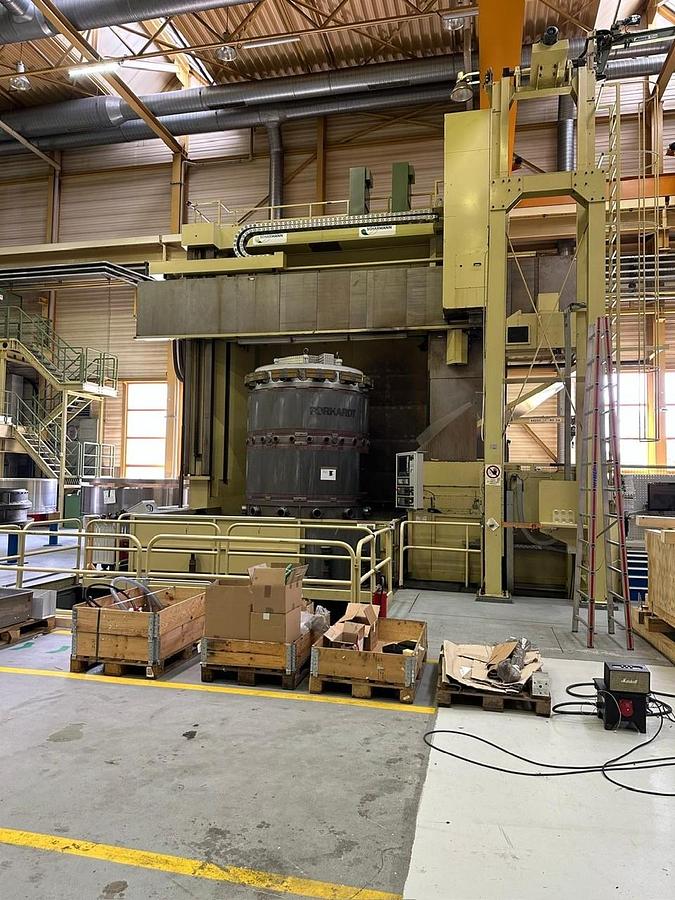

Dorries Scharmann Contumat 3 MC: VC 4600/400 CNC Single Ram Vertical Turning Machine with Live Spindle Side Head Y-Axis Movable Table Travel
Dorries Scharmann Contumat 3 MC: VC 4600/400 CNC Single Ram Vertical Turning Machine with Live Spindle Side Head Y-Axis Movable Table Travel
or
Call 770-509-0744
Description
Rebuilt & Retrofitted In 2015
Complete With:

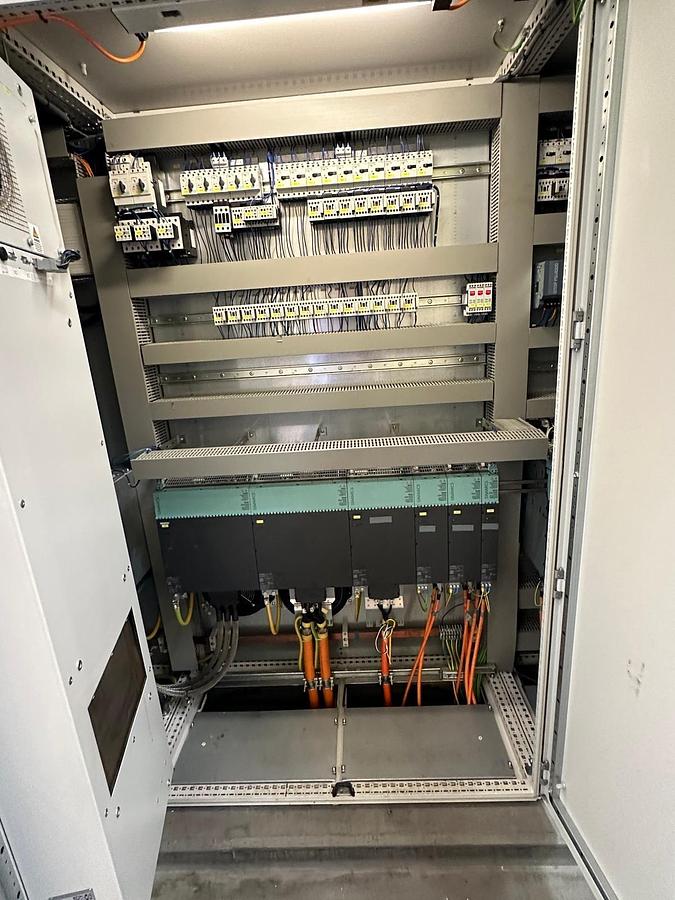

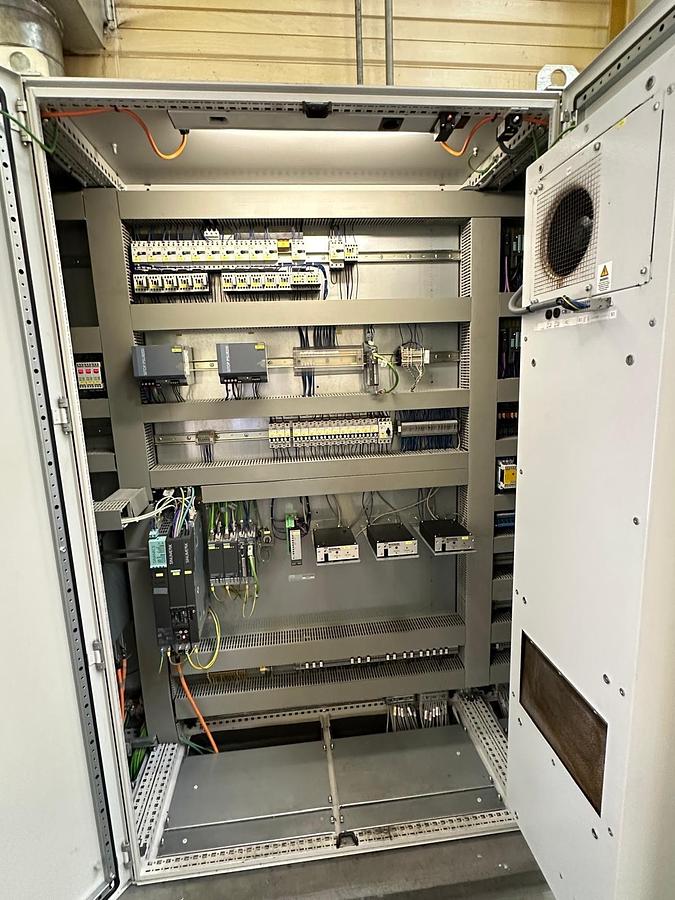

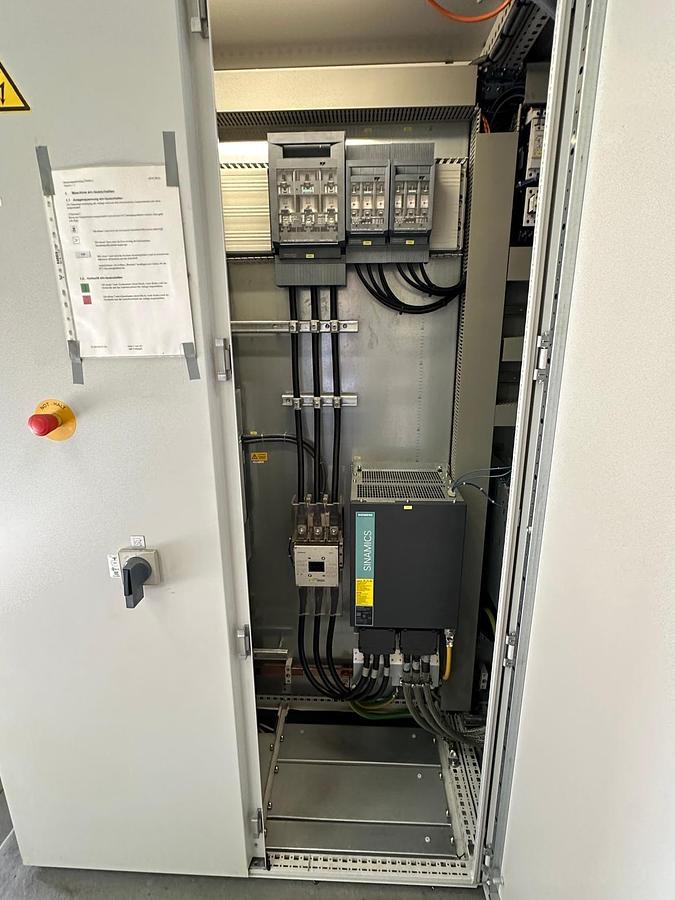

New Electrics & New Siemens 840 DSL CNC Control

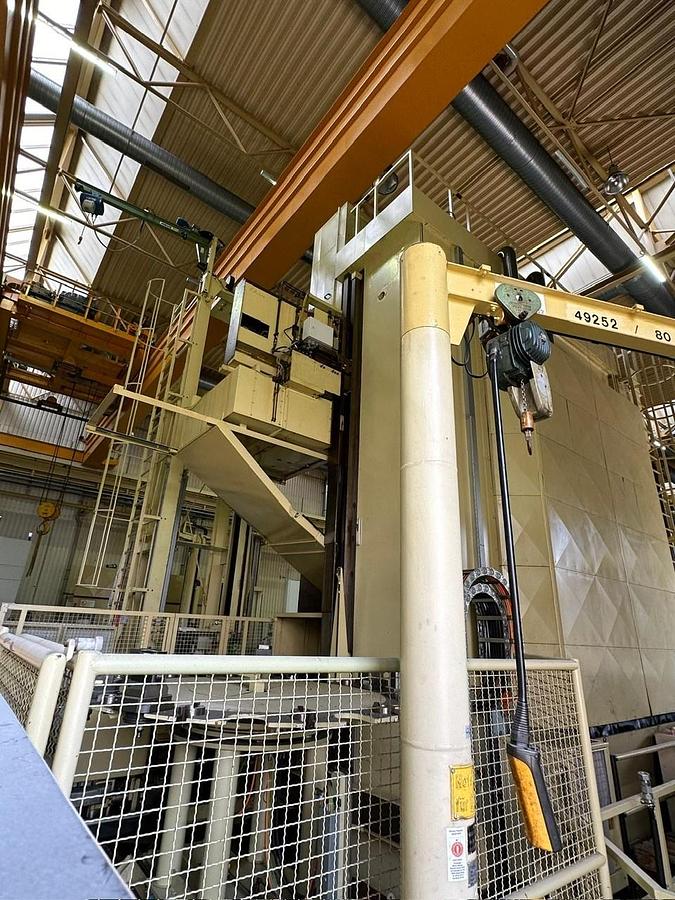

Operator Lifting Platform
Chip Conveyor
Coolant Unit
Tool Change
RENISHAW Probe

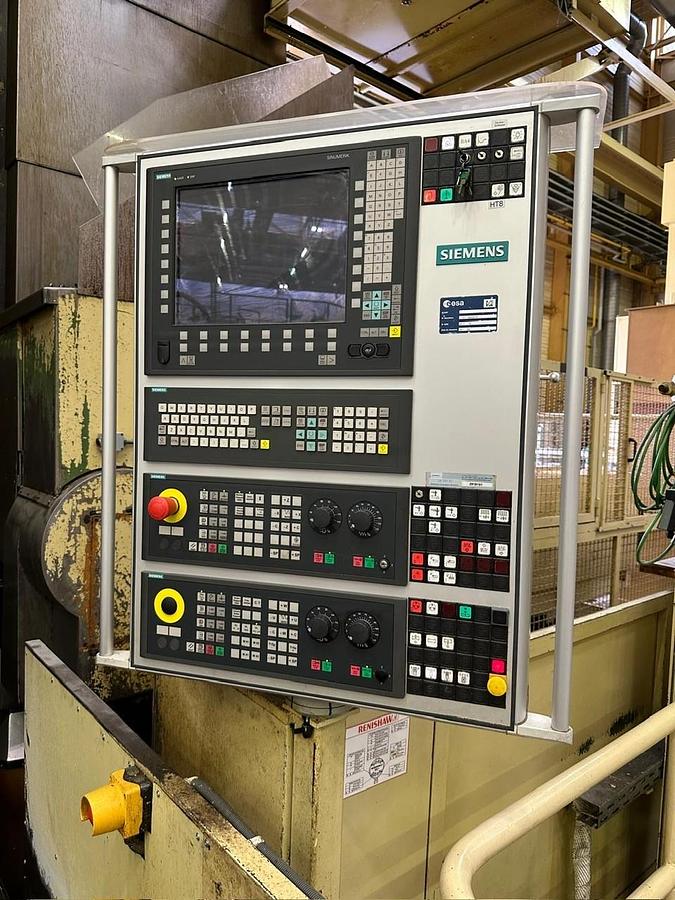

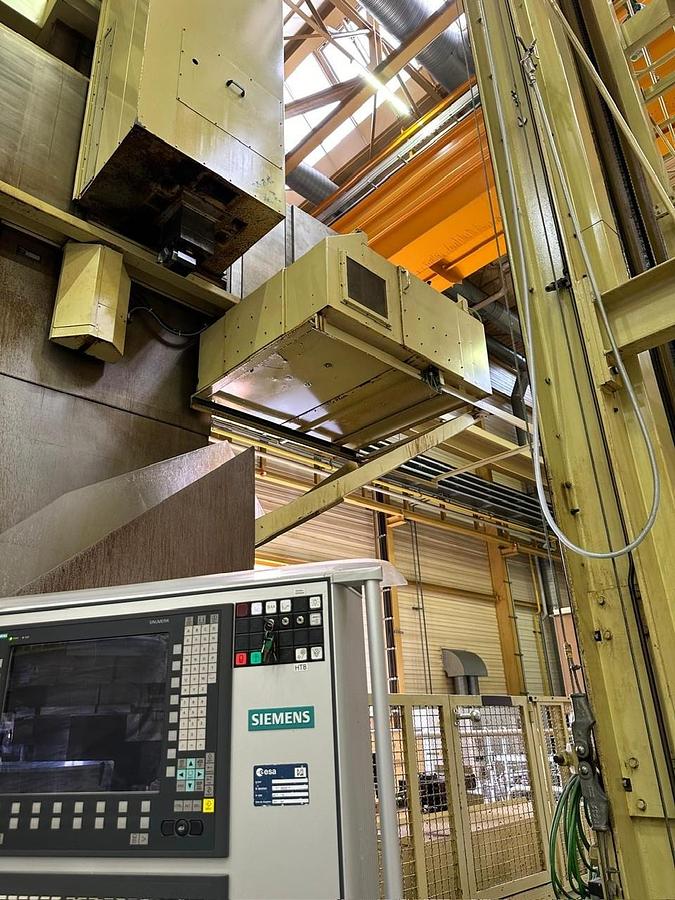

SIEMENS 840 D SL CNC Control

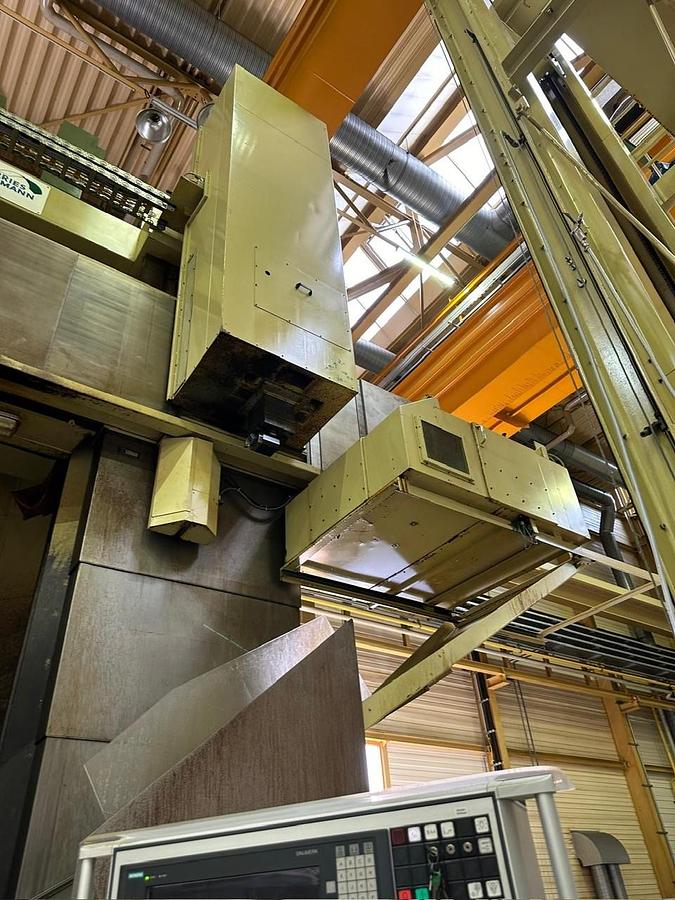

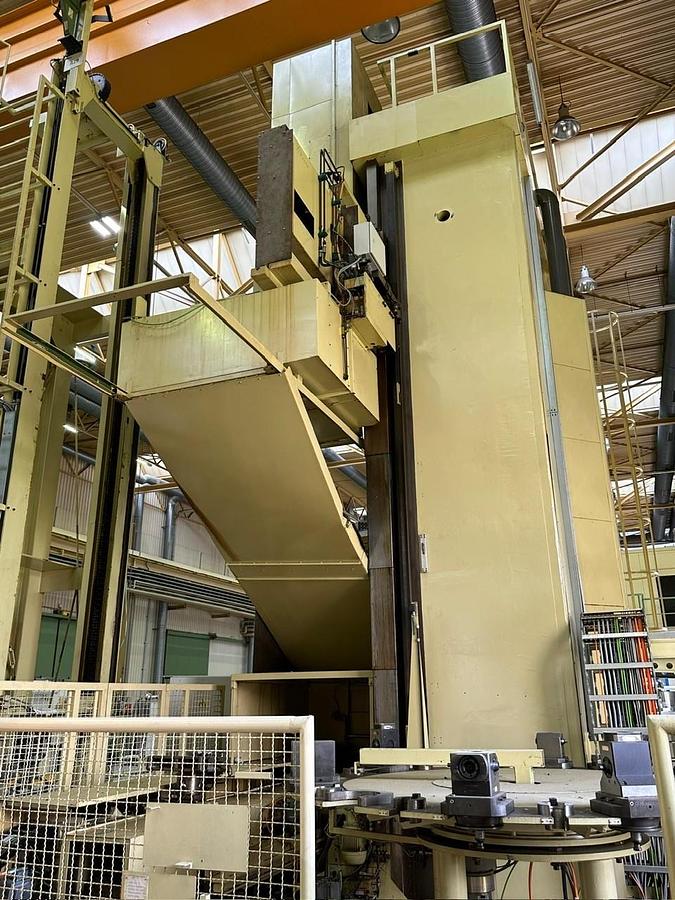

Vertical Ram (right)
Horizontal travel Support 2.500 mm
Vertical travel of the RAM 1.800 mm
Cross-section of the RAM 240x240 mm
Tool changer places
Side Support Horizontal Ram
Vertical travel of the Support 3.000 mm
Horizontal movement of RAM 1.000 mm
Turning diameter (max./min.) 4400/2400 mm

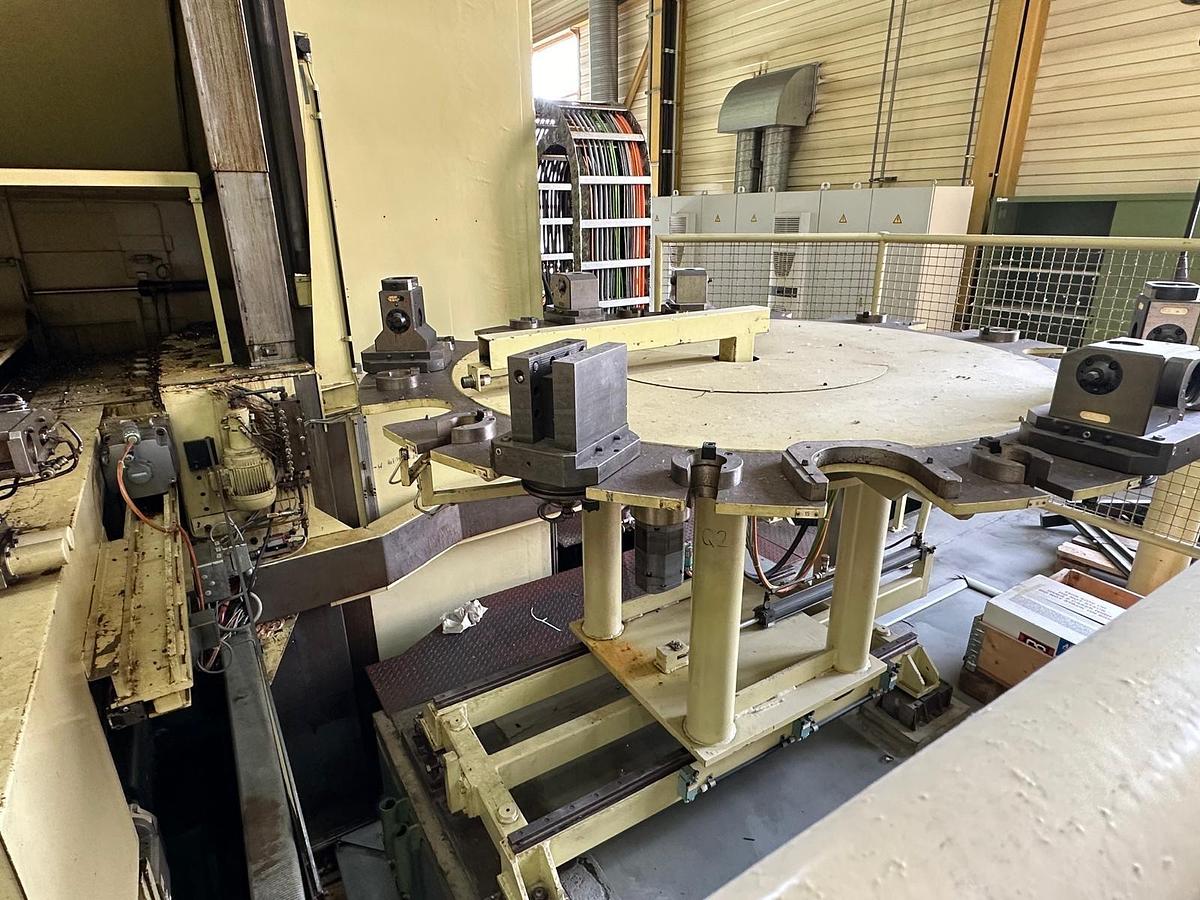

Tool changer
Specifications
| Manufacturer | Dorries Scharmann |
| Model | Contumat 3 MC: VC 4600/400 |
| Condition | Refurbished |
| Stock Number | 5654232 |
| Table diameter | 4,000 mm |
| Swing | 4,200 mm |
| Turning height | 4,800 mm |
| Table capacity | 80 Ton |
| Table turn speed | 90 rpm |
| Crossrail travel | 3,700 mm (in 100 mm steps) |
| Y axis table travel | 2,000 mm |
| Side head live spindle motor | 22.5 kW |
| Side head live spindle torque | 900 Nm |
| Ram size | 240 x 240 mm |
| Main drive | 105 kW |
| Machine height above floor | 9,000 mm |
