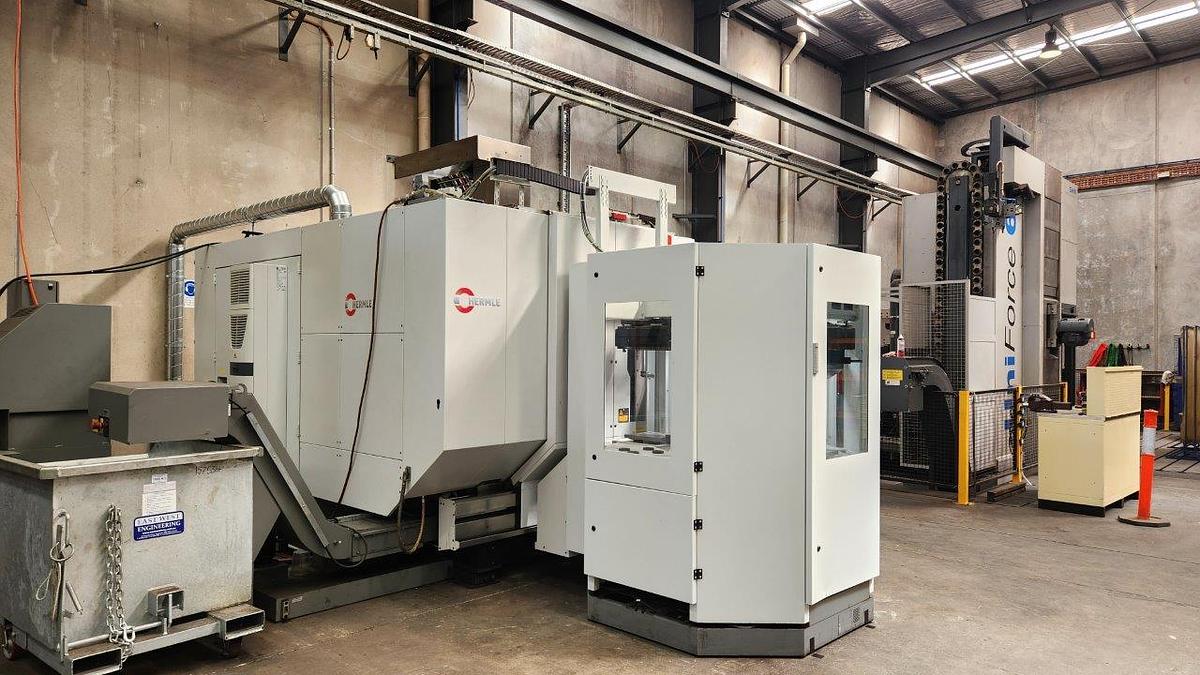

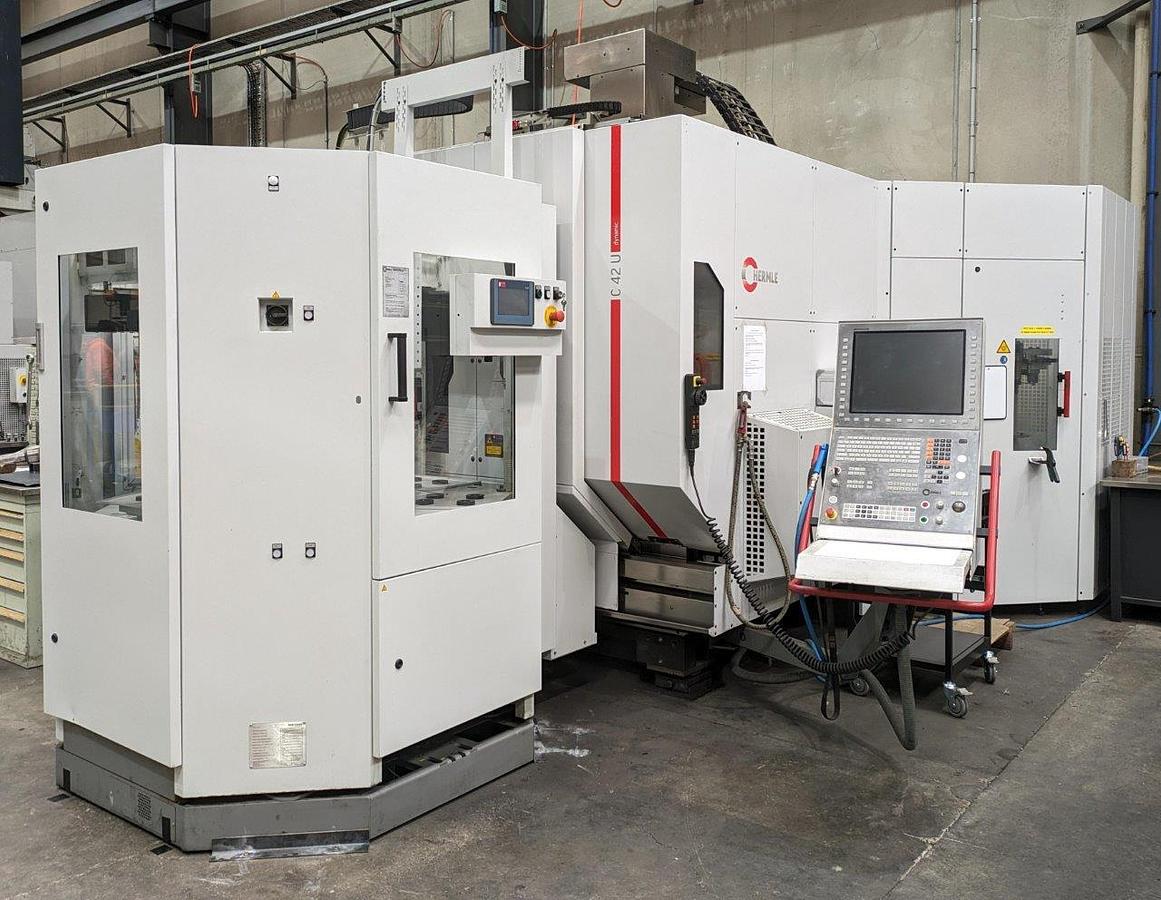

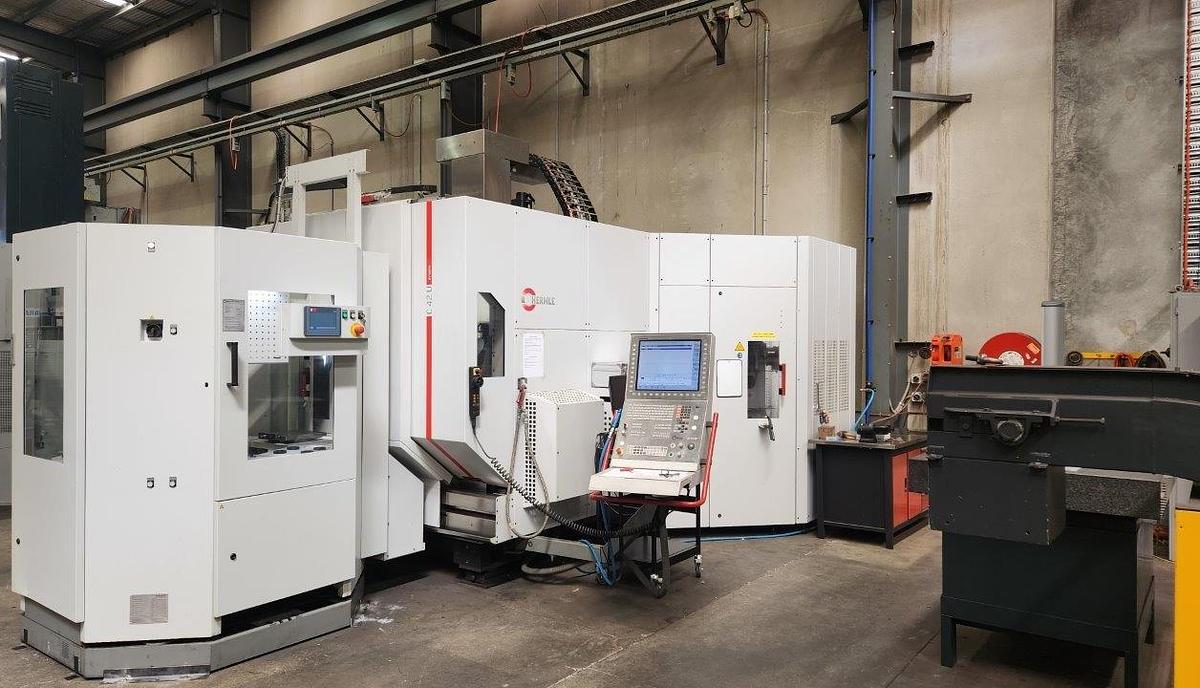

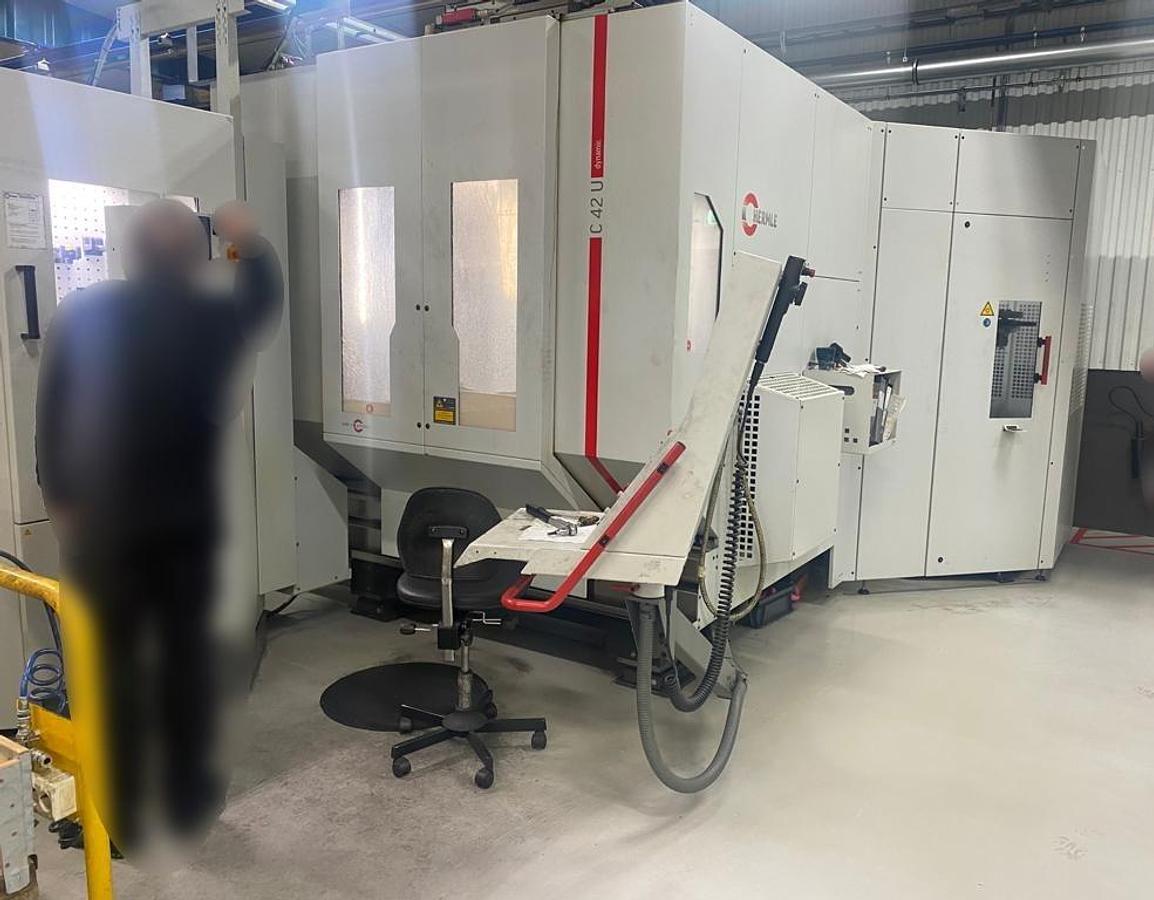

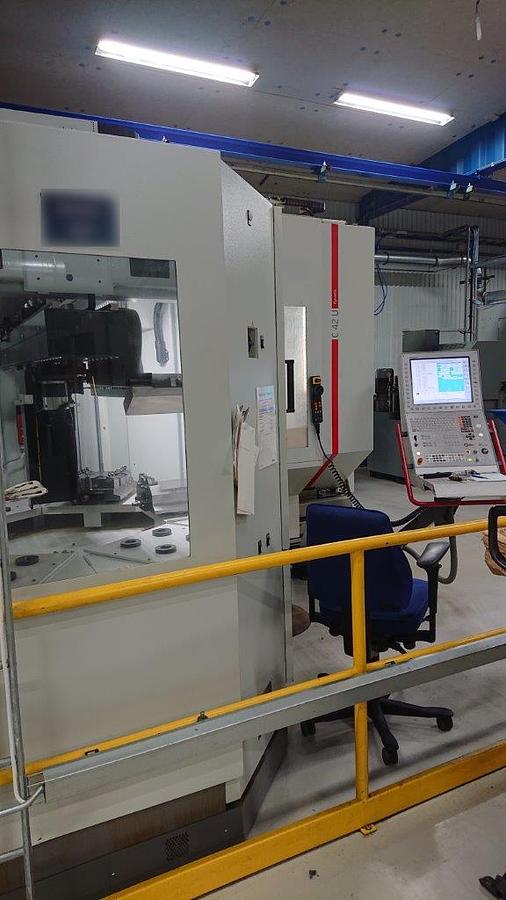

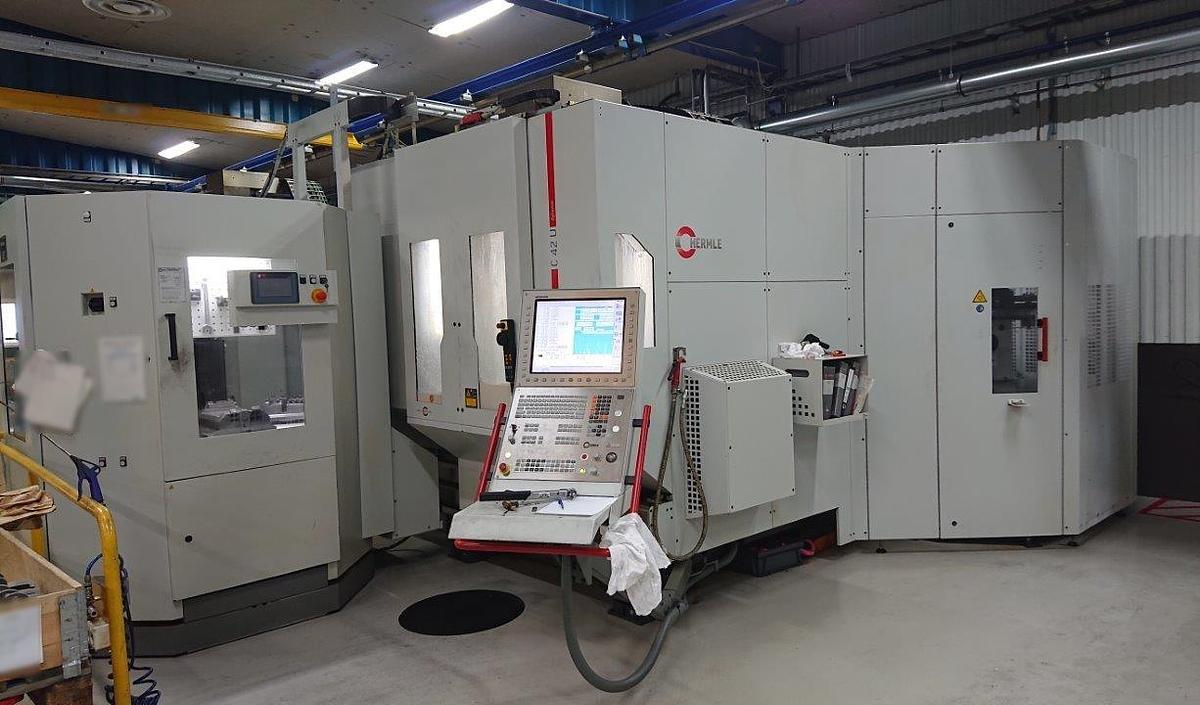

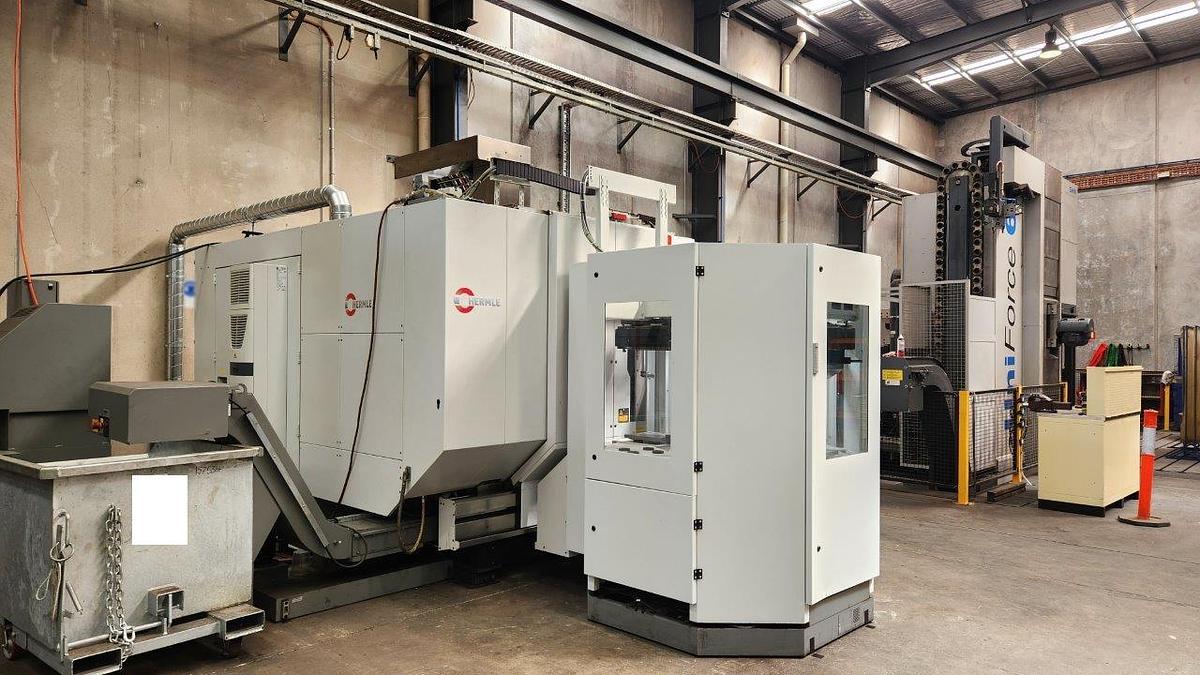

Hermle C 42U CNC 5-Axis Vertical Machining Center with 6 Pallet Changer
Hermle C 42U CNC 5-Axis Vertical Machining Center with 6 Pallet Changer
Description

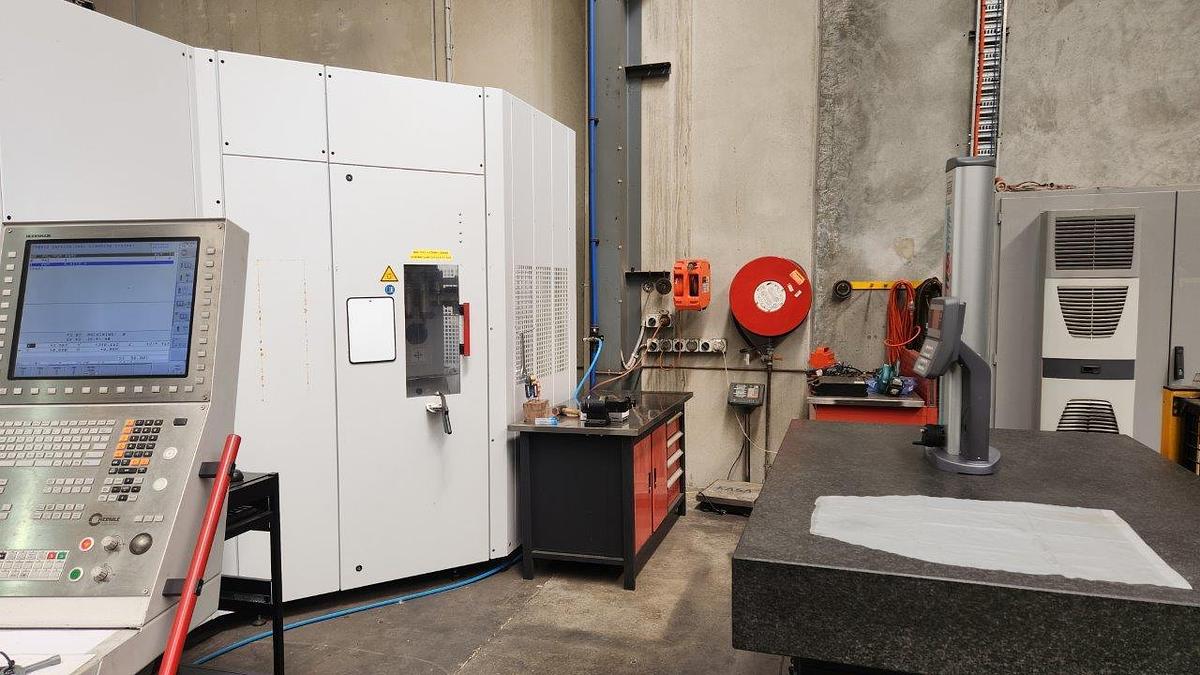

Heidenhain iTNC 530 CNC Control

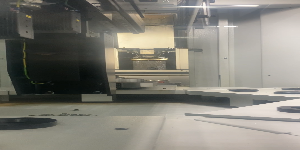

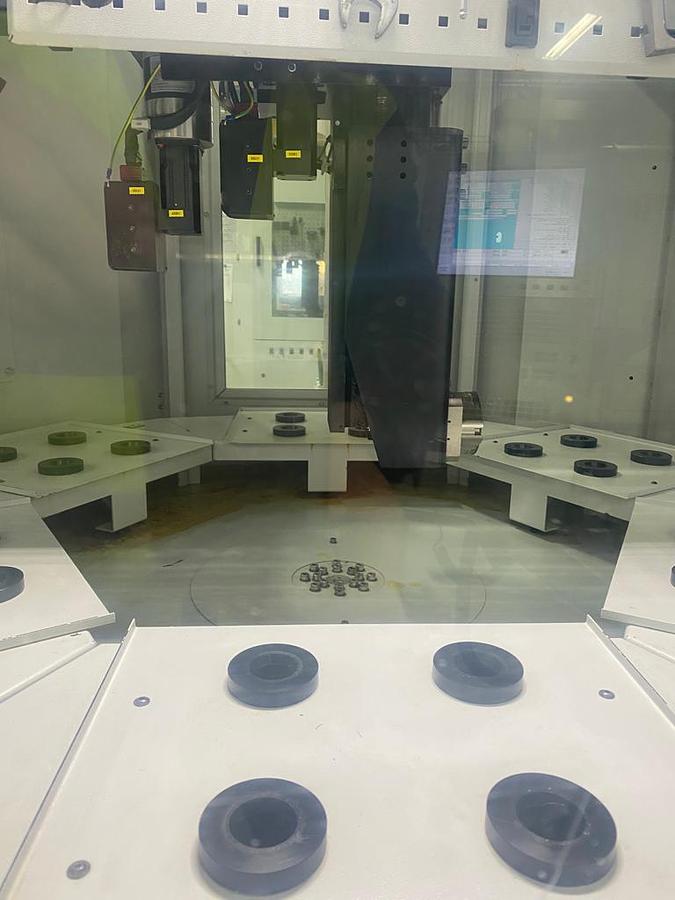

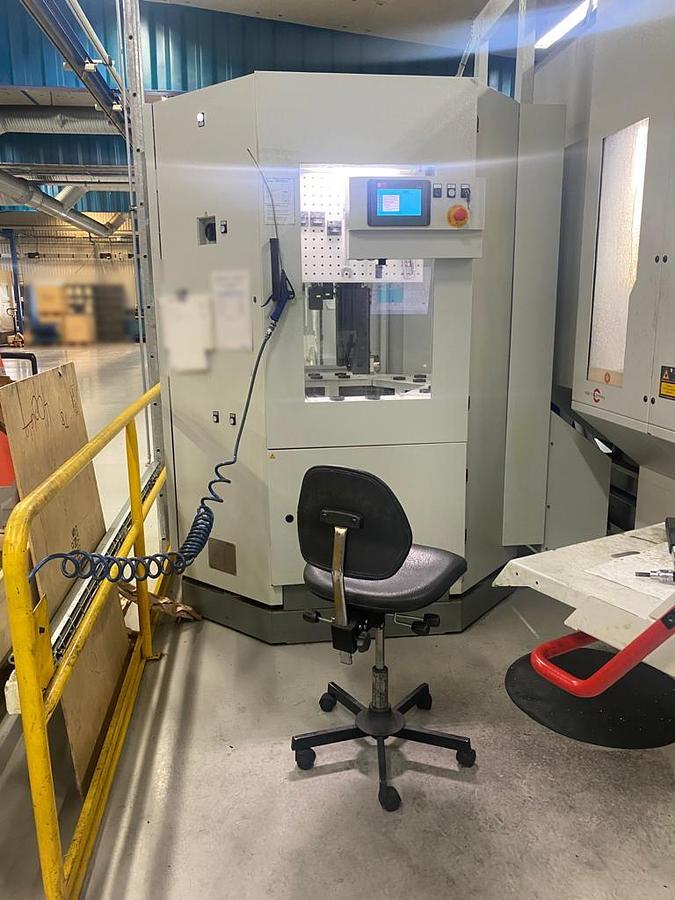

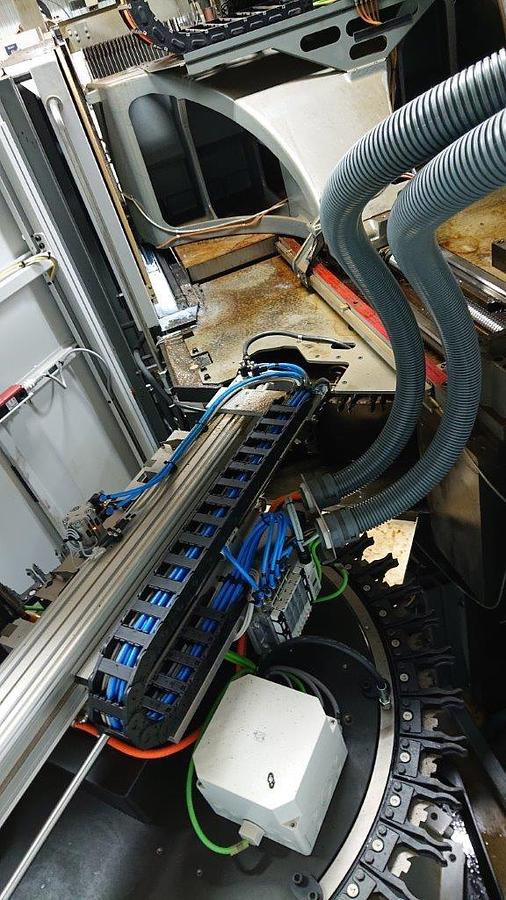

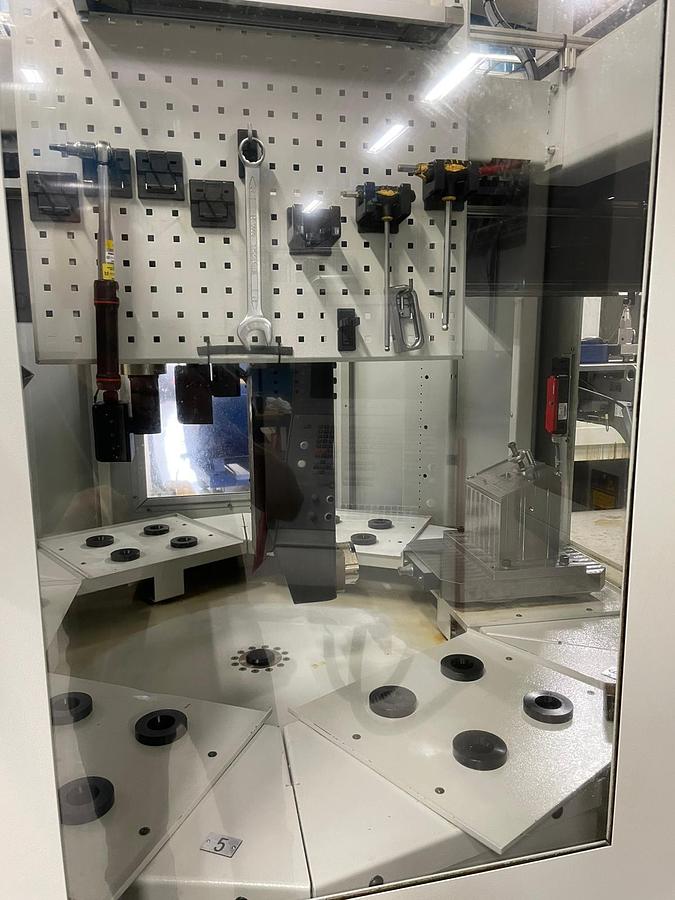

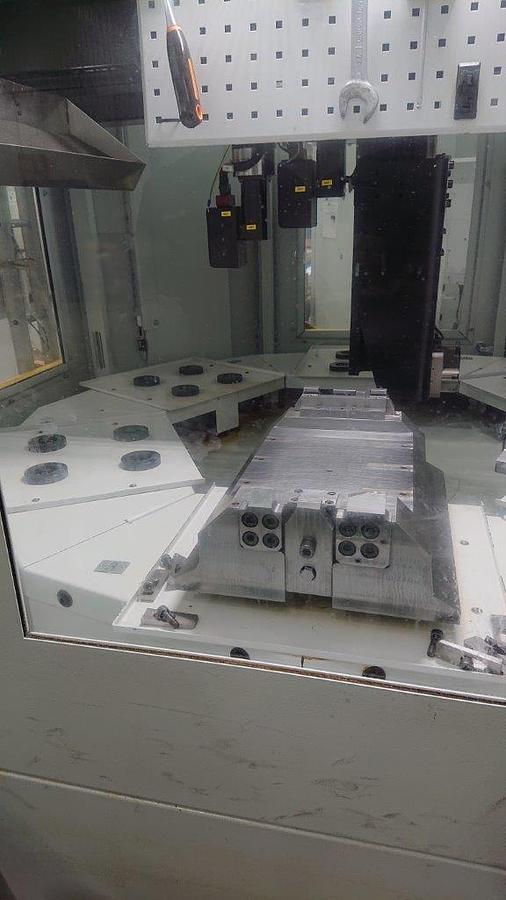

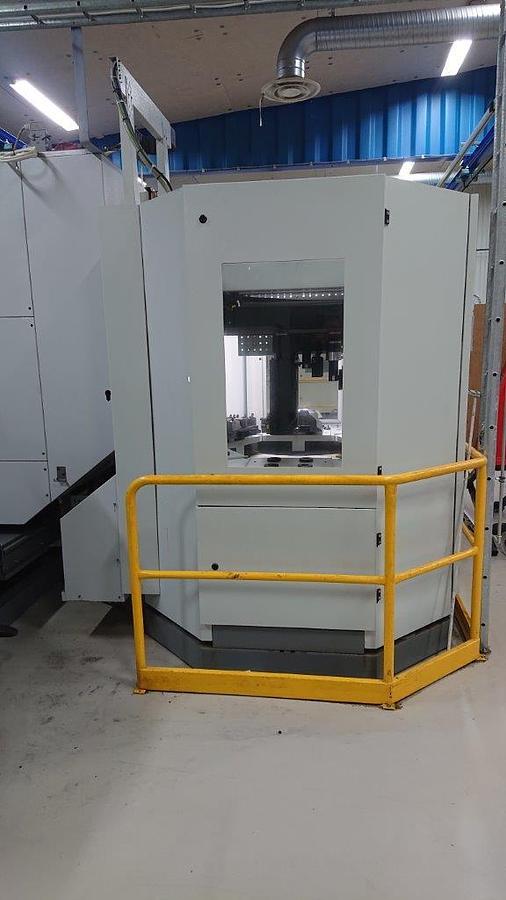

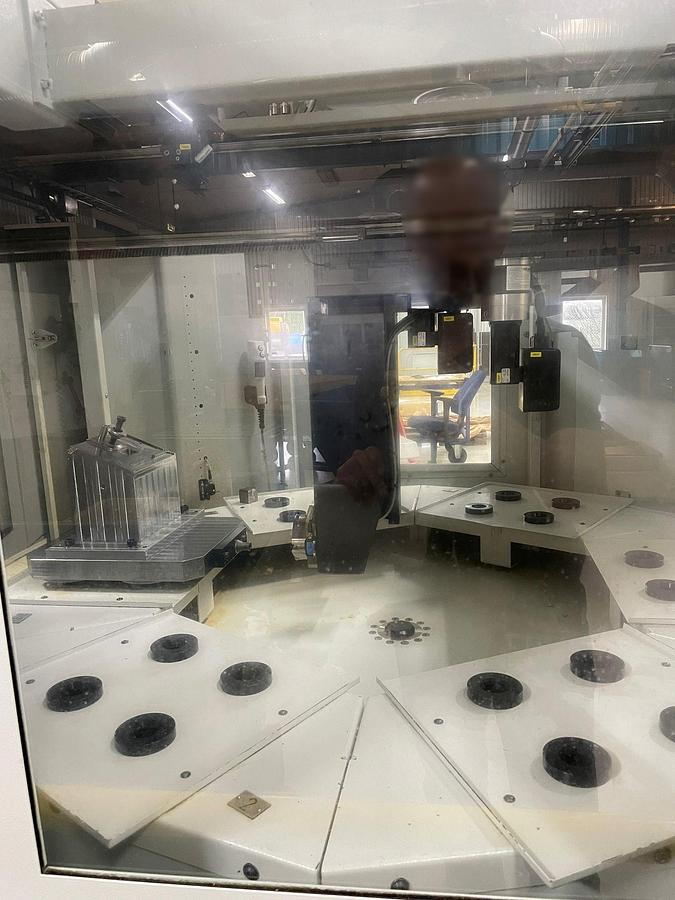

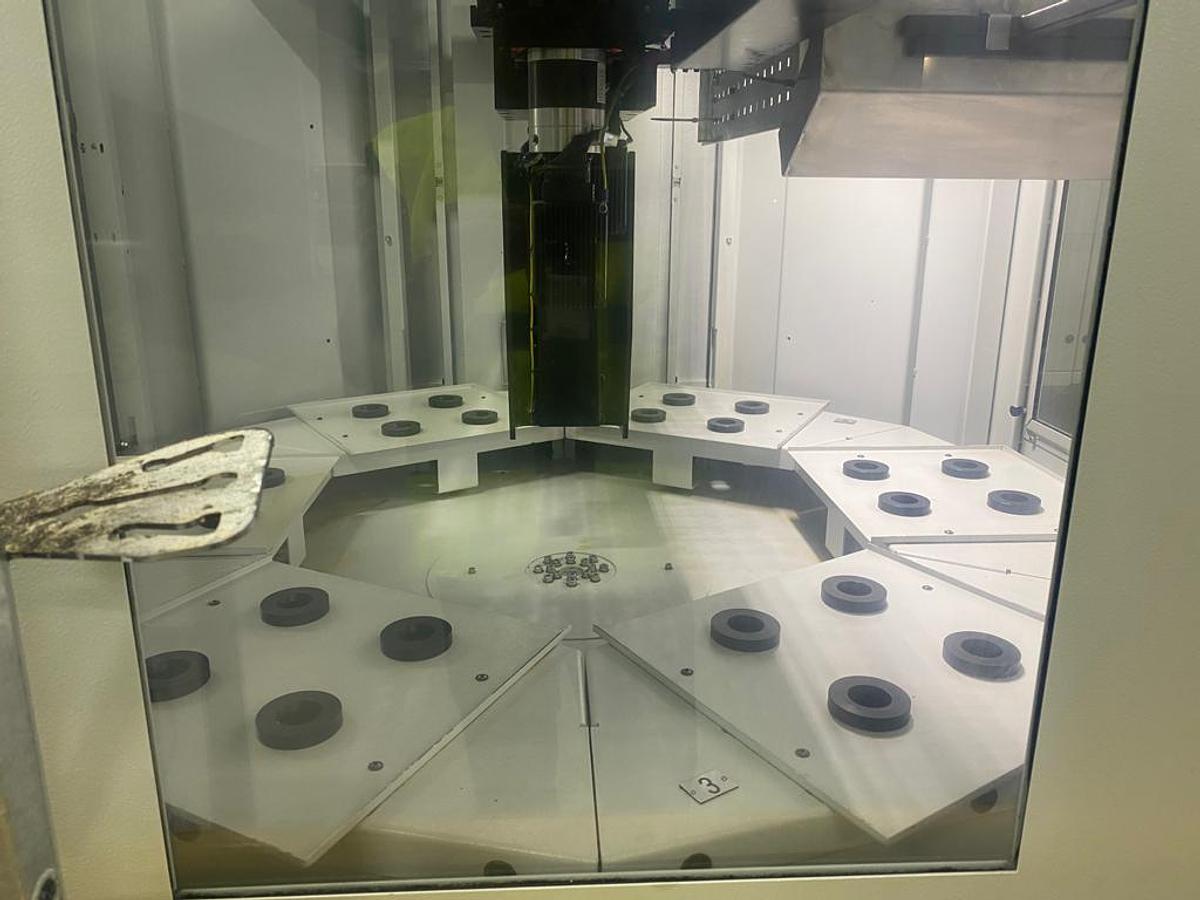

6 Pallet Changing System
Pallet Clamping Surface 400 x 400 mm
Pallet Loading Capacity 450 kg

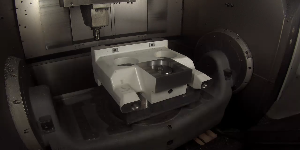

2-Axis NC Rotary / Swivelling Table
C Axis 360°
A Axis +130° / -130°

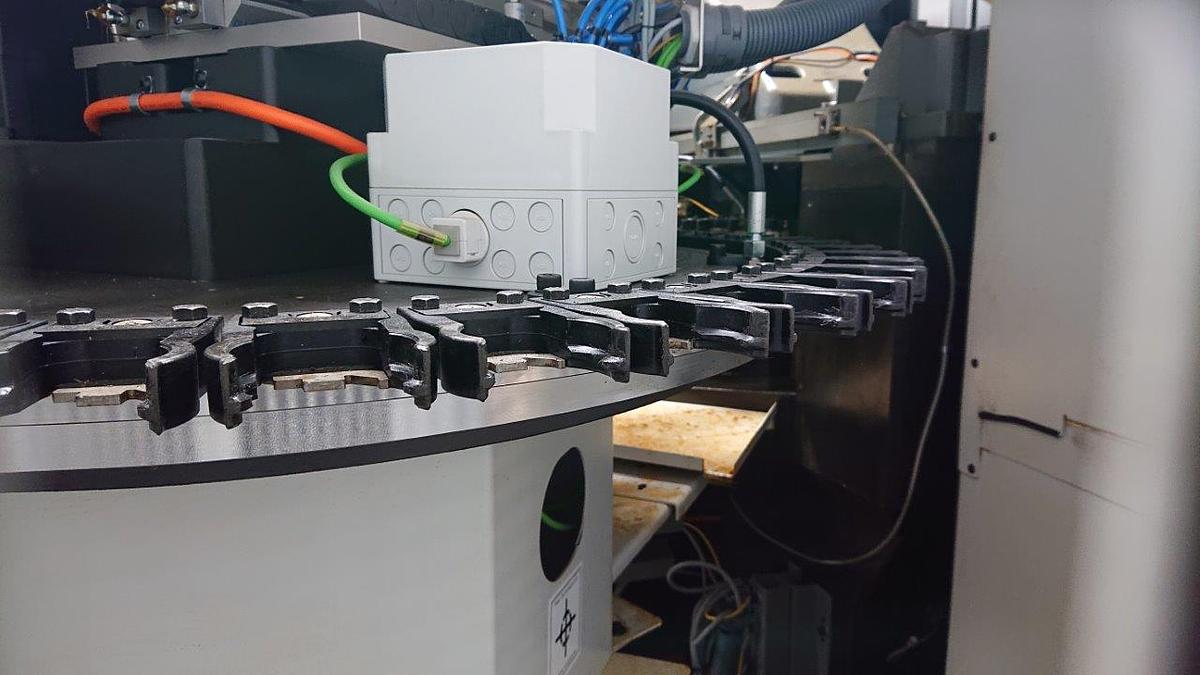

85 Position Automatic Tool Changer (42 ATC + Additional 43 Magazine)
Automatic Tool Changer:
Tool diameter with/without adjacent tools max. 90 / 125 mm
Tool length max. 300 mm
Tool weight max. 8 kg
Tool change time chip-to-chip 4.5 sec
New Spindle Added in 2019 - Very Low Running Hours on the Spindle

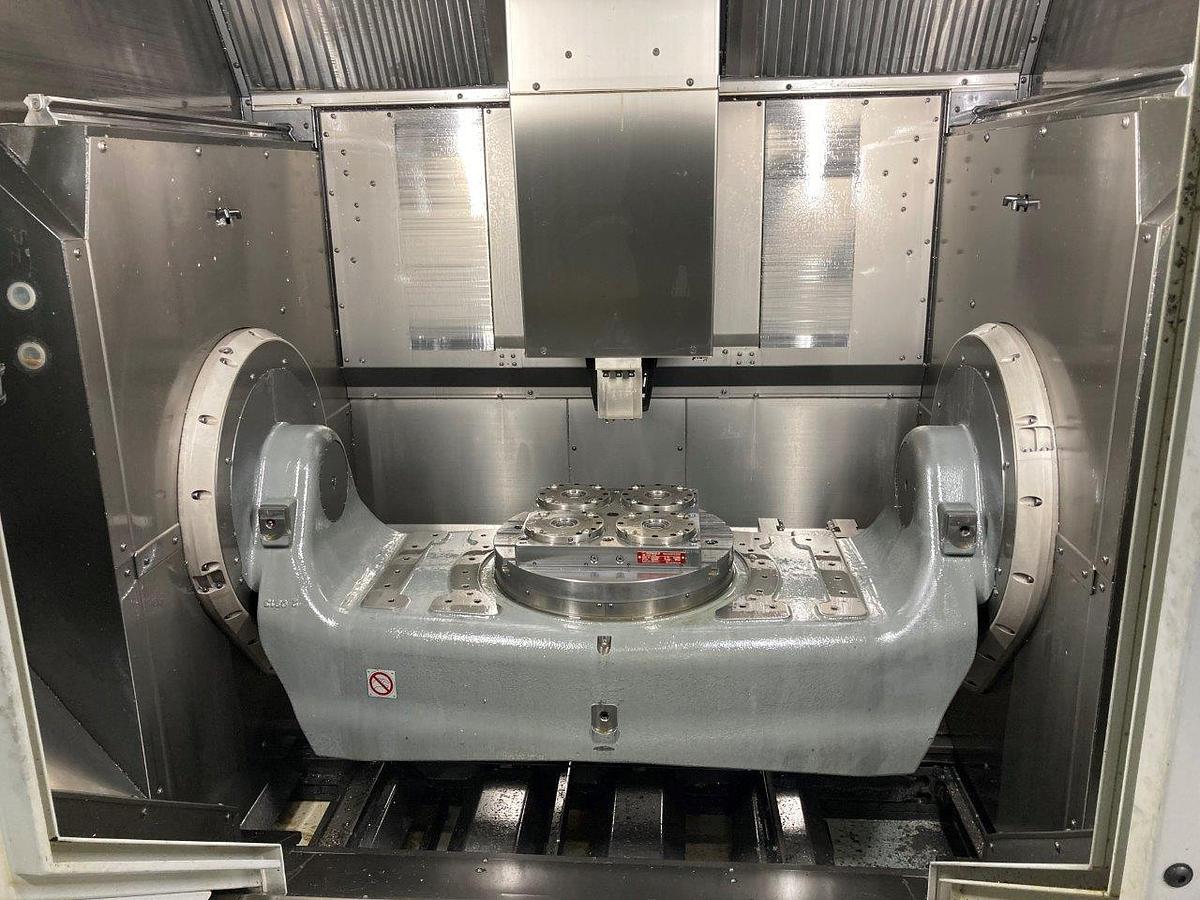

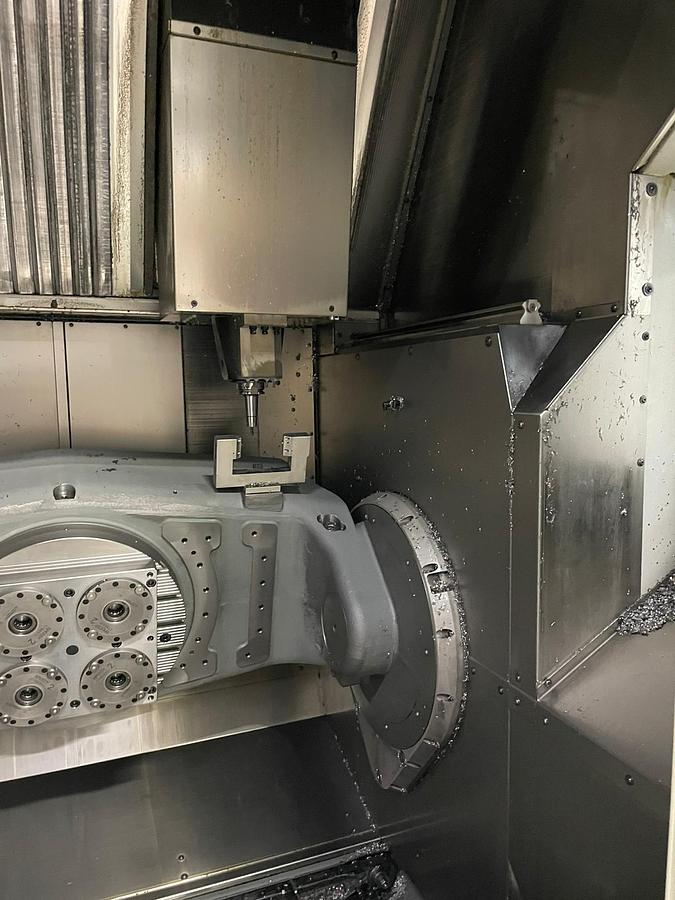

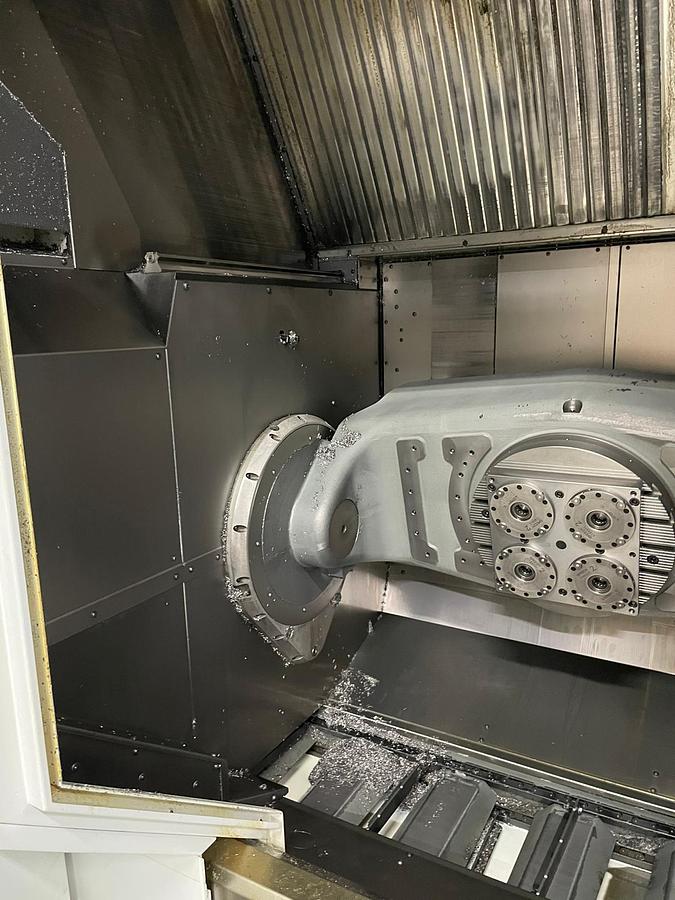

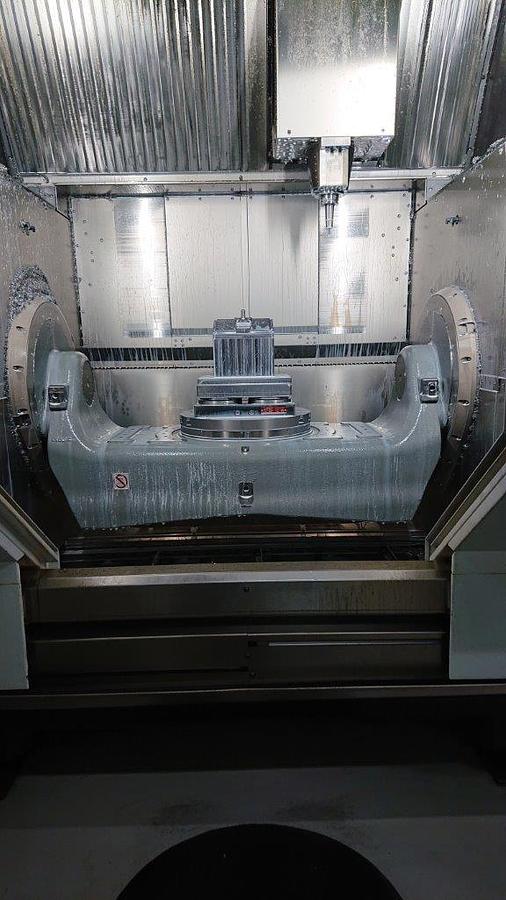

NC-Swiveling rotary table Ø 440
Torque drive in the C-axis
Tandem drive spur gear in the A-axis
Table load max. 450 kg
6-way rotary feed through SRT Ø 440

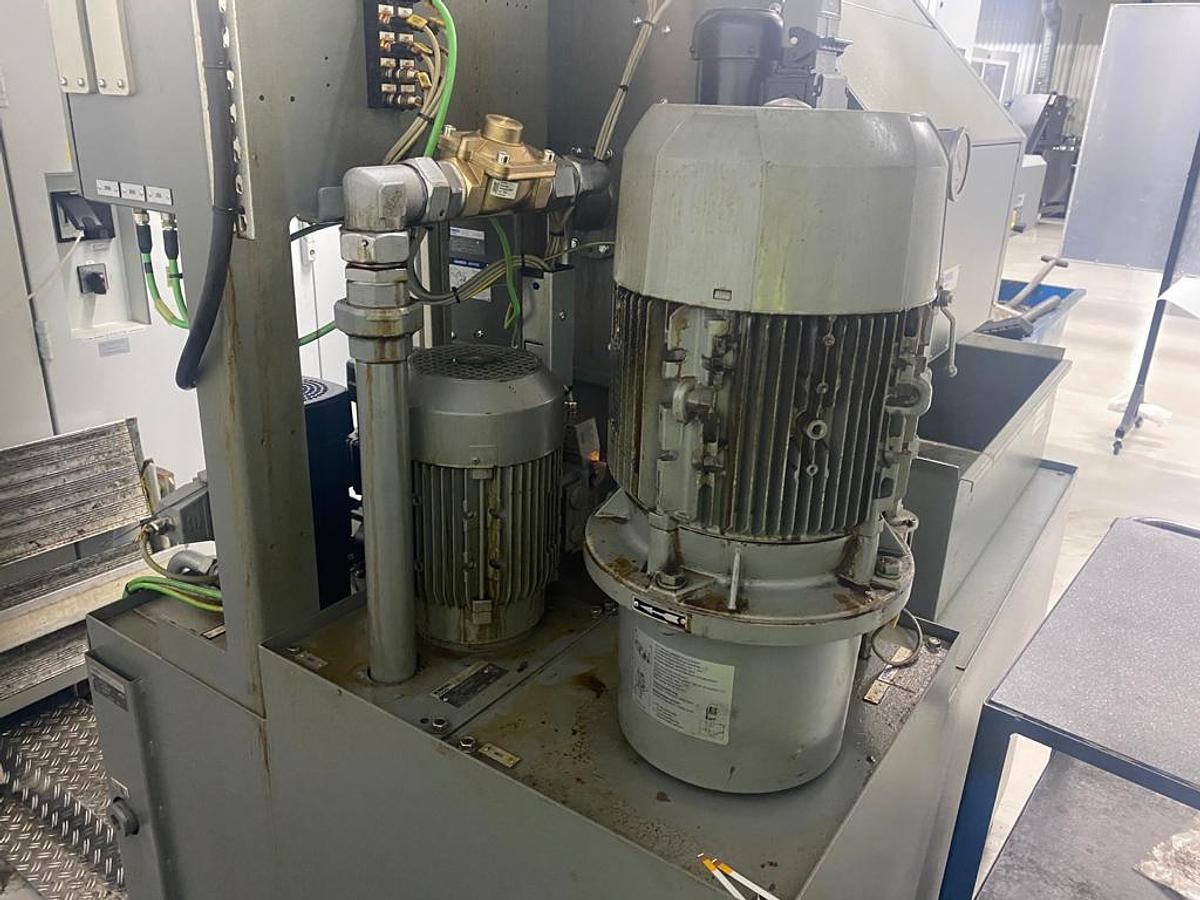

Internal coolant supply 80 bar includes:

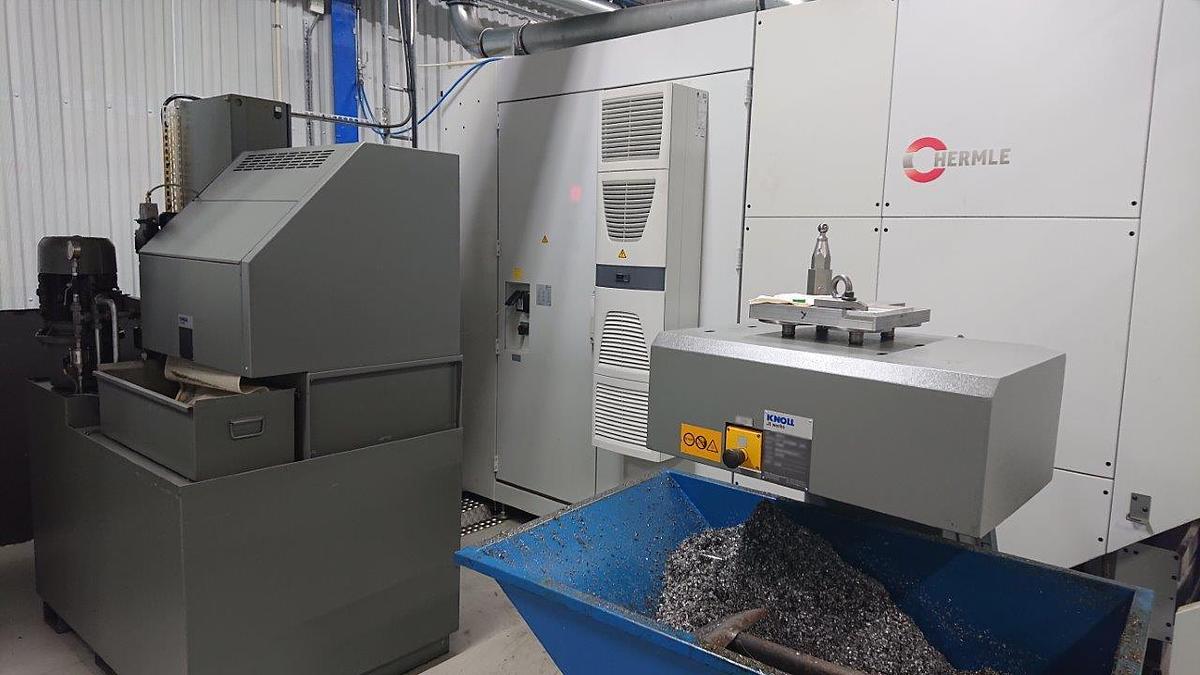

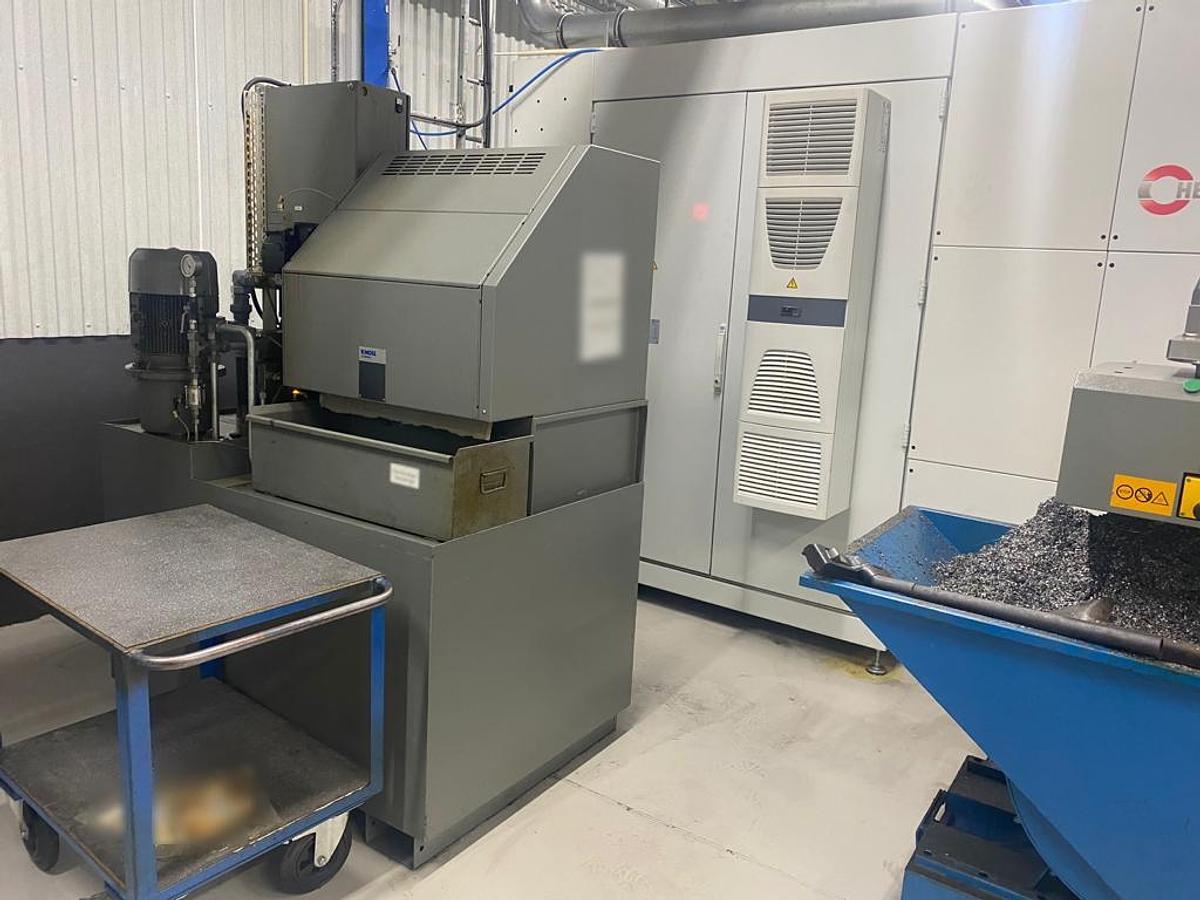

Paper band filter

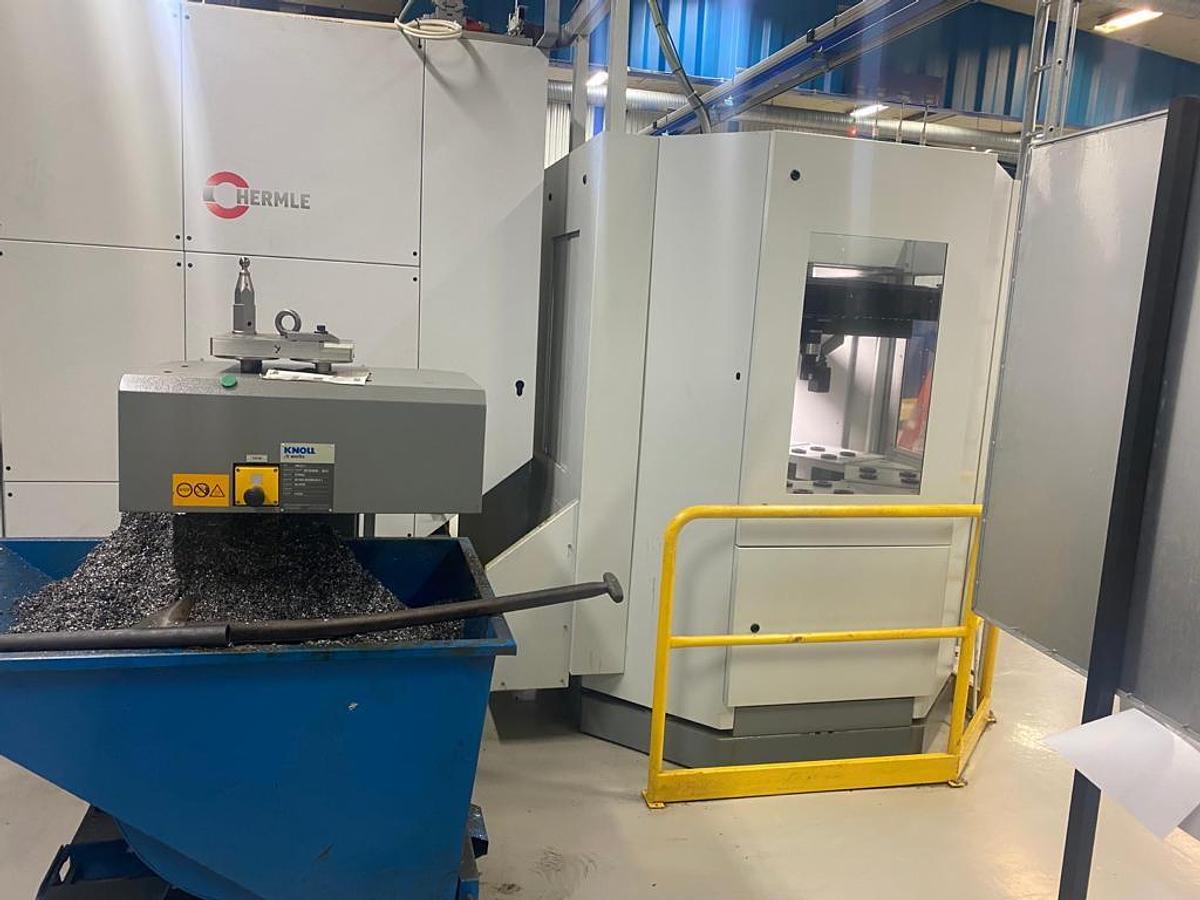

Standard chip conveyor
Standard coolant system
Sealing air for scales
Bed flushing
Scraper belt conveyor
Air bloow unit
Air blast through the spindle center
Chip cleaning gun
Laminated glass safety pane
Electrical heat compensation iTNC
Electric manual control module iTNC

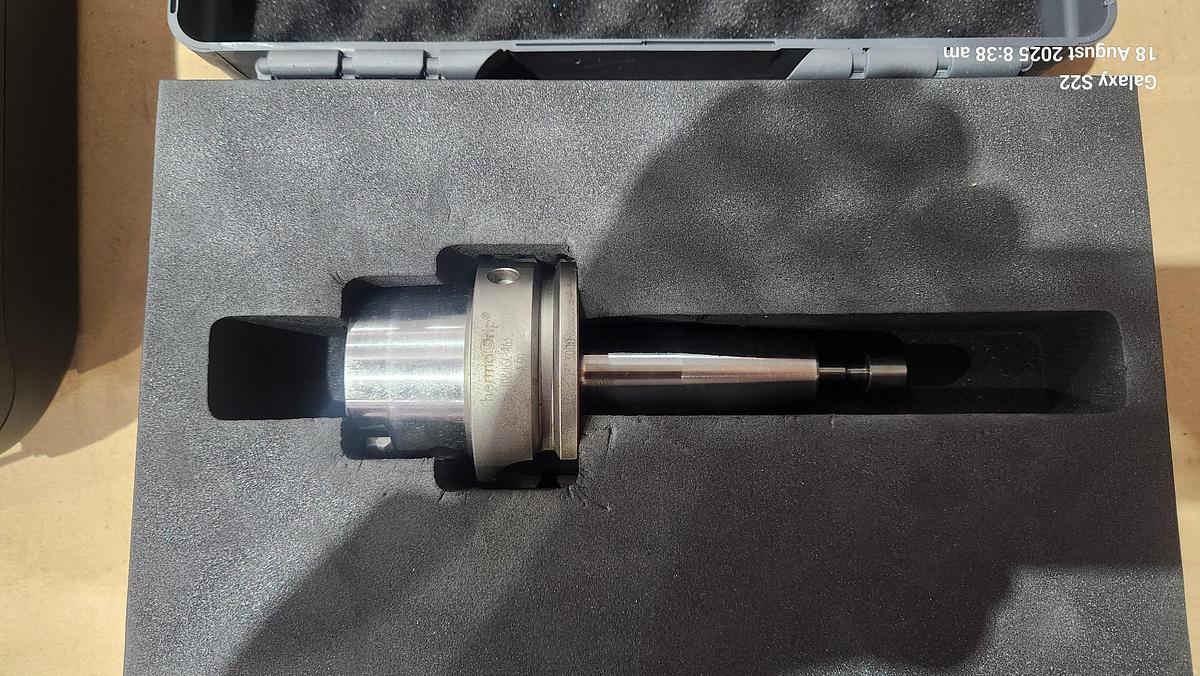

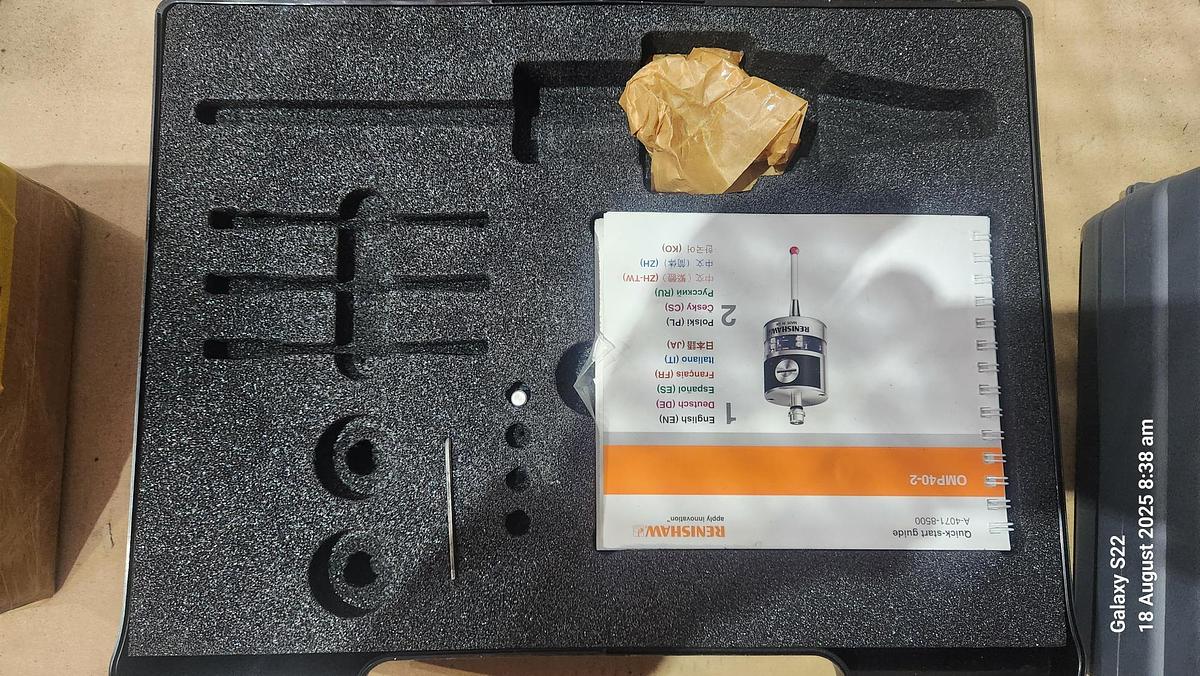

RENISHAW probe

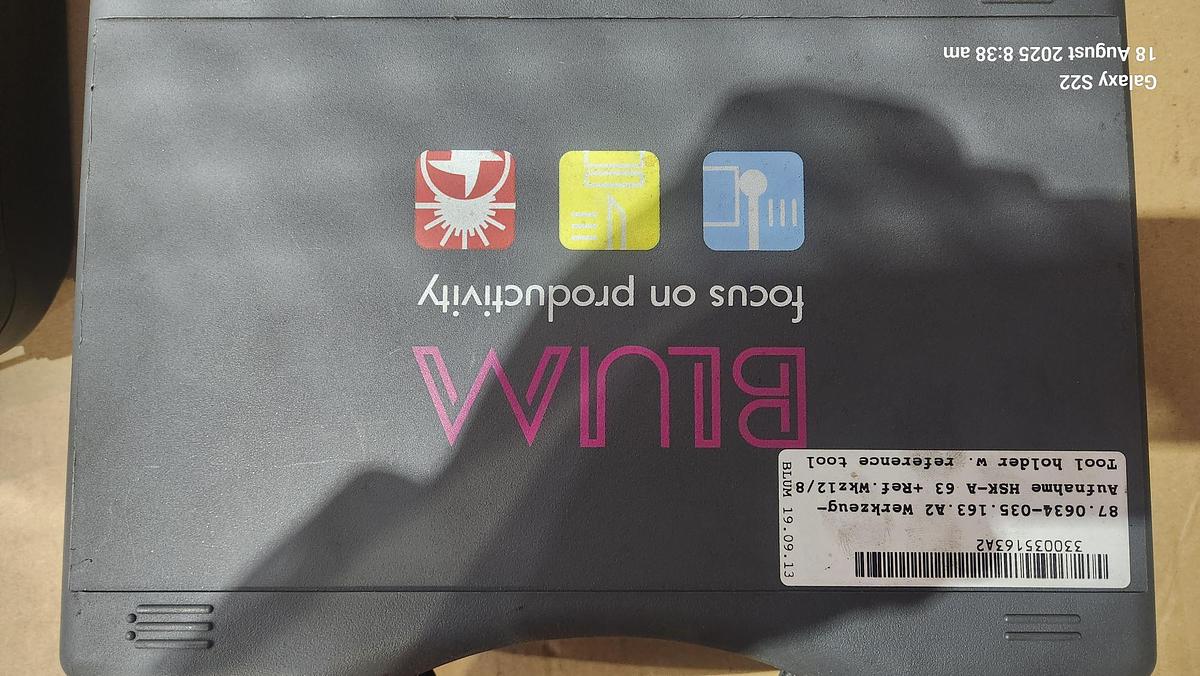

BLUM tool measurement and tool breakage control
Specifications
| Manufacturer | Hermle |
| Model | C 42U |
| Year | 2014 |
| Condition | Used |
| Stock Number | 5654231 |
| Spindle speeds | 18,000 rpm |
| X axis travel | 800 mm |
| Y axis travel | 800 mm |
| Z axis travel | 550 mm |
| Rapid Feed X/Y/Z | 45,000 mm/min |
| Rapid feed C | 65 rpm |
| Rapid feed A | 25 rpm |
| Spindle motor | 10 / 20 kW |
| Spindle torque | 180 Nm |
| Tool taper | HSK-A63 |
