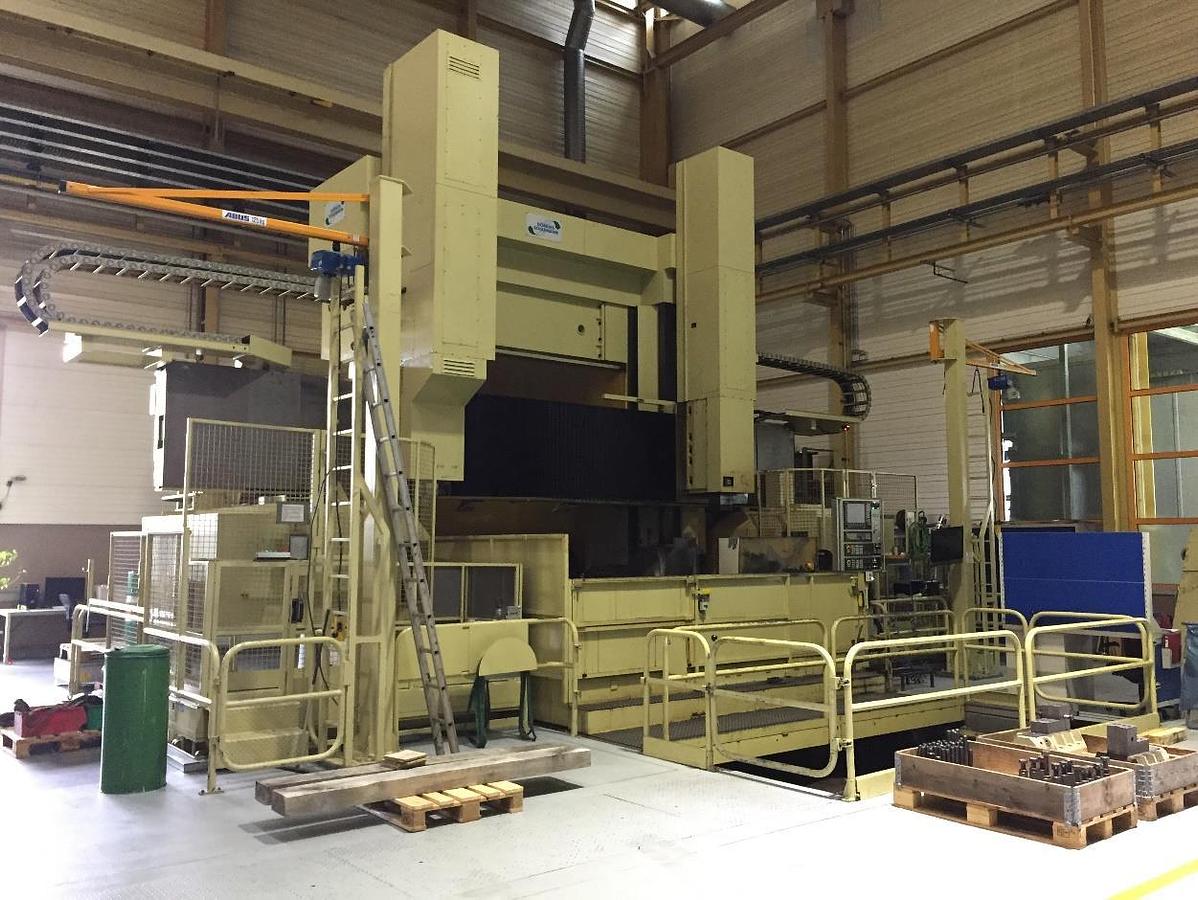

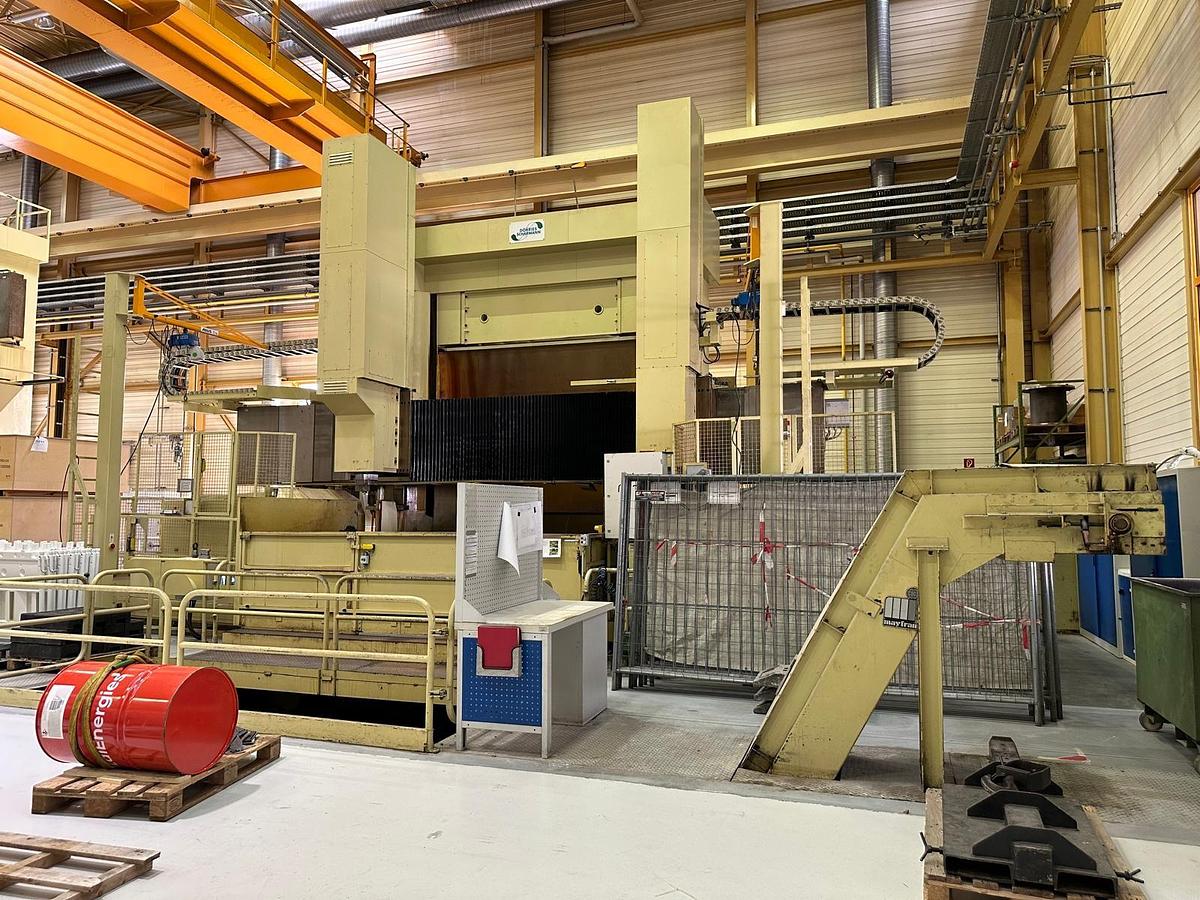

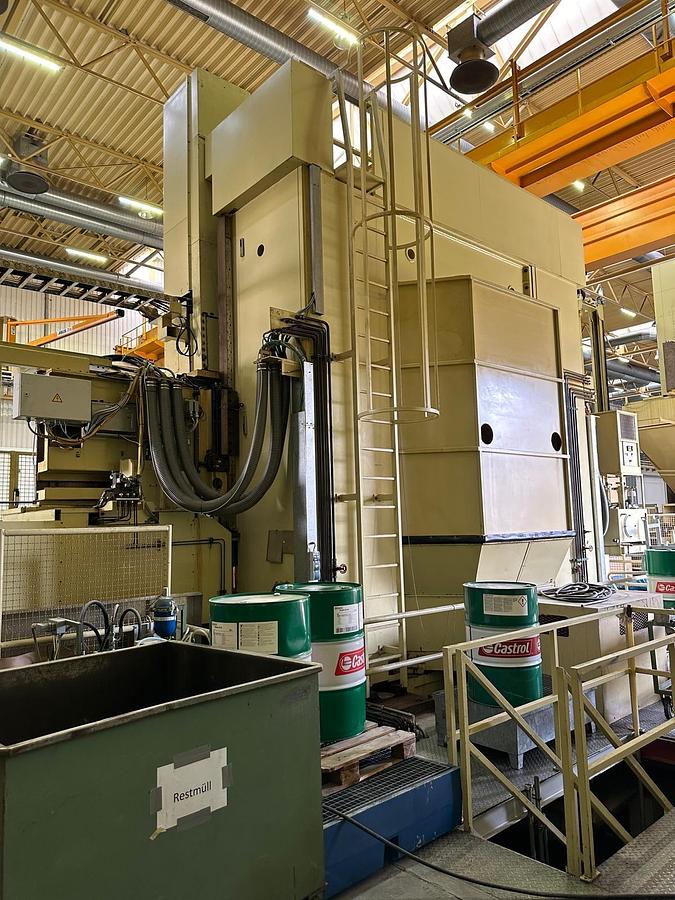

Dorries Scharmann Contumat 3 MC VC 4200/360 CNC Vertical Boring & Milling Machine with 2 Rams and Live Spindle Fully Rebuilt & Retrofitted. Mint Condition
Dorries Scharmann Contumat 3 MC VC 4200/360 CNC Vertical Boring & Milling Machine with 2 Rams and Live Spindle Fully Rebuilt & Retrofitted. Mint Condition
or
Call 770-509-0744
Description
Rebuilt & Retrofitted in 2015

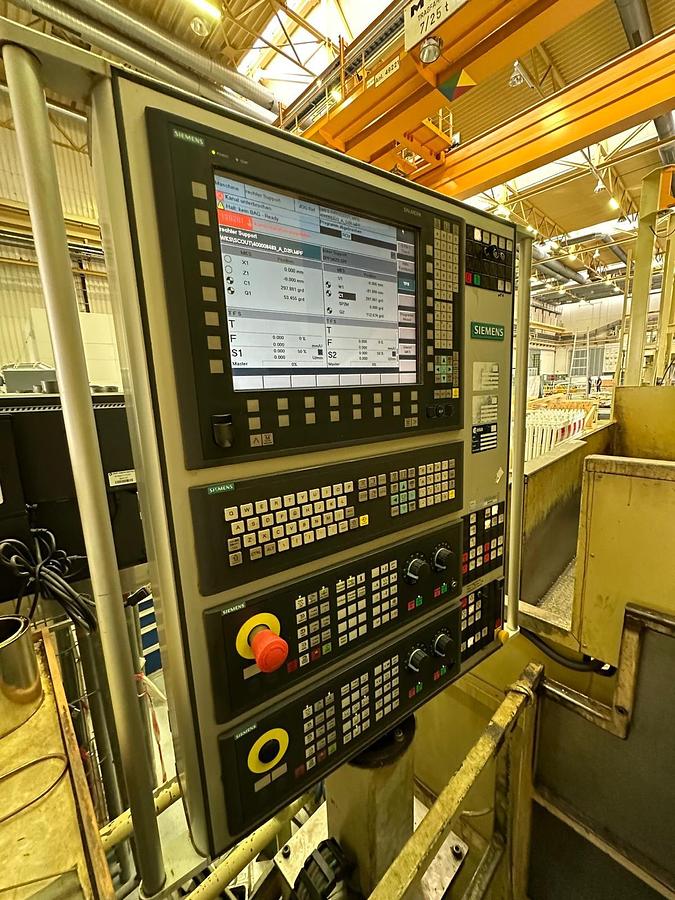

Siemens 840D sL CNC Control
Machine Complete With:

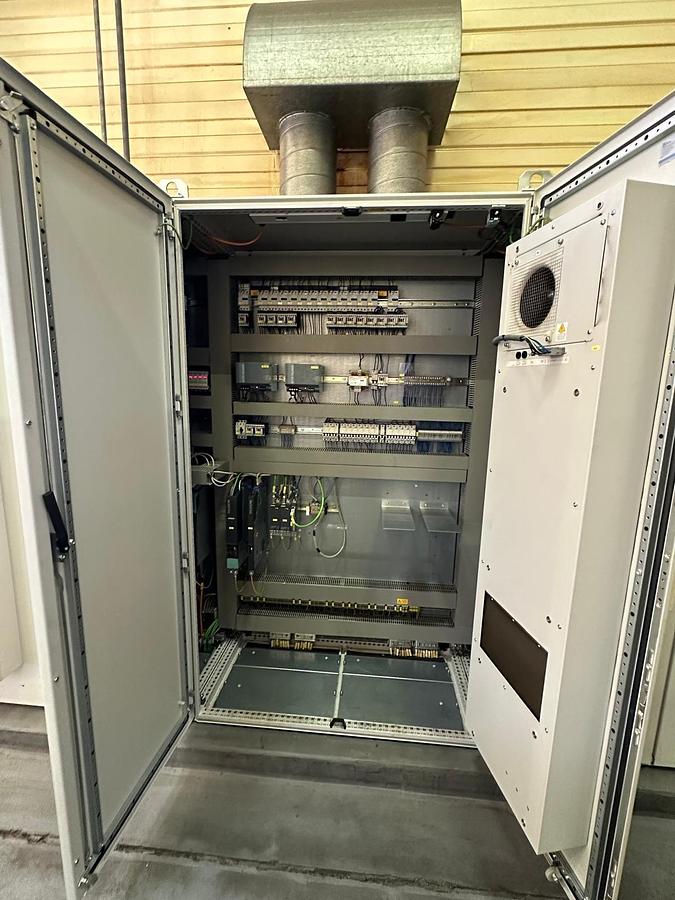

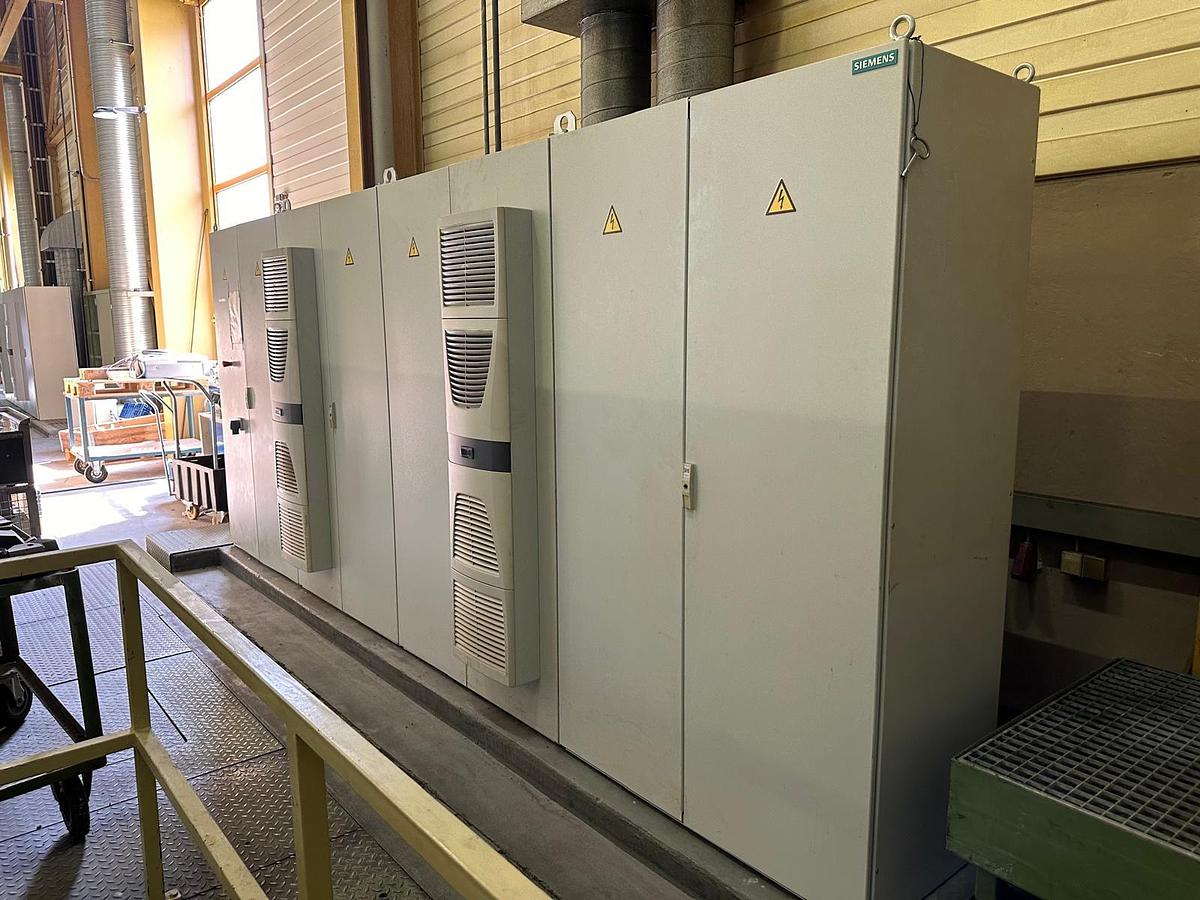

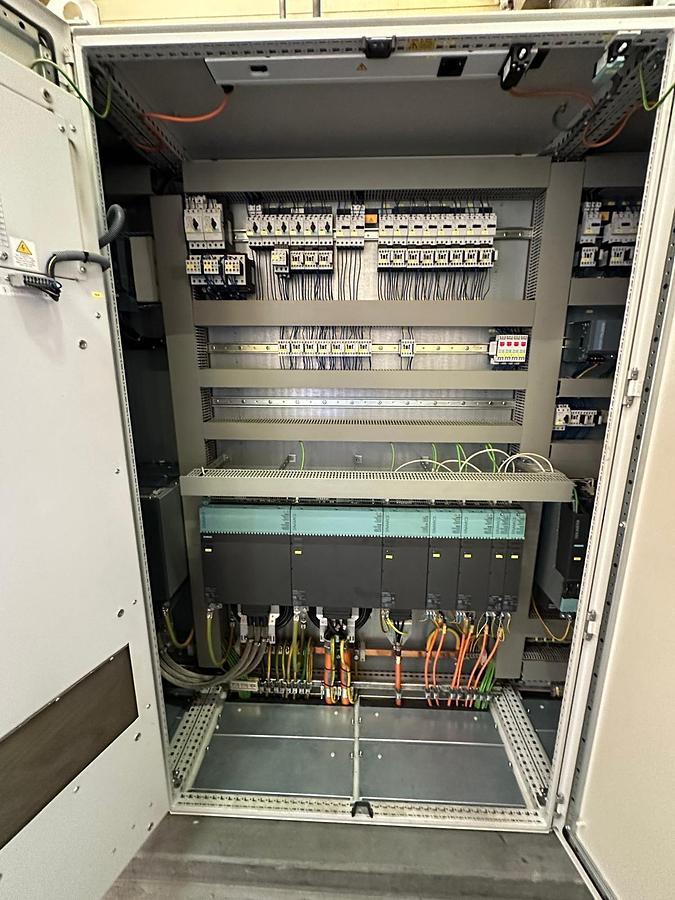

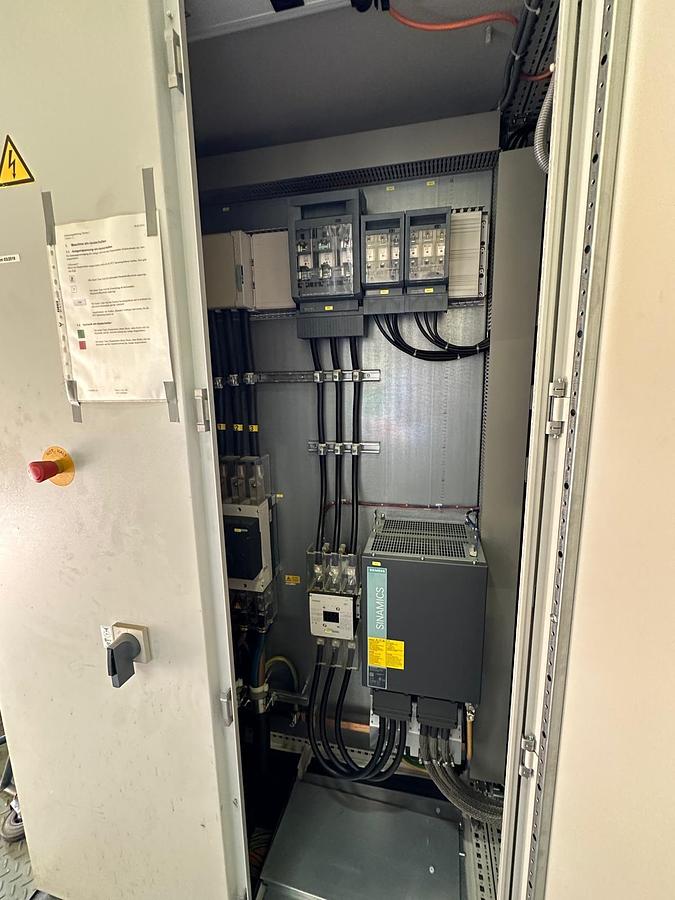

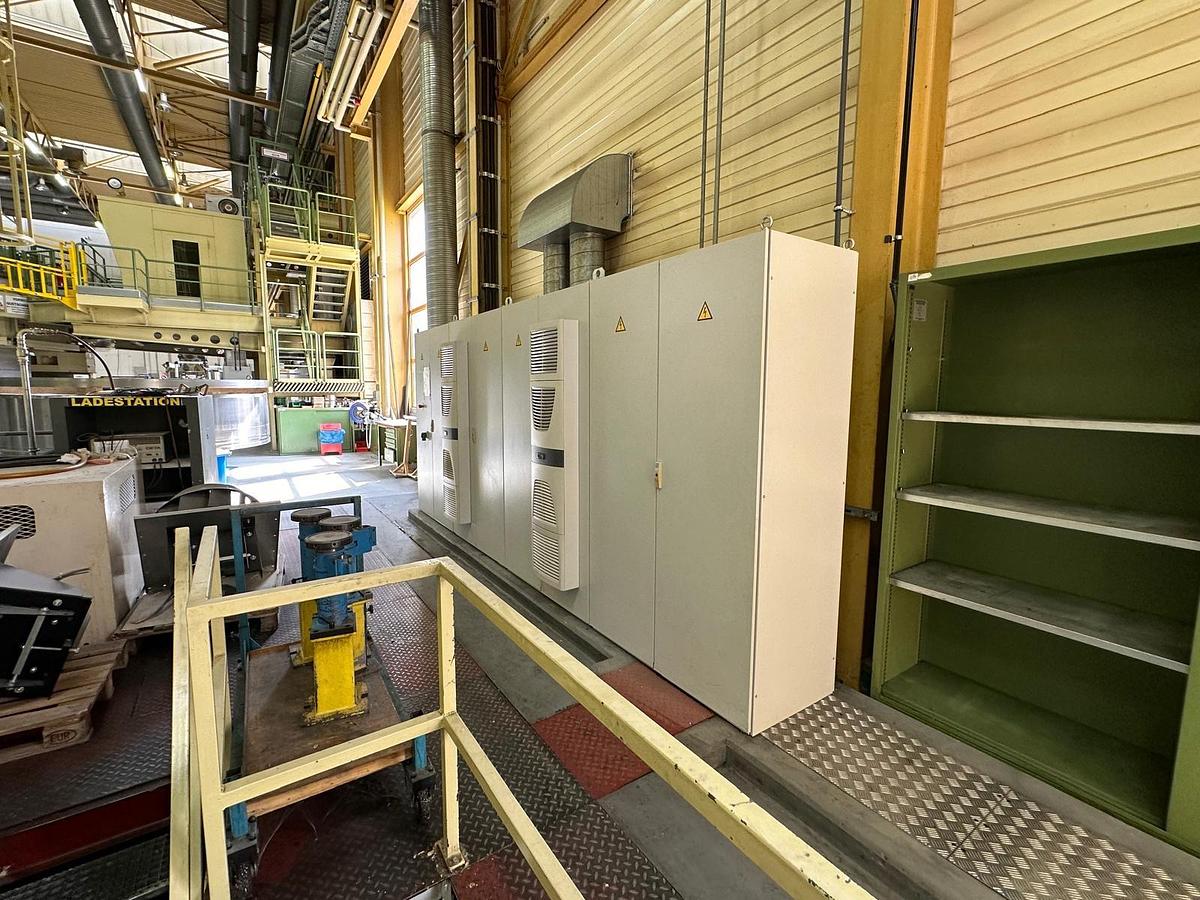

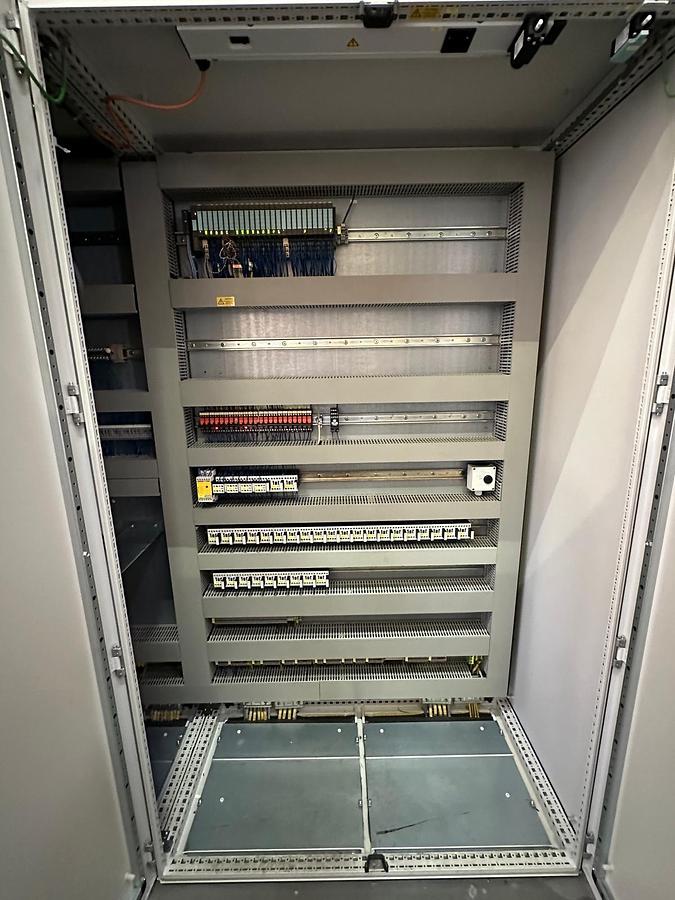

New Electrics, CNC Control, etc

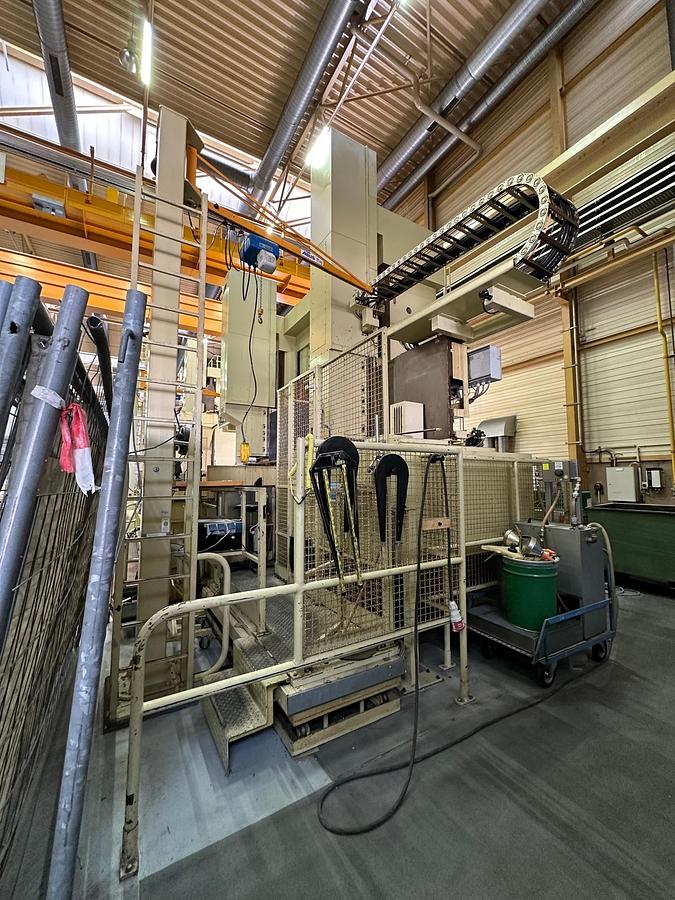

Operator Lifting Platform

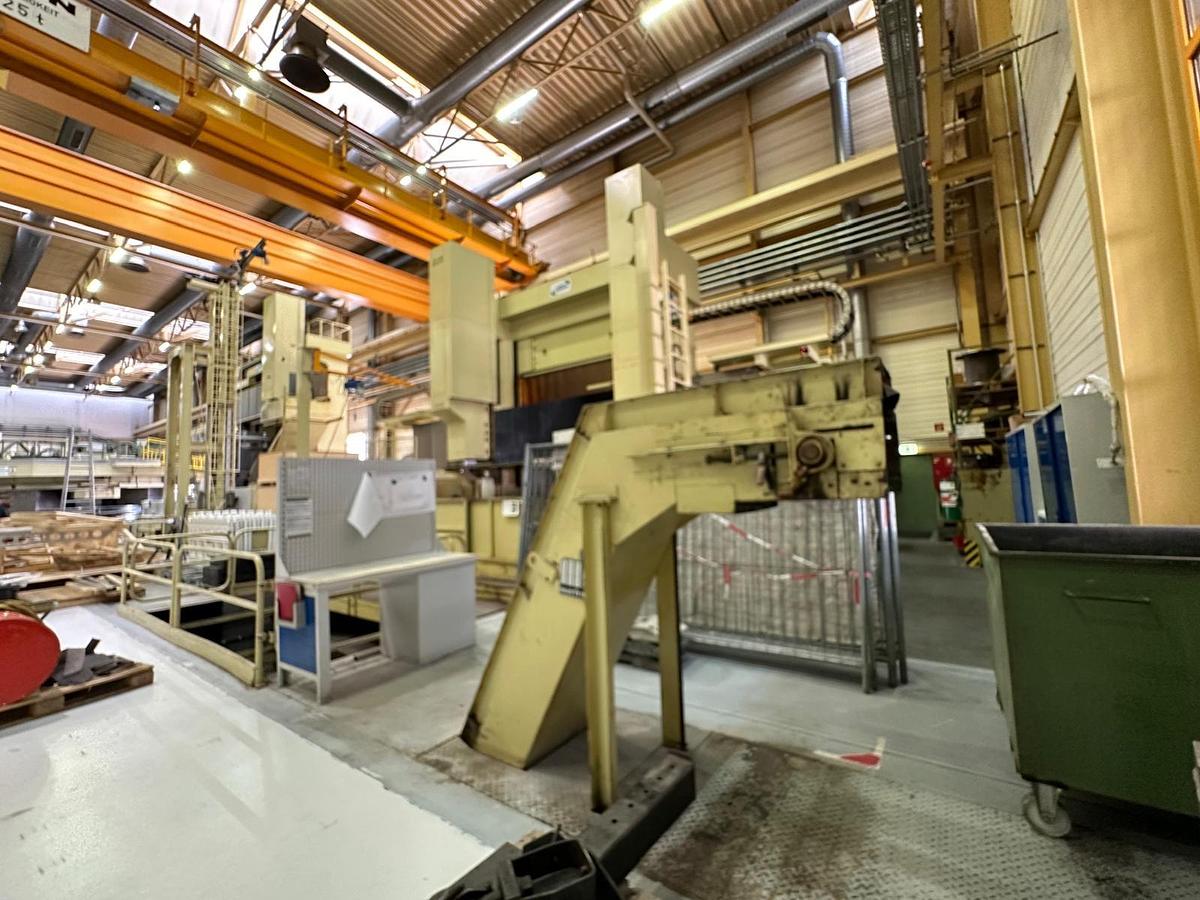

Chip Conveyor
Coolant Unit
Tool Changer
Tool probe RENISHAW

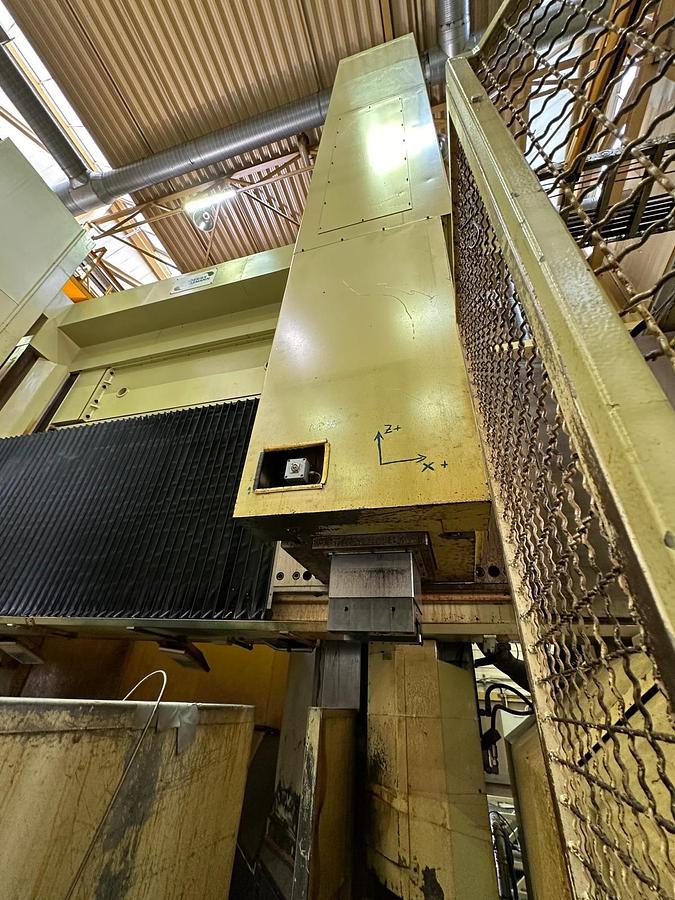

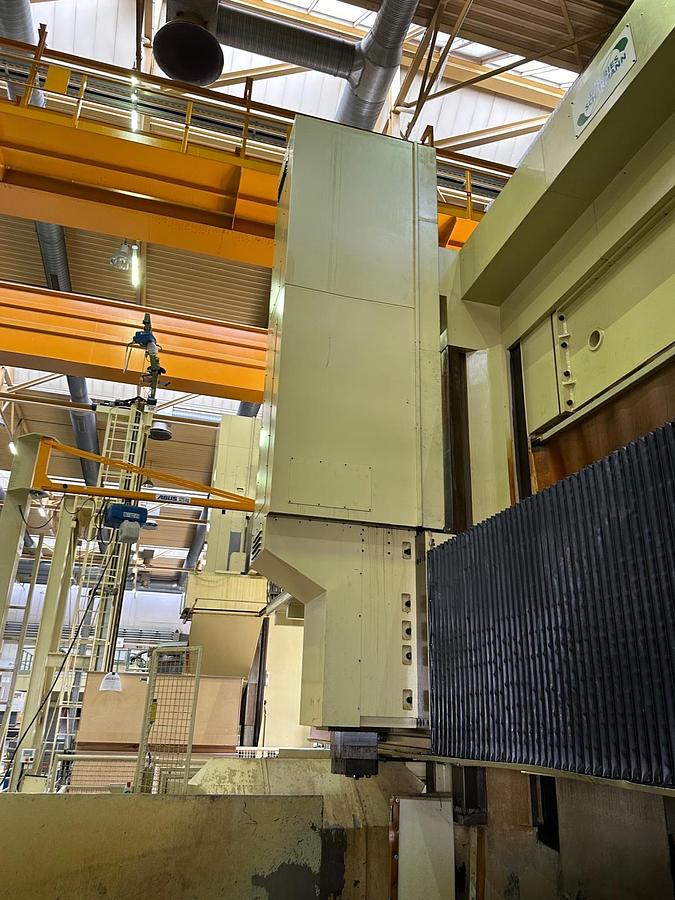

Vertical Support (right)
Horizontal travel Support 2,300 mm
Vertical travel of the RAM 1,800 mm

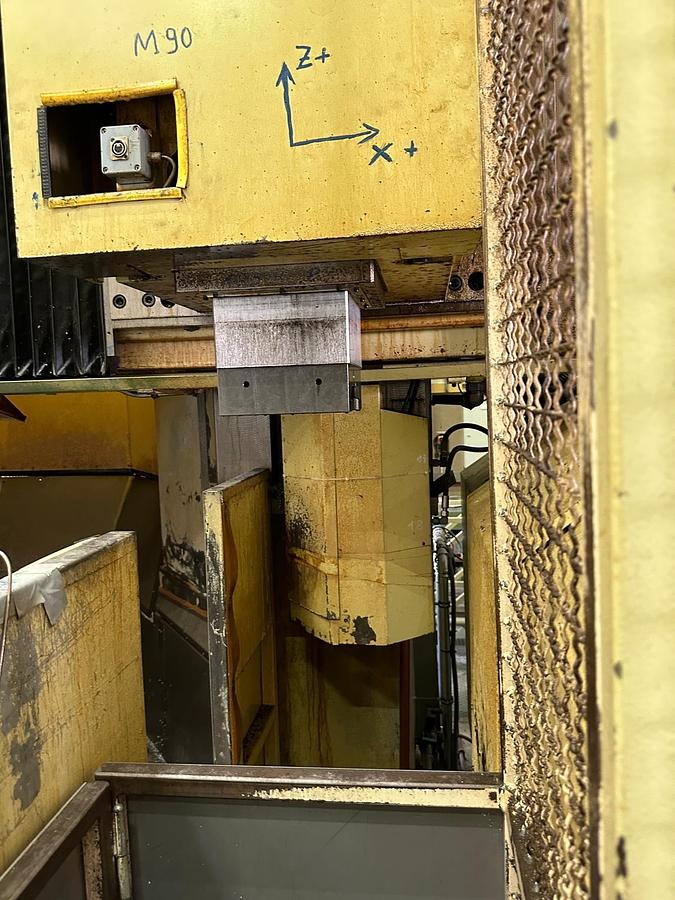

Cross-section of the RAM 240 x 240 mm
Tool Changer
Vertical Support (left)
Horizontal travel Support 2,300 mm
Vertical travel of the RAM 1,800 mm
Tool changer

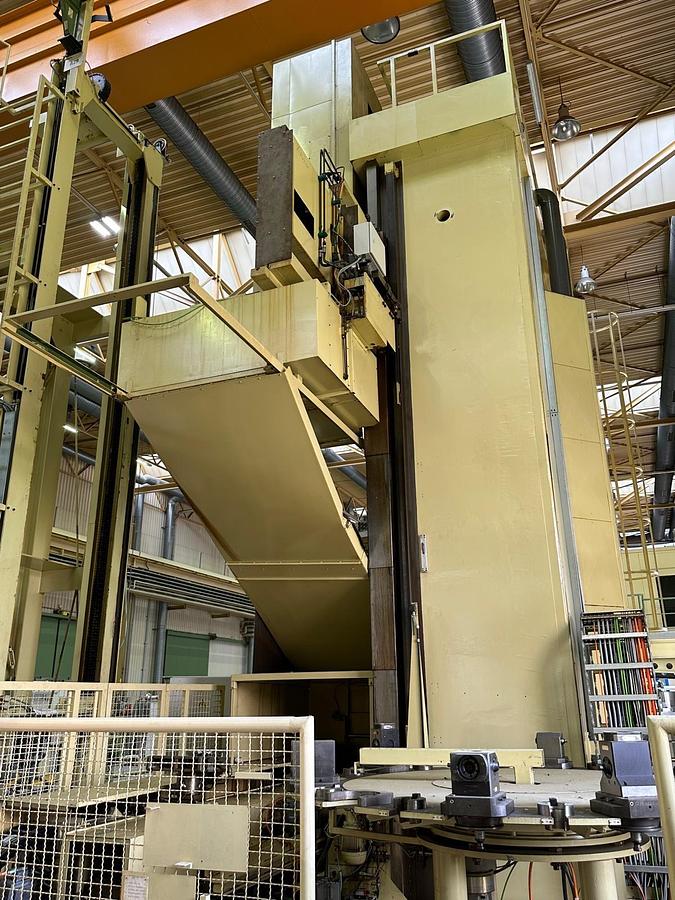

Live Spindle Vertical Support:
Motor Power 22,5 kW
Max. Torque 900 Nm
Specifications
| Manufacturer | Dorries Scharmann |
| Model | Contumat 3 MC: VC 4200/360 |
| Year | 2015 |
| Condition | Refurbished |
| Stock Number | 5654230 |
| Table diameter | 4,000 mm |
| Swing | 4,600 mm |
| Turning height | 3,000 mm |
| Table capacity | 80 Ton |
| Table turn speed | 90 rpm |
| Crossrail travel | 1,900 mm (in 100 mm steps) |
| Y axis table travel | 1,800 mm |
| Live spindle motor | 22.5 kW |
| Live spindle torque | 900 Nm |
| Ram size | 240 x 240 mm |
| Main drive | 105 kW |
| Machine height above floor level | 7,250 mm |
| Machine weight | 132 Ton |
