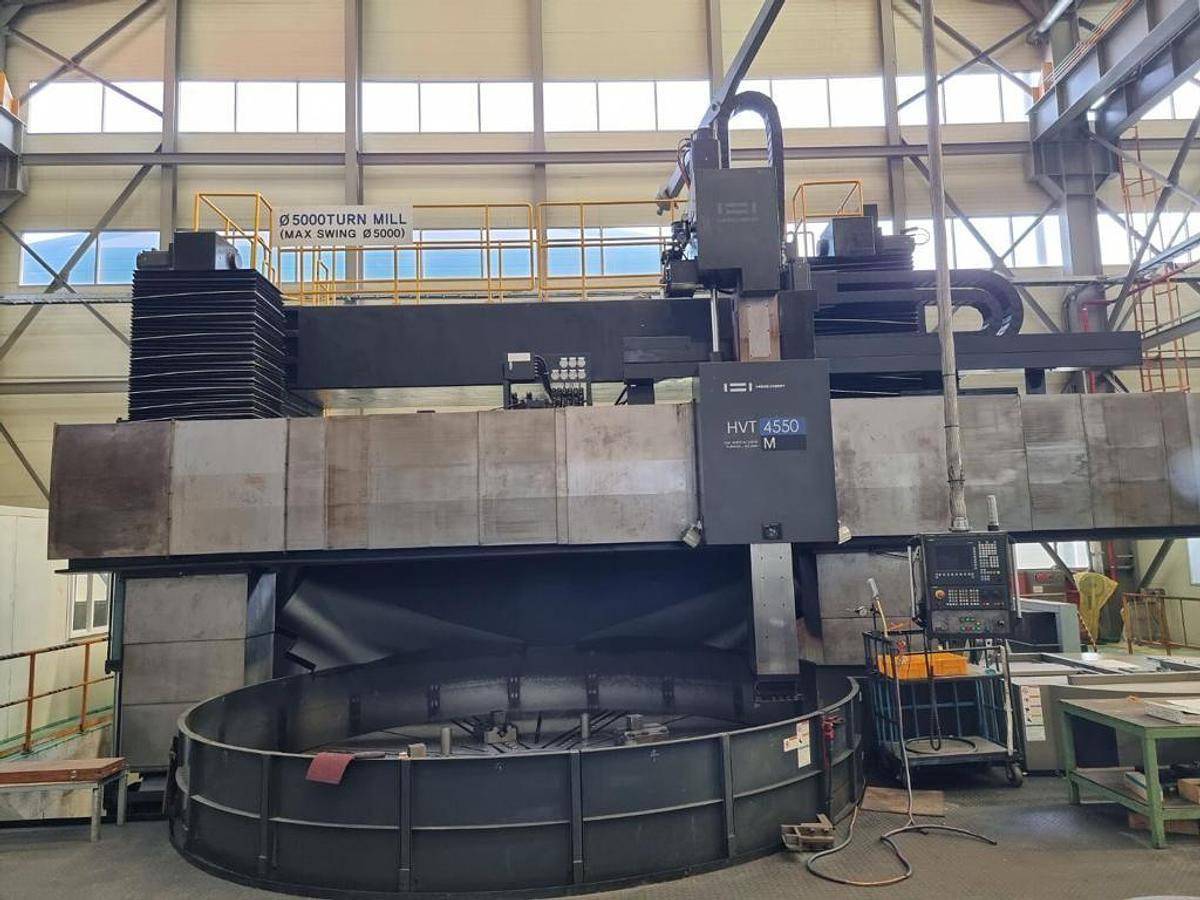

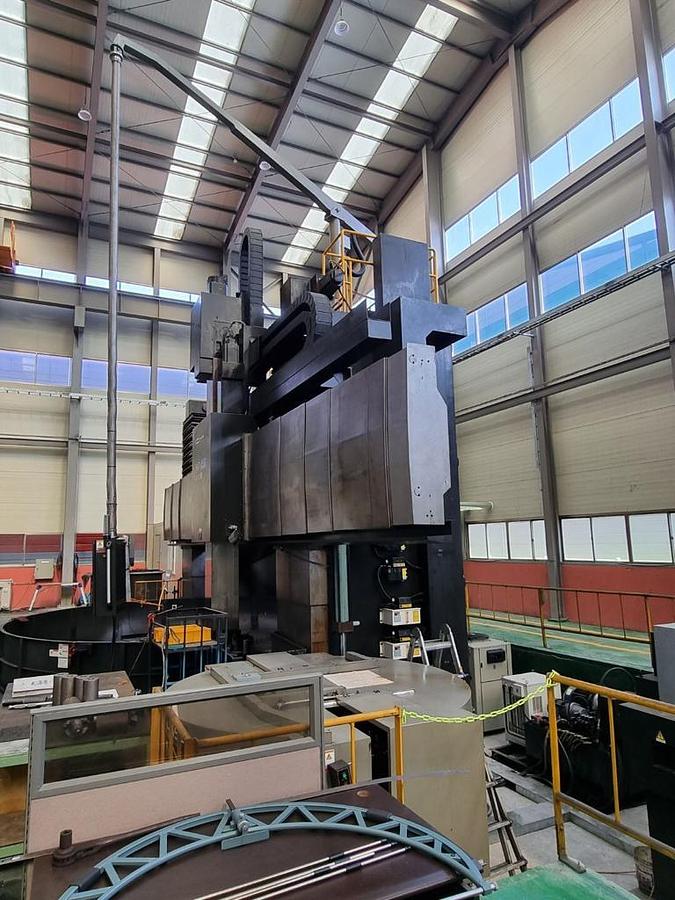

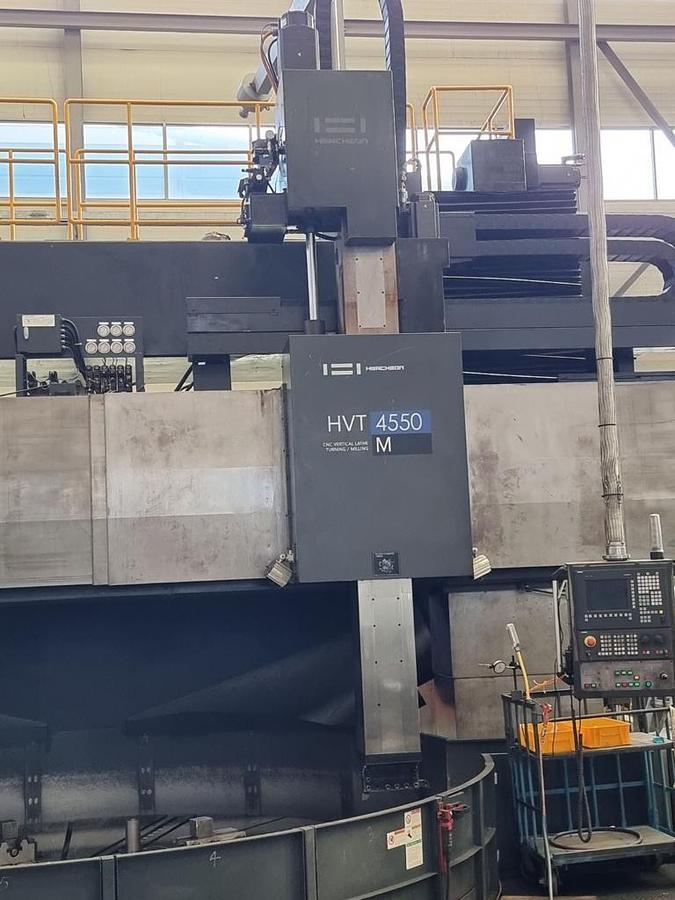

Hwacheon HVT 4550M CNC Vertical Turning & Milling Machine with Live Spindle
Hwacheon HVT 4550M CNC Vertical Turning & Milling Machine with Live Spindle
or
Call 770-509-0744
Description
Siemens 840D CNC Control
12 Position Automatic Tool Changer

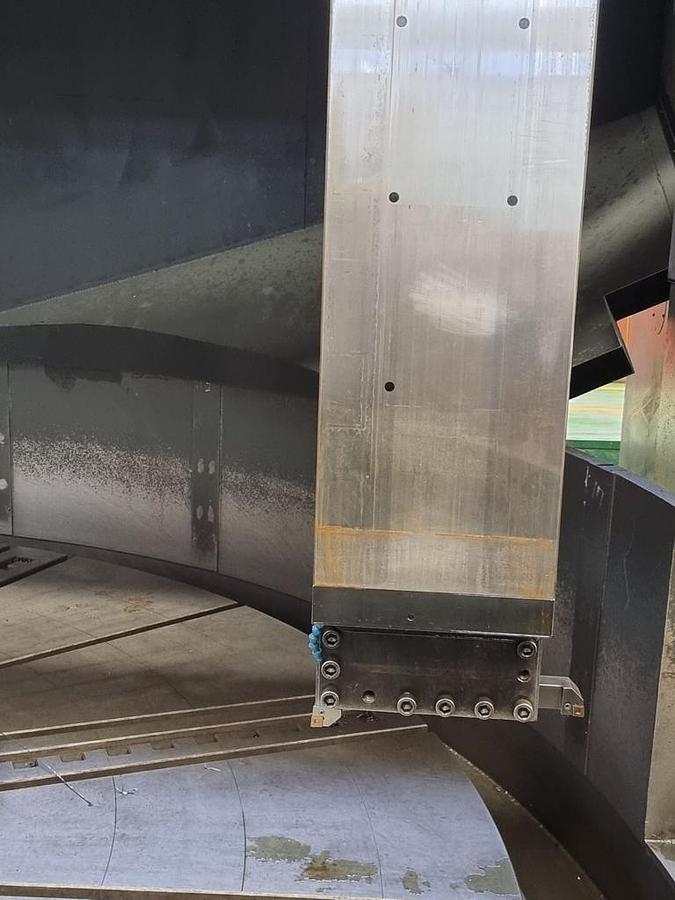

Live Spindle - 30 kW Drive motor
Table C-Axis -0.001 deg.
Chip Conveyor
Specifications
| Manufacturer | Hwacheon |
| Model | HVT 4550M |
| Year | 2015 |
| Condition | Used |
| Stock Number | 5654229 |
| Table diameter | 4,500 mm |
| Swing | 5,000 mm |
| Turning height | 2,500 mm |
| Table capacity | 40 Ton |
| X axis travel | -250 ~ +4,100 mm |
| Z axis travel | 1,500 mm |
| W axis travel | 2,000 mm |
| Table turn speed | 50 rpm |
| Ram size | 350 x 350 mm |
| Table motor | 145/105 kW |

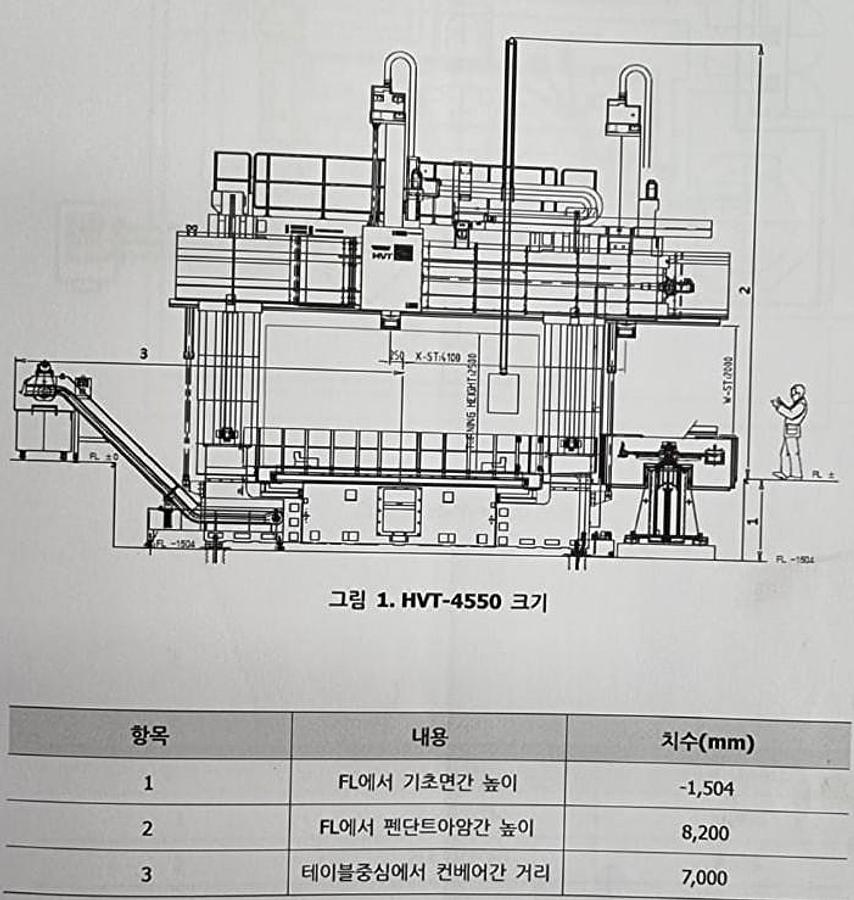

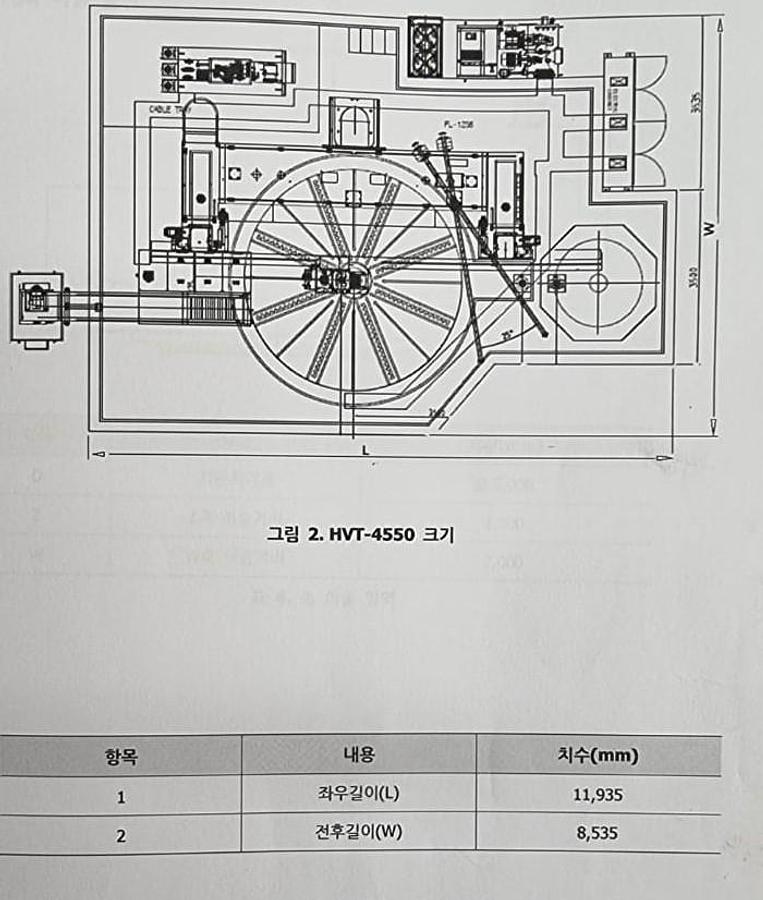

| Machine dimensions | 11,935 x 8,535 x 8,200 mm |
| Machine weight | 140 Ton |
