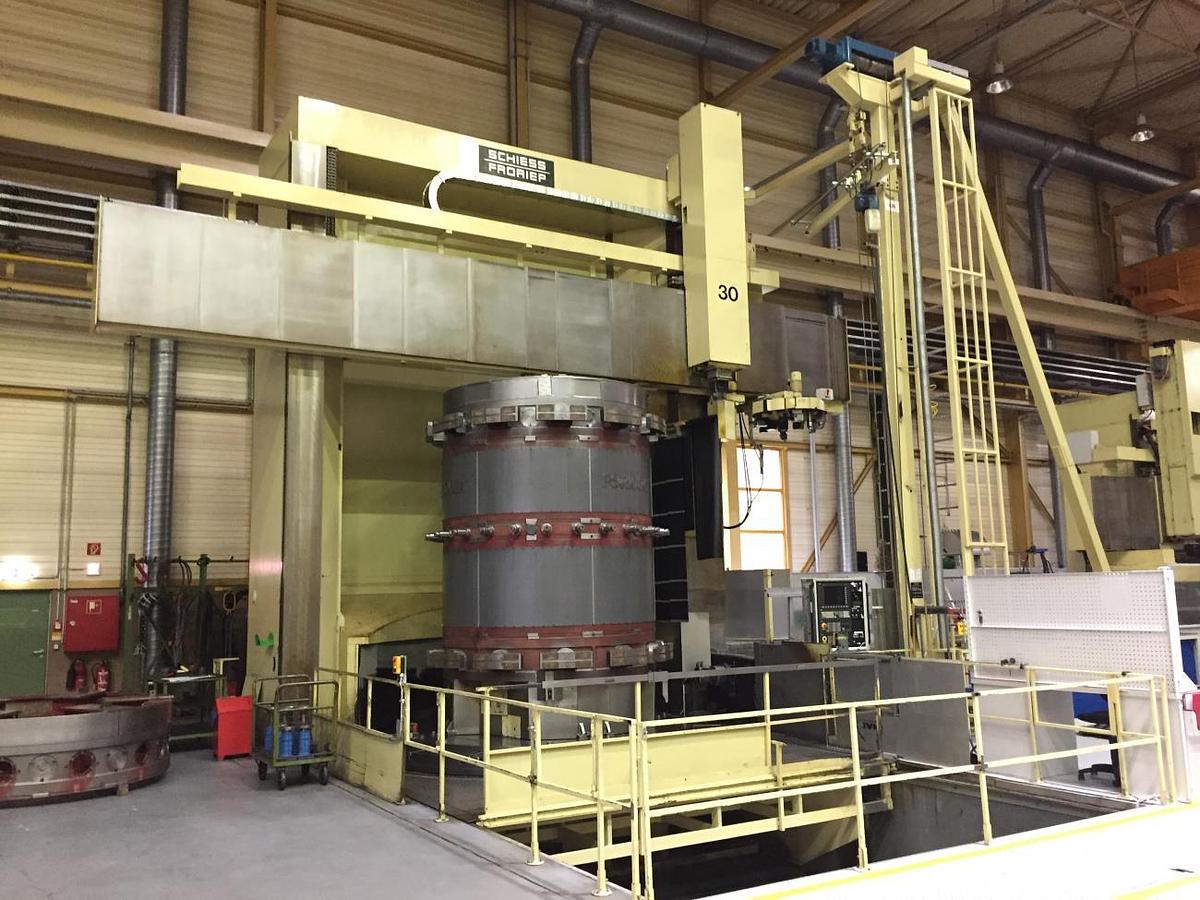

Schiess 40 DZ CNC Single Ram Vertical Turning Machine with Live Spindle Side Head
Schiess 40 DZ CNC Single Ram Vertical Turning Machine with Live Spindle Side Head
or
Call 770-509-0744
Description
Machine Rebuilt & Retrofitted 2015
Siemens 840D SL CNC Control
Horizontal Side Head with Live Spindle:
Vertical travel of the Support -25 + 2170 mm
Horizontal movement of RAM 1,000 mm
Turing diameter (max/min) 4500/2500 mm
Tool changer
Motor Power 22.5 kW
Max. Torque 900 Nm
Machine Complete With:
New electric (Switch cupboard, cables, sensors, etc.)
All axes incl. Table are hydrostatic guided
Operator Lifting Platform
Chip conveyor
Coolant Unit
Tool Changer
Work piece probe RENISHAW
Vertical Support (right)
Horizontal travel Support - 2740 + 2740 mm
Vertical travel of the RAM 1.800 mm
Cross-section of the RAM 250x210 mm
Tool changer places
Specifications
| Manufacturer | Schiess |
| Model | 40 DZ 12-400/500-500/180 |
| Condition | Refurbished |
| Stock Number | 5654228 |
| Table diameter | 4,000 mm |
| Swing | 5,000 mm |
| Turning height | 5,000 mm |
| Table capacity | 80 Ton |
| Y axis table travel | 2,500 mm |
| Crossrail travel | 3,200 mm (in 50 mm steps) |
| Table turn speed | 63 rpm |
| Main drive | 100 kW |
| Main drive torque | 160 kNm |
| Connection to power | 380V / 50Hz - 220V AC/24V DC - 150 kVA - 400A |
